sensor FIAT PANDA 2007 169 / 2.G Owners Manual

4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 7
THE FIAT CODE SYSTEM ................................................. 7
THE KEYS .............................................................................. 8
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS..................................................................... 16
DIGITAL DISPLAY ............................................................... 18
MULTIFUNCTION DISPLAY ............................................ 19
RECONFIGURABLE MULTIFUNCTION DISPLAY .... 21
TRIP COMPUTER ................................................................ 29
SEATS....................................................................................... 32
HEAD RESTRAINTS............................................................. 33
STEERING WHEEL............................................................... 35
REARVIEW MIRRORS......................................................... 35
HEATING AND VENTILATION...................................... 37
MANUAL CLIMATE CONTROL SYSTEM .................... 41
AUTOMATIC CLIMATE CONTROL SYSTEM ............. 44
EXTERNAL LIGHTS............................................................. 48
WINDOW WASHING....................................................... 49
CEILING LAMP...................................................................... 50
CONTROLS .......................................................................... 52
INTERIOR FITTINGS .......................................................... 53SUNROOF ............................................................................. 55
DOORS .................................................................................. 57
POWER WINDOWS/WINDOW WINDERS .............. 59
BOOT ...................................................................................... 62
BONNET................................................................................. 63
ROOF RACK/SKI RACK .................................................... 65
HEADLIGHTS........................................................................ 65
ABS SYSTEM ......................................................................... 67
ESP SYSTEM ........................................................................... 69
EOBD SYSTEM ..................................................................... 72
“DUALDRIVE” ELECTRIC POWER STEERING SYSTEM 72
PARKING SENSORS ........................................................... 74
SOUND SYSTEM.................................................................. 76
AT THE FILLING STATION.............................................. 78
PROTECTING THE ENVIRONMENT............................. 79
DD D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
001-031 Panda New GB 21-06-2007 13:47 Pagina 4

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PARKING SENSORS
(where provided)
Parking sensors are located in the rear
bumper fig. 95and their function is to in-
form the driver, through an intermittent
buzzer, about the presence of obstacles
behind the car.
ACTIVATION
The sensors are automatically activated
when the reverse gear is engaged.
The sound produced by the acoustic alarm
becomes louder when the distance be-
tween the car and the obstacle decreases.
BUZZER WARNINGS
When the reverse gear is engaged an in-
termittent acoustic signal is automatically
activated (short beep indicating that sen-
sors are active).
The acoustic signal:
❒ becomes louder as the reduction of dis-
tance between the car and the obsta-
cle decreases;
❒ becomes continuous when the distance
between the car and the obstacle is less
that 30 cm and stops if the distance rais-
es;
❒is constant if the distance is unvaried.Direction distances
Central action radius 120 cm
Side action radius 60 cm
If several obstacles are detected, the con-
trol unit indicates the nearest one. We suggest to stop immediately the car,
turn off the engine for about 20 seconds
and then re-start the car. If the warning
light
gstays on together with the mes-
sage on the reconfigurable multifunction
display (where provided), contact Fiat
Dealership.
IMPORTANT The steering may become
slightly stiff following parking manoeuvres
including a great deal of steering. This is
normal and caused by a system to prevent
motor overheating. No servicing is re-
quired. The electric power steering sys-
tem will return to normal operation the
next time the car is used.
fig. 95F0G0692m
Always switch the engine off,
remove the key from the
starting device and actuate the steer-
ing lock before carrying out any main-
tenance operation, especially when
the wheels are raised from the
ground. In case this is not possible
(e.g. when the key must be in MAR
position or the engine running); re-
move the electric power steering
main fuse before carrying out any
maintenance operation.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 74

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
GENERAL WARNINGS
❒When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors.
❒Objects set close to the car rear part,
under certain circumstances are not de-
tected and could therefore cause dam-
ages to the car.
❒Indications sent by the sensors can be
altered by dirt, snow or ice deposited
on the sensors or by ultrasound sys-
tems (e.g.: truck pneumatic brakes or
pneumatic hammers) set nearby the
car. FAILURE INDICATIONS
In the event of sensor failures, the driver
is warned when engaging reverse by a 3-
second beep.
OPERATION WITH TRAILER
Parking sensor operation is deactivated
automatically when the trailer electric ca-
ble plug is fitted into the car tow hook
socket.
Sensors are reactivated automatically
when removing the trailer cable plug.
For proper operation, the
parking sensors shall always
be clean from mud, dirt, snow
or ice. When cleaning the sen-
sors, take the utmost care to prevent
their damaging; do not use therefore
dry or rough clothes. Sensors shall be
washed with clean water and car de-
tergent, if required. In washing stations,
clean sensors quickly keeping the
vapour jet/high pressure washing noz-
zles at 10 cm at least from the sensors.
Parking manoeuvres howev-
er are always under the dri-
ver’s responsibility that shall always
check the absence of people (spe-
cially children) or animals in the ma-
noeuvre space. This system is just a
help for the driver but she/he shall
never reduce attention during dan-
gerous manoeuvres even if performed
at low speed.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 75

79
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

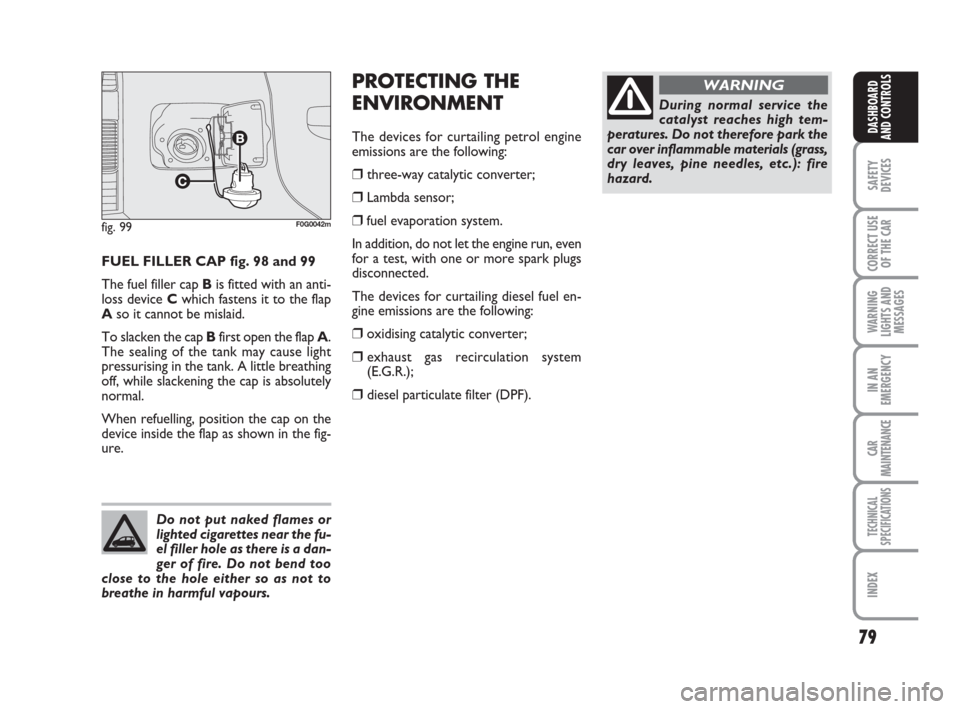

PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒ three-way catalytic converter;
❒Lambda sensor;
❒fuel evaporation system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒ exhaust gas recirculation system
(E.G.R.);
❒ diesel particulate filter (DPF). FUEL FILLER CAP fig. 98 and 99
The fuel filler cap Bis fitted with an anti-
loss device Cwhich fastens it to the flap
Aso it cannot be mislaid.
To slacken the cap Bfirst open the flap A.
The sealing of the tank may cause light
pressurising in the tank. A little breathing
off, while slackening the cap is absolutely
normal.
When refuelling, position the cap on the
device inside the flap as shown in the fig-
ure.
fig. 99F0G0042m
Do not put naked flames or
lighted cigarettes near the fu-
el filler hole as there is a dan-
ger of fire. Do not bend too
close to the hole either so as not to
breathe in harmful vapours.
During normal service the
catalyst reaches high tem-
peratures. Do not therefore park the
car over inflammable materials (grass,
dry leaves, pine needles, etc.): fire
hazard.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 79

84
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

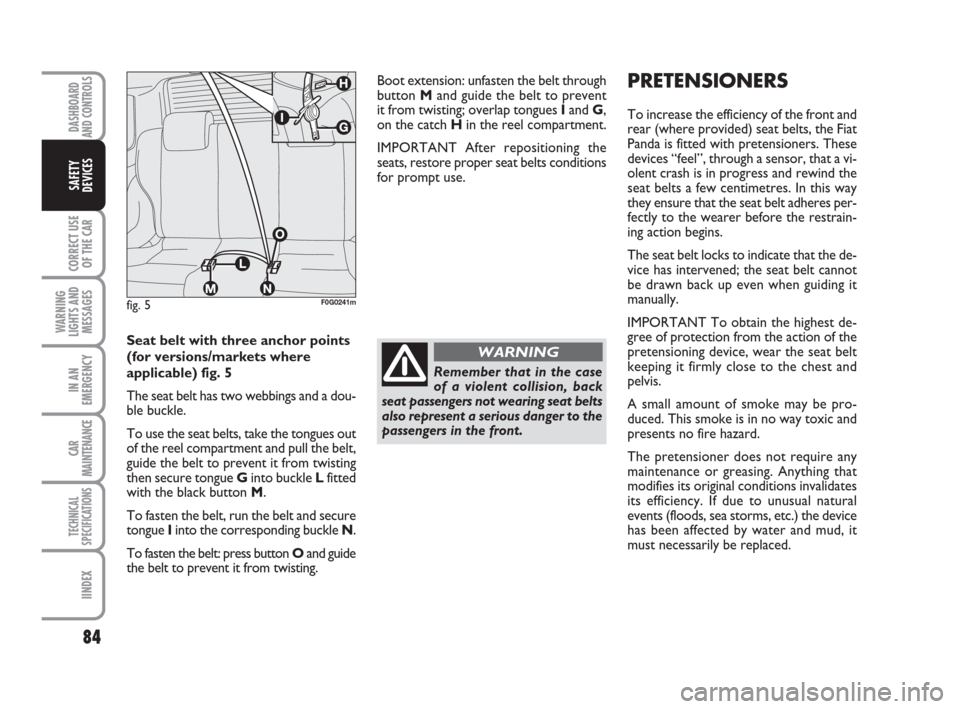

Boot extension: unfasten the belt through
button Mand guide the belt to prevent
it from twisting; overlap tongues Iand G,
on the catch Hin the reel compartment.
IMPORTANT After repositioning the
seats, restore proper seat belts conditions
for prompt use.PRETENSIONERS
To increase the efficiency of the front and
rear (where provided) seat belts, the Fiat
Panda is fitted with pretensioners. These
devices “feel”, through a sensor, that a vi-
olent crash is in progress and rewind the
seat belts a few centimetres. In this way
they ensure that the seat belt adheres per-
fectly to the wearer before the restrain-
ing action begins.
The seat belt locks to indicate that the de-
vice has intervened; the seat belt cannot
be drawn back up even when guiding it
manually.
IMPORTANT To obtain the highest de-
gree of protection from the action of the
pretensioning device, wear the seat belt
keeping it firmly close to the chest and
pelvis.
A small amount of smoke may be pro-
duced. This smoke is in no way toxic and
presents no fire hazard.
The pretensioner does not require any
maintenance or greasing. Anything that
modifies its original conditions invalidates
its efficiency. If due to unusual natural
events (floods, sea storms, etc.) the device
has been affected by water and mud, it
must necessarily be replaced. Seat belt with three anchor points
(for versions/markets where
applicable) fig. 5
The seat belt has two webbings and a dou-
ble buckle.
To use the seat belts, take the tongues out
of the reel compartment and pull the belt,
guide the belt to prevent it from twisting
then secure tongue Ginto buckle Lfitted
with the black button M.
To fasten the belt, run the belt and secure
tongue Iinto the corresponding buckle N.
To fasten the belt: press button Oand guide
the belt to prevent it from twisting.
fig. 5F0G0241m
Remember that in the case
of a violent collision, back
seat passengers not wearing seat belts
also represent a serious danger to the
passengers in the front.
WARNING
081-100 Panda New GB 21-06-2007 13:49 Pagina 84

113
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ..................................................... 114
LOW BRAKE FLUID............................................................ 114
HANDBRAKE ON................................................................ 114
AIR BAG FAILURE................................................................ 114
FRONT PASSENGER AIR BAG DEACTIVATED.......... 115
HIGH TEMPERATURE
ENGINE COOLANT FLUID ............................................. 115
LOW BATTERY CHARGE................................................. 116
INEFFICIENT ABS SYSTEM................................................ 116
INEFFICIENT EBD ELECTRONIC BRAKING
DISTRIBUTOR ...................................................................... 116
LOW ENGINE OIL PRESSURE.......................................... 116
EXHAUSTED OIL ................................................................ 116
“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE............................................................. 117
INCOMPLETE DOOR LOCKING.................................... 117
INJECTION SYSTEM FAILURE
(MULTIJET VERSIONS) ...................................................... 117
ENGINE CONTROL
SYSTEM FAILURE EOBD (PETROL VERSIONS) .........117
DIESEL PARTICULATE FILTER CLOGGED ................. 118
FUEL RESERVE....................................................................... 118
GLOW PLUGS....................................................................... 118
GLOW PLUG WARMING FAILURE............................... 118
WATER IN DIESEL FUEL FILTER..................................... 119CAR PROTECTION SYSTEM FAILURE -
FIAT CODE ........................................................................... 119
HEATED REAR WINDOW .............................................. 119
EXTERNAL LIGHT FAILURE............................................. 119
REAR FOGLIGHTS............................................................... 119
GENERIC FAILURE INDICATION ................................. 120
ENGINE OIL PRESSURE SENSOR FAILURE ................. 120
WATER IN DIESEL FUEL FILTER .................................... 120
INERTIAL FUEL CUT-OFF
SWITCH INTERVENED ..................................................... 120
ESP SYSTEM FAILURE ........................................................ 120
HILL HOLDER FAILURE .................................................... 120
SIDELIGHTS AND LOW BEAMS..................................... 120
FOLLOW ME HOME........................................................... 120
FRONT FOG LIGHTS.......................................................... 120
LEFT-HAND DIRECTION INDICATOR........................ 121
RIGHT-HAND DIRECTION INDICATOR.................... 121
“DUALDRIVE” ELECTRIC POWER
STEERING .............................................................................. 121
MAIN BEAM HEADLIGHTS............................................... 121
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 121
SPEED LIMIT EXCEEDED ................................................. 121
LIMITED RANGE ................................................................. 121
ASR SYSTEM ......................................................................... 121
WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
113-122 Panda New GB 26-06-2007 11:04 Pagina 113

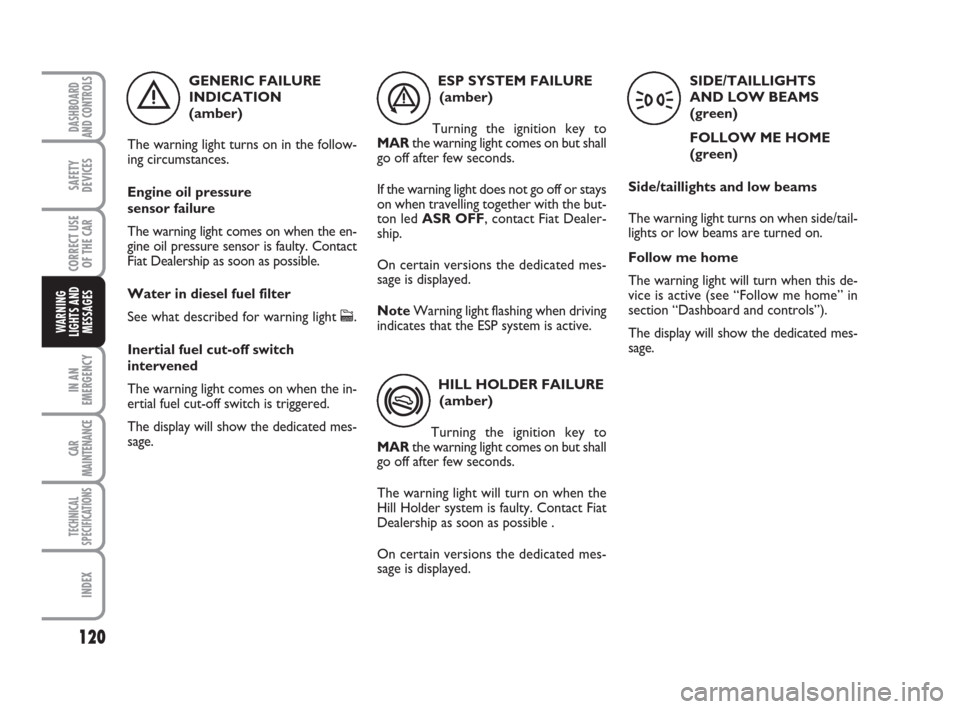

SIDE/TAILLIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME
(green)
Side/taillights and low beams
The warning light turns on when side/tail-
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3
120
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
ESP SYSTEM FAILURE
(amber)
Turning the ignition key to
MARthe warning light comes on but shall
go off after few seconds.
If the warning light does not go off or stays
on when travelling together with the but-
ton led ASR OFF, contact Fiat Dealer-
ship.
On certain versions the dedicated mes-
sage is displayed.
NoteWarning light flashing when driving
indicates that the ESP system is active.
á
HILL HOLDER FAILURE
(amber)
Turning the ignition key to
MARthe warning light comes on but shall
go off after few seconds.
The warning light will turn on when the
Hill Holder system is faulty. Contact Fiat
Dealership as soon as possible .
On certain versions the dedicated mes-
sage is displayed.
*
GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure
sensor failure
The warning light comes on when the en-
gine oil pressure sensor is faulty. Contact
Fiat Dealership as soon as possible.
Water in diesel fuel filter
See what described for warning light c.
Inertial fuel cut-off switch
intervened
The warning light comes on when the in-
ertial fuel cut-off switch is triggered.
The display will show the dedicated mes-
sage.
è
113-122 Panda New GB 26-06-2007 11:04 Pagina 120

149
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
5
7.5
7.5
10
7.5
15
15
7.5
7.5
7.5
7.5
5
5
15
–
–
7.5
7.5
7.5
20
10
10
10
10 F31
F35
F35
F37
F41
F45
F46
F49
F49
F49
F50
F51
F51
F54
FA
FB
F12
F13
F13
F38
F39
F39
F39
F39
FUSE SUMMARY TABLE
Passenger’s compartment fusebox - fig. 47FUSE AMPERE
Reversing light
+15 radio
Central dashboard
+15 stop light
Door mirrors defroster
Heated seats (pre-arrangements)
Electric sunroof
Automatic climate control system
Tyre pressure
Sensor for water presence in the gas oil filter
+15 air bag control unit
+15 Body-computer control unit
+15 instrument panel
Subwoofer
Free
Free
Right dipped beam headlight
Left dipped beam headlight
To adjust the headlight slant
+ 30 door locking device
EOBD diagnosis socket
Radio
Automatic climate control system
Tyre pressure
123-154 Panda New GB 21-06-2007 13:51 Pagina 149

Power windows .................................. 59
Presetting for mounting the
“Isofix type” child restraint system.. 91
Pretensioners ...................................... 84
Protecting the environment ............. 79
Radio frequency remote control .... 195
– battery replacement .................... 11
– request for additional
remote controls............................. 11
Radio transmitters and
cellular telephones ........................... 77
Rear fog lights ...................................... 52
– bulb replacement .......................... 142
– control button .............................. 52
Rear sliding seats.................................. 33
Rear window washer.......................... 50
– control ............................................ 50
– fluid level ........................................ 164
Rear window wiper ........................... 50
– blades .............................................. 172
– control ............................................ 50
– nozzles ............................................ 173
Rearview mirrors................................. 36
– door mirrors ................................. 37
– driving mirror ................................ 36
– electric mirrors ............................. 37
Reconfigurable multifunction
display.................................................. 21
Rev counter.......................................... 16Reversing light ..................................... 142
Roof rack/ski rack .............................. 65
Rubber hoses ....................................... 171
Safety devices ..................................... 81
Seat adjustment ................................... 32
Seat belts............................................... 82
– general instructions ..................... 85
– height adjustment ......................... 82
– load limiters ................................... 85
– maintenance .................................. 86
– pretensioners ................................ 84
– use ................................................... 82
Seats ...................................................... 32
– cleaning ........................................... 175
– manually adjustable front seats .. 32
– rear sliding seats ........................... 33
Side/taillights ........................................ 48
– control ............................................ 48
– front bulb replacement................. 139
– rear bulb replacement.................. 142
Smart washing ..................................... 49
Snow chains ......................................... 111
Sound system ...................................... 76
Spark plugs............................................ 181
Speedometer........................................ 16
Starting the engine ............................. 102
– bump starting ................................ 126
– diesel engines ................................ 103 – battery replacement .................... 11
– request for additional remote
controls .......................................... 11
Key without remote control ........... 9
Load limiters ...................................... 85
Main beam headlights ....................... 48
– bulb replacement .......................... 140
– control ............................................ 48
– flashing ............................................ 48
Manual climate control system ........ 41
MSR system........................................... 71
Multifunction display........................... 19
Number plate light ............................ 143
Oddment compartments.................. 54
Paint ..................................................... 174
Parking .................................................. 104
Parking lights ........................................ 48
Parking sensors.................................... 74
Passenger's compartment
heating......................................39-39-44
Performance ........................................ 188
Plates...................................................... 178
– bodywork paint identification
plate ................................................. 179
– model plate .................................... 178
Pollen filter ........................................... 167
Power socket ...................................... 55
199
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
197-204 Panda New GB 21-06-2007 13:54 Pagina 199
