washer fluid FIAT PANDA 2007 169 / 2.G Owners Manual

158
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

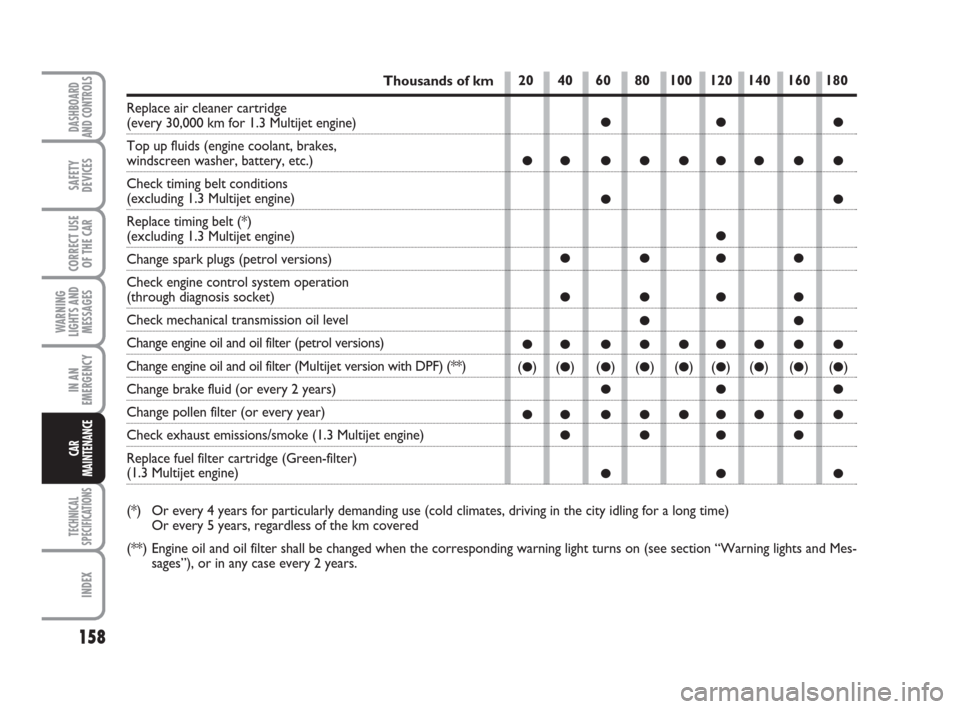

20 40 60 80 100 120 140 160 180
●● ●
●● ●●●●●●●
●●
●
●●●●
●●●●
●●
●● ●●●●●●●
(●)(●)(●)(●)(●)(●)(●)(●)(●)
●● ●
●● ●●●●●●●
●●●●
●● ●
Thousands of km
Replace air cleaner cartridge
(every 30,000 km for 1.3 Multijet engine)
Top up fluids (engine coolant, brakes,
windscreen washer, battery, etc.)
Check timing belt conditions
(excluding 1.3 Multijet engine)
Replace timing belt (*)
(excluding 1.3 Multijet engine)
Change spark plugs (petrol versions)
Check engine control system operation
(through diagnosis socket)
Check mechanical transmission oil level
Change engine oil and oil filter (petrol versions)
Change engine oil and oil filter (Multijetversion with DPF) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
Check exhaust emissions/smoke (1.3 Multijet engine)
Replace fuel filter cartridge (Green-filter)
(1.3 Multijet engine)
(*) Or every 4 years for particularly demanding use (cold climates, driving in the city idling for a long time)
Or every 5 years, regardless of the km covered
(**) Engine oil and oil filter shall be changed when the corresponding warning light turns on (see section “Warning lights and Mes-
sages”), or in any case every 2 years.
155-176 Panda New GB 21-06-2007 13:52 Pagina 158

❒sight inspect the conditions of: engine,
gearbox, transmission, pipes and hoses
(exhaust - fuel - brakes) rubber parts
(boots - sleeves - bushes etc.), fuel and
brake system hoses;
❒check battery charge;
❒visual check on various drive belt con-
ditions;
❒ top up fluid levels (engine coolant,
brakes, windscreen washer, battery,
etc.);
❒ change engine oil;
❒ change engine oil filter;
❒change pollen filter (where provided).
ADDITIONAL CHECKS
Every 1,000 km or before long journeys,
check and top up if required:
❒ engine coolant fluid level;
❒ brake fluid level;
❒battery fluid level;
❒ windscreen washer fluid level;
❒tyre pressure and conditions.
Every 3,000 km check and top up if re-
quired:
❒engine oil level.
You are recommended to use FL Selenia
products designed and produced specifi-
cally for Fiat cars (see table “Capacities”
in section “Technical specifications”).

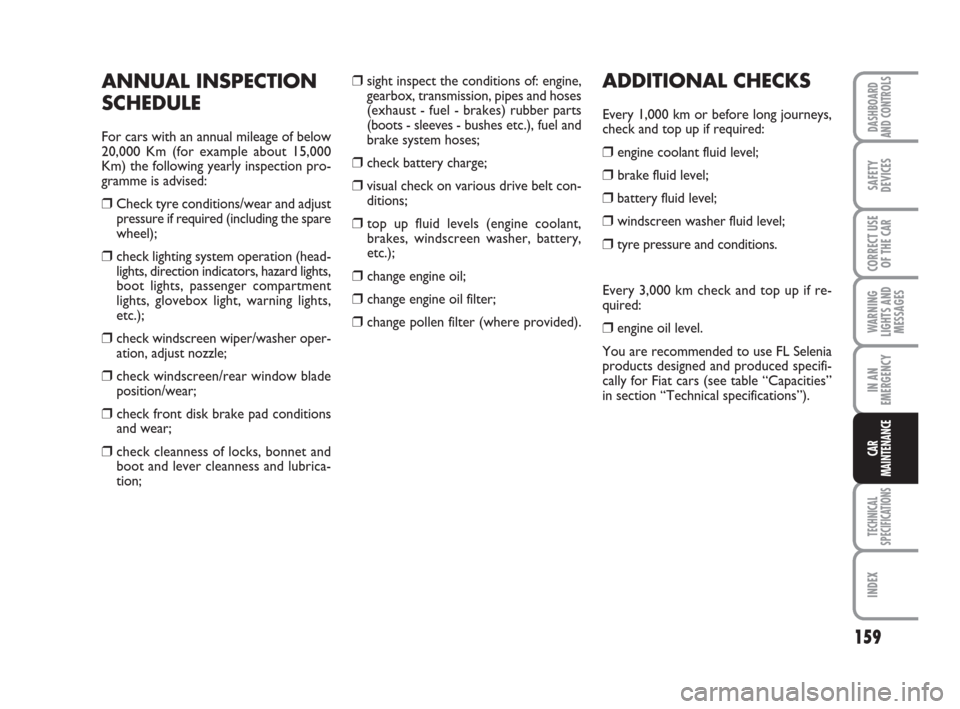

ANNUAL INSPECTION
SCHEDULE
For cars with an annual mileage of below
20,000 Km (for example about 15,000
Km) the following yearly inspection pro-
gramme is advised:
❒Check tyre conditions/wear and adjust
pressure if required (including the spare
wheel);
❒check lighting system operation (head-
lights, direction indicators, hazard lights,
boot lights, passenger compartment
lights, glovebox light, warning lights,
etc.);
❒check windscreen wiper/washer oper-
ation, adjust nozzle;
❒check windscreen/rear window blade
position/wear;
❒ check front disk brake pad conditions
and wear;
❒check cleanness of locks, bonnet and
boot and lever cleanness and lubrica-
tion;
159
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
155-176 Panda New GB 21-06-2007 13:52 Pagina 159

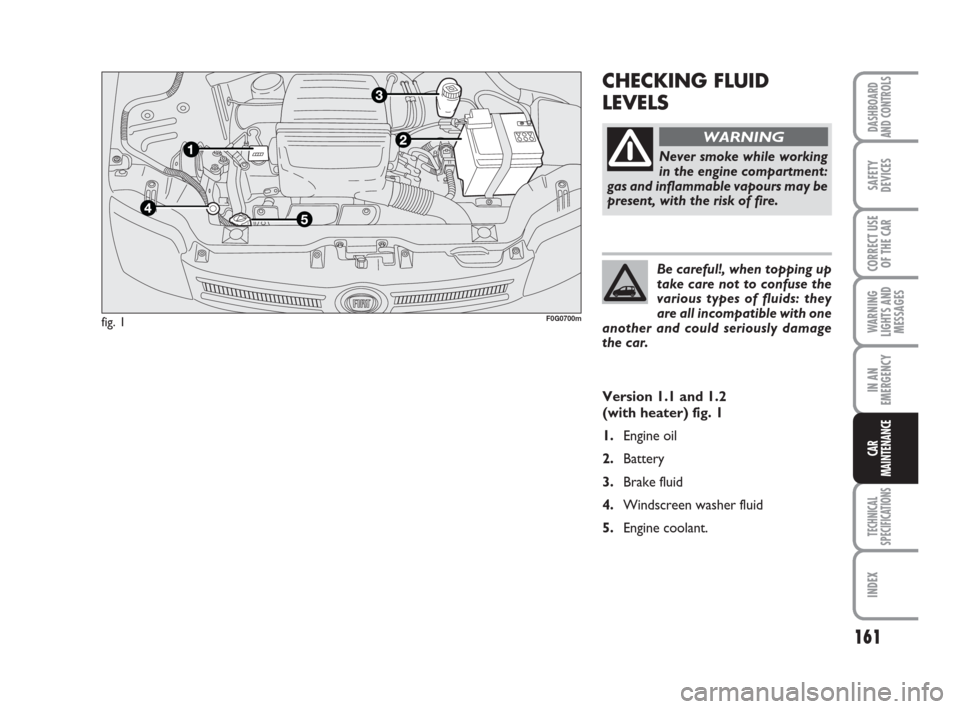

CHECKING FLUID
LEVELS
fig. 1
161
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Never smoke while working
in the engine compartment:
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
Be careful!, when topping up
take care not to confuse the
various types of fluids: they
are all incompatible with one
another and could seriously damage
the car.
Version 1.1 and 1.2
(with heater) fig. 1
1.Engine oil
2.Battery
3.Brake fluid
4.Windscreen washer fluid
5.Engine coolant.
F0G0700m
155-176 Panda New GB 21-06-2007 13:52 Pagina 161

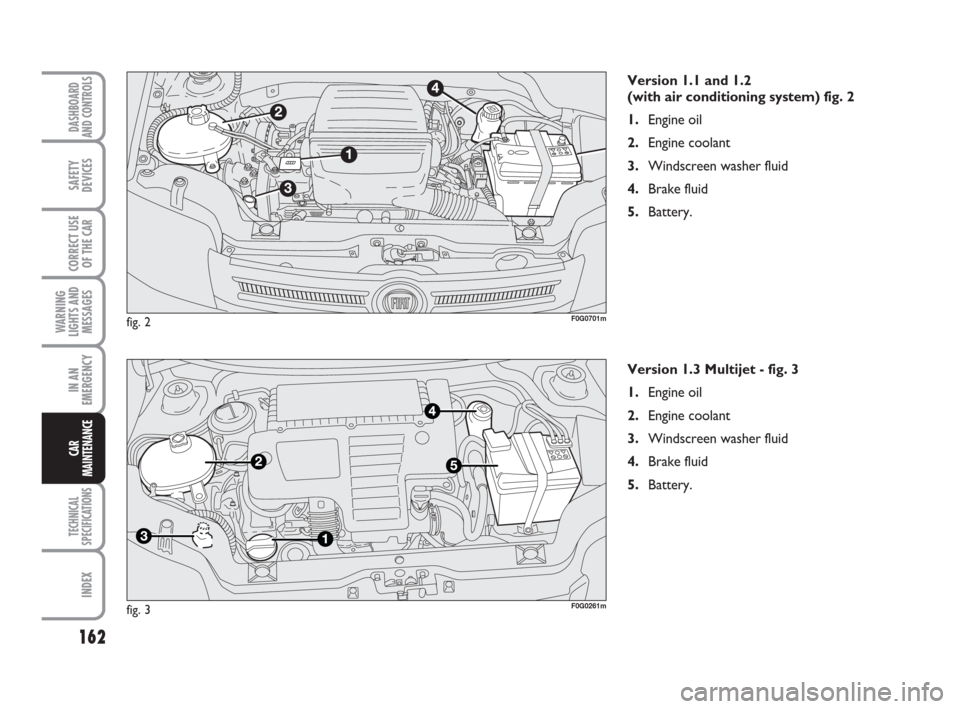

Version 1.1 and 1.2
(with air conditioning system) fig. 2
1.Engine oil
2.Engine coolant
3.Windscreen washer fluid
4.Brake fluid
5.Battery.
162
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
fig. 2F0G0701m
fig. 3F0G0261m
Version 1.3 Multijet - fig. 3
1.Engine oil
2.Engine coolant
3.Windscreen washer fluid
4.Brake fluid
5.Battery.
155-176 Panda New GB 21-06-2007 13:52 Pagina 162

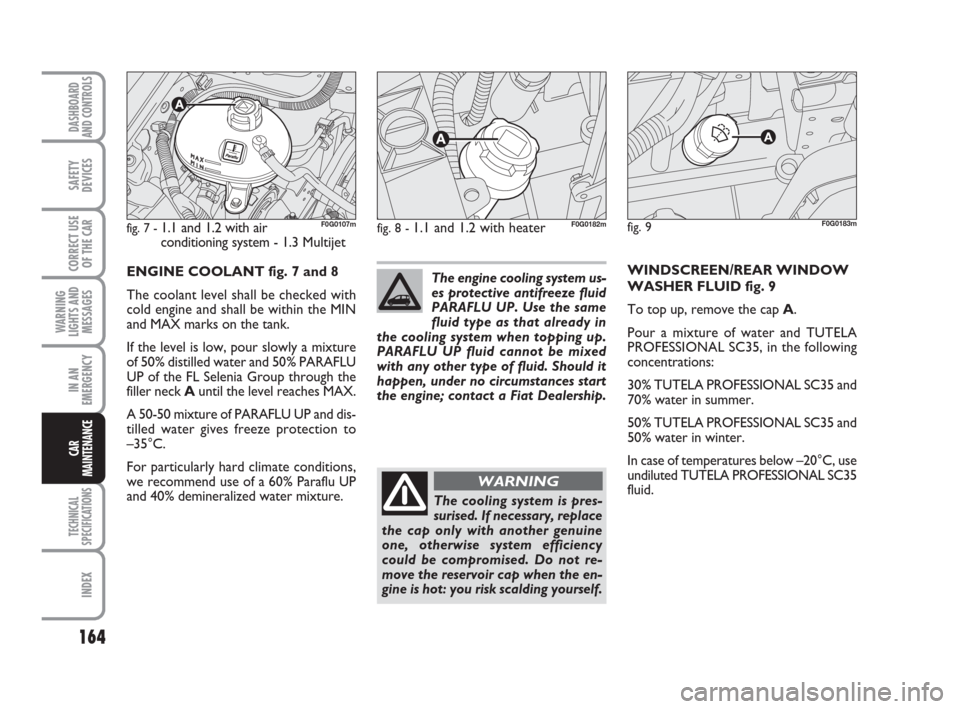

WINDSCREEN/REAR WINDOW
WASHER FLUID fig. 9
To top up, remove the cap A.
Pour a mixture of water and TUTELA
PROFESSIONAL SC35, in the following
concentrations:
30% TUTELA PROFESSIONAL SC35 and
70% water in summer.
50% TUTELA PROFESSIONAL SC35 and
50% water in winter.
In case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL SC35
fluid. ENGINE COOLANT fig. 7 and 8
The coolant level shall be checked with
cold engine and shall be within the MIN
and MAX marks on the tank.
If the level is low, pour slowly a mixture
of 50% distilled water and 50% PARAFLU
UP of the FL Selenia Group through the
filler neck Auntil the level reaches MAX.
A 50-50 mixture of PARAFLU UP and dis-
tilled water gives freeze protection to
–35°C.
For particularly hard climate conditions,
we recommend use of a 60% Paraflu UP
and 40% demineralized water mixture.
fig. 7 - 1.1 and 1.2 with air
conditioning system - 1.3 Multijet F0G0107mfig. 8 - 1.1 and 1.2 with heaterF0G0182mfig. 9
164
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
The engine cooling system us-
es protective antifreeze fluid
PARAFLU UP. Use the same
fluid type as that already in
the cooling system when topping up.
PARAFLU UP fluid cannot be mixed
with any other type of fluid. Should it
happen, under no circumstances start
the engine; contact a Fiat Dealership.
The cooling system is pres-
surised. If necessary, replace
the cap only with another genuine
one, otherwise system efficiency
could be compromised. Do not re-
move the reservoir cap when the en-
gine is hot: you risk scalding yourself.
WARNING
F0G0183m
155-176 Panda New GB 21-06-2007 13:52 Pagina 164

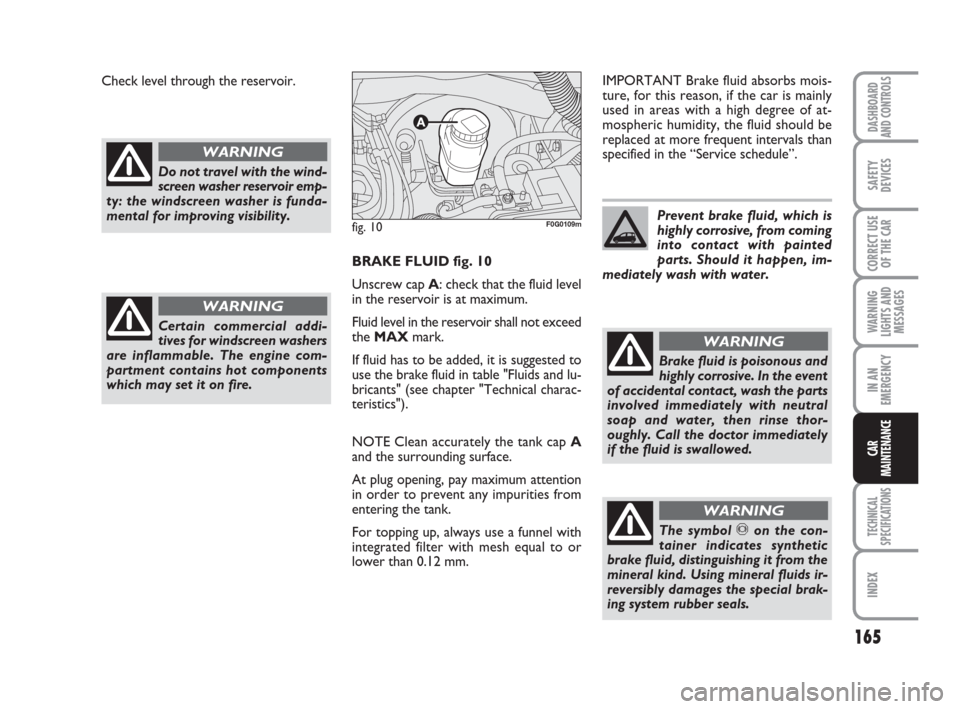

BRAKE FLUID fig. 10
Unscrew cap A: check that the fluid level
in the reservoir is at maximum.
Fluid level in the reservoir shall not exceed
the MAXmark.
If fluid has to be added, it is suggested to
use the brake fluid in table "Fluids and lu-
bricants" (see chapter "Technical charac-
teristics").
NOTE Clean accurately the tank cap A
and the surrounding surface.
At plug opening, pay maximum attention
in order to prevent any impurities from
entering the tank.
For topping up, always use a funnel with
integrated filter with mesh equal to or
lower than 0.12 mm. Check level through the reservoir.
fig. 10F0G0109m
165
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Do not travel with the wind-
screen washer reservoir emp-
ty: the windscreen washer is funda-
mental for improving visibility.
WARNING
Certain commercial addi-
tives for windscreen washers
are inflammable. The engine com-
partment contains hot components
which may set it on fire.
WARNING
Prevent brake fluid, which is
highly corrosive, from coming
into contact with painted
parts. Should it happen, im-
mediately wash with water.
IMPORTANT Brake fluid absorbs mois-
ture, for this reason, if the car is mainly
used in areas with a high degree of at-
mospheric humidity, the fluid should be
replaced at more frequent intervals than
specified in the “Service schedule”.
Brake fluid is poisonous and
highly corrosive. In the event
of accidental contact, wash the parts
involved immediately with neutral
soap and water, then rinse thor-
oughly. Call the doctor immediately
if the fluid is swallowed.
WARNING
The symbol πon the con-
tainer indicates synthetic
brake fluid, distinguishing it from the
mineral kind. Using mineral fluids ir-
reversibly damages the special brak-
ing system rubber seals.
WARNING
155-176 Panda New GB 21-06-2007 13:52 Pagina 165

173
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:
❒ atmospheric pollution;
❒ salty air and humidity (coastal areas, or
hot humid climates);
❒ seasonal environment conditions.
Not to be underestimated is also the abra-
sive action of wind-borne atmospheric
dust and sand and mud and gravel raised
by other vehicles.
On your Fiat Panda, Fiat implemented the
best manufacturing technologies to effec-
tively protect the bodywork against cor-
rosion.
These include:
❒ Painting products and systems which
give the car particular resistance to cor-
rosion and abrasion;
❒ Use of galvanised (or pretreated) steel
sheets, with high resistance to corro-
sion;
❒ Spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective

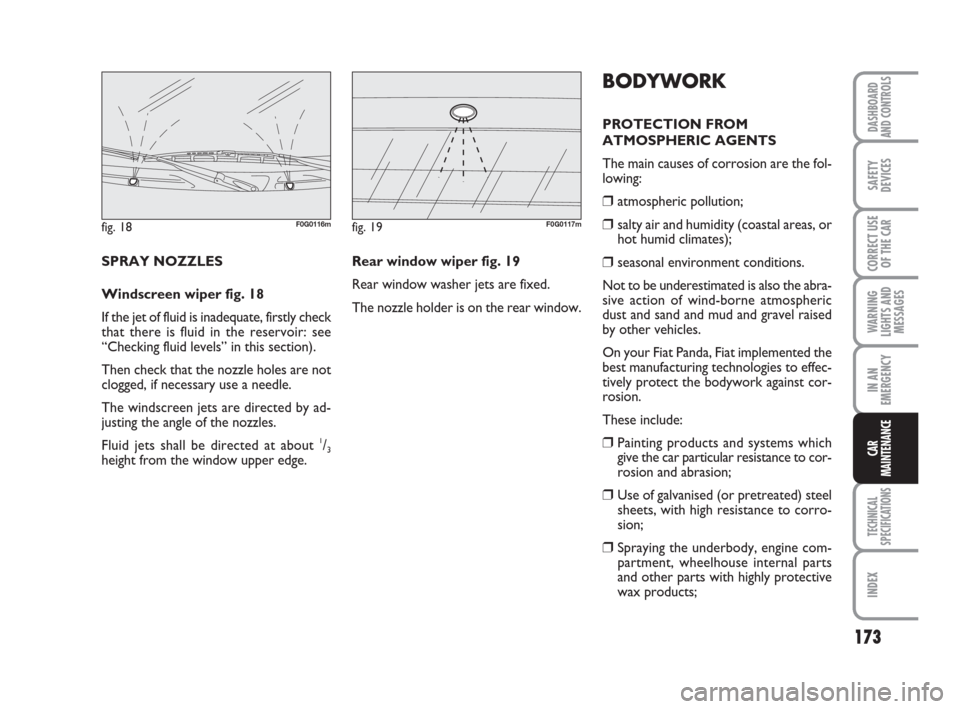

wax products; SPRAY NOZZLES
Windscreen wiper fig. 18
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
The windscreen jets are directed by ad-
justing the angle of the nozzles.
Fluid jets shall be directed at about
1/3height from the window upper edge.Rear window wiper fig. 19
Rear window washer jets are fixed.
The nozzle holder is on the rear window.
fig. 18F0G0116mfig. 19F0G0117m
155-176 Panda New GB 21-06-2007 13:52 Pagina 173

190
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.3 Multijet
35 (▲)
5 (▲)
4.6
2.5 (●)
2.8 (●)
1.65
0.55
0.40
1.8 1.2
35
5
4.6
2.5
2.8
1.65
0.55
0.40
1.8 1.1
35
5
4.6
3.1
3.5
1.65
0.55
0.40
1.8

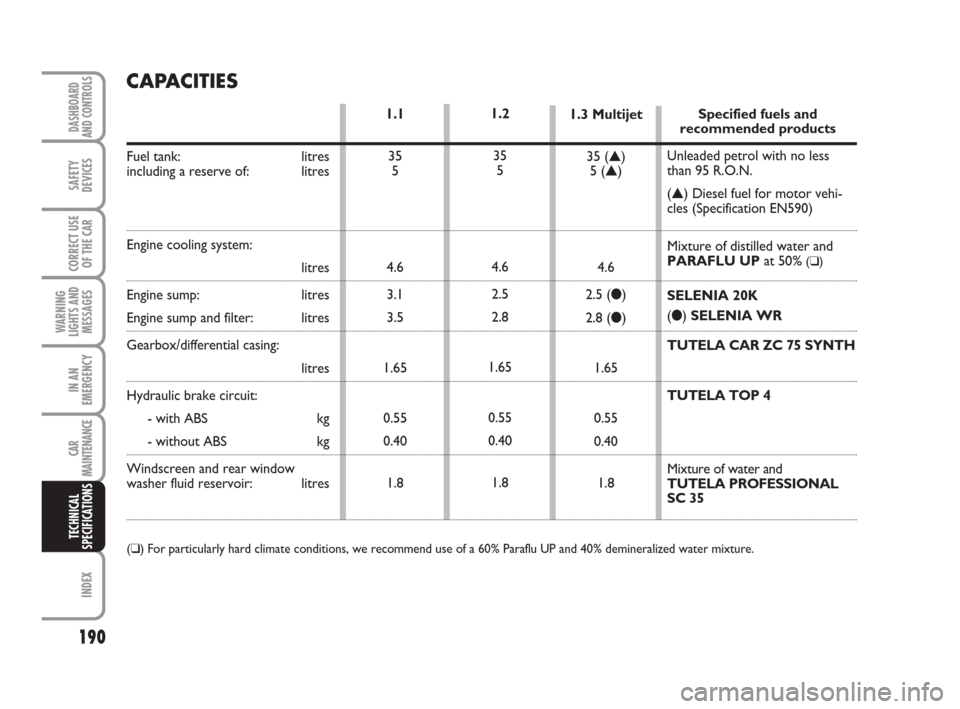

CAPACITIES
Fuel tank: litres
including a reserve of: litres
Engine cooling system:
litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential casing:
litres
Hydraulic brake circuit:
- with ABS kg
- without ABS kg
Windscreen and rear window
washer fluid reservoir: litres
(❑) For particularly hard climate conditions, we recommend use of a 60% Paraflu UP and 40% demineralized water mixture.
Specified fuels and
recommended products
Unleaded petrol with no less
than 95 R.O.N.
(▲) Diesel fuel for motor vehi-
cles (Specification EN590)
Mixture of distilled water and
PARAFLU UPat 50%
(❑)
SELENIA 20K
(●) SELENIA WR
TUTELA CAR ZC 75 SYNTH
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL
SC 35
177-196 Panda New GB 21-06-2007 13:53 Pagina 190

192
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

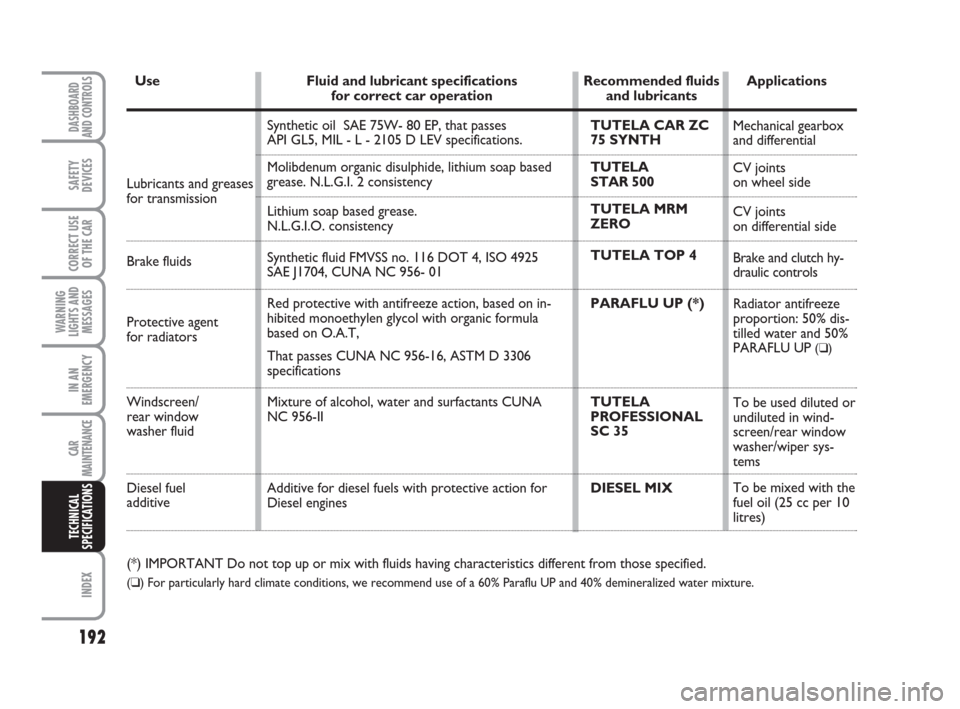

Synthetic oil SAE 75W- 80 EP, that passes
API GL5, MIL - L - 2105 D LEV specifications.
Molibdenum organic disulphide, lithium soap based
grease. N.L.G.I. 2 consistency
Lithium soap based grease.
N.L.G.I.O. consistency
Synthetic fluid FMVSS no. 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01
Red protective with antifreeze action, based on in-
hibited monoethylen glycol with organic formula
based on O.A.T,
That passes CUNA NC 956-16, ASTM D 3306
specifications
Mixture of alcohol, water and surfactants CUNA
NC 956-II
Additive for diesel fuels with protective action for
Diesel enginesTUTELA CAR ZC
75 SYNTH
TUTELA
STAR 500
TUTELA MRM
ZERO
TUTELA TOP 4
PARAFLU UP (*)
TUTELA
PROFESSIONAL
SC 35
DIESEL MIX
Use Fluid and lubricant specifications Recommended fluids Applicationsfor correct car operation and lubricants
Lubricants and greases
for transmission
Brake fluids
Protective agent
for radiators
Windscreen/
rear window
washer fluid
Diesel fuel
additive
(*) IMPORTANT Do not top up or mix with fluids having characteristics different from those specified.
(❑) For particularly hard climate conditions, we recommend use of a 60% Paraflu UP and 40% demineralized water mixture.
Mechanical gearbox
and differential
CV joints
on wheel side
CV joints
on differential side
Brake and clutch hy-
draulic controls
Radiator antifreeze
proportion: 50% dis-
tilled water and 50%
PARAFLU UP
(❑)
To be used diluted or
undiluted in wind-
screen/rear window
washer/wiper sys-
tems
To be mixed with the
fuel oil (25 cc per 10
litres)
177-196 Panda New GB 21-06-2007 13:53 Pagina 192

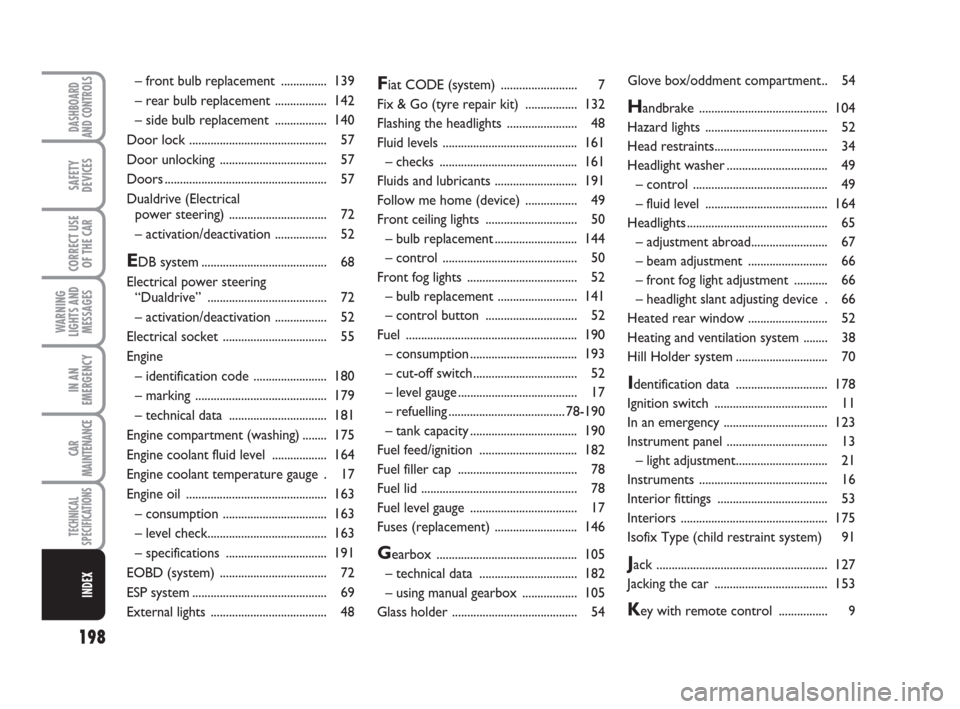

Fiat CODE (system) ......................... 7
Fix & Go (tyre repair kit) ................. 132
Flashing the headlights ....................... 48
Fluid levels ............................................ 161
– checks ............................................. 161
Fluids and lubricants ........................... 191
Follow me home (device) ................. 49
Front ceiling lights .............................. 50
– bulb replacement........................... 144
– control ............................................ 50
Front fog lights .................................... 52
– bulb replacement .......................... 141
– control button .............................. 52
Fuel ........................................................ 190
– consumption................................... 193
– cut-off switch.................................. 52
– level gauge ....................................... 17
– refuelling......................................78-190
– tank capacity................................... 190
Fuel feed/ignition ................................ 182
Fuel filler cap ....................................... 78
Fuel lid ................................................... 78
Fuel level gauge ................................... 17
Fuses (replacement) ........................... 146
Gearbox .............................................. 105
– technical data ................................ 182
– using manual gearbox .................. 105
Glass holder ......................................... 54Glove box/oddment compartment .. 54
Handbrake .......................................... 104
Hazard lights ........................................ 52
Head restraints..................................... 34
Headlight washer................................. 49
– control ............................................ 49
– fluid level ........................................ 164
Headlights.............................................. 65
– adjustment abroad......................... 67
– beam adjustment .......................... 66
– front fog light adjustment ........... 66
– headlight slant adjusting device . 66
Heated rear window .......................... 52
Heating and ventilation system ........ 38
Hill Holder system.............................. 70
Identification data .............................. 178
Ignition switch ..................................... 11
In an emergency .................................. 123
Instrument panel ................................. 13
– light adjustment.............................. 21
Instruments .......................................... 16
Interior fittings .................................... 53
Interiors ................................................ 175
Isofix Type (child restraint system) 91
Jack ........................................................ 127
Jacking the car ..................................... 153
Key with remote control ................ 9 – front bulb replacement ............... 139
– rear bulb replacement ................. 142
– side bulb replacement ................. 140
Door lock ............................................. 57
Door unlocking ................................... 57
Doors..................................................... 57
Dualdrive (Electrical
power steering) ................................ 72
– activation/deactivation ................. 52
EDB system......................................... 68
Electrical power steering
“Dualdrive” ....................................... 72
– activation/deactivation ................. 52
Electrical socket .................................. 55
Engine
– identification code ........................ 180
– marking ........................................... 179
– technical data ................................ 181
Engine compartment (washing)........ 175
Engine coolant fluid level ..................164
Engine coolant temperature gauge . 17
Engine oil .............................................. 163
– consumption .................................. 163
– level check....................................... 163
– specifications ................................. 191
EOBD (system) ................................... 72
ESP system............................................ 69
External lights ...................................... 48
198
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
197-204 Panda New GB 21-06-2007 13:54 Pagina 198
