fuse FIAT PANDA 2014 319 / 3.G User Guide

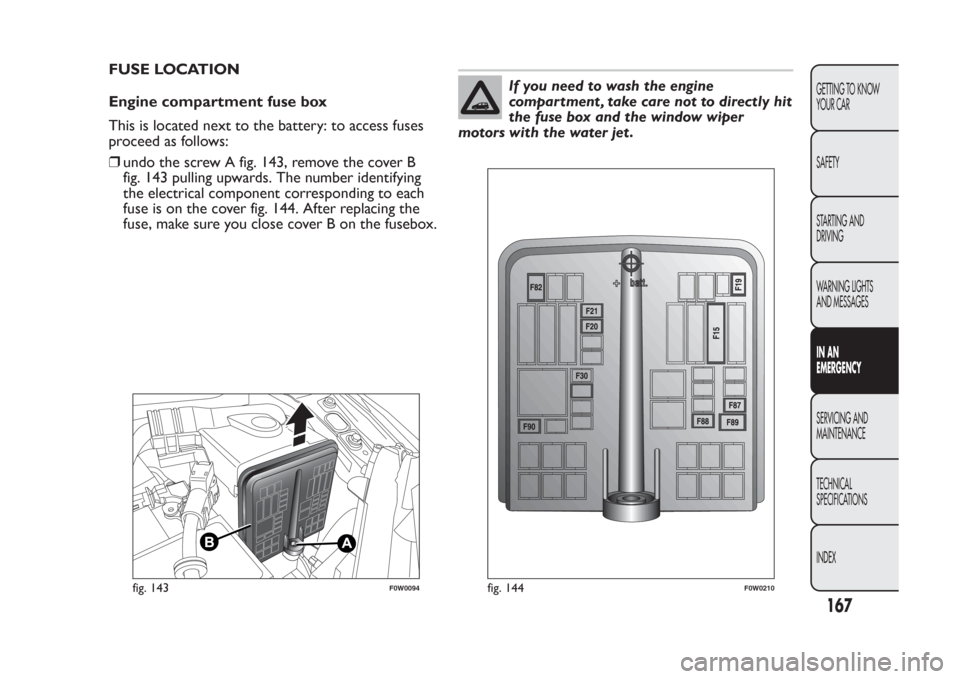

FUSE LOCATION
Engine compartment fuse box
This is located next to the battery: to access fuses
proceed as follows:
❒undo the screw A fig. 143, remove the cover B
fig. 143 pulling upwards. The number identifying
the electrical component corresponding to each
fuse is on the cover fig. 144. After replacing the
fuse, make sure you close cover B on the fusebox.
If you need to wash the engine
compartment , take care not to directly hit
the fuse box and the window wiper
motors with the water jet .
fig. 143
F0W0094
fig. 144
F0W0210
167GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

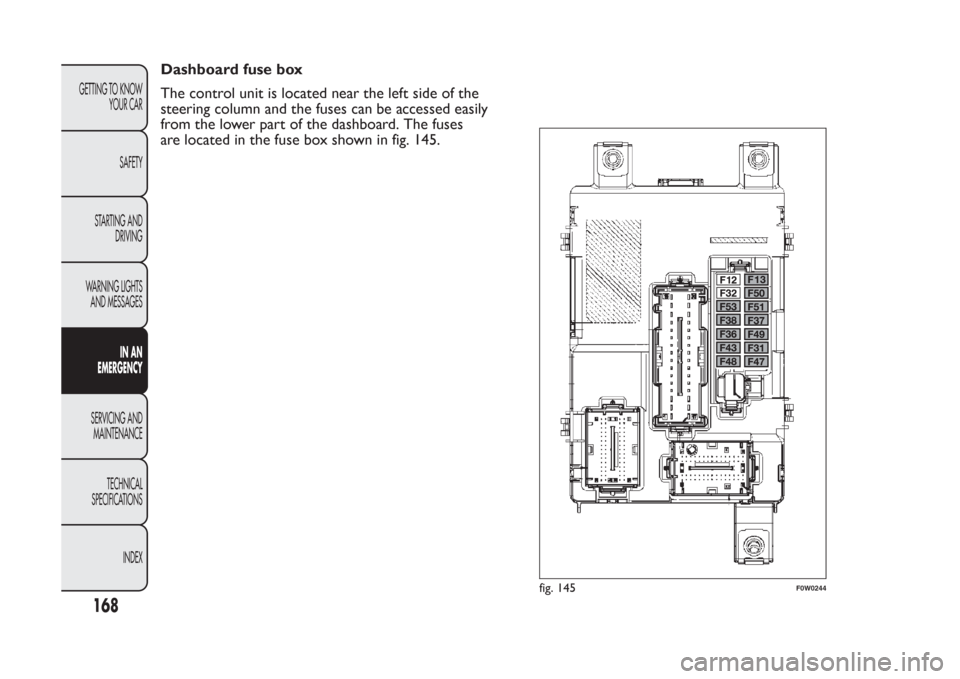

Dashboard fuse box
The control unit is located near the left side of the
steering column and the fuses can be accessed easily
from the lower part of the dashboard. The fuses
are located in the fuse box shown in fig. 145.
fig. 145
F0W0244
168
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUSE SUMMARY TABLEEngine compartment fuse box FUSE AMPS
Body Computer Node F01 60
Passenger compartment fan F08 40
Fog lights F09 15
Horns F10 15
Main beam headlights F14 15
Heated windscreen F15 70
Air conditioning compressor F19 7,5
Front power socket (with or without cigar lighter) F20 15
Fuel pump F21 15
Blow-by F30 5
Sun roof motor F82 20
+15
(*)
reversing lights
F87 5
Mirrors demisting F88 7,5
Heated rear window F89 30
Battery charge status sensor F90 5
(*)+15 = ignition-operated positive terminal
169GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

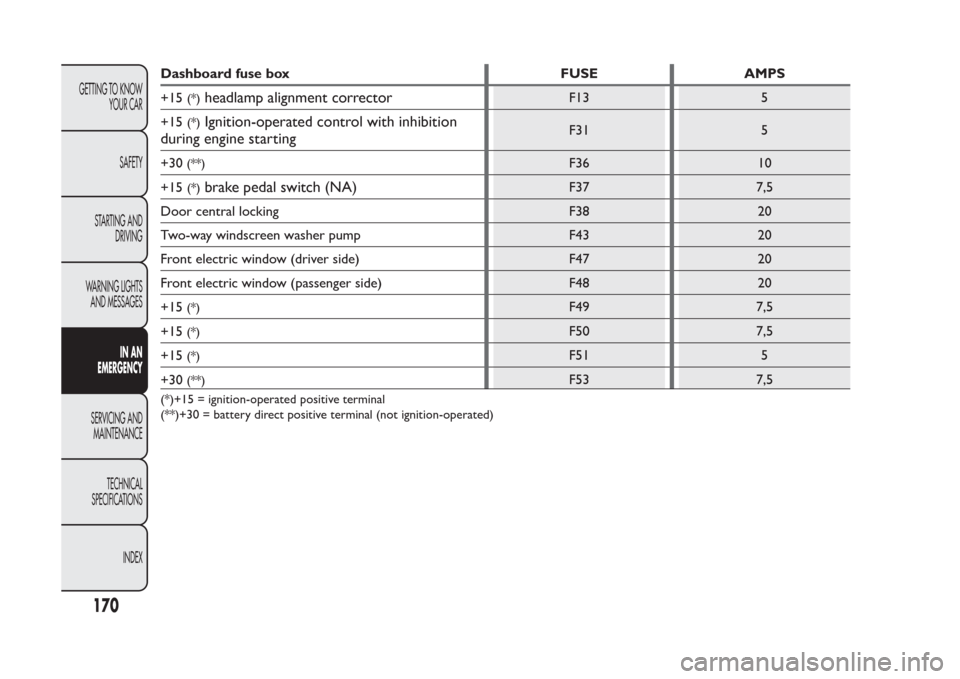

Dashboard fuse box FUSE AMPS
+15
(*)
headlamp alignment corrector
F13 5
+15
(*)
Ignition-operated control with inhibition
during engine starting
F31 5
+30
(**)
F36 10
+15
(*)
brake pedal switch (NA)
F37 7,5
Door central locking F38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
+15
(*)
F49 7,5
+15
(*)
F50 7,5
+15
(*)
F51 5
+30
(**)
F53 7,5
(*)+15 = ignition-operated positive terminal
(**)+30 = battery direct positive terminal (not ignition-operated)
170
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIGHT HAND DRIVE VERSIONS
2
(RIGHT-HAND DRIVE VERSION)

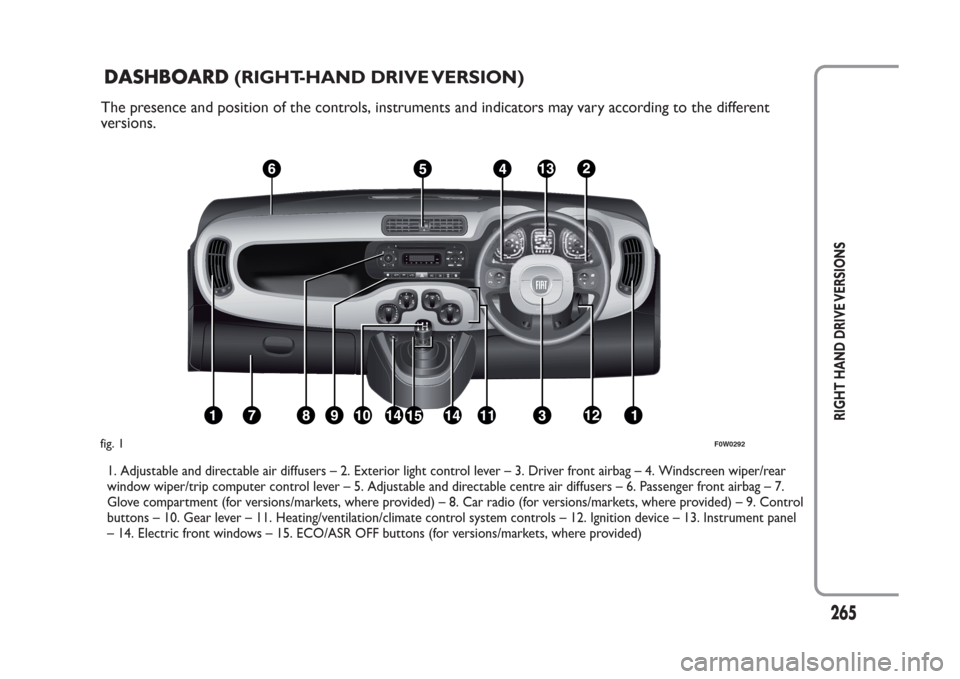

The presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Adjustable and directable air diffusers – 2. Exterior light control lever – 3. Driver front airbag – 4. Windscreen wiper/rear
window wiper/trip computer control lever – 5. Adjustable and directable centre air diffusers – 6. Passenger front airbag – 7.
Glove compartment (for versions/markets, where provided) – 8. Car radio (for versions/markets, where provided) – 9. Control
buttons – 10. Gear lever – 11. Heating/ventilation/climate control system controls – 12. Ignition device – 13. Instrument panel
– 14. Electric front windows – 15. ECO/ASR OFF buttons (for versions/markets, where provided)
TOTkmiC
fig. 1
F0W0292
65
DASHBOARD

2
RIGHT HAND DRIVE VERSIONS

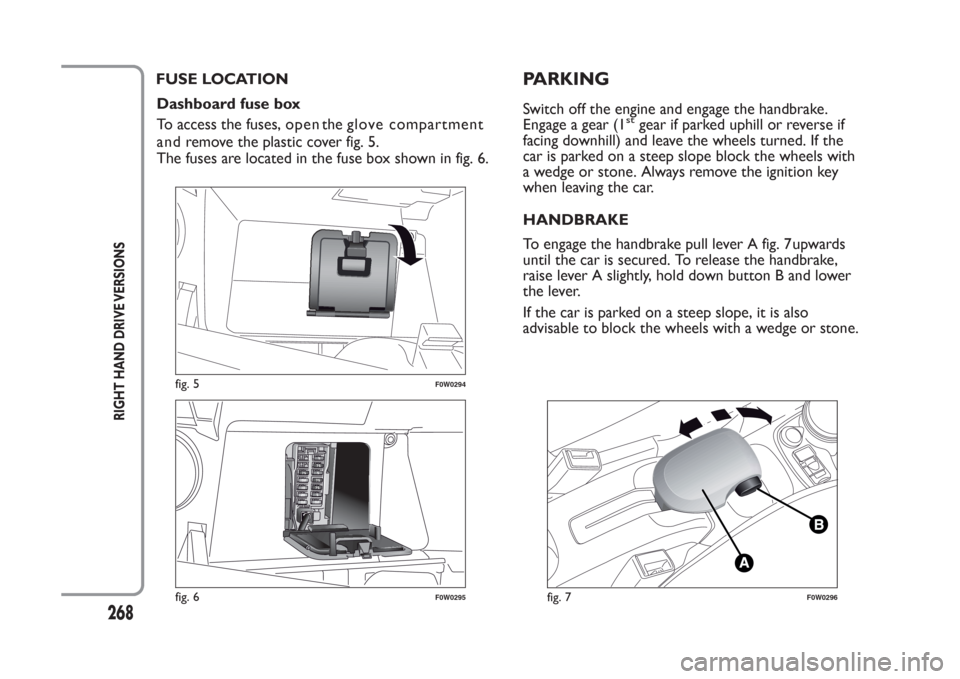

Dashboard fuse box
To access the fuses,open the glove compartment
The fuses are located in the fuse box shown in fig. 6.
fig. 5
F0W0294
fig. 6
F0W0295
and remove theplastic cover fig. 5. FUSE LOCATION
PARKINGSwitch off the engine and engage the handbrake.
Engage a gear (1
st
gear if parked uphill or reverse if
facing downhill) and leave the wheels turned. If the
car is parked on a steep slope block the wheels with
a wedge or stone. Always remove the ignition key
when leaving the car.
HANDBRAKE
To engage the handbrake pull lever A fig. 7 upwards
until the car is secured. To release the handbrake,
raise lever A slightly, hold down button B and lower
the lever.
If the car is parked on a steep slope, it is also
advisable to block the wheels with a wedge or stone.
fig. 7
F0W0296
68

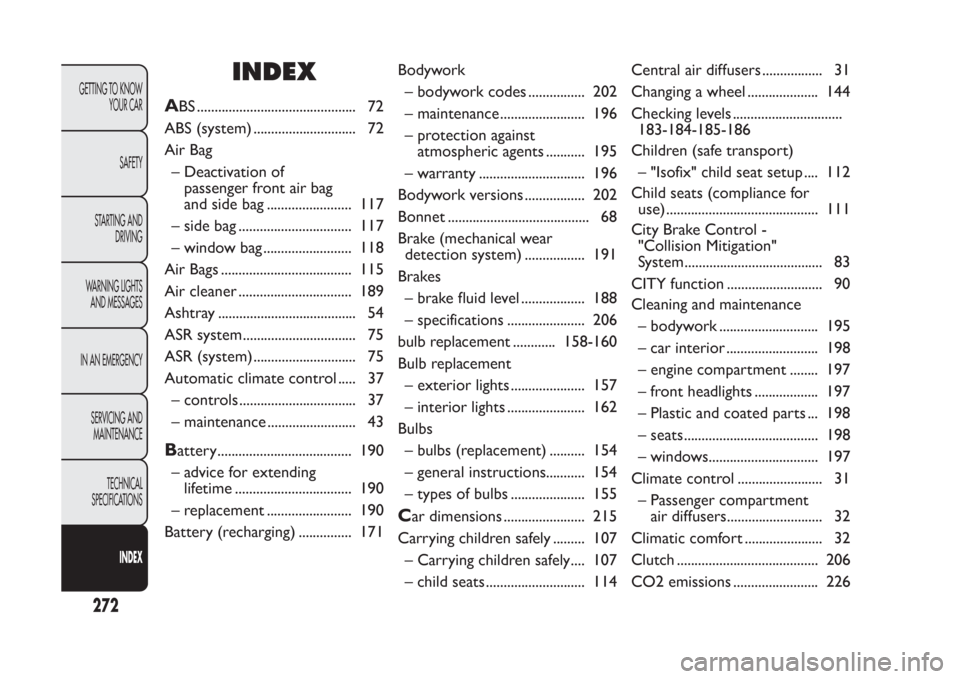

INDEX
A
BS ............................................. 72
ABS (system) ............................. 72
Air Bag
– Deactivation of
passenger front air bag
and side bag ........................ 117
– side bag ................................ 117
– window bag ......................... 118
Air Bags ..................................... 115
Air cleaner ................................ 189
Ashtray ....................................... 54
ASR system................................ 75
ASR (system) ............................. 75
Automatic climate control ..... 37
– controls ................................. 37
– maintenance ......................... 43
B
attery...................................... 190
– advice for extending
lifetime ................................. 190
– replacement ........................ 190
Battery (recharging) ............... 171Bodywork
– bodywork codes ................ 202
– maintenance ........................ 196
– protection against
atmospheric agents ........... 195
– warranty .............................. 196
Bodywork versions ................. 202
Bonnet ........................................ 68
Brake (mechanical wear
detection system) ................. 191
Brakes
– brake fluid level .................. 188
– specifications ...................... 206
bulb replacement ............ 158-160
Bulb replacement
– exterior lights ..................... 157
– interior lights ...................... 162
Bulbs
– bulbs (replacement) .......... 154
– general instructions........... 154
– types of bulbs ..................... 155
C
ar dimensions ....................... 215
Carrying children safely ......... 107
– Carrying children safely.... 107
– child seats ............................ 114Central air diffusers ................. 31
Changing a wheel .................... 144
Checking levels ...............................
183-184-185-186
Children (safe transport)
– "Isofix" child seat setup .... 112
Child seats (compliance for
use) ........................................... 111
City Brake Control -
"Collision Mitigation"
System ....................................... 83
CITY function ........................... 90
Cleaning and maintenance
– bodywork ............................ 195
– car interior .......................... 198
– engine compartment ........ 197
– front headlights .................. 197
– Plastic and coated parts ... 198
– seats...................................... 198
– windows............................... 197
Climate control ........................ 31
– Passenger compartment
air diffusers........................... 32
Climatic comfort ...................... 32
Clutch ........................................ 206
CO2 emissions ........................ 226
272
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Fuel supply ................................ 205
Fuse boxes (location) ............. 167
Fuses
– Dashboard fuse box .......... 168
– Engine compartment
fuse box ............................... 167
– fuse list ................................. 169
– replacing fuses .................... 165G
earbox (using the)............... 125
Gear Shift Indicator
(system) .................................... 7
H
andbrake ............................... 124
Hazard warning lights .............. 51
HBA (Hydraulic Brake
Assist) system ......................... 77
HBA (system)............................ 77
Headlights - fog light
alignment .................................. 72
Headlights .................................. 71
– adjusting headlights
abroad.................................... 72
– bulb replacement ............... 157
– headlight alignment
corrector .............................. 71
– light beam direction ........... 71Head restraints ......................... 26
Hill Holder system ................... 74
Hill Holder (system) ................ 74
Identification data
– bodywork paint plate........ 201
– chassis marking................... 201
– engine marking ................... 201
– identification data plate.... 200
Ignition device ........................... 22
Instrument panel ...................... 3-4
Interior fittings .......................... 53
Interiors (cleaning).................. 198"Isofix" child seat setup......... 112Jack............................................. 146K
eys
– key without remote
control................................... 19
– key with remote
control................................... 19
– replacing remote
control battery .................... 21
– request for additional
remote controls .................. 21Key with remote control
(replacing the battery) .......... 21
Knowing your car..................... 3
– Display ................................... 8
– Luggage compartment
(capacity) ............................. 215
Light clusters
– front light clusters
(changing a bulb) ................ 157
– rear light clusters
(changing a bulb) ................ 160
Load limiters ............................ 104
Luggage compartment ............ 63
Luggage compartment roof
light
– bulb replacement ............... 164M
ain beam headlights
– control................................... 46
Main/dipped beam
headlights
– bulb replacement ............... 157
Main/dipped beam
(headlights)
– bulb replacement ............... 157
Manual climate control ........... 33
– maintenance ......................... 36
274
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

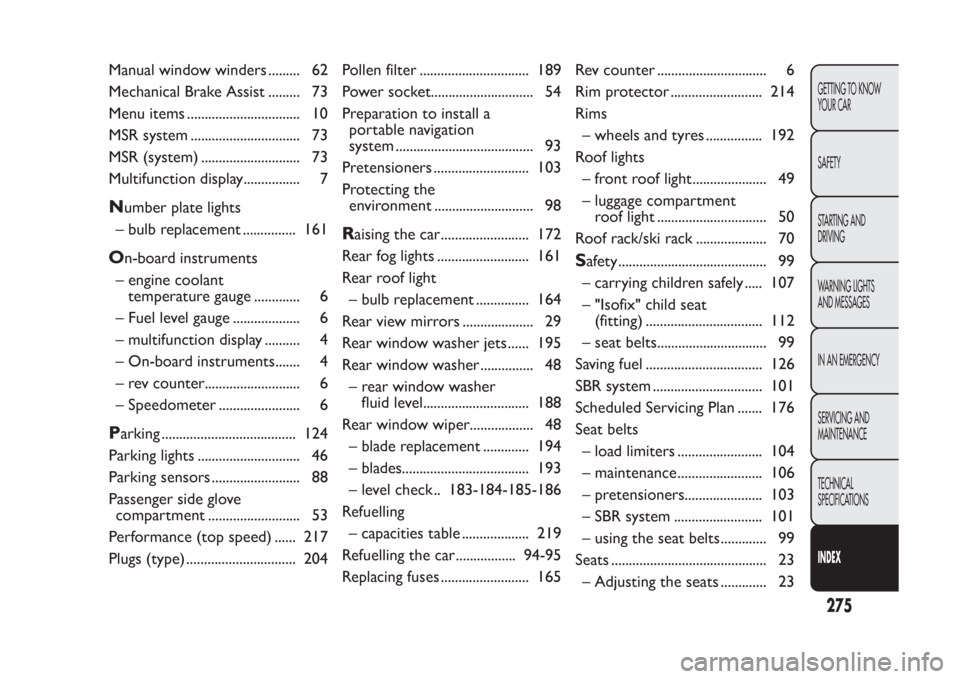

Manual window winders ......... 62
Mechanical Brake Assist ......... 73
Menu items ................................ 10
MSR system ............................... 73
MSR (system) ............................ 73
Multifunction display................ 7N
umber plate lights
– bulb replacement ............... 161
O
n-board instruments
– engine coolant
temperature gauge ............. 6
– Fuel level gauge ................... 6
– multifunction display .......... 4
– On-board instruments....... 4
– rev counter........................... 6
– Speedometer ....................... 6
P
arking ...................................... 124
Parking lights ............................. 46
Parking sensors ......................... 88
Passenger side glove
compartment .......................... 53
Performance (top speed) ...... 217
Plugs (type) ............................... 204Pollen filter ............................... 189
Power socket............................. 54
Preparation to install a
portable navigation
system ....................................... 93
Pretensioners ........................... 103
Protecting the
environment ............................ 98
R
aising the car......................... 172
Rear fog lights .......................... 161
Rear roof light
– bulb replacement ............... 164
Rear view mirrors .................... 29
Rear window washer jets ...... 195
Rear window washer ............... 48
– rear window washer
fluid level.............................. 188
Rear window wiper.................. 48
– blade replacement ............. 194
– blades.................................... 193
– level check .. 183-184-185-186
Refuelling
– capacities table ................... 219
Refuelling the car................. 94-95
Replacing fuses ......................... 165Rev counter ............................... 6
Rim protector .......................... 214
Rims
– wheels and tyres ................ 192
Roof lights
– front roof light..................... 49
– luggage compartment
roof light ............................... 50
Roof rack/ski rack .................... 70
Safety .......................................... 99
– carrying children safely ..... 107
– "Isofix" child seat
(fitting) ................................. 112
– seat belts............................... 99
Saving fuel ................................. 126
SBR system ............................... 101
Scheduled Servicing Plan ....... 176
Seat belts
– load limiters ........................ 104
– maintenance ........................ 106
– pretensioners...................... 103
– SBR system ......................... 101
– using the seat belts............. 99
Seats ............................................ 23
– Adjusting the seats ............. 23
275GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX

Sensors
– parking................................... 88
Servicing and care ................... 175
– heavy-duty use of the
car ......................................... 181
– periodic checks .................. 181
– scheduled servicing ........... 175
– scheduled servicing plan... 176
Side air diffusers ....................... 31
Side Bag ..................................... 117
Side
– bags ....................................... 117
Snow chains .............................. 130
Sound system (wiring)............. 91
Speedometer ............................. 6
Speedometer (speed
indicator) .................................. 6
Starting the engine ......... 121-143
Starting up and driving ........... 121
Start&Stop system ................... 79
Start&Stop (system) ................ 79
Steering lock.............................. 22
Steering system ....................... 208
Steering wheel .......................... 28
Steering wheel stalks– left stalk ................................ 45
Storing the car ......................... 131
Sun roof ...................................... 56
Sun visors ................................... 55
Suspension ................................ 207
T
echnical data ......................... 200
Third brake lights .................... 160
Top speed ................................. 217
Towing the car ......................... 173
Towing trailers ......................... 128
Traction Plus system................ 78
Transmission ............................ 206
TRIP button ............................... 17
Trip computer
– TRIP button ......................... 17
– Trip Computer .................... 16
– Trip Computer values........ 16
Tyres
– FIX&GO automatic (kit).. 149
– inflation pressure ............... 213
– reading the tyre code ....... 209
– Rim Protector tyres .......... 214
– snow tyres........................... 210
– tyres provided .................... 210Tyres - maintenance ............... 192
"Universal" child seat
fitting........................................ 114U
niversal Isofix (child
seat) ......................................... 112
Using the gearbox ................... 125
W
arning lights on panel ....... 132
Weights and loads ................... 218
Wheel rims
– correct reading of the
rim code .............................. 210
– dimensions .......................... 210
– rim protector ..................... 214
– rims and tyres..................... 209
Wheels and tyres
– changing a wheel ................ 144
– FIX&GO automatic (kit).. 149
– spare wheel ......................... 209
– tyre inflation pressure ...... 213
– Wheels and tyres .............. 192
Window bag ............................. 118
Window cleaning...................... 47
Windows (cleaning)................ 197
276
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
