technical specifications FIAT PANDA 2014 319 / 3.G Owners Manual

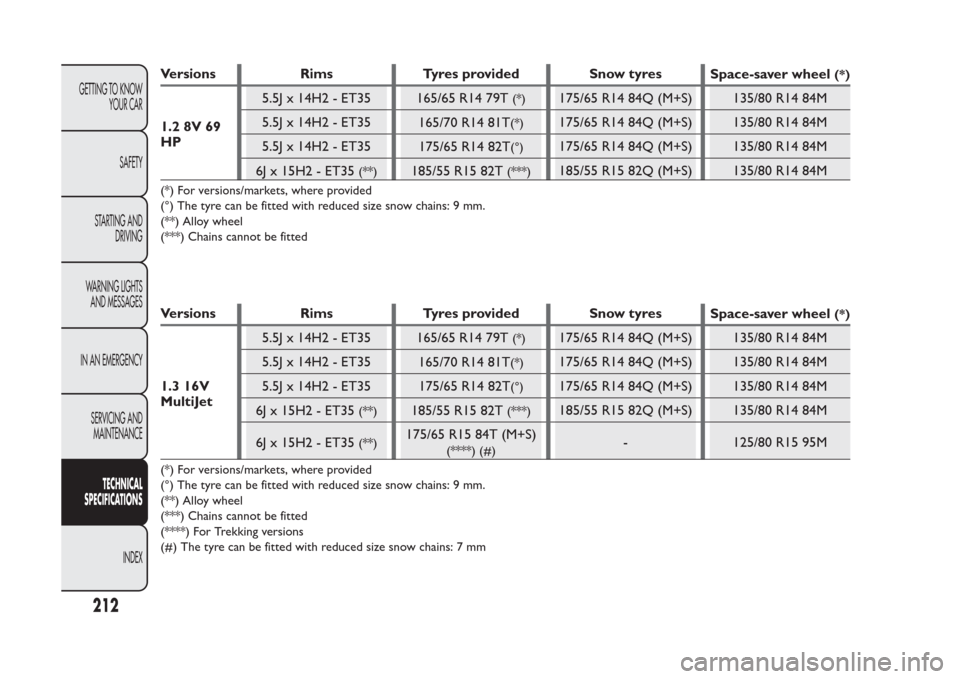

Versions Rims Tyres provided Snow tyres
Space-saver wheel
(*)
1.2 8V 69
HP5.5J x 14H2 - ET35
165/65 R14 79T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(°)
175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
185/55 R15 82T
(***)
185/55 R15 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided
(°) The tyre can be fitted with reduced size snow chains: 9 mm.
(**) Alloy wheel
(***) Chains cannot be fittedVersions Rims Tyres provided Snow tyres
Space-saver wheel
(*)
1.3 16V
MultiJet5.5J x 14H2 - ET35
165/65 R14 79T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(°)
175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
185/55 R15 82T
(***)
185/55 R15 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
175/65 R15 84T (M+S)
(****) (#)
- 125/80 R15 95M
(*) For versions/markets, where provided
(°) The tyre can be fitted with reduced size snow chains: 9 mm.
(**) Alloy wheel
(***) Chains cannot be fitted
(****) For Trekking versions
(#) The tyre can be fitted with reduced size snow chains: 7 mm
212
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed figure.
However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.Ty r e sNo load/medium load Full load
Front Rear Front Rear
165/65 R14 79T
(*)
2,5 2,2 2,7 2,4
165/70 R14 81T
(*)
2,3 2,0 2,5 2,2
175/65 R14 82T 2,2 2,0 2,5 2,5
175/65 R15 84T (M+S)
(**)
2,2 2,1 2,5 2,5
185/55 R15 82T 2,2 2,0 2,5 2,5
(*) For versions/markets, where provided
(**) For Trekking versionsSpace-saver wheel
(*)
bar
135/80 R14 84M 2,8
125/80 R15 95M 4,2
(*) For versions/markets, where provided
213GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

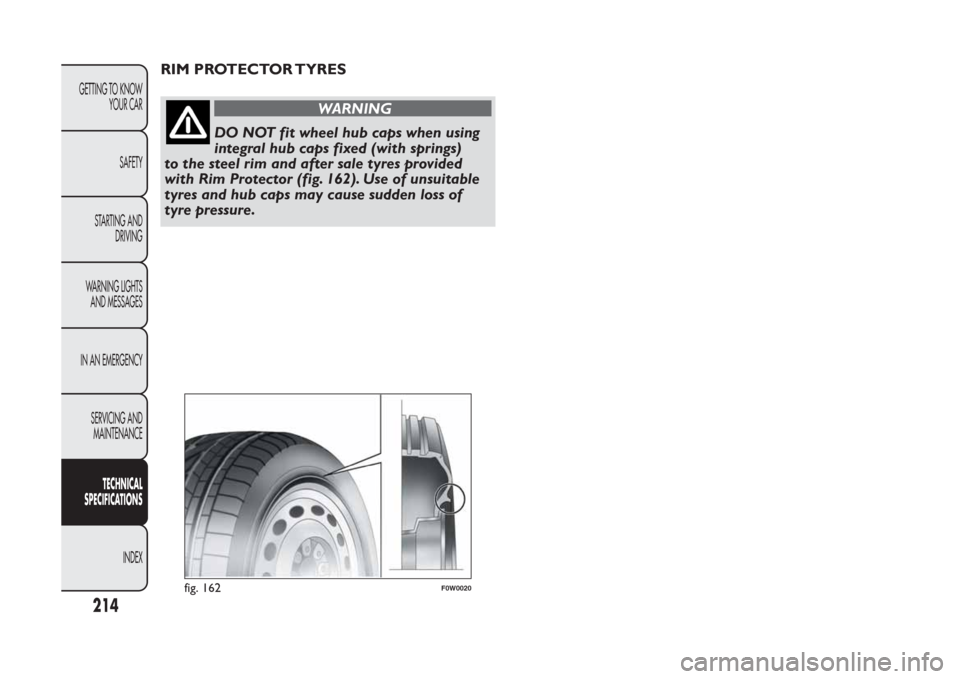

RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector (fig. 162). Use of unsuitable
tyres and hub caps may cause sudden loss of
tyre pressure.
fig. 162
F0W0020
214
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

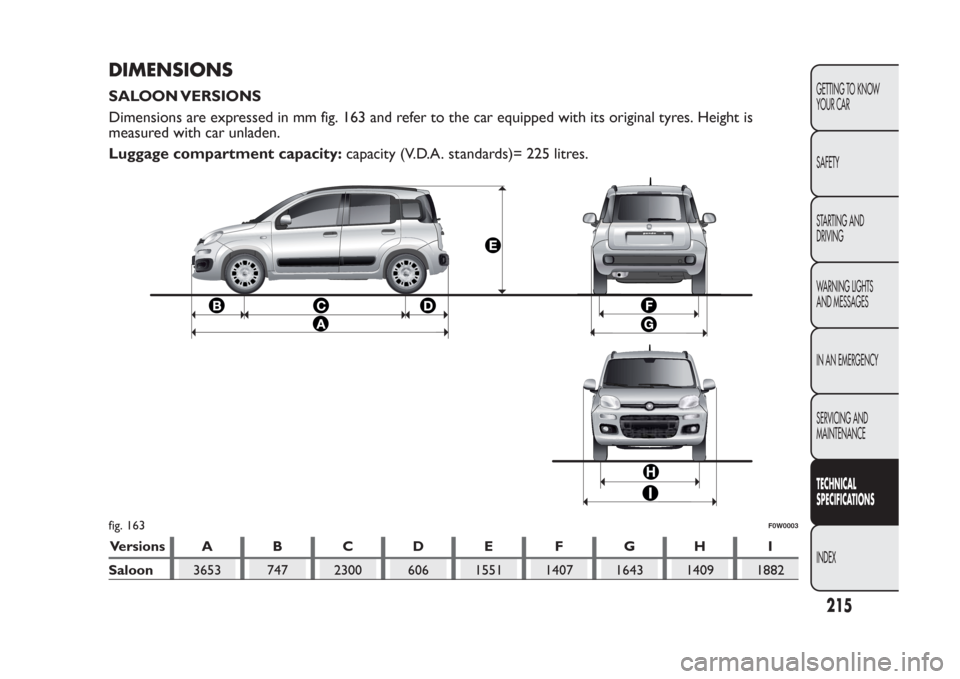

DIMENSIONSSALOON VERSIONS
Dimensions are expressed in mm fig. 163 and refer to the car equipped with its original tyres. Height is
measured with car unladen.
Luggage compartment capacity:capacity (V.D.A. standards)= 225 litres.Versions A B C D E F G H I
Saloon3653 747 2300 606 1551 1407 1643 1409 1882fig. 163
F0W0003
215GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

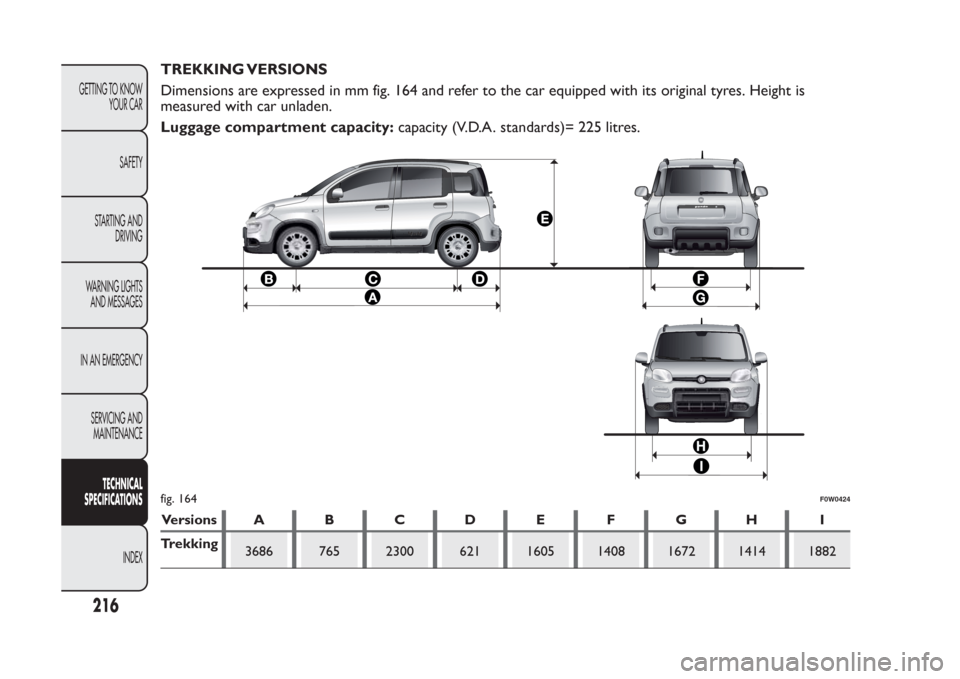

TREKKING VERSIONS
Dimensions are expressed in mm fig. 164 and refer to the car equipped with its original tyres. Height is
measured with car unladen.
Luggage compartment capacity:capacity (V.D.A. standards)= 225 litres.Versions A B C D E F G H I
Trekking
3686 765 2300 621 1605 1408 1672 1414 1882fig. 164
F0W0424
216
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

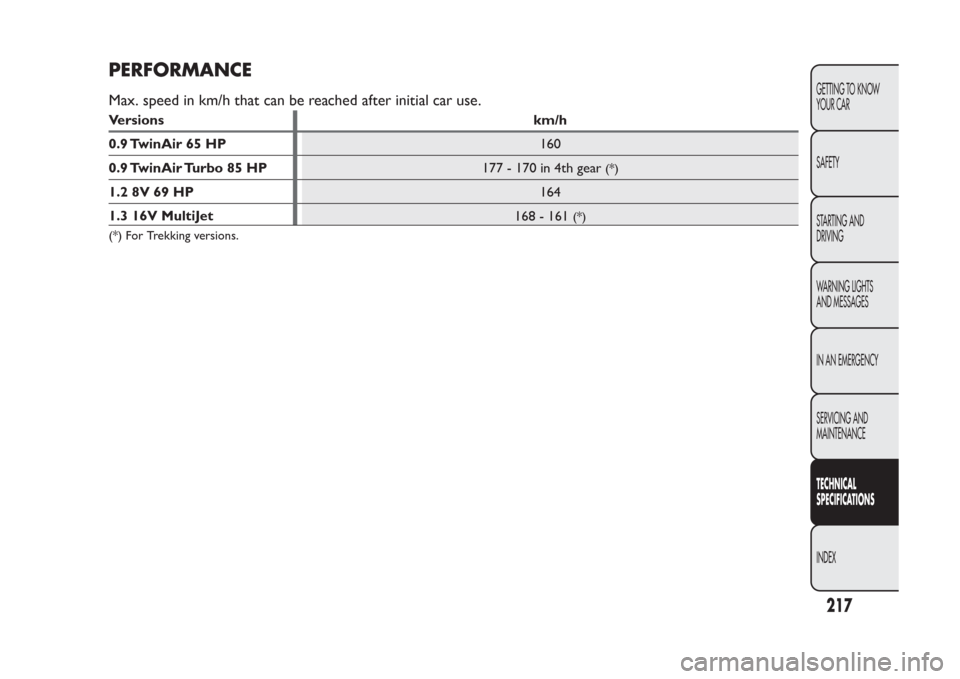

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
0.9 TwinAir 65 HP160
0.9 TwinAir Turbo 85 HP
177 - 170 in 4th gear
(*)
1.2 8V 69 HP164
1.3 16V MultiJet
168 - 161
(*)
(*) For Trekking versions.
217GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

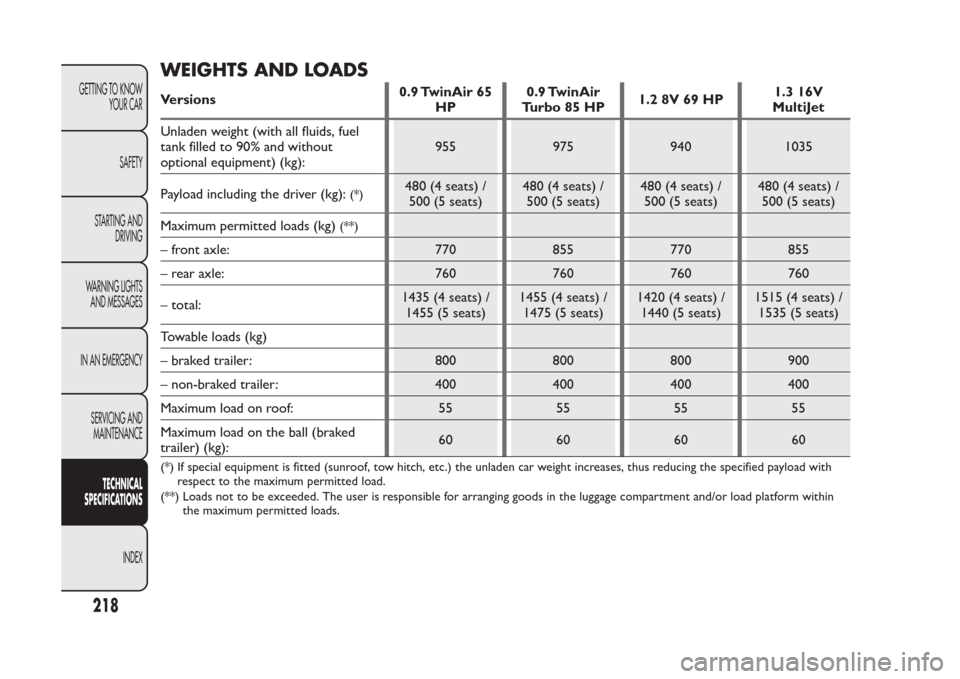

WEIGHTS AND LOADSVersions0.9 TwinAir 65
HP0.9 TwinAir
Turbo 85 HP1.2 8V 69 HP1.3 16V
MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):955 975 940 1035
Payload including the driver (kg):
(*)
480 (4 seats) /
500 (5 seats)480 (4 seats) /
500 (5 seats)480 (4 seats) /
500 (5 seats)480 (4 seats) /
500 (5 seats)
Maximum permitted loads (kg)
(**)
– front axle: 770 855 770 855
– rear axle: 760 760 760 760
– total:1435 (4 seats) /
1455 (5 seats)1455 (4 seats) /
1475 (5 seats)1420 (4 seats) /
1440 (5 seats)1515 (4 seats) /
1535 (5 seats)
Towable loads (kg)
– braked trailer: 800 800 800 900
– non-braked trailer: 400 400 400 400
Maximum load on roof: 55 55 55 55
Maximum load on the ball (braked
trailer) (kg):60 60 60 60(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
218
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

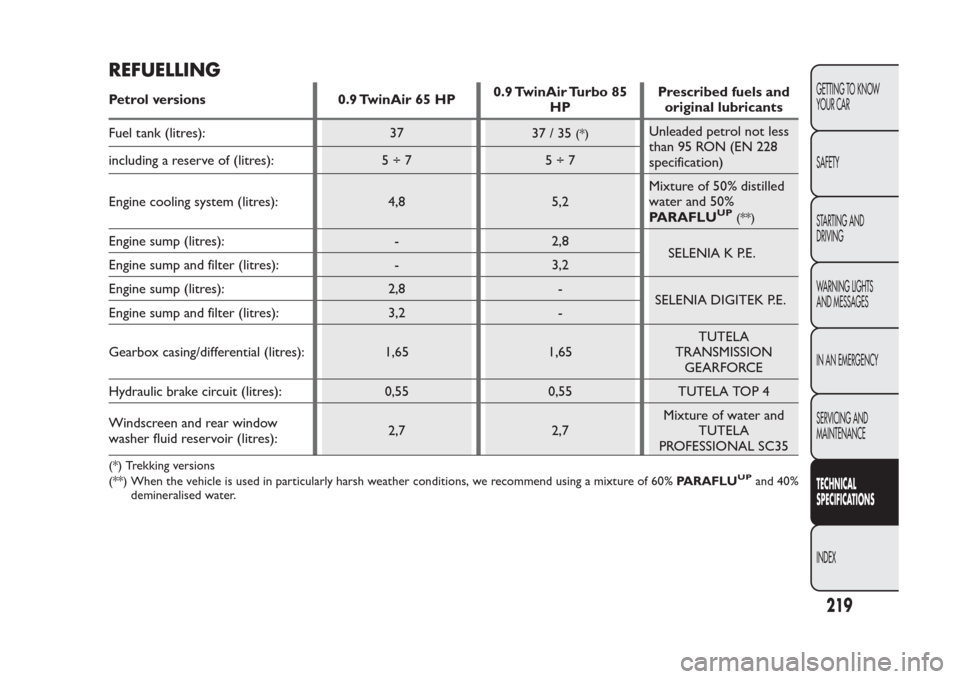

REFUELLINGPetrol versions 0.9 TwinAir 65 HP0.9 TwinAir Turbo 85
HPPrescribed fuels and
original lubricants
Fuel tank (litres): 37
37/35
(*)
Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system (litres): 4,8 5,2Mixture of 50% distilled
water and 50%
PARAFLU
UP
(**)
Engine sump (litres): - 2,8
SELENIA K P.E.
Engine sump and filter (litres): - 3,2
Engine sump (litres): 2,8 -
SELENIA DIGITEK P.E.
Engine sump and filter (litres): 3,2 -
Gearbox casing/differential (litres): 1,65 1,65TUTELA
TRANSMISSION
GEARFORCE
Hydraulic brake circuit (litres): 0,55 0,55 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir (litres):2,7 2,7Mixture of water and
TUTELA
PROFESSIONAL SC35(*) Trekking versions
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

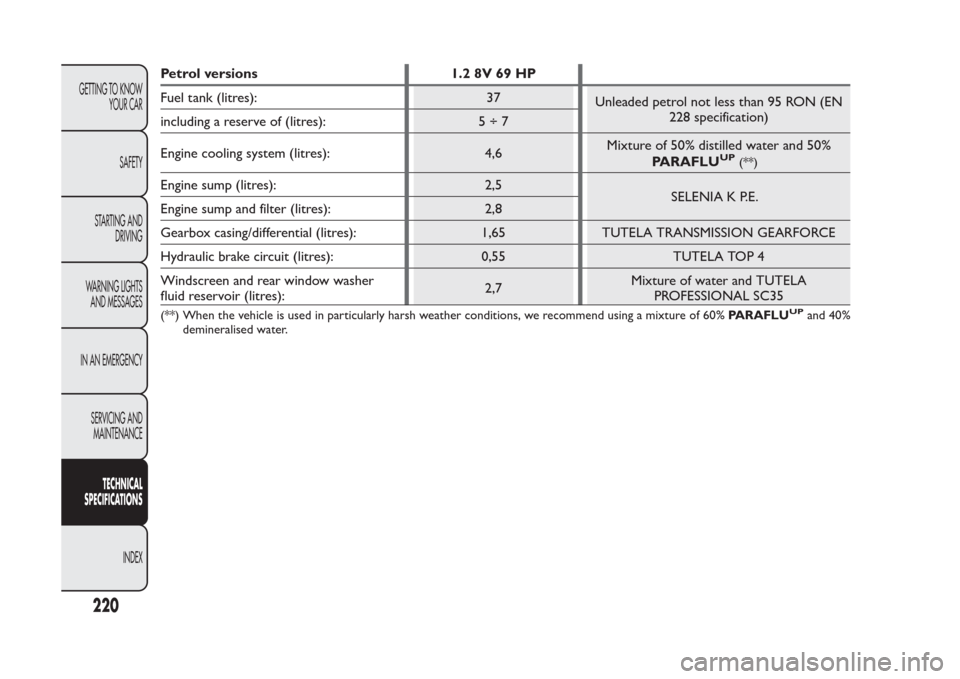

Petrol versions 1.2 8V 69 HP
