technical specifications FIAT PANDA 2014 319 / 3.G Owners Manual

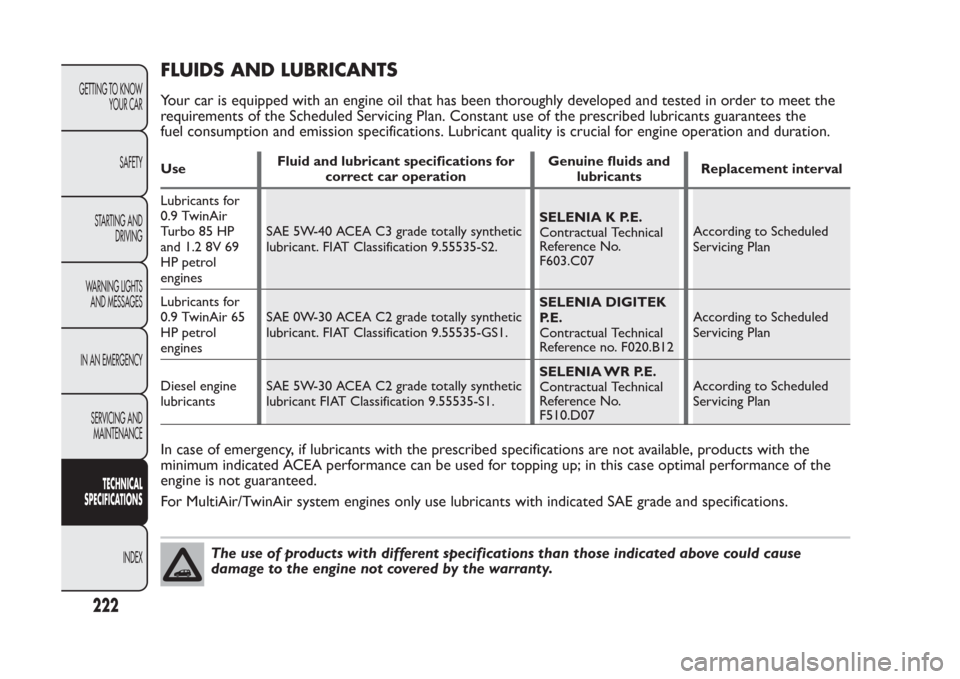

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsReplacement interval
Lubricants for
0.9 TwinAir
Turbo 85 HP
and 1.2 8V 69
HP petrol
enginesSAE 5W-40 ACEA C3 grade totally synthetic
lubricant. FIAT Classification 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricants for
0.9 TwinAir 65
HP petrol
enginesSAE 0W-30 ACEA C2 grade totally synthetic
lubricant. FIAT Classification 9.55535-GS1.SELENIA DIGITEK
P.E.
Contractual Technical
Reference no. F020.B12According to Scheduled
Servicing Plan
Diesel engine
lubricantsSAE 5W-30 ACEA C2 grade totally synthetic
lubricant FIAT Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
For MultiAir/TwinAir system engines only use lubricants with indicated SAE grade and specifications.
The use of products with different specifications than those indicated above could cause
damage to the engine not covered by the warranty.
222
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

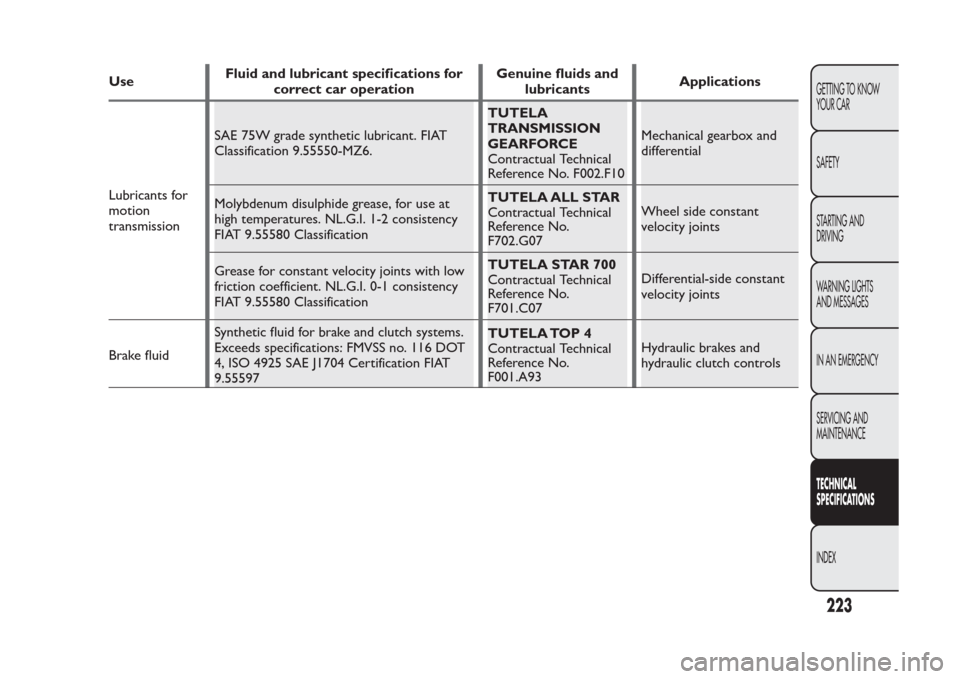

UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsApplications
Lubricants for
motion
transmissionSAE 75W grade synthetic lubricant. FIAT
Classification 9.55550-MZ6.TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical gearbox and
differential
Molybdenum disulphide grease, for use at
high temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 ClassificationTUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient. NL.G.I. 0-1 consistency
FIAT 9.55580 ClassificationTUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential-side constant
velocity joints
Brake fluidSynthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT
4, ISO 4925 SAE J1704 Certification FIAT
9.55597TUTELA TOP 4
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
hydraulic clutch controls
223GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

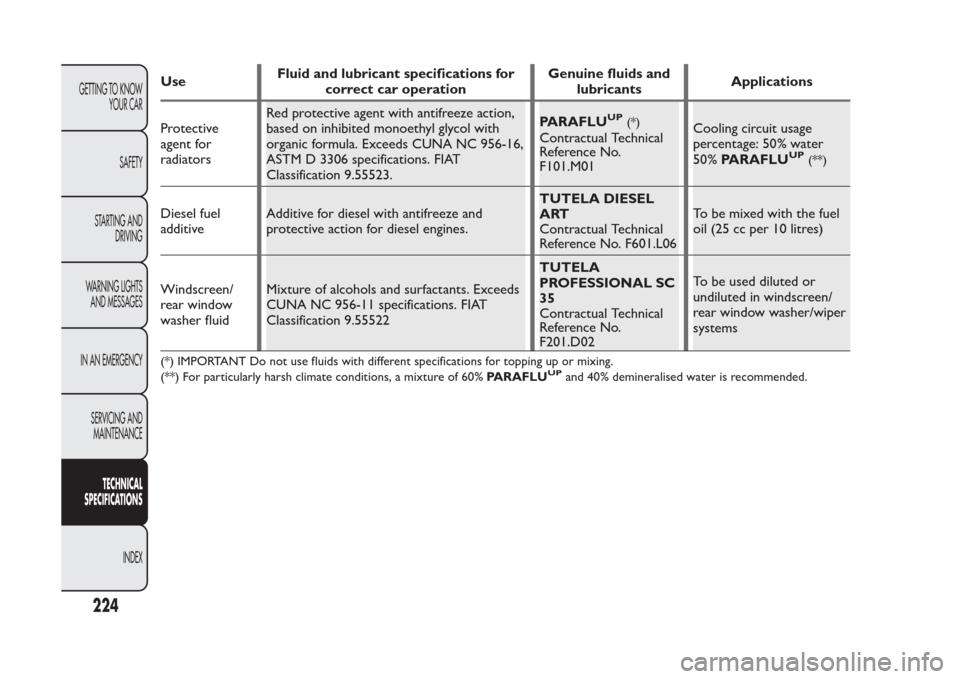

UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsApplications
Protective
agent for
radiatorsRed protective agent with antifreeze action,
based on inhibited monoethyl glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications. FIAT
Classification 9.55523.PARAFLU
UP
(*)
Contractual Technical
Reference No.
F101.M01Cooling circuit usage
percentage: 50% water
50%PARAFLU
UP
(**)
Diesel fuel
additiveAdditive for diesel with antifreeze and
protective action for diesel engines.TUTELA DIESEL
ART
Contractual Technical
Reference No. F601.L06To be mixed with the fuel
oil (25 cc per 10 litres)
Windscreen/
rear window
washer fluidMixture of alcohols and surfactants. Exceeds
CUNA NC 956-11 specifications. FIAT
Classification 9.55522TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in windscreen/
rear window washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
224
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

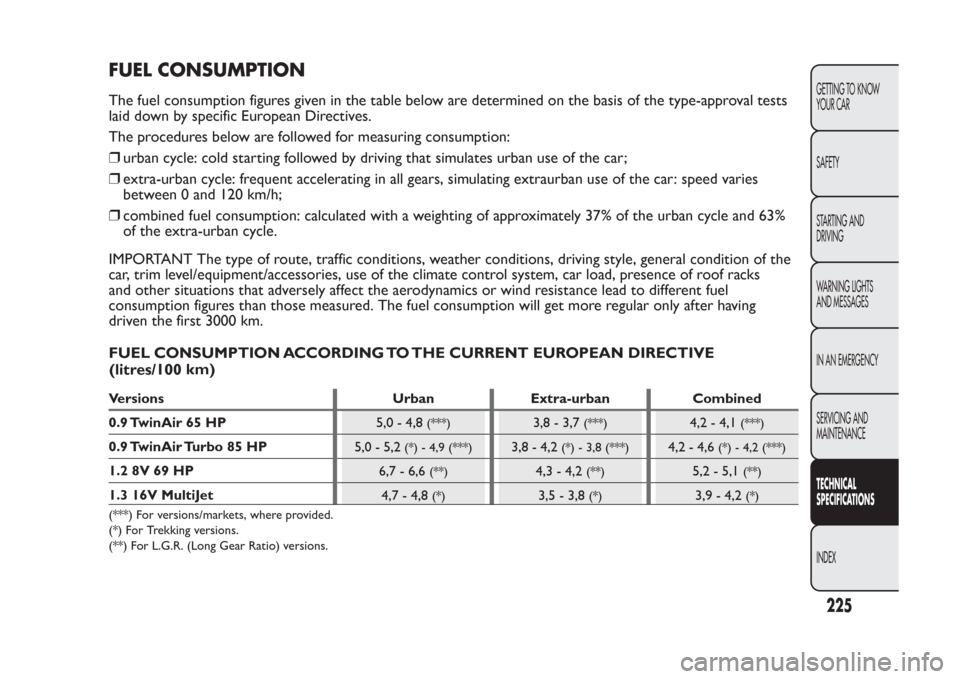

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extraurban use of the car: speed varies
between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
car, trim level/equipment/accessories, use of the climate control system, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured. The fuel consumption will get more regular only after having
driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
km)Versions Urban Extra-urban Combined
0.9 TwinAir 65 HP
5,0 - 4,8
(***)
3,8 - 3,7
(***)
4,2 - 4,1
(***)
0.9 TwinAir Turbo 85 HP
5,0 - 5,2
(*) - 4,9 (***)
3,8 - 4,2
(*) - 3,8 (***)
4,2 - 4,6
(*) - 4,2 (***)
1.2 8V 69 HP
6,7 - 6,6
(**)
4,3 - 4,2
(**)
5,2 - 5,1
(**)
1.3 16V MultiJet
4,7 - 4,8
(*)
3,5 - 3,8
(*)
3,9 - 4,2
(*)
(***) For versions/markets, where provided.
(*) For Trekking versions.
(**) For L.G.R. (Long Gear Ratio) versions.
225GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
(litres/100

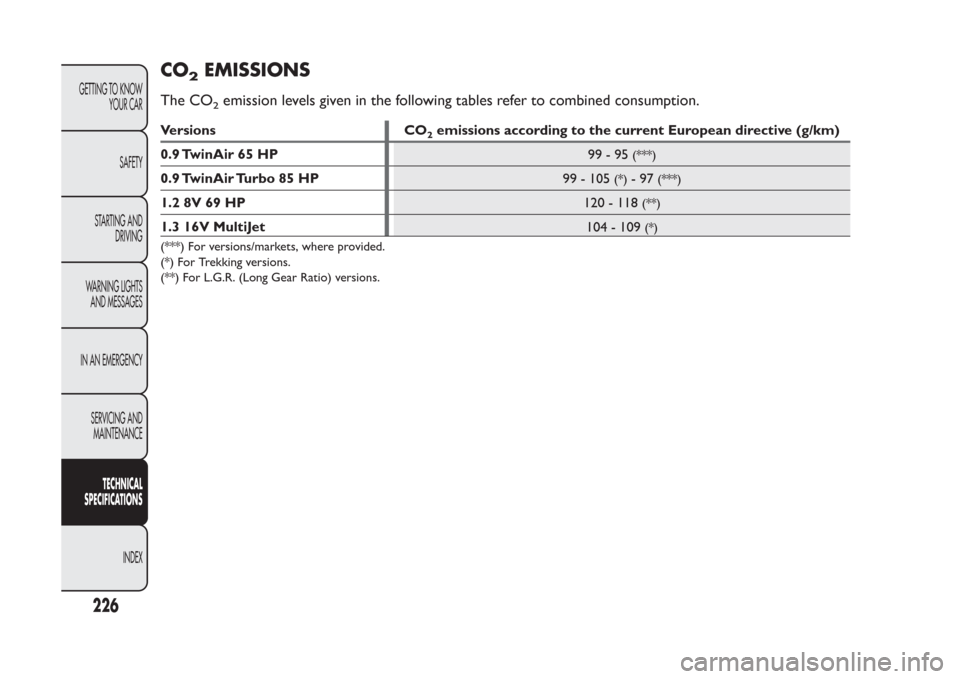

CO
2
EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
Versions CO
2emissions according to the current European directive (g/km)
0.9 TwinAir 65 HP
99-95
(***)
0.9 TwinAir Turbo 85 HP
99 - 105
(*)
-97
(***)
1.2 8V 69 HP
120 - 118
(**)
1.3 16V MultiJet
104 - 109
(*)
(***) For versions/markets, where provided.
(*) For Trekking versions.
(**) For L.G.R. (Long Gear Ratio) versions.
226
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

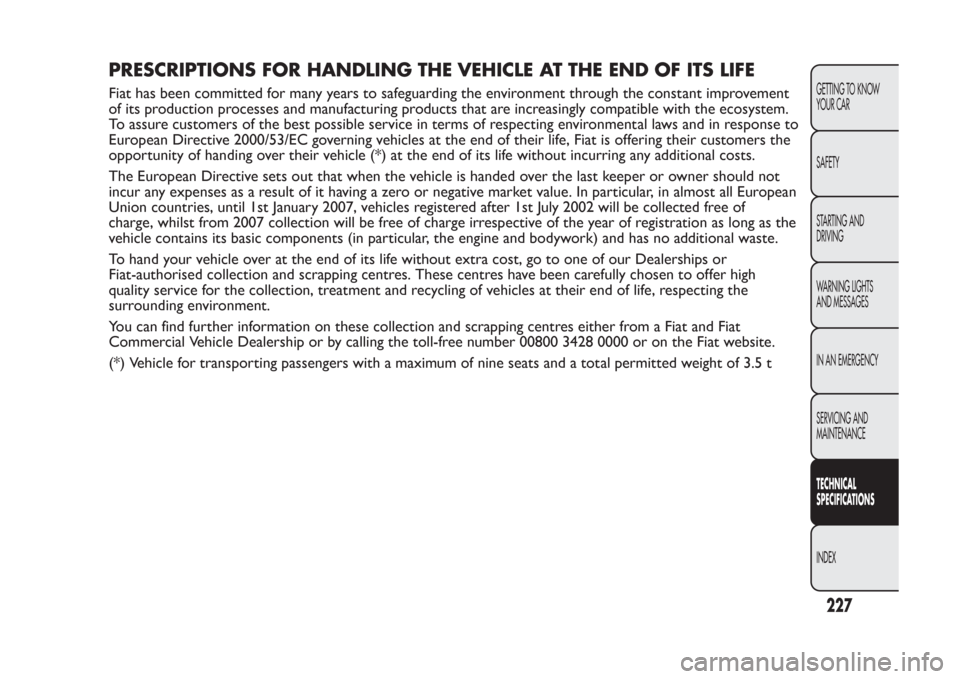

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement
of its production processes and manufacturing products that are increasingly compatible with the ecosystem.
To assure customers of the best possible service in terms of respecting environmental laws and in response to
European Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering their customers the
opportunity of handing over their vehicle (*) at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not
incur any expenses as a result of it having a zero or negative market value. In particular, in almost all European
Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be collected free of
charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as the
vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or
Fiat-authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of vehicles at their end of life, respecting the
surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat
Commercial Vehicle Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

INDEX
A
BS ............................................. 72
ABS (system) ............................. 72
Air Bag
– Deactivation of
passenger front air bag
and side bag ........................ 117
– side bag ................................ 117
– window bag ......................... 118
Air Bags ..................................... 115
Air cleaner ................................ 189
Ashtray ....................................... 54
ASR system................................ 75
ASR (system) ............................. 75
Automatic climate control ..... 37
– controls ................................. 37
– maintenance ......................... 43
B
attery...................................... 190
– advice for extending
lifetime ................................. 190
– replacement ........................ 190
Battery (recharging) ............... 171Bodywork
– bodywork codes ................ 202
– maintenance ........................ 196
– protection against
atmospheric agents ........... 195
– warranty .............................. 196
Bodywork versions ................. 202
Bonnet ........................................ 68
Brake (mechanical wear
detection system) ................. 191
Brakes
– brake fluid level .................. 188
– specifications ...................... 206
bulb replacement ............ 158-160
Bulb replacement
– exterior lights ..................... 157
– interior lights ...................... 162
Bulbs
– bulbs (replacement) .......... 154
– general instructions........... 154
– types of bulbs ..................... 155
C
ar dimensions ....................... 215
Carrying children safely ......... 107
– Carrying children safely.... 107
– child seats ............................ 114Central air diffusers ................. 31
Changing a wheel .................... 144
Checking levels ...............................
183-184-185-186
Children (safe transport)
– "Isofix" child seat setup .... 112
Child seats (compliance for
use) ........................................... 111
City Brake Control -
"Collision Mitigation"
System ....................................... 83
CITY function ........................... 90
Cleaning and maintenance
– bodywork ............................ 195
– car interior .......................... 198
– engine compartment ........ 197
– front headlights .................. 197
– Plastic and coated parts ... 198
– seats...................................... 198
– windows............................... 197
Climate control ........................ 31
– Passenger compartment
air diffusers........................... 32
Climatic comfort ...................... 32
Clutch ........................................ 206
CO2 emissions ........................ 226
272
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

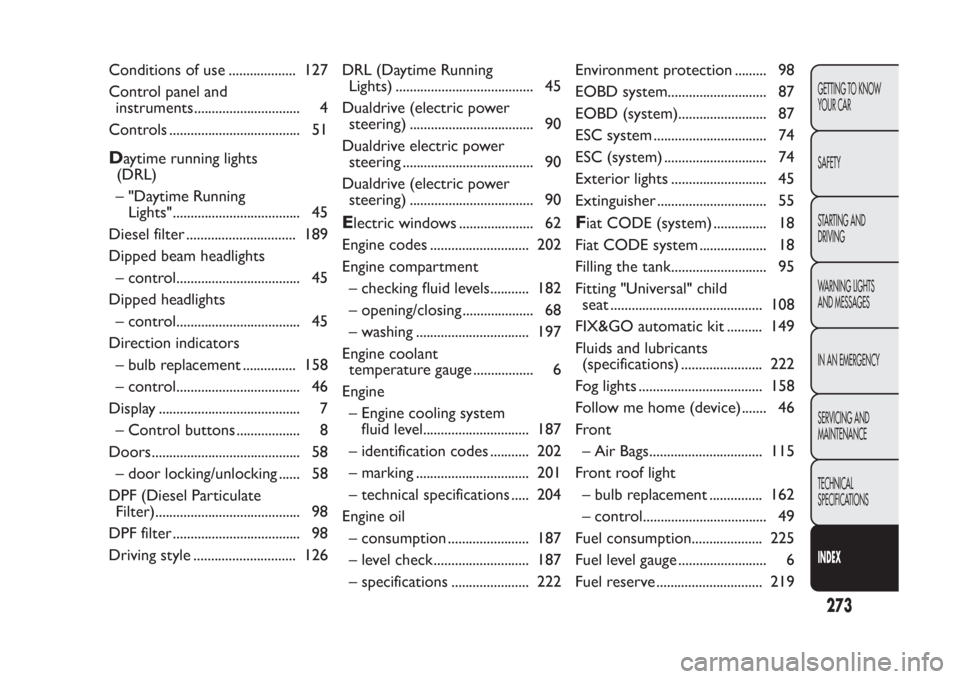

Conditions of use ................... 127
Control panel and
instruments.............................. 4
Controls ..................................... 51D
aytime running lights
(DRL)
– "Daytime Running
Lights".................................... 45
Diesel filter ............................... 189
Dipped beam headlights
– control................................... 45
Dipped headlights
– control................................... 45
Direction indicators
– bulb replacement ............... 158
– control................................... 46
Display ........................................ 7
– Control buttons .................. 8
Doors.......................................... 58
– door locking/unlocking ...... 58
DPF (Diesel Particulate
Filter)......................................... 98
DPF filter .................................... 98
Driving style ............................. 126DRL (Daytime Running
Lights) ....................................... 45
Dualdrive (electric power
steering) ................................... 90
Dualdrive electric power
steering ..................................... 90
Dualdrive (electric power
steering) ................................... 90
E
lectric windows ..................... 62
Engine codes ............................ 202
Engine compartment
– checking fluid levels........... 182
– opening/closing .................... 68
– washing ................................ 197
Engine coolant
temperature gauge ................. 6
Engine
– Engine cooling system
fluid level.............................. 187
– identification codes ........... 202
– marking ................................ 201
– technical specifications ..... 204
Engine oil
– consumption ....................... 187
– level check ........................... 187
– specifications ...................... 222Environment protection ......... 98
EOBD system............................ 87
EOBD (system)......................... 87
ESC system ................................ 74
ESC (system) ............................. 74
Exterior lights ........................... 45
Extinguisher ............................... 55
Fiat CODE (system) ............... 18
Fiat CODE system ................... 18
Filling the tank........................... 95
Fitting "Universal" child
seat ........................................... 108
FIX&GO automatic kit .......... 149
Fluids and lubricants
(specifications) ....................... 222
Fog lights ................................... 158
Follow me home (device) ....... 46
Front
– Air Bags................................ 115
Front roof light
– bulb replacement ............... 162
– control................................... 49
Fuel consumption.................... 225
Fuel level gauge ......................... 6
Fuel reserve .............................. 219
273GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX

Fuel supply ................................ 205
Fuse boxes (location) ............. 167
Fuses
– Dashboard fuse box .......... 168
– Engine compartment
fuse box ............................... 167
– fuse list ................................. 169
– replacing fuses .................... 165G
earbox (using the)............... 125
Gear Shift Indicator
(system) .................................... 7
H
andbrake ............................... 124
Hazard warning lights .............. 51
HBA (Hydraulic Brake
Assist) system ......................... 77
HBA (system)............................ 77
Headlights - fog light
alignment .................................. 72
Headlights .................................. 71
– adjusting headlights
abroad.................................... 72
– bulb replacement ............... 157
– headlight alignment
corrector .............................. 71
– light beam direction ........... 71Head restraints ......................... 26
Hill Holder system ................... 74
Hill Holder (system) ................ 74
Identification data
– bodywork paint plate........ 201
– chassis marking................... 201
– engine marking ................... 201
– identification data plate.... 200
Ignition device ........................... 22
Instrument panel ...................... 3-4
Interior fittings .......................... 53
Interiors (cleaning).................. 198"Isofix" child seat setup......... 112Jack............................................. 146K
eys
– key without remote
control................................... 19
– key with remote
control................................... 19
– replacing remote
control battery .................... 21
– request for additional
remote controls .................. 21Key with remote control
(replacing the battery) .......... 21
Knowing your car..................... 3
– Display ................................... 8
– Luggage compartment
(capacity) ............................. 215
Light clusters
– front light clusters
(changing a bulb) ................ 157
– rear light clusters
(changing a bulb) ................ 160
Load limiters ............................ 104
Luggage compartment ............ 63
Luggage compartment roof
light
– bulb replacement ............... 164M
ain beam headlights
– control................................... 46
Main/dipped beam
headlights
– bulb replacement ............... 157
Main/dipped beam
(headlights)
– bulb replacement ............... 157
Manual climate control ........... 33
– maintenance ......................... 36
274
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Manual window winders ......... 62
Mechanical Brake Assist ......... 73
Menu items ................................ 10
MSR system ............................... 73
MSR (system) ............................ 73
Multifunction display................ 7N
umber plate lights
– bulb replacement ............... 161
O
n-board instruments
– engine coolant
temperature gauge ............. 6
– Fuel level gauge ................... 6
– multifunction display .......... 4
– On-board instruments....... 4
– rev counter........................... 6
– Speedometer ....................... 6
P
arking ...................................... 124
Parking lights ............................. 46
Parking sensors ......................... 88
Passenger side glove
compartment .......................... 53
Performance (top speed) ...... 217
Plugs (type) ............................... 204Pollen filter ............................... 189
Power socket............................. 54
Preparation to install a
portable navigation
system ....................................... 93
Pretensioners ........................... 103
Protecting the
environment ............................ 98
R
aising the car......................... 172
Rear fog lights .......................... 161
Rear roof light
– bulb replacement ............... 164
Rear view mirrors .................... 29
Rear window washer jets ...... 195
Rear window washer ............... 48
– rear window washer
fluid level.............................. 188
Rear window wiper.................. 48
– blade replacement ............. 194
– blades.................................... 193
– level check .. 183-184-185-186
Refuelling
– capacities table ................... 219
Refuelling the car................. 94-95
Replacing fuses ......................... 165Rev counter ............................... 6
Rim protector .......................... 214
Rims
– wheels and tyres ................ 192
Roof lights
– front roof light..................... 49
– luggage compartment
roof light ............................... 50
Roof rack/ski rack .................... 70
Safety .......................................... 99
– carrying children safely ..... 107
– "Isofix" child seat
(fitting) ................................. 112
– seat belts............................... 99
Saving fuel ................................. 126
SBR system ............................... 101
Scheduled Servicing Plan ....... 176
Seat belts
– load limiters ........................ 104
– maintenance ........................ 106
– pretensioners...................... 103
– SBR system ......................... 101
– using the seat belts............. 99
Seats ............................................ 23
– Adjusting the seats ............. 23
275GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
