technical specifications FIAT PANDA 2016 319 / 3.G User Guide

Versions 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo Natural Power
Type code 312A2000 312A2000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 x 86.0 80.5 x 86.0
Total displacement (cm³) 875 875
Compression ratio 10 10
Methane Petrol
Maximum power (EEC) (kW)
62.5 / 57
(*)59 62.5
Maximum power (EEC) (HP)
85 / 77.5
(*)80 85
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EEC) (Nm)
145 / 100
(*)140 145
Maximum torque (EEC) (kgm)
14.8 / 10.2
(*)14.3 14.8
corresponding engine speed (rpm)
1900 / 2000
(*)2500 1900
Spark plugs NGK ILKR9G8 NGK ILKR9G8
FuelUnleaded petrol 95 RON (EN
228 specification)Methane for motor vehiclesUnleaded petrol 95 RON (EN
228 specification)
(*) With ECO button pressed
146
TECHNICAL SPECIFICATIONS

148
TECHNICAL SPECIFICATIONS

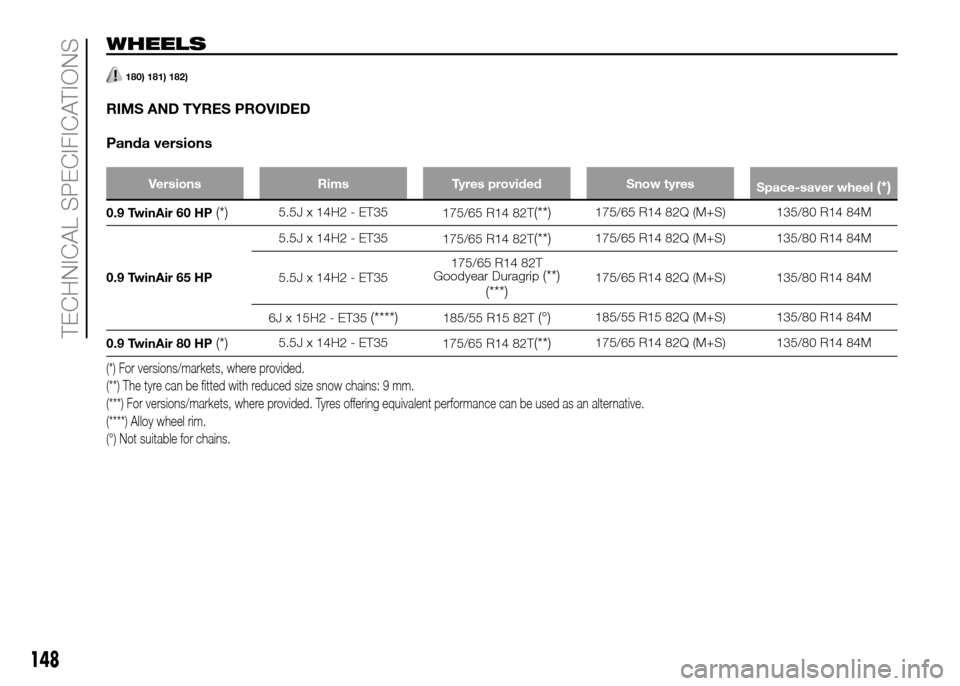

WHEELS
180) 181) 182)
RIMS AND TYRES PROVIDED
Panda versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir 60 HP(*)5.5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 82Q (M+S) 135/80 R14 84M
0.9 TwinAir 65 HP5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
0.9 TwinAir 80 HP
(*)5.5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.

150
TECHNICAL SPECIFICATIONS

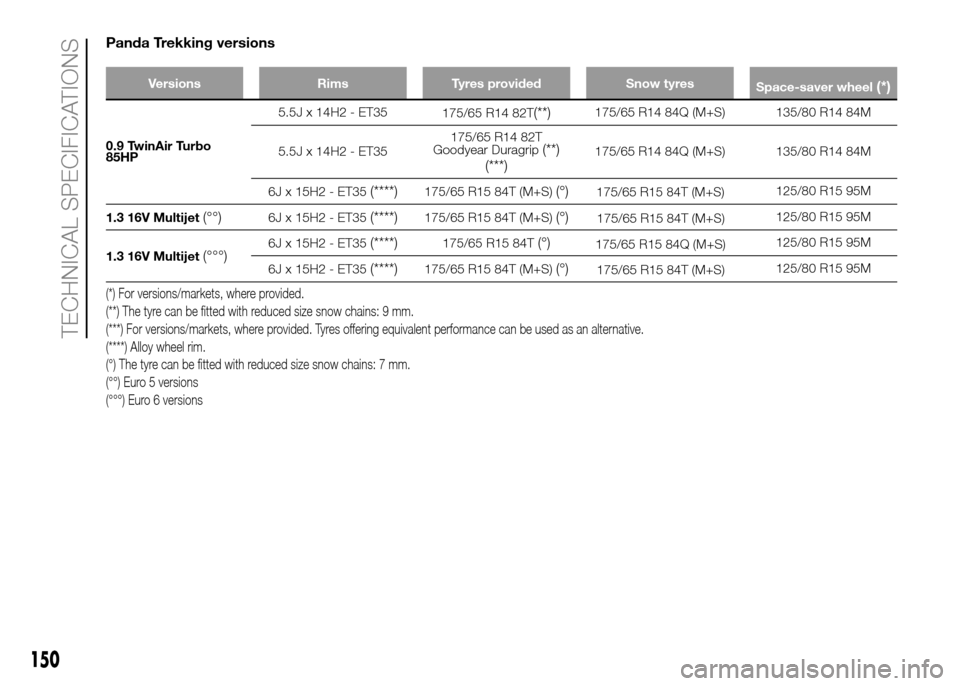

Panda Trekking versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)175/65 R15 84T (M+S)(°)125/80 R15 95M
1.3 16V Multijet
(°°)6J x 15H2 - ET35(****)175/65 R15 84T (M+S)(°)125/80 R15 95M
1.3 16V Multijet
(°°°)6J x 15H2 - ET35(****)175/65 R15 84T(°)125/80 R15 95M
6J x 15H2 - ET35
(****)175/65 R15 84T (M+S)(°)125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) The tyre can be fitted with reduced size snow chains: 7 mm.
(°°) Euro 5 versions
(°°°) Euro 6 versions
85HP
175/65 R15 84T (M+S)
175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
175/65 R15 84T (M+S)

15
TECHNICAL SPECIFICATIONS
2

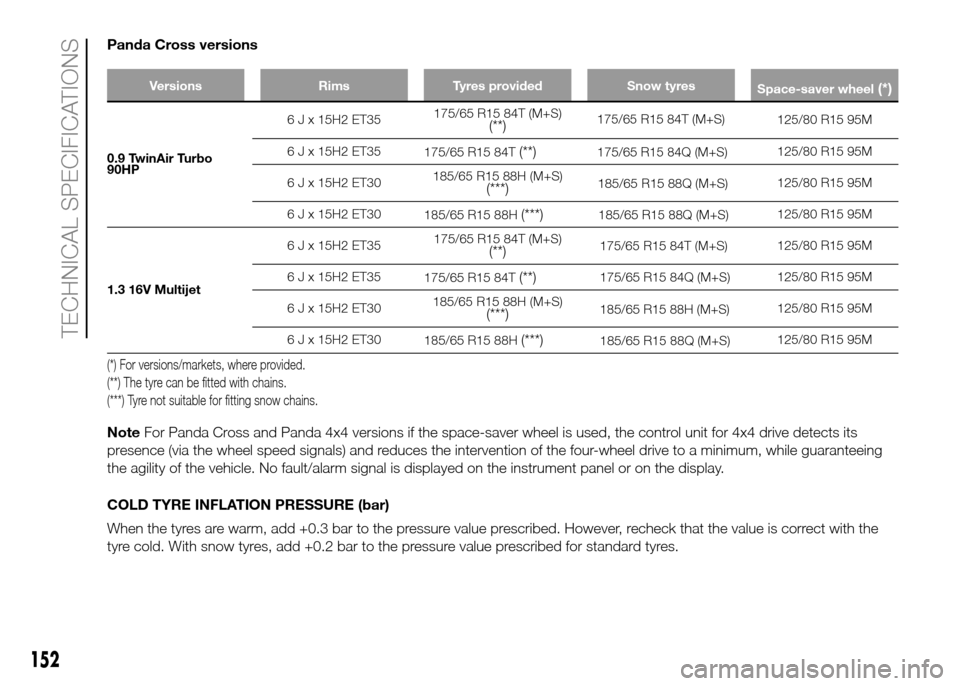

Panda Cross versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo
HP6 J x 15H2 ET35175/65 R15 84T (M+S)
(**)125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H (M+S)
(***)125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)125/80 R15 95M
1.3 16V Multijet6 J x 15H2 ET35175/65 R15 84T (M+S)
(**)125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H (M+S)
(***)125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with chains.
(***) Tyre not suitable for fitting snow chains.
NoteFor Panda Cross and Panda 4x4 versions if the space-saver wheel is used, the control unit for 4x4 drive detects its
presence (via the wheel speed signals) and reduces the intervention of the four-wheel drive to a minimum, while guaranteeing
the agility of the vehicle. No fault/alarm signal is displayed on the instrument panel or on the display.
COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the
tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
90175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
185/65 R15 88Q (M+S)
185/65 R15 88Q (M+S)
175/65 R15 84T (M+S)
175/65 R15 84Q (M+S)
185/65 R15 88H (M+S)
185/65 R15 88Q (M+S)

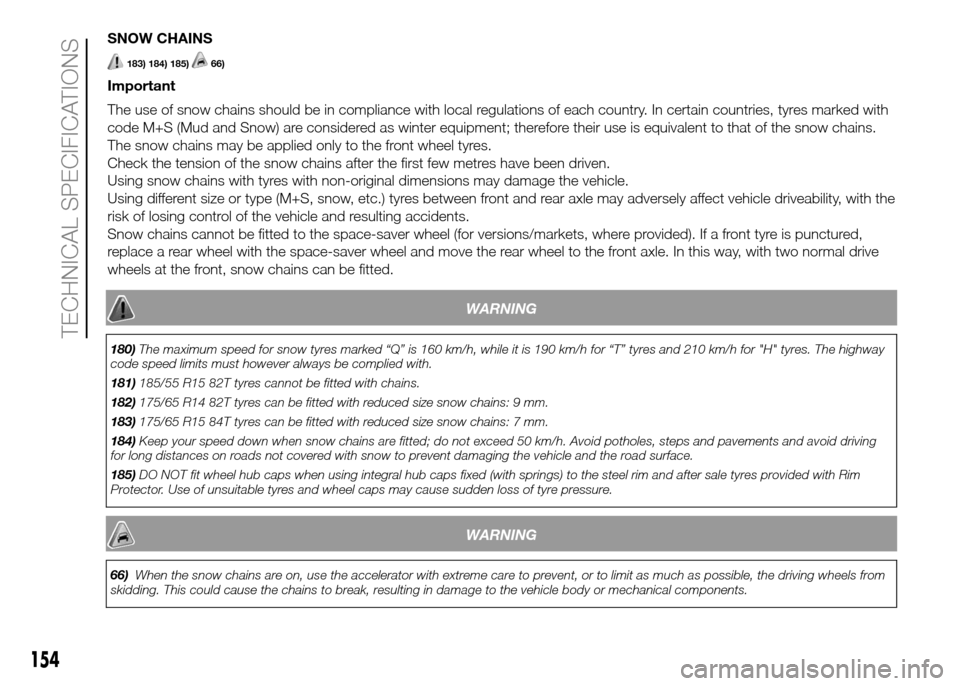

SNOW CHAINS
183) 184) 185)66)
Important
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with
code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
The snow chains may be applied only to the front wheel tyres.
Check the tension of the snow chains after the first few metres have been driven.
Using snow chains with tyres with non-original dimensions may damage the vehicle.
Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle driveability, with the
risk of losing control of the vehicle and resulting accidents.
Snow chains cannot be fitted to the space-saver wheel (for versions/markets, where provided). If a front tyre is punctured,
replace a rear wheel with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive
wheels at the front, snow chains can be fitted.
154
TECHNICAL SPECIFICATIONS
WARNING
180)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
181)185/55 R15 82T tyres cannot be fitted with chains.
182)175/65 R14 82T tyres can be fitted with reduced size snow chains: 9 mm.
183)175/65 R15 84T tyres can be fitted with reduced size snow chains: 7 mm.
184)Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, steps and pavements and avoid driving
for long distances on roads not covered with snow to prevent damaging the vehicle and the road surface.
185)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden loss of tyre pressure.
WARNING
66)When the snow chains are on, use the accelerator with extreme care to prevent, or to limit as much as possible, the driving wheels from
skidding. This could cause the chains to break, resulting in damage to the vehicle body or mechanical components.

156
TECHNICAL SPECIFICATIONS
Panda Trekking / Panda 4x4 versions
Panda Trekking
ABCDE FGH I
3686 765 2300 621 1605 1408 1672 1414 1882
Panda 4x4
ABCDE FGH I
3686 /
3653(*)765 / 747 2300
621 / 606(*)1605 1408
1672/1643(*)1411 1882
(*) VAN versions.
130F1D0104

158
TECHNICAL SPECIFICATIONS

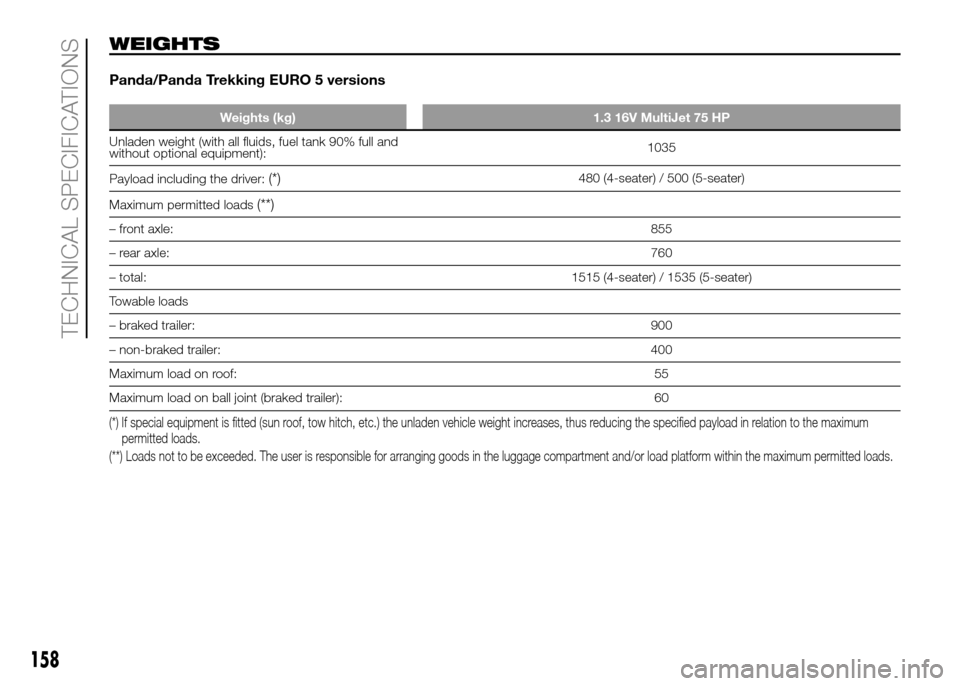

WEIGHTS
Panda/Panda Trekking EURO 5 versions
Weights (kg) 1.3 16V MultiJet 75 HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1035
Payload including the driver:
(*)480 (4-seater) / 500 (5-seater)
Maximum permitted loads
(**)
– front axle:855
– rear axle:760
– total:1515 (4-seater) / 1535 (5-seater)
Towable loads
– braked trailer:900
– non-braked trailer:400
Maximum load on roof:55
Maximum load on ball joint (braked trailer): 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

160
TECHNICAL SPECIFICATIONS

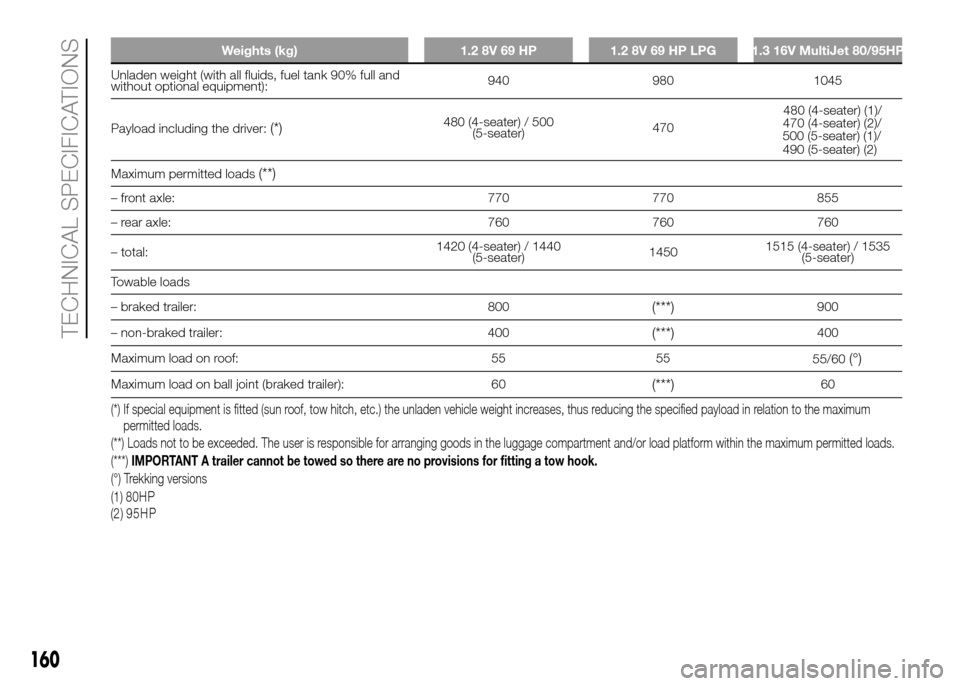

Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG 1.3 16V MultiJet 80/95HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):940 980 1045
Payload including the driver:
(*)480 (4-seater) / 500
(5-seater)470480 (4-seater) (1)/
Maximum permitted loads
(**)
– front axle: 770 770 855
– rear axle: 760 760 760
– total:1420 (4-seater) / 1440
(5-seater)14501515 (4-seater) / 1535
(5-seater)
Towable loads
– braked trailer: 800
(***)900
– non-braked trailer: 400
(***)400
Maximum load on roof: 55 55
55/60
(°)
Maximum load on ball joint (braked trailer): 60(***)60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
(***)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
(°) Trekking versions
/
/
/ /
470 (4-seater) (2)/
500 (5-seater) (1)/
490 (5-seater) (2)
(1) 80HP
(2) 95HP

162
TECHNICAL SPECIFICATIONS

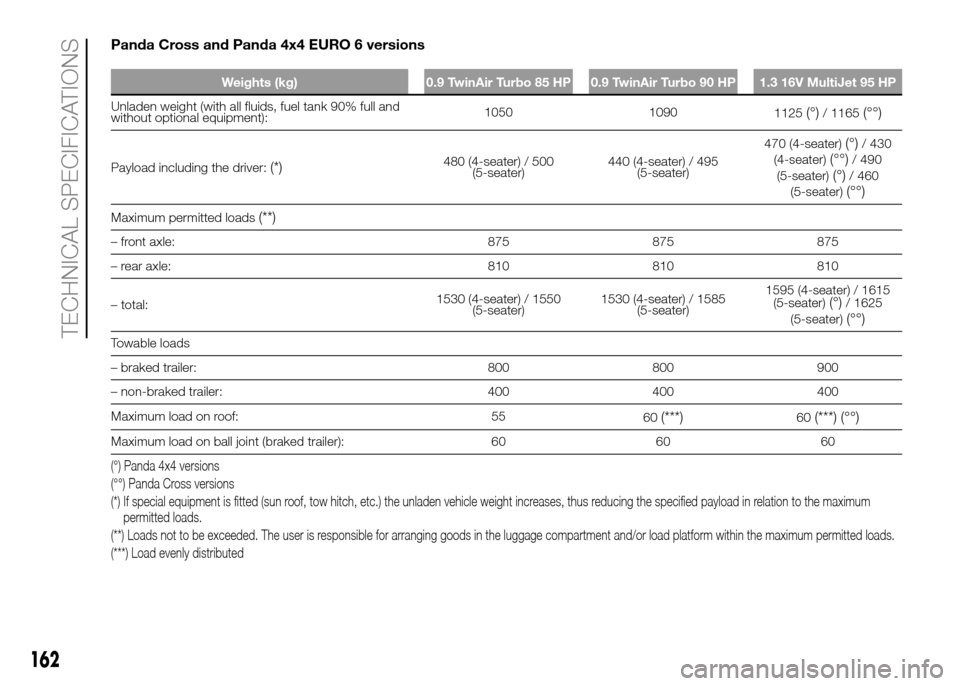

Panda Cross and Panda 4x4 EURO 6 versions
Weights (kg) 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo 90 HP 1.3 16V MultiJet 95 HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1050 1090
1125(°)/ 1165(°°)
Payload including the driver:(*)480 (4-seater) / 500
(5-seater)440 (4-seater) / 495
(5-seater)470 (4-seater)
(°)/ 430
(4-seater)(°°)/ 490
(5-seater)(°)/ 460
(5-seater)(°°)
Maximum permitted loads(**)
– front axle: 875 875 875
– rear axle: 810 810 810
– total:1530 (4-seater) / 1550
(5-seater)1530 (4-seater) / 1585
(5-seater)1595 (4-seater) / 1615
(5-seater)
(°)/ 1625
(5-seater)(°°)
Towable loads
– braked trailer: 800 800 900
– non-braked trailer: 400 400 400
Maximum load on roof: 55
60
(***)60(***) (°°)
Maximum load on ball joint (braked trailer): 60 60 60
(°) Panda 4x4 versions
(°°) Panda Cross versions
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
(***) Load evenly distributed

164
TECHNICAL SPECIFICATIONS

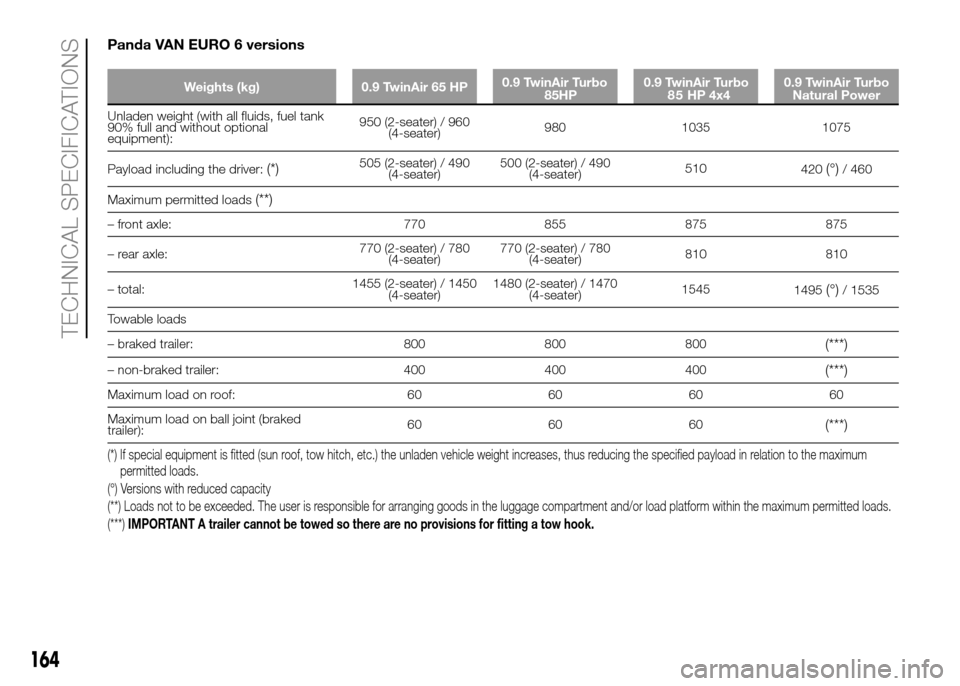

Panda VAN EURO 6 versions
Weights (kg) 0.9 TwinAir 65 HP0.9 TwinAir Turbo 0.9 TwinAir Turbo 0.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipment):950 (2-seater) / 960
(4-seater)980 1035 1075
Payload including the driver:
(*)505 (2-seater) / 490
(4-seater)500 (2-seater) / 490
(4-seater)510
420(°)/ 460
Maximum permitted loads
(**)
– front axle: 770 855 875 875
– rear axle:770 (2-seater) / 780
(4-seater)770 (2-seater) / 780
(4-seater)810 810
– total:1455 (2-seater) / 1450
(4-seater)1480 (2-seater) / 1470
(4-seater)1545
1495
(°)/ 1535
Towable loads
– braked trailer: 800 800 800
(***)
– non-braked trailer: 400 400 400(***)
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked
trailer):60 60 60
(***)
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(°) Versions with reduced capacity
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
(***)IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
85 HP 8 5 HP 4x4
