technical specifications FIAT PANDA 2016 319 / 3.G Owner's Manual

166
TECHNICAL SPECIFICATIONS

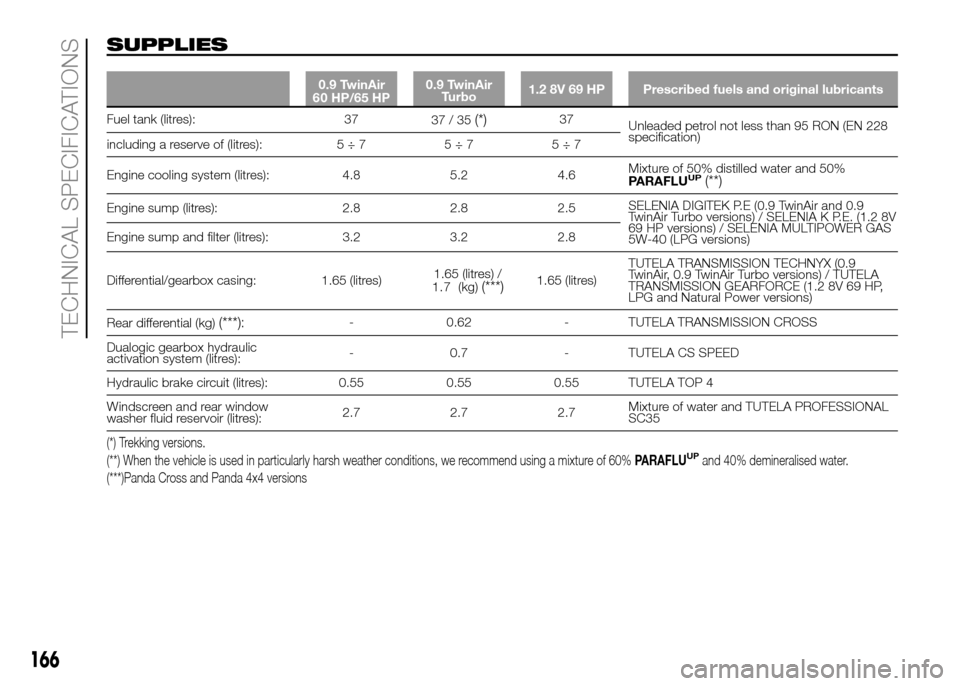

SUPPLIES
0.9 TwinAir 0.9 TwinAir
Turbo1.2 8V 69 HP Prescribed fuels and original lubricants
Fuel tank (litres): 37
37/35(*)37
Unleaded petrol not less than 95 RON (EN 228
specification)
including a reserve of (litres): 5 ÷ 7 5 ÷ 7 5 ÷ 7
Engine cooling system (litres): 4.8 5.2 4.6Mixture of 50% distilled water and 50%
PARAFLU
UP(**)
Engine sump (litres): 2.8 2.8 2.5SELENIA DIGITEK P.E (0.9 TwinAir and 0.9
TwinAir Turbo versions) / SELENIA K P.E. (1.2 8V
69 HP versions) / SELENIA MULTIPOWER GAS
5W-40 (LPG versions) Engine sump and filter (litres): 3.2 3.2 2.8
Differential/gearbox casing: 1.65 (litres)1.65 (litres) /
(***)1.65 (litres)TUTELA TRANSMISSION TECHNYX (0.9
TwinAir, 0.9 TwinAir Turbo versions) / TUTELA
TRANSMISSION GEARFORCE (1.2 8V 69 HP,
LPG and Natural Power versions)
Rear differential (kg)
(***):- 0.62 - TUTELA TRANSMISSION CROSS
Dualogic gearbox hydraulic
activation system (litres):- 0.7 - TUTELA CS SPEED
Hydraulic brake circuit (litres): 0.55 0.55 0.55 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir (litres):2.7 2.7 2.7Mixture of water and TUTELA PROFESSIONAL
SC35
(*) Trekking versions.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
(***)Panda Cross and Panda 4x4 versions
1.7 (kg)
60 HP/65 HP

168
TECHNICAL SPECIFICATIONS

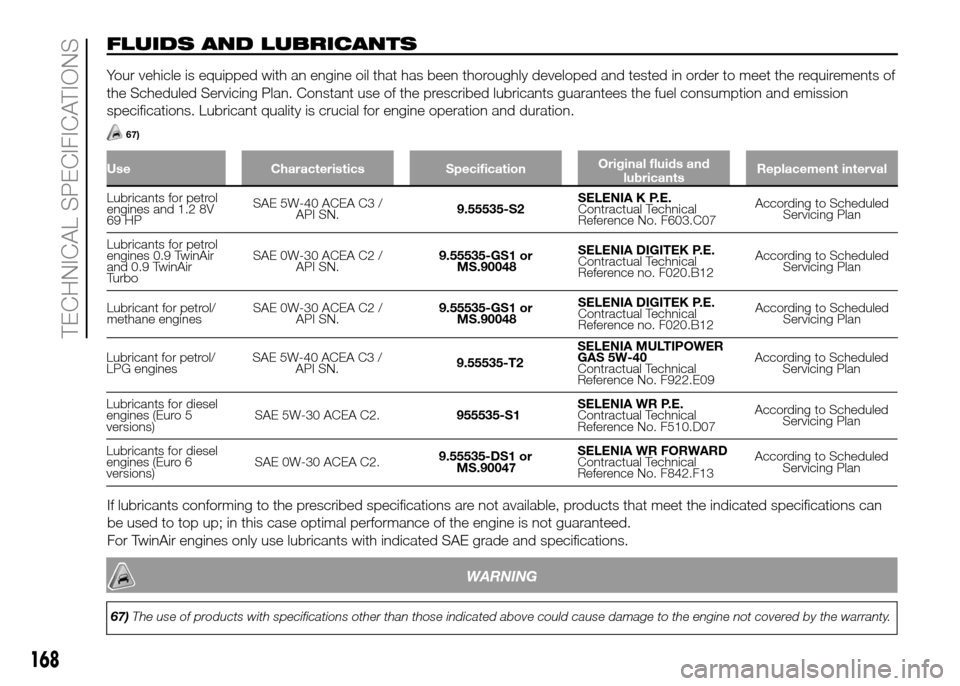

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
67)
Use Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricants for petrol
engines and 1.2 8V
69 HPSAE 5W-40 ACEA C3 /
API SN.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to Scheduled
Servicing Plan
Lubricants for petrol
engines 0.9 TwinAir
and 0.9 TwinAir
TurboSAE 0W-30 ACEA C2 /
API SN.9.55535-GS1 or
MS.90048SELENIA DIGITEK P.E.
Contractual Technical
Reference no. F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol/
methane enginesSAE 0W-30 ACEA C2 /
API SN.9.55535-GS1 or
MS.90048SELENIA DIGITEK P.E.
Contractual Technical
Reference no. F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol/
LPG enginesSAE 5W-40 ACEA C3 /
API SN.9.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According to Scheduled
Servicing Plan
Lubricants for diesel
engines (Euro 5
versions)SAE 5W-30 ACEA C2.955535-S1SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Scheduled
Servicing Plan
Lubricants for diesel
engines (Euro 6
versions)SAE 0W-30 ACEA C2.9.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
WARNING
67)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
If lubricants conforming to the prescribed specifications are not available, products that meet the indicated specifications can
be used to top up; in this case optimal performance of the engine is not guaranteed.
For TwinAir engines only use lubricants with indicated SAE grade and specifications.

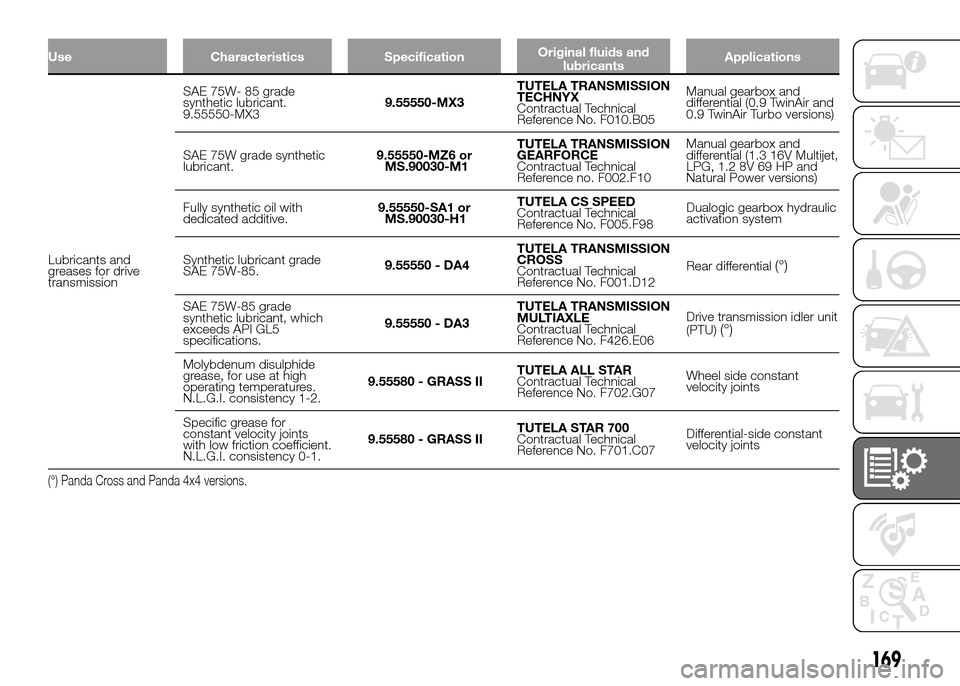

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W- 85 grade
synthetic lubricant.
9.55550-MX39.55550-MX3TUTELA TRANSMISSION
TECHNYX
Contractual Technical
Reference No. F010.B05Manual gearbox and
differential (0.9 TwinAir and
0.9 TwinAir Turbo versions)
SAE 75W grade synthetic
lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference no. F002.F10Manual gearbox and
differential (1.3 16V Multijet,
LPG, 1.2 8V 69 HP and
Natural Power versions)
Fully synthetic oil with
dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Dualogic gearbox hydraulic
activation system
Synthetic lubricant grade
SAE 75W-85.9.55550 - DA4TUTELA TRANSMISSION
CROSS
Contractual Technical
Reference No. F001.D12Rear differential(°)
SAE 75W-85 grade
synthetic lubricant, which
exceeds API GL5
specifications.9.55550 - DA3TUTELA TRANSMISSION
MULTIAXLE
Contractual Technical
Reference No. F426.E06Drive transmission idler unit
(PTU)
(°)
Molybdenum disulphide
grease, for use at high
operating temperatures.
N.L.G.I. consistency 1-2.9.55580 - GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Specific grease for
constant velocity joints
with low friction coefficient.
N.L.G.I. consistency 0-1.9.55580 - GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side constant
velocity joints
(°) Panda Cross and Panda 4x4 versions.
169

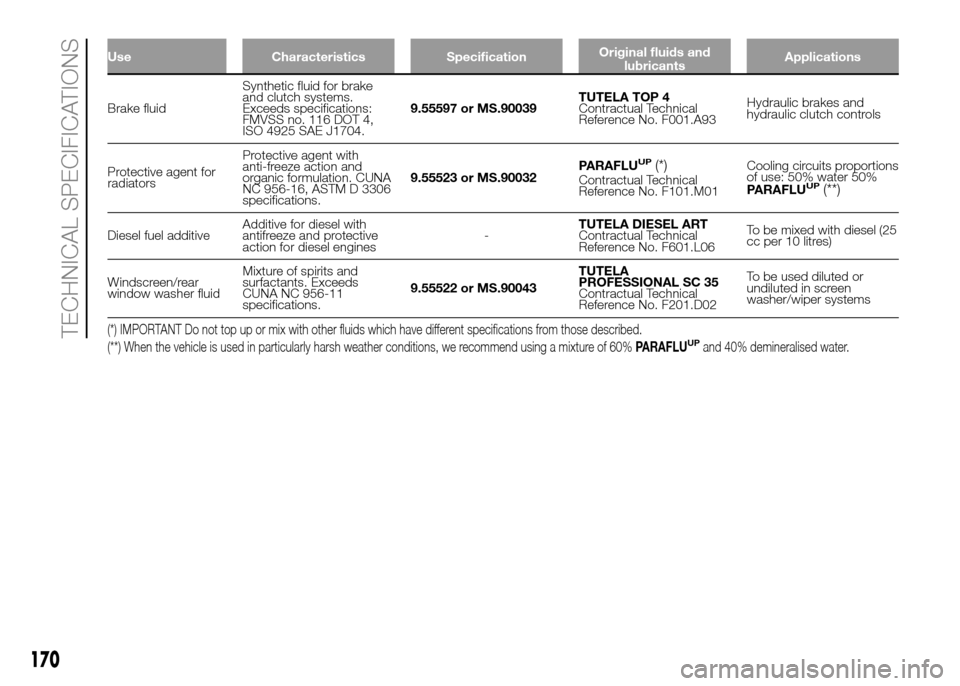

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
anti-freeze action and
organic formulation. CUNA
NC 956-16, ASTM D 3306
specifications.9.55523 or MS.90032PARAFLU
UP(*)Contractual Technical
Reference No. F101.M01Cooling circuits proportions
of use: 50% water 50%
PARAFLUUP(**)
Diesel fuel additiveAdditive for diesel with
antifreeze and protective
action for diesel engines-TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel (25
cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
170
TECHNICAL SPECIFICATIONS

172
TECHNICAL SPECIFICATIONS

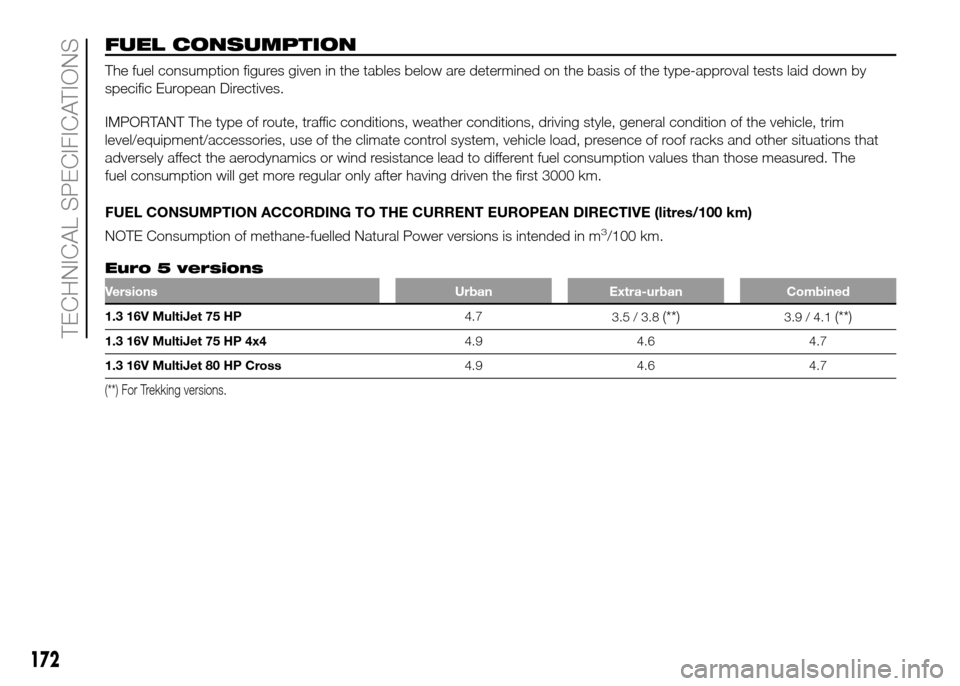

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
NOTE Consumption of methane-fuelled Natural Power versions is intended in m
3/100 km.
Euro 5 versions
Versions Urban Extra-urban Combined
1.3 16V MultiJet 75 HP4.7
3.5 / 3.8(**)3.9 / 4.1(**)
1.3 16V MultiJet 75 HP 4x44.9 4.6 4.7
1.3 16V MultiJet 80 HP Cross4.9 4.6 4.7
(**) For Trekking versions.

174
TECHNICAL SPECIFICATIONS

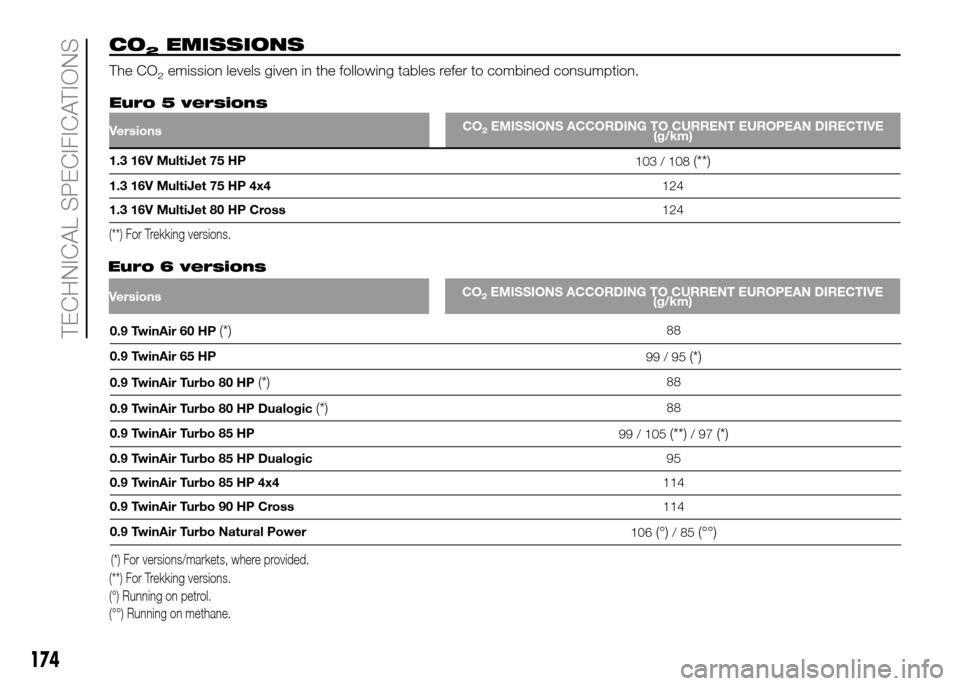

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
Euro 5 versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.3 16V MultiJet 75 HP
103 / 108(**)
1.3 16V MultiJet 75 HP 4x4124
1.3 16V MultiJet 80 HP Cross124
(**) For Trekking versions.
Euro 6 versions
(*) For versions/markets, where provided.
(**) For Trekking versions.
(°) Running on petrol.
(°°) Running on methane.
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir 60 HP(*)88
0.9 TwinAir 65 HP
99/95
(*)
0.9 TwinAir Turbo 80 HP(*)88
0.9 TwinAir Turbo 80 HP Dualogic
(*)88
0.9 TwinAir Turbo 85 HP
99 / 105
(**)/97(*)
0.9 TwinAir Turbo 85 HP Dualogic95
0.9 TwinAir Turbo 85 HP 4x4114
0.9 TwinAir Turbo 90 HP Cross114
0.9 TwinAir Turbo Natural Power
106
(°)/85(°°)

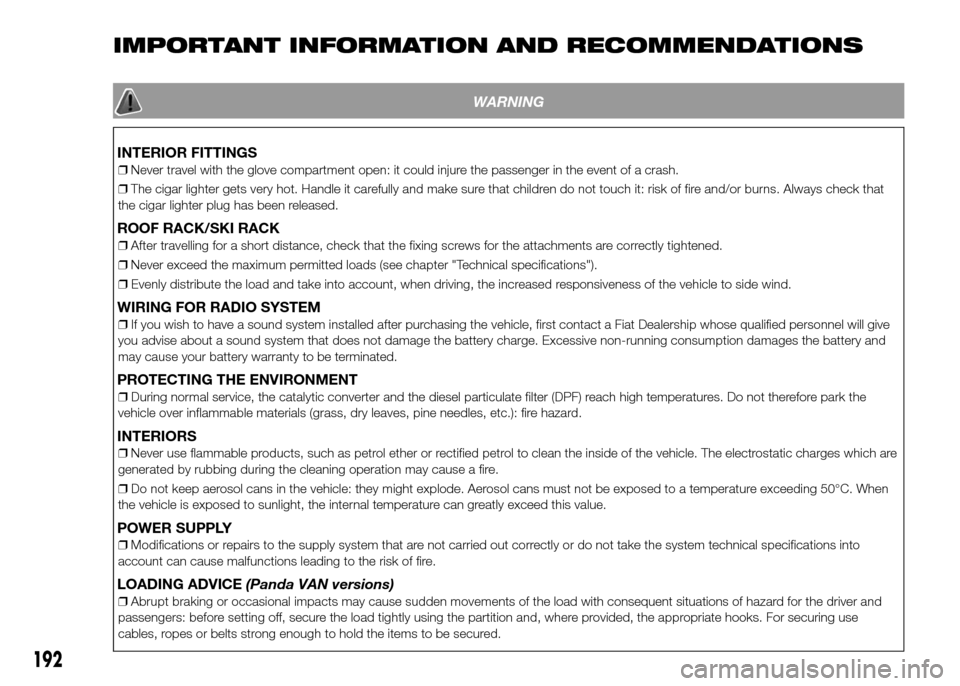

IMPORTANT INFORMATION AND RECOMMENDATIONS
WARNING
INTERIOR FITTINGS
❒Never travel with the glove compartment open: it could injure the passenger in the event of a crash.
❒The cigar lighter gets very hot. Handle it carefully and make sure that children do not touch it: risk of fire and/or burns. Always check that
the cigar lighter plug has been released.
ROOF RACK/SKI RACK
❒After travelling for a short distance, check that the fixing screws for the attachments are correctly tightened.
❒Never exceed the maximum permitted loads (see chapter "Technical specifications").
❒Evenly distribute the load and take into account, when driving, the increased responsiveness of the vehicle to side wind.
WIRING FOR RADIO SYSTEM
❒If you wish to have a sound system installed after purchasing the vehicle, first contact a Fiat Dealership whose qualified personnel will give
you advise about a sound system that does not damage the battery charge. Excessive non­running consumption damages the battery and
may cause your battery warranty to be terminated.
PROTECTING THE ENVIRONMENT
❒During normal service, the catalytic converter and the diesel particulate filter (DPF) reach high temperatures. Do not therefore park the
vehicle over inflammable materials (grass, dry leaves, pine needles, etc.): fire hazard.
INTERIORS
❒Never use flammable products, such as petrol ether or rectified petrol to clean the inside of the vehicle. The electrostatic charges which are
generated by rubbing during the cleaning operation may cause a fire.
❒Do not keep aerosol cans in the vehicle: they might explode. Aerosol cans must not be exposed to a temperature exceeding 50°C. When
the vehicle is exposed to sunlight, the internal temperature can greatly exceed this value.
POWER SUPPLY
❒Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
LOADING ADVICE(Panda VAN versions)
❒Abrupt braking or occasional impacts may cause sudden movements of the load with consequent situations of hazard for the driver and
passengers: before setting off, secure the load tightly using the partition and, where provided, the appropriate hooks. For securing use
cables, ropes or belts strong enough to hold the items to be secured.
192

Rear fog lights ................................ 18
Rear light clusters (bulb
replacement) ................................ 107
Rear view mirrors ........................... 15
Refuelling the vehicle ......................
Replacing a bulb ............................ 103
Reversing light/rear fog light ........... 10
SBR (Seat Belt Reminder)
system ......................................... 72
Scheduled servicing ....................... 122
Seat belts....................................... 71
Seats ............................................. 11
– Adjustments .............................. 11
Side bags....................................... 88
Side lights/daytime running lights
(bulb replacement) ....................... 107Snow chains .................................. 154
Starting the engine ......................... 92
Steering lock .................................. 9
Steering wheel ............................... 14
Steering wheel stalks
– left stalk..................................... 16
– right stalk .................................. 20
Stop/Start system .......................... 96
Sun roof ......................................... 26
Supplementary Restraint System
(SRS) - Airbag .............................. 85
Supplies ......................................... 166
Symbols......................................... 4
Technical specifications ................ 141The keys ........................................ 8
Towing the vehicle .......................... 119
Towing trailers ................................
TP system ...................................... 66
Version with LPG system .............. 32
Version with methane system
(Natural Power) ............................ 34
Warning lights on panel ................ 41
Weights.......................................... 158
Wheel (changing)............................ 114
Wheels and tyres ........................... 139
Wheels ........................................... 1
Window cleaning............................ 20
Windscreen/rear window wiper ...... 138
INDEX 99
99
FCA Italy S.p.A. – Mopar – Technical Services – Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Turin (Italy)
Print no. 603.9 9 .846 - 1 1/2015 - 1 Edition 7
48
