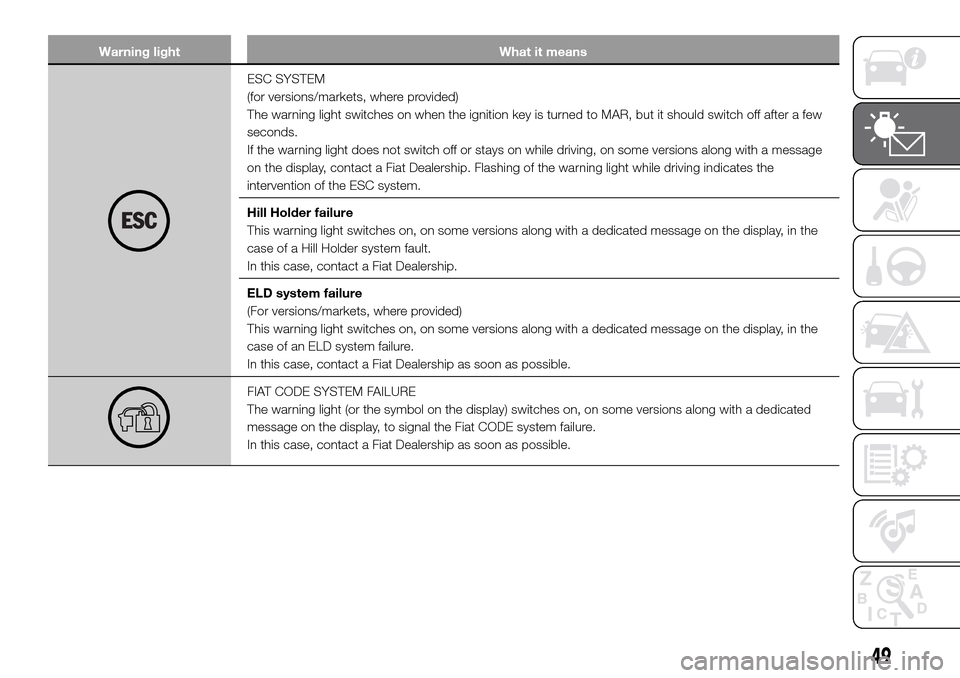

Page 51 of 216
Warning light What it means
ESC SYSTEM
(for versions/markets, where provided)
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
If the warning light does not switch off or stays on while driving, on some versions along with a message
on the display, contact a Fiat Dealership. Flashing of the warning light while driving indicates the
intervention of the ESC system.
Hill Holder failure
This warning light switches on, on some versions along with a dedicated message on the display, in the
case of a Hill Holder system fault.
In this case, contact a Fiat Dealership.
ELD system failure
(For versions/markets, where provided)
This warning light switches on, on some versions along with a dedicated message on the display, in the
case of an ELD system failure.
In this case, contact a Fiat Dealership as soon as possible.
FIAT CODE SYSTEM FAILURE
The warning light (or the symbol on the display) switches on, on some versions along with a dedicated
message on the display, to signal the Fiat CODE system failure.
In this case, contact a Fiat Dealership as soon as possible.
49
Page 52 of 216
Warning light What it means
GLOW PLUG HEATING/GLOW PLUG HEATING FAILURE (diesel versions)
Plug preheating
This warning light switches on when the key is turned to MAR. It should switch off as soon as the heater
plugs have reached a preset temperature. The engine can be started as soon as the warning light switches
off.
IMPORTANT At moderate or high ambient temperatures the warning light may stay on for an extremely
short time.
Heater plug preheating failure
The warning light will flash, on some versions along with a dedicated message on the display, to indicate a
fault in the plug preheating system.
Contact a Fiat Dealership as soon as possible to have the fault fixed.
FUEL RESERVE - LIMITED RANGE
This warning light switches on when 5 to 7 litres of fuel are left in the tank. When the remaining range is
lower than approx. 50 km (or equivalent value in miles), on some versions, the display will show a
dedicated message.
IMPORTANT The warning light will flash to indicate a system fault. If this is the case, go to a Fiat Dealership
to have the system checked.
REAR FOG LIGHT
The warning light switches on when the rear fog light is activated.
50
KNOWING THE INSTRUMENT PANEL

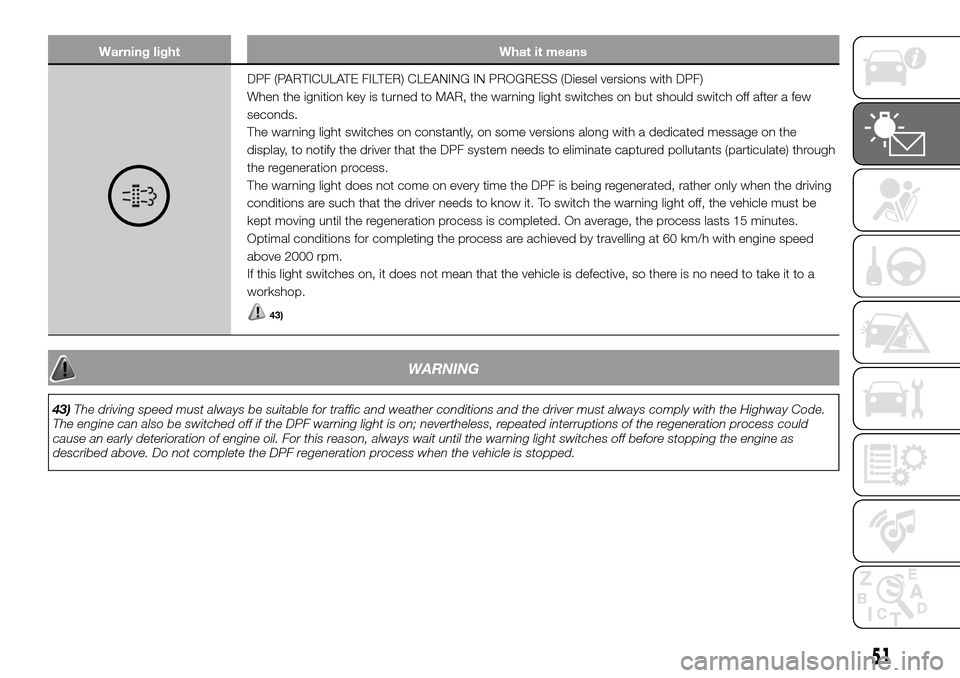

Page 53 of 216
Warning light What it means
DPF (PARTICULATE FILTER) CLEANING IN PROGRESS (Diesel versions with DPF)
When the ignition key is turned to MAR, the warning light switches on but should switch off after a few
seconds.
The warning light switches on constantly, on some versions along with a dedicated message on the
display, to notify the driver that the DPF system needs to eliminate captured pollutants (particulate) through
the regeneration process.
The warning light does not come on every time the DPF is being regenerated, rather only when the driving
conditions are such that the driver needs to know it. To switch the warning light off, the vehicle must be
kept moving until the regeneration process is completed. On average, the process lasts 15 minutes.
Optimal conditions for completing the process are achieved by travelling at 60 km/h with engine speed
above 2000 rpm.
If this light switches on, it does not mean that the vehicle is defective, so there is no need to take it to a
workshop.
43)
WARNING
43)The driving speed must always be suitable for traffic and weather conditions and the driver must always comply with the Highway Code.
The engine can also be switched off if the DPF warning light is on; nevertheless, repeated interruptions of the regeneration process could
cause an early deterioration of engine oil. For this reason, always wait until the warning light switches off before stopping the engine as
described above. Do not complete the DPF regeneration process when the vehicle is stopped.
51
Page 54 of 216
Warning light What it means
GENERAL FAILURE INDICATION
(for versions/markets, where provided)
The warning light turns on in the following circumstances.
Speed limit exceeded
(for versions/markets, where provided)
The warning light switches on when the speed limit set in the Setup Menu is exceeded. When the vehicle
exceeds this value, on some versions a dedicated message is shown in the display and an acoustic signal
is emitted.
Fuel cut-off system intervention/failure
This warning light switches on, on some versions along with a dedicated message on the display, in the
case of fuel cut-off system activation/failure.
Start&Stop system failure
(for versions/markets, where provided)
The warning light comes on when a fault is detected in the Start&Stop system. In the event of a Start&Stop
system failure, contact a Fiat Dealership.
Temporary or permanent City Brake Control - "Collision Mitigation" system failure
(for versions/markets, where provided)
The warning light switches on, on some versions along with a message on the display, when a temporary
or permanent City Brake Control - "Collision Mitigation" system fault is detected. If the fault is permanent:
contact a Fiat Dealership to have the system checked.
Airbag fault
When this warning light starts flashing, for versions/markets where provided, this indicates an airbag
warning light fault. In this case, the airbag may not indicate possible airbag system malfunctions. Contact a
Fiat Dealership immediately.
52
KNOWING THE INSTRUMENT PANEL
Page 55 of 216
Warning light What it means
Parking sensor failure
(for versions/markets, where provided)
The warning light switches on, on some versions along with a dedicated message on the display, when a
fault is detected in the parking sensors.
Exterior lights failure
(for versions/markets, where provided)
The warning light switches on when a fault is detected in one of the following lights: side lights, number
plate lights, rear fog lights, direction indicators, daytime running lights (DRL).
Engine oil pressure sensor failure
(for versions/markets, where provided)
The engine oil pressure sensor failure is indicated by the activation of the warning light on the instrument
panel.
ELD system fault(Panda Cross and Panda 4x4 versions)
The warning light switches on, on some versions along with a dedicated message on the display, when a
fault is detected in the 4x4 drive. Contact a Fiat Dealership as soon as possible.
Water in diesel filter(diesel versions)
(for versions/markets, where provided)
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds. The warning light switches on when water is detected in the diesel filter. On certain versions a
dedicated message is displayed.
27)
WARNING
27)If thewarning light switches on (on some versions together with the dedicated message on the display), contact a Fiat Dealership as
soon as possible to have the system bled. If the above indication occurs immediately after refuelling, water may have entered the tank: turn
the engine off immediately and contact a Fiat Dealership.
53

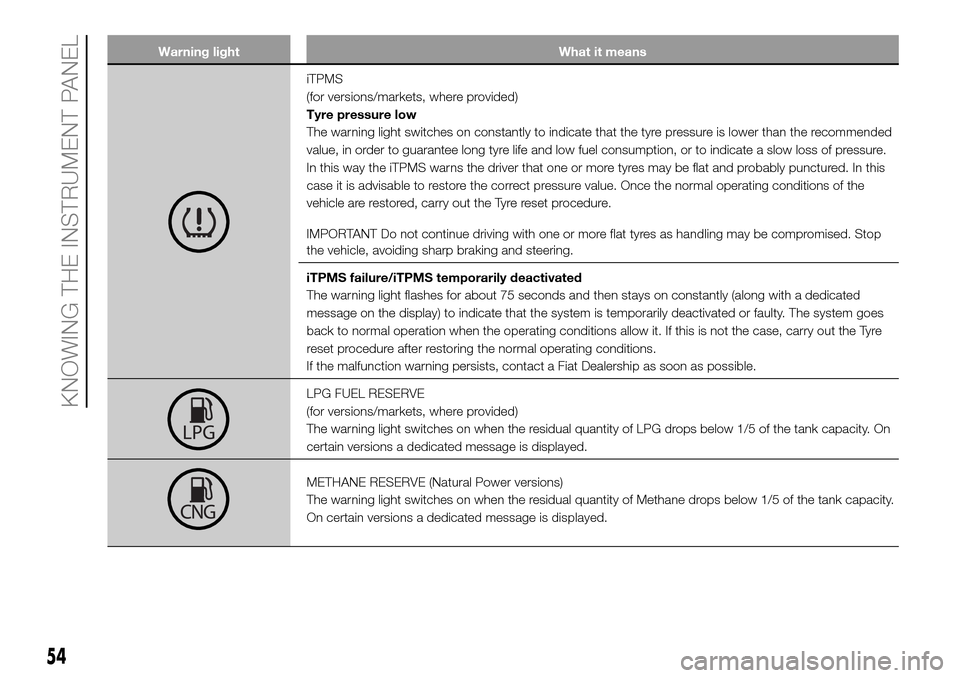

Page 56 of 216
Warning light What it means
iTPMS
(for versions/markets, where provided)
Tyre pressure low
The warning light switches on constantly to indicate that the tyre pressure is lower than the recommended
value, in order to guarantee long tyre life and low fuel consumption, or to indicate a slow loss of pressure.
In this way the iTPMS warns the driver that one or more tyres may be flat and probably punctured. In this
case it is advisable to restore the correct pressure value. Once the normal operating conditions of the
vehicle are restored, carry out the Tyre reset procedure.
IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised. Stop
the vehicle, avoiding sharp braking and steering.
iTPMS failure/iTPMS temporarily deactivated
The warning light flashes for about 75 seconds and then stays on constantly (along with a dedicated
message on the display) to indicate that the system is temporarily deactivated or faulty. The system goes
back to normal operation when the operating conditions allow it. If this is not the case, carry out the Tyre
reset procedure after restoring the normal operating conditions.
If the malfunction warning persists, contact a Fiat Dealership as soon as possible.
LPG FUEL RESERVE
(for versions/markets, where provided)
The warning light switches on when the residual quantity of LPG drops below 1/5 of the tank capacity. On
certain versions a dedicated message is displayed.
METHANE RESERVE (Natural Power versions)
The warning light switches on when the residual quantity of Methane drops below 1/5 of the tank capacity.
On certain versions a dedicated message is displayed.
54
KNOWING THE INSTRUMENT PANEL

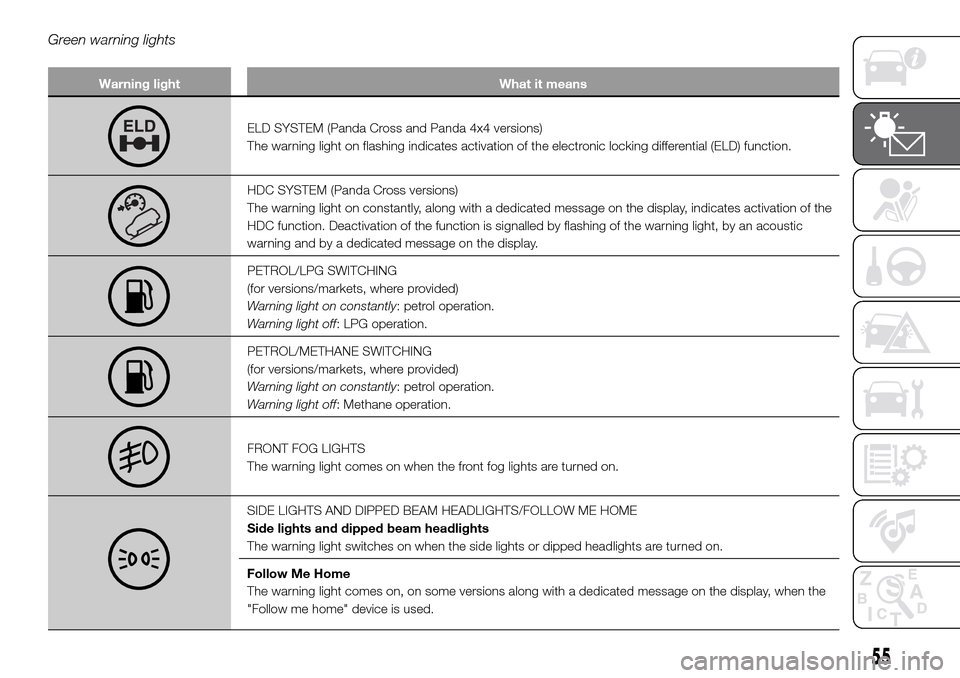

Page 57 of 216
Green warning lights
Warning light What it means
ELD SYSTEM (Panda Cross and Panda 4x4 versions)
The warning light on flashing indicates activation of the electronic locking differential (ELD) function.
HDC SYSTEM (Panda Cross versions)
The warning light on constantly, along with a dedicated message on the display, indicates activation of the
HDC function. Deactivation of the function is signalled by flashing of the warning light, by an acoustic
warning and by a dedicated message on the display.
PETROL/LPG SWITCHING
(for versions/markets, where provided)
Warning light on constantly: petrol operation.
Warning light off: LPG operation.
PETROL/METHANE SWITCHING
(for versions/markets, where provided)
Warning light on constantly: petrol operation.
Warning light off: Methane operation.
FRONT FOG LIGHTS
The warning light comes on when the front fog lights are turned on.
SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS/FOLLOW ME HOME
Side lights and dipped beam headlights
The warning light switches on when the side lights or dipped headlights are turned on.
Follow Me Home
The warning light comes on, on some versions along with a dedicated message on the display, when the
"Follow me home" device is used.
55

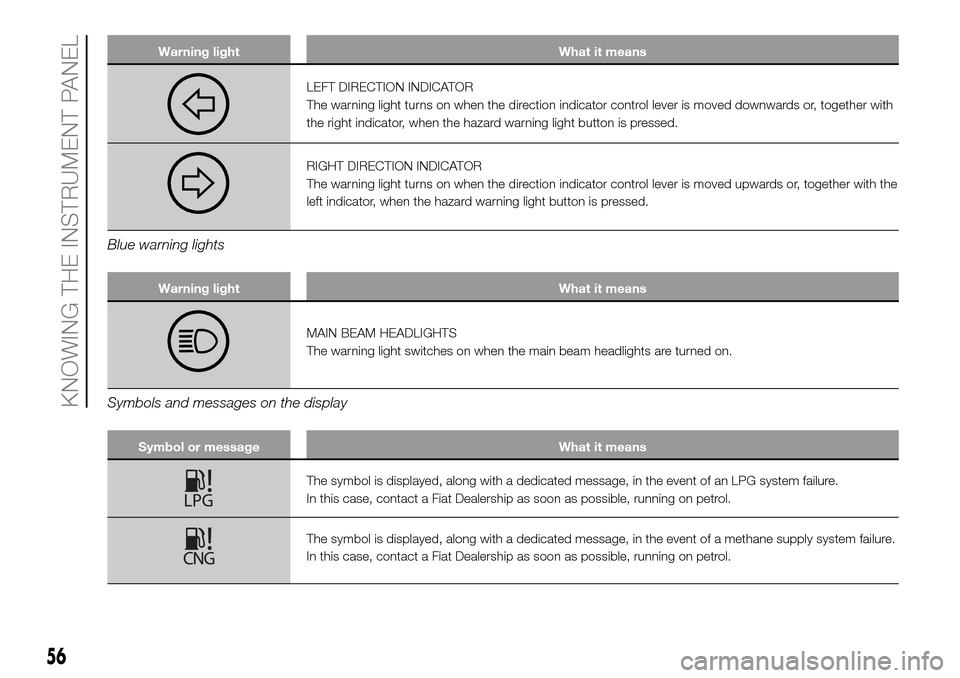

Page 58 of 216
Warning light What it means
LEFT DIRECTION INDICATOR
The warning light turns on when the direction indicator control lever is moved downwards or, together with
the right indicator, when the hazard warning light button is pressed.
RIGHT DIRECTION INDICATOR
The warning light turns on when the direction indicator control lever is moved upwards or, together with the
left indicator, when the hazard warning light button is pressed.
Blue warning lights
Warning light What it means
MAIN BEAM HEADLIGHTS
The warning light switches on when the main beam headlights are turned on.
Symbols and messages on the display
Symbol or message What it means
The symbol is displayed, along with a dedicated message, in the event of an LPG system failure.
In this case, contact a Fiat Dealership as soon as possible, running on petrol.
The symbol is displayed, along with a dedicated message, in the event of a methane supply system failure.
In this case, contact a Fiat Dealership as soon as possible, running on petrol.
56
KNOWING THE INSTRUMENT PANEL
Page 59 of 216
Symbol or message What it means
FUEL LEVEL SENSOR FAILURE
The symbol appears and all the notches disappear in the event of fuel gauge sensor failure. Contact a Fiat
Dealership as soon as possible.
START&STOP
(For versions/markets, where
provided)The message is displayed when the Start&Stop system is activated/deactivated by pressing the
button
in the central part of the dashboard.
With the Start&Stop system on, the LED on the button is off; if the system is deactivated the LED comes
on.
HDC
(Panda Cross versions)With the "HDC" on, the following messages can be displayed.
HDC on
HDC off
HDC cannot be activated
HDC off, wait for the brakes to cool down
SERVICEWhen the next scheduled service is approaching, the word “Service” appears on the display, followed by
the number of kilometres or miles left. This is displayed automatically, with ignition key at MAR-ON, 2000
km (or equivalent value in miles) before servicing or, where provided, 30 days before servicing. It is also
displayed each time the key is turned to MAR-ON or, for versions/markets, where provided, every 200 km
(or equivalent value in miles).
Go to a Fiat Dealership, where the "Scheduled Servicing Plan" operations will be performed and the
message will be reset.
57

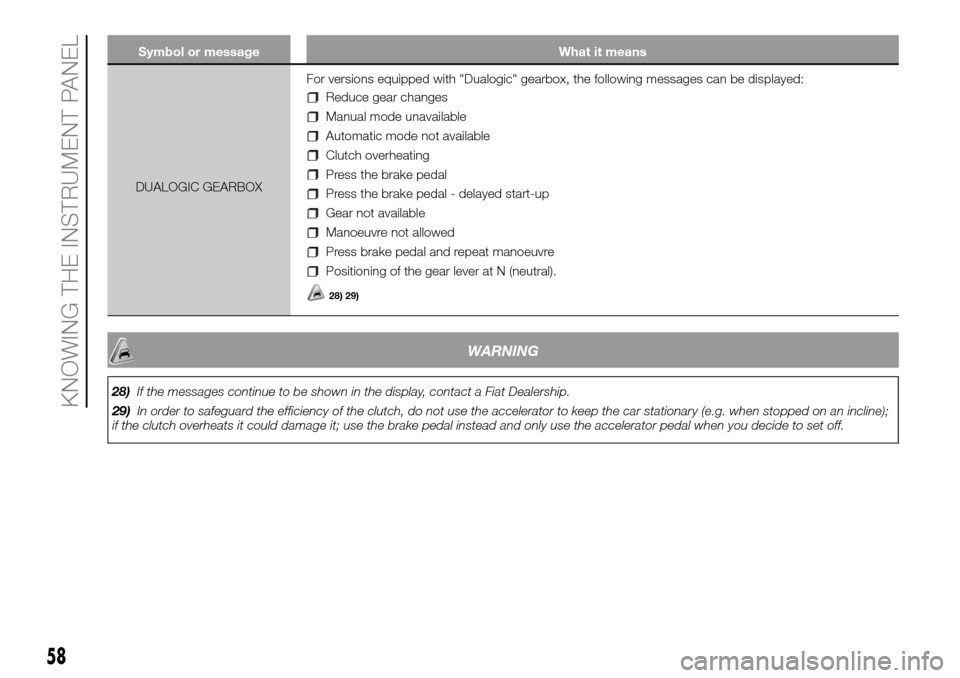

Page 60 of 216
Symbol or message What it means
DUALOGIC GEARBOXFor versions equipped with "Dualogic" gearbox, the following messages can be displayed:
Reduce gear changes
Manual mode unavailable
Automatic mode not available
Clutch overheating
Press the brake pedal
Press the brake pedal - delayed start-up
Gear not available
Manoeuvre not allowed
Press brake pedal and repeat manoeuvre
Positioning of the gear lever at N (neutral).
28) 29)
WARNING
28)If the messages continue to be shown in the display, contact a Fiat Dealership.
29)In order to safeguard the efficiency of the clutch, do not use the accelerator to keep the car stationary (e.g. when stopped on an incline);
if the clutch overheats it could damage it; use the brake pedal instead and only use the accelerator pedal when you decide to set off.
58
