FIAT PANDA 2018 Owner handbook (in English)

Light bulbs Type Power
Dipped/main beam headlights H4 55W
Front side lights/Day lights (DRL) P21/5W 21W
Rear side lights P21/5W 5W
Front direction indicators PY21W 21W
Side turn light W5W 5W
Rear direction indicators PY21W 21W
Stop P21/5W 21W
Third brake light LED -
Fog lights H11 55W
Reverse gear W16W 16W
Rear fog light W16W 16W
Number plate C5W 5W
109

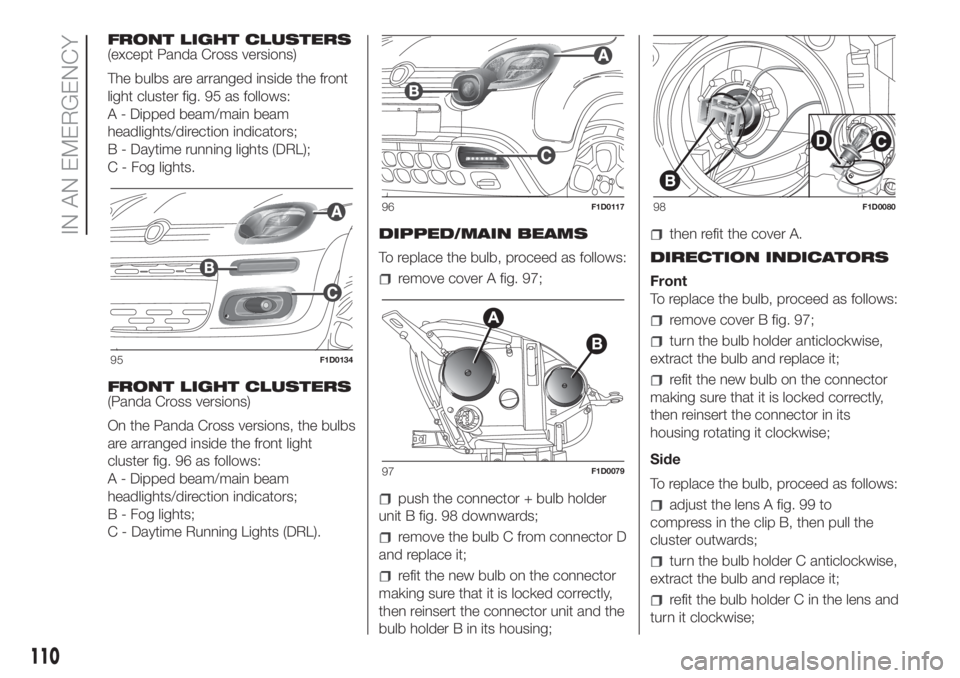

FRONT LIGHT CLUSTERS
(except Panda Cross versions)
The bulbs are arranged inside the front
light cluster fig. 95 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Daytime running lights (DRL);
C - Fog lights.
FRONT LIGHT CLUSTERS
(Panda Cross versions)
On the Panda Cross versions, the bulbs
are arranged inside the front light
cluster fig. 96 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Fog lights;
C - Daytime Running Lights (DRL).DIPPED/MAIN BEAMS
To replace the bulb, proceed as follows:
remove cover A fig. 97;
push the connector + bulb holder
unit B fig. 98 downwards;
remove the bulb C from connector D
and replace it;
refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector unit and the
bulb holder B in its housing;
then refit the cover A.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
remove cover B fig. 97;
turn the bulb holder anticlockwise,
extract the bulb and replace it;
refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector in its
housing rotating it clockwise;
Side
To replace the bulb, proceed as follows:
adjust the lens A fig. 99 to
compress in the clip B, then pull the
cluster outwards;
turn the bulb holder C anticlockwise,
extract the bulb and replace it;
refit the bulb holder C in the lens and
turn it clockwise;
95F1D0134
96F1D0117
97F1D0079
98F1D0080
110
IN AN EMERGENCY

refit the cluster making sure that the
internal catch B clips into position.

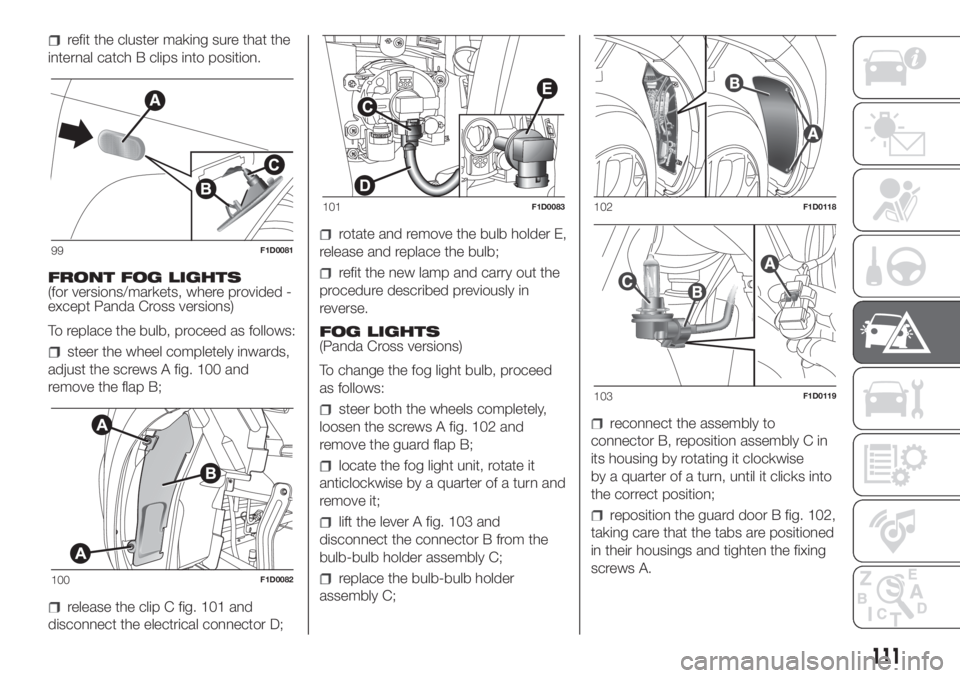

FRONT FOG LIGHTS
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
steer the wheel completely inwards,
adjust the screws A fig. 100 and
remove the flap B;
release the clip C fig. 101 and
disconnect the electrical connector D;
rotate and remove the bulb holder E,
release and replace the bulb;
refit the new lamp and carry out the
procedure described previously in
reverse.
FOG LIGHTS
(Panda Cross versions)
To change the fog light bulb, proceed
as follows:
steer both the wheels completely,
loosen the screws A fig. 102 and
remove the guard flap B;
locate the fog light unit, rotate it
anticlockwise by a quarter of a turn and
remove it;
lift the lever A fig. 103 and
disconnect the connector B from the
bulb-bulb holder assembly C;
replace the bulb-bulb holder
assembly C;
reconnect the assembly to
connector B, reposition assembly C in
its housing by rotating it clockwise
by a quarter of a turn, until it clicks into
the correct position;
reposition the guard door B fig. 102,
taking care that the tabs are positioned
in their housings and tighten the fixing
screws A.
99F1D0081
100F1D0082
101F1D0083102F1D0118
103F1D0119
111

SIDE LIGHTS / DAYTIME
RUNNING LIGHTS (DRL)
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
steer the wheel completely, adjust
the screws A fig. 100 and remove
the flap B;
release the clip C fig. 104 and
disconnect the electrical connector D;
rotate and remove the bulb holder E,
release and replace the bulb;
refit the new lamp and carry out the
procedure described previously in
reverse.DAYTIME RUNNING
LIGHTS (DRL)
(Panda Cross versions)
IMPORTANT To change LED DRLs
contact a Fiat Dealership.
REAR LIGHT CLUSTERS
These contain the bulbs for the side
lights, brake lights and direction
indicators.
To replace the bulb proceed as follows:
undo the two screws A fig. 105
from their seats, pull gently outwards
until releasing the whole headlight from
the two clips (press-fitted D fig. 106)
and release the connector;
undo the five screws B from their
seats and remove the bulb holder C;
remove the bulbs, pushing them
slightly and turning them anti-
clockwise;
refit the new lamp and carry out the
procedure described previously in
reverse.
REVERSING LIGHT/REAR
FOG LIGHT
136)
The reversing lights and rear fog lights
are located in the rear bumper.
To replace the bulb, proceed as follows:
adjust the tabs A and remove the
flap B fig. 107
104F1D0084
106F1D0086
105F1D0085
112
IN AN EMERGENCY

release the clip C fig. 108 and
disconnect the electrical connector D;
turn the bulb holder E and remove it,
extract the bulb and replace it;
refit the new lamp and carry out the
procedure described previously in

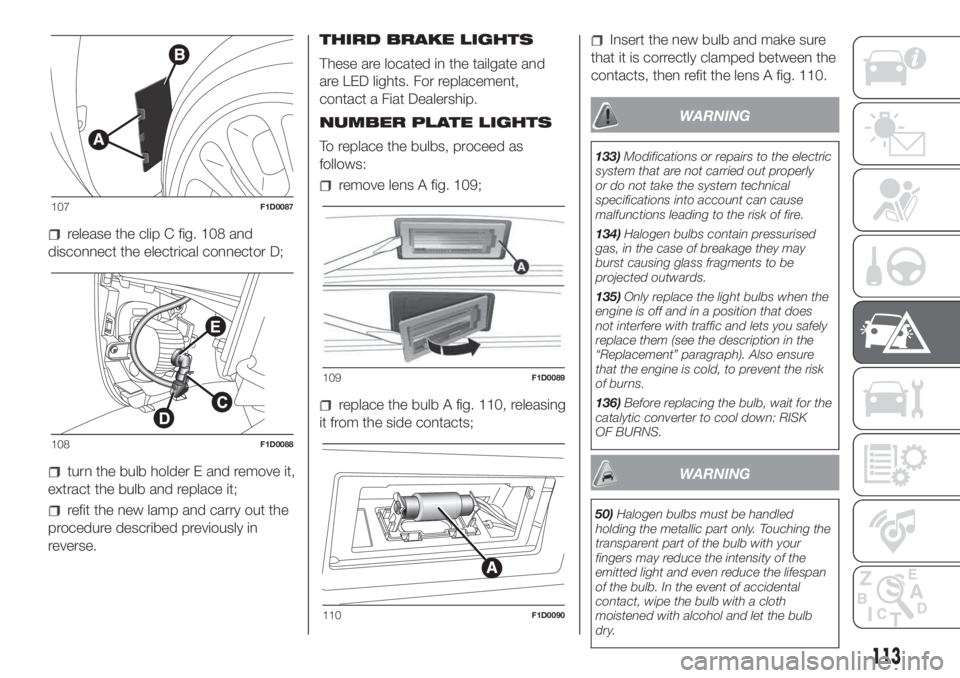

reverse.THIRD BRAKE LIGHTS
These are located in the tailgate and
are LED lights. For replacement,
contact a Fiat Dealership.
NUMBER PLATE LIGHTS
To replace the bulbs, proceed as
follows:
remove lens A fig. 109;
replace the bulb A fig. 110, releasing
it from the side contacts;
Insert the new bulb and make sure
that it is correctly clamped between the
contacts, then refit the lens A fig. 110.
WARNING
133)Modifications or repairs to the electric
system that are not carried out properly
or do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
134)Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.
135)Only replace the light bulbs when the
engine is off and in a position that does
not interfere with traffic and lets you safely
replace them (see the description in the
“Replacement” paragraph). Also ensure
that the engine is cold, to prevent the risk
of burns.
136)Before replacing the bulb, wait for the
catalytic converter to cool down: RISK
OF BURNS.
WARNING
50)Halogen bulbs must be handled
holding the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb
dry.
107F1D0087
108F1D0088
109F1D0089
110F1D0090
113

51)Where possible, it is advisable to have
bulbs changed at a Fiat Dealership. The
correct operation and direction of the
external lights are absolutely essential for
the safety of the car and of compliance
with the law.REPLACING FUSES
137) 138) 139) 140) 141) 142)
52)
GENERAL INFORMATION
To facilitate fuse replacement, use the
pliers hooked inside the fuse box lid on
the dashboard left-hand side.
ENGINE COMPARTMENT
FUSEBOX
The fusebox is located next to the
battery: to access the fuses, undo
screw A fig. 111, and lift cover B
upwards.
The number identifying the electrical
component corresponding to each fuse
is shown on the cover. After replacing
the fuse, make sure you close cover
B on the junction unit.DASHBOARD FUSEBOX
The fuse box fig. 112 is located near
the left side of the steering column and
the fuses can be accessed easily from
the lower part of the dashboard.
111F1D0091
112F1D0093
114
IN AN EMERGENCY

ENGINE COMPARTMENT FUSEBOX
fig. 111
USERSFUSE AMPERE
Body Computer node F01 60
Passenger compartment fan F08 40
Front fog lights F09 15
HornsF10 15
Main beam headlights F14 15
Heated windscreen F15 70
Air conditioning compressor F19 7.5
Front power socket (with or without cigar lighter) F20 15
Fuel pump F21 15
Blow-byF30 5
+15
(*) reversing lightsF87 5
Mirror demisting F88 7.5
Heated rear window F89 30
Battery charge status sensor F90 5
(*)+15 = ignition-operated positive pole
115

DASHBOARD FUSEBOX
fig. 112
USERSFUSE AMPERE
+15(*) headlight alignment correctorF13 5
+15
(*) Ignition-operated control with inhibition during
engine startingF31 5
+30
(**)F36 10
+15
(*) brake pedal switch (NO)F37 7.5
Central door locking F38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
+15
(*)F49 7.5
+15
(*)F50 7.5
+15
(*)F51 5
+30
(**)F53 7.5
(*)+15 = ignition-operated positive pole
(**)+30 = battery direct positive pole (not ignition-operated)
116
IN AN EMERGENCY

WARNING
137)If the replaced fuse blows again,
contact a Fiat Dealership.
138)Never replace a fuse with metal wires
or other material.
139)Never replace a fuse with another
with a higher amp rating; DANGER OF
FIRE.
140)If a general fuse (MEGA-FUSE,
MIDI-FUSE, MAXI-FUSE) blows contact a
Fiat Dealership.
141)Before replacing a fuse, make sure
that the ignition key has been removed and
that all the other services are switched off
and/or disengaged.
142)Contact Fiat Dealership if a safety
system (airbags, brakes), engine system
(engine, gearbox) or steering system
general protection fuse blows.
WARNING
52)If you need to wash the engine
compartment, take care not to directly hit
the fuse box and the window wiper motors
with the water jet.
REPLACING A
WHEEL
143) 144) 145) 146) 147) 148)
JACK
Please note that:
the jack weight is 1.76 kg;
the jack requires no adjustment;
the jack cannot be repaired and in
the event of a fault it must be replaced
by another genuine one;
no tool other than its cranking
device may be fitted on the jack.
Jack maintenance
prevent any dirt from depositing on
the "worm screw";
keep the "worm screw" lubricated;
never modify the jack.
Conditions in which not to use the
jack
temperature below -40°C
on sandy or muddy ground
on uneven ground
on steep roads
in extreme weather conditions:
thunderstorms, typhoons, hurricanes,
blizzards, storms, etc.
in direct contact with the engine or
to carry out repairs under the vehicle
on boats.
CHANGING PROCEDURE
Proceed as follows:
stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
ground must be flat and sufficiently
compact;
switch off the engine, pull up the
handbrake and engage the 1stgear or
reverse. Wear the reflective safety
jacket (compulsory by law) before
getting out of the vehicle;
open the boot and lift up the mat A
fig. 113;
113F1D0723
117

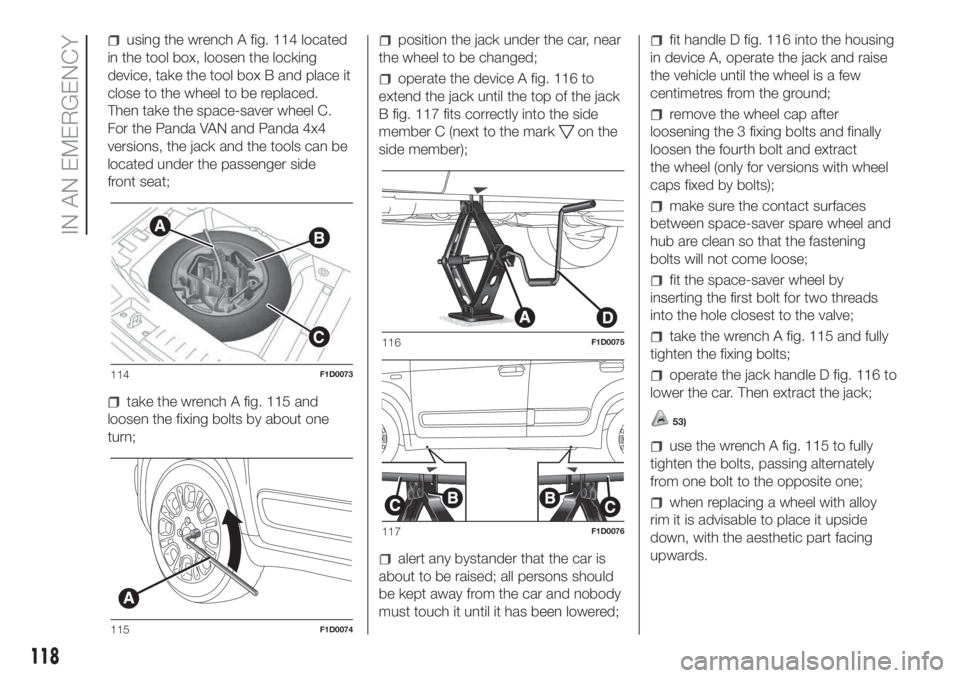

using the wrench A fig. 114 located
in the tool box, loosen the locking
device, take the tool box B and place it
close to the wheel to be replaced.
Then take the space-saver wheel C.
For the Panda VAN and Panda 4x4
versions, the jack and the tools can be
located under the passenger side
front seat;
take the wrench A fig. 115 and
loosen the fixing bolts by about one
turn;
position the jack under the car, near
the wheel to be changed;
operate the device A fig. 116 to
extend the jack until the top of the jack
B fig. 117 fits correctly into the side
member C (next to the mark
on the
side member);
alert any bystander that the car is
about to be raised; all persons should
be kept away from the car and nobody
must touch it until it has been lowered;
fit handle D fig. 116 into the housing
in device A, operate the jack and raise
the vehicle until the wheel is a few
centimetres from the ground;
remove the wheel cap after
loosening the 3 fixing bolts and finally
loosen the fourth bolt and extract
the wheel (only for versions with wheel
caps fixed by bolts);
make sure the contact surfaces
between space-saver spare wheel and
hub are clean so that the fastening
bolts will not come loose;
fit the space-saver wheel by
inserting the first bolt for two threads
into the hole closest to the valve;
take the wrench A fig. 115 and fully
tighten the fixing bolts;
operate the jack handle D fig. 116 to
lower the car. Then extract the jack;
53)
use the wrench A fig. 115 to fully
tighten the bolts, passing alternately
from one bolt to the opposite one;
when replacing a wheel with alloy
rim it is advisable to place it upside
down, with the aesthetic part facing
upwards.
AB
C
114F1D0073
115F1D0074
116F1D0075
117F1D0076
118
IN AN EMERGENCY
