Safety first! 0.5
Working on your ear can be dangerous. This page shows just some of the potential risks and hazards, with the aim of creating a safety-conscious attitude.
General hazards
Scalding

Page 143 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
Fuel system - diesel models 4C*3
14.6 Nuts securing the exhaust downpipe to the exhaust manifold 14.8 Disconnecting the oil return pipe from tho turbocharger
13 Turbocharger -description and precau

Page 146 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
4D*3 Exhaust and emission control systems

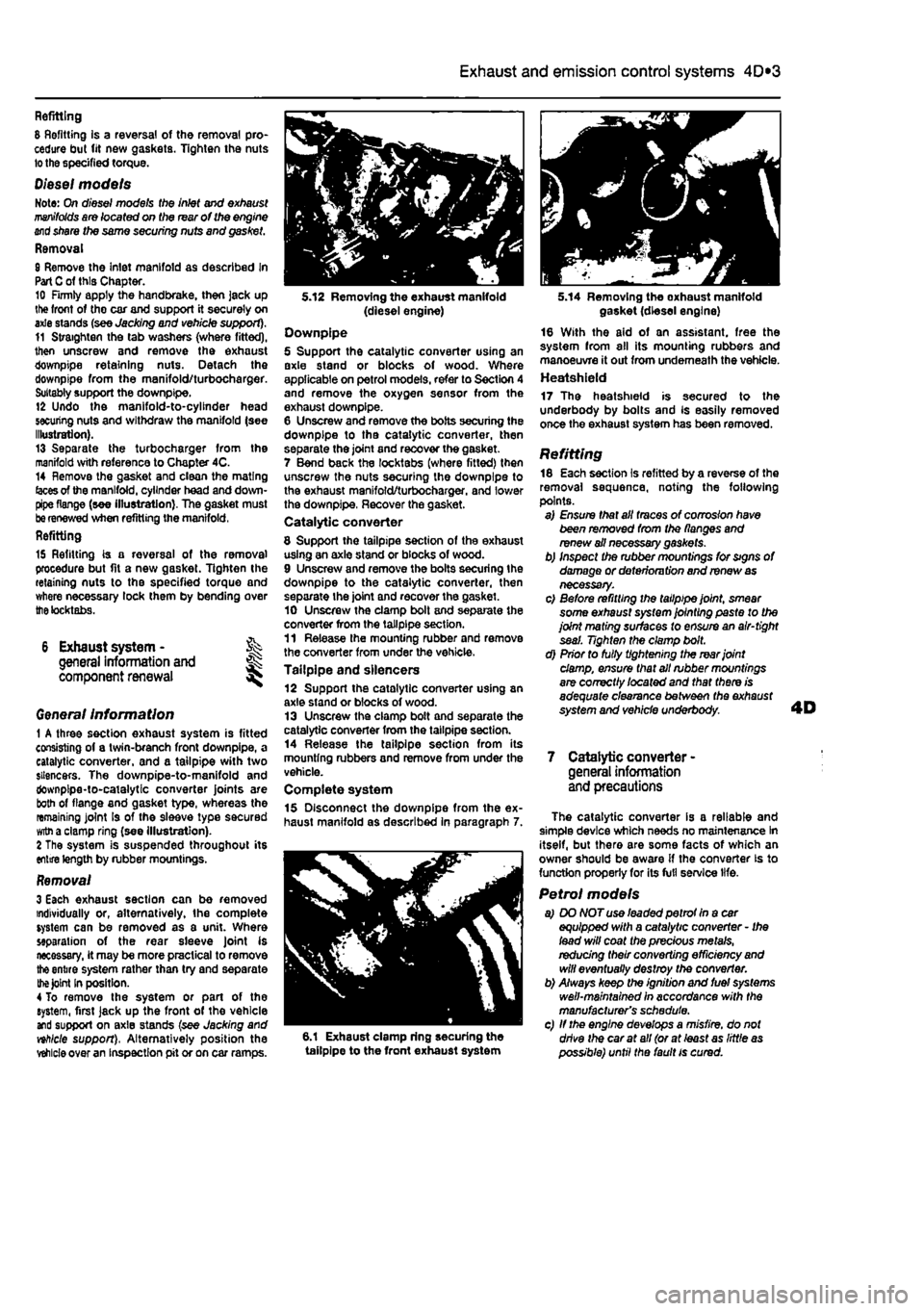

Refitting 8 Refitting is a reversal of the removal pro-cedure but fit new gaskets. Tighten the nuts lo the specified torque.
Diesel models Note: On diesel

Page 164 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
Manual transmission 7A*3

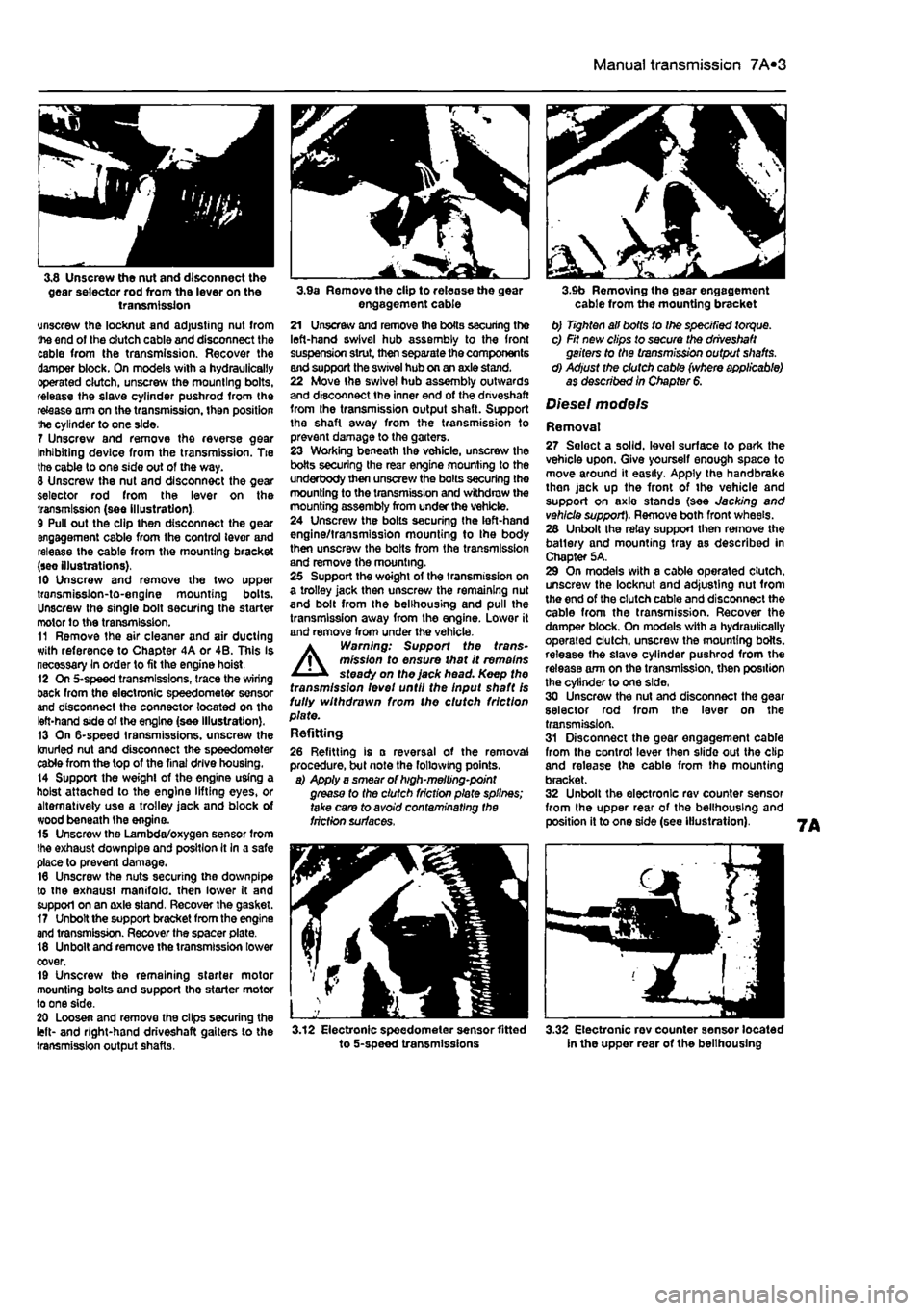

3,8 Unscrew the nut and disconnect the gear selector rod from the lever on the transmission unscrew the locknut and adjusting nut from the end of the clutch cable and discon

Page 165 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
7A«4 Manual transmission

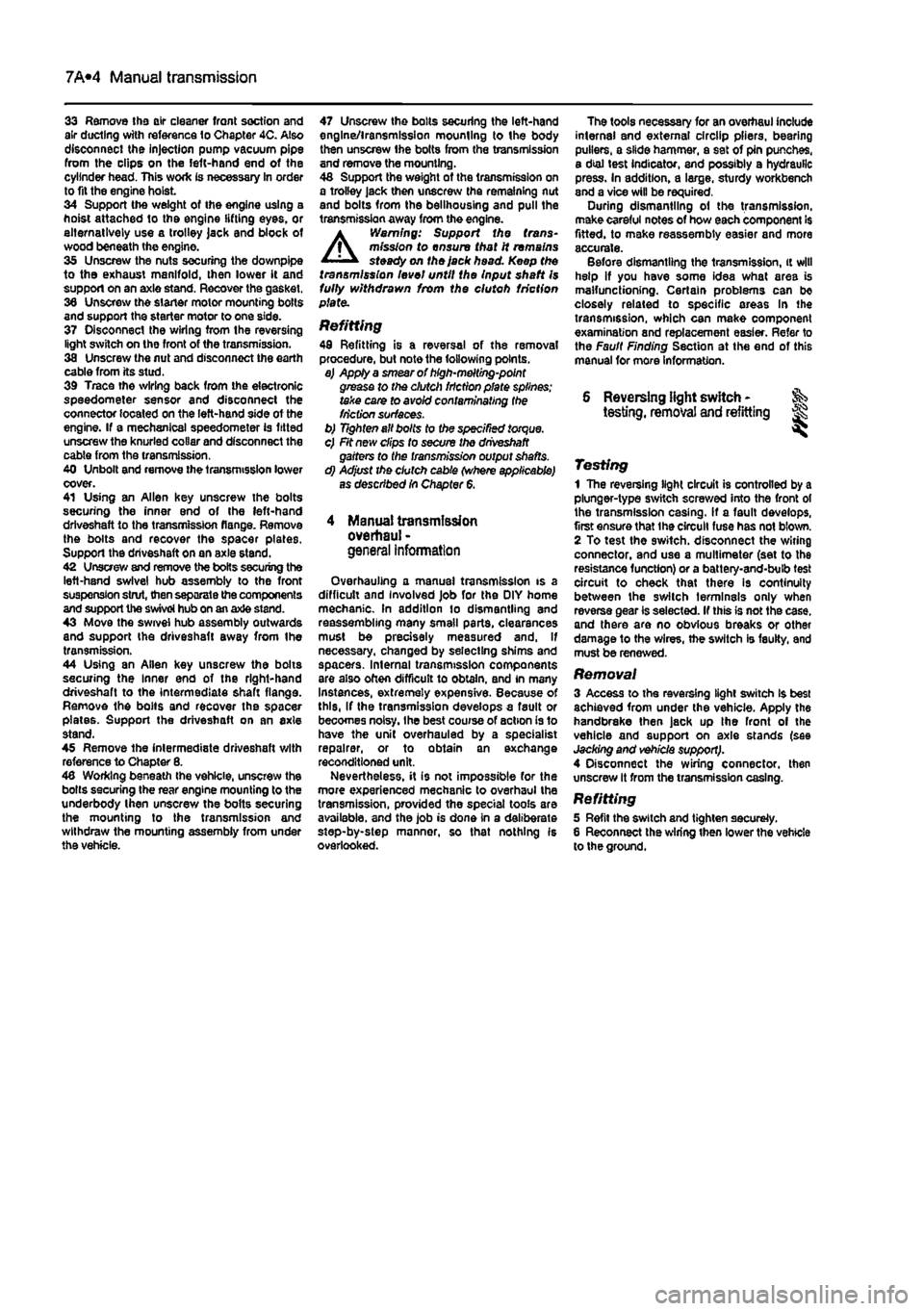

33 Remove lha air cleaner front section and air ducting with reference to Chapter 4C. Also disconnect the injection pump vacuum pipe from the clips on the left-hand end of

Page 169 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
7B*4 Automatic transmission
2 Automatic transmission - ^ removal and refitting St

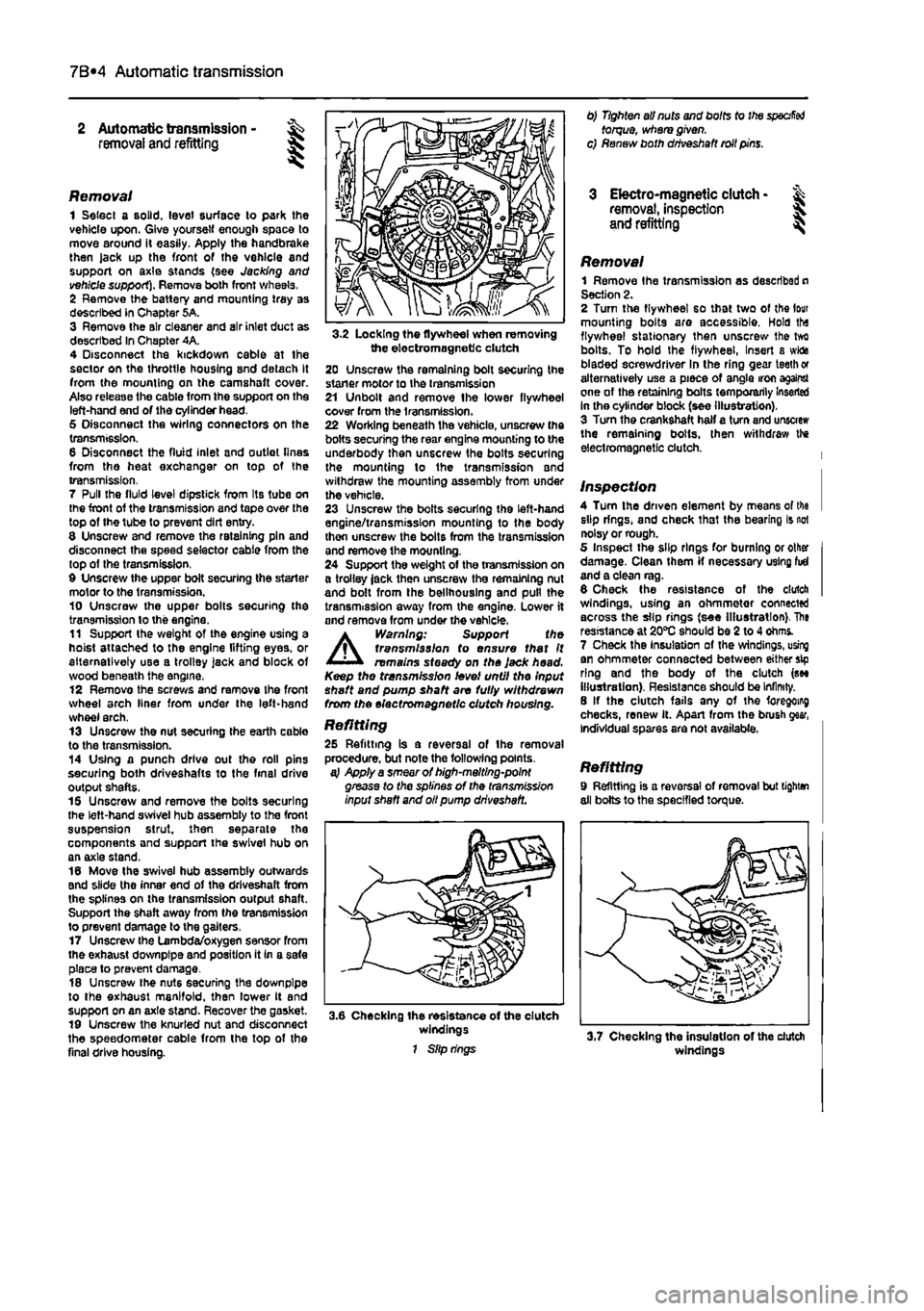

Removal 1 Select a solid, level surface to park the vehicle upon. Give yourself enough space to move around it easi

Page 178 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
9*2 Braking system

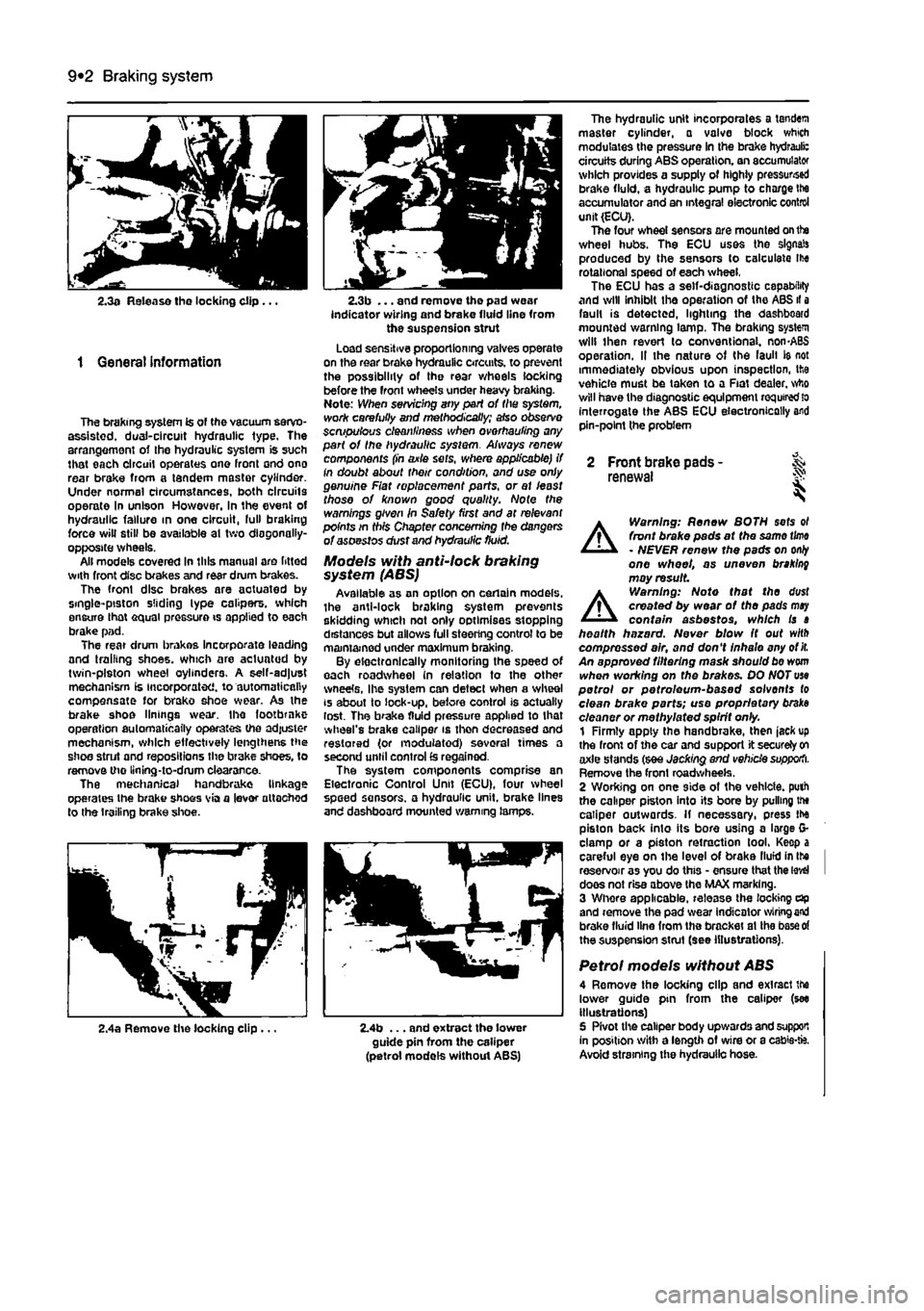

2.3a Release tho locking clip ...
1 General information
The braking system is of the vacuum servo-assisted. dual-circuit hydraulic type. The arrangement of Ihe hydraulic system

Page 195 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
Suspension and steering
 10*195

5 Front suspension >,•> tower arm balljoint -renewal ^

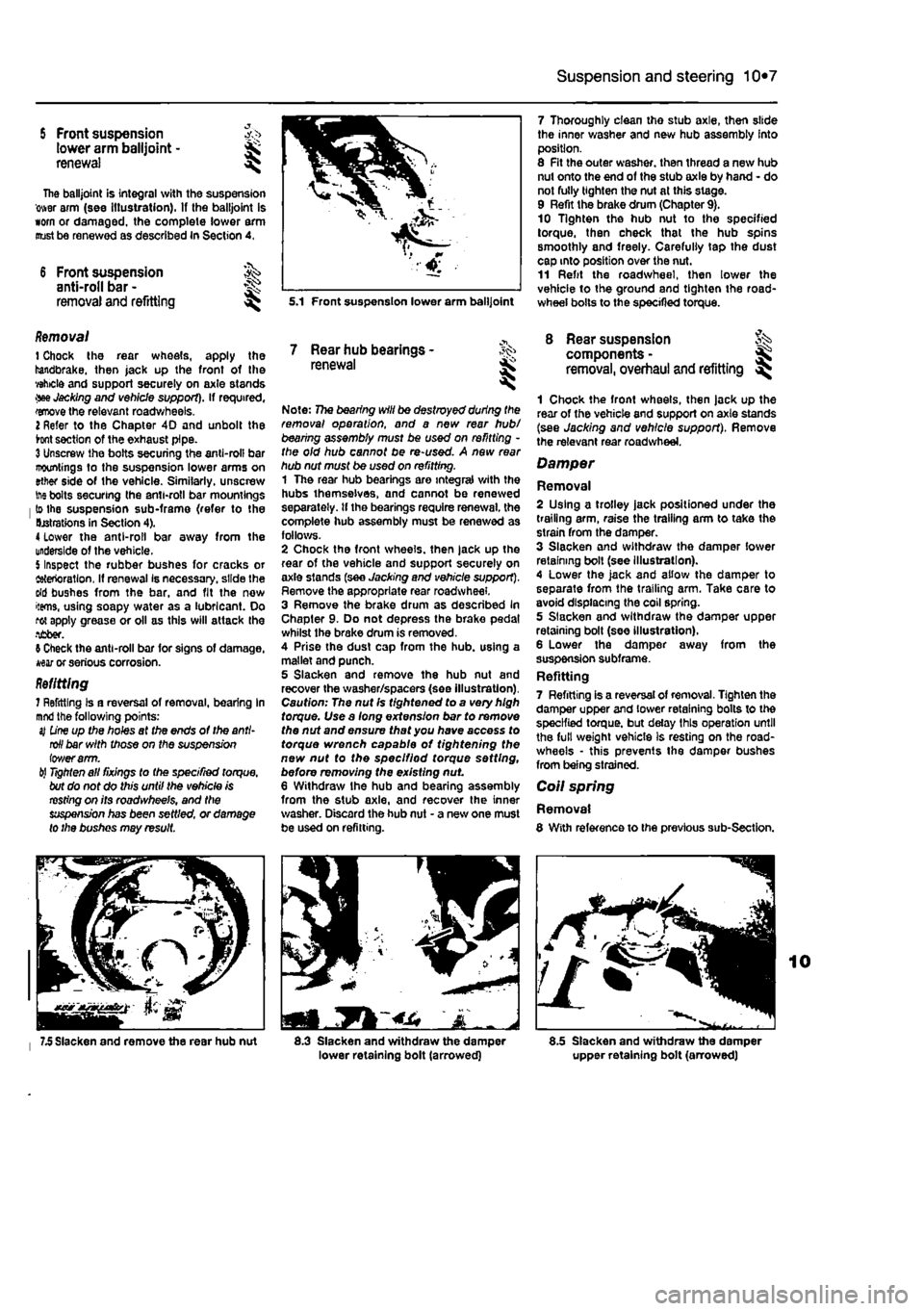

The balljoint is integral with the suspension ower arm (see Illustration). If the balljoint is worn or dama

Page 199 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
Suspension and steering 10*11
13.11b ... and left-hand steering gear-to-subframe bolts
hooked onto the engine lifting eyelet on the cylinder head. Working underneath the vehicle, unbolt and remove

Page 200 of 225

FIAT PUNTO 1998 176 / 1.G Workshop Manual
10*12 Suspension and steering
16.4b ... and through-bolt...

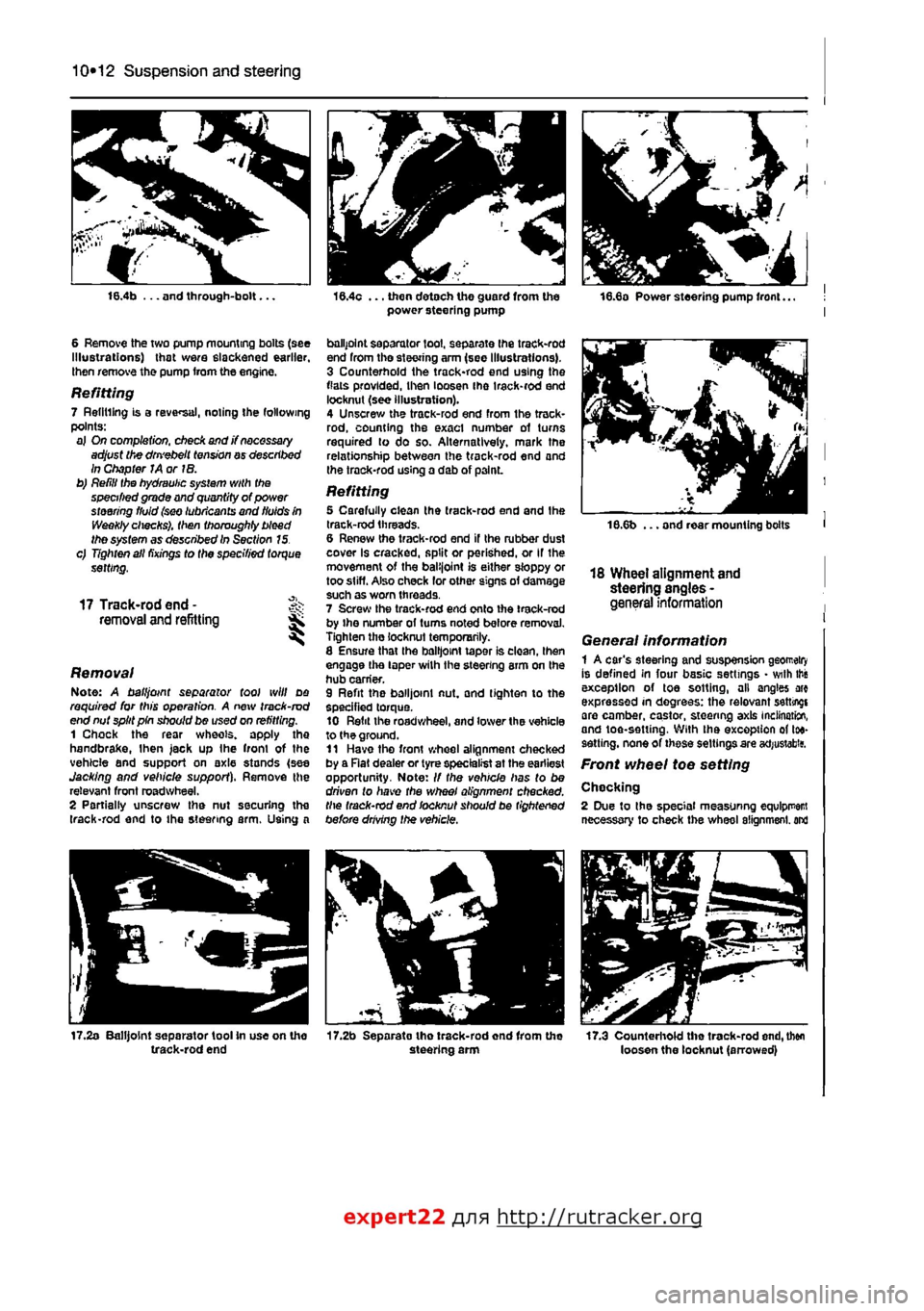

6 Remove the two pump mounting bolts (see Illustrations) that were slackened earlier, then remove the pump from the engine.
Refitting 7
