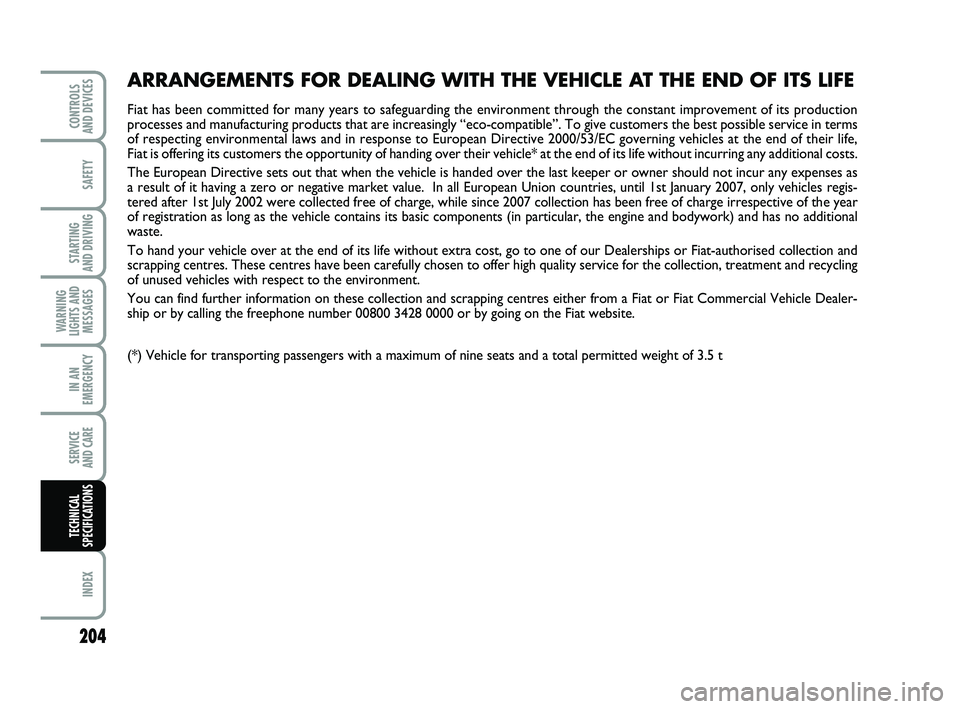

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
Fiat has been committed for many years to safeguarding the environment t\
hrough the constant improvement of its production
processes and manufacturing products that are increasingly “eco-compa\
tible”. To give customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2\
000/53/EC governing vehicles at the end of their life,
Fiat is offering its customers the opportunity of handing over their veh\
icle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the\
last keeper or owner should not incur any expenses as
a result of it having a zero or negative market value. In all European \
Union countries, until 1st January 2007, only vehicles regis-
tered after 1st July 2002 were collected free of charge, while since 200\
7 collection has been free of charge irrespective of the year
of registration as long as the vehicle contains its basic components (i\
n particular, the engine and bodywork) and has no additi onal
waste.
To hand your vehicle over at the end of its life without extra cost, go \
to one of our Dealerships or Fiat-authorised collection and
scrapping centres. These centres have been carefully chosen to offer hig\
h quality service for the collection, treatment and rec ycling
of unused vehicles with respect to the environment.
You can find further information on these collection and scrapping centr\
es either from a Fiat or Fiat Commercial Vehicle Dealer -
ship or by calling the freephone number 00800 3428 0000 or by going on t\
he Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats a\
nd a total permitted weight of 3.5 t
185-208 PUNTO POP 1ed EN 3-10-2011 11:50 Pagina 204

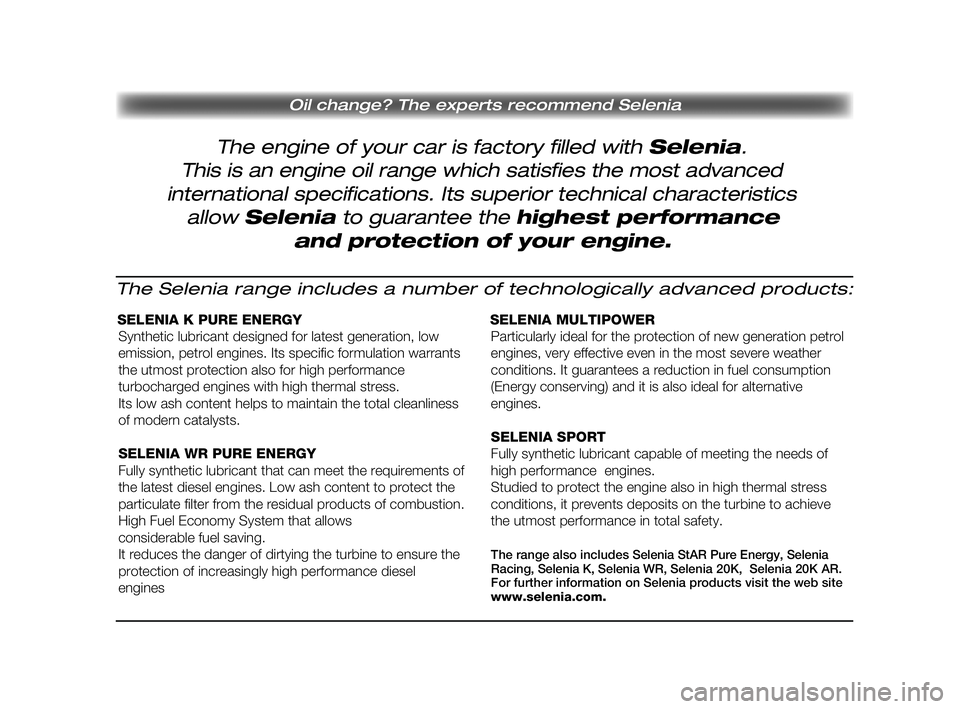

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allow Selenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products\
:
SELENIA K PURE ENERGY
Pagine_ITA.indd 4 18-05-2005 11:54:19
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.
