Do not try to rechargea frozen
battery; defrost it first to pre-
vent the risk of explosion. If the bat-
tery was frozen, have it inspected by
specialised personnel before recharg-
ing to check that the internal ele-
ments are not damaged and that the
casing is not cracked, which could
cause poisonous, corrosive gas to leak.
WARNING
Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
must be recharged in a ventilated
place away from naked flames or
possible sources of sparks to avoid the
risk of explosion and fire.

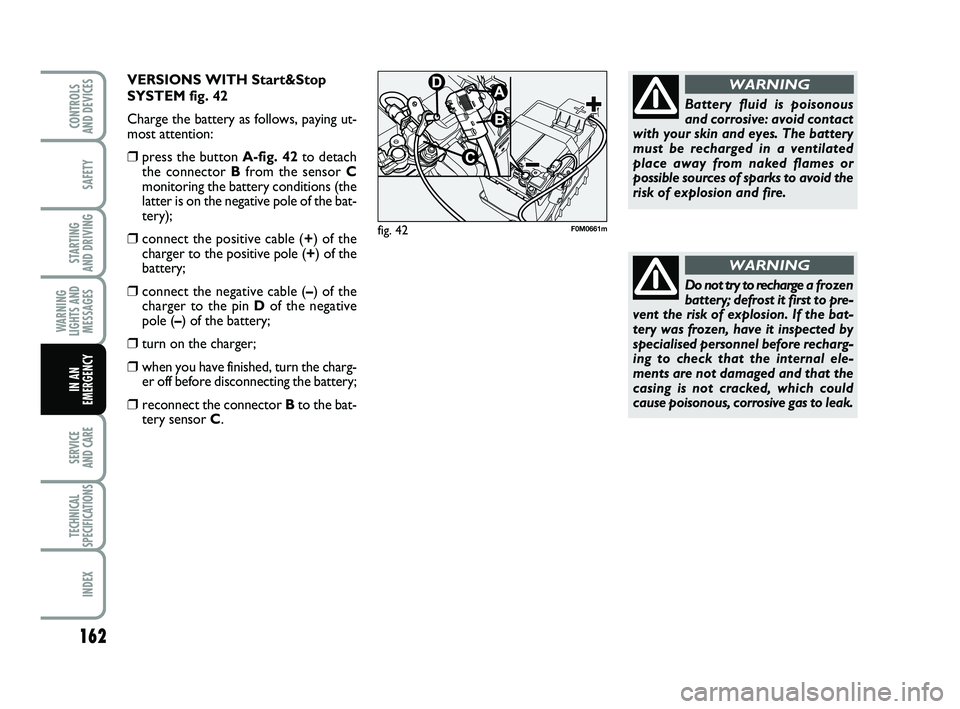

WARNINGVERSIONS WITH Start&Stop
SYSTEM fig. 42
Charge the battery as follows, paying ut-
most attention:
❒press the button A-fig. 42 to detach
the connector B from the sensor C
monitoring the battery conditions (the
latter is on the negative pole of the bat-
tery);
❒connect the positive cable ( +) of the
charger to the positive pole ( +) of the
battery;
❒connect the negative cable ( –) of the
charger to the pin D of the negative
pole ( –) of the battery;
❒turn on the charger;
❒when you have finished, turn the charg-
er off before disconnecting the battery;
❒reconnect the connector Bto the bat-
tery sensor C.
fig. 42F0M0661m
133-164 PUNTO POP 1ed EN 30-09-2011 10:20 Pagina 162

211
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
– bulb replace ment .................... 150
– control button ......................... 52
Rear window washer – controls .................................... 50
Rear window wiper – blades ........................................ 181
– controls .................................... 50
– nozzles ...................................... 182
Rear-view mirrors – external ..................................... 36
– internal ...................................... 35
Refuelling th e car .......................... 88
Removing the pa rcel shelf ........... 67
Rev coun ter ................................... 14
Reverse light .................................. 150
Rim Protector Tyres..................... 193
Rims – reading rim markings ............. 193
Roof rack/ski rack.......................... 69
Rubber lines ................................... 180
Safety .............................................. 91
SBR system .................................... 93
Seat belts – general warnings ..................... 95
– load limiters ............................. 94
– maintenance ............................. 96
– usage .......................................... 92 Seatbelt tensioners
....................... 94
Seats – adjusting .................................... 32
– cleaning ..................................... 184
– tipping (rear seats) ................. 33
Side bags ......................................... 105
Side lights - tail lights – controls .................................... 47
– front bulb repla cement .......... 147
– rear bulb repla cement ........... 149
Smart washing ............................... 49
Snow cha ins ................................... 119
Snow t yres ..................................... 194
Socket ............................................. 59
Sound system ............................... 79
Spark plugs – type ............................................ 189
Speedometer (speed indicator) . 14
Starting the engine – bump starting ........................... 134
– emergency starting ................. 134
– ignition switch ......................... 12
– jump starting ............................ 134
– procedure for diesel versions ..................................... 111
– procedure for petrol versions ..................................... 110
– stopping the engine ................ 114
Main beam headlights
– bulb replace ment .................... 148
– controls .................................... 47
– flashing ....................................... 47
Manual climate control ................ 41
Mechanical Brake Assist ............... 72
Multifunctional display ................. 21
Number plate lights .................... 151
Paintwork ...................................... 182
Parking lig hts .................................. 54
Particulate filter ............................. 90
Passenger compartment air ven ts ........................................ 38
Passenger compartment ventilati on .................................... 37
Performance ................................. 195
Pollen filter ..................................... 177
Power stee ring ........................... 54-77
Power win dow ............................... 63
Preparation system for a portable navigation system ........................ 84
Protecting the environment ....... 89
Radio transmitters and mobile
phones .......................................... 87
Raising th e car ............................... 163
Rear fog lights
