roof FIAT PUNTO 2013 Owner handbook (in English)

We really know your car because we invented, designed and built it: we r\
eally know every single detail. At Fiat Service authorised workshops you can find technicians directly trained by us,
offering quality and professionalism for all service operations.
Fiat workshops are always close to you for the regular servicing operati\
ons, season checks and practical recommendations by our experts.
With Fiat Genuine Parts you keep the reliability, comfort and performanc\
e features of your new car unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our cars; we rec\
ommend them because
they come from our steady commitment in research and development of high\
ly innovative technologies. For all these reasons: rely on Genuine Parts, because they are the only ones designed
by Fiat for your car.
SAFETY:
BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS, CLIMATE CONTROL MAINTENANCECOMFORT: SUSPENSION
AND WINDSCREEN WIPERS PERFORMANCE: SPARK PLUGS, INJECTORS AND BATTERIESLINEACCESSORI
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING GENUINE PARTS
COP PUNTO POP GB:PUNTO UM GB 11-10-2011 13:54 Pagina 2

4
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICESDASHBOARD ......................................................................\
5
SYMBOLS ........................................................................\
....... 6
THE FIAT C ODE SYSTEM ................................................. 6
THE KEYS ........................................................................\
...... 8
ALARM ........................................................................\
........... 10
IGNITION .......................................................................\
...... 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTION DISPLAY ............................................ 21
TRIP COMPUTER ................................................................ 30
FRONT SEATS ..................................................................... 32
REAR S EATS ........................................................................\
.. 33
HEAD RESTRAINTS ........................................................... 34
STEERING WHEEL .............................................................. 35
MIRRORS .......................................................................\
........ 35
HEATING AND VENTILATION SYSTE M .................... 37
MANUAL CLIMATE CONTROL SYSTE M .................... 41
EXTERIOR LIGHTS ............................................................. 47
WINDOW CLEAN ING ..................................................... 49
CEILING COURTESY LIGHTS ......................................... 51
CONTROLS .......................................................................\
. 53
FUEL CUT-OFF SYSTEM ................................................... 55 INTERIOR FI
TTINGS ........................................................... 56
DOORS ........................................................................\
.......... 60
ELECTRIC WINDOW OPENING ................................. 63
BOOT ........................................................................\
............. 65
BONNET .......................................................................\
........ 68
ROOF RACK/SKI RACK .................................................... 69
HEADLIGHTS ....................................................................... 70
ABS SYSTE M ......................................................................\
... 72
ESP SYSTEM ......................................................................\
.... 73
EOBD SYSTEM ..................................................................... 76
“DUAL DRIVE” ELECTRIC POWER
STEERING SYSTEM ............................................................. 77
START&STOP SYSTEM ...................................................... 79
SYSTÈME GEAR SHIFT INDICATOR ............................. 84
SOUND SYSTE M ................................................................. 85
ABILITY TO INSTALL A PORTABLE
NAVIGATION SYSTEM ..................................................... 86
ACCESSORIES PURCHASED BY THE OWNER ......... 86
REFEULLING THE CAR ..................................................... 88
PROTECTING THE ENVIRONMENT ........................... 89
C
C
O
O
N
N
T
T
R
R
O
O
L
L
S
S


A
A
N
N
D
D


D
D
E
E
V
V
I
I
C
C
E
E
S
S
001-032 PUNTO POP 1ed EN.qxd 3-10-2011 11:43 Pagina 4

69
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
For safety reasons, the bon-
net must always be perfect-
ly closed while travelling. Make sure
that the bonnet is perfectly closed
and that the lock is engaged. If you
discover during travel that the lock
is not fully engaged, stop immediate-
ly and close the bonnet in the correct
manner.
WARNING
If the supporting rod is not
positioned correctly, the
bonnet may fall violently.
WARNING
Perform these operations on-
ly when the car is stationary.
WARNING

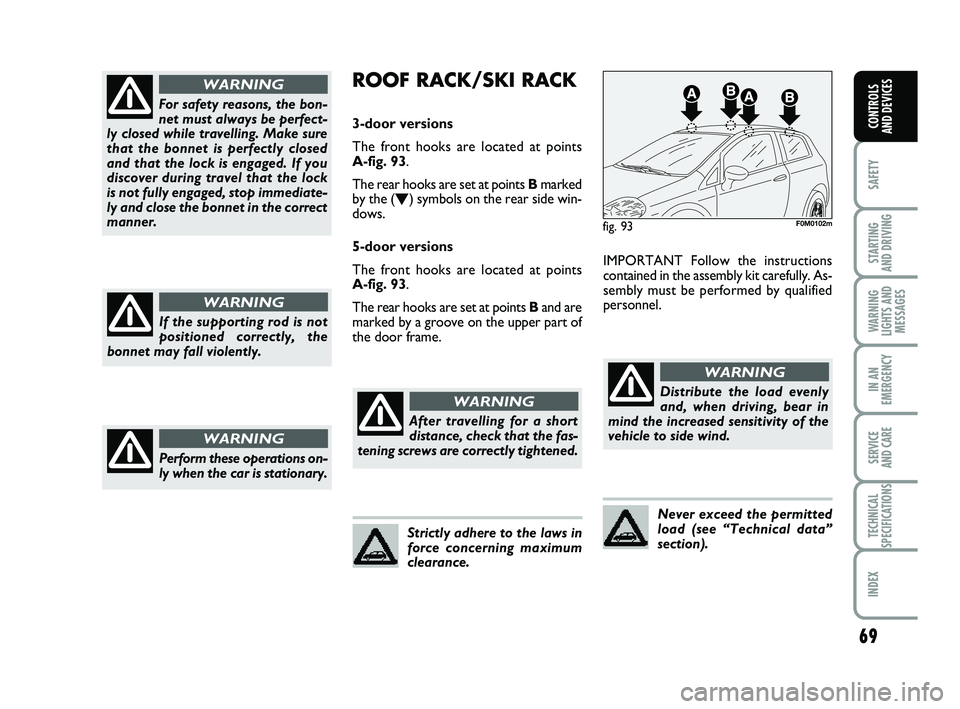

ROOF RACK/SKI RACK
3-door versions
The front hooks are located at points
A-fig. 93.
The rear hooks are set at points Bmarked
by the (
O) symbols on the rear side win-
dows.
5-door versions
The front hooks are located at points
A-fig. 93.
The rear hooks are set at points B and are
marked by a groove on the upper part of
the door frame. IMPORTANT Follow the instructions
contained in the assembly kit carefully. As-
sembly must be performed by qualified
personnel.
fig. 93F0M0102m
After travelling for a short
distance, check that the fas-
tening screws are correctly tightened.
WARNING
Strictly adhere to the laws in
force concerning maximum
clearance.
Distribute the load evenly
and, when driving, bear in
mind the increased sensitivity of the
vehicle to side wind.
WARNING
Never exceed the permitted
load (see “Technical data”
section).
033-069 PUNTO POP 1ed EN 30-09-2011 10:17 Pagina 69

87
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

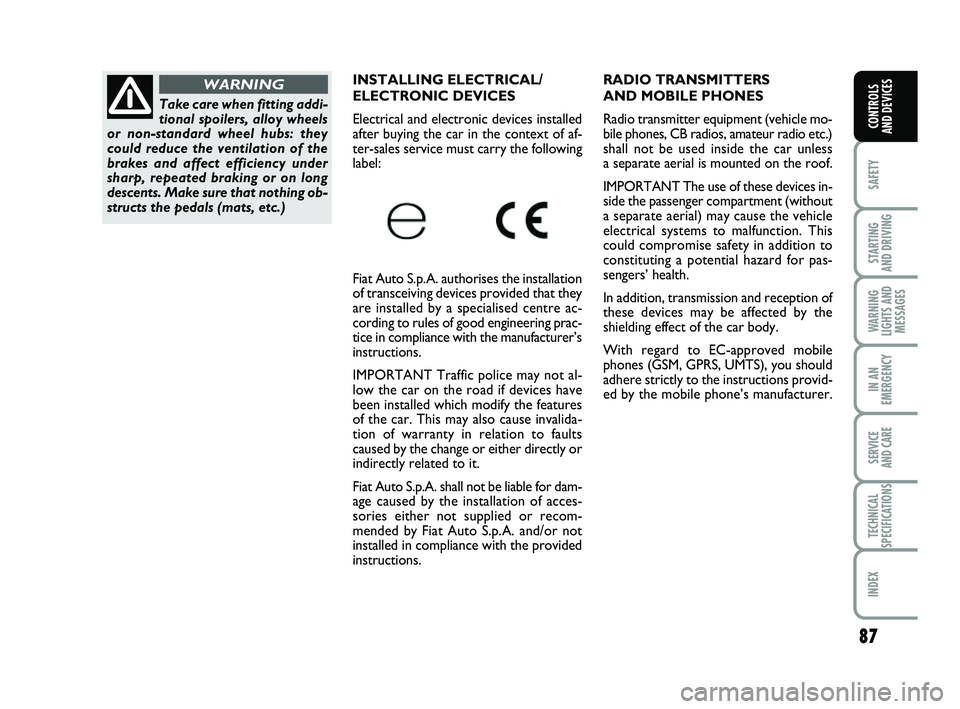

RADIO TRANSMITTERS
AND MOBILE PHONES
Radio transmitter equipment (vehicle mo-
bile phones, CB radios, amateur radio etc.)
shall not be used inside the car unless
a separate aerial is mounted on the roof.
IMPORTANT The use of these devices in-
side the passenger compartment (without
a separate aerial) may cause the vehicle
electrical systems to malfunction. This
could compromise safety in addition to
constituting a potential hazard for pas-
sengers’ health.
In addition, transmission and reception of
these devices may be affected by the
shielding effect of the car body.
With regard to EC-approved mobile
phones (GSM, GPRS, UMTS), you should
adhere strictly to the instructions provid-
ed by the mobile phone’s manufacturer.
Take care when fitting addi-
tional spoilers, alloy wheels
or non-standard wheel hubs: they
could reduce the ventilation of the
brakes and affect efficiency under
sharp, repeated braking or on long
descents. Make sure that nothing ob-
structs the pedals (mats, etc.)
WARNINGINSTALLING ELECTRICAL/
ELECTRONIC DEVICES
Electrical and electronic devices installed
after buying the car in the context of af-
ter-sales service must carry the following
label:
Fiat Auto S.p.A. authorises the installation
of transceiving devices provided that they
are installed by a specialised centre ac-
cording to rules of good engineering prac-
tice in compliance with the manufacturer’s
instructions.
IMPORTANT Traffic police may not al-
low the car on the road if devices have
been installed which modify the features
of the car. This may also cause invalida-
tion of warranty in relation to faults
caused by the change or either directly or
indirectly related to it.
Fiat Auto S.p.A. shall not be liable for dam-
age caused by the installation of acces-
sories either not supplied or recom-
mended by Fiat Auto S.p.A. and/or not
installed in compliance with the provided
instructions.
070-090 PUNTO POP 1ed EN 30-09-2011 10:18 Pagina 87

106
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
IMPORTANT The front airbags and/or
side bags may be deployed if the car is sub-
ject to heavy knocks involving the under-
body area, such as violent shocks against
steps, kerbs or low obstacles, the car
falling into big holes or hollows in the road.
IMPORTANT A small amount of dust will
be released when the airbags are de-
ployed. The dust is not harmful and does
not indicate the beginning of a fire. Fur-
thermore, the surface of the deployed bag
and the interior of the car may be covered
in a dusty residue: this may irritate skin
and eyes. Wash with mild soap and wa-
ter in the event of exposure.
The expiration dates of the explosive
charge and the clock wire are shown on a
specific label contained in the glove box.
Go to a Fiat Dealership to have the de-
vices replaced when the expiration date
approaches. IMPORTANT Should an accident occur in
which any of the safety devices are acti-
vated, take the vehicle to a Fiat Dealership
to have the activated devices replaced and
to have the whole system checked.
Every control, repair and replacement op-
eration concerning the airbags must be
carried out only at Fiat Dealerships.
If you are having the car scrapped, have
the airbag system deactivated at a Fiat
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of the airbags and
the above warnings, and also be given this
“Owner’s Handbook”.
IMPORTANT Pretensioners, front airbags
and front side bags are deployed differ-
ently according to the type of collision.
Non-deployment of one of these devices
does not therefore indicate a system fault.

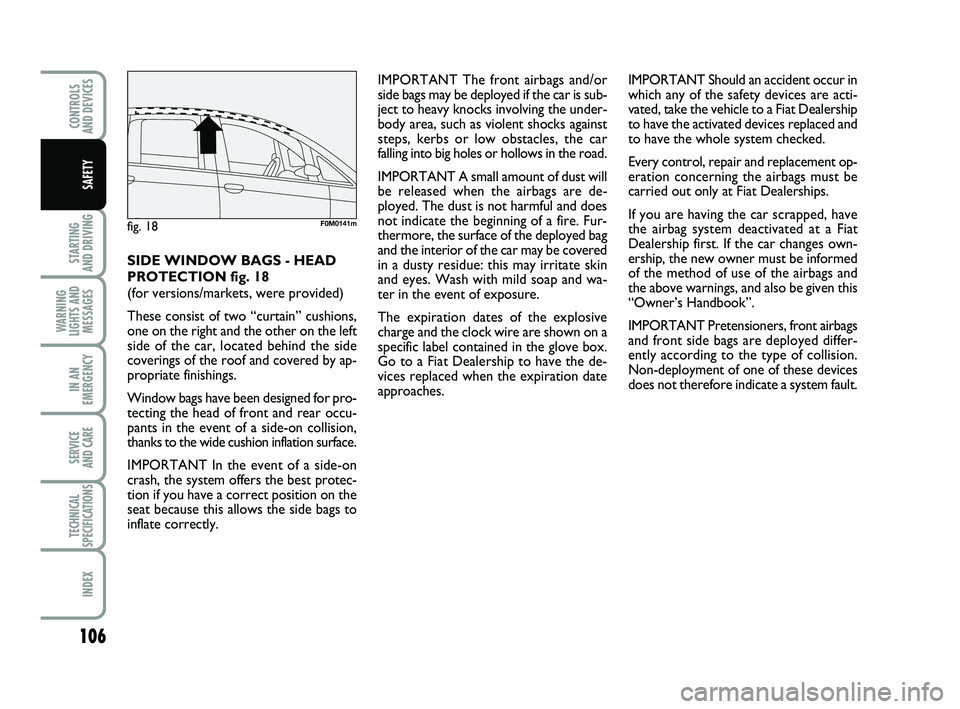

SIDE WINDOW BAGS - HEAD
PROTECTION fig. 18
(for versions/markets, were provided)
These consist of two “curtain” cushions,
one on the right and the other on the left
side of the car, located behind the side
coverings of the roof and covered by ap-
propriate finishings.
Window bags have been designed for pro-
tecting the head of front and rear occu-
pants in the event of a side-on collision,
thanks to the wide cushion inflation surface.
IMPORTANT In the event of a side-on
crash, the system offers the best protec-
tion if you have a correct position on the
seat because this allows the side bags to
inflate correctly.
fig. 18F0M0141m
091-108 PUNTO POP 1ed EN 16-08-2011 14:11 Pagina 106

115
SAFETY
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING

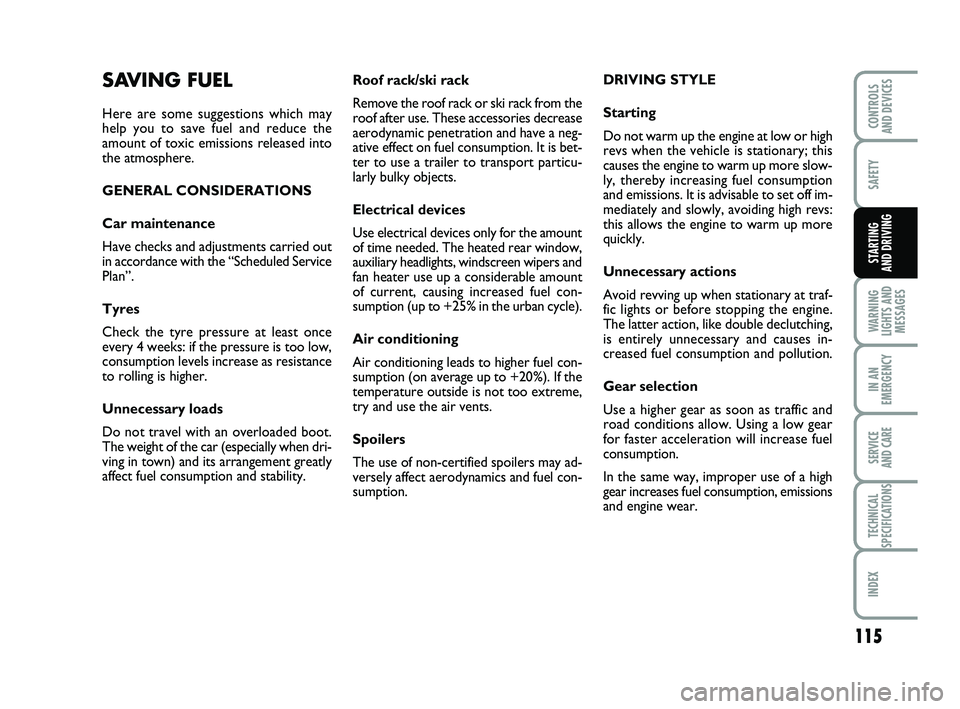

Roof rack/ski rack
Remove the roof rack or ski rack from the
roof after use. These accessories decrease
aerodynamic penetration and have a neg-
ative effect on fuel consumption. It is bet-
ter to use a trailer to transport particu-
larly bulky objects.
Electrical devices
Use electrical devices only for the amount
of time needed. The heated rear window,
auxiliary headlights, windscreen wipers and
fan heater use up a considerable amount
of current, causing increased fuel con-
sumption (up to +25% in the urban cycle).
Air conditioning
Air conditioning leads to higher fuel con-
sumption (on average up to +20%). If the
temperature outside is not too extreme,
try and use the air vents.
Spoilers
The use of non-certified spoilers may ad-
versely affect aerodynamics and fuel con-
sumption. DRIVING STYLE
Starting
Do not warm up the engine at low or high
revs when the vehicle is stationary; this
causes the engine to warm up more slow-
ly, thereby increasing fuel consumption
and emissions. It is advisable to set off im-
mediately and slowly, avoiding high revs:
this allows the engine to warm up more
quickly.
Unnecessary actions
Avoid revving up when stationary at traf-
fic lights or before stopping the engine.
The latter action, like double declutching,
is entirely unnecessary and causes in-
creased fuel consumption and pollution.
Gear selection
Use a higher gear as soon as traffic and
road conditions allow. Using a low gear
for faster acceleration will increase fuel
consumption.
In the same way, improper use of a high
gear increases fuel consumption, emissions
and engine wear.SAVING FUEL
Here are some suggestions which may
help you to save fuel and reduce the
amount of toxic emissions released into
the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Scheduled Service
Plan”.
Tyres
Check the tyre pressure at least once
every 4 weeks: if the pressure is too low,
consumption levels increase as resistance
to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot.
The weight of the car (especially when dri-
ving in town) and its arrangement greatly
affect fuel consumption and stability.
109-120 PUNTO POP 1ed EN 16-08-2011 11:35 Pagina 115

157
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
1 (*)
8 (*)
8
13
2 (*)
5
11 4
6
14 7
12 3
10 7,5
7,5
5
5
5
10 5
20
20
20
20 5
5
7,5
FUSE TABLE
Dashboard fusebox fig. 36
DEVICES
FUSEAMPS
Right dipped beam headlight
Left dipped beam headlight
Headlamp alignment corrector
INT/A supply for switch coils on engine fusebox and switch coils
on body computer control unit
Front ceiling light, rear ceiling light (VAN version)
Supply and battery for EOBD diagnostic plug, alarm, sound system,
Blue&Me control unit
INT supply for instrument panel, switch on brake pedal (N.O. contact),\

third brake light
Door locking/unlocking motors, dead lock activation motors,
boot unlocking motor
Windscreen/rear window washer pump
Electric window motor on driver-side front door
Electric window motor on passenger-side front door
INT supply for dashboard control lights, mirror movement exterior electr\
ics,
sunroof control unit, My Port infotelematic system socket
Instrument panel
INT supply for brake pedal switch (NC contact), clutch pedal switch,
interior heating unit, Blue&Me control unit, sound system capabilities, \
voltage stabiliser control unit, reverse light on rear bumper, water sen\
sor
on diesel filter, glow plug heating control unit, airflow meter, brake b\
ooster sensor,
switch coils on engine compartment fusebox
(*) Fuse on some versions only.
133-164 PUNTO POP 1ed EN 30-09-2011 10:20 Pagina 157

160
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
17
14
01
03
04
15
10
16
08
07
05
11
13
09
06
0220
7,5 –
–
–
–
20 –
10 –
15
20 –
10 –
–

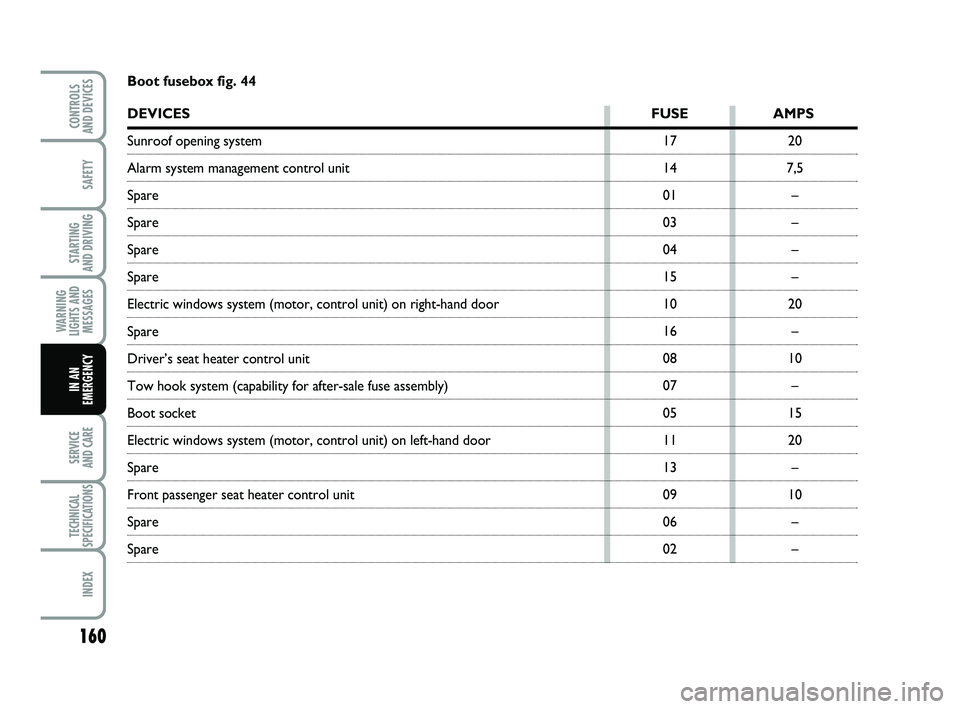

Boot fusebox fig. 44
DEVICES
FUSE AMPS
Sunroof opening system
Alarm system management control unit
Spare
Spare
Spare
Spare
Electric windows system (motor, control unit) on right-hand door
Spare
Driver’s seat heater control unit
Tow hook system (capability for after-sale fuse assembly)
Boot socket
Electric windows system (motor, control unit) on left-hand door
Spare
Front passenger seat heater control unit
Spare
Spare
133-164 PUNTO POP 1ed EN 30-09-2011 10:20 Pagina 160

183
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE

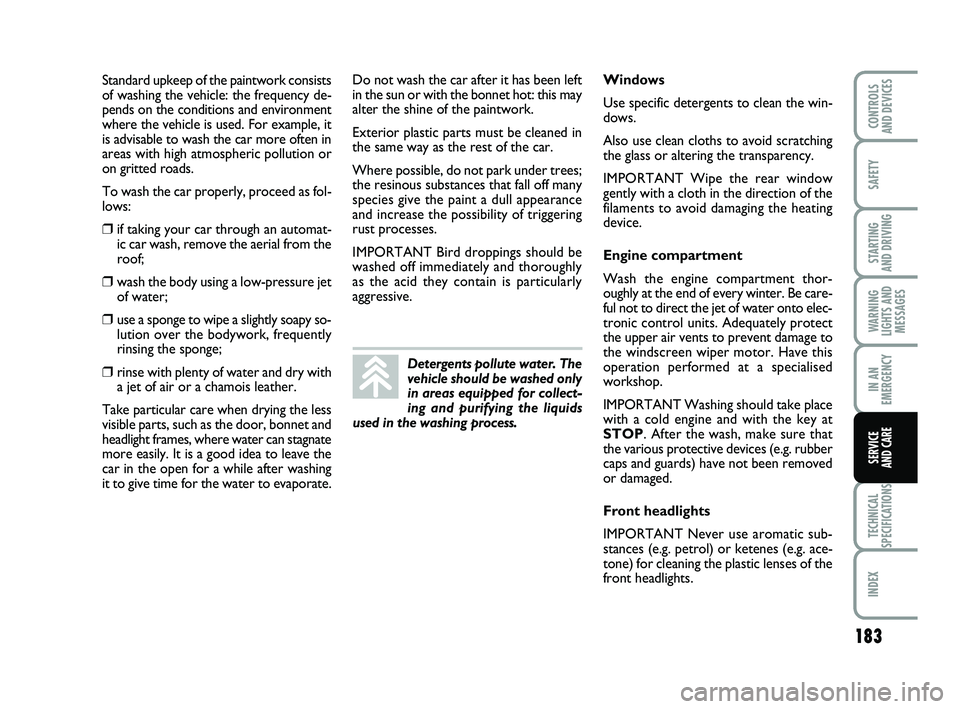

Standard upkeep of the paintwork consists
of washing the vehicle: the frequency de-
pends on the conditions and environment
where the vehicle is used. For example, it
is advisable to wash the car more often in
areas with high atmospheric pollution or
on gritted roads.
To wash the car properly, proceed as fol-
lows:
❒if taking your car through an automat-
ic car wash, remove the aerial from the
roof;
❒wash the body using a low-pressure jet
of water;
❒use a sponge to wipe a slightly soapy so-
lution over the bodywork, frequently
rinsing the sponge;
❒rinse with plenty of water and dry with
a jet of air or a chamois leather.
Take particular care when drying the less
visible parts, such as the door, bonnet and
headlight frames, where water can stagnate
more easily. It is a good idea to leave the
car in the open for a while after washing
it to give time for the water to evaporate. Do not wash the car after it has been left
in the sun or with the bonnet hot: this may
alter the shine of the paintwork.
Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substances that fall off many
species give the paint a dull appearance
and increase the possibility of triggering
rust processes.
IMPORTANT Bird droppings should be
washed off immediately and thoroughly
as the acid they contain is particularly
aggressive.Detergents pollute water. The
vehicle should be washed only
in areas equipped for collect-
ing and purifying the liquids
used in the washing process.
Windows
Use specific detergents to clean the win-
dows.
Also use clean cloths to avoid scratching
the glass or altering the transparency.
IMPORTANT Wipe the rear window
gently with a cloth in the direction of the
filaments to avoid damaging the heating
device.
Engine compartment
Wash the engine compartment thor-
oughly at the end of every winter. Be care-
ful not to direct the jet of water onto elec-
tronic control units. Adequately protect
the upper air vents to prevent damage to
the windscreen wiper motor. Have this
operation performed at a specialised
workshop.
IMPORTANT Washing should take place
with a cold engine and with the key at
STOP. After the wash, make sure that
the various protective devices (e.g. rubber
caps and guards) have not been removed
or damaged.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g. petrol) or ketenes (e.g. ace-
tone) for cleaning the plastic lenses of the
front headlights.
165-184 PUNTO POP 1ed EN 30-09-2011 10:21 Pagina 183

5 doors5 seats
1030
560
850
850
1590
900/500(
●)
400
50
60
3 doors 5 seats
1025
560
850
850
1585
1000 400
50
60
5 doors 5 seats
1040
560
850
850
1600
1000 400
50
60
197
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

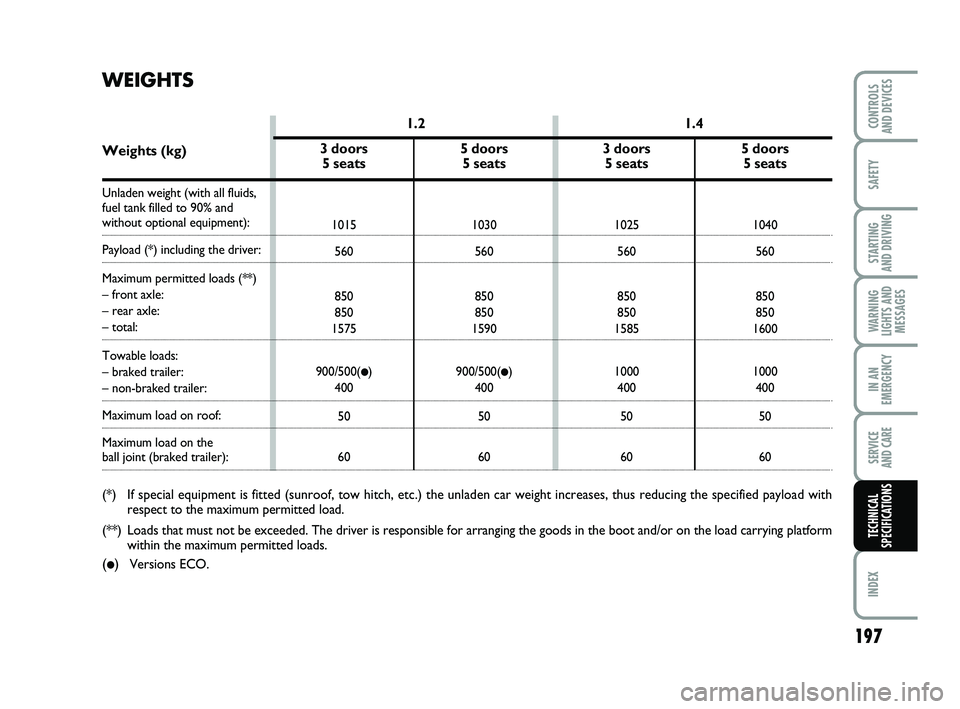

WEIGHTS
1.2 1.4
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment):
Payload (*) including the driver:
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– braked trailer:
– non-braked trailer:
Maximum load on roof:
Maximum load on the
ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen \
car weight increases, thus reducing the specified payload with respect to the maximum permitted load.
(**) Loads that must not be exceeded. The driver is responsible for arranging\
the goods in the boot and/or on the load carrying platform
within the maximum permitted loads.
(●)Versions ECO.
3 doors 5 seats
1015
560
850
850
1575
900/500(
●)
400
50
60
185-208 PUNTO POP 1ed EN 3-10-2011 11:50 Pagina 197
