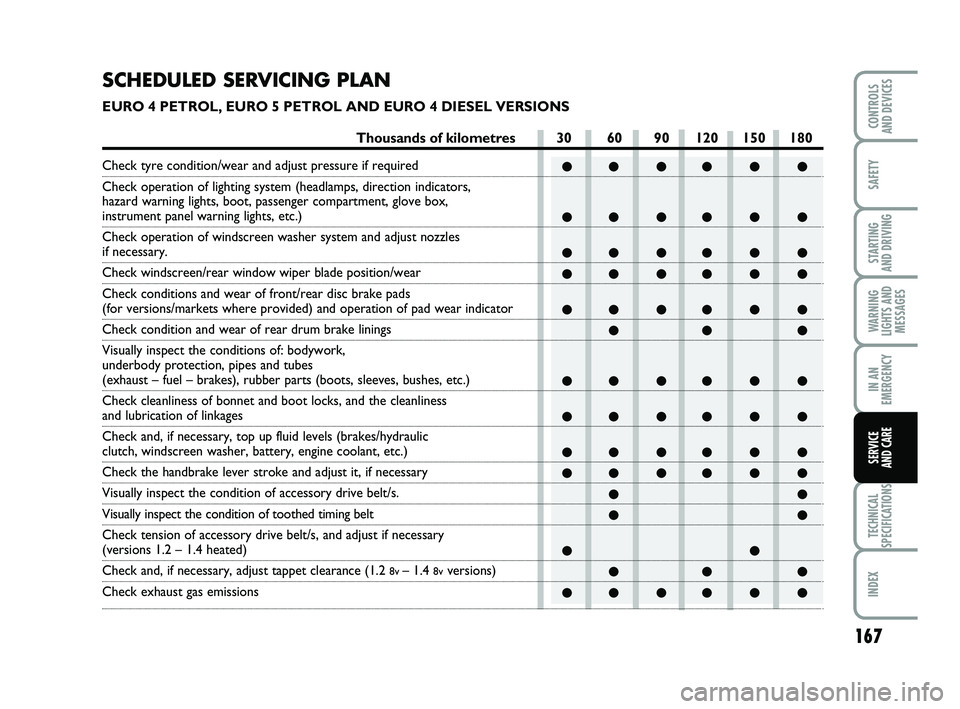

SCHEDULED SERVICING PLAN
EURO 4 PETROL, EURO 5 PETROL AND EURO 4 DIESEL VERSIONS
Thousands of kilometres 30 60 90 120 150 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, boot, passenger compartment, glove box,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust nozzles
if necessary.
Check windscreen/rear window wiper blade position/wear
Check conditions and wear of front/rear disc brake pads
(for versions/markets where provided) and operation of pad wear indica\
tor
Check condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes
(exhaust – fuel – brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, and the cleanliness
and lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check the handbrake lever stroke and adjust it, if necessary
Visually inspect the condition of accessory drive belt/s.
Visually inspect the condition of toothed timing belt
Check tension of accessory drive belt/s, and adjust if necessary
(versions 1.2 – 1.4 heated)
Check and, if necessary, adjust tappet clearance (1.2 8v – 1.4 8vversions)
Check exhaust gas emissions
165-184 PUNTO POP 1ed EN 30-09-2011 10:21 Pagina 167

168
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
●● ●● ● ●
●
●
●● ●● ● ●
●● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●

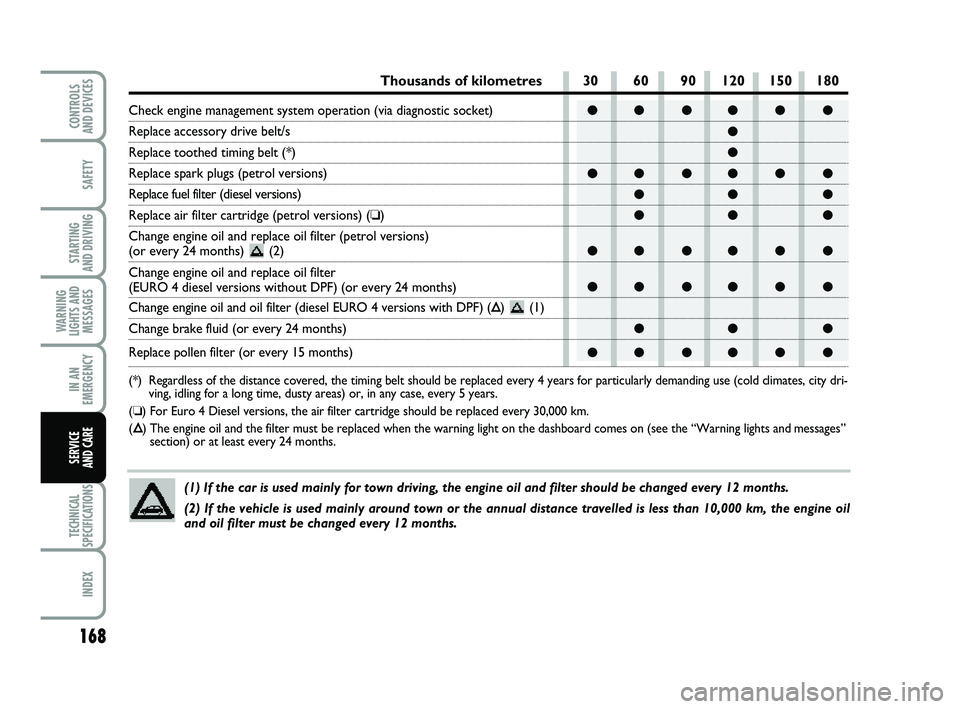

Thousands of kilometres 30 60 90 120 150 180
Check engine management system operation (via diagnostic socket)
Replace accessory drive belt/s
Replace toothed timing belt (*)
Replace spark plugs (petrol versions)
Replace fuel filter (diesel versions)
Replace air filter cartridge (petrol versions) (❏)
Change engine oil and replace oil filter (petrol versions)
(or every 24 months) (2)
Change engine oil and replace oil filter
(EURO 4 diesel versions without DPF) (or every 24 months)
Change engine oil and oil filter (diesel EURO 4 versions with DPF) (Õ) (1)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt should be replaced e\
very 4 years for particularly demanding use (cold c limates, city dri-
ving, idling for a long time, dusty areas) or, in any case, every 5 yea\
rs.
( ❏ ) For Euro 4 Diesel versions, the air filter cartridge should be replac\
ed every 30,000 km.
( Õ ) The engine oil and the filter must be replaced when the warning light on\
the dashboard comes on (see the “Warning lights and messages”
section) or at least every 24 months.
(1) If the car is used mainly for town driving, the engine oil and fil\
ter should be changed every 12 months.
(2) If the vehicle is used mainly around town or the annual distance t\
ravelled is less than 10,000 km, the engine oil
and oil filter must be changed every 12 months.
