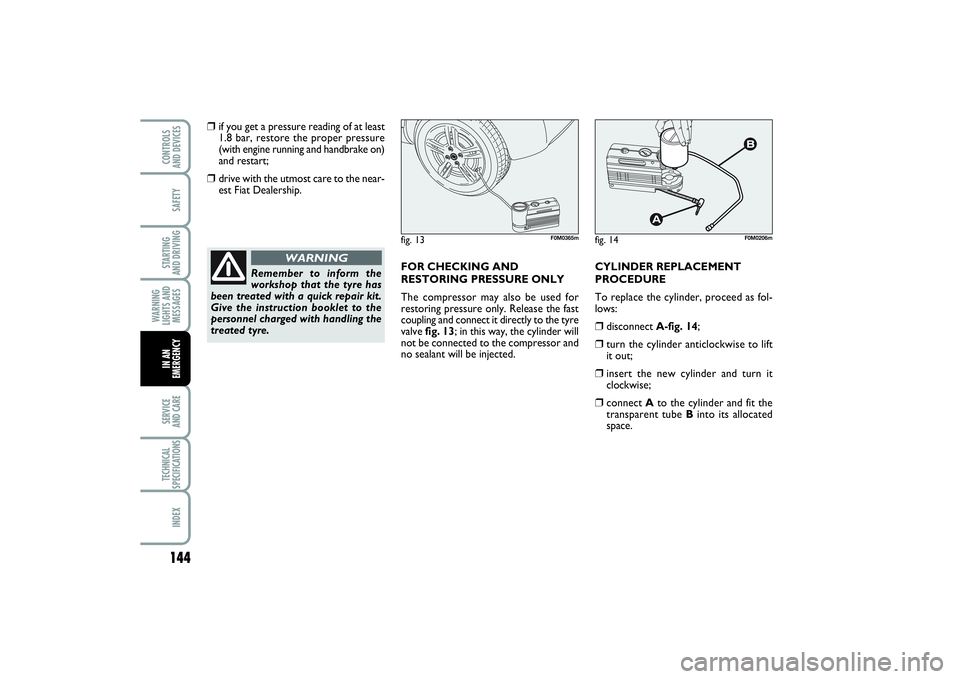

if you get a pressure reading of at least
1.8 bar, restore the proper pressure
(with engine running and handbrake on)
and restart;
❒
drive with the utmost care to the near-
est Fiat Dealership.
FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only. Release the fast
coupling and connect it directly to the tyre
valve fig. 13; in this way, the cylinder will
not be connected to the compressor and
no sealant will be injected. CYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder, proceed as fol-
lows:
❒
disconnect A-fig. 14;
❒
turn the cylinder anticlockwise to lift
it out;
❒
insert the new cylinder and turn it
clockwise;
❒
connect Ato the cylinder and fit the
transparent tube Binto its allocated
space.
Remember to inform the
workshop that the tyre has
been treated with a quick repair kit.
Give the instruction booklet to the
personnel charged with handling the
treated tyre.
WARNING
fig. 13
F0M0365m
fig. 14
F0M0206m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 144

145
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

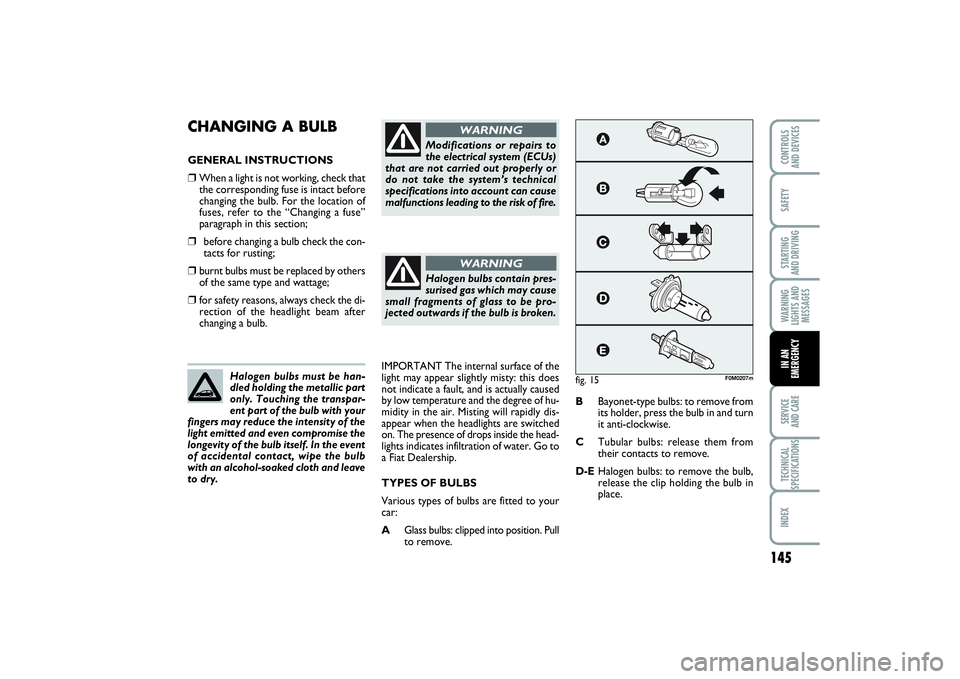

CHANGING A BULB GENERAL INSTRUCTIONS❒
When a light is not working, check that
the corresponding fuse is intact before
changing the bulb. For the location of
fuses, refer to the “Changing a fuse”
paragraph in this section;
❒
before changing a bulb check the con-
tacts for rusting;
❒
burnt bulbs must be replaced by others
of the same type and wattage;
❒
for safety reasons, always check the di-
rection of the headlight beam after
changing a bulb.
IMPORTANT The internal surface of the
light may appear slightly misty: this does
not indicate a fault, and is actually caused
by low temperature and the degree of hu-
midity in the air. Misting will rapidly dis-
appear when the headlights are switched
on. The presence of drops inside the head-
lights indicates infiltration of water. Go to
a Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove.BBayonet-type bulbs: to remove from
its holder, press the bulb in and turn
it anti-clockwise.
CTubular bulbs: release them from
their contacts to remove.
D-EHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place. Halogen bulbs must be han-
dled holding the metallic part
only. Touching the transpar-
ent part of the bulb with your
fingers may reduce the intensity of the
light emitted and even compromise the
longevity of the bulb itself. In the event
of accidental contact, wipe the bulb
with an alcohol-soaked cloth and leave
to dry.
Modifications or repairs to
the electrical system (ECUs)
that are not carried out properly or
do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which may cause
small fragments of glass to be pro-
jected outwards if the bulb is broken.
WARNING
fig. 15
F0M0207m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 145

146SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

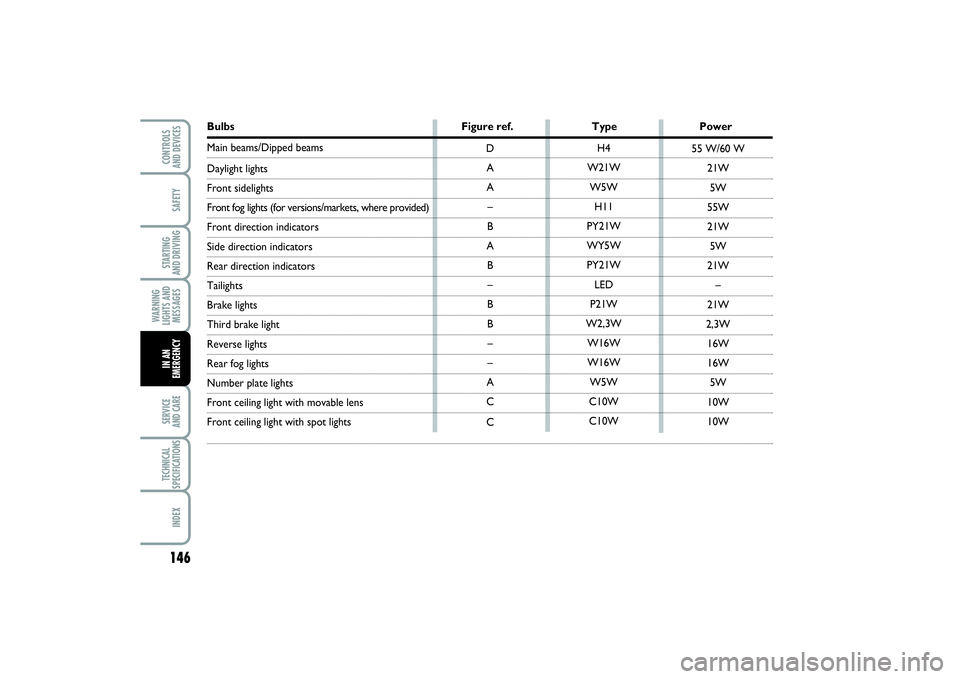

Bulbs Figure ref. Type PowerMain beams/Dipped beams Daylight lightsFront sidelights Front fog lights (for versions/markets, where provided)Front direction indicators Side direction indicators Rear direction indicators Tailights Brake lights Third brake light Reverse lights Rear fog lights Number plate lights Front ceiling light with movable lens
Front ceiling light with spot lights
H4
W21W
W5W
H11
PY21W
WY5W
PY21W
LED
P21W
W2,3W
W16W
W16W
W5W
C10W
C10W D
A
A
–
B
A
B
–
B
B
–
–
A
C
C55 W/60 W
21W
5W
55W
21W
5W
21W
–
21W
2,3W
16W
16W
5W
10W
10W
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 146

147
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

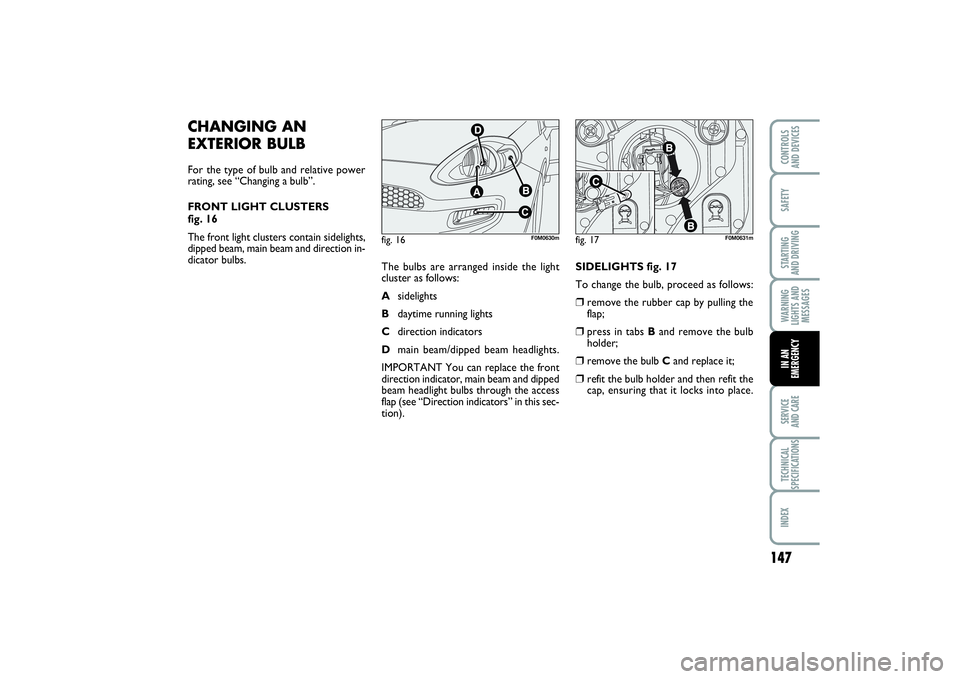

CHANGING AN
EXTERIOR BULBFor the type of bulb and relative power
rating, see “Changing a bulb”.
FRONT LIGHT CLUSTERS
fig. 16
The front light clusters contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs.
The bulbs are arranged inside the light
cluster as follows:
Asidelights
Bdaytime running lights
Cdirection indicators
Dmain beam/dipped beam headlights.
IMPORTANT You can replace the front
direction indicator, main beam and dipped
beam headlight bulbs through the access
flap (see “Direction indicators” in this sec-
tion).SIDELIGHTS fig. 17
To change the bulb, proceed as follows:
❒
remove the rubber cap by pulling the
flap;
❒
press in tabs Band remove the bulb
holder;
❒
remove the bulb C and replace it;
❒
refit the bulb holder and then refit the
cap, ensuring that it locks into place.
fig. 16
F0M0630m
fig. 17
F0M0631m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 147

148SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

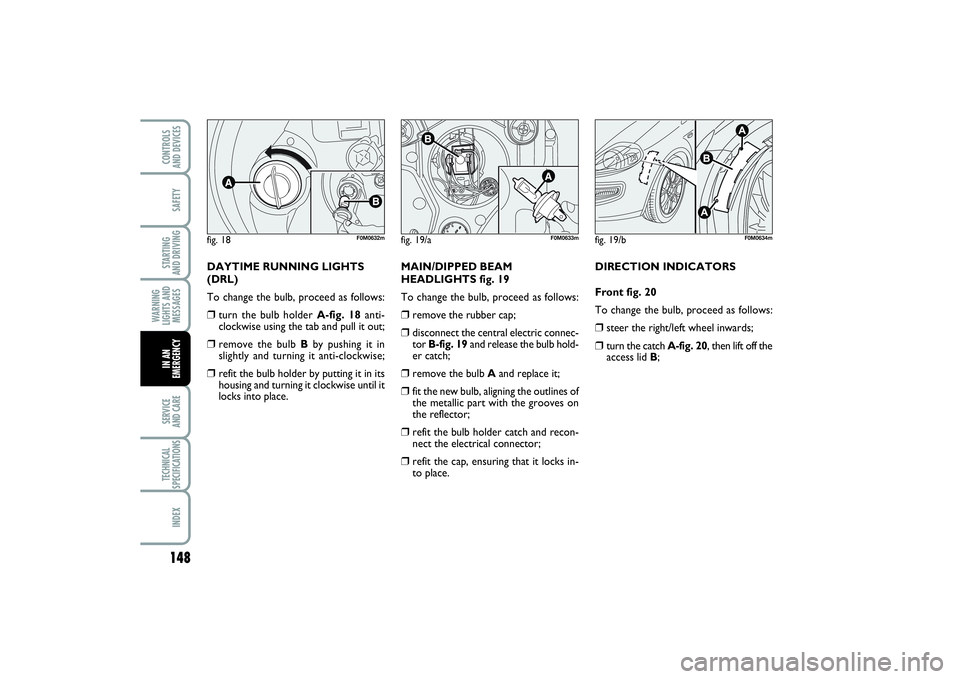

DAYTIME RUNNING LIGHTS
(DRL)
To change the bulb, proceed as follows:❒
turn the bulb holder A-fig. 18anti-
clockwise using the tab and pull it out;
❒
remove the bulb Bby pushing it in
slightly and turning it anti-clockwise;
❒
refit the bulb holder by putting it in its
housing and turning it clockwise until it
locks into place.MAIN/DIPPED BEAM
HEADLIGHTS fig. 19
To change the bulb, proceed as follows:
❒
remove the rubber cap;
❒
disconnect the central electric connec-
tor B-fig. 19and release the bulb hold-
er catch;
❒
remove the bulb Aand replace it;
❒
fit the new bulb, aligning the outlines of
the metallic part with the grooves on
the reflector;
❒
refit the bulb holder catch and recon-
nect the electrical connector;
❒
refit the cap, ensuring that it locks in-
to place.DIRECTION INDICATORS
Front fig. 20
To change the bulb, proceed as follows:
❒
steer the right/left wheel inwards;
❒
turn the catch A-fig. 20, then lift off the
access lid B;
fig. 18
F0M0632m
fig. 19/b
F0M0634m
fig. 19/a
F0M0633m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 148

149
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY
❒

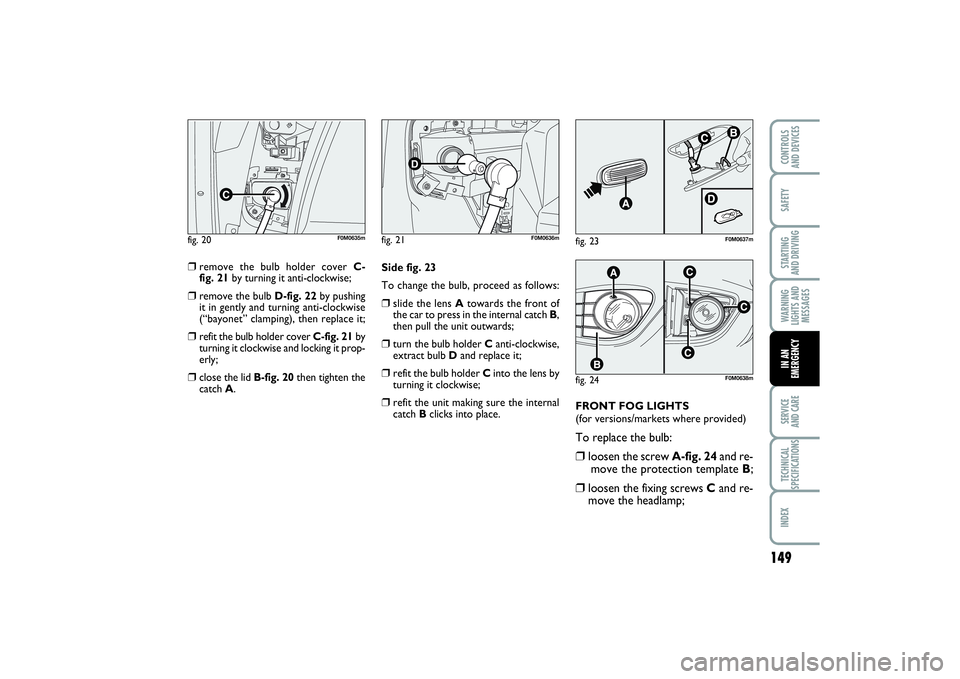

remove the bulb holder cover C-
fig. 21by turning it anti-clockwise;
❒
remove the bulb D-fig. 22by pushing
it in gently and turning anti-clockwise
(“bayonet” clamping), then replace it;
❒
refit the bulb holder cover C-fig. 21by
turning it clockwise and locking it prop-
erly;
❒
close the lid B-fig. 20then tighten the
catch A.Side fig. 23
To change the bulb, proceed as follows:
❒
slide the lens Atowards the front of
the car to press in the internal catch B,
then pull the unit outwards;
❒
turn the bulb holder Canti-clockwise,
extract bulb Dand replace it;
❒
refit the bulb holder Cinto the lens by
turning it clockwise;
❒
refit the unit making sure the internal
catch Bclicks into place.FRONT FOG LIGHTS
(for versions/markets where provided)
To replace the bulb:❒
loosen the screw A-fig. 24and re-
move the protection template B;
❒
loosen the fixing screwsCand re-
move the headlamp;
fig. 20
F0M0635m
fig. 21
F0M0636m
fig. 24
F0M0638m
fig. 23
F0M0637m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 149

150SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY
❒

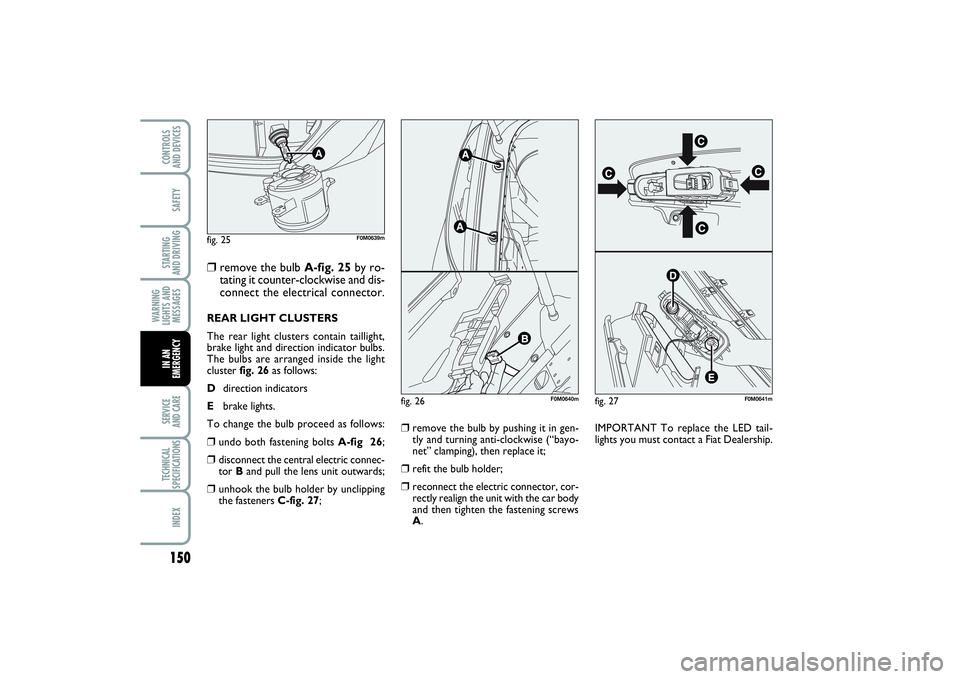

remove the bulb A-fig. 25by ro-
tating it counter-clockwise and dis-
connect the electrical connector.
REAR LIGHT CLUSTERS
The rear light clusters contain taillight,
brake light and direction indicator bulbs.
The bulbs are arranged inside the light
cluster fig. 26as follows:
Ddirection indicators
Ebrake lights.
To change the bulb proceed as follows:❒
undo both fastening bolts A-fig 26;
❒
disconnect the central electric connec-
tor Band pull the lens unit outwards;
❒
unhook the bulb holder by unclipping
the fasteners C-fig. 27;
❒
remove the bulb by pushing it in gen-
tly and turning anti-clockwise (“bayo-
net” clamping), then replace it;
❒
refit the bulb holder;
❒
reconnect the electric connector, cor-
rectly realign the unit with the car body
and then tighten the fastening screws
A.IMPORTANT To replace the LED tail-
lights you must contact a Fiat Dealership.
fig. 25
A
F0M0639m
fig. 26
F0M0640m
fig. 27
F0M0641m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 150

151
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

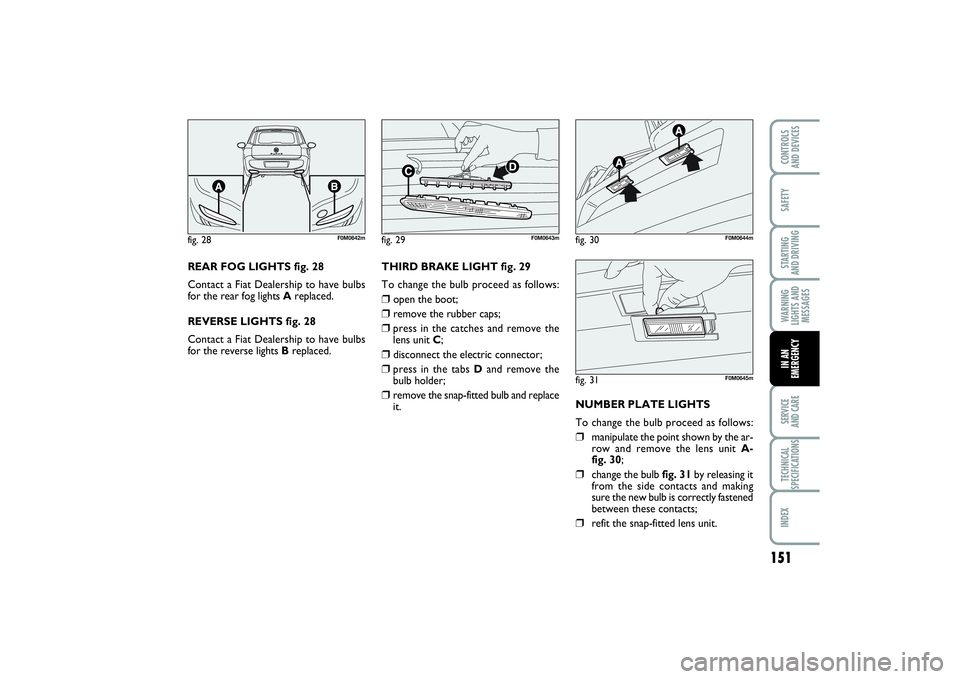

REAR FOG LIGHTS fig. 28
Contact a Fiat Dealership to have bulbs
for the rear fog lights Areplaced.
REVERSE LIGHTS fig. 28
Contact a Fiat Dealership to have bulbs
for the reverse lights Breplaced.THIRD BRAKE LIGHT fig. 29
To change the bulb proceed as follows:
❒
open the boot;
❒
remove the rubber caps;
❒
press in the catches and remove the
lens unit C;
❒
disconnect the electric connector;
❒
press in the tabs Dand remove the
bulb holder;
❒
remove the snap-fitted bulb and replace
it.NUMBER PLATE LIGHTS
To change the bulb proceed as follows:
❒
manipulate the point shown by the ar-
row and remove the lens unit A-
fig. 30;
❒
change the bulbfig. 31 by releasing it
from the side contacts and making
sure the new bulb is correctly fastened
between these contacts;
❒
refit the snap-fitted lens unit.
fig. 28
F0M0642m
fig. 29
F0M0643m
fig. 30
F0M0644m
fig. 31
F0M0645m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 151

152SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

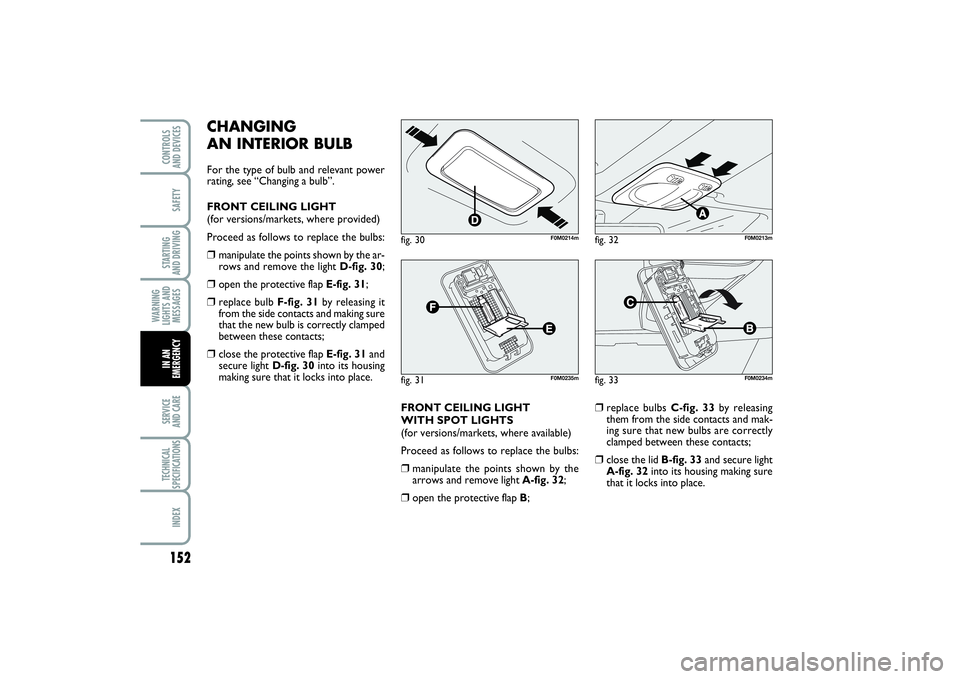

CHANGING
AN INTERIOR BULBFor the type of bulb and relevant power
rating, see “Changing a bulb”.
FRONT CEILING LIGHT
(for versions/markets, where provided)
Proceed as follows to replace the bulbs:❒
manipulate the points shown by the ar-
rows and remove the light D-fig. 30;
❒
open the protective flap E-fig. 31;
❒
replace bulb F-fig. 31by releasing it
from the side contacts and making sure
that the new bulb is correctly clamped
between these contacts;
❒
close the protective flap E-fig. 31and
secure light D-fig. 30into its housing
making sure that it locks into place.
FRONT CEILING LIGHT
WITH SPOT LIGHTS
(for versions/markets, where available)
Proceed as follows to replace the bulbs:
❒
manipulate the points shown by the
arrows and remove light A-fig. 32;
❒
open the protective flap B;
❒
replace bulbs C-fig. 33by releasing
them from the side contacts and mak-
ing sure that new bulbs are correctly
clamped between these contacts;
❒
close the lid B-fig. 33and secure light
A-fig. 32into its housing making sure
that it locks into place.
fig. 32
F0M0213m
fig. 33
F0M0234m
fig. 30
F0M0214m
fig. 31
F0M0235m
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 152

153
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

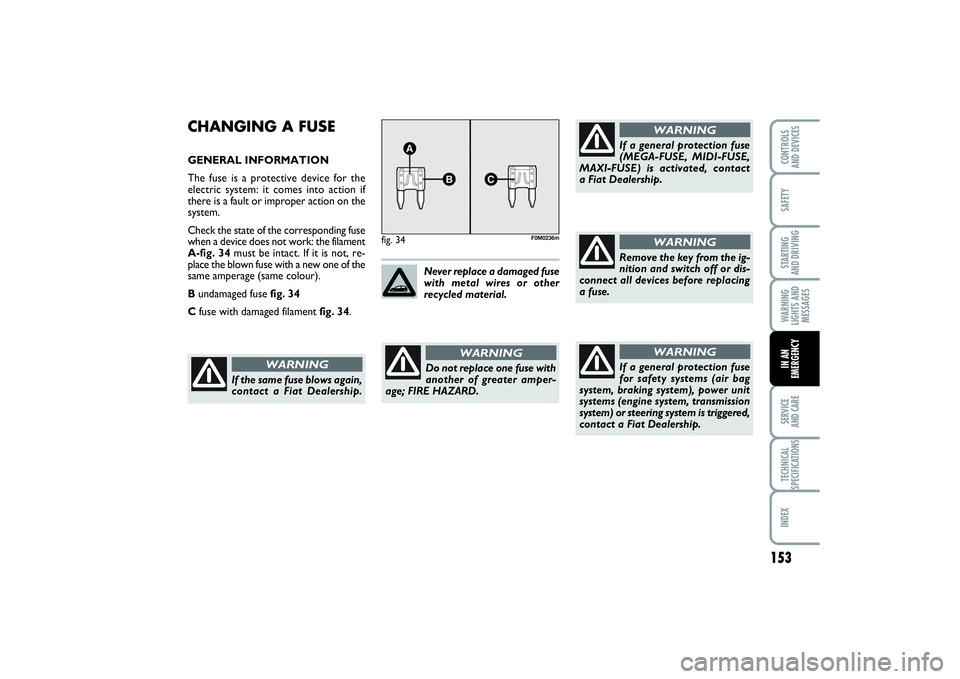

CHANGING A FUSEGENERAL INFORMATION
The fuse is a protective device for the
electric system: it comes into action if
there is a fault or improper action on the
system.
Check the state of the corresponding fuse
when a device does not work: the filament
A-fig. 34must be intact. If it is not, re-
place the blown fuse with a new one of the
same amperage (same colour).
B undamaged fuse fig. 34
Cfuse with damaged filament fig. 34.
fig. 34
F0M0236m
Do not replace one fuse with
another of greater amper-
age; FIRE HAZARD.
WARNING
Never replace a damaged fuse
with metal wires or other
recycled material.
If a general protection fuse
(MEGA-FUSE, MIDI-FUSE,
MAXI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
If the same fuse blows again,
contact a Fiat Dealership.
WARNING
Remove the key from the ig-
nition and switch off or dis-
connect all devices before replacing
a fuse.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
133-164 PUNTO POP 1ed EN 29/08/13 15.07 Pagina 153
