technical specifications FIAT PUNTO 2014 Owner handbook (in English)

164SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY

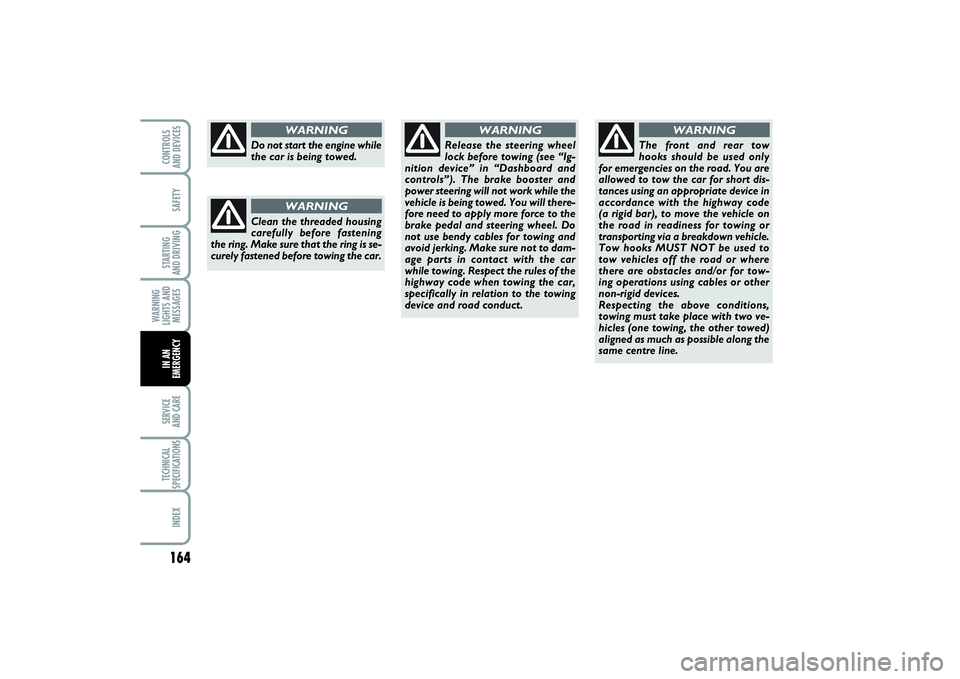

Do not start the engine while
the car is being towed.
WARNING
Clean the threaded housing
carefully before fastening
the ring. Make sure that the ring is se-
curely fastened before towing the car.
WARNING
Release the steering wheel
lock before towing (see “Ig-
nition device” in “Dashboard and
controls”). The brake booster and
power steering will not work while the
vehicle is being towed. You will there-
fore need to apply more force to the
brake pedal and steering wheel. Do
not use bendy cables for towing and
avoid jerking. Make sure not to dam-
age parts in contact with the car
while towing. Respect the rules of the
highway code when towing the car,
specifically in relation to the towing
device and road conduct.
WARNING
The front and rear tow
hooks should be used only
for emergencies on the road. You are
allowed to tow the car for short dis-
tances using an appropriate device in
accordance with the highway code
(a rigid bar), to move the vehicle on
the road in readiness for towing or
transporting via a breakdown vehicle.
Tow hooks MUST NOT be used to
tow vehicles off the road or where
there are obstacles and/or for tow-
ing operations using cables or other
non-rigid devices.
Respecting the above conditions,
towing must take place with two ve-
hicles (one towing, the other towed)
aligned as much as possible along the
same centre line.
WARNING
133-164 PUNTO POP 1ed EN 29/08/13 15.08 Pagina 164

165
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE

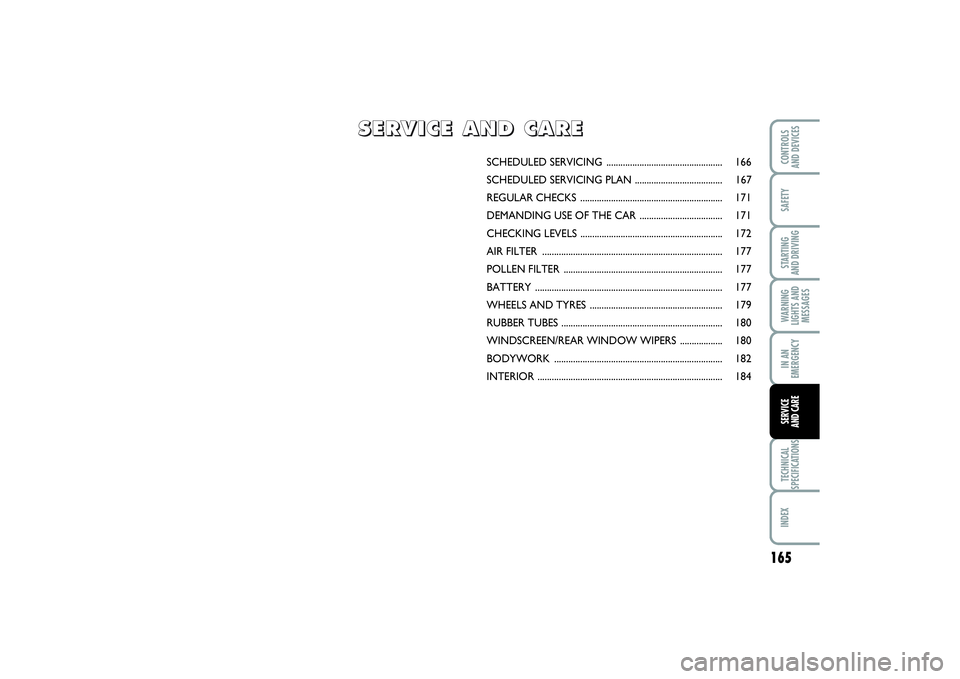

SCHEDULED SERVICING ................................................. 166
SCHEDULED SERVICING PLAN ..................................... 167
REGULAR CHECKS ............................................................ 171
DEMANDING USE OF THE CAR ................................... 171
CHECKING LEVELS ............................................................ 172
AIR FILTER ............................................................................ 177
POLLEN FILTER ................................................................... 177
BATTERY ............................................................................... 177
WHEELS AND TYRES ........................................................ 179
RUBBER TUBES .................................................................... 180
WINDSCREEN/REAR WINDOW WIPERS .................. 180
BODYWORK ....................................................................... 182
INTERIOR .............................................................................. 184
S S
E E
R R
V V
I I
C C
E E

A A
N N
D D

C C
A A
R R
E E
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 165

166SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE

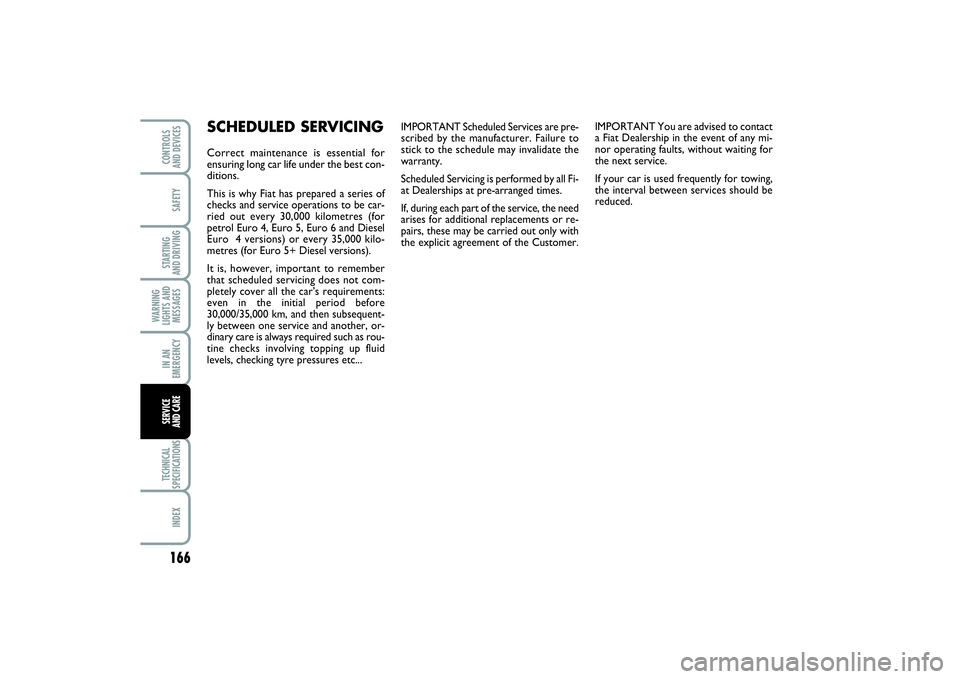

IMPORTANT Scheduled Services are pre-
scribed by the manufacturer. Failure to
stick to the schedule may invalidate the
warranty.
Scheduled Servicing is performed by all Fi-
at Dealerships at pre-arranged times.
If, during each part of the service, the need
arises for additional replacements or re-
pairs, these may be carried out only with
the explicit agreement of the Customer.IMPORTANT You are advised to contact
a Fiat Dealership in the event of any mi-
nor operating faults, without waiting for
the next service.
If your car is used frequently for towing,
the interval between services should be
reduced.
SCHEDULED SERVICINGCorrect maintenance is essential for
ensuring long car life under the best con-
ditions.This is why Fiat has prepared a series of
checks and service operations to be car-
ried out every 30,000 kilometres (for
petrol Euro 4, Euro 5, Euro 6 and Diesel
Euro 4 versions) or every 35,000 kilo-
metres (for Euro 5+ Diesel versions).
It is, however, important to remember
that scheduled servicing does not com-
pletely cover all the car’s requirements:
even in the initial period before
30,000/35,000 km, and then subsequent-
ly between one service and another, or-
dinary care is always required such as rou-
tine checks involving topping up fluid
levels, checking tyre pressures etc...
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 166

167
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●●
●●
●●
●● ●
●● ●● ● ●

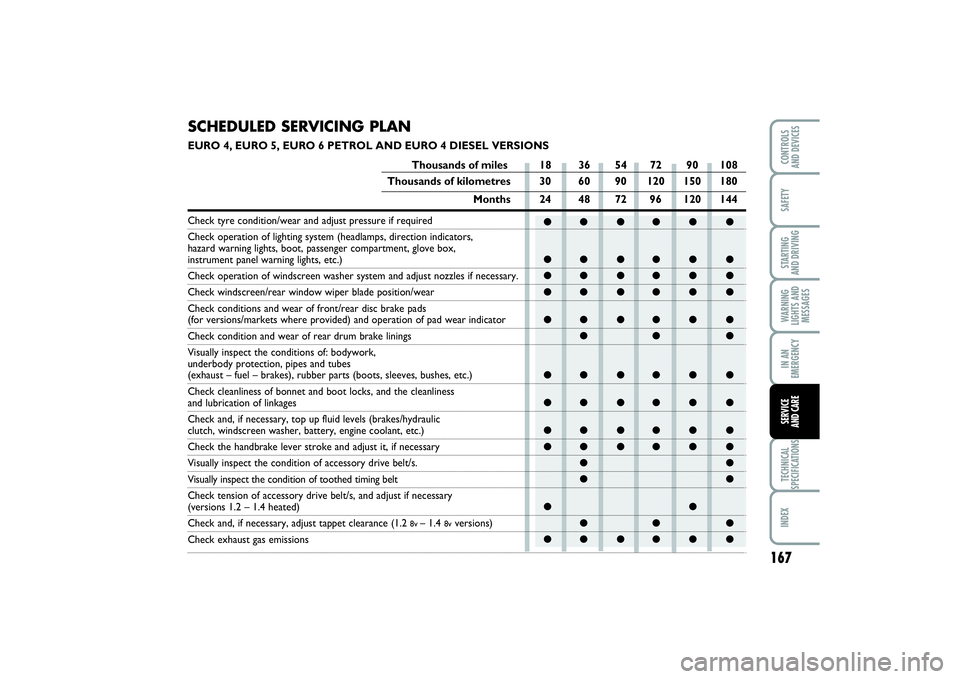

SCHEDULED SERVICING PLANEURO 4, EURO 5, EURO 6 PETROL AND EURO 4 DIESEL VERSIONS
Thousands of miles 18 36 54 72 90 108
Thousands of kilometres 30 60 90 120 150 180
Months 24 48 72 96 120 144
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, boot, passenger compartment, glove box, instrument panel warning lights, etc.)Check operation of windscreen washer system and adjust nozzles if necessary.Check windscreen/rear window wiper blade position/wear
Check conditions and wear of front/rear disc brake pads (for versions/markets where provided) and operation of pad wear indicatorCheck condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes (exhaust – fuel – brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, and the cleanliness and lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic clutch, windscreen washer, battery, engine coolant, etc.) Check the handbrake lever stroke and adjust it, if necessaryVisually inspect the condition of accessory drive belt/s.Visually inspect the condition of toothed timing belt
Check tension of accessory drive belt/s, and adjust if necessary (versions 1.2 – 1.4 heated)Check and, if necessary, adjust tappet clearance (1.2
8v – 1.4
8vversions)
Check exhaust gas emissions
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 167

168SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE
●● ●● ● ●
●
●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●
Thousands of miles 18 36 54 72 90 108
Thousands of kilometres 30 60 90 120 150 180
Months 24 48 72 96 120 144
Check engine management system operation (via diagnostic socket)Replace accessory drive belt/sReplace toothed timing belt (*)Replace spark plugs (petrol versions)Replace fuel filter (diesel versions)Replace air filter cartridge (petrol versions)
Change engine oil and replace oil filter (petrol versions) (or every 24 months) (2)
Change engine oil and replace oil filter (EURO 4 diesel versions without DPF) (or every 24 months)Change engine oil and oil filter (diesel EURO 4 versions with DPF) (
Õ) (1)
Change brake fluid (or every 24 months)Replace pollen filter (or every 15 months) (*) Regardless of the distance covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates, city dri-
ving, idling for a long time, dusty areas) or, in any case, every 5 years.
(Õ) The engine oil and the filter must be replaced when the warning light on the dashboard comes on (see the “Warning lights and messages”
section) or at least every 24 months.
(1) If the car is used mainly for town driving, the engine oil and filter should be changed every 12 months.
(2) If the vehicle is used mainly around town or the annual distance travelled is less than 10,000 km, the engine oil
and oil filter must be changed every 12 months.
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 168

169
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●● ● ● ●
●

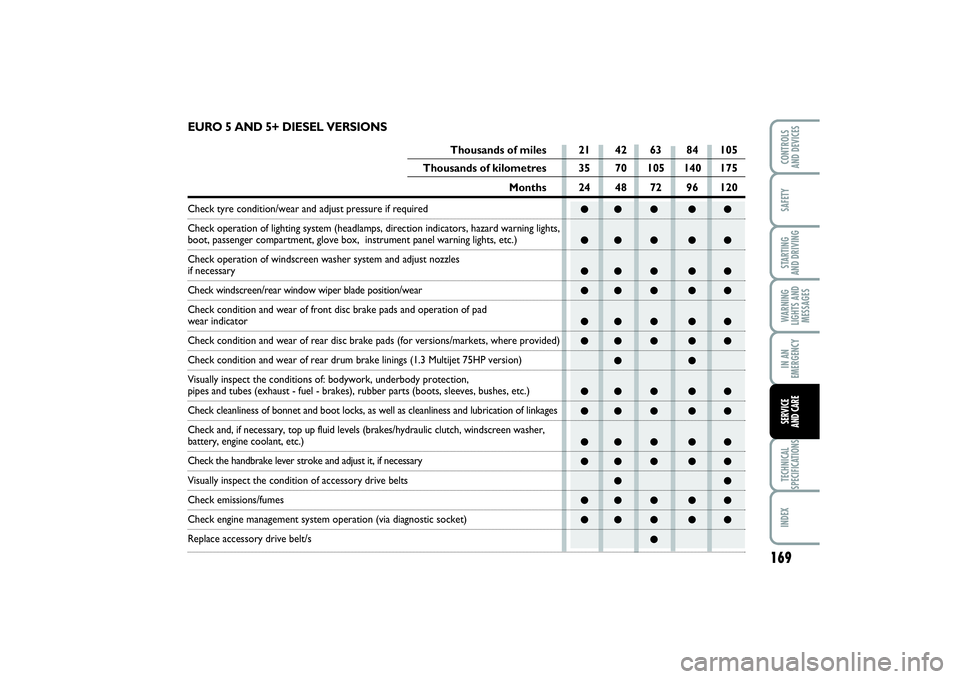

EURO 5 AND 5+ DIESEL VERSIONS
Thousands of miles 21 42 63 84 105
Thousands of kilometres 35 70 105 140 175
Months 24 48 72 96 120
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators, hazard warning lights, boot, passenger compartment, glove box, instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust nozzles if necessaryCheck windscreen/rear window wiper blade position/wear
Check condition and wear of front disc brake pads and operation of pad wear indicatorCheck condition and wear of rear disc brake pads (for versions/markets, where provided)Check condition and wear of rear drum brake linings (1.3 Multijet 75HP version)
Visually inspect the conditions of: bodywork, underbody protection, pipes and tubes (exhaust - fuel - brakes), rubber parts (boots, sleeves, bushes, etc.)Check cleanliness of bonnet and boot locks, as well as cleanliness and lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic clutch, windscreen washer, battery, engine coolant, etc.) Check the handbrake lever stroke and adjust it, if necessaryVisually inspect the condition of accessory drive beltsCheck emissions/fumesCheck engine management system operation (via diagnostic socket)Replace accessory drive belt/s
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 169

170SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE
●●
●●●● ●
●●
●●●● ●

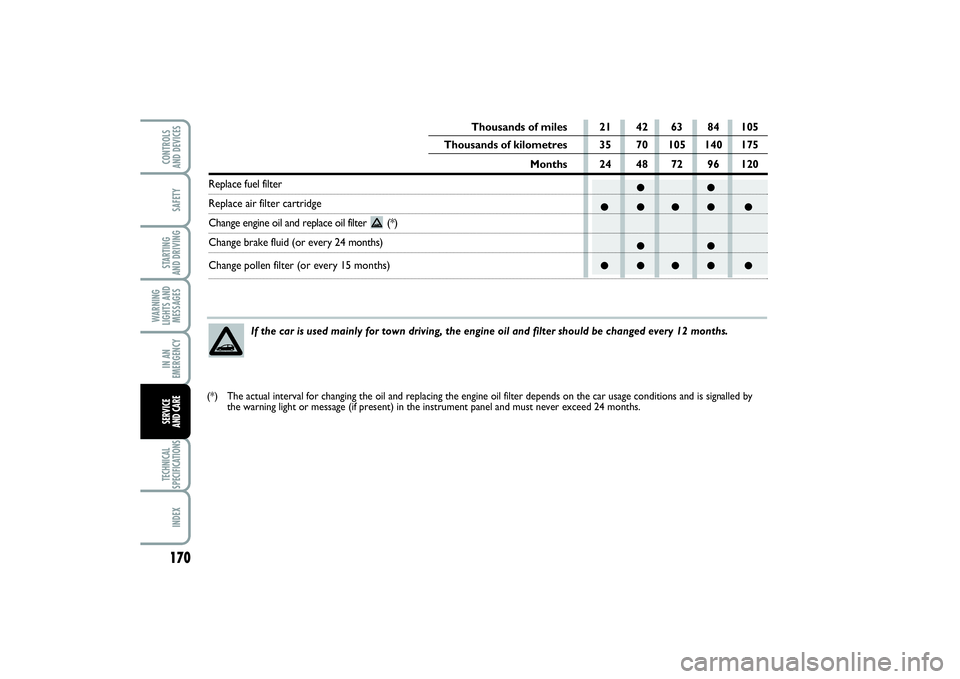

Thousands of miles 21 42 63 84 105
Thousands of kilometres 35 70 105 140 175
Months 24 48 72 96 120
Replace fuel filterReplace air filter cartridgeChange engine oil and replace oil filter (*)Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
If the car is used mainly for town driving, the engine oil and filter should be changed every 12 months.
(*) The actual interval for changing the oil and replacing the engine oil filter depends on the car usage conditions and is signalled by
the warning light or message (if present) in the instrument panel and must never exceed 24 months.
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 170

171
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE

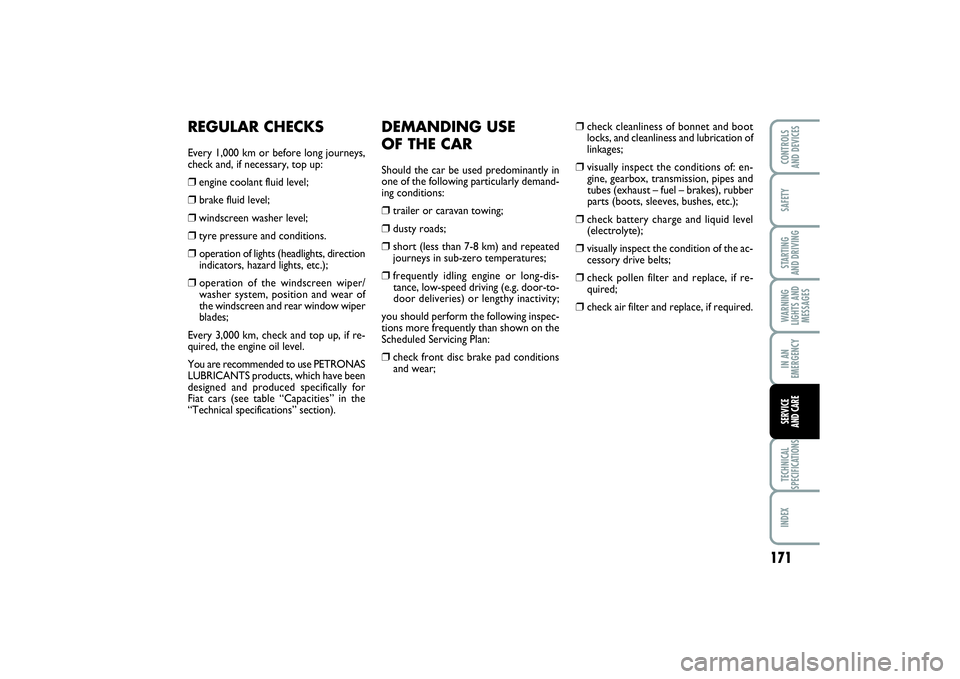

DEMANDING USE
OF THE CARShould the car be used predominantly in
one of the following particularly demand-
ing conditions:❒
trailer or caravan towing;
❒
dusty roads;
❒
short (less than 7-8 km) and repeated
journeys in sub-zero temperatures;
❒
frequently idling engine or long-dis-
tance, low-speed driving (e.g. door-to-
door deliveries) or lengthy inactivity;
you should perform the following inspec-
tions more frequently than shown on the
Scheduled Servicing Plan:
❒
check front disc brake pad conditions
and wear;
❒
check cleanliness of bonnet and boot
locks, and cleanliness and lubrication of
linkages;
❒
visually inspect the conditions of: en-
gine, gearbox, transmission, pipes and
tubes (exhaust – fuel – brakes), rubber
parts (boots, sleeves, bushes, etc.);
❒
check battery charge and liquid level
(electrolyte);
❒
visually inspect the condition of the ac-
cessory drive belts;
❒
check pollen filter and replace, if re-
quired;
❒
check air filter and replace, if required.
REGULAR CHECKSEvery 1,000 km or before long journeys,
check and, if necessary, top up:❒
engine coolant fluid level;
❒
brake fluid level;
❒
windscreen washer level;
❒
tyre pressure and conditions.
❒
operation of lights (headlights, direction
indicators, hazard lights, etc.);
❒
operation of the windscreen wiper/
washer system, position and wear of
the windscreen and rear window wiper
blades;
Every 3,000 km, check and top up, if re-
quired, the engine oil level.
You are recommended to use PETRONAS
LUBRICANTS products, which have been
designed and produced specifically for
Fiat cars (see table “Capacities” in the
“Technical specifications” section).
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 171

172SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE

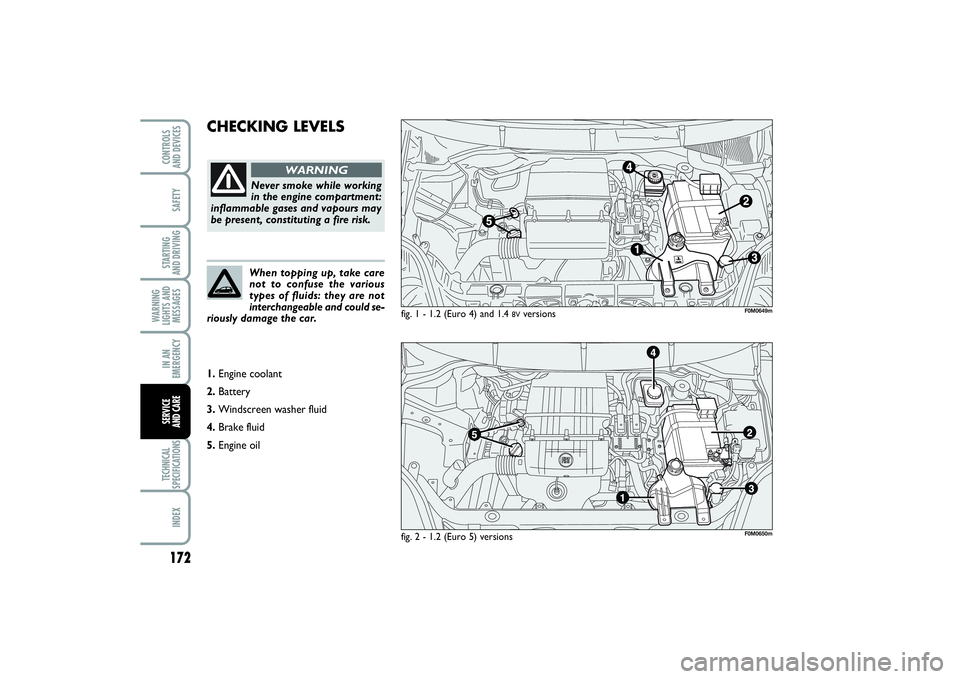

CHECKING LEVELS
fig. 1 - 1.2 (Euro 4) and 1.4
8Vversions
Never smoke while working
in the engine compartment:
inflammable gases and vapours may
be present, constituting a fire risk.
WARNING
When topping up, take care
not to confuse the various
types of fluids: they are not
interchangeable and could se-
riously damage the car.
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
F0M0649m
fig. 2 - 1.2 (Euro 5) versions
F0M0650m
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 172

173
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYTECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESSERVICE
AND CARE

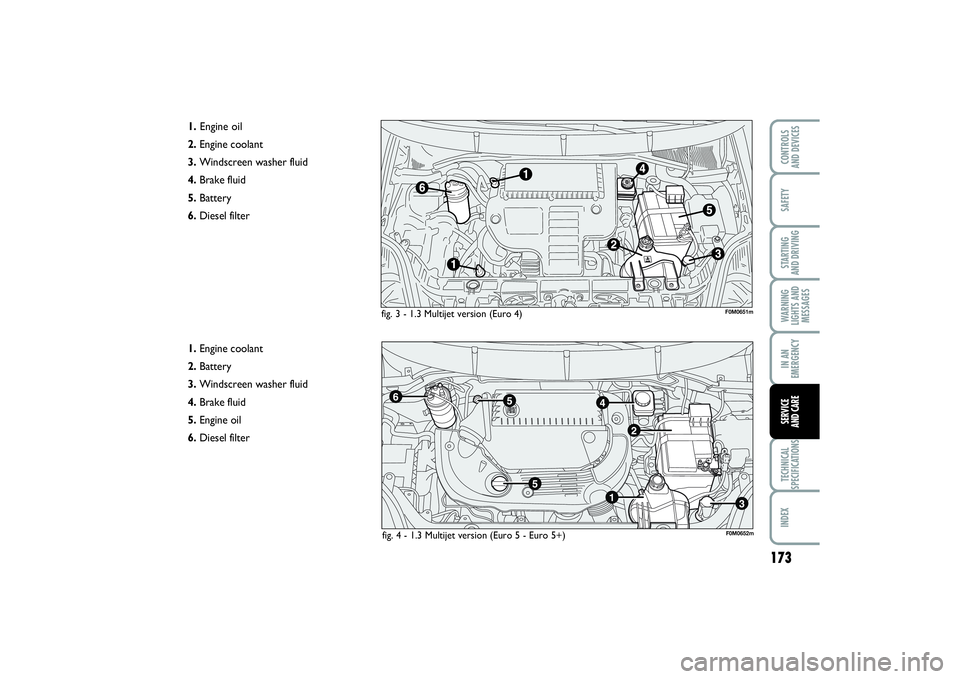

fig. 3 - 1.3 Multijet version (Euro 4)
1.Engine oil
2. Engine coolant
3. Windscreen washer fluid
4. Brake fluid
5. Battery
6. Diesel filter1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
6. Diesel filter
F0M0651m
fig. 4 - 1.3 Multijet version (Euro 5 - Euro 5+)
F0M0652m
165-184 PUNTO POP 1ed EN 11/10/13 14.56 Pagina 173
