FIAT PUNTO 2014 Owner handbook (in English)

57
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

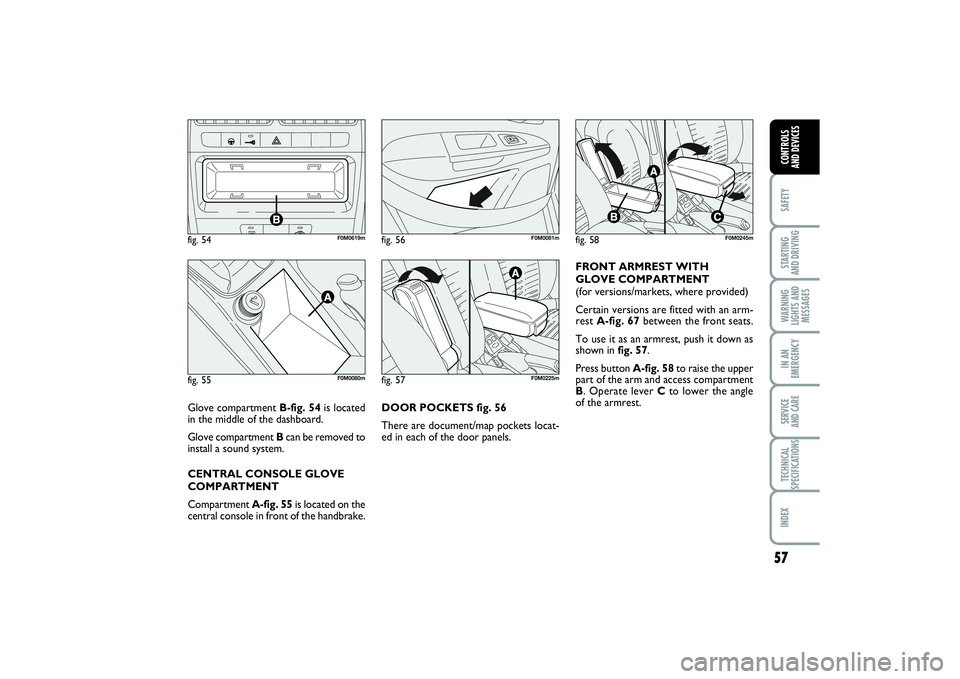

DOOR POCKETS fig. 56
There are document/map pockets locat-
ed in each of the door panels.FRONT ARMREST WITH
GLOVE COMPARTMENT
(for versions/markets, where provided)
Certain versions are fitted with an arm-
rest A-fig. 67between the front seats.
To use it as an armrest, push it down as
shown in fig. 57.
Press button A-fig. 58to raise the upper
part of the arm and access compartment
B. Operate lever Cto lower the angle
of the armrest.
fig. 54
F0M0619m
fig. 55
F0M0080m
fig. 57
F0M0225m
fig. 58
F0M0245m
fig. 56
F0M0081m
Glove compartment B-fig. 54is located
in the middle of the dashboard.
Glove compartment Bcan be removed to
install a sound system.
CENTRAL CONSOLE GLOVE
COMPARTMENT
Compartment A-fig. 55is located on the
central console in front of the handbrake.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 57

58SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

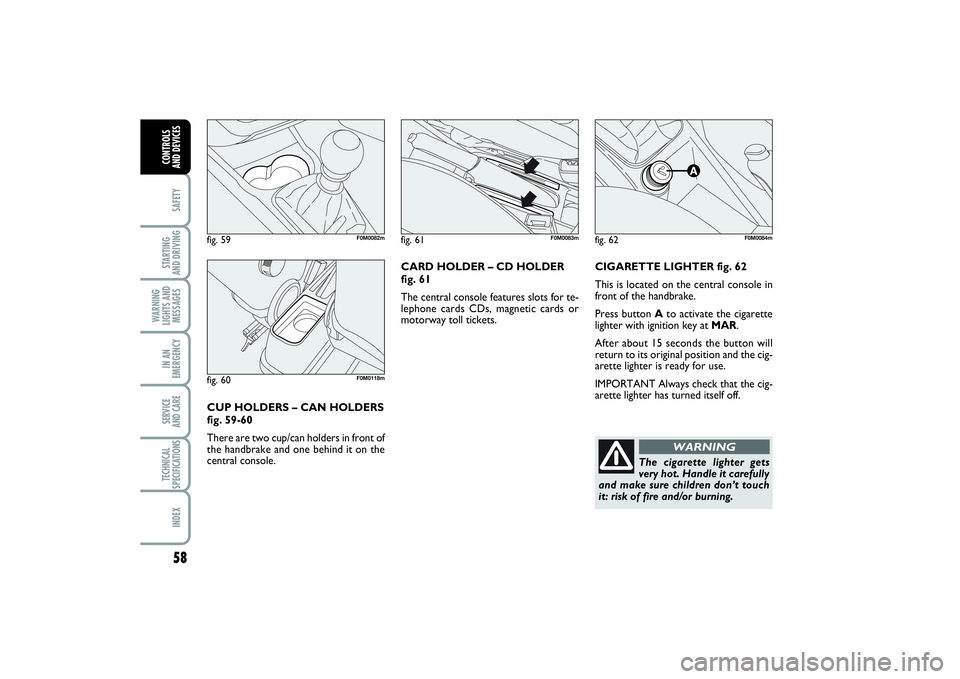

CIGARETTE LIGHTER fig. 62
This is located on the central console in
front of the handbrake.
Press button Ato activate the cigarette
lighter with ignition key at MAR.
After about 15 seconds the button will
return to its original position and the cig-
arette lighter is ready for use.
IMPORTANT Always check that the cig-
arette lighter has turned itself off.fig. 62
F0M0084m
The cigarette lighter gets
very hot. Handle it carefully
and make sure children don’t touch
it: risk of fire and/or burning.
WARNING
CUP HOLDERS – CAN HOLDERS
fig. 59-60
There are two cup/can holders in front of
the handbrake and one behind it on the
central console. CARD HOLDER – CD HOLDER
fig. 61
The central console features slots for te -
lephone cards CDs, magnetic cards or
motorway toll tickets.fig. 59
F0M0082m
fig. 61
F0M0083m
fig. 60
F0M0118m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 58

59
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

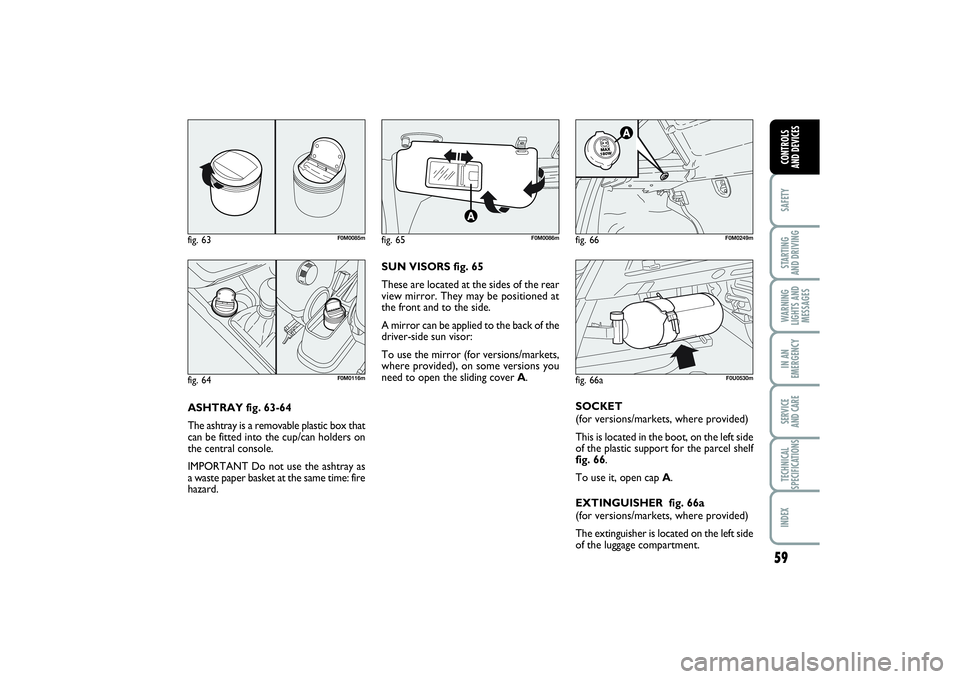

ASHTRAY fig. 63-64
The ashtray is a removable plastic box that
can be fitted into the cup/can holders on
the central console.
IMPORTANT Do not use the ashtray as
a waste paper basket at the same time: fire
hazard.SUN VISORS fig. 65
These are located at the sides of the rear
view mirror. They may be positioned at
the front and to the side.
A mirror can be applied to the back of the
driver-side sun visor:
To use the mirror (for versions/markets,
where provided), on some versions you
need to open the sliding cover A.fig. 63
F0M0085m
fig. 65
F0M0086m
fig. 64
F0M0116m
SOCKET
(for versions/markets, where provided)
This is located in the boot, on the left side
of the plastic support for the parcel shelf
fig. 66.
To use it, open cap A.
EXTINGUISHER fig. 66a
(for versions/markets, where provided)
The extinguisher is located on the left side
of the luggage compartment.fig. 66
F0M0249m
fig. 66a
F0U0530m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 59

60SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

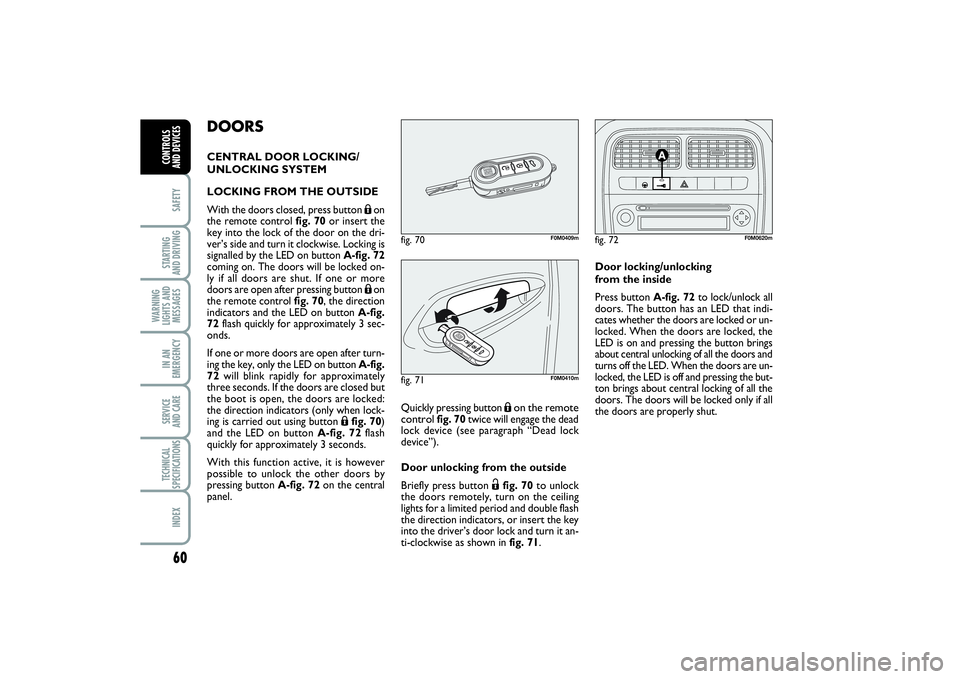

DOORSCENTRAL DOOR LOCKING/
UNLOCKING SYSTEM
LOCKING FROM THE OUTSIDE
With the doors closed, press button
Áon
the remote control fig. 70or insert the
key into the lock of the door on the dri-
ver’s side and turn it clockwise. Locking is
signalled by the LED on button A-fig. 72
coming on. The doors will be locked on-
ly if all doors are shut. If one or more
doors are open after pressing button Áon
the remote control fig. 70, the direction
indicators and the LED on button A-fig.
72flash quickly for approximately 3 sec-
onds.
If one or more doors are open after turn-
ing the key, only the LED on button A-fig.
72will blink rapidly for approximately
three seconds. If the doors are closed but
the boot is open, the doors are locked:
the direction indicators (only when lock-
ing is carried out using button
Áfig. 70)
and the LED on button A-fig. 72flash
quickly for approximately 3 seconds.
With this function active, it is however
possible to unlock the other doors by
pressing button A-fig. 72on the central
panel.Quickly pressing button
Áon the remote
control
fig. 70 twice will engage the dead
lock device (see paragraph “Dead lock
device”).
Door unlocking from the outside
Briefly press button
Ëfig. 70to unlock
the doors remotely, turn on the ceiling
lights for a limited period and double flash
the direction indicators, or insert the key
into the driver’s door lock and turn it an-
ti-clockwise as shown in fig. 71.
fig. 72
F0M0620m
Door locking/unlocking
from the inside
Press button A-fig. 72to lock/unlock all
doors. The button has an LED that indi-
cates whether the doors are locked or un-
locked. When the doors are locked, the
LED is on and pressing the button brings
about central unlocking of all the doors and
turns off the LED. When the doors are un-
locked, the LED is off and pressing the but-
ton brings about central locking of all the
doors. The doors will be locked only if all
the doors are properly shut.
fig. 71
F0M0410m
fig. 70
F0M0409m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 60

61
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

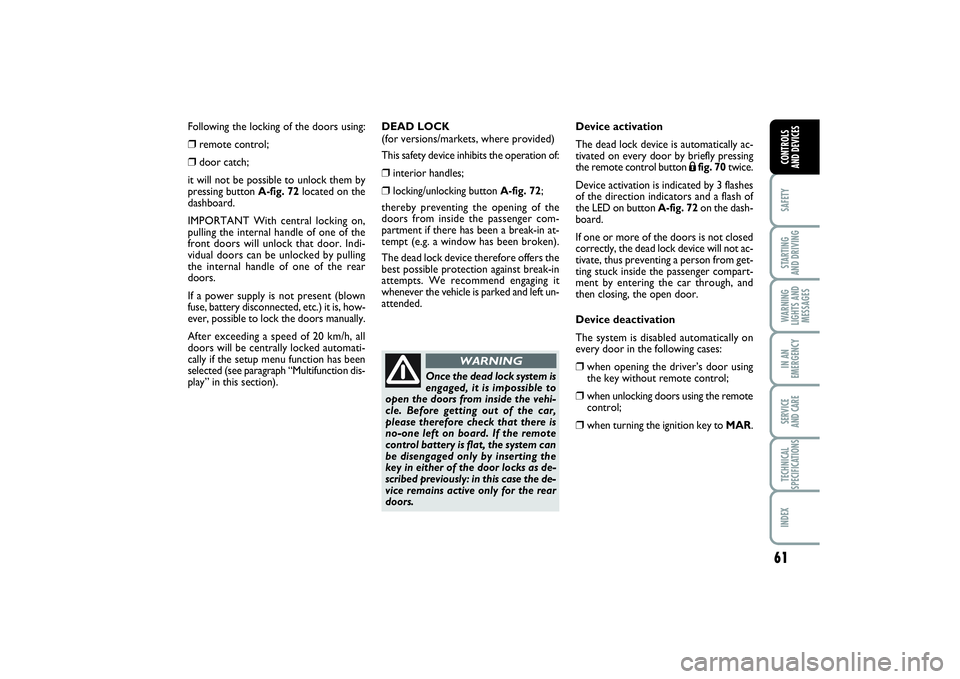

Following the locking of the doors using: ❒
remote control;
❒
door catch;
it will not be possible to unlock them by
pressing button
A-fig. 72
located on the
dashboard.
IMPORTANT With central locking on,
pulling the internal handle of one of the
front doors will unlock that door. Indi-
vidual doors can be unlocked by pulling
the internal handle of one of the rear
doors.
If a power supply is not present (blown
fuse, battery disconnected, etc.) it is, how-
ever, possible to lock the doors manually.
After exceeding a speed of 20 km/h, all
doors will be centrally locked automati-
cally if the setup menu function has been
selected (see paragraph “Multifunction dis-
play” in this section).
Once the dead lock system is
engaged, it is impossible to
open the doors from inside the vehi-
cle. Before getting out of the car,
please therefore check that there is
no-one left on board. If the remote
control battery is flat, the system can
be disengaged only by inserting the
key in either of the door locks as de-
scribed previously: in this case the de-
vice remains active only for the rear
doors. DEAD LOCK
(for versions/markets, where provided)
This safety device inhibits the operation of:
❒
interior handles;
❒
locking/unlocking button A-fig. 72;
thereby preventing the opening of the
doors from inside the passenger com-
partment if there has been a break-in at-
tempt (e.g. a window has been broken).
The dead lock device therefore offers the
best possible protection against break-in
attempts. We recommend engaging it
whenever the vehicle is parked and left un-
attended.Device activation
The dead lock device is automatically ac-
tivated on every door by briefly pressing
the remote control button
Áfig. 70twice.
Device activation is indicated by 3 flashes
of the direction indicators and a flash of
the LED on button
A-fig. 72
on the dash-
board.
If one or more of the doors is not closed
correctly, the dead lock device will not ac-
tivate, thus preventing a person from get-
ting stuck inside the passenger compart-
ment by entering the car through, and
then closing, the open door.
Device deactivation
The system is disabled automatically on
every door in the following cases:
❒
when opening the driver’s door using
the key without remote control;
❒
when unlocking doors using the remote
control;
❒
when turning the ignition key to MAR.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 61

62SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
REAR DOORS EMERGENCY
LOCK DEVICE (5-door versions)
fig. 74
The rear doors are fitted with a device
to lock doors when there is no current.
In this event, proceed as follows: ❒
insert the ignition key into latch B;
❒
turn it from position 2 to position 1and
close the door.
When the device is active, use the inter-
nal doors handles to open the rear doors.
Do not activate the child lock
device if the rear doors emer-
gency lock device is already activated.
If both have been activated, you need
to use the interior handle to disen-
gage the rear doors emergency lock-
ing system and then open the door
from the outside.
WARNING
CHILD LOCK (5-door versions)
fig. 73
This system prevents the rear doors from
being opened from the inside.
This device can be engaged only with the
doors open.❒
position 1– engaged (door locked);
❒
position 2– disengaged (door can be
opened from inside).
The device A-fig. 73stays on even if the
doors are unlocked by the centralised
system.
Always use this device when
transporting children.
WARNING
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
fig. 74
F0M0412m
fig. 73
F0M0411m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 62

63
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

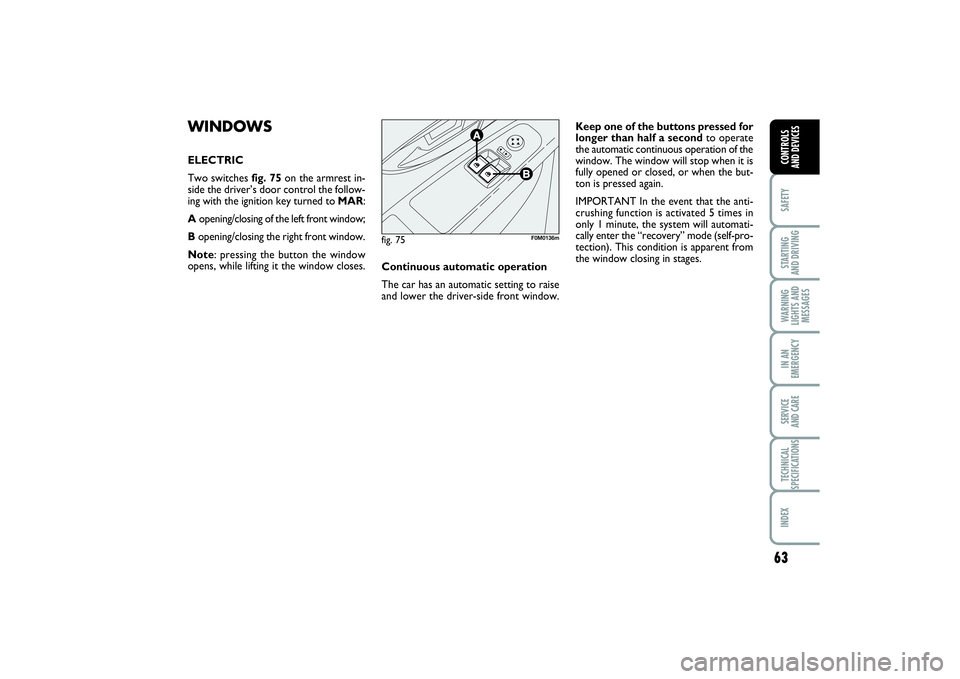

WINDOWSELECTRIC
Two switches fig. 75on the armrest in-
side the driver’s door control the follow-
ing with the ignition key turned to MAR:
Aopening/closing of the left front window;
B opening/closing the right front window.
Note: pressing the button the window
opens, while lifting it the window closes.Keep one of the buttons pressed for
longer than half a secondto operate
the automatic continuous operation of the
window. The window will stop when it is
fully opened or closed, or when the but-
ton is pressed again.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This condition is apparent from
the window closing in stages.
fig. 75
F0M0136m
Continuous automatic operation
The car has an automatic setting to raise
and lower the driver-side front window.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 63

64SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
Electric window system
initialisation
The system must be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Initialisation procedure:❒
fully close the window to be initialised
manually;
❒
once fully closed, keep holding down the
closing control for at least 1 second.
Improper use of the electric
windows can be dangerous.
Before and during operation, always
check that no-one is exposed to the
risk of being injured either directly by
the moving window or through objects
getting caught and being dragged by
it. When leaving the vehicle, always
remove the key from the ignition to
avoid the risk of injury to anyone re-
maining in the car due to accidental
operation of the electric windows.
WARNING
MANUAL REAR WINDOWS
(5-door versions) fig. 76
To open and to close the window, use the
relevant handle.fig. 76
F0M0091m
On such occasions, it is necessary to car-
ry out the system restore procedure,
acting as follows:❒
open the windows;
or
❒
turn the ignition key to STOPand then
to MAR.
If no malfunction is present, the window
returns to its normal operation auto-
matically.
IMPORTANT With the ignition key at
STOPor removed, the windows remain
activated for about 2 minutes and are de-
activated as soon a door is opened.
The system conforms to the
2000/4/EC standard concern-
ing the safety of passengers leaning
out of the passenger compartment.
WARNING
IMPORTANT On some versions, press-
ing the remote control button
Ëfor over
2 seconds will open the windows, where-
as pressing the remote control button
Á
for over 2 seconds will close them.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 64

65
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
fig. 80
F0M0095m
BOOT
OPENING THE BOOT
Press the button A-fig. 77.
The boot can also be opened by pressing
button
R
on the remote control fig. 78.
The direction indicators will blink twice
when the tailgate is opened using the re-
mote control.CLOSING THE BOOT
Lower the rear door until hearing the
locking click fig. 79.
OPENING THE BOOT
IN AN EMERGENCY fig. 80
To open the boot from the passenger’s
compartment if the car battery is flat or
the electric lock of the rear door is faulty,
proceed as follows:
fig. 78
F0M0425m
fig. 79
F0M0094m
Putting additional objects on-
to the parcel shelf or rear
door (speakers, spoiler, etc.),
except when approved by the
manufacturer, can affect the correct
operation of the side gas shock ab-
sorbers of the rear door itself.When using the boot, never
exceed the maximum ad-
missible loads (see section “Technical
specifications”). Make sure that the
objects are well arranged in the boot
so that they will not be projected for-
wards following sudden braking, caus-
ing injury to passengers.
WARNING
When travelling, do not put
any object on the parcel
shelf because they can injure passen-
gers in the event of an accident or
sudden braking.
WARNING
fig. 77
F0M0654m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 65

66SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
❒
tilt the rear seats fully forward (see
paragraph “Extending the boot” in this
section);
❒
press lever Binside the boot.
EXTENDING THE BOOT
Partial extension (1/3 or 2/3) fig. 83
(for versions/markets, where provided)
The boot can be partially (1/3 or 2/3) or
totally extended by splitting the rear seat.
Proceed as follows:
❒
fully lower the rear seat head restraints;
❒
check that the seat belt is not twisted;
❒
tilt the cushions forward as shown by
the arrow fig. 81;
❒
lift handle Aor B-fig. 82to release re-
spectively the left or right part of the
backrest and guide the backrest onto
the cushion.The boot extension to the right makes it
possible to carry two passengers on the
left part of the rear seat. The boot ex-
tension to the left makes it possible to car-
ry one passenger on the right side of the
rear seat.
fig. 81
F0M0096m
fig. 82
F0M0097m
fig. 83
F0M0137m
Maximum extension fig. 84
Tilting the whole rear seat forwards gives
maximum loading volume.
Proceed as follows:❒
fully lower the rear seat head restraints;
❒
check that the seat belts are not twisted;
❒
tilt the cushions forward as shown by
the arrow fig. 81;
❒
lift handles Aand B-fig. 82to release
the backrests and guide them onto the
cushion.
IMPORTANT If, after tilting the rear seat,
you have to remove the parcel shelf, po-
sition it as shown in fig. 86.
fig. 84
F0M0098m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 66
