FIAT PUNTO 2014 Owner handbook (in English)

47
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
EXTERIOR LIGHTSThe left-hand stalk fig. 39operates most
of the external lights.
The external lights can be switched on on-
ly when the key is turned to MAR.
The instrument panel and the various con-
trols on the dashboard will be lit up when
the exterior lights are switched on.
DAYTIME RUNNING LIGHTS
(D.R.L.) fig. 49
(for versions/markets where provided)
With the ignition key turned to MARand
the twist switch turned to position Othe
daytime running lights are automatically
activated; the other lights and interior
lighting remain off. The daytime running
lights function can be switched on/off us-
ing the display menus (see “Multifunction
display” in this section). If the daytime run-
ning lights are deactivated, no light comes
on when the twist switch is turned to O.MAIN BEAM HEADLIGHTS
When the twist switch is at
2
, pull the
stalk towards the steering wheel (2ndtem-
porary position).
The warning light
1
on the instrument
panel will come on.
To turn the main beams off, pull the stalk
towards the steering wheel again (dipped
beams will come back on).
FLASHING THE HEADLIGHTS
Pull the stalk towards the steering wheel
(1
atemporary position) regardless of the
position of the twist switch. The warn-
ing light
1
on the instrument panel will
come on.
PARKING LIGHTS fig. 49
When the ignition key is turned to STOP
or removed, turning the twist switch from
position Oto position
6
, the parking
lights come on. The warning light
3
on
the instrument panel comes on.
fig. 39
F0M0614m
DIPPED BEAM HEADLIGHTS /
TAIL LIGHTS fig. 49
With the ignition key turned to MAR-
ON, turn the twist switch to position
2
.
If dipped beams are activated, the daytime
lights go out and the side lights and dipped
beams come on. The warning light
3
the
instrument panel comes on.
When the ignition key is turned to MAR-
ON, turning the twist switch from posi-
tion Oto position
6
, the number plate
lights and DRL lights (where provided)
come on unless they are deactivated
through the menu on the display.
The daytime running lights
are an alternative to the
dipped beam headlights for driving
during the daytime in countries
where it is compulsory to have lights
on during the day, and they are al-
so permitted in those countries
where this not obligatory.
ATTENTION
Daytime running lights can-
not replace dipped head-
lights when driving at night or
through tunnels. The use of daytime
running lights is governed by the high-
way code of the country in which you
are driving. Keep to the rules.
ATTENTION
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 47

48SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
DIRECTION INDICATORS
Put the stalk in the permanent position:❒
Up (position 1): right-hand direction in-
dicator;
❒
Down (position 2): left-hand direction
indicator.
The ¥
or
Î
lights will blink on the in-
strument panel.
Indicators are switched off automatically
when the steering wheel is straightened.
Lane change function
If you wish to signal a lane change, put the
left stalk in the temporary position for less
than half a second. The direction indicator
on the side selected will be activated for
5 flashes and then go out automatically.“FOLLOW ME HOME” DEVICE
This will light up the space in front of the
vehicle for a certain period of time.
Activation
With the key turned to STOPor re-
moved, pull the left-hand stalk towards the
steering wheel within 2 minutes from
when the engine is turned off.
Each time the stalk is moved, the lights
stay on for an extra 30 seconds up to
a maximum of 210 seconds; then the lights
are switched off automatically.When the stalk is moved, the light
3
on
the instrument panel will light up and the
corresponding message will appear in the
display (see “Warning lights and mes-
sages”) as long as the function is on. The
light comes on when the stalk is first
moved and stays on until the function is
automatically deactivated. Each movement
of the stalk increases only the amount of
time the lights stay on.
Deactivation
Keep the stalk pulled towards the steer-
ing wheel for more than 2 seconds.
FRONT FOG LIGHTS WITH
CORNERING LIGHTS
FUNCTION
When the dipped headlamps are on and
the speed is below 40 km/h, if the steer-
ing wheel rotation angle is large or the di-
rection indicators are on, a light (incor-
porated in the fog light) will come on on
the relevant side to improve visibility at
nightime. This function can be activat-
ed/deactivated via the display menu (see
“Display” in this section).
fig. 40
F0M0613m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 48

49
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
WINDOW WASHING The right stalk fig. 41controls windscreen
wiper/washer and rear window wiper/
washer operation.
WINDSCREEN WASHER/WIPER
This can work only when the key is turned
to MAR.
The twist switch on the right stalk can be
moved to four different positions:
Owindscreen wiper off;
≤intermittent operation;
≥continuous slow operation;
¥continuous fast operation.
Move the stalk to position A(temporary)
to limit operation to the time for which
the stalk is held in this position. When re-
leased, the stalk returns to its default po-
sition, automatically stopping the wiper.Do not use the windscreen
wiper to remove layers of
snow or ice from the wind-
screen. In such conditions, the
windscreen wipers may be subjected to
excessive stress, prompting interven-
tion from the motor protection which
prevents operation for a few seconds.
If operation is not restored, even after
turning the key and restarting the en-
gine, go to a Fiat Dealership.
With the twist switch in position
≤, the
windscreen wiper will automatically adapt
to the speed of the car.IMPORTANT Replace the wiper blades as
specified in the “Car maintenance” sec-
tion. fig. 41
F0M0612m
“Smart washing” function
Pull the stalk towards the steering wheel
(temporary position) to operate the wind-
screen washer.
Keeping the stalk pulled for more than half
a second, with just one movement it is
possible to operate the washer jet and the
wiper at the same time.
The wiper stops working three strokes af-
ter releasing the stalk.
A further stroke 6 seconds later com-
pletes the wiping operation.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 49

50SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
REAR WINDOW WASHER/WIPER
fig. 41This can work only when the key is turned
to MAR.
The function stops when the stalk is re-
leased.
Turning the twist switch from Oto
'
will
operate the rear window wiper as follows:
❒
intermittent operation if the wind-
screen wiper is off;
❒
synchronised operation (but with half-
stroke frequency) when the windscreen
wiper is on;
❒
continuous operation with reverse en-
gaged and function on.Do not use the rear window
wiper to remove layers of
snow or ice. In such condi-
tions, the rear window wiper
may be subjected to excessive stress,
prompting intervention from the mo-
tor protection which prevents opera-
tion for a few seconds. If operation is
not restored, even after turning the key
and restarting the engine, go to a Fiat
Dealership.
The rear window wiper will run in con-
tinuous mode when the windscreen wiper
is on and reverse gear is engaged.
Pushing the stalk towards the dashboard
(temporary position) will activate the rear
window washer jet.
Keeping the stalk pushed for more than
half a second will also activate the rear
window wiper.
Smart wash function is activated when the
stalk is released, like for the windscreen
wiper.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 50

51
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
CEILING COURTESY
LIGHTSFRONT CEILING LIGHT WITH
TOUCH ACTIVATION
The light will turn on/off by pressing the
right or left side as shown in fig. 43.
FRONT CEILING LIGHT
WITH SPOT LIGHTS
(for versions/markets, where provided)
Switch A-fig. 44turns these lights on/off.
With switch A-fig. 44in a central posi-
tion, lights Cand Dwill turn on/off when
opening/closing the front doors.
With switch A-fig. 44pressed on the left
side, lights Cand Dwill always stay off.
With switch A-fig. 44pressed on the
right side, lights Cand Dwill always stay
on.
The lights switch on/off progressively.Switch B-fig. 44performs the spot light
function; with the ceiling light off, it will
turn on:
❒
light Cif pressed on the left side;
❒
light Dif pressed on the right side.
fig. 44
F0M0065m
fig. 43
F0M0067m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 51

52SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
Courtesy light timing
On certain versions, to facilitate getting
in/out of the car at night or in poorly-lit ar-
eas, two timed modes have been provided.TIMING WHEN GETTING INTO THE CARThe courtesy lights switch on as follows:❒
for about 10 seconds when unlocking
the front doors;
❒
for about 3 minutes when opening one
of the side doors;
❒
for about 10 seconds when closing the
doors.
The timed period is interrupted when the
ignition is turned to MAR.
TIMING WHEN GETTING OUT OF THE CARAfter removing the key from the ignition,
the courtesy lights switch on as follows:❒
within 2 minutes from turning the en-
gine off for about 10 seconds;
❒
when opening one of the side doors for
about 3 minutes;
❒
when one of the doors is closed for
a period of about 10 seconds.
The timed period stops automatically
when the doors are locked. CAUTION Before getting out of the car,
make sure both switches are in the cen-
tral position; when the doors are closed,
the lights switch off to prevent the battery
from running down.
In any case, if the switch is left in the ‘per-
manently on’ position, the courtesy light
goes off automatically 15 minutes after the
engine switching off.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 52

53
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
CONTROLS HAZARD WARNING LIGHTS
fig. 45
They are turned on by pressing switch A,
regardless of the position of the ignition
key.
When the device is on, the lights
Î
and
¥
on the instrument panel come on.
Press the switch again to turn the lights
off.
The use of hazard lights is governed by the
highway code of the country you are in.
Keep to the rules.Emergency braking
During emergency braking, the hazard
warning lights come on automatically and
lights
Î
and
¥
on the panel come on at
the same time.
The function switches off automatically
when the nature of the braking changes.
This function complies with the relevant
legal regulations currently in force.FOG LIGHTS fig. 46
(for versions/markets, where provided)
Press button
5
to activate.
The
5
light on the instrument panel will
come on.
Press the button again to turn the lights
off.
When the fog lights are on, the side/tail -
lights and number plate lights also come
on, while the daytime running lights go off
irrespective of the position of the twist
switch.
The use of fog lights is governed by the
highway code of the country in which you
are driving. Keep to the rules.
fig. 45
F0M0069m
fig. 46
F0M0070m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 53

54SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
HEATED REAR WINDOW fig. 49
Press button Ato activate. The device will
be switched off automatically after ap-
proximately 20 minutes.fig. 49
F0M0036m
PARKING LIGHTS
These lights can be turned on, only with
the key turned to STOPor removed, by
turning the twist switch on the left stalk
first to Oand then to
6
or
2
.
The
3
light on the instrument panel
comes on.
DUALDRIVE ELECTRIC POWER
STEERING SYSTEM fig. 48
Press button A to activate the “CITY”
function (see the “Electric power steering
system” paragraph in this section). When
the function is active, the word CITYis
lit up on the instrument panel. Press the
button again to deactivate the function.
fig. 48
F0M0617m
REAR FOG LAMPS fig. 47
Press button 4to turn these lights on
with the dipped beam headlights or the
front fog lights (for versions/markets,
where provided) switched on.
The 4light on the instrument panel will
come on.
Press the button again to turn the lights
off or turn off the dipped beam headlights
and/or the front fog lights (for versions/
markets, where provided).
The use of rear fog lamps is governed by
the highway code of the country you are
in. Keep to the rules.fig. 47
F0M0071m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 54

55
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
Door unlocking in the event of
a crash
If the fuel cut-off switch trips following an
accident, the doors will be automatically
unlocked to allow access to the passenger
compartment and the ceiling lights will be
switched on at the same time. The doors
can always be opened from the inside of
the car by using the appropriate controls.
if no fuel leakage is found and the car is
roadworthy, ensure the correct operation
of the vehicle by adhering to the following
instructions. DOOR LOCKING fig. 50
To lock all doors at the same time, press
button A, located on the central console
control panel, regardless of the position
of the ignition key.
FUEL CUT-OFF SYSTEMThis system triggers after a collision and
activates the following:❒
cut-off of fuel supply with consequent
switching off of the engine;
❒
automatic door unlocking;
❒
switching on of all interior lights.
When the system has been triggered, the
message “Fuel cut off, see handbook” is
displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, un-
der the car or near the tank area.
After a crash, turn the key to STOP to
avoid draining the battery.
fig. 50
F0M0618m
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reactivate the sys-
tem to avoid the risk of fire.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 55

56SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES
fig. 52
F0M0077m
fig. 51
F0M0104m
fig. 53
F0M0078m

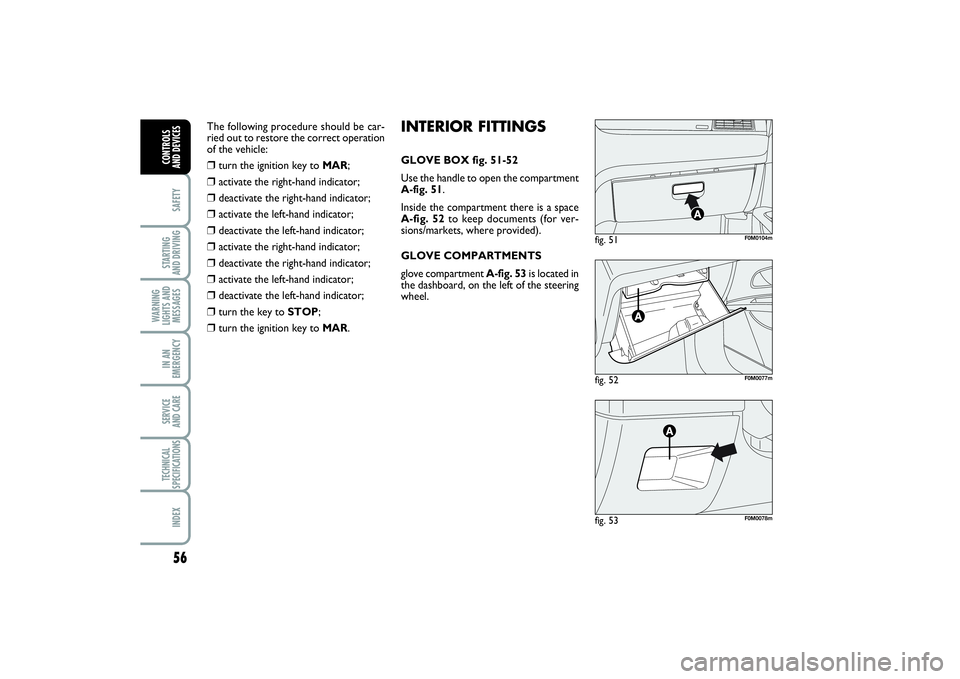

INTERIOR FITTINGSGLOVE BOX fig. 51-52
Use the handle to open the compartment
A-fig. 51.
Inside the compartment there is a space
A-fig. 52to keep documents (for ver-
sions/markets, where provided).
GLOVE COMPARTMENTS
glove compartment A-fig. 53is located in
the dashboard, on the left of the steering
wheel. The following procedure should be car-
ried out to restore the correct operation
of the vehicle:
❒
turn the ignition key to MAR;
❒
activate the right-hand indicator;
❒
deactivate the right-hand indicator;
❒
activate the left-hand indicator;
❒
deactivate the left-hand indicator;
❒
activate the right-hand indicator;
❒
deactivate the right-hand indicator;
❒
activate the left-hand indicator;
❒
deactivate the left-hand indicator;
❒
turn the key to STOP;
❒
turn the ignition key to MAR.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 56
