Following the locking of the doors using:
❒remote control;
❒door catch;
it will not be possible to unlock them by
pressing button
A-fig. 72located on the
dashboard.
IMPORTANT With central locking on,
pulling the internal handle of one of the
front doors will unlock that door. Indi-
vidual doors can be unlocked by pulling
the internal handle of one of the rear
doors.
If a power supply is not present (blown
fuse, battery disconnected, etc.) it is, how-
ever, possible to lock the doors manually.
After exceeding a speed of 20 km/h, all
doors will be centrally locked automati-
cally if the setup menu function has been
selected (see paragraph “Multifunction dis-
play” in this section).
Once the dead lock system is
engaged, it is impossible to
open the doors from inside the vehi-
cle. Before getting out of the car,
please therefore check that there is
no-one left on board. If the remote
control battery is flat, the system can
be disengaged only by inserting the
key in either of the door locks as de-
scribed previously: in this case the de-
vice remains active only for the rear
doors.
DEAD LOCK
(for versions/markets, where provided)
This safety device inhibits the operation of:
❒interior handles;
❒locking/unlocking button
A-fig. 72;
thereby preventing the opening of the
doors from inside the passenger com-
partment if there has been a break-in at-
tempt (e.g. a window has been broken).
The dead lock device therefore offers the
best possible protection against break-in
attempts. We recommend engaging it
whenever the vehicle is parked and left un-
attended. Device activation
The dead lock device is automatically ac-
tivated on every door by briefly pressing
the remote control button
Áfig. 70
twice.
Device activation is indicated by 3 flashes
of the direction indicators and a flash of
the LED on button
A-fig. 72on the dash-
board.
If one or more of the doors is not closed
correctly, the dead lock device will not ac-
tivate, thus preventing a person from get-
ting stuck inside the passenger compart-
ment by entering the car through, and
then closing, the open door.
Device deactivation
The system is disabled automatically on
every door in the following cases:
❒when opening the driver’s door using the key without remote control;
❒when unlocking doors using the remotecontrol;
❒when turning the ignition key to MAR.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 61

64
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Electric window system
initialisation
The system must be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Initialisation procedure:
❒fully close the window to be initialised manually;
❒once fully closed, keep holding down theclosing control for at least 1 second.
Improper use of the electric
windows can be dangerous.
Before and during operation, always
check that no-one is exposed to the
risk of being injured either directly by
the moving window or through objects
getting caught and being dragged by
it. When leaving the vehicle, always
remove the key from the ignition to
avoid the risk of injury to anyone re-
maining in the car due to accidental
operation of the electric windows.
WARNING
MANUAL REAR WINDOWS
(5-door versions) fig. 76
To open and to close the window, use the
relevant handle.
fig. 76F0M0091m
On such occasions, it is necessary to car-
ry out the system restore procedure,
acting as follows:
❒ open the windows;
or
❒turn the ignition key to STOP and then
to MAR.
If no malfunction is present, the window
returns to its normal operation auto-
matically.
IMPORTANT With the ignition key at
STOP or removed, the windows remain
activated for about 2 minutes and are de-
activated as soon a door is opened.
The system conforms to the
2000/4/EC standard concern-
ing the safety of passengers leaning
out of the passenger compartment.
WARNING
IMPORTANT On some versions, press-
ing the remote control button Ëfor over
2 seconds will open the windows, where-
as pressing the remote control button
Áfor over 2 seconds will close them.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 64

78
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

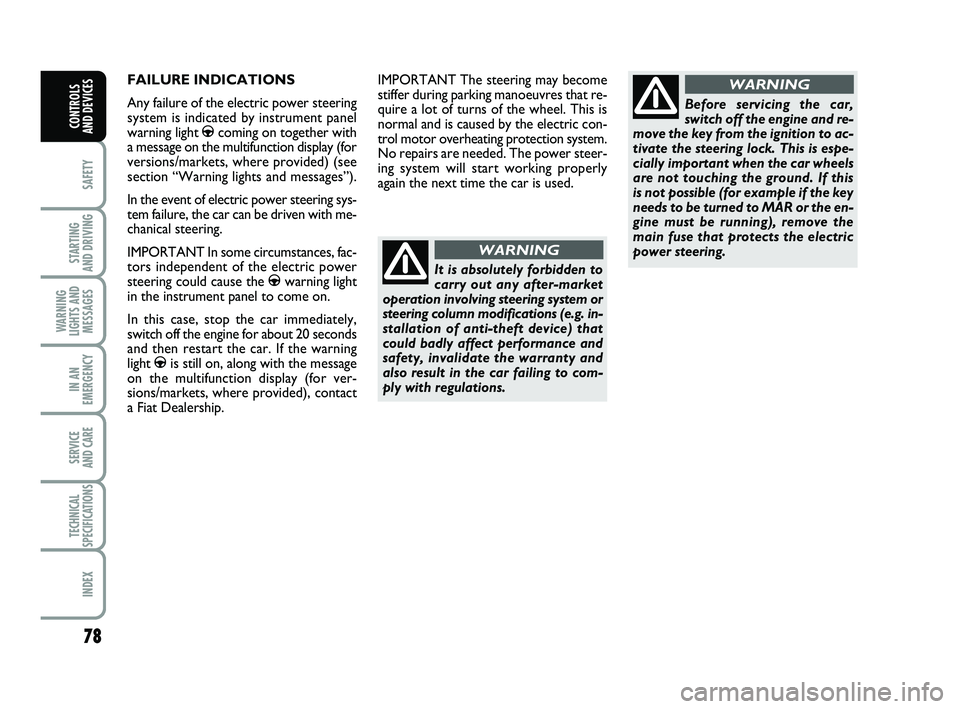

FAILURE INDICATIONS
Any failure of the electric power steering
system is indicated by instrument panel
warning light
gcoming on together with
a message on the multifunction display (for
versions/markets, where provided) (see
section “Warning lights and messages”).
In the event of electric power steering sys-
tem failure, the car can be driven with me-
chanical steering.
IMPORTANT In some circumstances, fac-
tors independent of the electric power
steering could cause the
gwarning light
in the instrument panel to come on.
In this case, stop the car immediately,
switch off the engine for about 20 seconds
and then restart the car. If the warning
light
gis still on, along with the message
on the multifunction display (for ver-
sions/markets, where provided), contact
a Fiat Dealership. IMPORTANT The steering may become
stiffer during parking manoeuvres that re-
quire a lot of turns of the wheel. This is
normal and is caused by the electric con-
trol motor overheating protection system.
No repairs are needed. The power steer-
ing system will start working properly
again the next time the car is used.
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car failing to com-
ply with regulations.
WARNING
Before servicing the car,
switch off the engine and re-
move the key from the ignition to ac-
tivate the steering lock. This is espe-
cially important when the car wheels
are not touching the ground. If this
is not possible (for example if the key
needs to be turned to MAR or the en-
gine must be running), remove the
main fuse that protects the electric
power steering.
WARNING
070-090 PUNTO POP 1ed EN 24/03/14 11:36 Pagina 78

129
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND MESSAGES

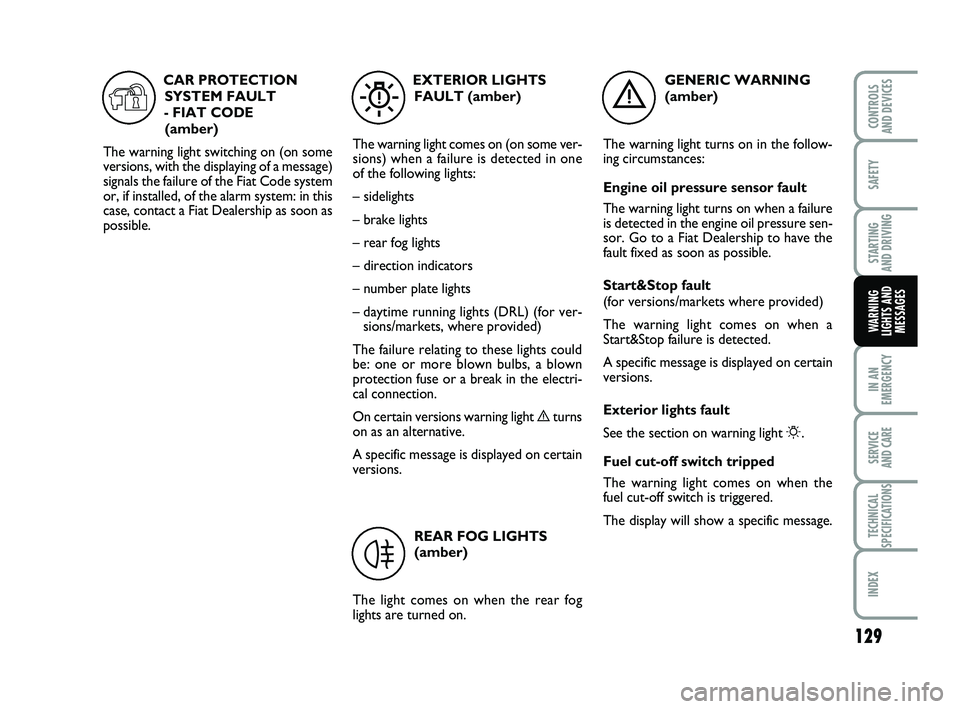

GENERIC WARNING
(amber)
The warning light turns on in the follow-
ing circumstances:
Engine oil pressure sensor fault
The warning light turns on when a failure
is detected in the engine oil pressure sen-
sor. Go to a Fiat Dealership to have the
fault fixed as soon as possible.
Start&Stop fault
(for versions/markets where provided)
The warning light comes on when a
Start&Stop failure is detected.
A specific message is displayed on certain
versions.
Exterior lights fault
See the section on warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch is triggered.
The display will show a specific message.
è
EXTERIOR LIGHTS FAULT (amber)
The warning light comes on (on some ver-
sions) when a failure is detected in one
of the following lights:
– sidelights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– daytime running lights (DRL) (for ver- sions/markets, where provided)
The failure relating to these lights could
be: one or more blown bulbs, a blown
protection fuse or a break in the electri-
cal connection.
On certain versions warning light è turns
on as an alternative.
A specific message is displayed on certain
versions.
W
REAR FOG LIGHTS
(amber)
The light comes on when the rear fog
lights are turned on.
4
CAR PROTECTION SYSTEM FAULT
- FIAT CODE (amber)
The warning light switching on (on some
versions, with the displaying of a message)
signals the failure of the Fiat Code system
or, if installed, of the alarm system: in this
case, contact a Fiat Dealership as soon as
possible.
Y
121-132 PUNTO POP 1ed EN 29/08/13 15.03 Pagina 129

133
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

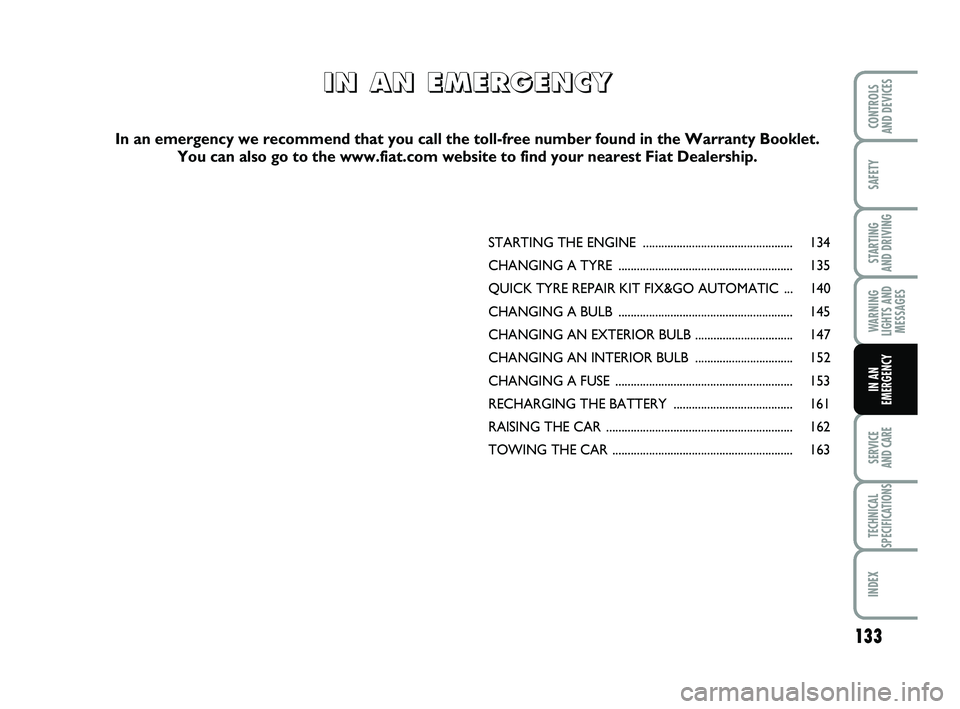

STARTING THE ENGINE ................................................. 134
CHANGING A TYRE ......................................................... 135
QUICK TYRE REPAIR KIT FIX&GO AUTOMATIC ... 140
CHANGING A BULB ......................................................... 145
CHANGING AN EXTE RIOR BULB ................................ 147
CHANGING AN INTE RIOR BULB ................................ 152
CHANGING A FUSE .......................................................... 153
RECHARGING THE BATTE RY ....................................... 161
RAISING THE CAR ............................................................. 162
TOWING THE CAR ........................................................... 163
I
I
N
N


A
A
N
N


E
E
M
M
E
E
R
R
G
G
E
E
N
N
C
C
Y
Y
In an emergency we recommend that you call the toll-free number found in\
the Warranty Booklet.
You can also go to the www.fiat.com website to find your nearest Fiat De\
alership.
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 133

145
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

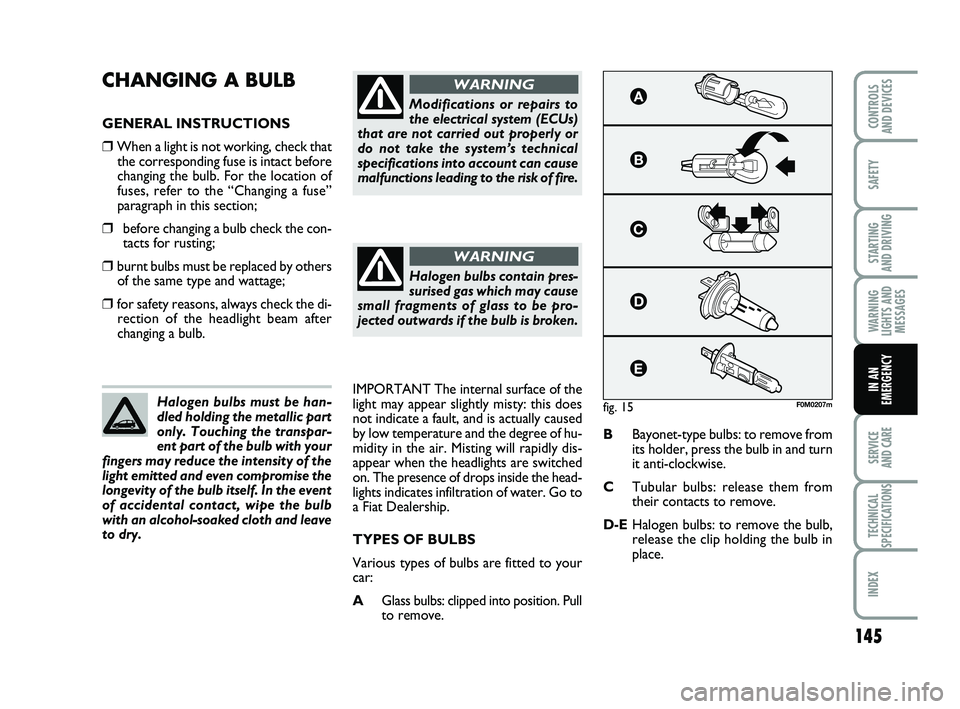

CHANGING A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check that the corresponding fuse is intact before
changing the bulb. For the location of
fuses, refer to the “Changing a fuse”
paragraph in this section;
❒before changing a bulb check the con- tacts for rusting;
❒burnt bulbs must be replaced by othersof the same type and wattage;
❒for safety reasons, always check the di-rection of the headlight beam after
changing a bulb.
IMPORTANT The internal surface of the
light may appear slightly misty: this does
not indicate a fault, and is actually caused
by low temperature and the degree of hu-
midity in the air. Misting will rapidly dis-
appear when the headlights are switched
on. The presence of drops inside the head-
lights indicates infiltration of water. Go to
a Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove. B
Bayonet-type bulbs: to remove from
its holder, press the bulb in and turn
it anti-clockwise.
C Tubular bulbs: release them from
their contacts to remove.
D-E Halogen bulbs: to remove the bulb,
release the clip holding the bulb in
place.
Halogen bulbs must be han-
dled holding the metallic part
only. Touching the transpar-
ent part of the bulb with your
fingers may reduce the intensity of the
light emitted and even compromise the
longevity of the bulb itself. In the event
of accidental contact, wipe the bulb
with an alcohol-soaked cloth and leave
to dry.
Modifications or repairs to
the electrical system (ECUs)
that are not carried out properly or
do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which may cause
small fragments of glass to be pro-
jected outwards if the bulb is broken.
WARNING
fig. 15F0M0207m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 145

153
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

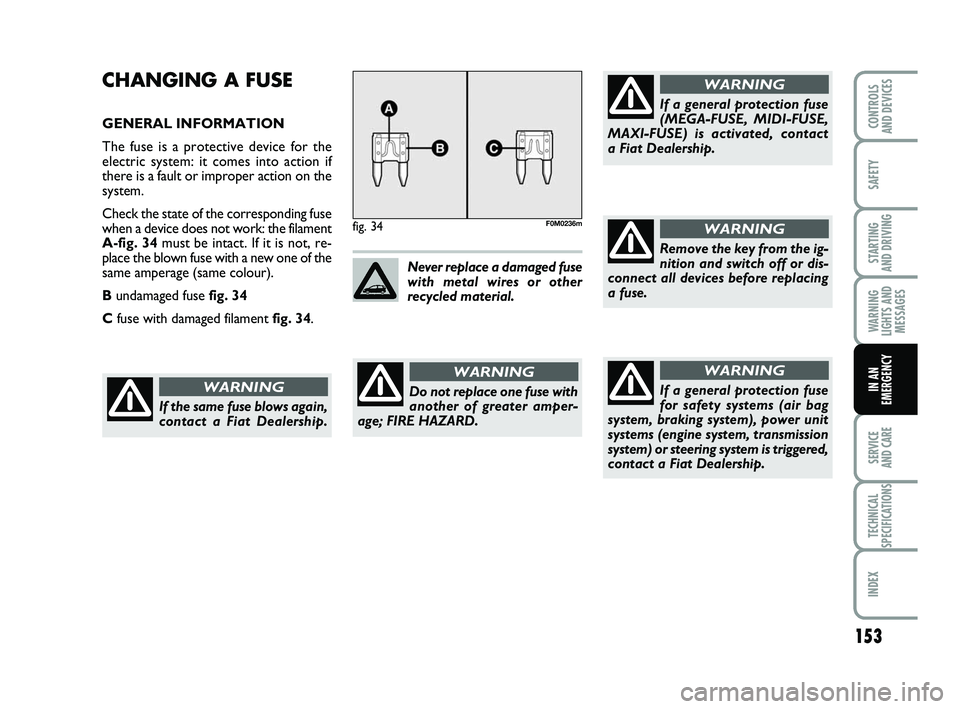

CHANGING A FUSE
GENERAL INFORMATION
The fuse is a protective device for the
electric system: it comes into action if
there is a fault or improper action on the
system.
Check the state of the corresponding fuse
when a device does not work: the filament
A-fig. 34 must be intact. If it is not, re-
place the blown fuse with a new one of the
same amperage (same colour).
B undamaged fuse fig. 34
C fuse with damaged filament fig. 34.
fig. 34F0M0236m
Do not replace one fuse with
another of greater amper-
age; FIRE HAZARD.
WARNING
Never replace a damaged fuse
with metal wires or other
recycled material.
If a general protection fuse
(MEGA-FUSE, MIDI-FUSE,
MAXI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
If the same fuse blows again,
contact a Fiat Dealership.
WARNING
Remove the key from the ig-
nition and switch off or dis-
connect all devices before replacing
a fuse.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 153

154
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
ACCESSING THE FUSES
The fuses are grouped in three control
units: on the dashboard, in the engine
compartment and in the left-hand side of
the boot.
Dashboard fusebox fig. 36
To access the dashboard fusebox, loosen
the screws A-fig. 35 and remove the
cover.
fig. 36F0M0415m
34567
89101112
1314 12
fig. 35F0M0016m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 154

155
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

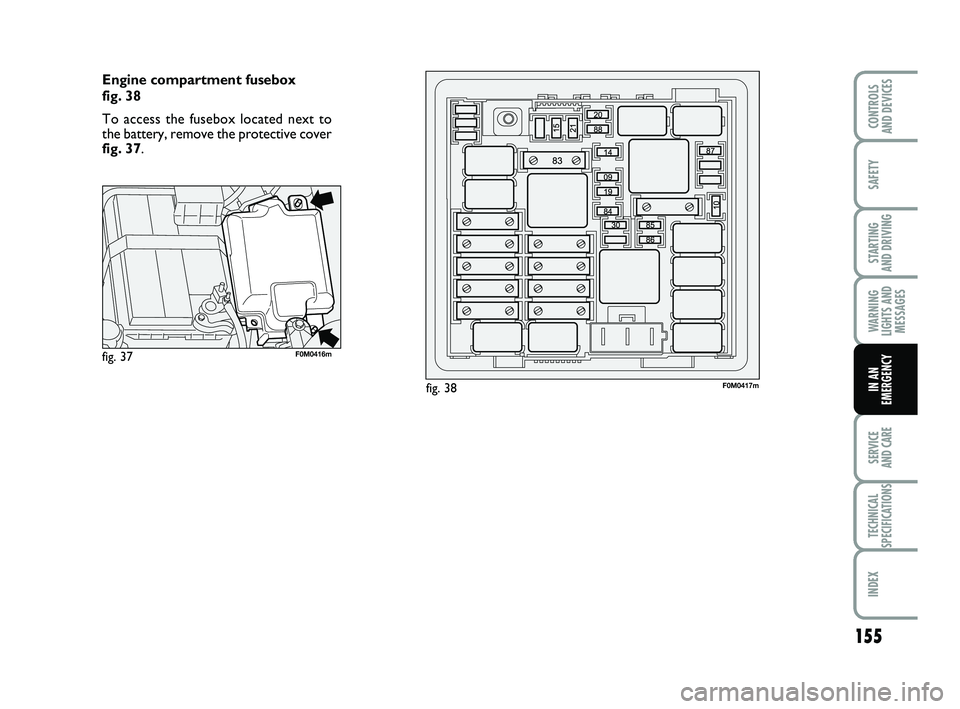

Engine compartment fusebox
fig. 38
To access the fusebox located next to
the battery, remove the protective cover
fig. 37.
fig. 38F0M0417m
fig. 37F0M0416m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 155

156
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

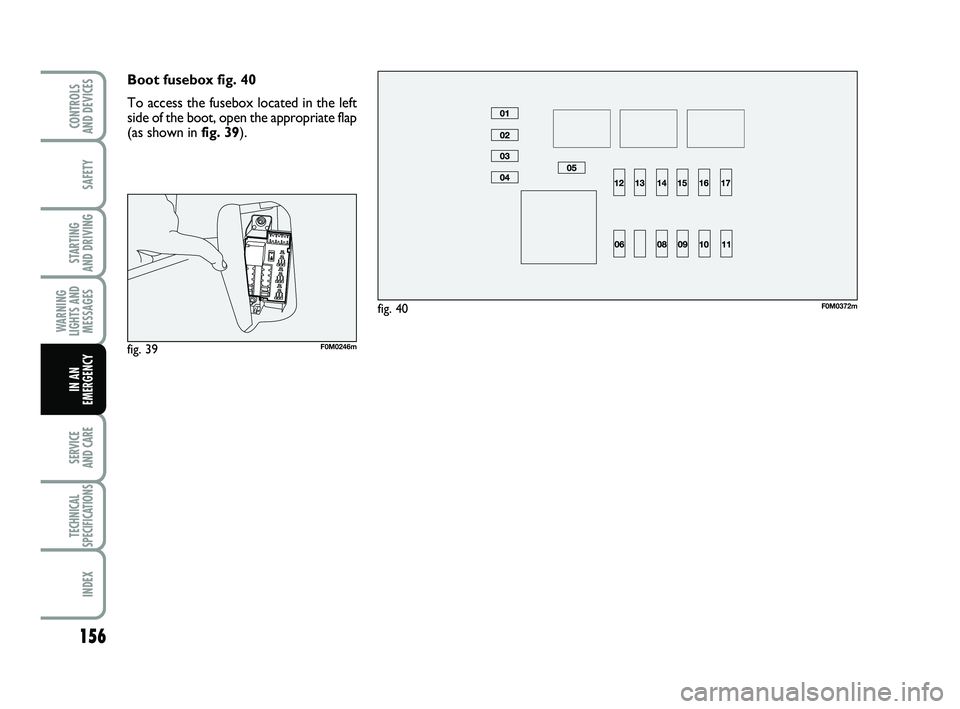

Boot fusebox fig. 40
To access the fusebox located in the left
side of the boot, open the appropriate flap
(as shown in fig. 39).
fig. 40F0M0372m
fig. 39F0M0246m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 156
