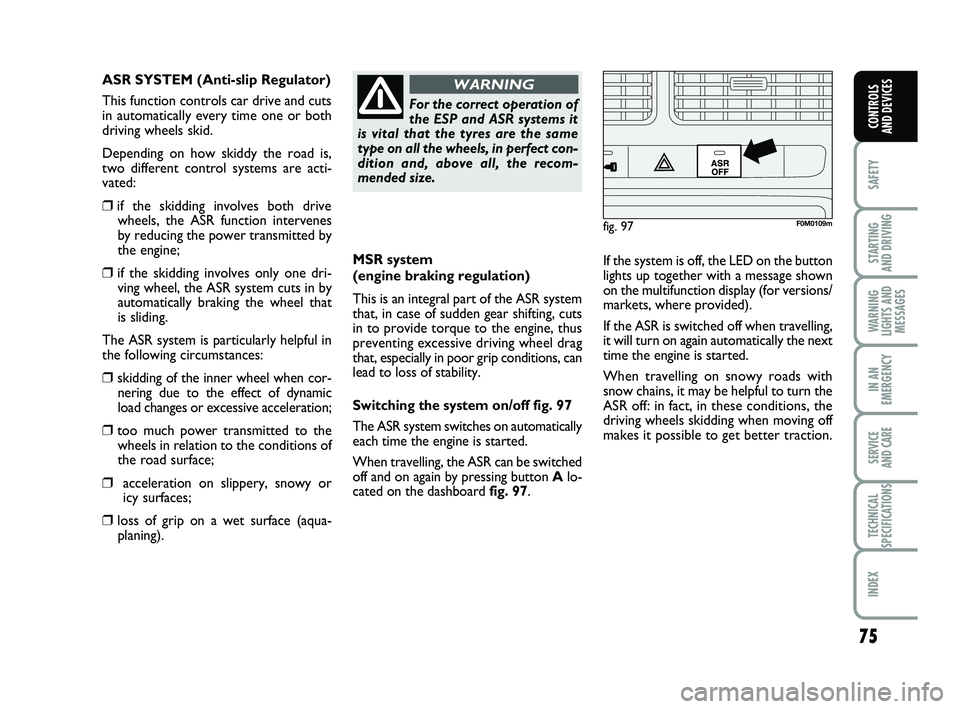

MSR system
(engine braking regulation)
This is an integral part of the ASR system
that, in case of sudden gear shifting, cuts
in to provide torque to the engine, thus
preventing excessive driving wheel drag
that, especially in poor grip conditions, can
lead to loss of stability.
Switching the system on/off fig. 97
The ASR system switches on automatically
each time the engine is started.
When travelling, the ASR can be switched
off and on again by pressing button Alo-
cated on the dashboard fig. 97. If the system is off, the LED on the button
lights up together with a message shown
on the multifunction display (for versions/
markets, where provided).
If the ASR is switched off when travelling,
it will turn on again automatically the next
time the engine is started.
When travelling on snowy roads with
snow chains, it may be helpful to turn the
ASR off: in fact, in these conditions, the
driving wheels skidding when moving off
makes it possible to get better traction.
For the correct operation of
the ESP and ASR systems it
is vital that the tyres are the same
type on all the wheels, in perfect con-
dition and, above all, the recom-
mended size.
WARNING
fig. 97
ASR OFF
F0M0109m
ASR SYSTEM (Anti-slip Regulator)
This function controls car drive and cuts
in automatically every time one or both
driving wheels skid.
Depending on how skiddy the road is,
two different control systems are acti-
vated:
❒if the skidding involves both drivewheels, the ASR function intervenes
by reducing the power transmitted by
the engine;
❒if the skidding involves only one dri-ving wheel, the ASR system cuts in by
automatically braking the wheel that
is sliding.
The ASR system is particularly helpful in
the following circumstances:
❒skidding of the inner wheel when cor- nering due to the effect of dynamic
load changes or excessive acceleration;
❒too much power transmitted to thewheels in relation to the conditions of
the road surface;
❒acceleration on slippery, snowy oricy surfaces;
❒loss of grip on a wet surface (aqua- planing).
070-090 PUNTO POP 1ed EN 24/03/14 11:36 Pagina 75

111
SAFETY
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING

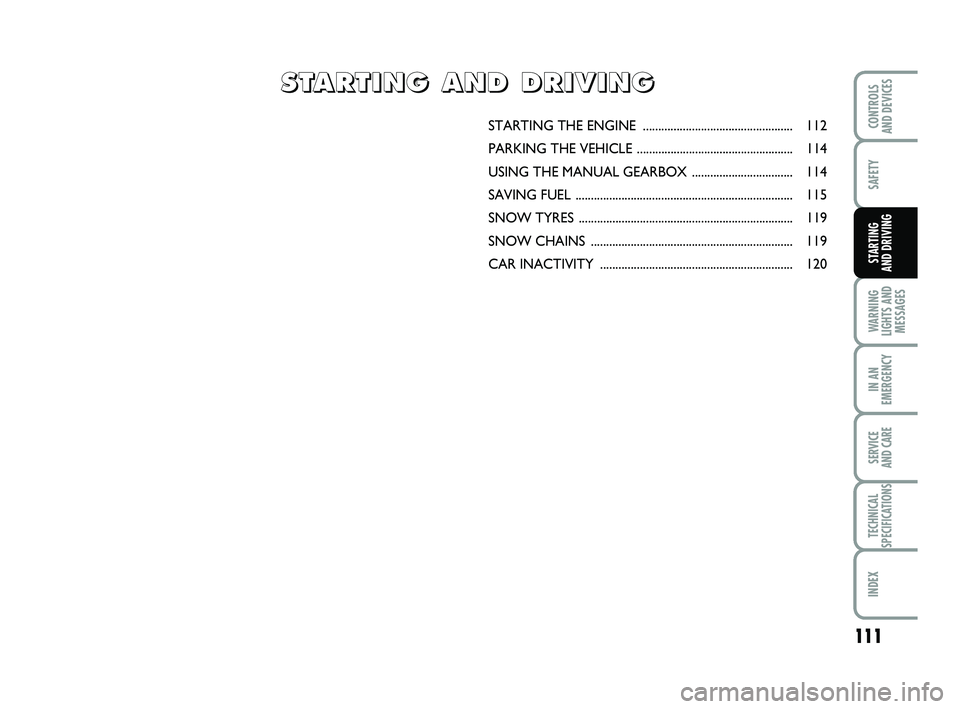

STARTING THE ENGINE ................................................. 112
PARKING THE VEHIC LE ................................................... 114
USING THE MANU AL GEARBOX ................................. 114
SAVING FUEL ....................................................................... 115
SNOW TYRES ......................................................................\
119
SNOW CHAINS .................................................................. 119
CAR INACTIVITY ............................................................... 120
S
S
T
T
A
A
R
R
T
T
I
I
N
N
G
G


A
A
N
N
D
D


D
D
R
R
I
I
V
V
I
I
N
N
G
G
111-120 PUNTO POP 1ed EN 24/09/13 14.29 Pagina 111

119
SAFETY
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
IMPORTANT When snow tyres are used
with a maximum speed index below the
one that can be reached by the car (in-
creased by 5%), place a notice in the pas-
senger compartment, plainly in view, which
states the maximum permissible speed of
the snow tyres (as per an EC Directive).
All four tyres should be the same (brand
and profile) to ensure greater safety when
driving and braking as well as making the
car more responsive.
Remember that you should not change the
rotation direction of the tyres.SNOW CHAINS
The use of snow chains should be in com-
pliance with local regulations.
Snow chains may be fitted only to the
front wheel tyres (drive wheels). Use of
Lineaccessori Fiat snow chains is recom-
mended.
Check the tension of the chains after the
first few metres have been driven.
IMPORTANT When the snow chains are
on, use the accelerator with extreme
care to prevent, or to limit as much as
possible, the driving wheels from skid-
ding. This could cause the chains to
break, resulting in damage to the vehicle
body or mechanical components.
IMPORTANT Use compact 9 mm snow
chains.
SNOW TYRES
Use snow tyres of the same size as the
normal tyres provided with the car.
A Fiat Dealership will be happy to provide
advice concerning the most suitable type
of tyre for the customer’s requirements.
For the type, pressures and specifications
of the snow tyre to be used, follow care-
fully the instructions given in the “Wheels”
paragraph of the “Technical specifications”
section.
The performance of these tyres is con-
siderably reduced when the tread depth
is less than 4 mm. If this is the case, replace
them.
Due to their specific features, the perfor-
mance of snow tyres is much lower than
that of standard tyres in normal condi-
tions or on long motorway stretches. You
should therefore use them only in the
conditions for which they were designed.
The maximum speed for
snow tyres marked “Q” is
160 km/h, while it is 190 km/h for “T”
tyres and 210 km/h for “H” tyres. You
should, however, always stick to the
speed limits of the highway code.
WARNING
111-120 PUNTO POP 1ed EN 24/09/13 14.29 Pagina 119

120
SAFETY
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be observed:
❒park the car in covered, dry and, if pos- sible, well-ventilated premises;
❒engage a gear;
❒check that the handbrake is engaged;
❒disconnect the clip for the negative bat-tery terminal and check battery charge.
Repeat this check once every three
months during storage. Recharge the
battery if the indicator is dark and the
middle area is not green;
❒clean and protect the painted parts us-ing protective wax;
❒clean and protect the shiny metal partsusing special compounds readily avail-
able;
❒sprinkle talcum powder on the rubberwindscreen and rear window wiper
blades and lift them off the glass;
❒open the windows slightly;
❒cover the car with a fabric or perfo-rated plastic sheet. Do not use compact
plastic sheets which do not allow hu-
midity to evaporate from the surface of
the car;
❒inflate tyres to a pressure of +0.5 barabove the normal specified pressure
and check regularly;
❒if you don’t disconnect the battery fromthe electrical system, check its charge
every month and recharge it if the in-
dicator shows a dark colour without
the central green area;
❒do not drain the engine cooling system.
IMPORTANT Where relevant, switch off
the car alarm with the remote control.
Keep your speed down when snow chains are fitted – do
not exceed 50 km/h. Avoid
potholes, steps and pave-
ments and also avoid driving
for long distances on roads
not covered with snow to avoid dam-
aging the car and the road surface.
WARNING
