ACCESSING THE FUSES
The fuses are grouped in three control
units: on the dashboard, in the engine
compartment and in the left-hand side of
the boot.
Dashboard fusebox fig. 36
To access the dashboard fusebox, loosen
the screws A-fig. 35 and remove the
cover.
fig. 36F0M0415m
34567
89101112
1314 12
fig. 35F0M0016m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 154

155
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Engine compartment fusebox
fig. 38
To access the fusebox located next to
the battery, remove the protective cover
fig. 37.
fig. 38F0M0417m
fig. 37F0M0416m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 155

156
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Boot fusebox fig. 40
To access the fusebox located in the left
side of the boot, open the appropriate flap
(as shown in fig. 39).
fig. 40F0M0372m
fig. 39F0M0246m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 156

157
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
1 (*)
8 (*)
8
13
2 (*)
5
11 4
6
14 7
12 3
10 7,5
7,5
5
5
5
10 5
20
20
20
20 5
5
7,5
FUSE TABLE
Dashboard fusebox fig. 36
DEVICES
FUSE AMPS
Right dipped beam headlight
Left dipped beam headlight
Headlamp alignment corrector
INT/A supply for switch coils on engine fusebox and switch coils
on body computer control unit
Front ceiling light, rear ceiling light (VAN version)
Supply and battery for EOBD diagnostic plug, alarm, sound system,
Blue&Me™control unit
INT supply for instrument panel, switch on brake pedal (N.O. contact),\

third brake light
Door locking/unlocking motors, dead lock activation motors,
boot unlocking motor
Windscreen/rear window washer pump
Electric window motor on driver-side front door
Electric window motor on passenger-side front door
INT supply for dashboard control lights, mirror movement exterior electr\
ics,
sunroof control unit, My Port infotelematic system socket
Instrument panel
INT supply for brake pedal switch (NC contact), clutch pedal switch,
interior heating unit, Blue&Me™control unit, sound system capabilities,
voltage stabiliser control unit, reverse light on rear bumper, water sen\
sor
on diesel filter, glow plug heating control unit, airflow meter, brake b\
ooster sensor,
switch coils on engine compartment fusebox
(*) Fuse on some versions only.
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 157

158
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Engine compartment fusebox fig. 38
DEVICES FUSE AMPS
Single tone horn
Left main beam headlight, right main beam headlight
Additional heater
Air conditioning compressor
Heated rear window
Fuel pump on tank 10
14
15
19
20
21
10
15
30
7,5 30
15
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 158

159
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
15
7,5 –
15 5
7,5
30
84
85
86
87
88
DEVICES
FUSE AMPS
Left fog light, right fog light
Methane system management solenoid valves
Socket (ready for use)
Passenger compartment socket, cigarette lighter
Battery charge status sensor
De-mister on driver-side wing mirror, de-mister on passenger-side wing m\
irror
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 159

160
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
17
14
01
03
04
15
10
16
08
07
05
11
13
09
06
0220
7,5 –
–
–
–
20 –
10 –
15
20 –
10 –
–
Boot fusebox fig. 44
DEVICES
FUSE AMPS
Sunroof opening system
Alarm system management control unit
Spare
Spare
Spare
Spare
Electric windows system (motor, control unit) on right-hand door
Spare
Driver’s seat heater control unit
Tow hook system (capability for after-sale fuse assembly)
Boot socket
Electric windows system (motor, control unit) on left-hand door
Spare
Front passenger seat heater control unit
Spare
Spare
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 160

161
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
RECHARGING
THE BATTERY
IMPORTANT The battery recharging pro-
cedure is provided for information pur-
poses only. You are recommended to go
to a Fiat Dealership to have this operation
performed.
IMPORTANT After turning the ignition
key to STOP and having closed the driver's
side door, wait at least one minute before
disconnecting and then reconnecting the
battery electrical supply.
We recommend recharging the battery
slowly for approximately 24 hours at low
amperage. Rapid charging with high cur-
rents could damage the battery. VERSIONS WITHOUT
Start&Stop SYSTEM fig. 41
To charge the battery, proceed as follows:
disconnect the negative terminal
B-fig. 41
from the battery negative pole A; connect
the charger cables to the battery termi-
nals, observing the polarity; turn on the
battery charger; after recharging, turn the
charger off before disconnecting it from
the battery; reconnect the negative ter-
minal Bto the battery negative pole A.
fig. 41F0M0625m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 161

162
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Do not try to rechargea frozen
battery; defrost it first to pre-
vent the risk of explosion. If the bat-
tery was frozen, have it inspected by
specialised personnel before recharg-
ing to check that the internal ele-
ments are not damaged and that the
casing is not cracked, which could
cause poisonous, corrosive gas to leak.
WARNING
Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
must be recharged in a ventilated
place away from naked flames or
possible sources of sparks to avoid the
risk of explosion and fire.
WARNINGVERSIONS WITH Start&Stop
SYSTEM fig. 42
Charge the battery as follows, paying ut-
most attention:
❒press the button A-fig. 42 to detach
the connector B from the sensor C
monitoring the battery conditions (the
latter is on the negative pole of the bat-
tery);
❒connect the positive cable (+ ) of the
charger to the positive pole ( +) of the
battery;
❒connect the negative cable ( –) of the
charger to the pin D of the negative
pole ( –) of the battery;
❒turn on the charger;
❒when you have finished, turn the charg-
er off before disconnecting the battery;
❒reconnect the connector Bto the bat-
tery sensor C.
fig. 42F0M0661m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 162

163
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
fig. 41F0M601m

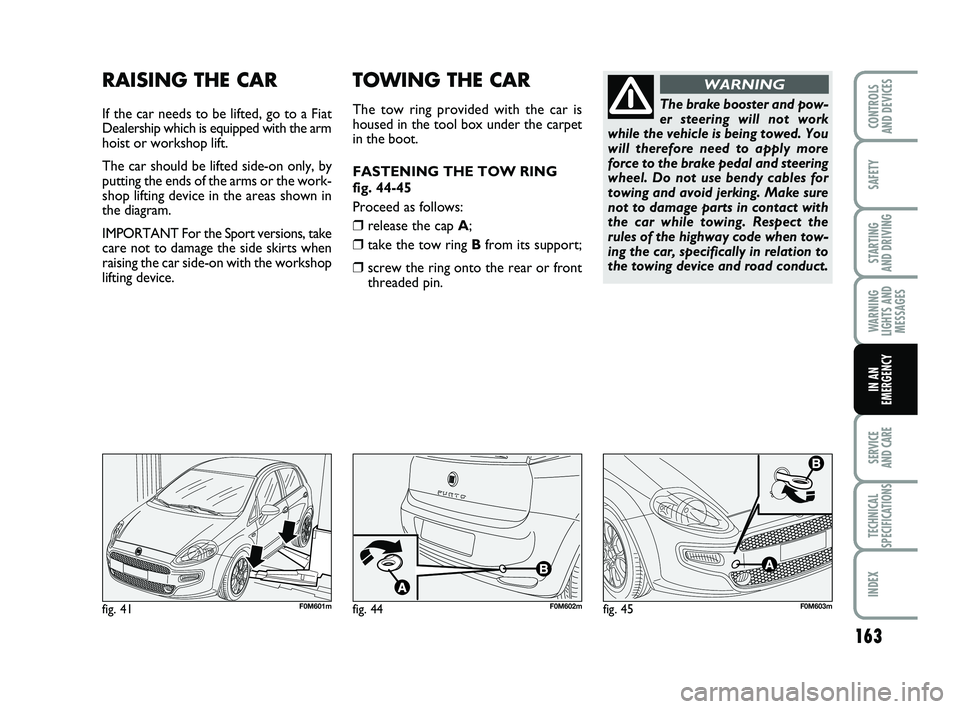

RAISING THE CAR
If the car needs to be lifted, go to a Fiat
Dealership which is equipped with the arm
hoist or workshop lift.
The car should be lifted side-on only, by
putting the ends of the arms or the work-
shop lifting device in the areas shown in
the diagram.
IMPORTANT For the Sport versions, take
care not to damage the side skirts when
raising the car side-on with the workshop
lifting device.
TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the carpet
in the boot.
FASTENING THE TOW RING
fig. 44-45
Proceed as follows:
❒release the cap A;
❒take the tow ring Bfrom its support;
❒screw the ring onto the rear or front
threaded pin.
The brake booster and pow-
er steering will not work
while the vehicle is being towed. You
will therefore need to apply more
force to the brake pedal and steering
wheel. Do not use bendy cables for
towing and avoid jerking. Make sure
not to damage parts in contact with
the car while towing. Respect the
rules of the highway code when tow-
ing the car, specifically in relation to
the towing device and road conduct.
WARNING
fig. 44F0M602mfig. 45F0M603m
