129
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND MESSAGES
GENERIC WARNING
(amber)
The warning light turns on in the follow-
ing circumstances:
Engine oil pressure sensor fault
The warning light turns on when a failure
is detected in the engine oil pressure sen-
sor. Go to a Fiat Dealership to have the
fault fixed as soon as possible.
Start&Stop fault
(for versions/markets where provided)
The warning light comes on when a
Start&Stop failure is detected.
A specific message is displayed on certain
versions.
Exterior lights fault
See the section on warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch is triggered.
The display will show a specific message.
è
EXTERIOR LIGHTS FAULT (amber)
The warning light comes on (on some ver-
sions) when a failure is detected in one
of the following lights:
– sidelights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– daytime running lights (DRL) (for ver- sions/markets, where provided)
The failure relating to these lights could
be: one or more blown bulbs, a blown
protection fuse or a break in the electri-
cal connection.
On certain versions warning light è turns
on as an alternative.
A specific message is displayed on certain
versions.
W
REAR FOG LIGHTS
(amber)
The light comes on when the rear fog
lights are turned on.
4
CAR PROTECTION SYSTEM FAULT
- FIAT CODE (amber)
The warning light switching on (on some
versions, with the displaying of a message)
signals the failure of the Fiat Code system
or, if installed, of the alarm system: in this
case, contact a Fiat Dealership as soon as
possible.
Y
121-132 PUNTO POP 1ed EN 29/08/13 15.03 Pagina 129

146
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

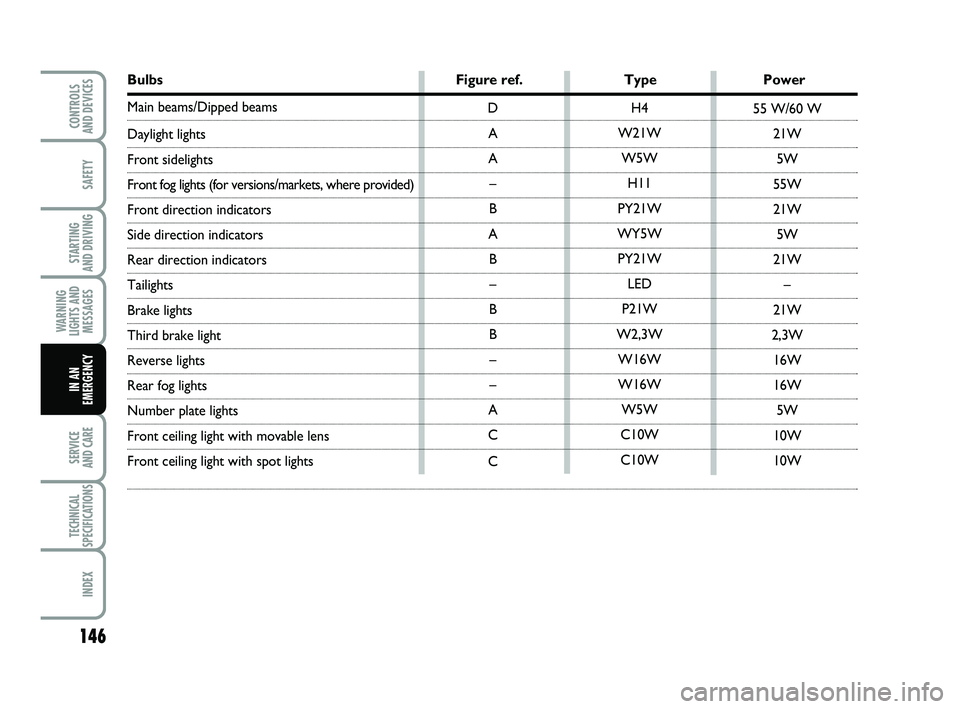

Bulbs Figure ref. TypePower
Main beams/Dipped beams
Daylight lights
Front sidelights
Front fog lights (for versions/markets, where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Tailights
Brake lights
Third brake light
Reverse lights
Rear fog lights
Number plate lights
Front ceiling light with movable lens
Front ceiling light with spot lights
H4
W21W W5W H11
PY21W
WY5W PY21W LED
P21W
W2,3W W16W
W16W W5W
C10W
C10W
D
A
A –
B
A B–
B
B –
–
A
C
C 55 W/60 W
21W5W
55W
21W 5W
21W –
21W
2,3W 16W
16W 5W
10W
10W
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 146

149
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

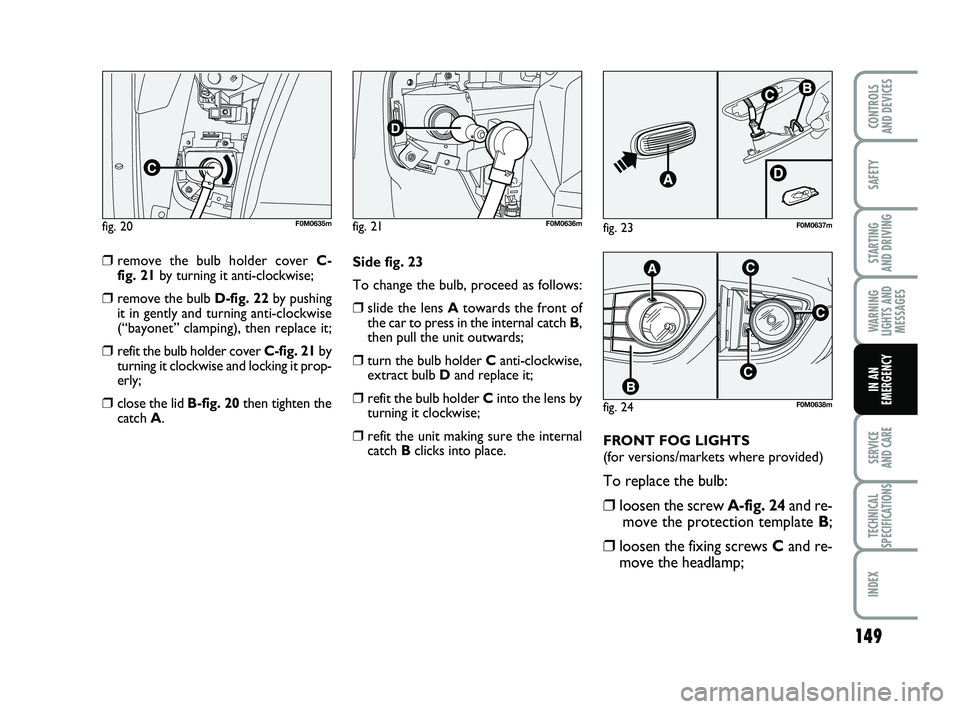

❒remove the bulb holder cover C-
fig. 21 by turning it anti-clockwise;
❒remove the bulb D-fig. 22 by pushing
it in gently and turning anti-clockwise
(“bayonet” clamping), then replace it;
❒refit the bulb holder cover C-fig. 21 by
turning it clockwise and locking it prop-
erly;
❒close the lid B-fig. 20 then tighten the
catch A. Side fig. 23
To change the bulb, proceed as follows:
❒slide the lens A
towards the front of
the car to press in the internal catch B,
then pull the unit outwards;
❒turn the bulb holder C anti-clockwise,
extract bulb D and replace it;
❒refit the bulb holder C into the lens by
turning it clockwise;
❒refit the unit making sure the internal
catch Bclicks into place. FRONT FOG LIGHTS
(for versions/markets where provided)
To replace the bulb:
❒loosen the screw A-fig. 24
and re-
move the protection template B;
❒loosen the fixing screws Cand re-
move the headlamp;
fig. 20F0M0635mfig. 21F0M0636m
fig. 24F0M0638m
fig. 23F0M0637m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 149

151
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

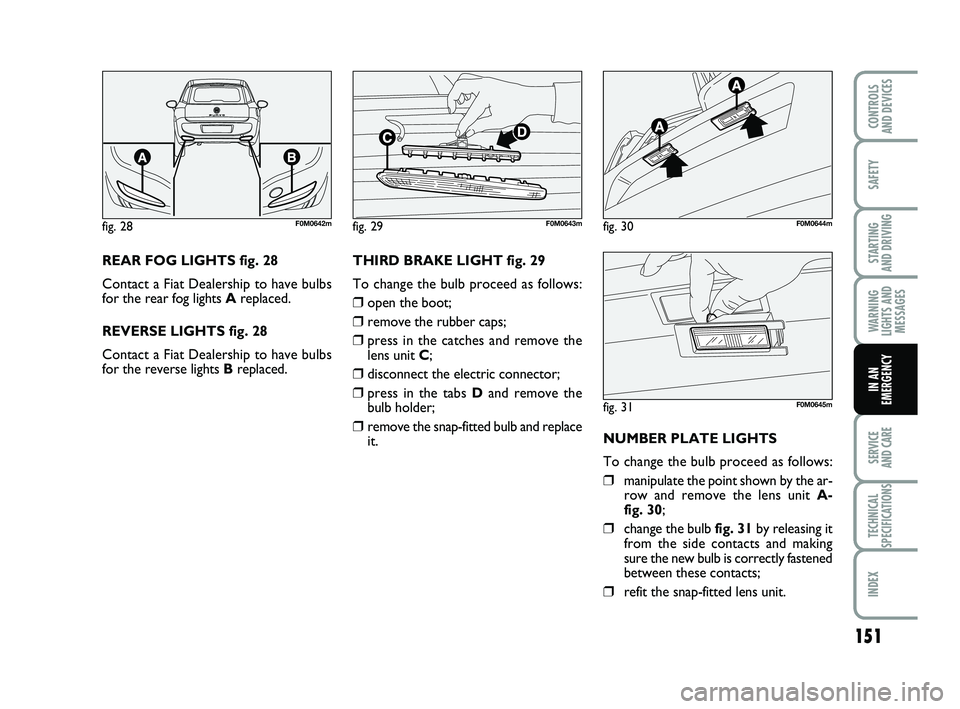

REAR FOG LIGHTS fig. 28
Contact a Fiat Dealership to have bulbs
for the rear fog lights Areplaced.
REVERSE LIGHTS fig. 28
Contact a Fiat Dealership to have bulbs
for the reverse lights B replaced.THIRD BRAKE LIGHT fig. 29
To change the bulb proceed as follows:
❒open the boot;
❒remove the rubber caps;
❒press in the catches and remove the
lens unit
C;
❒disconnect the electric connector;
❒press in the tabs Dand remove the
bulb holder;
❒remove the snap-fitted bulb and replace
it. NUMBER PLATE LIGHTS
To change the bulb proceed as follows:
❒manipulate the point shown by the ar-
row and remove the lens unit
A-
fig. 30;
❒change the bulb fig. 31 by releasing it
from the side contacts and making
sure the new bulb is correctly fastened
between these contacts;
❒refit the snap-fitted lens unit.
fig. 28F0M0642mfig. 29F0M0643mfig. 30F0M0644m
fig. 31F0M0645m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 151

210
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Follow Me Home (device) .......... 48
Front a irbags .................................. 103
Front roof lights – bulb replace ment .................... 152
– control ...................................... 51
Fuel cut-off system ....................... 55
Fuel flap ........................................... 89
Fuel gauge ....................................... 15
Fuel tank cap ................................ 89
Fuel – fuel cut-off system .................. 55
– gauge ......................................... 15
Fuses (replacement) ..................... 153
Gearbox
– using the manual gearbox ..... 114
Glove bo x ...................................... 57
Glove compart ment ..................... 56
Glove compart ments ................... 56
Handbrake .................................... 114
Hazard lights .................................. 53
Head restraints ............................. 34
Headlights ....................................... 70
– Adjusting headlights abroad... 71
– beam orie ntation..................... 70 – headlight alignment
corrector ................................... 70
Heated rear win dow ......... 40-45-54
Heating and vent ilation ................ 37
Heating/ventilati on system ......... 37
Hill Holder system ....................... 74
Hydraulic Brake Assist ................ 74
Identification data ......................... 186
In an emer gency ............................ 133
Installing the tow hook ................ 117
Instrument panel ........................... 13
Interior fittings .............................. 56
Interior ............................................. 184
Jack .................................................. 137
Key with remote control ........... 8
– Replacing the battery of the key with remote control ...... 9
– Replacing the cover of the remote control ....................... 9
Key without rem ote control....... 10
Keys ................................................. 8
Levels ............................................. 172
Load limiters .................................. 94
Luggage compart ment ................. 65
– extension ................................... 66
Electric win dows........................... 63
Emergency rear door locking de vice .............................. 62
Engine .............................................. 189
– identification c ode ..................188
– marking ..................................... 187
– specifications ............................ 189
Engine compa rtment..................... 172
Engine coolan t gauge ................... 15
Engine coolan t level ..................... 175
Engine oil level ............................... 174
Engine oil – checking th e level ................... 174
– consumpt ion ............................ 174
– technical specifications .......... 200
EOBD (system) ............................. 76
ESP (system) .................................. 73
Exterior lights ................................ 47
Fiat CODE (system) ................... 6
Fire exting uisher ........................... 59
Fix&Go autom atic ........................ 140
Flashing the h eadlights ................. 47
Fluids and lubricants ..................... 200
Fog lights – bulb replace ment .................... 149
– control button ......................... 53
207-214 PUNTO POP 1ed EN 31/03/14 09:59 Pagina 210

211
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Power stee ring ......................... 54-77
Pretensioners ................................ 94
Prolonged car inactivit y ............... 120
Protecting the environment ........ 89
Radio .............................................. 79
Radio transmitters and mobile phones .......................................... 87
Raising th e car ............................... 163
Rear fog lights – bulb replace ment .................... 150
– control button .......................... 52
Rear view mirrors – exterior ..................................... 36
– interior ...................................... 35
Rear window washer – control ...................................... 50
Rear window wiper – blades .......................................... 181
– control ...................................... 50
– nozzle s........................................ 182
Refuelling ........................................ 88
Removing the pa rcel shelf ........... 67
Rev coun ter ................................... 14
Reverse light .................................. 150 Rim protector
tyres...................... 193
Roof rack/ski rack.......................... 69
Rubber hoses ................................. 180
Safety .............................................. 91
SBR system .................................... 93
Seat adjustment ............................. 32
Seat belts – general warnings ..................... 95
– load limiters ............................. 94
– maintenance .............................. 96
– use .............................................. 92
Seats – adjustment ................................ 32
– cleaning ..................................... 184
– tipping (rear seats) ................. 33
Servicing and care ......................... 165
– Periodic checks ........................ 171
– Scheduled servicing ................ 166
– Scheduled servicing pla n ................. 167-170
– Demanding use of the car...... 171
Side airbags .................................... 106
Side/taillights – control ...................................... 47
– front bulb repla cement .......... 147
– rear bulb repla cement ........... 149
– opening and closing
the tailgate................................. 65
– opening the tailgate in an emergency ................................ 65Main beam headlights
– bulb replace ment .................... 148
– control ...................................... 47
– flashing ....................................... 47
Manual climate control system ... 41
Mechanical Brake Assist ............... 72
Multifunction display .................... 21
– ignition switch ............................ 12
Number plate lights .................... 151
On-board instruments ................ 14
Paint ................................................ 182
Parking ............................................ 114
Parking lig hts .................................. 54
Particulate filter ............................. 90
Passenger compartment air ven ts ........................................ 38
Passenger compartment ventilati on .................................... 37
Performance .................................. 195
Pollen filter ..................................... 177
Power socket ................................ 59
207-214 PUNTO POP 1ed EN 31/03/14 09:59 Pagina 211
