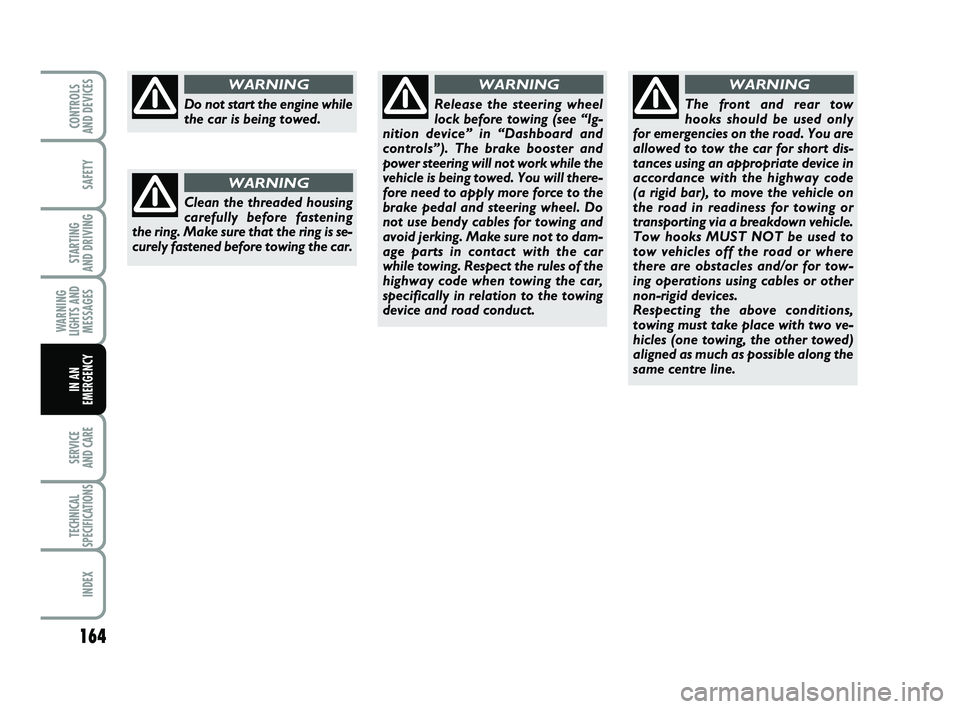

Do not start the engine while
the car is being towed.
WARNING
Clean the threaded housing
carefully before fastening
the ring. Make sure that the ring is se-
curely fastened before towing the car.
WARNING
Release the steering wheel
lock before towing (see “Ig-
nition device” in “Dashboard and
controls”). The brake booster and
power steering will not work while the
vehicle is being towed. You will there-
fore need to apply more force to the
brake pedal and steering wheel. Do
not use bendy cables for towing and
avoid jerking. Make sure not to dam-
age parts in contact with the car
while towing. Respect the rules of the
highway code when towing the car,
specifically in relation to the towing
device and road conduct.
WARNING
The front and rear tow
hooks should be used only
for emergencies on the road. You are
allowed to tow the car for short dis-
tances using an appropriate device in
accordance with the highway code
(a rigid bar), to move the vehicle on
the road in readiness for towing or
transporting via a breakdown vehicle.
Tow hooks MUST NOT be used to
tow vehicles off the road or where
there are obstacles and/or for tow-
ing operations using cables or other
non-rigid devices.
Respecting the above conditions,
towing must take place with two ve-
hicles (one towing, the other towed)
aligned as much as possible along the
same centre line.
WARNING
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 164

165
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
SCHEDULED SERVICING ................................................. 166
SCHEDULED SERVICING PLAN ..................................... 167
REGULAR CHECKS ............................................................ 171
DEMANDING USE OF THE CAR ................................... 171
CHECKING LEV ELS ............................................................ 172
AIR FILTER .......................................................................\
..... 177
POLLEN FILT ER ................................................................... 177
BATTERY ........................................................................\
....... 177
WHEELS AND TYRES ........................................................ 179
RUBBER TU BES .................................................................... 180
WINDSCREEN/REAR WINDOW WIPERS .................. 180
BODYWORK ....................................................................... 182
INTERIOR .......................................................................\
....... 184
S
S
E
E
R
R
V
V
I
I
C
C
E
E


A
A
N
N
D
D


C
C
A
A
R
R
E
E
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 165

166
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
Scheduled Servicing is offered by all Fiat
Dealerships according to fixed time or
kilometres/miles intervals.
If, during each operation, in addition to
the ones scheduled, the need arises for
further replacements or repairs, these
may be carried out only with your explicit
agreement. If your car is used frequent-
ly for towing, the interval between one
service operation and the next should be
reduced. IMPORTANT INFORMATION
The Scheduled Servicing services are set
out by the Manufacturer. Failure to have
them carried out may invalidate the war-
ranty.
It is advisable to inform a Fiat Dealership
of any small operating irregularities with-
out waiting for the following servicing.
For versions equipped with specific fuel
supply and/or trim level (e.g. LPG, Dua-
logic), in addition to what is described in
the following Scheduled Servicing Plan,
refer to the relevant additional items in
the dedicated supplements. SCHEDULED SERVICING
Correct servicing is crucial for guaran-
teeing a long life for the car under the
best conditions.
For this reason, Fiat has planned a series
of checks and services at fixed distance
intervals and, for versions/markets,
where provided, at fixed time intervals,
as described in the Scheduled Servicing
Plan.
Regardless of the above, it is always nec-
essary to carefully follow the instructions
in the Scheduled Servicing Plan (e.g. pe-
riodically check level of liquids, tyre pres-
sure, etc.).
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 166

167
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years 1234 56 7 8910
Check tyre condition/wear and adjust pressure, if necessary; check “F\
ix&Go Automatic” kit recharge expiry date (for versions/markets, where pro\
vided)●●●● ●● ●●● ●
Check operation of lighting system (headlights, direction indicators, h\
azard
warning lights, luggage compartment, passenger compartment, glove compar\
tment,
instrument panel warning lights, etc.)●●●● ●● ●●● ●
Check and, if necessary, top up fluid levels (engine coolant, hydraulic brakes/clutch, screen washer, battery, etc.)\
●●●● ●● ●●● ●
Check exhaust emissions/smokiness●●●● ●● ●●● ●
Use the diagnosis socket to check supply/engine management system operat\
ion, emissions and, for versions/markets, where provided, engine oil degradat\
ion●●●● ●● ●●● ●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel system,
brakes), rubber elements (boots, sleeves, bushes, etc.)●● ●●●
Check windscreen/rear window wiper blade position/wear●● ●●●
Check operation of windscreen washer system and adjust jets if necessary●● ●●●
Check cleanliness of bonnet and boot locks, as well as cleanliness and lubrication of linkages●● ●●●
Check handbrake lever travel and adjust, if required●● ●●●
Visually inspect condition and wear of front/rear disc brake pads (for \
versions/markets, where provided) and operation of pad wear indicator●●●● ●● ●●● ●
SCHEDULED SERVICING PLAN
PETROL VERSIONS
The checks listed in the Scheduled Servicing Plan, after reaching 120,00\
0 km/8 years, must be cyclically repeated starting from
the first interval, thus following the same intervals as before.
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 167

168
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years 1234 56 7 8910
Visually inspect rear drum brake lining condition and wear●●●● ●● ●●● ●
Visually inspect condition of the accessory drive belt(s)●
Visually inspect condition and tensioning of accessory drive belt(s) (for versions without automatic tensioner only)●●
Visually inspect the condition of toothed timing drive belt●
Check tappet clearance and adjust, if necessary (1.2 8v - 1.4 8v versio\
ns)
Check manual gearbox oil level●●
Change engine oil and oil filter (1)●●● ●●
Replace spark plugs ●●● ●●
Replace accessory drive belt(s) (2)●
Replace toothed timing belt (2)●
Replace air cleaner cartridge (3) ●●● ●●
Replace brake fluid●●● ●●
Replace passenger compartment filter (3) ❍●❍●❍●❍●❍●
(1) If the vehicle is used mainly around town or the annual km is less\
than 10,000 km, the engine oil and engine oil filter mus t be changed
every year.
(2) Areas that are not dusty: advised maximum mileage 120,000 km. Rega\
rdless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the car (cold climates, town use, l\
ong periods of idling): advised maximum mileage 60,000 km.
Regardless of the mileage, the belt must be replaced every 4 years.
(3) If the car is used in dusty areas, this cleaner must be replaced every 1\
5,000 km.
(
❍) Recommended operations.
(
●) Mandatory operations.
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 168

169
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
Thousands of miles 12 24 36 48 60 72 80 92 104 116
Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years 1234 567 8910
Check tyre condition/wear and adjust pressure, if necessary;
check “Fix&Go Automatic” kit recharge expiry date
(for versions/markets, where provided)●●●● ●● ●●●●
Check operation of lighting system (headlights, direction indicators, h\
azard
warning lights, luggage compartment, passenger compartment, glove compar\
tment,
instrument panel warning lights, etc.)●●●● ●● ●●●●
Check and, if necessary, top up fluid levels (engine coolant, hydraulic brakes/clutch, screen washer, battery, etc.)\
●●●● ●● ●●●●
Check exhaust emissions/smokiness●●●● ●● ●●●●
Use the diagnosis socket to check supply/engine management system operat\
ion, emissions and, for versions/markets, where provided, engine oil degradat\
ion●●●● ●● ●●●●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust,
fuel system, brakes), rubber elements (boots, sleeves, bushes, etc.)●●●●●
Check windscreen/rear window wiper blade position/wear●●●●●
Check operation of windscreen washer system and adjust jets if necessary●●●●●
Check cleanliness of bonnet and luggage compartment locks, cleanliness and lubrication of linkages●● ● ●●
Check handbrake lever travel and adjust, if required●● ● ●●
DIESEL VERSIONS
The checks listed in the Scheduled Servicing Plan, after reaching 120,00\
0 km/6 years, must be cyclically repeated starting from
the first interval, thus following the same intervals as before.
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 169

170
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE

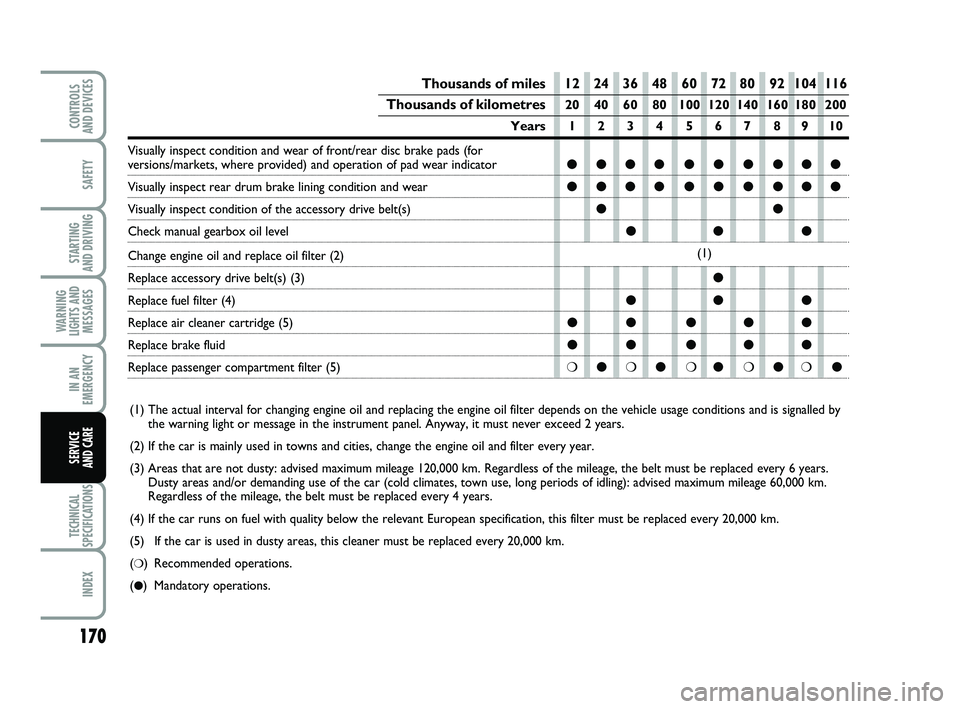

Thousands of miles 12 24 36 48 60 72 80 92 104 116
Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years 1234 567 8910
Visually inspect condition and wear of front/rear disc brake pads (for \
versions/markets, where provided) and operation of pad wear indicator●●●● ●● ●●●●
Visually inspect rear drum brake lining condition and wear●●●● ●● ●●●●
Visually inspect condition of the accessory drive belt(s)●●
Check manual gearbox oil level●● ●
Change engine oil and replace oil filter (2)
Replace accessory drive belt(s) (3) ●
Replace fuel filter (4)●● ●
Replace air cleaner cartridge (5) ●● ●●●
Replace brake fluid ●● ●●●
Replace passenger compartment filter (5) ❍●❍●❍●❍●❍●
(1) The actual interval for changing engine oil and replacing the engi\
ne oil filter depends on the vehicle usage conditions and is signalled by
the warning light or message in the instrument panel. Anyway, it must ne\
ver exceed 2 years.
(2) If the car is mainly used in towns and cities, change the engine o\
il and filter every year.
(3) Areas that are not dusty: advised maximum mileage 120,000 km. Rega\
rdless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the car (cold climates, town use, l\
ong periods of idling): advised maximum mileage 60,000 km.
Regardless of the mileage, the belt must be replaced every 4 years.
(4) If the car runs on fuel with quality below the relevant European s\
pecification, this filter must be replaced every 20,000 k m.
(5) If the car is used in dusty areas, this cleaner must be replaced every 2\
0,000 km.
(
❍) Recommended operations.
(
●) Mandatory operations.
(1)
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 170

171
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
DEMANDING USE
OF THE CAR
Should the car be used predominantly in
one of the following particularly demand-
ing conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short (less than 7-8 km) and repeated journeys in sub-zero temperatures;
❒ frequently idling engine or long-dis- tance, low-speed driving (e.g. door-to-
door deliveries) or lengthy inactivity;
you should perform the following inspec-
tions more frequently than shown on the
Scheduled Servicing Plan:
❒ check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and bootlocks, and cleanliness and lubrication of
linkages;
❒ visually inspect the conditions of: en- gine, gearbox, transmission, pipes and
tubes (exhaust – fuel – brakes), rubber
parts (boots, sleeves, bushes, etc.);
❒check battery charge and liquid level(electrolyte);
❒visually inspect the condition of the ac-cessory drive belts;
❒check pollen filter and replace, if re-
quired;
❒check air filter and replace, if required.
REGULAR CHECKS
Every 1,000 km or before long journeys,
check and, if necessary, top up:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer level;
❒tyre pressure and conditions.
❒operation of lights (headlights, directionindicators, hazard lights, etc.);
❒operation of the windscreen wiper/
washer system, position and wear of
the windscreen and rear window wiper
blades;
Every 3,000 km, check and top up, if re-
quired, the engine oil level.
You are recommended to use PETRONAS
LUBRICANTS products, which have been
designed and produced specifically for
Fiat cars (see table “Capacities” in the
“Technical specifications” section).
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 171

172
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
CHECKING LEVELS
fig. 1 - 1.2 (Euro 4) and 1.4 8Vversions
Never smoke while working
in the engine compartment:
inflammable gases and vapours may
be present, constituting a fire risk.
WARNING
When topping up, take care
not to confuse the various
types of fluids: they are not
interchangeable and could se-
riously damage the car.
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
F0M0649m
fig. 2 - 1.2 (Euro 5) versionsF0M0650m
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 172

173
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE

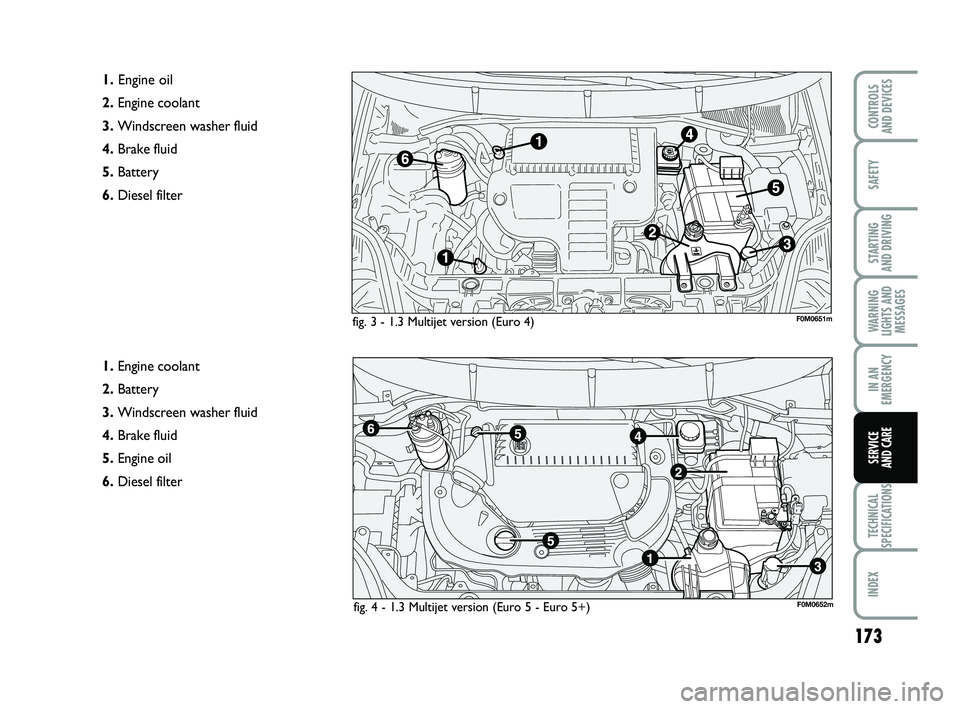

fig. 3 - 1.3 Multijet version (Euro 4)
1. Engine oil
2. Engine coolant
3. Windscreen washer fluid
4. Brake fluid
5. Battery
6. Diesel filter
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
6. Diesel filter
F0M0651m
fig. 4 - 1.3 Multijet version (Euro 5 - Euro 5+)F0M0652m
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 173
