technical specifications FIAT PUNTO 2021 Owner handbook (in English)

184
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE

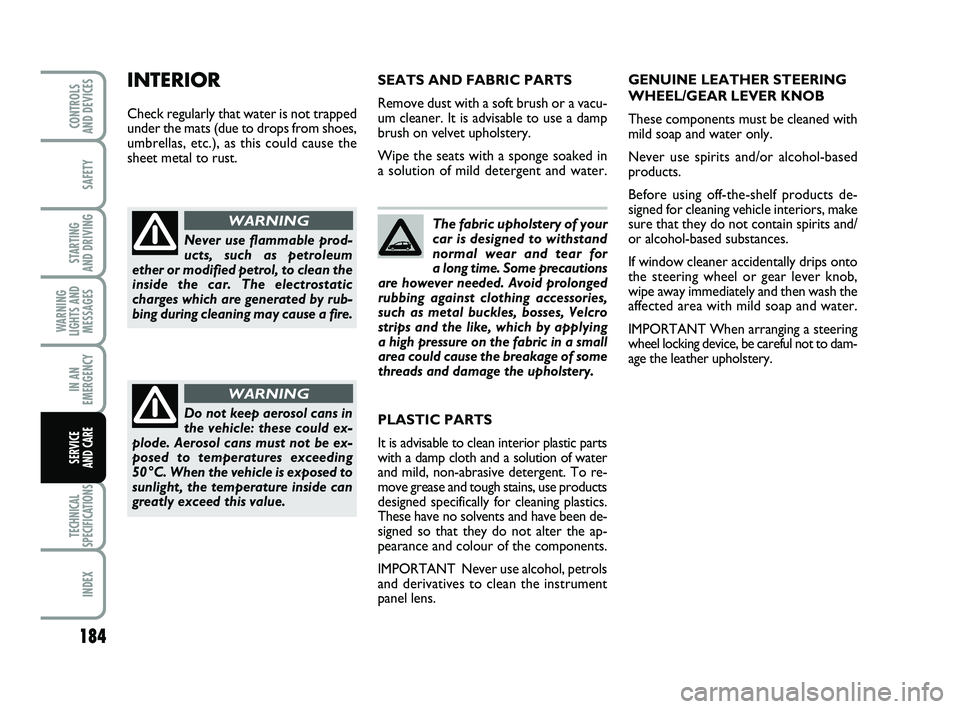

The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precautions
are however needed. Avoid prolonged
rubbing against clothing accessories,
such as metal buckles, bosses, Velcro
strips and the like, which by applying
a high pressure on the fabric in a small
area could cause the breakage of some
threads and damage the upholstery.
SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacu-
um cleaner. It is advisable to use a damp
brush on velvet upholstery.
Wipe the seats with a sponge soaked in
a solution of mild detergent and water.
Never use flammable prod-
ucts, such as petroleum
ether or modified petrol, to clean the
inside the car. The electrostatic
charges which are generated by rub-
bing during cleaning may cause a fire.
WARNING
Do not keep aerosol cans in
the vehicle: these could ex-
plode. Aerosol cans must not be ex-
posed to temperatures exceeding
50 °C. When the vehicle is exposed to
sunlight, the temperature inside can
greatly exceed this value.
WARNING
INTERIOR
Check regularly that water is not trapped
under the mats (due to drops from shoes,
umbrellas, etc.), as this could cause the
sheet metal to rust. GENUINE LEATHER STEERING
WHEEL/GEAR LEVER KNOB
These components must be cleaned with
mild soap and water only.
Never use spirits and/or alcohol-based
products.
Before using off-the-shelf products de-
signed for cleaning vehicle interiors, make
sure that they do not contain spirits and/
or alcohol-based substances.
If window cleaner accidentally drips onto
the steering wheel or gear lever knob,
wipe away immediately and then wash the
affected area with mild soap and water.
IMPORTANT When arranging a steering
wheel locking device, be careful not to dam-
age the leather upholstery.
PLASTIC PARTS
It is advisable to clean interior plastic parts
with a damp cloth and a solution of water
and mild, non-abrasive detergent. To re-
move grease and tough stains, use products
designed specifically for cleaning plastics.
These have no solvents and have been de-
signed so that they do not alter the ap-
pearance and colour of the components.
IMPORTANT Never use alcohol, petrols
and derivatives to clean the instrument
panel lens.
165-184 PUNTO POP 1ed EN 07/04/14 09:35 Pagina 184

185
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 186
ENGINE CODES – BODY WORK VERSIONS ............. 188
ENGINE ........................................................................\
.......... 189
FUEL SUPPLY ......................................................................\
.. 190
TRANSMISSION .................................................................. 190
BRAKES .......................................................................\
........... 191
SUSPENSIO NS .....................................................................\
. 191
STEERING SYSTEM ............................................................. 191
WHEELS ........................................................................\
......... 192
PERFORMANCES ................................................................ 195
DIMENSIONS .......................................................................\
196
WEIGHTS ........................................................................\
...... 197
CAPACIT IES ........................................................................\
.. 199
FLUIDS AND LU BRICANTS ............................................. 200
FUEL CONSUMPT ION ...................................................... 202
CO
2EMISSIONS .................................................................. 203
T
T
E
E
C
C
H
H
N
N
I
I
C
C
A
A
L
L


S
S
P
P
E
E
C
C
I
I
F
F
I
I
C
C
A
A
T
T
I
I
O
O
N
N
S
S
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 185

186
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
VIN PLATE fig. 1
The plate can be found on the left side of
the boot floor and it bears the following
identification data:
B Type-approval number.
C Vehicle type code.
D Chassis number.
E Maximum vehicle weight fully loaded.
F Maximum vehicle weight fully loaded
with trailer.
G Maximum weight on front axle. H
Maximum weight on rear axle.
I Engine type.
L Body version code.
M Number for spare parts.
N Correct smoke opacity index (for
diesel engines).
IDENTIFICATION DATA
We recommend taking note of the iden-
tification codes. The following identifica-
tion codes are printed and shown on the
plates:
❒Vehicle identification number (VIN)
plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
fig. 1F0M0368m
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 186

187
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

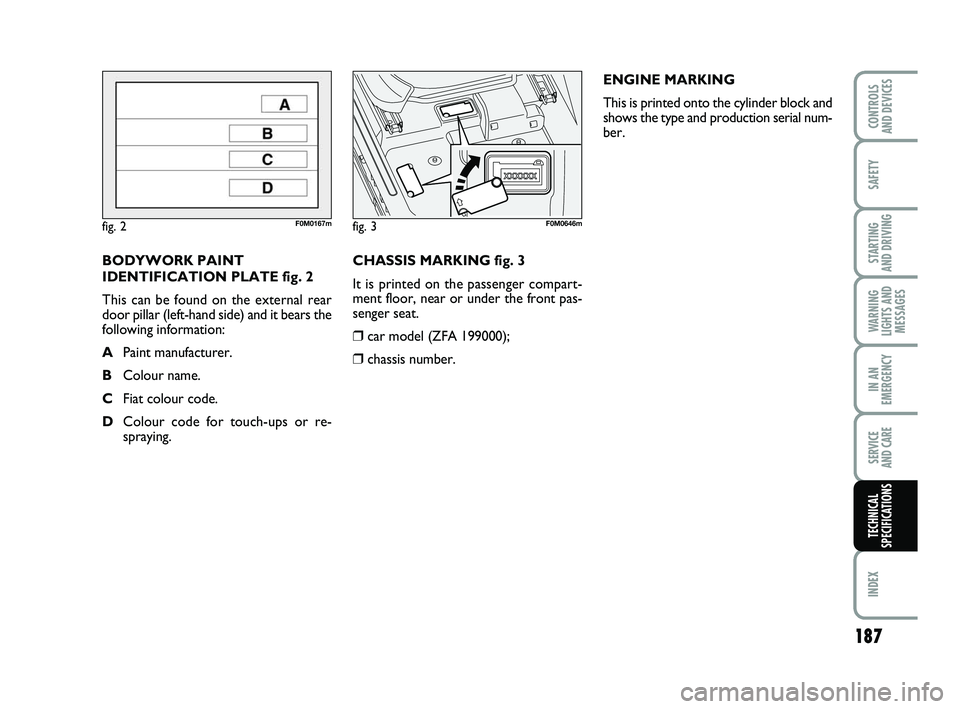

CHASSIS MARKING fig. 3
It is printed on the passenger compart-
ment floor, near or under the front pas-
senger seat.
❒car model (ZFA 199000);
❒chassis number. ENGINE MARKING
This is printed onto the cylinder block and
shows the type and production serial num-
ber.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 2
This can be found on the external rear
door pillar (left-hand side) and it bears the
following information:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Colour code for touch-ups or re-
spraying.
fig. 2F0M0167mfig. 3F0M0646m
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 187

188
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

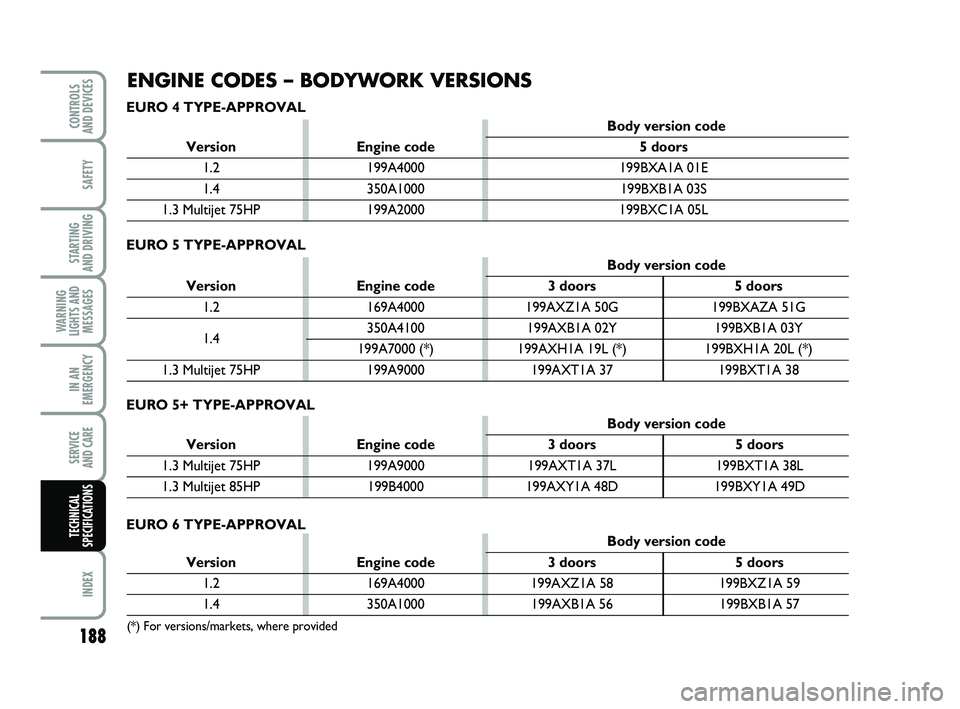

ENGINE CODES – BODYWORK VERSIONS
EURO 4 TYPE-APPROVAL
EURO 6 TYPE-APPROVAL
EURO 5+ TYPE-APPROVAL
Body version code
Version Engine code 3 doors5 doors
1.2169A4000199AXZ1A 58 199BXZ1A 59
1.4350A1000 199AXB1A 56 199BXB1A 57
(*) For versions/markets, where provided
Body version code
VersionEngine code 5 doors
1.2199A4000 199BXA1A 01E
1.4350A1000 199BXB1A 03S
1.3 Multijet 75HP199A2000 199BXC1A 05L
Body version code
VersionEngine code 3 doors5 doors
1.3 Multijet 75HP 199A9000199AXT1A 37L 199BXT1A 38L
1.3 Multijet 85HP 199B4000199AXY1A 48D 199BXY1A 49D
EURO 5 TYPE-APPROVAL
Body version code
VersionEngine code 3 doors5 doors
1.2169A4000199AXZ1A 50G 199BXAZA 51G
350A4100199AXB1A 02Y 199BXB1A 03Y1.4
199A7000 (*) 199AXH1A 19L (*) 199BXH1A 20L (*)
1.3 Multijet 75HP 199A9000199AXT1A 37 199BXT1A 38
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 188

189
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

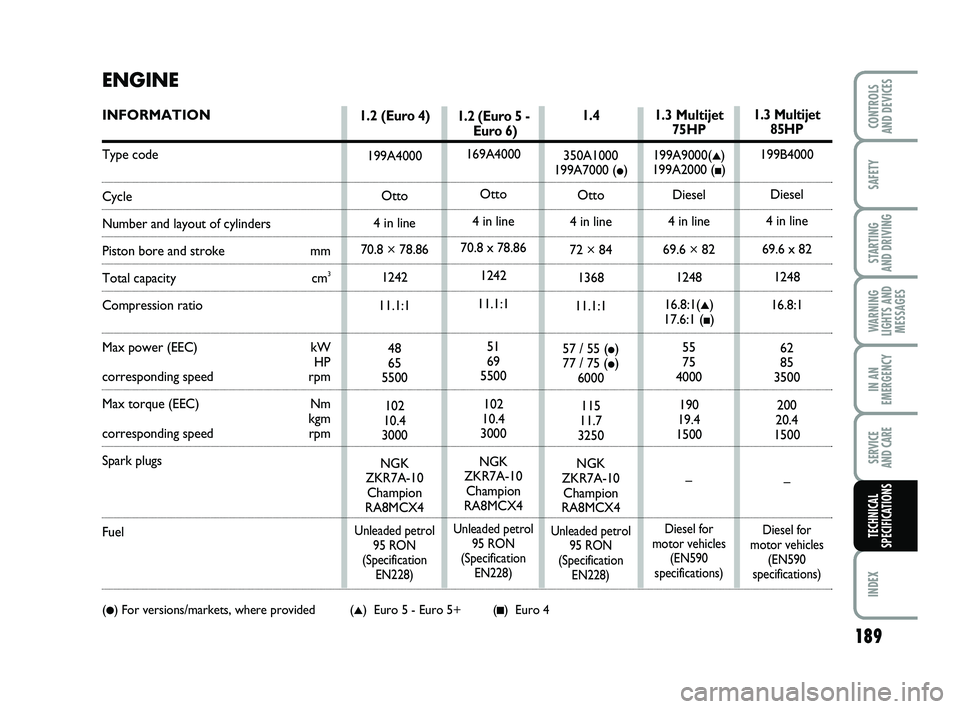

ENGINE
INFORMATION
Type code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total capacity cm3
Compression ratio
Max power (EEC) kW
HP
corresponding speed rpm
Max torque (EEC) Nm
kgm
corresponding speed rpm
Spark plugs
Fuel
(●) For versions/markets, where provided (▲) Euro 5 - Euro 5+ (■) Euro 4
1.3 Multijet 75HP
199A9000(▲)
199A2000 (■)
Diesel
4 in line
69.6 × 82 1248
16.8:1(
▲)
17.6:1 (■)
55
75
4000
190
19.4
1500
–
Diesel for
motor vehicles (EN590
specifications)
1.4
350A1000
199A7000 (●)
Otto
4 in line
72 × 84 1368
11.1:1
57 / 55 (
●)
77 / 75 (●)
6000
115
11.7
3250
NGK
ZKR7A-10 Champion
RA8MCX4
Unleaded petrol 95 RON
(Specification EN228)
1.2 (Euro 4)
199A4000
Otto
4 in line
70.8 × 78.86
1242
11.1:1
48
65
5500
102
10.4
3000
NGK
ZKR7A-10 Champion
RA8MCX4
Unleaded petrol 95 RON
(Specification EN228)
1.3 Multijet 85HP
199B4000
Diesel
4 in line
69.6 x 82 1248
16.8:1
62
85
3500
200
20.4
1500
–
Diesel for
motor vehicles (EN590
specifications)
1.2 (Euro 5 - Euro 6)
169A4000
Otto
4 in line
70.8 x 78.86
1242
11.1:1
51
69
5500
102
10.4
3000
NGK
ZKR7A-10 Champion
RA8MCX4
Unleaded petrol 95 RON
(Specification EN228)
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 189

190
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

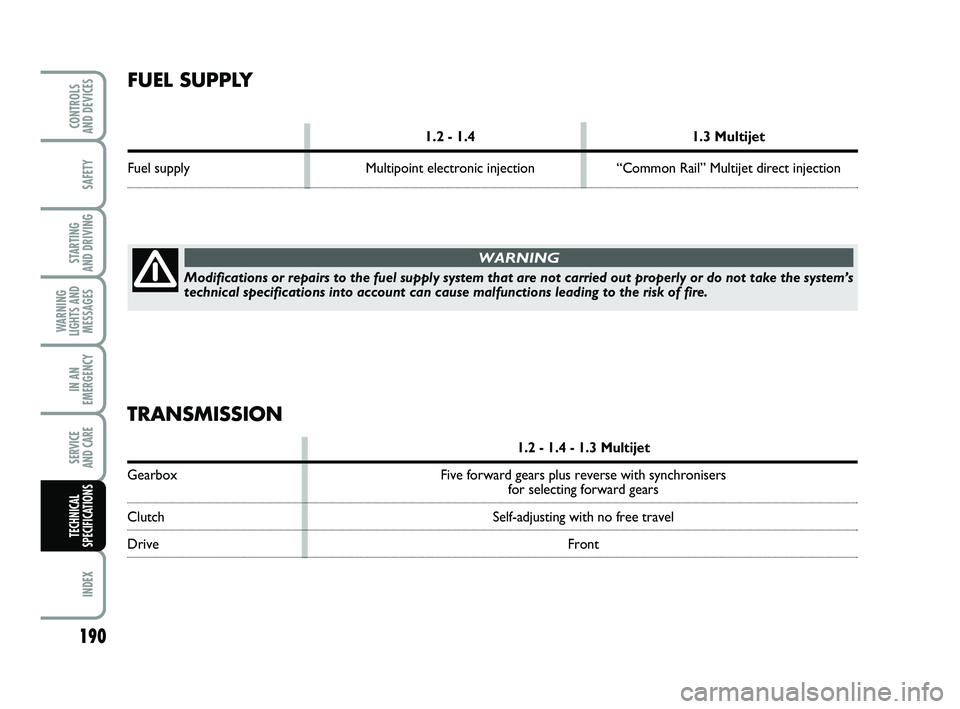

FUEL SUPPLY
1.2 - 1.4 1.3 Multijet
Fuel supply Multipoint electronic injection “Common Rail” Multijet direct injection
Modifications or repairs to the fuel supply system that are not carried \
out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to \
the risk of fire.
WARNING
TRANSMISSION
1.2 - 1.4 - 1.3 Multijet
Gearbox Five forward gears plus reverse with synchronisersfor selecting forward gears
Clutch Self-adjusting with no free travel
Drive Front
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 190

torsion beam with interconnected wheels
191
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
BRAKES
1.2 - 1.4 - 1.3 Multijet
Service brakes:
– front disc (self-ventilating for versions/markets, where provided)
– rear drum
Parking brakecontrolled by hand lever, acting on rear brakes
IMPORTANT Water, ice and salt on the roads may deposit on the brake disc\
s, reducing braking efficiency the first time the brake s
are applied.
STEERING SYSTEM
1.2 - 1.4 - 1.3 Multijet
Type rack and pinion with electric power steering
Turning circle
(kerb to kerb) m 10,9
Independent wheel McPherson-typeIndependent wheel McPherson-type
with anti-roll bar
SUSPENSION
1.2 1.4 - 1.3 Multijet
Front
Rear
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 191

192
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

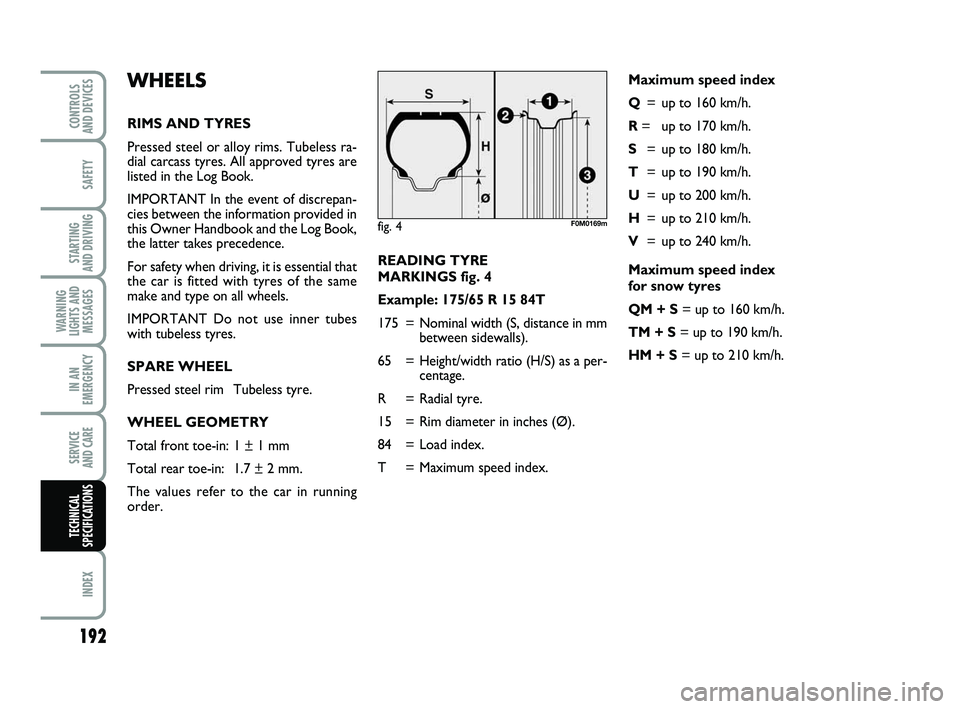

Maximum speed index
Q = up to 160 km/h.
R = up to 170 km/h.
S = up to 180 km/h.
T = up to 190 km/h.
U = up to 200 km/h.
H = up to 210 km/h.
V = up to 240 km/h.
Maximum speed index
for snow tyres
QM + S = up to 160 km/h.
TM + S = up to 190 km/h.
HM + S = up to 210 km/h.WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided in
this Owner Handbook and the Log Book,
the latter takes precedence.
For safety when driving, it is essential that
the car is fitted with tyres of the same
make and type on all wheels.
IMPORTANT Do not use inner tubes
with tubeless tyres.
SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Total front toe-in: 1 ± 1 mm
Total rear toe-in: 1.7 ± 2 mm.
The values refer to the car in running
order.
fig. 4F0M0169m
READING TYRE
MARKINGS fig. 4
Example: 175/65 R 15 84T
175 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) as a per- centage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
84 = Load index.
T = Maximum speed index.
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 192

193
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

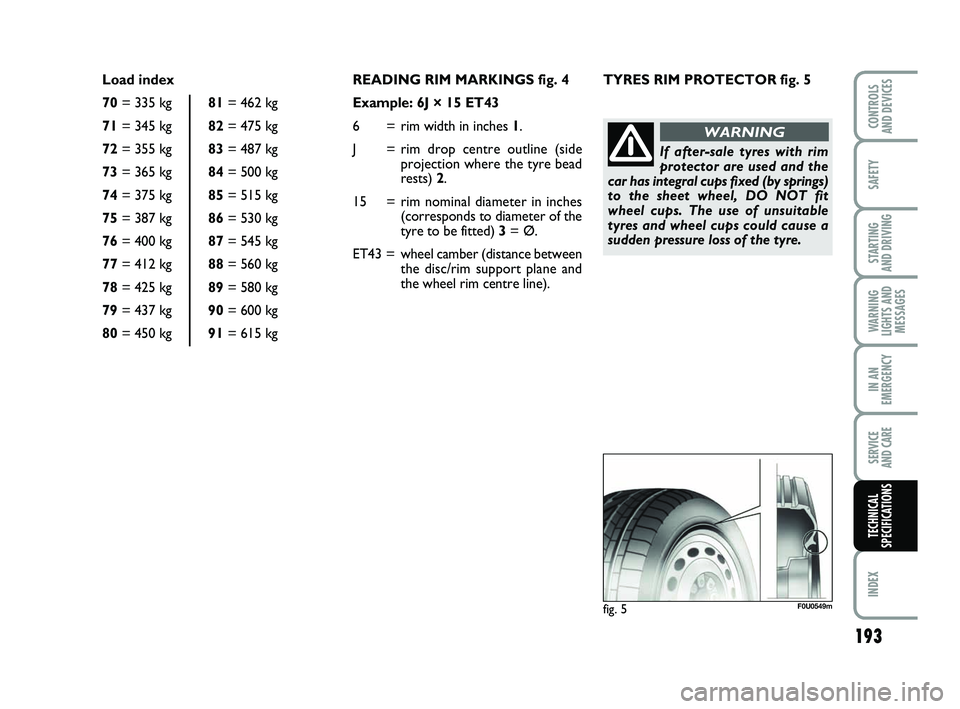

READING RIM MARKINGS fig. 4
Example: 6J × 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches (corresponds to diameter of the
tyre to be fitted) 3= Ø.
ET43 = wheel camber (distance between the disc/rim support plane and
the wheel rim centre line).
Load index
70
= 335 kg 81= 462 kg
71 = 345 kg 82= 475 kg
72 = 355 kg 83= 487 kg
73 = 365 kg 84= 500 kg
74 = 375 kg 85= 515 kg
75 = 387 kg 86= 530 kg
76 = 400 kg 87= 545 kg
77 = 412 kg 88= 560 kg
78 = 425 kg 89= 580 kg
79 = 437 kg 90= 600 kg
80 = 450 kg 91= 615 kg TYRES RIM PROTECTOR fig. 5
fig. 5F0U0549m
If after-sale tyres with rim
protector are used and the
car has integral cups fixed (by springs)
to the sheet wheel, DO NOT fit
wheel cups. The use of unsuitable
tyres and wheel cups could cause a
sudden pressure loss of the tyre.
WARNING
185-206 PUNTO POP 1ed EN 24/03/14 13:52 Pagina 193
