HEATED REAR WINDOW fig. 49
Press button A to activate. The device will
be switched off automatically after ap-
proximately 20 minutes.
fig. 49F0M0036m
PARKING LIGHTS
These lights can be turned on, only with
the key turned to STOPor removed, by
turning the twist switch on the left stalk
first to O and then to
6or 2.
The
3light on the instrument panel
comes on.
DUALDRIVE ELECTRIC POWER
STEERING SYSTEM fig. 48
Press button A to activate the “CITY”
function (see the “Electric power steering
system” paragraph in this section). When
the function is active, the word CITY is
lit up on the instrument panel. Press the
button again to deactivate the function.
fig. 48F0M0617m
REAR FOG LAMPS fig. 47
Press button 4to turn these lights on
with the dipped beam headlights or the
front fog lights (for versions/markets,
where provided) switched on.
The 4light on the instrument panel will
come on.
Press the button again to turn the lights
off or turn off the dipped beam headlights
and/or the front fog lights (for versions/
markets, where provided).
The use of rear fog lamps is governed by
the highway code of the country you are
in. Keep to the rules.
fig. 47F0M0071m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 54

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Door unlocking in the event of
a crash
If the fuel cut-off switch trips following an
accident, the doors will be automatically
unlocked to allow access to the passenger
compartment and the ceiling lights will be
switched on at the same time. The doors
can always be opened from the inside of
the car by using the appropriate controls.
if no fuel leakage is found and the car is
roadworthy, ensure the correct operation
of the vehicle by adhering to the following
instructions.
DOOR LOCKING fig. 50
To lock all doors at the same time, press
button
A, located on the central console
control panel, regardless of the position
of the ignition key.FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒cut-off of fuel supply with consequent switching off of the engine;
❒automatic door unlocking;
❒switching on of all interior lights.
When the system has been triggered, the
message “Fuel cut off, see handbook” is
displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, un-
der the car or near the tank area.
After a crash, turn the key to STOP to
avoid draining the battery.fig. 50F0M0618m
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reactivate the sys-
tem to avoid the risk of fire.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 55

56
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
fig. 52F0M0077m
fig. 51F0M0104m
fig. 53F0M0078m
INTERIOR FITTINGS
GLOVE BOX fig. 51-52
Use the handle to open the compartment
A-fig. 51.
Inside the compartment there is a space
A-fig. 52 to keep documents (for ver-
sions/markets, where provided).
GLOVE COMPARTMENTS
glove compartment A-fig. 53 is located in
the dashboard, on the left of the steering
wheel.
The following procedure should be car-
ried out to restore the correct operation
of the vehicle:❒turn the ignition key to
MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the key to STOP;
❒turn the ignition key to MAR.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 56

57
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
DOOR POCKETS fig. 56
There are document/map pockets locat-
ed in each of the door panels. FRONT ARMREST WITH
GLOVE COMPARTMENT
(for versions/markets, where provided)
Certain versions are fitted with an arm-
rest
A-fig. 67 between the front seats.
To use it as an armrest, push it down as
shown in fig. 57.
Press button A-fig. 58 to raise the upper
part of the arm and access compartment
B . Operate lever C to lower the angle
of the armrest.
fig. 54F0M0619m
fig. 55F0M0080mfig. 57F0M0225m
fig. 58F0M0245mfig. 56F0M0081m
Glove compartment B-fig. 54 is located
in the middle of the dashboard.
Glove compartment Bcan be removed to
install a sound system.
CENTRAL CONSOLE GLOVE
COMPARTMENT
Compartment A-fig. 55is located on the
central console in front of the handbrake.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 57

58
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CIGARETTE LIGHTER fig. 62
This is located on the central console in
front of the handbrake.
Press button A to activate the cigarette
lighter with ignition key at MAR.
After about 15 seconds the button will
return to its original position and the cig-
arette lighter is ready for use.
IMPORTANT Always check that the cig-
arette lighter has turned itself off.
fig. 62F0M0084m
The cigarette lighter gets
very hot. Handle it carefully
and make sure children don’t touch
it: risk of fire and/or burning.
WARNING
CUP HOLDERS – CAN HOLDERS
fig. 59-60
There are two cup/can holders in front of
the handbrake and one behind it on the
central console. CARD HOLDER – CD HOLDER
fig. 61
The central console features slots for te
-
lephone cards CDs, magnetic cards or
motorway toll tickets.
fig. 59F0M0082mfig. 61F0M0083m
fig. 60F0M0118m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 58

59
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

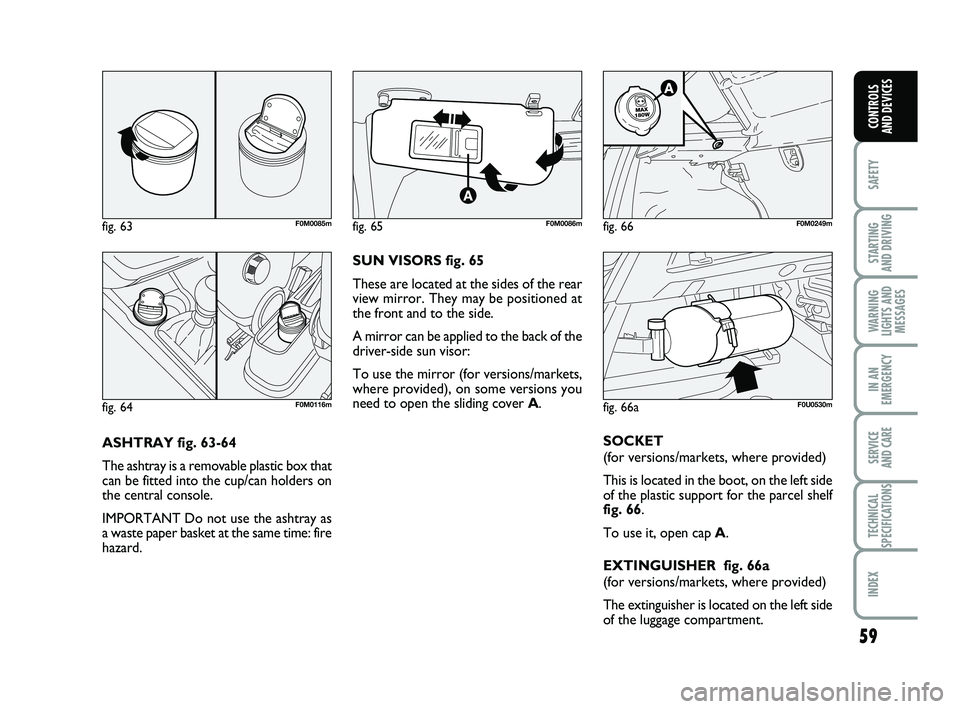

ASHTRAY fig. 63-64
The ashtray is a removable plastic box that
can be fitted into the cup/can holders on
the central console.
IMPORTANT Do not use the ashtray as
a waste paper basket at the same time: fire
hazard. SUN VISORS fig. 65
These are located at the sides of the rear
view mirror. They may be positioned at
the front and to the side.
A mirror can be applied to the back of the
driver-side sun visor:
To use the mirror (for versions/markets,
where provided), on some versions you
need to open the sliding cover
A.
fig. 63F0M0085mfig. 65F0M0086m
fig. 64F0M0116m
SOCKET
(for versions/markets, where provided)
This is located in the boot, on the left side
of the plastic support for the parcel shelf
fig. 66.
To use it, open cap A.
EXTINGUISHER fig. 66a
(for versions/markets, where provided)
The extinguisher is located on the left side
of the luggage compartment.
fig. 66F0M0249m
fig. 66aF0U0530m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 59

60
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
DOORS
CENTRAL DOOR LOCKING/
UNLOCKING SYSTEM
LOCKING FROM THE OUTSIDE
With the doors closed, press button
Áon
the remote control fig. 70or insert the
key into the lock of the door on the dri-
ver’s side and turn it clockwise. Locking is
signalled by the LED on button A-fig. 72
coming on. The doors will be locked on-
ly if all doors are shut. If one or more
doors are open after pressing button
Áon
the remote control fig. 70, the direction
indicators and the LED on button A-fig.
72 flash quickly for approximately 3 sec-
onds.
If one or more doors are open after turn-
ing the key, only the LED on button A-fig.
72 will blink rapidly for approximately
three seconds. If the doors are closed but
the boot is open, the doors are locked:
the direction indicators (only when lock-
ing is carried out using button
Áfig. 70)
and the LED on button A-fig. 72 flash
quickly for approximately 3 seconds.
With this function active, it is however
possible to unlock the other doors by
pressing button A-fig. 72 on the central
panel. Quickly pressing button
Á
on the remote
control fig. 70 twice will engage the dead
lock device (see paragraph “Dead lock
device”).
Door unlocking from the outside
Briefly press button
Ëfig. 70 to unlock
the doors remotely, turn on the ceiling
lights for a limited period and double flash
the direction indicators, or insert the key
into the driver’s door lock and turn it an-
ti-clockwise as shown in fig. 71.
fig. 72F0M0620m
Door locking/unlocking
from the inside
Press button A-fig. 72 to lock/unlock all
doors. The button has an LED that indi-
cates whether the doors are locked or un-
locked. When the doors are locked, the
LED is on and pressing the button brings
about central unlocking of all the doors and
turns off the LED. When the doors are un-
locked, the LED is off and pressing the but-
ton brings about central locking of all the
doors. The doors will be locked only if all
the doors are properly shut.
fig. 71F0M0410m
fig. 70F0M0409m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 60

61
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Following the locking of the doors using:
❒remote control;
❒door catch;
it will not be possible to unlock them by
pressing button
A-fig. 72located on the
dashboard.
IMPORTANT With central locking on,
pulling the internal handle of one of the
front doors will unlock that door. Indi-
vidual doors can be unlocked by pulling
the internal handle of one of the rear
doors.
If a power supply is not present (blown
fuse, battery disconnected, etc.) it is, how-
ever, possible to lock the doors manually.
After exceeding a speed of 20 km/h, all
doors will be centrally locked automati-
cally if the setup menu function has been
selected (see paragraph “Multifunction dis-
play” in this section).
Once the dead lock system is
engaged, it is impossible to
open the doors from inside the vehi-
cle. Before getting out of the car,
please therefore check that there is
no-one left on board. If the remote
control battery is flat, the system can
be disengaged only by inserting the
key in either of the door locks as de-
scribed previously: in this case the de-
vice remains active only for the rear
doors.
DEAD LOCK
(for versions/markets, where provided)
This safety device inhibits the operation of:
❒interior handles;
❒locking/unlocking button
A-fig. 72;
thereby preventing the opening of the
doors from inside the passenger com-
partment if there has been a break-in at-
tempt (e.g. a window has been broken).
The dead lock device therefore offers the
best possible protection against break-in
attempts. We recommend engaging it
whenever the vehicle is parked and left un-
attended. Device activation
The dead lock device is automatically ac-
tivated on every door by briefly pressing
the remote control button
Áfig. 70
twice.
Device activation is indicated by 3 flashes
of the direction indicators and a flash of
the LED on button
A-fig. 72on the dash-
board.
If one or more of the doors is not closed
correctly, the dead lock device will not ac-
tivate, thus preventing a person from get-
ting stuck inside the passenger compart-
ment by entering the car through, and
then closing, the open door.
Device deactivation
The system is disabled automatically on
every door in the following cases:
❒when opening the driver’s door using the key without remote control;
❒when unlocking doors using the remotecontrol;
❒when turning the ignition key to MAR.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 61

62
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

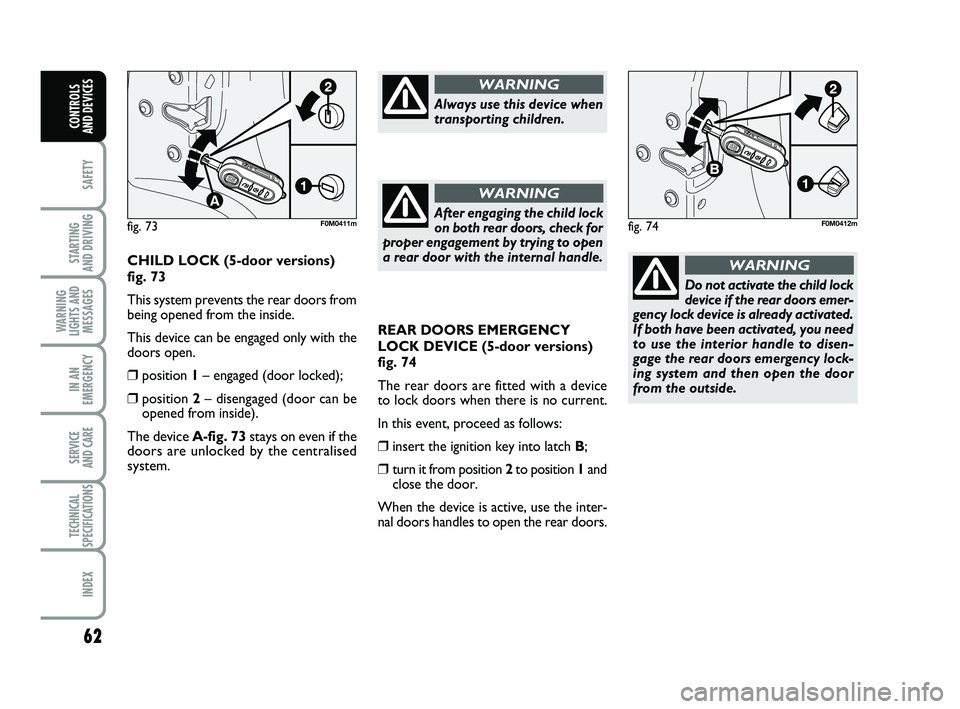

REAR DOORS EMERGENCY
LOCK DEVICE (5-door versions)
fig. 74
The rear doors are fitted with a device
to lock doors when there is no current.
In this event, proceed as follows:
❒insert the ignition key into latch B;
❒turn it from position 2 to position 1and
close the door.
When the device is active, use the inter-
nal doors handles to open the rear doors.
Do not activate the child lock
device if the rear doors emer-
gency lock device is already activated.
If both have been activated, you need
to use the interior handle to disen-
gage the rear doors emergency lock-
ing system and then open the door
from the outside.
WARNINGCHILD LOCK (5-door versions)
fig. 73
This system prevents the rear doors from
being opened from the inside.
This device can be engaged only with the
doors open.
❒position 1– engaged (door locked);
❒position 2– disengaged (door can be
opened from inside).
The device A-fig. 73 stays on even if the
doors are unlocked by the centralised
system.
Always use this device when
transporting children.
WARNING
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
fig. 74F0M0412mfig. 73F0M0411m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 62

63
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WINDOWS
ELECTRIC
Two switches fig. 75 on the armrest in-
side the driver’s door control the follow-
ing with the ignition key turned to MAR:
A opening/closing of the left front window;
B opening/closing the right front window.
Note: pressing the button the window
opens, while lifting it the window closes. Keep one of the buttons pressed for
longer than half a second
to operate
the automatic continuous operation of the
window. The window will stop when it is
fully opened or closed, or when the but-
ton is pressed again.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This condition is apparent from
the window closing in stages.
fig. 75F0M0136m
Continuous automatic operation
The car has an automatic setting to raise
and lower the driver-side front window.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 63
