Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat Punto.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way.
You should read it right through before taking to the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you get the most from the tech-
nological features of your Fiat.
Carefully read the warnings and indications marked with the following symbols:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat customers.
Enjoy the read. Happy motoring!
This Owner Handbook describes all versions of the Fiat Punto;
please consider only the information relevant to your version, engine and configuration.
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 1

REFUELLING
Petrol engines: only refuel the car with unleaded
petrol with an octane rating (RON) of no less than 95
conforming to the European specification EN 228.
The use of petrol that does not conform to the above-
mentioned specification may cause the EOBD warning light
to switch on and the irregular operation of the engine.
Diesel engines: only refuel the car using diesel fuel that
conforms to European specification EN590.
STARTING THE ENGINE
Make sure that the handbrake is properly applied; place the
gear lever in neutral; fully depress the clutch pedal, with-
out pressing the accelerator, then turn the ignition key to
the MAR position and wait for the
Yand mwarning
lights to switch off (diesel versions); turn the ignition key to
the AVV position and release it as soon as the engine starts.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter reaches high temperatures dur-
ing operation. Do not park the on grass, dry leaves, pine
needles or other flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a con-
tinuous diagnosis of the emission-related components
in order to help protect the environment.ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical ac-
cessories (with the risk of gradually draining the bat-
tery), visit a Fiat Dealership. They can calculate the over-
all electrical requirement and check that the car’s elec-
trical system can support the required load.
CODE card
Keep this in a safe place, not in the car. You should have
the electronic code from the CODE card with you at
all times.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it
stays in tip-top condition and safeguards its safety features,
its environmental friendliness and low running costs for
a long time to come.
THE OWNER’S HANDBOOK CONTAINS…
... information, tips and important warnings on the cor-
rect use and maintenance of your car over time as
well as safe driving tips. Pay special attention to the sym-
bols
"(personal safety) #(environmental protection)
!(the car’s wellbeing).
READ THIS CAREFULLY!
K



001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 2

KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
F0U0001mfig. 1
1.Adjustable side air vents – 2.Fixed side air vents – 3.Left-hand lever: exterior lights control – 4.Instrument panel
–
5.Right-hand lever: front and rear windscreen wiper controls, trip computer – 6.Controls on dashboard – 7.Ad-
justable central air vents –
8.Fixed upper air vent – 9.Front airbag, passenger side – 10.Glove compartment
–
11.Sound system (for versions/markets where provided) – 12.HVAC controls – 13.Ignition – 14.Front airbag, dri-
ver’s side –
15. Steering wheel adjustment lever – 16.Control panel: headlight position adjustment/digital dis-
play/multifunction display –
17.Light-guiding plate.CONTENTS TECHNICAL
SPECIFICATIONS SERVICING
AND CARE IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR
VEHICLE
3
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 3

THE FIAT CODE SYSTEM
This is an electrical engine locking system which increases
protection against an attempted theft of the car. It is auto-
matically activated when the ignition key is extracted.
Each key contains an electronic device which modulates
the signal emitted during ignition by an antenna built into
the ignition device. This signal is the ‘password’ which
changes at each ignition and which the control unit uses
to recognise the key and enable ignition.
OPERATION
Each time the vehicle is started by turning the ignition key
to MAR, the Fiat CODE system control unit sends a recog-
nition code to the engine control unit to deactivate the
immobiliser.
The code is sent only if the Fiat CODE system control unit
has recognised the code transmitted from the key.
Each time the ignition key is turned to STOP, the Fiat
CODE system deactivates the functions of the engine con-
trol unit.
If the code is not recognised correctly during ignition, the
Ywarning light comes on in the instrument panel.
SYMBOLS
Special coloured labels have been attached near or actu-
ally on some of the components of your Fiat Punto. These
labels bear symbols that remind you of the precautions
to be taken as regards that particular component.
A plate summarising the symbols used can be found under
the bonnet fig. 2.
F0U0002mfig. 2
CONTENTS TECHNICAL
SPECIFICATIONSSERVICING
AND CAREIN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR
VEHICLE
4
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 4

THE KEYS

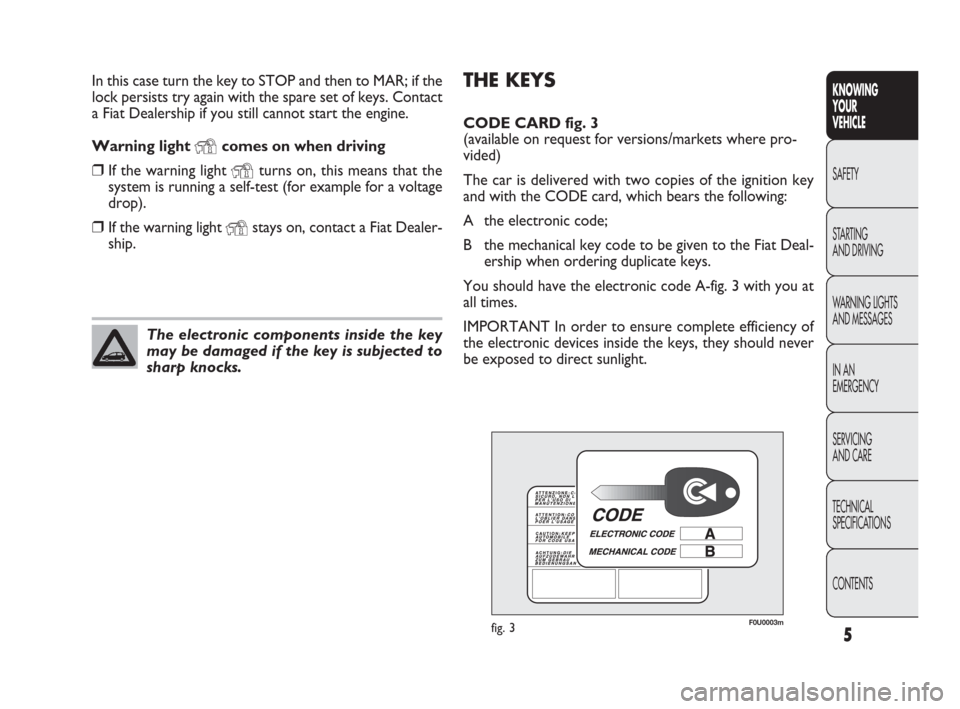

CODE CARD fig. 3
(available on request for versions/markets where pro-
vided)
The car is delivered with two copies of the ignition key
and with the CODE card, which bears the following:
A the electronic code;
B the mechanical key code to be given to the Fiat Deal-
ership when ordering duplicate keys.
You should have the electronic code A-fig. 3 with you at
all times.
IMPORTANT In order to ensure complete efficiency of
the electronic devices inside the keys, they should never
be exposed to direct sunlight. In this case turn the key to STOP and then to MAR; if the
lock persists try again with the spare set of keys. Contact
a Fiat Dealership if you still cannot start the engine.
Warning light
Ycomes on when driving
❒If the warning light Yturns on, this means that the
system is running a self-test (for example for a voltage
drop).
❒If the warning light Ystays on, contact a Fiat Dealer-
ship.
The electronic components inside the key
may be damaged if the key is subjected to
sharp knocks.
F0U0003mfig. 3
CONTENTS TECHNICAL
SPECIFICATIONS SERVICING
AND CARE IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR
VEHICLE
5
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 5

6
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0004mfig. 4

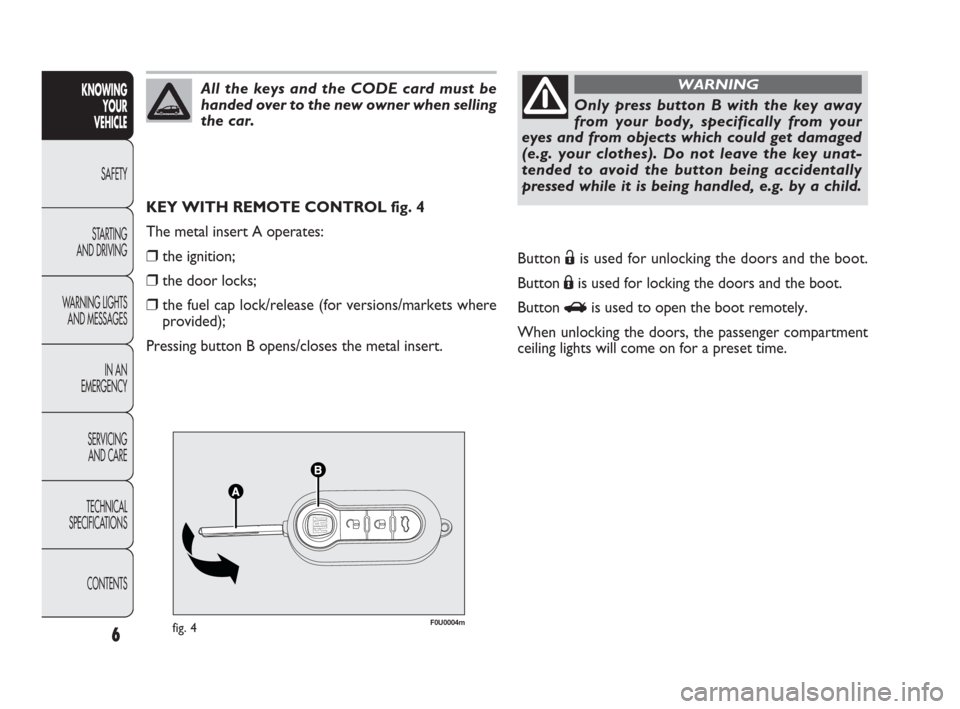

KEY WITH REMOTE CONTROL fig. 4
The metal insert A operates:
❒the ignition;
❒the door locks;
❒the fuel cap lock/release (for versions/markets where
provided);
Pressing button B opens/closes the metal insert.
All the keys and the CODE card must be
handed over to the new owner when selling
the car.
Only press button B with the key away
from your body, specifically from your
eyes and from objects which could get damaged
(e.g. your clothes). Do not leave the key unat-
tended to avoid the button being accidentally
pressed while it is being handled, e.g. by a child.
WARNING
Button Ëis used for unlocking the doors and the boot.
Button Áis used for locking the doors and the boot.
Button
Ris used to open the boot remotely.
When unlocking the doors, the passenger compartment
ceiling lights will come on for a preset time.
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 6

7
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS



F0U0005mfig. 5F0U0006mfig. 6

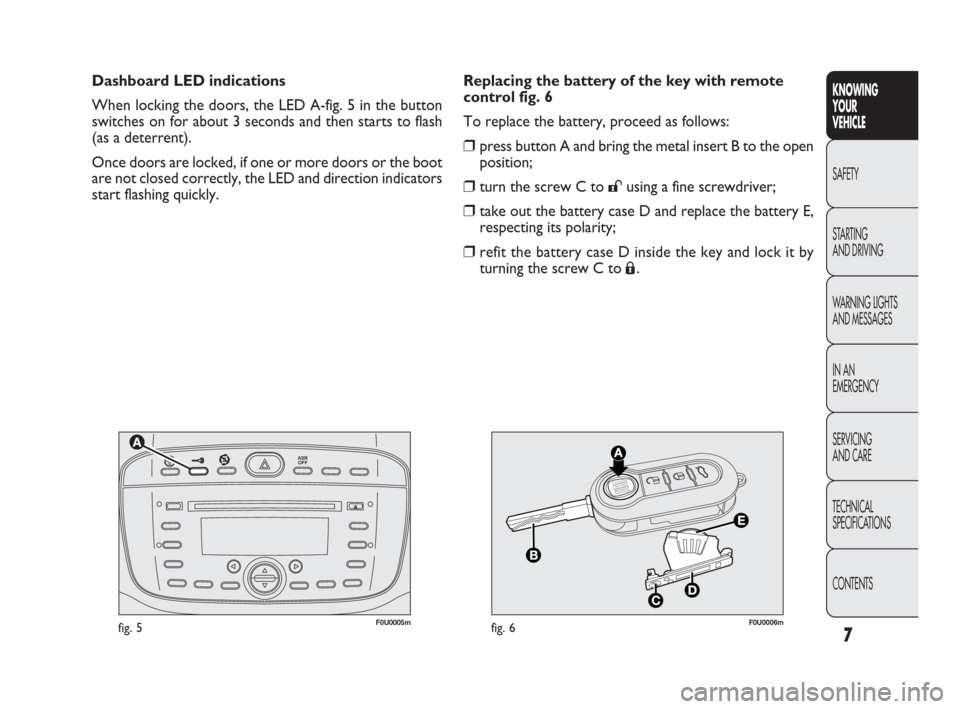

Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Dashboard LED indications
When locking the doors, the LED A-fig. 5 in the button
switches on for about 3 seconds and then starts to flash
(as a deterrent).
Once doors are locked, if one or more doors or the boot
are not closed correctly, the LED and direction indicators
start flashing quickly.
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 7

Used batteries are harmful to the environ-
ment. You can dispose of them either in the
correct containers as specified by law or by
taking them to a Fiat Dealership, which will deal
with their disposal.REPLACING THE REMOTE CONTROL COVER

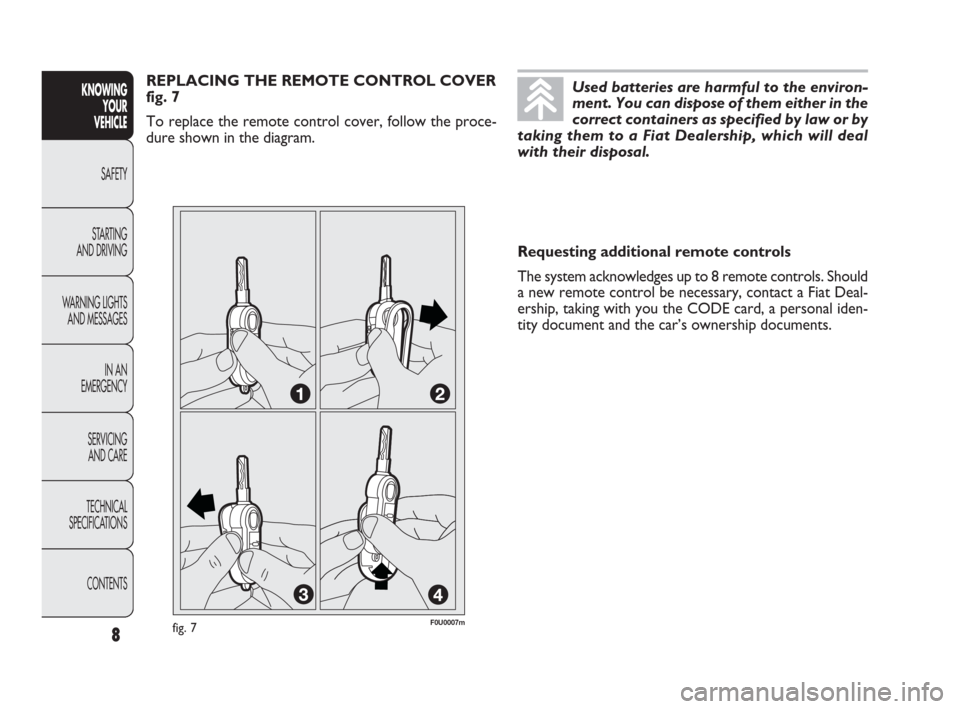

fig. 7
To replace the remote control cover, follow the proce-
dure shown in the diagram.
Requesting additional remote controls
The system acknowledges up to 8 remote controls. Should
a new remote control be necessary, contact a Fiat Deal-
ership, taking with you the CODE card, a personal iden-
tity document and the car’s ownership documents.
fig. 7F0U0007m
CONTENTS TECHNICAL
SPECIFICATIONSSERVICING
AND CAREIN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR
VEHICLE
8
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 8

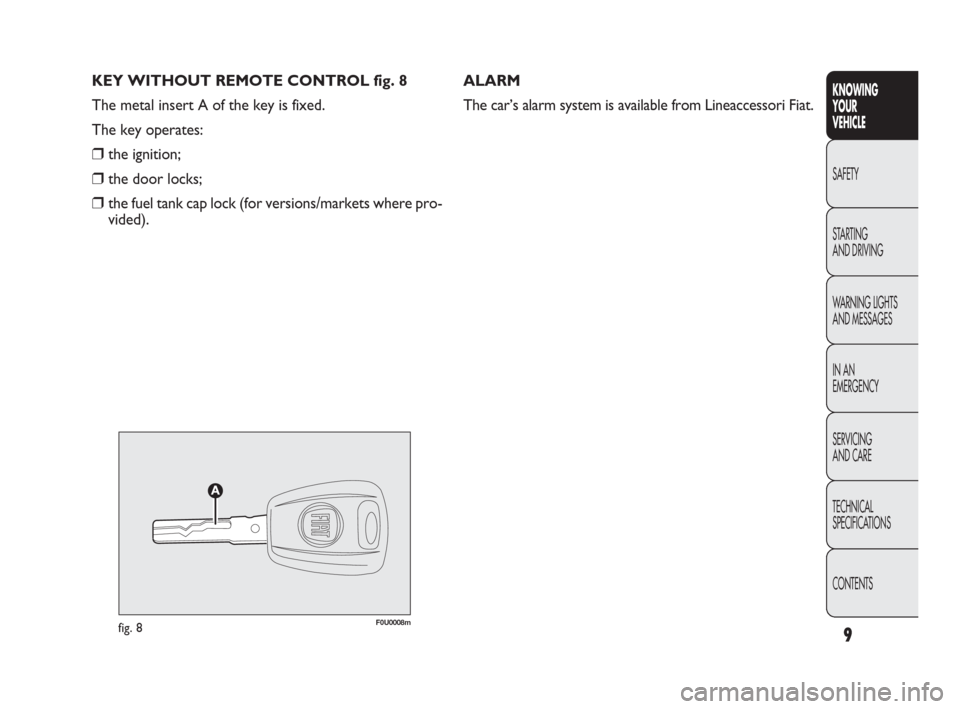

KEY WITHOUT REMOTE CONTROL fig. 8
The metal insert A of the key is fixed.
The key operates:
❒the ignition;
❒the door locks;
❒the fuel tank cap lock (for versions/markets where pro-
vided).ALARM
The car’s alarm system is available from Lineaccessori Fiat.
fig. 8F0U0008m
