Page 253 of 270
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
252

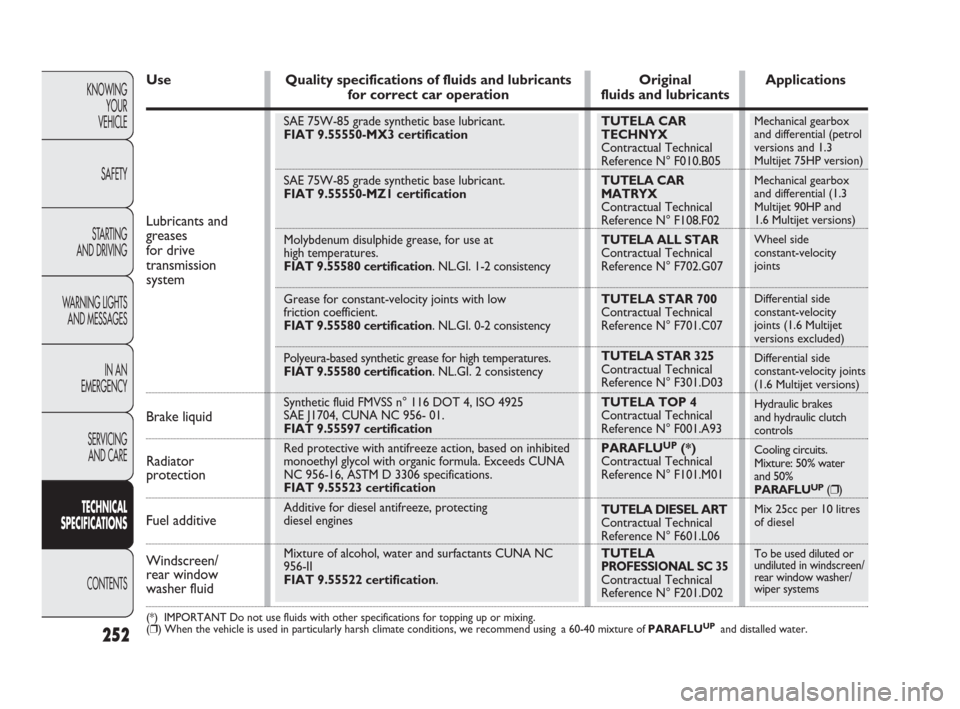

Lubricants and
greases
for drive
transmission
system
Brake liquid
Fuel additive
Windscreen/
rear window
washer fluid
Mechanical gearbox
and differential (petrol
versions and 1.3
Multijet 75HP version)
Mechanical gearbox
and differential (1.3
Multijet 90HP and
1.6 Multijet versions)
Wheel side
constant-velocity
joints
Differential side
constant-velocity
joints (1.6 Multijet
versions excluded)
Differential side
constant-velocity joints
(1.6 Multijet versions)
Hydraulic brakes
and hydraulic clutch
controls
Cooling circuits.
Mixture: 50% water
and 50%
PARAFLU
UP(❒)
Mix 25cc per 10 litres
of diesel
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
SAE 75W-85 grade synthetic base lubricant.
FIAT 9.55550-MX3 certification
SAE 75W-85 grade synthetic base lubricant.
FIAT 9.55550-MZ1 certification
Molybdenum disulphide grease, for use at
high temperatures.
FIAT 9.55580 certification. NL.GI. 1-2 consistency
Grease for constant-velocity joints with low
friction coefficient.
FIAT 9.55580 certification. NL.GI. 0-2 consistency
Polyeura-based synthetic grease for high temperatures.
FIAT 9.55580 certification. NL.GI. 2 consistency
Synthetic fluid FMVSS n° 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01.
FIAT 9.55597 certification
Red protective with antifreeze action, based on inhibited
monoethyl glycol with organic formula. Exceeds CUNA
NC 956-16, ASTM D 3306 specifications.
FIAT 9.55523 certification
Additive for diesel antifreeze, protecting
diesel engines
Mixture of alcohol, water and surfactants CUNA NC
956-II
FIAT 9.55522 certification.TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA CAR
MATRYX
Contractual Technical
Reference N° F108.F02
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07
TUTELA STAR 700
Contractual Technical
Reference N° F701.C07
TUTELA STAR 325
Contractual Technical
Reference N° F301.D03
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC 35Contractual Technical
Reference N° F201.D02
Radiator
protection Use Quality specifications of fluids and lubricants Original Applications
for correct car operation fluids and lubricants
(*) IMPORTANT Do not use fluids with other specifications for topping up or mixing.
(❒) When the vehicle is used in particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand distalled water.
235-258 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 252
Page 254 of 270
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
253

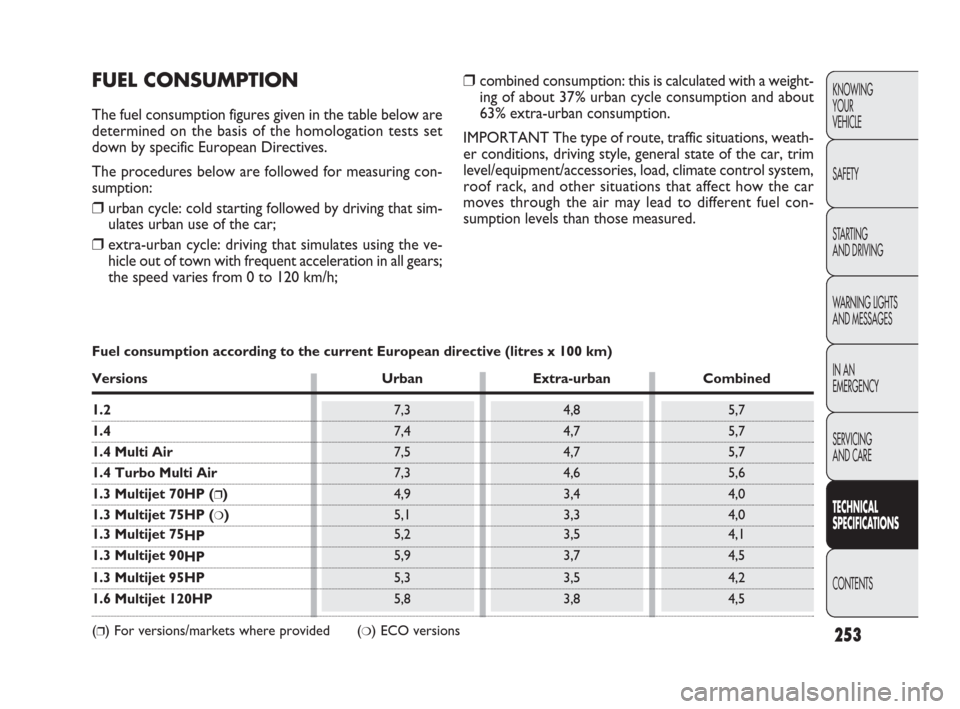

FUEL CONSUMPTION
The fuel consumption figures given in the table below are
determined on the basis of the homologation tests set
down by specific European Directives.
The procedures below are followed for measuring con-
sumption:
❒urban cycle: cold starting followed by driving that sim-
ulates urban use of the car;
❒extra-urban cycle: driving that simulates using the ve-
hicle out of town with frequent acceleration in all gears;
the speed varies from 0 to 120 km/h;
❒combined consumption: this is calculated with a weight-
ing of about 37% urban cycle consumption and about
63% extra-urban consumption.
IMPORTANT The type of route, traffic situations, weath-
er conditions, driving style, general state of the car, trim
level/equipment/accessories, load, climate control system,
roof rack, and other situations that affect how the car
moves through the air may lead to different fuel con-
sumption levels than those measured.
Fuel consumption according to the current European directive (litres x 100 km)
Versions Urban Extra-urban Combined
1.27,3 4,8 5,7
1.4 7,4 4,7 5,7
1.4 Multi Air 7,5 4,7 5,7
1.4 Turbo Multi Air 7,3 4,6 5,6
1.3 Multijet 70HP (❒)4,9 3,4 4,0
1.3 Multijet 75HP (❍)5,1 3,3 4,0
1.3 Multijet 75
HP5,2 3,5 4,1
1.3 Multijet 90
HP5,9 3,7 4,5
1.3 Multijet 95HP5,3 3,5 4,2
1.6 Multijet 120HP5,8 3,8 4,5
(❒) For versions/markets where provided(❍) ECO versions
235-258 PUNTO FL EN 4ed 18-01-2010 12:28 Pagina 253
Page 260 of 270
259
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

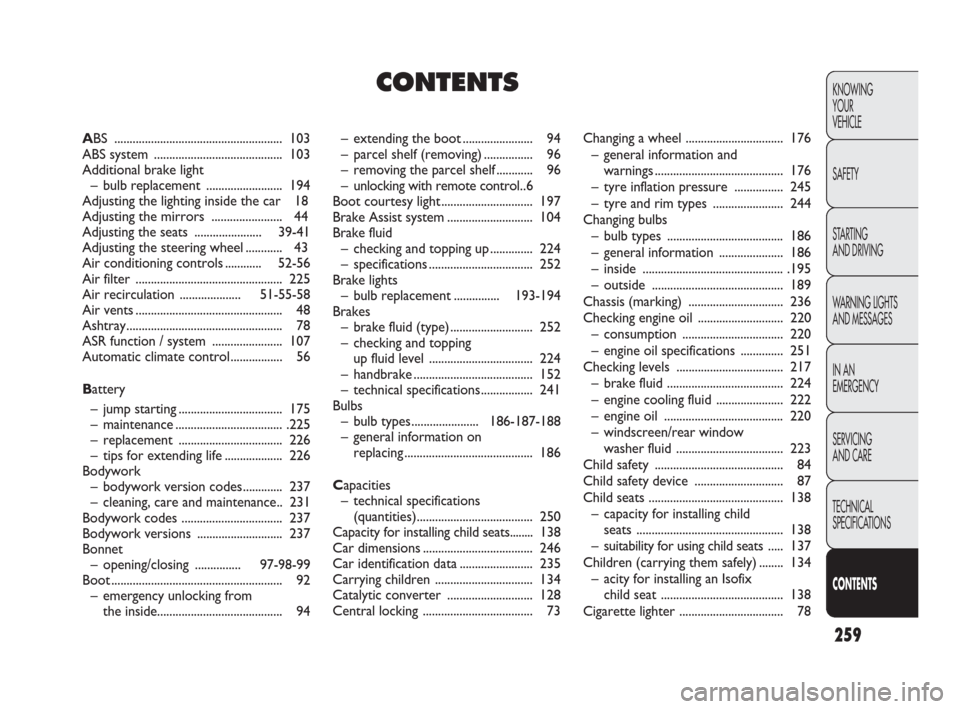

– extending the boot ....................... 94
– parcel shelf (removing) ................ 96
– removing the parcel shelf ............ 96
– unlocking with remote control..6
Boot courtesy light .............................. 197
Brake Assist system............................ 104
Brake fluid
– checking and topping up .............. 224
– specifications.................................. 252
Brake lights
– bulb replacement ...............193-194
Brakes
– brake fluid (type)........................... 252
– checking and topping
up fluid level .................................. 224
– handbrake ....................................... 152
– technical specifications................. 241
Bulbs
– bulb types......................186-187-188
– general information on
replacing.......................................... 186
Capacities
– technical specifications
(quantities)...................................... 250
Capacity for installing child seats........ 138
Car dimensions .................................... 246
Car identification data ........................ 235
Carrying children ................................ 134
Catalytic converter ............................ 128
Central locking .................................... 73Changing a wheel ................................ 176
– general information and
warnings.......................................... 176
– tyre inflation pressure ................ 245
– tyre and rim types ....................... 244
Changing bulbs
– bulb types ...................................... 186
– general information ..................... 186
– inside .............................................. .195
– outside ........................................... 189
Chassis (marking) ............................... 236
Checking engine oil ............................ 220
– consumption ................................. 220
– engine oil specifications .............. 251
Checking levels ................................... 217
– brake fluid ...................................... 224
– engine cooling fluid ...................... 222
– engine oil ....................................... 220
– windscreen/rear window
washer fluid ................................... 223
Child safety .......................................... 84
Child safety device ............................. 87
Child seats ............................................ 138
– capacity for installing child
seats ................................................ 138
– suitability for using child seats..... 137
Children (carrying them safely) ........ 134
– acity for installing an Isofix
child seat ........................................ 138
Cigarette lighter .................................. 78 ABS ....................................................... 103
ABS system .......................................... 103
Additional brake light
– bulb replacement ......................... 194
Adjusting the lighting inside the car 18
Adjusting the mirrors ....................... 44
Adjusting the seats ......................39-41
Adjusting the steering wheel ............ 43
Air conditioning controls ............ 52-56
Air filter ................................................ 225
Air recirculation ....................51-55-58
Air vents................................................ 48
Ashtray................................................... 78
ASR function / system ....................... 107
Automatic climate control................. 56
Battery
– jump starting .................................. 175
– maintenance................................... .225
– replacement .................................. 226
– tips for extending life ................... 226
Bodywork
– bodywork version codes............. 237
– cleaning, care and maintenance.. 231
Bodywork codes ................................. 237
Bodywork versions ............................ 237
Bonnet
– opening/closing ...............97-98-99
Boot ........................................................ 92
– emergency unlocking from
the inside......................................... 94
CONTENTS
259-268 PUNTO FL EN 4ed 18-01-2010 12:29 Pagina 259
Page 261 of 270
260
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

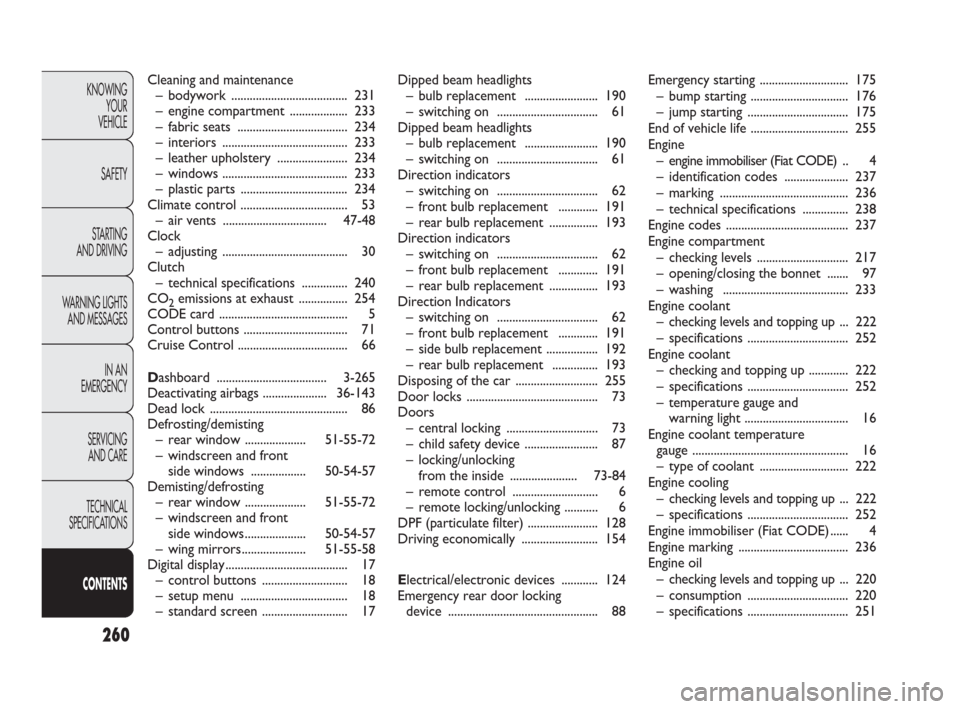

Cleaning and maintenance
– bodywork ...................................... 231
– engine compartment ................... 233
– fabric seats .................................... 234
– interiors ......................................... 233
– leather upholstery ....................... 234
– windows ......................................... 233
– plastic parts ................................... 234
Climate control ................................... 53
– air vents ..................................47-48
Clock
– adjusting ......................................... 30
Clutch
– technical specifications ............... 240
CO
2emissions at exhaust ................ 254
CODE card .......................................... 5
Control buttons .................................. 71
Cruise Control .................................... 66
Dashboard ....................................3-265
Deactivating airbags .....................36-143
Dead lock ............................................. 86
Defrosting/demisting
– rear window ....................51-55-72
– windscreen and front
side windows ..................50-54-57
Demisting/defrosting
– rear window ....................51-55-72
– windscreen and front
side windows....................50-54-57
– wing mirrors.....................51-55-58
Digital display ........................................ 17
– control buttons ............................ 18
– setup menu ................................... 18
– standard screen ............................ 17Dipped beam headlights
– bulb replacement ........................ 190
– switching on ................................. 61
Dipped beam headlights
– bulb replacement ........................ 190
– switching on ................................. 61
Direction indicators
– switching on ................................. 62
– front bulb replacement ............. 191
– rear bulb replacement ................ 193
Direction indicators
– switching on ................................. 62
– front bulb replacement ............. 191
– rear bulb replacement ................ 193
Direction Indicators
– switching on ................................. 62
– front bulb replacement ............. 191
– side bulb replacement ................. 192
– rear bulb replacement ............... 193
Disposing of the car ........................... 255
Door locks ........................................... 73
Doors
– central locking .............................. 73
– child safety device ........................ 87
– locking/unlocking
from the inside ......................73-84
– remote control ............................ 6
– remote locking/unlocking ........... 6
DPF (particulate filter) ....................... 128
Driving economically ......................... 154
Electrical/electronic devices ............ 124
Emergency rear door locking
device ................................................. 88Emergency starting ............................. 175
– bump starting ................................ 176
– jump starting ................................. 175
End of vehicle life ................................ 255
Engine
– engine immobiliser (Fiat CODE) .. 4
– identification codes ..................... 237
– marking .......................................... 236
– technical specifications ............... 238
Engine codes ........................................ 237
Engine compartment
– checking levels .............................. 217
– opening/closing the bonnet ....... 97
– washing ......................................... 233
Engine coolant
– checking levels and topping up ... 222
– specifications ................................. 252
Engine coolant
– checking and topping up ............. 222
– specifications ................................. 252
– temperature gauge and
warning light .................................. 16
Engine coolant temperature
gauge ................................................... 16
– type of coolant ............................. 222
Engine cooling
– checking levels and topping up ... 222
– specifications ................................. 252
Engine immobiliser (Fiat CODE) ...... 4
Engine marking .................................... 236
Engine oil
– checking levels and topping up ... 220
– consumption ................................. 220
– specifications ................................. 251
259-268 PUNTO FL EN 4ed 18-01-2010 12:29 Pagina 260
Page 263 of 270
262
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Installing electrical/electronic
devices ................................................ 124
– radio transmitters
and mobile phones ...................... 125
Installing the tow hook ...................... 157
Instrument panel ...................13-266-267
Interior lighting ................................... 68
Interiors (cleaning) ............................. 233
Internal equipment ............................. 74
Internal features .................................. 74
Isofix (child seat)
– capacity for installing child
seats ................................................ 138
– suitability for the child seats ...... 140
Jack
– usage ............................................... 178
– warnings ......................................... 177
Keys ...................................................... 5
– key with remote control ............ 6
– key without remote control ..... 9
– opening/closing doors remotely ... 6
– requesting additional remote
control keys .................................. 8
– replacing remote control
battery ............................................ 8
Knowing your vehicle.................. 3
Lights
(controls to switch on) ............ 61-71
Load limiters ........................................ 131
Long periods of inactivity .................. 160
Lubricant specifications ..........251-252Main beam headlights
– bulb replacement ......................... 190
– switching on .................................. 61
Main beam headlights
– bulb replacement ......................... 190
– flashing ............................................ 61
– switching on .................................. 61
Manual climate control ...................... 52
Maximum speeds ................................ 247
Mirrors
– rear-view ....................................... 44
– wing ................................................ 45
MSR system ......................................... 108
Multifunctional display ....................... 23
– setup menu .................................. 26
Nozzles
– windscreen/rear window/
headlamp washer ......................... 230
Number plate lights
– bulb replacement ......................... 194
Odometer ............................................ 15
On-board computer (trip) ................ 37
On-board instruments (panel) .......... 13
P
aintwork (maintenance) ................. 232
– bodywork colour plate ............... 236
Paintwork plate ................................... 236
ParafluUP
– checking levels and topping up ... 222
– specifications ................................. 252
Parking sensors ................................... 120
Particulate filter (DPF) ....................... 128Performance ........................................ 247
Pollen filter ........................................... 225
Protecting the environment ............. 127
– particulate filter (DPF) ................ 128
Protecting the environment ............. 127
Punctures
– changing a wheel .......................... 176
– Fix& Go automatic quick tyre
repair kit ........................................ 181
– general information ..................... 176
Quick tyre repair kit (Fix&Go) ....... 181
Radio transmitters and mobile
phones ................................................ 125
Raising the car
– with the jack ................................. 177
– with the lift arms .......................... 207
– with the workshop lift ................ 208
Rear ceiling lights ................................ 68
– bulb replacement ......................... 196
Rear fog light ....................................... 72
– bulb replacement ......................... 194
– switching on .................................. 72
Rear light clusters
– bulb replacement ......................... 193
Rear seats
– cleaning .......................................... 234
– headrests ....................................... 43
Rear window washer ......................... 65
– activating ........................................ 65
– checking levels and topping up ... 252
– nozzle ............................................. 231
Rear window wiper
– activating ........................................ 65
259-268 PUNTO FL EN 4ed 18-01-2010 12:29 Pagina 262
