dualogic FIAT QUBO 2008 1.G Dualogic Transmission Manual

11
CLUTCH OVERTEMPERAT.
SEE HANDBOOK
The message appears in the display to-
gether with a buzzer when the clutch
overheats.
In this situation, limit take-off and gear
shifts or if necessary park (turning off the
engine) until conditions are optimum.
If the message still appears in
the display, contact a Fiat
Dealership.
To safeguard clutch efficien-
cy, do not use the accelerator
to keep the car at a standstill
(e.g.: parking on a hill); the
clutch could be damaged by overheat-
ing. Use the brake pedal instead and
operate the accelerator only when you
are ready to set off.
Contact a Fiat Dealership if
the messages remain in the
display.
IMPORTANT If start-up is requested with
the gearbox faulty, run the “Delayed ig-
nition” procedure (see associated mes-
sages): turn the key to the AVVposition
for at least 7 seconds with the brake de-
pressed and the engine will start. The sys-
tem will be in recovery mode (highest gear
permitted 3
rd, automatic mode not avail-
able). If the engine does not start, con-
tact a Fiat Dealership.
IMPORTANT Messages are displayed on-
ly if start-up takes place in a gear other
than neutral (N). DEPRESS BRAKE PEDAL
The message is shown in the display to-
gether with a buzzer during an attempt at
starting when the brake pedal is not
pressed.
DEPRESS BRAKE PEDAL-
DELAYED IGNITION
The display shows these messages alter-
nately and in sequence together with a
warning buzzer when the system does not
recognise the brake pedal to be opera-
tional during a starting attempt.
In these circumstances, turn the key to the
AVVposition for at least 7 seconds with
the brake depressed and the engine will
start. The system will be in recovery mode
(maximum speed permitted: 3
a).
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 11

12
GEAR UNAVAILABLE
This message appears in the display to-
gether with a warning buzzer in the fol-
lowing cases:
❒when it is not possible to change gear
due to a fault in the system;
or
❒when, due a fault in the system, is is on-
ly possible to engage 1st(1), 2nd(2), 3rd
(3) or reverse (R).OPERATION NOT ADMISSIBLE
The message appears in the display to-
gether with a warning buzzer when the
system will not accept a gear change via
the control lever because certain condi-
tions required for acceptance of the gear
change are missing.
DEPRESS BRAKE PEDAL &
REPEAT OPERATION
The message appears in the display ac-
companied, in some cases, by a warning
buzzer for safety reasons if you attempt
to change gear without previously press-
ing the brake pedal.SET GEARBOX LEV. TO NEUTR.
(neutral)
This message appears in the display to-
gether with a warning buzzer when the
system asks the driver to perform the ma-
noeuvre.
When the gearbox is shifted to (N) the
message in the display should go off.
Contact a Fiat Dealership if
the message remains in the
display.Contact a Fiat Dealership if
the message remains in the
display.
Contact a Fiat Dealership if
the message remains in the
display.
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 12

13
TOWING THE CAR
Ensure the gearbox is in neutral (N) (by
checking that the car moves when pushed)
and tow in the same way as a normal car
with a manual gearbox (see instructions in
Owner Handbook).
If it is not possible to put the gearbox in
neutral, do not tow the vehicle and con-
tact a Fiat Dealership.
FUSE REPLACEMENT
For the location of the fuses, see the illustrations in the paragraph “Fuse replacement”
in the “In an emergency” section of the Owner Handbook.
FUSE AMPS
Power supply (+ battery) for Dualogic™ pump 82 30
Dualogic™ gearbox control unit
(power supply + battery) 84 10
Dualogic™ gearbox control unitand
gear selector lever (power supply + ignition) 16 7.5
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 13

14

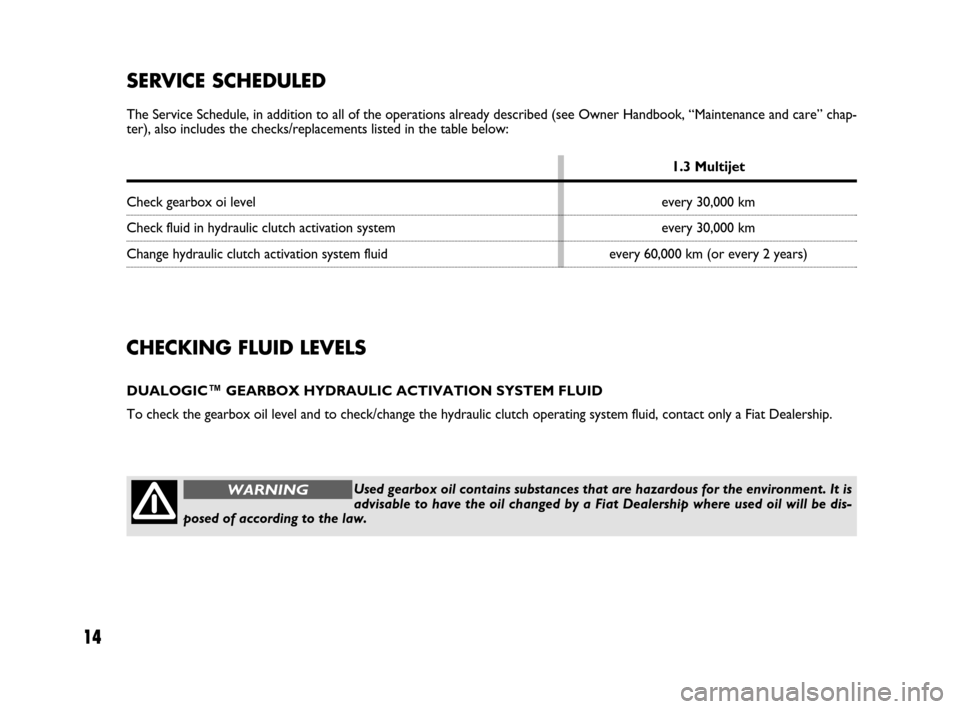

CHECKING FLUID LEVELS
DUALOGIC™ GEARBOX HYDRAULIC ACTIVATION SYSTEM FLUID
To check the gearbox oil level and to check/change the hydraulic clutch operating system fluid, contact only a Fiat Dealership.
Used gearbox oil contains substances that are hazardous for the environment. It is
advisable to have the oil changed by a Fiat Dealership where used oil will be dis-
posed of according to the law.WARNING
SERVICE SCHEDULED
The Service Schedule, in addition to all of the operations already described (see Owner Handbook, “Maintenance and care” chap-
ter), also includes the checks/replacements listed in the table below:
1.3 Multijet
Check gearbox oi level every 30,000 km
Check fluid in hydraulic clutch activation system every 30,000 km
Change hydraulic clutch activation system fluid every 60,000 km (or every 2 years)
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 14

15
PERFORMANCE
Top speed after car is run in is 155 km/h
ENGINE CODE - BODYWORK VERSIONS
Engine code Bodywork versions
1.3 Multijet199A2000 225AXB11 02B
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 15

16
1.3 Multijet
Six forward speeds plus reverse with
electronically managed electrohydraulic control system
Single dry plate with electrohydraulic activation
Front

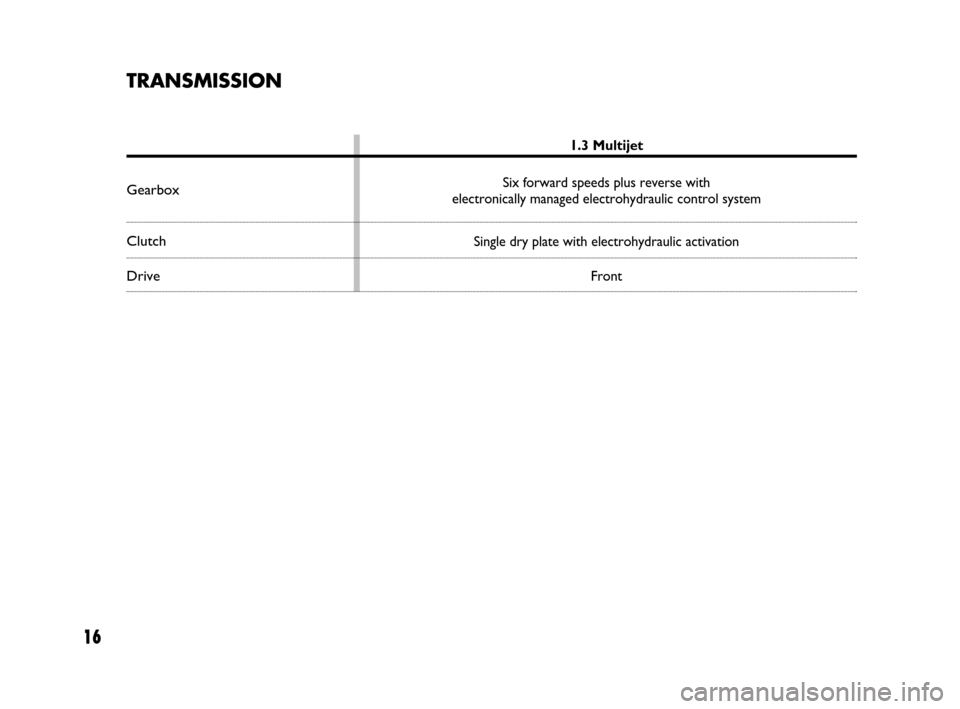

TRANSMISSION
Gearbox
Clutch
Drive
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 16

17
Versions N1
“Minimum”
(4 places)
1205
550
475
950
950
1755
600
400
50
60
Versions N1
“Maximum”
(4 places)
1300
455
–
950
950
1755
600
400
50
60
Versions M1
(4 posti)
1200
510
440
950
950
1710
600
400
50
60 1.3 Multijet
WEIGHTS
Weights (kg)
Unladen weight (with all fluids, fuel tank filled to 90% and without optional equipment)
Payload including the driver (*):
Payload excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof
(with roof rack bars) (***):
Maximum load on tow hitch
(trailer with brakes):
NOTEVersions Adventure have the same payloads as the other versions.
(*)CATEGORY N1: the payload for full optional versions (110 Kg) is progressively reduced up to 500 kg.
CATEGORY M1: the options are included in the payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or in the load compartment so that they com-
ply with the maximum permitted limits.
(***) Including weight of any carrying systems fitted (Lineaccessori Fiat bars/container).
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 17

18
1.3 Multijet
kg
0.43
0.040
CAPACITIES
Dualogic™gearboxhydraulic activation system
Clutch hydraulic operating system
litres
0.505
0.03Recommended fuels
Recommended products
TUTELA CAR CS SPEED
TUTELA TOP4
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use
Lubricants
for transmission
of drive
Brake fluid
Specifications of fluids
and lubricants for the correct
operation of the car
Special fluid for electrohydraulic actuators
ratio selector
Qualification FIAT 9.55550-SA1
Synthetic fluid for braking and clutch systems
Exceeds specifications: FMVSS n° 116 DOT4,
ISO 4925, SAE J 1704
Qualification FIAT 9.55597Genuine
Fluide and Lubricants
TUTELA CAR
CS SPEED
Contractual Technical
Reference N° F005.F98
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93Applications
Dualogic
™
electrically operated
electrohydraulic
actuator
Hydraulic brakes and
hydraulically operated
clutches
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 18

19

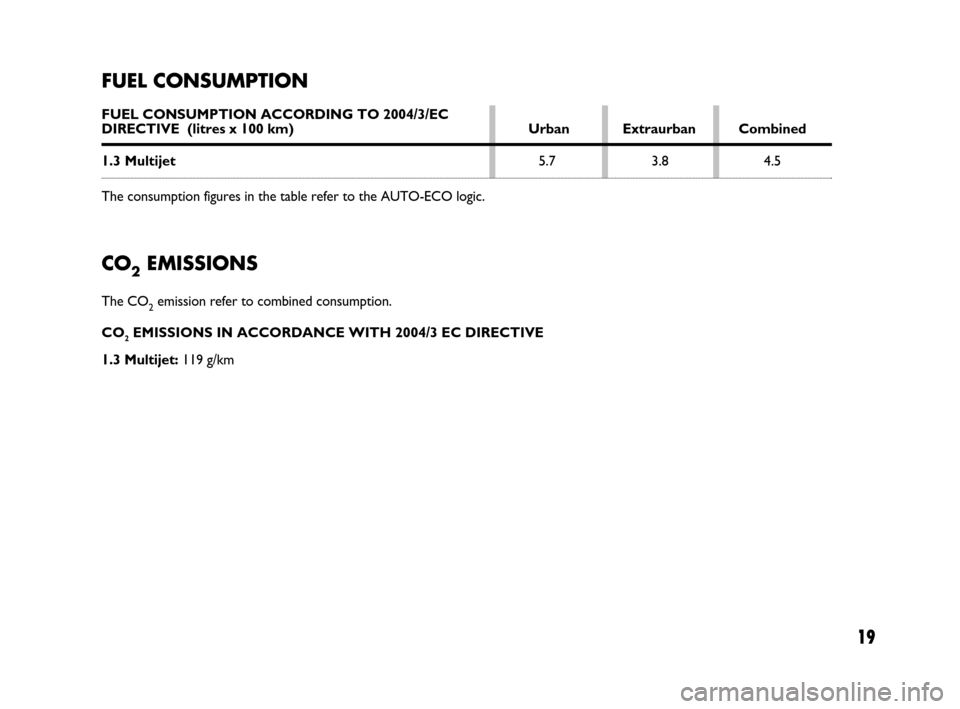

FUEL CONSUMPTION
FUEL CONSUMPTION ACCORDING TO 2004/3/ECDIRECTIVE (litres x 100 km) Urban Extraurban Combined
1.3 Multijet5.7 3.8 4.5
The consumption figures in the table refer to the AUTO-ECO logic.
CO2EMISSIONS
The CO2emission refer to combined consumption.
CO
2EMISSIONS IN ACCORDANCE WITH 2004/3 EC DIRECTIVE
1.3 Multijet: 119 g/km
604_39_872 DUALOGIC Fiorino Qubo GB 8-10-2008 15:59 Pagina 19

Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print n° 604.39.872 - 10/2008 - 1
stEdition
