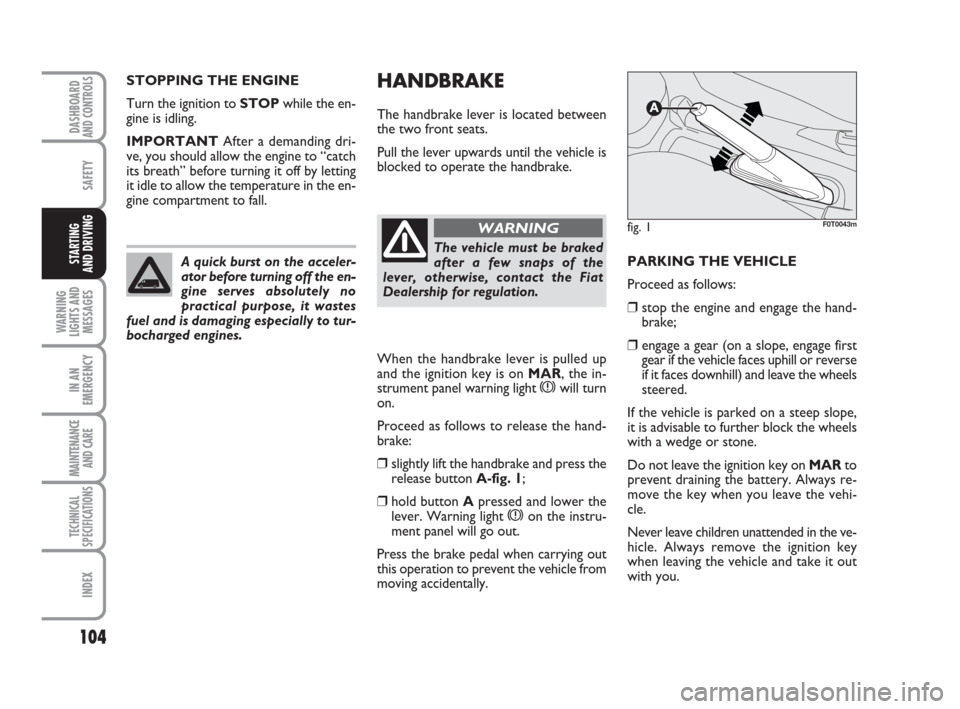

HANDBRAKE
The handbrake lever is located between
the two front seats.
Pull the lever upwards until the vehicle is
blocked to operate the handbrake.
When the handbrake lever is pulled up
and the ignition key is on MAR, the in-
strument panel warning light xwill turn
on.
Proceed as follows to release the hand-
brake:
❒slightly lift the handbrake and press the
release button A-fig. 1;
❒hold button Apressed and lower the
lever. Warning light xon the instru-
ment panel will go out.
Press the brake pedal when carrying out
this operation to prevent the vehicle from
moving accidentally.PARKING THE VEHICLE
Proceed as follows:
❒stop the engine and engage the hand-
brake;
❒engage a gear (on a slope, engage first
gear if the vehicle faces uphill or reverse
if it faces downhill) and leave the wheels
steered.
If the vehicle is parked on a steep slope,
it is advisable to further block the wheels
with a wedge or stone.
Do not leave the ignition key on MARto
prevent draining the battery. Always re-
move the key when you leave the vehi-
cle.
Never leave children unattended in the ve-
hicle. Always remove the ignition key
when leaving the vehicle and take it out
with you. STOPPING THE ENGINE
Turn the ignition to STOPwhile the en-
gine is idling.
IMPORTANTAfter a demanding dri-
ve, you should allow the engine to “catch
its breath” before turning it off by letting
it idle to allow the temperature in the en-
gine compartment to fall.
A quick burst on the acceler-
ator before turning off the en-
gine serves absolutely no
practical purpose, it wastes
fuel and is damaging especially to tur-
bocharged engines.
fig. 1F0T0043m
The vehicle must be braked
after a few snaps of the
lever, otherwise, contact the Fiat
Dealership for regulation.
WARNING
101-108 Fiorino GB 1ed 21-10-2008 15:00 Pagina 104

105
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
USING THE GEARBOX
To engage the gears, press the clutch ped-
al fully and shift the gear lever A-fig. 2
into one of the required positions (the di-
agram is shown on the knob fig. 2).
IMPORTANT Reverse may only be en-
gaged when the vehicle is at a standstill.
With the engine running, wait for at least
2 seconds with the clutch pedal fully
pressed before engaging reverse to pre-
vent damage to the gears and grating.
fig. 2F0T0055m
Press the clutch pedal fully
to shift the gears correctly.
For this reason, there must be no ob-
stacles on the floor under the pedals:
make sure that the mats are always
flat and do not interfere with the ped-
als.
WARNING
Do not drive with your hand
resting on the gear lever as
the force exerted, even if
slight, could lead to prema-
ture wear on the gearbox internal com-
ponents over time. The clutch pedal
must be used for gear shift only. Nev-
er drive with the foot resting, even if
slightly, on the clutch pedal. For ver-
sions/markets where applicable the
clutch pedal control electronics can in-
tervene interpreting the wrong drive
style as a fault.
CONTAINING
RUNNING COSTS
Here are some useful tips to save fuel and
minimize polluting emissions of CO
2and
other pollutants (nitric oxide, unburnt hy-
drocarbons, fine dusts etc…).
GENERAL REMARKS
Vehicle maintenance
Have checks and adjustments carried out
in accordance with the “Scheduled Service
Plan”.
Tyres
Check tyre pressure regularly at least
once every four weeks: excessively low
pressure will increase consumption be-
cause rolling resistance will be higher.
Unnecessary loads
Do not travel with an overloaded boot.
The weight of the vehicle (especially when
driving in town) and its trim greatly affect
fuel consumption and stability.
101-108 Fiorino GB 1ed 21-10-2008 15:00 Pagina 105

106
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
Roof rack/ski rack
Remove the roof rack or the ski rack from
the roof after use. These accessories de-
crease aerodynamic penetration of the ve-
hicle and have a negative effect on fuel
consumption. It is better to use a trailer
to transport particularly bulky objects.
Electric devices
Use electric devices only for the amount
of time needed. The rear heated window,
additional headlights, windscreen wipers
and heater fan need a considerable
amount of energy, therefore increasing fu-
el consumption (up to +25% in the urban
cycle).
Climate control
The climate control system leads to high-
er fuel consumption (up to +20% on av-
erage): use air vents only when the ex-
ternal temperature allows it.
Spoilers
The use of non-certified spoilers may ad-
versely affect air drag and fuel consump-
tion levels.DRIVING STYLE
Starting
Do not warm the engine up with the ve-
hicle running at min. or max. rpm: the en-
gine warms up very slowly in these con-
ditions, increasing consumption and emis-
sions. It is advisable to start off immedi-
ately and slowly keeping the engine speed
down: the engine will warm up much
faster this way.
Unnecessary manoeuvres
Avoid revving up when starting at traffic
lights or before stopping the engine. The
latter manoeuvre, like doubling the clutch,
is unnecessary and causes increased fuel
consumption and pollution.
Gear selection
Use a higher gear as soon as traffic and road
conditions allow. Using a low gear for faster
acceleration will increase consumption.
In the same way improper use of a high gear
increases fuel consumption, emissions and
engine wear.
Top speed
Fuel consumption considerably increases as
speed increases. Keep your speed as uni-
form as possible, avoiding unnecessary
braking and acceleration which cause ex-
cessive fuel consumption and increase emis-
sions.Acceleration
Sudden acceleration has a very negative
effect on consumptions and emissions: ac-
celerate gradually.
CONDITIONS OF USE
Cold starting
Short distances and frequent cold start-
ups will prevent the engine from reach-
ing optimal running temperature.
Consequently, both consumption (from
+15 to +30% on urban cycle ) and emis-
sions will increase.
Traffic and road conditions
Quite high consumption is caused by
heavy traffic, for instance when travelling
in a queue with frequent use of low gears
or in cities with many traffic lights. Moun-
tain and rough roads also have a negative
effect on consumption.
Traffic hold-ups
During prolonged hold-ups (e.g. level cross-
ings) the engine should be switched off.
101-108 Fiorino GB 1ed 21-10-2008 15:00 Pagina 106

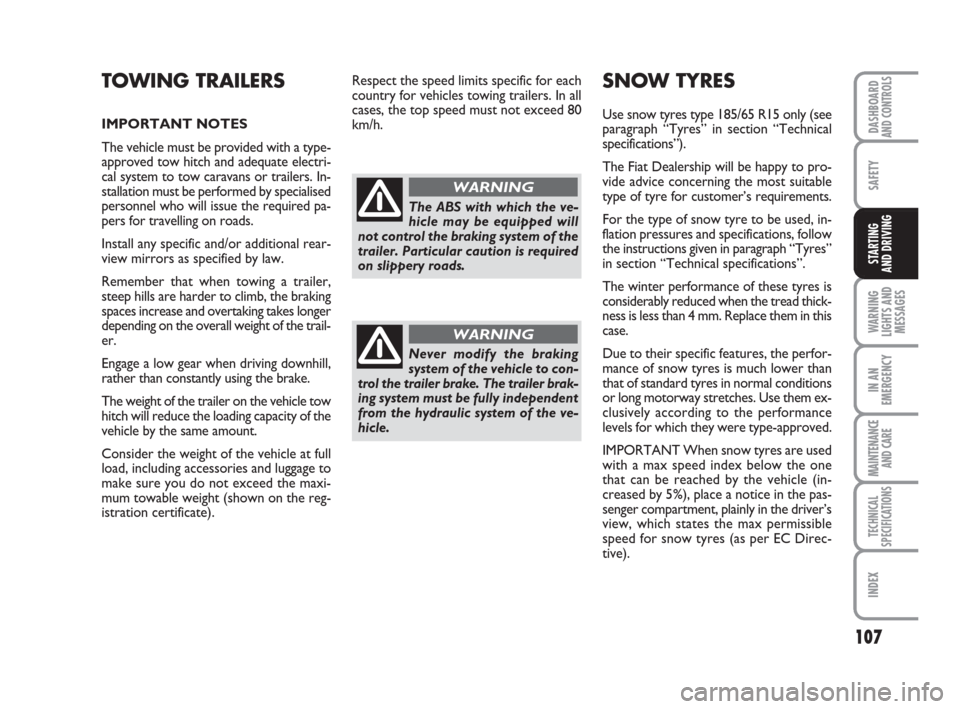

107
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
TOWING TRAILERS
IMPORTANT NOTES
The vehicle must be provided with a type-
approved tow hitch and adequate electri-
cal system to tow caravans or trailers. In-
stallation must be performed by specialised
personnel who will issue the required pa-
pers for travelling on roads.
Install any specific and/or additional rear-
view mirrors as specified by law.
Remember that when towing a trailer,
steep hills are harder to climb, the braking
spaces increase and overtaking takes longer
depending on the overall weight of the trail-
er.
Engage a low gear when driving downhill,
rather than constantly using the brake.
The weight of the trailer on the vehicle tow
hitch will reduce the loading capacity of the
vehicle by the same amount.
Consider the weight of the vehicle at full
load, including accessories and luggage to
make sure you do not exceed the maxi-
mum towable weight (shown on the reg-
istration certificate).Respect the speed limits specific for each
country for vehicles towing trailers. In all
cases, the top speed must not exceed 80
km/h.
The ABS with which the ve-
hicle may be equipped will
not control the braking system of the
trailer. Particular caution is required
on slippery roads.
WARNING
Never modify the braking
system of the vehicle to con-
trol the trailer brake. The trailer brak-
ing system must be fully independent
from the hydraulic system of the ve-
hicle.
WARNING
SNOW TYRES
Use snow tyres type 185/65 R15 only (see
paragraph “Tyres” in section “Technical
specifications”).
The Fiat Dealership will be happy to pro-
vide advice concerning the most suitable
type of tyre for customer’s requirements.
For the type of snow tyre to be used, in-
flation pressures and specifications, follow
the instructions given in paragraph “Tyres”
in section “Technical specifications”.
The winter performance of these tyres is
considerably reduced when the tread thick-
ness is less than 4 mm. Replace them in this
case.
Due to their specific features, the perfor-
mance of snow tyres is much lower than
that of standard tyres in normal conditions
or long motorway stretches. Use them ex-
clusively according to the performance
levels for which they were type-approved.
IMPORTANT When snow tyres are used
with a max speed index below the one
that can be reached by the vehicle (in-
creased by 5%), place a notice in the pas-
senger compartment, plainly in the driver’s
view, which states the max permissible
speed for snow tyres (as per EC Direc-
tive).
101-108 Fiorino GB 1ed 21-10-2008 15:00 Pagina 107

108
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
All four tyres should be the same (brand
and track) to ensure greater safety when
driving and braking and better driveabili-
ty.
Remember that it is inappropriate to
change the rotation direction of tyres.
The max. speed of snow
tyres with “Q” mark must
not exceed 160 km/h, respecting how-
ever the applicable rules of the High-
way Code.
WARNING
SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
The snow chains may be applied only to
the front wheel tyres (drive wheels).
Check the tension of the chains after the
first few metres have been driven.
Keep your speed down when
snow chains are fitted. Do not
exceed 50 km/h. Avoid pot-
holes, steps and pavements
and also avoid driving long distances on
roads not covered with snow in order
to prevent damaging the vehicle and
the roadbed.
PROLONGED VEHICLE
INACTIVITY
If the vehicle needs to be stopped for longer
than one month, the following precautions
must be taken:
❒park the vehicle indoors in a dry and, pos-
sibly, well-ventilated place;
❒engage a gear and check that the hand-
brake is not engaged;
❒disconnect the negative terminal of the
battery and check charge (see paragraph
“Battery” in section “Maintenance and
care”);
❒clean and protect the painted parts using
protective wax;
❒clean and protect the shiny metal parts
using special compounds readily available;
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒slightly open the windows;
❒cover the vehicle with a piece of fabric or
perforated plastic sheet; do not use com-
pact plastic tarpaulins, which prevent hu-
midity from evaporating from the surface
of the vehicle;
❒inflate tyres to a pressure of +0.5 bar
above the normal specified pressure and
check it at intervals;
❒do not drain the engine cooling system.
101-108 Fiorino GB 1ed 21-10-2008 15:00 Pagina 108

109
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS..................................................... 110
LOW BRAKE FLUID........................................................... 110
HANDBRAKE ON.............................................................. 110
AIRBAG FAILURE................................................................ 111
FRONT PASSENGER AIRBAG/
SIDE BAGS DISABLED....................................................... 111
ENGINE COOLANT HIGH TEMPERATURE............... 112
LOW BATTERY CHARGE................................................ 112
ABS SYSTEM FAILURE....................................................... 112
EBD SYSTEM FAILURE....................................................... 112
ESP SYSTEM FAILURE ........................................................ 113
LOW ENGINE OIL PRESSURE........................................ 113
EXHAUSTED OIL................................................................ 113
SEAT BELTS NOT FASTENED......................................... 114
INCOMPLETE DOOR LOCKING.................................. 114
MINIMUM ENGINE OIL LEVEL....................................... 114
INJECTION SYSTEM FAILURE......................................... 114
EOBD ENGINE CONTROL SYSTEM FAILURE ........... 114PARTICULATE FILTER CLOGGED................................ 115
FUEL RESERVE...................................................................... 115
GLOW PLUG HEATING................................................... 116
GLOW PLUG HEATING FAILURE................................. 116
WATER IN DIESEL FUEL FILTER.................................... 116
VEHICLE PROTECTION SYSTEM
FAILURE - FIAT CODE ...................................................... 116
ALARM FAILURE/THEFT ATTEMPT............................... 116
EXTERNAL LIGHTS FAILURE.......................................... 117
GENERIC FAILURE INDICATION................................. 117
BRAKE PAD WEAR............................................................ 118
PARKING SENSOR FAILURE........................................... 118
SIDE/TAILLIGHTS................................................................ 118
FOLLOW ME HOME.......................................................... 118
FRONT FOG LIGHTS........................................................ 118
REAR FOG LIGHTS............................................................ 118
LEFT-HAND DIRECTION INDICATOR....................... 118
RIGHT-HAND DIRECTION INDICATOR................... 118
MAIN BEAMS........................................................................ 118
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 109

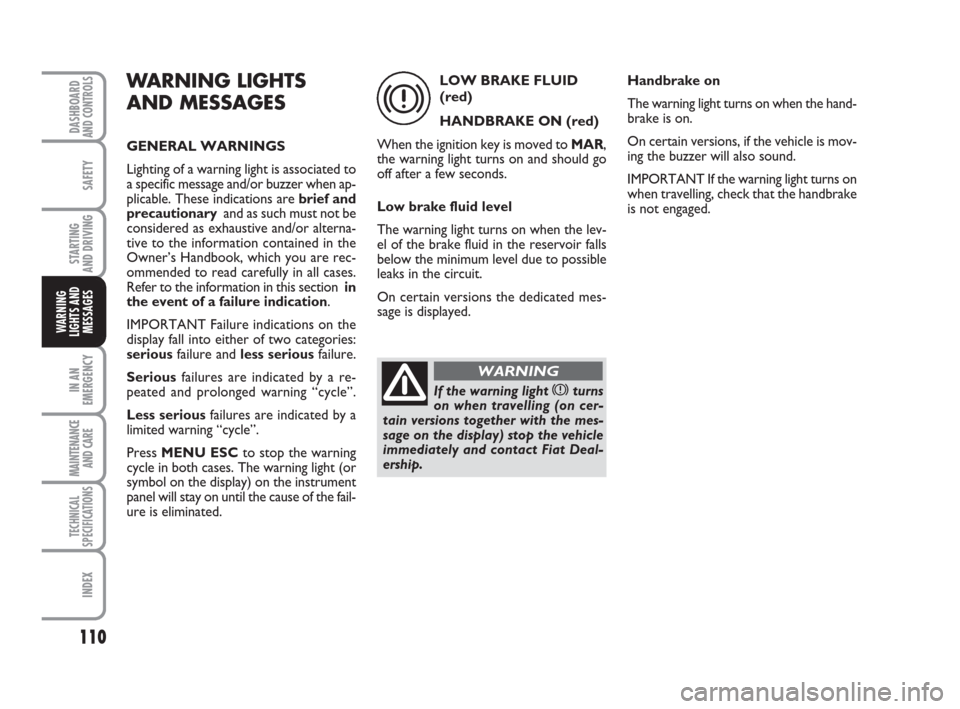

110
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Lighting of a warning light is associated to
a specific message and/or buzzer when ap-
plicable. These indications are brief and
precautionary and as such must not be
considered as exhaustive and/or alterna-
tive to the information contained in the
Owner’s Handbook, which you are rec-
ommended to read carefully in all cases.
Refer to the information in this section in
the event of a failure indication.
IMPORTANT Failure indications on the
display fall into either of two categories:
seriousfailure and less seriousfailure.
Seriousfailures are indicated by a re-
peated and prolonged warning “cycle”.
Less seriousfailures are indicated by a
limited warning “cycle”.
Press MENU ESCto stop the warning
cycle in both cases. The warning light (or
symbol on the display) on the instrument
panel will stay on until the cause of the fail-
ure is eliminated.LOW BRAKE FLUID
(red)
HANDBRAKE ON (red)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
Low brake fluid level
The warning light turns on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level due to possible
leaks in the circuit.
On certain versions the dedicated mes-
sage is displayed.Handbrake on
The warning light turns on when the hand-
brake is on.
On certain versions, if the vehicle is mov-
ing the buzzer will also sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged.
x
If the warning light xturns
on when travelling (on cer-
tain versions together with the mes-
sage on the display) stop the vehicle
immediately and contact Fiat Deal-
ership.
WARNING
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 110

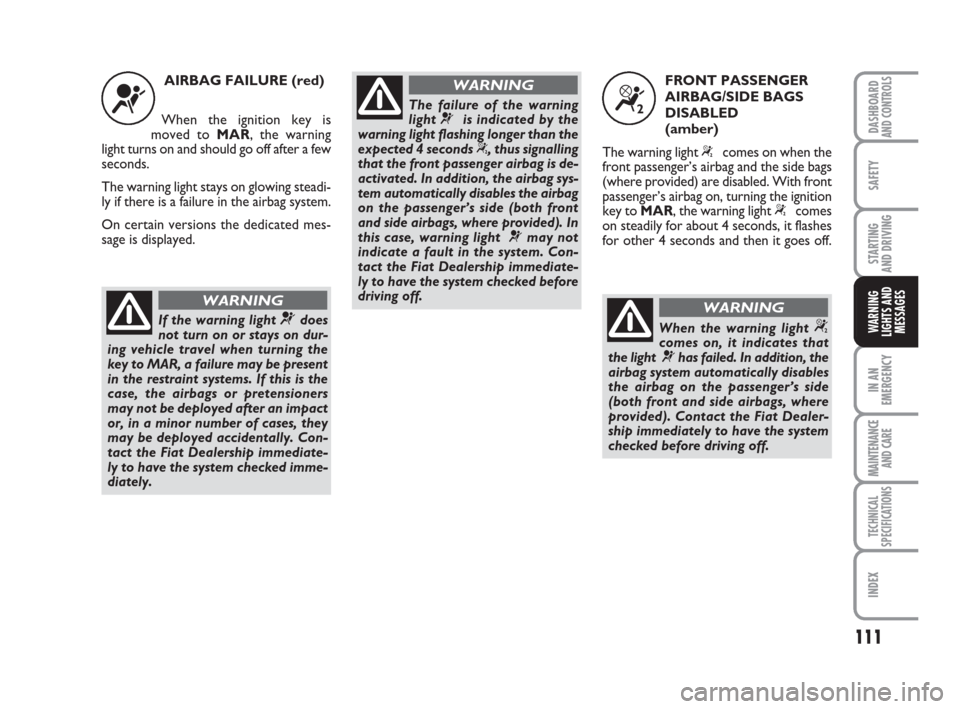

111
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
AIRBAG FAILURE (red)
When the ignition key is
moved to MAR, the warning
light turns on and should go off after a few
seconds.
The warning light stays on glowing steadi-
ly if there is a failure in the airbag system.
On certain versions the dedicated mes-
sage is displayed.FRONT PASSENGER
AIRBAG/SIDE BAGS
DISABLED
(amber)
The warning light “comes on when the
front passenger’s airbag and the side bags
(where provided) are disabled. With front
passenger’s airbag on, turning the ignition
key to MAR, the warning light “comes
on steadily for about 4 seconds, it flashes
for other 4 seconds and then it goes off.
¬“
If the warning light ¬does
not turn on or stays on dur-
ing vehicle travel when turning the
key to MAR, a failure may be present
in the restraint systems. If this is the
case, the airbags or pretensioners
may not be deployed after an impact
or, in a minor number of cases, they
may be deployed accidentally. Con-
tact the Fiat Dealership immediate-
ly to have the system checked imme-
diately.
WARNING
The failure of the warning
light ¬is indicated by the
warning light flashing longer than the
expected 4 seconds “, thus signalling
that the front passenger airbag is de-
activated. In addition, the airbag sys-
tem automatically disables the airbag
on the passenger’s side (both front
and side airbags, where provided). In
this case, warning light ¬may not
indicate a fault in the system. Con-
tact the Fiat Dealership immediate-
ly to have the system checked before
driving off.
WARNING
When the warning light “comes on, it indicates that
the light ¬has failed. In addition, the
airbag system automatically disables
the airbag on the passenger’s side
(both front and side airbags, where
provided). Contact the Fiat Dealer-
ship immediately to have the system
checked before driving off.
WARNING
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 111

112
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
ABS SYSTEM FAILURE
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds. The warning light
lights up when the system is either not
working or not available. In this case, the
braking system preserves its efficiency un-
altered without, however, offering the ex-
tra operating capacity of the ABS system.
Drive carefully and go to a Fiat Dealership
as soon as possible.
On certain versions the dedicated mes-
sage is displayed.
EBD SYSTEM
FAILURE
(red) (amber)
Simultaneous turning on of the warning
lights
xwhile >the engine is running
indicates an EBD system failure or non-
availability of the system. Early locking of
the rear wheels may occur in the event of
violent braking causing the vehicle to
swerve. Drive very carefully to a Fiat Deal-
ership to have the system inspected.
On certain versions the dedicated mes-
sage is displayed. ENGINE COOLANT
HIGH TEMPERATURE
(red)
When the ignition key is moved
to MAR, the warning light turns on and
should go off after a few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the ve-
hicle, stop the engine and check that the
water level in the vessel is not under
the MIN reference line. In this case, wait
for a few minutes for the engine to cool
down, then slowly and carefully open
the cap, top-up with coolant and check
that the level is between the MIN and
MAX references on the vessel itself. Al-
so check for leakages. Go to a Fiat
Dealership if the warning should come
on when the engine is started again.❒In demanding vehicle use condi-
tions (e.g. towing trailers uphill or ve-
hicle at full load): slow down and stop
the vehicle if the warning light stays on.
Stop for 2 or 3 minutes with the engine
running and slightly accelerated to
favour better coolant circulation. Then
stop the engine. Check correct liquid
level as described above.
IMPORTANT Under severe use of the ve-
hicle, keep the engine on and slightly ac-
celerated for a few minutes before switch-
ing it off. On certain versions the dedi-
cated message is displayed.
LOW BATTERY
CHARGE (red)
When the ignition key is moved
to MAR, the warning light turns on and
should go out as soon as the engine is
started (with the engine running at idle
speed a brief delay in going out is allowed).
If the warning light stays on glowing steadi-
ly, immediately contact the Fiat Dealer-
ship.
On certain versions the dedicated mes-
sage is displayed.
ç
w
>
x>
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 112

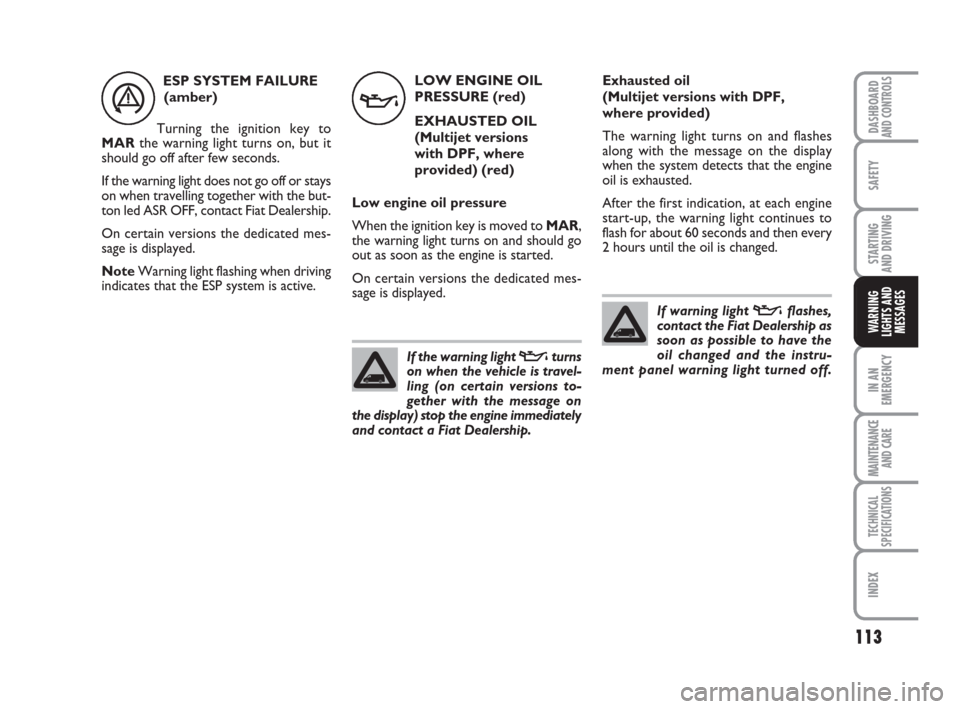

113
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
v
LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED OIL
(Multijet versions
with DPF, where
provided) (red)
Low engine oil pressure
When the ignition key is moved to MAR,
the warning light turns on and should go
out as soon as the engine is started.
On certain versions the dedicated mes-
sage is displayed.
If the warning light
vturns
on when the vehicle is travel-
ling (on certain versions to-
gether with the message on
the display) stop the engine immediately
and contact a Fiat Dealership.
ESP SYSTEM FAILURE
(amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
If the warning light does not go off or stays
on when travelling together with the but-
ton led ASR OFF, contact Fiat Dealership.
On certain versions the dedicated mes-
sage is displayed.
NoteWarning light flashing when driving
indicates that the ESP system is active.
á
Exhausted oil
(Multijet versions with DPF,
where provided)
The warning light turns on and flashes
along with the message on the display
when the system detects that the engine
oil is exhausted.
After the first indication, at each engine
start-up, the warning light continues to
flash for about 60 seconds and then every
2 hours until the oil is changed.
If warning light
vflashes,
contact the Fiat Dealership as
soon as possible to have the
oil changed and the instru-
ment panel warning light turned off.
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 113
