STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

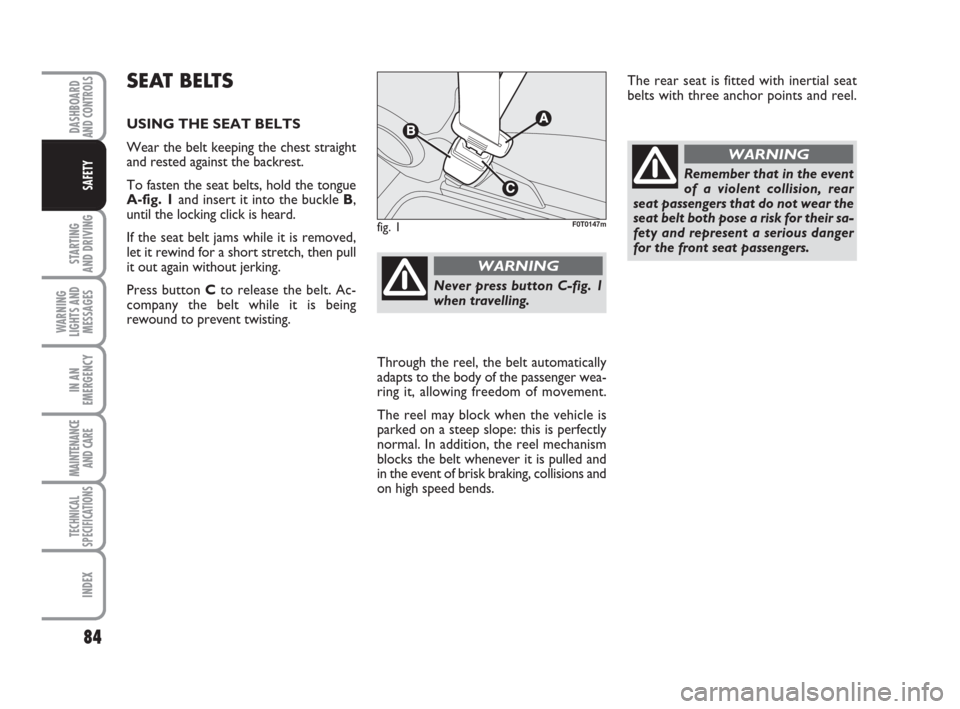

SEAT BELTS
USING THE SEAT BELTS
Wear the belt keeping the chest straight
and rested against the backrest.
To fasten the seat belts, hold the tongue
A-fig. 1and insert it into the buckle B,
until the locking click is heard.
If the seat belt jams while it is removed,
let it rewind for a short stretch, then pull
it out again without jerking.
Press button Cto release the belt. Ac-
company the belt while it is being
rewound to prevent twisting.The rear seat is fitted with inertial seat
belts with three anchor points and reel.
fig. 1F0T0147m
Never press button C-fig. 1
when travelling.
WARNING
Remember that in the event
of a violent collision, rear
seat passengers that do not wear the
seat belt both pose a risk for their sa-
fety and represent a serious danger
for the front seat passengers.
WARNING
Through the reel, the belt automatically
adapts to the body of the passenger wea-
ring it, allowing freedom of movement.
The reel may block when the vehicle is
parked on a steep slope: this is perfectly
normal. In addition, the reel mechanism
blocks the belt whenever it is pulled and
in the event of brisk braking, collisions and
on high speed bends.
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 84

85
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

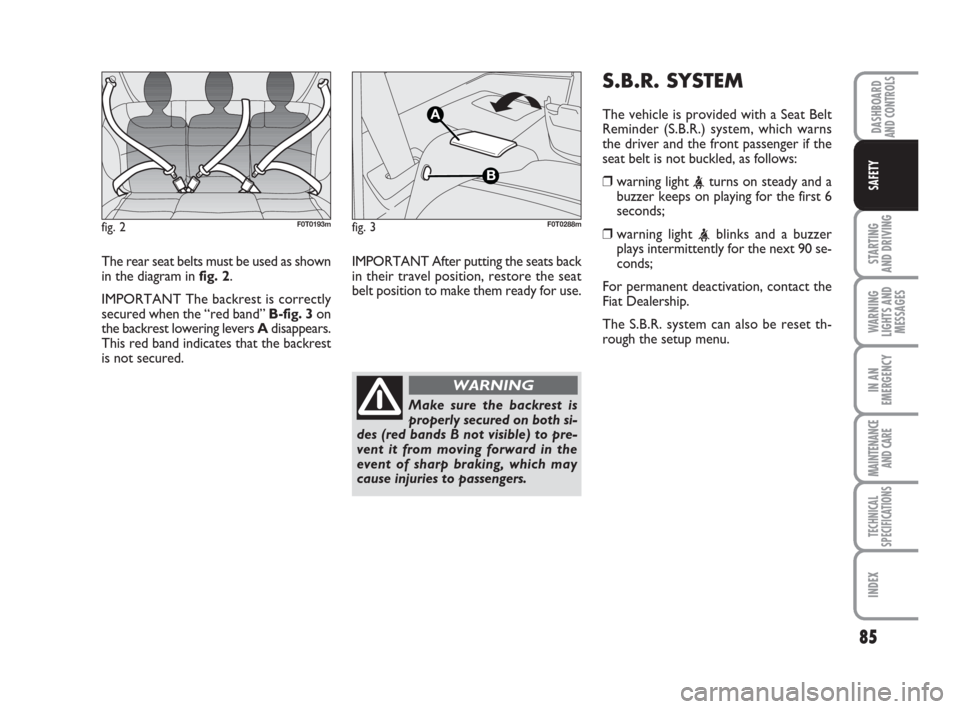

The rear seat belts must be used as shown
in the diagram in fig. 2.
IMPORTANT The backrest is correctly
secured when the “red band” B-fig. 3on
the backrest lowering levers Adisappears.
This red band indicates that the backrest
is not secured. IMPORTANT After putting the seats back
in their travel position, restore the seat
belt position to make them ready for use.
fig. 2F0T0193m
Make sure the backrest is
properly secured on both si-
des (red bands B not visible) to pre-
vent it from moving forward in the
event of sharp braking, which may
cause injuries to passengers.
WARNING
fig. 3
A
B
F0T0288m
S.B.R. SYSTEM
The vehicle is provided with a Seat Belt
Reminder (S.B.R.) system, which warns
the driver and the front passenger if the
seat belt is not buckled, as follows:
❒warning light
buzzer keeps on playing for the first 6
seconds;
❒warning light
plays intermittently for the next 90 se-
conds;
For permanent deactivation, contact the
Fiat Dealership.
The S.B.R. system can also be reset th-
rough the setup menu.
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 85

86
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

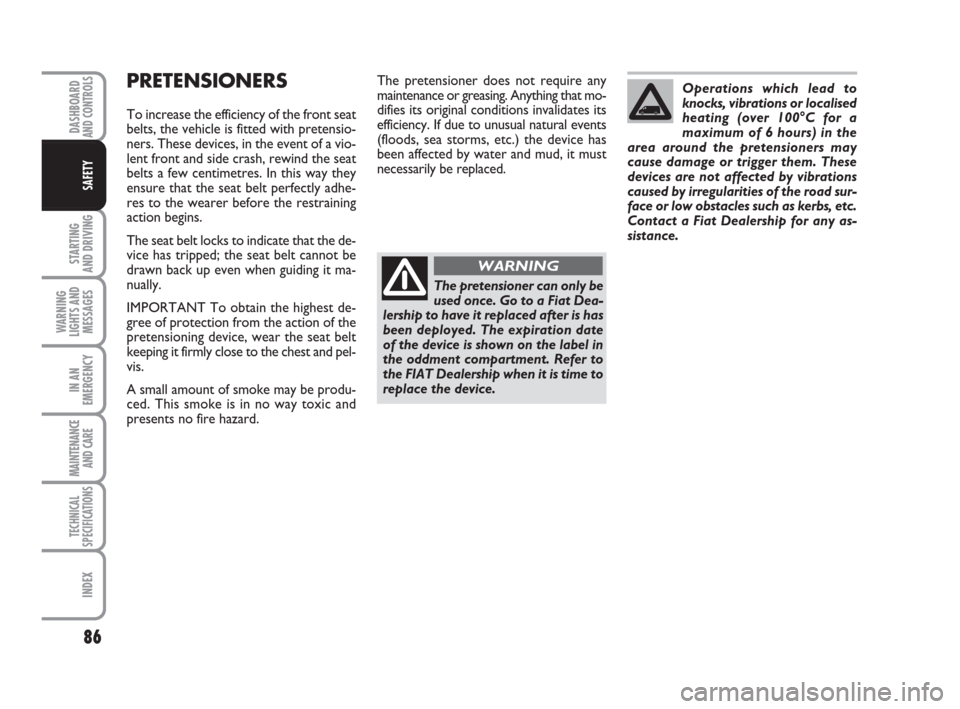

The pretensioner can only be
used once. Go to a Fiat Dea-
lership to have it replaced after is has
been deployed. The expiration date
of the device is shown on the label in
the oddment compartment. Refer to
the FIAT Dealership when it is time to
replace the device.
WARNING
Operations which lead to
knocks, vibrations or localised
heating (over 100°C for a
maximum of 6 hours) in the
area around the pretensioners may
cause damage or trigger them. These
devices are not affected by vibrations
caused by irregularities of the road sur-
face or low obstacles such as kerbs, etc.
Contact a Fiat Dealership for any as-
sistance.PRETENSIONERS
To increase the efficiency of the front seat
belts, the vehicle is fitted with pretensio-
ners. These devices, in the event of a vio-
lent front and side crash, rewind the seat
belts a few centimetres. In this way they
ensure that the seat belt perfectly adhe-
res to the wearer before the restraining
action begins.
The seat belt locks to indicate that the de-
vice has tripped; the seat belt cannot be
drawn back up even when guiding it ma-
nually.
IMPORTANT To obtain the highest de-
gree of protection from the action of the
pretensioning device, wear the seat belt
keeping it firmly close to the chest and pel-
vis.
A small amount of smoke may be produ-
ced. This smoke is in no way toxic and
presents no fire hazard.The pretensioner does not require any
maintenance or greasing. Anything that mo-
difies its original conditions invalidates its
efficiency. If due to unusual natural events
(floods, sea storms, etc.) the device has
been affected by water and mud, it must
necessarily be replaced.
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 86

87
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

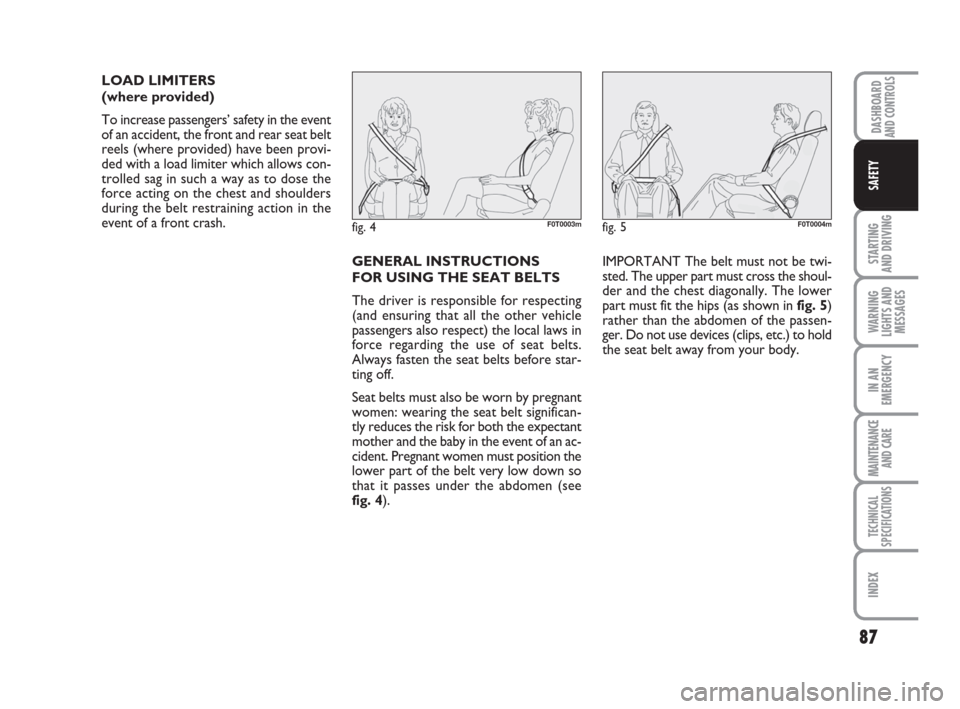

LOAD LIMITERS
(where provided)
To increase passengers’ safety in the event
of an accident, the front and rear seat belt
reels (where provided) have been provi-
ded with a load limiter which allows con-
trolled sag in such a way as to dose the
force acting on the chest and shoulders
during the belt restraining action in the
event of a front crash.
GENERAL INSTRUCTIONS
FOR USING THE SEAT BELTS
The driver is responsible for respecting
(and ensuring that all the other vehicle
passengers also respect) the local laws in
force regarding the use of seat belts.
Always fasten the seat belts before star-
ting off.
Seat belts must also be worn by pregnant
women: wearing the seat belt significan-
tly reduces the risk for both the expectant
mother and the baby in the event of an ac-
cident. Pregnant women must position the
lower part of the belt very low down so
that it passes under the abdomen (see
fig. 4).IMPORTANT The belt must not be twi-
sted. The upper part must cross the shoul-
der and the chest diagonally. The lower
part must fit the hips (as shown in fig. 5)
rather than the abdomen of the passen-
ger. Do not use devices (clips, etc.) to hold
the seat belt away from your body.
fig. 4F0T0003mfig. 5F0T0004m
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 87

88
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

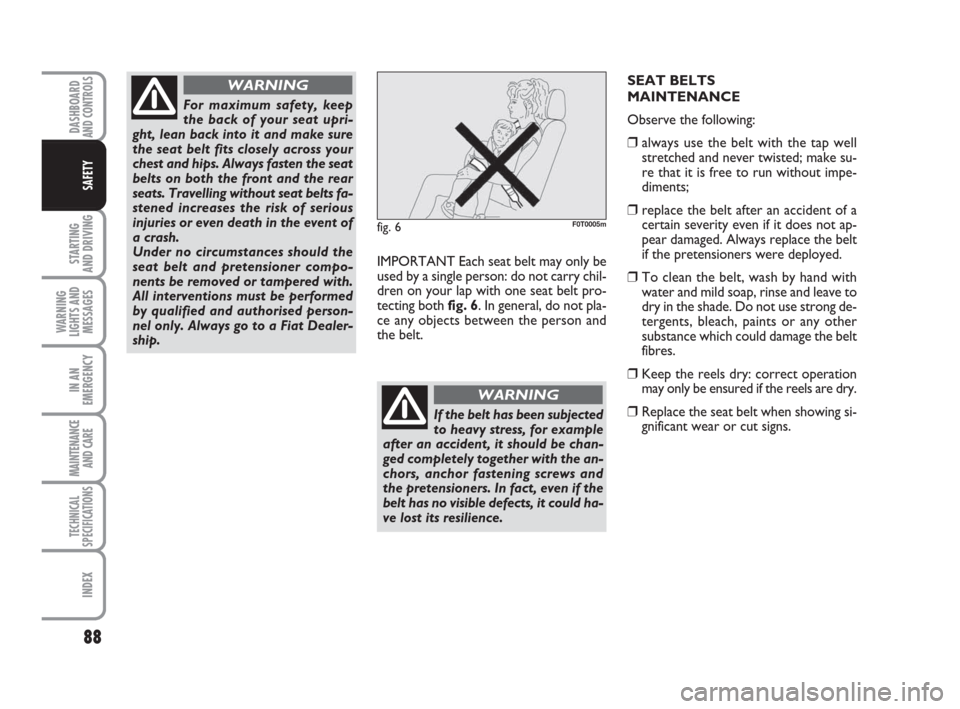

IMPORTANT Each seat belt may only be
used by a single person: do not carry chil-
dren on your lap with one seat belt pro-
tecting both fig. 6. In general, do not pla-
ce any objects between the person and
the belt.
fig. 6F0T0005m
If the belt has been subjected
to heavy stress, for example
after an accident, it should be chan-
ged completely together with the an-
chors, anchor fastening screws and
the pretensioners. In fact, even if the
belt has no visible defects, it could ha-
ve lost its resilience.
WARNING
SEAT BELTS
MAINTENANCE
Observe the following:
❒always use the belt with the tap well
stretched and never twisted; make su-
re that it is free to run without impe-
diments;
❒replace the belt after an accident of a
certain severity even if it does not ap-
pear damaged. Always replace the belt
if the pretensioners were deployed.
❒To clean the belt, wash by hand with
water and mild soap, rinse and leave to
dry in the shade. Do not use strong de-
tergents, bleach, paints or any other
substance which could damage the belt
fibres.
❒Keep the reels dry: correct operation
may only be ensured if the reels are dry.
❒Replace the seat belt when showing si-
gnificant wear or cut signs.
For maximum safety, keep
the back of your seat upri-
ght, lean back into it and make sure
the seat belt fits closely across your
chest and hips. Always fasten the seat
belts on both the front and the rear
seats. Travelling without seat belts fa-
stened increases the risk of serious
injuries or even death in the event of
a crash.
Under no circumstances should the
seat belt and pretensioner compo-
nents be removed or tampered with.
All interventions must be performed
by qualified and authorised person-
nel only. Always go to a Fiat Dealer-
ship.
WARNING
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 88

89
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY
CARRYING
CHILDREN SAFELY
For optimal protection in the event of a
crash, all passengers must be seated and
wear adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
A child’s head is larger and heavier in pro-
portion to his/her body and the child’s mu-
scular and bone structures are not fully
developed. For this reason, they require
restraint systems which are different from
those used by adults to protect them in
the event of an accident.The research results in relation to the be-
st protection for children is illustrated in
European standard CEE-R44 which divi-
des the restraint systems into five groups
in addition to making their use compul-
sory:
Group 0 up to 10 kg in weight
Group 0+ up to 13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap
partly and, in fact, in commerce it is pos-
sible to find devices that cover more than
one weight group.All restraint devices must bear the type-
approval data along with the control mark
on a label that must be firmly secured to
the child seat and must never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and have to wear the
standard seat belts.
Lineaccessori Fiat includes child restraint
systems for each weight group. These de-
vices are recommended as they have been
specifically designed for Fiat cars/vehicles.
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 89

90
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

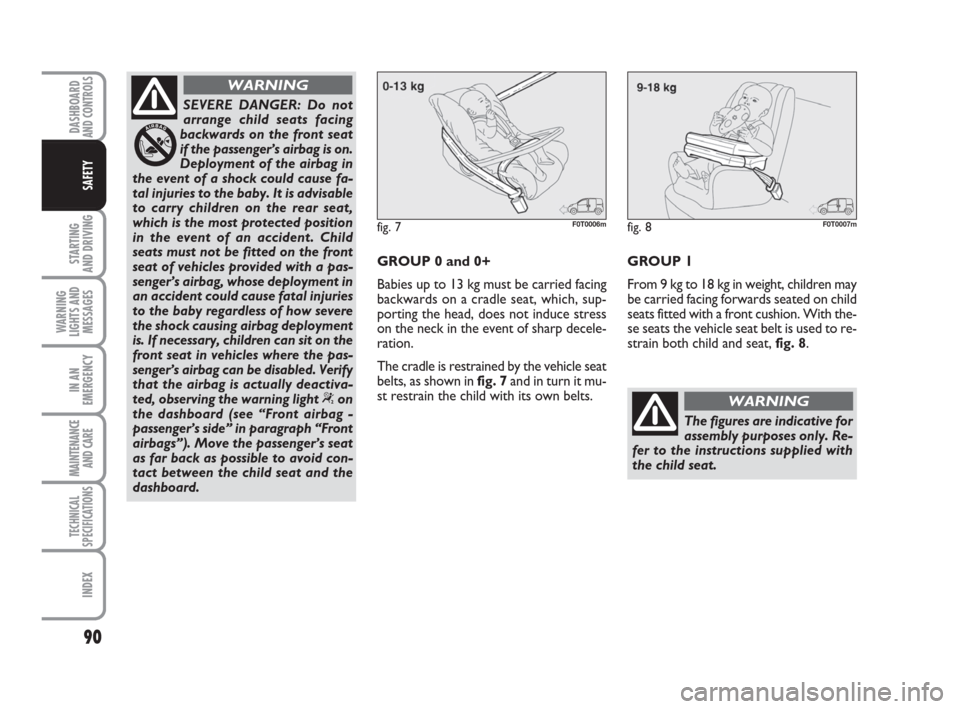

SEVERE DANGER: Do not
arrange child seats facing
backwards on the front seat
if the passenger’s airbag is on.
Deployment of the airbag in
the event of a shock could cause fa-
tal injuries to the baby. It is advisable
to carry children on the rear seat,
which is the most protected position
in the event of an accident. Child
seats must not be fitted on the front
seat of vehicles provided with a pas-
senger’s airbag, whose deployment in
an accident could cause fatal injuries
to the baby regardless of how severe
the shock causing airbag deployment
is. If necessary, children can sit on the
front seat in vehicles where the pas-
senger’s airbag can be disabled. Verify
that the airbag is actually deactiva-
ted, observing the warning light
“on
the dashboard (see “Front airbag -
passenger’s side” in paragraph “Front
airbags”). Move the passenger’s seat
as far back as possible to avoid con-
tact between the child seat and the
dashboard.
WARNING
GROUP 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decele-
ration.
The cradle is restrained by the vehicle seat
belts, as shown in fig. 7and in turn it mu-
st restrain the child with its own belts.GROUP 1
From 9 kg to 18 kg in weight, children may
be carried facing forwards seated on child
seats fitted with a front cushion. With the-
se seats the vehicle seat belt is used to re-
strain both child and seat, fig. 8.
fig. 7F0T0006mfig. 8F0T0007m
The figures are indicative for
assembly purposes only. Re-
fer to the instructions supplied with
the child seat.
WARNING
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 90

91
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

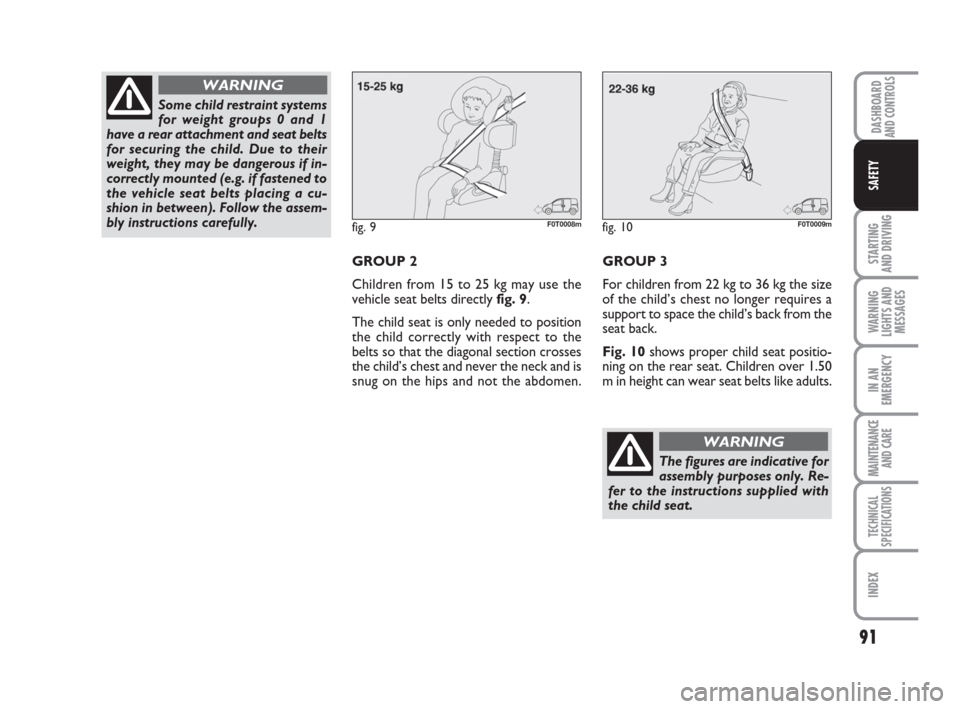

GROUP 2
Children from 15 to 25 kg may use the
vehicle seat belts directly fig. 9.
The child seat is only needed to position
the child correctly with respect to the
belts so that the diagonal section crosses
the child’s chest and never the neck and is
snug on the hips and not the abdomen.GROUP 3
For children from 22 kg to 36 kg the size
of the child’s chest no longer requires a
support to space the child’s back from the
seat back.
Fig. 10shows proper child seat positio-
ning on the rear seat. Children over 1.50
m in height can wear seat belts like adults.
fig. 9F0T0008mfig. 10F0T0009m
The figures are indicative for
assembly purposes only. Re-
fer to the instructions supplied with
the child seat.
WARNING
Some child restraint systems
for weight groups 0 and 1
have a rear attachment and seat belts
for securing the child. Due to their
weight, they may be dangerous if in-
correctly mounted (e.g. if fastened to
the vehicle seat belts placing a cu-
shion in between). Follow the assem-
bly instructions carefully.
WARNING
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 91

92
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

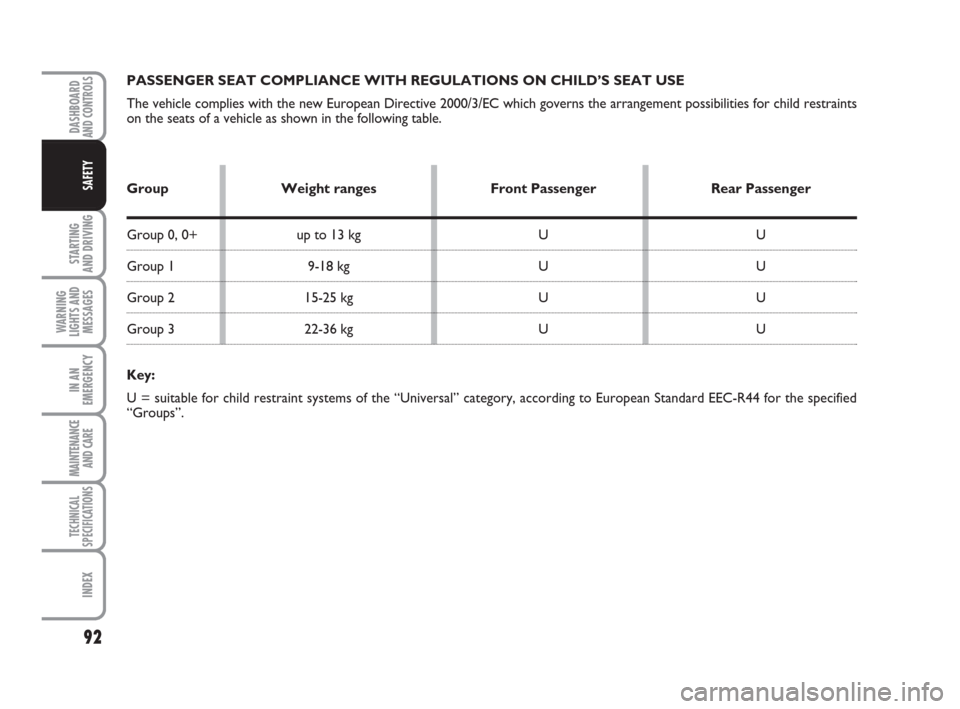

PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON CHILD’S SEAT USE
The vehicle complies with the new European Directive 2000/3/EC which governs the arrangement possibilities for child restraints
on the seats of a vehicle as shown in the following table.
Group Weight ranges Front Passenger Rear Passenger
Group 0, 0+ up to 13 kg U U
Group 1 9-18 kg U U
Group 2 15-25 kg U U
Group 3 22-36 kg U U
Key:
U = suitable for child restraint systems of the “Universal” category, according to European Standard EEC-R44 for the specified
“Groups”.
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 92

93
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY
Below is a summary of the safety ru-
les to be followed for carrying chil-
dren.
❒Install the child seats on the rear seat,
which is the most protected position in
the event of an accident.
❒If the passenger’s airbag is deactivated,
always check the warning light
“on the
instrument panel to make sure that it
has actually been deactivated.
❒Carefully follow the instructions sup-
plied with the child restraint system
which are mandatory by law. Keep the
instructions in the vehicle along with
the other papers and this handbook. Do
not use child seats without instructions.❒Always check the seat belt is well fa-
stened by pulling the belt.
❒Only one child is to be strapped to ea-
ch retaining system.
❒Always check the seat belts do not fit
around the child’s throat.
❒While travelling, do not let the child sit
incorrectly or release the belts.
❒Never carry children on your lap, even
newborns. No-one can hold a child in
the event of an accident.
❒In the event of an accident, replace the
child’s seat with a new one.
Do not arrange child seats on
the front seat in vehicles fit-
ted with a passenger’s airbag. Chil-
dren must never travel on the front
seat.
WARNING
ISOFIX CHILD
RESTRAINT
ASSEMBLY SETUP
(where provided)
Provision has been made on the vehicle
for mounting a Universal Isofix child re-
straint system, a new European standar-
dised system for carrying children safely.
Isofix systems can be mounted simulta-
neously with a traditional restraint system.
An example of child seat is shown in
fig. 11. The Universal Isofix child seat co-
vers weight group: 1.
The other weight groups are covered by
specific Isofix child seats, which can be
used only if specifically designed, tested
and type-approved for this vehicle (see
vehicle list provided with the child seat).
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 93
