FIAT QUBO 2008 1.G User Guide

10
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DEAD LOCK SYSTEM
(where provided)
The dead lock system is a safety device
which prevents door opening from inside
the passenger compartment in case of an
attempted break-in (e.g.: window break-
ing).
It is the best protection possible against
attempted break-ins. We recommend en-
gaging it whenever the vehicle is parked
and left unattended.
Once the dead lock device
has been engaged, doors
cannot be opened from the passen-
ger compartment in any way. For this
reason, make sure there are no per-
sons left inside the vehicle.
WARNING
If the battery of the key with
remote control is down, the
dead lock device can be activated on-
ly by fitting the metal insert of the key
in both front door revolving plugs as
described previously: in this case the
dead lock device will stay engaged on-
ly on the rear doors.
WARNING
Engaging the system
The system is automatically enabled on all
the doors by double-pressing the button
Ápositioned on the key with the remote
control.
The system has been successfully enabled
when the direction indicators flash twice.
The system is not enabled if one or more
than one door is not correctly locked.
This prevents any person from getting in-
to the vehicle from an open door, and
locks him/her inside the passenger com-
partment when the door is closed.
Disengaging the system
The system is disabled automatically on
every door in the following cases:
❒when unlocking the doors;
❒when turning the ignition key to MAR.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 10

11
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ALARM
(where provided)
In addition to all the remote control func-
tions described above, an alarm has been
installed, which is controlled by a receiv-
er unit located under the dashboard near
the fuse box.
ALARM TRIPPING
The alarm trips in the following cases:
❒when one of the doors or bonnet is
opened illegitimately (perimeter pro-
tection);
❒when the ignition system is started up
(ignition key rotated to MAR);
❒when the battery cables are cut;
❒when someone is moving inside the
passenger compartment (volumetric
protection);
❒when the vehicle is unusually lifted/tilt-
ed.
Depending on the markets where the ve-
hicle is sold, alarm tripping causes either
a siren or direction indicators to go on
(for approx. 26 seconds). Alarm tripping
and the number of cycles depend on the
sales market.Provision has been made for a maximum
number of acoustic/visual cycles, after
which the system resumes its standard
control function.
Volumetric and anti-lift protections are
disabled by pressing the control button in-
stalled on the front dashboard (see para-
graph “Anti-lift protections).
IMPORTANT The engine stop function is
guaranteed by the Fiat CODE, which is au-
tomatically activated when the ignition key
is extracted from the starter device.
ENABLING THE ALARM
Keep the doors and bonnets closed and
either turn the ignition key to STOPor
remove it. Direct the key with the remote
control towards the vehicle and press but-
ton
Á, then release it.
Excluding some versions for specific mar-
kets, the system produces a sound warn-
ing (beep) and enables door locking.
Before the alarm is enabled, a self-test is
run. If a failure is detected, the system pro-
duces a new acoustic signal and shows a
message on the display (see section
“Warning lights and messages”). If this is the case, disable the alarm by
pressing button Æ, check correct locking
of the doors, bonnet and boot, and enable
the alarm again by pressing button
Á.
If a door or the bonnet is not correctly
closed, it will be excluded from the test-
ing by the alarm system.
If the alarm produces an acoustic signal
even when the doors, bonnet and boot
are correctly closed, a failure has occurred
in system operation. Go to a Fiat Dealer-
ship.
IMPORTANT If the central door locking
system is engaged using the metal insert
of the key, the alarm is not enabled.
IMPORTANT Originally, the alarm is con-
figured in compliance with the regulations
existing in the different countries.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 11

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DISABLING THE ALARM
Press button Æon the key with the re-
mote control.
The following operations are performed
(excluding some versions):
❒the direction indicators turn on short-
ly twice;
❒two short beeps are produced by the
warning buzzer;
❒the doors are unlocked.
IMPORTANT If the central door locking
system is engaged using the metal insert
of the key, the alarm is not disabled.VOLUME-SENSING/
ANTI-LIFT PROTECTION
To ensure correct operation of the pro-
tection, it is advisable to fully close the side
windows.
If necessary, the function may be turned
off (e.g. if animals are left in the car) by
pressing key A-fig. 7, located on the front
courtesy light before activating the alarm.
Function deactivation is indicated by the
led located on the key flashing for a few
seconds. If the volume-sensing/anti-lift
protection is turned off, this must be re-
peated whenever the instrument panel is
turned off.SIGNALS IN THE EVENT
OF ATTEMPTED BREAK-INS
Whenever a break-in is attempted, a
warning light Y(or symbol on the dis-
play) starts blinking on the instrument pan-
el (in some versions a message also ap-
pears on the display - see section “Warn-
ing lights and messages”).
DISABLING THE ALARM
To permanently disable the alarm (e.g.
during prolonged vehicle shutdown), lock
the vehicle by turning the metal insert of
the key in the door lock.
IMPORTANT If the battery of the key
with the remote control goes down or the
system fails, the alarm is disabled by plac-
ing the key in the ignition system and ro-
tating it to MAR.
fig. 7F0T0159m
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 12

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 8F0T0039m
Never extract the key while
the vehicle is moving. The
steering wheel would be locked as
soon as the steering wheel is turned.
This also applies to cases in which the
vehicle is towed. Under no circum-
stances should after-market opera-
tions be carried out involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could negatively affect
performance and safety, cause the
lapse of the warranty and also result
in vehicle non-compliance with type-
approval requirements.
WARNINGIGNITION DEVICE
The key can be turned to 3 different po-
sitions fig. 8:
❒STOP: the engine is off, the key can be
extracted, the steering is locked. Some
electrical devices (e.g. car radio, central
door locking system, alarm, etc.) are en-
abled.
❒MAR: driving position. All electrical de-
vices work regularly.
❒AVV: engine start.
The ignition device is fitted with a safety
system that forces the driver to return the
ignition key to STOPbefore repeating the
starting operation, if the engine does not
start up.STEERING COLUMN LOCK
Engagement
When the key is at STOP, remove the key
and turn the steering wheel until it locks.
Disengagement
Rock the steering wheel slightly as you
turn the ignition key to MAR.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 13

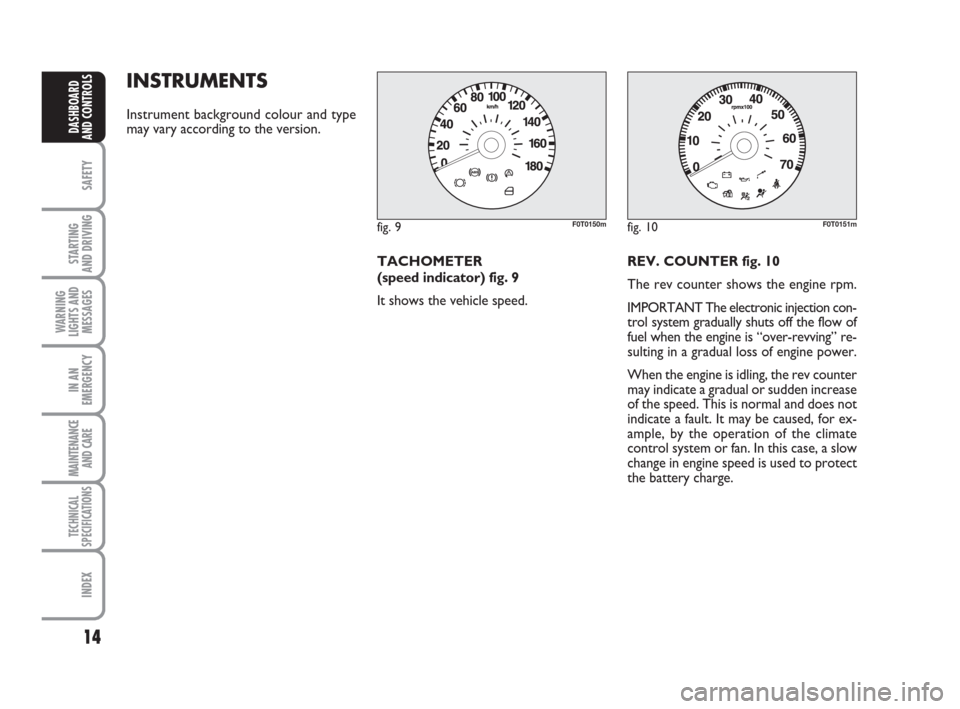

INSTRUMENTS
Instrument background colour and type
may vary according to the version.
TACHOMETER
(speed indicator) fig. 9
It shows the vehicle speed.REV. COUNTER fig. 10
The rev counter shows the engine rpm.
IMPORTANT The electronic injection con-
trol system gradually shuts off the flow of
fuel when the engine is “over-revving” re-
sulting in a gradual loss of engine power.
When the engine is idling, the rev counter
may indicate a gradual or sudden increase
of the speed. This is normal and does not
indicate a fault. It may be caused, for ex-
ample, by the operation of the climate
control system or fan. In this case, a slow
change in engine speed is used to protect
the battery charge.
fig. 9F0T0150mfig. 10F0T0151m
14
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 14

15
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL LEVEL INDICATOR
This shows the amount of fuel left in the
fuel tank.
The warning light A-fig. 11turns on to
indicate that approximately 6 to 7 litres of
fuel are left in the tank.
E- tank empty.
F- tank full (see the instructions provid-
ed in paragraph “Vehicle refuelling” in
this section).
Do not travel when the fuel tank is almost
empty, because this may jeopardize the
catalyst.
IMPORTANT The needle will point to E
and warning light Awill blink to indicate a
fault in the system. Go to a Fiat Dealer-
ship to have the system checked.ENGINE COOLANT
TEMPERATURE INDICATOR
This shows the temperature of the engine
coolant fluid and starts working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions
of the vehicle.
C- Low engine coolant temperature.
H- High engine coolant temperature.Turning on of the warning light B-fig. 11
(along with a message on the display) in-
dicates that the coolant fluid temperature
is too high. In this case, stop the engine
and contact a Fiat Dealership.
fig. 11F0T0152m
If the needle indicating the
engine coolant temperature
reaches the red area, stop the
engine immediately and con-
tact a Fiat Dealership.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 15

16
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

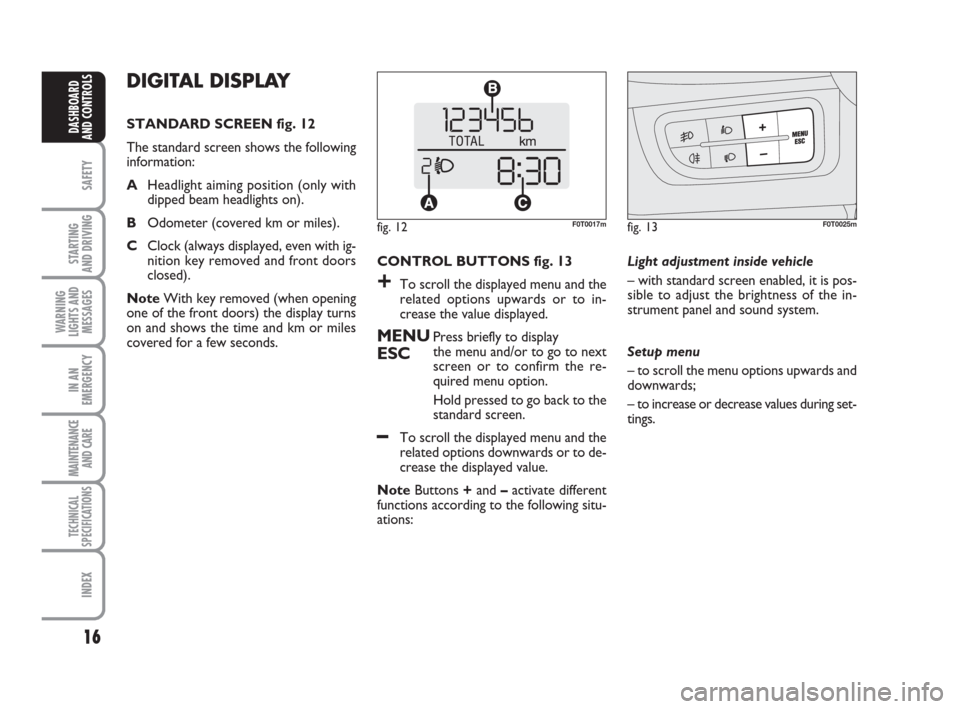

CONTROL BUTTONS fig. 13
+To scroll the displayed menu and the
related options upwards or to in-
crease the value displayed.
MENUPress briefly to display
ESCthe menu and/or to go to next
screen or to confirm the re-
quired menu option.
Hold pressed to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the displayed value.
NoteButtons +and –activate different
functions according to the following situ-
ations: Light adjustment inside vehicle
– with standard screen enabled, it is pos-
sible to adjust the brightness of the in-
strument panel and sound system.
Setup menu
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during set-
tings.
DIGITAL DISPLAY
STANDARD SCREEN fig. 12
The standard screen shows the following
information:
AHeadlight aiming position (only with
dipped beam headlights on).
BOdometer (covered km or miles).
CClock (always displayed, even with ig-
nition key removed and front doors
closed).
NoteWith key removed (when opening
one of the front doors) the display turns
on and shows the time and km or miles
covered for a few seconds.
fig. 12F0T0017mfig. 13F0T0025m
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 16

17
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SETUP MENU fig. 14
The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons +and –, thus gaining ac-
cess to the different select and setting (set-
up) operations given in the following para-
graphs.
The setup menu can be activated by briefly
pressing button MENU ESC.
Single presses on buttons +and –will
scroll the setup menu options.
Handling modes differ with each other ac-
cording to the characteristic of the option
selected.Selecting a menu option
– briefly press button MENU ESCto se-
lect the menu option to set;
– press buttons +and –(by single press-
es) to select the new setting;
– briefly press button MENU ESCto
store the new setting and go back to the
previously selected menu option.
Selecting “Set Clock”
– briefly press button MENU ESCto se-
lect the first value to change (hours);
– press buttons +and –(by single press-
es) to select the new setting;
– briefly press button MENU ESCto
store the new setting and go to the next
setup menu option (minutes);
– after setting the values with the same
procedure, go back to the menu item pre-
viously selected.Prolonged pressing of MENU ESCbutton
– to quit the setup menu if you are in the
menu;
– to quit the displayed menu if you are set-
ting an option;
– to save the changes to stored settings (and
confirmed by pressing button MENU
ESC).
The setup menu environment is timed;
when quitting the menu due to timing ex-
piry, only the settings stored by the user
are saved (and confirmed by briefly press-
ing button MENU ESC).
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 17

18
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

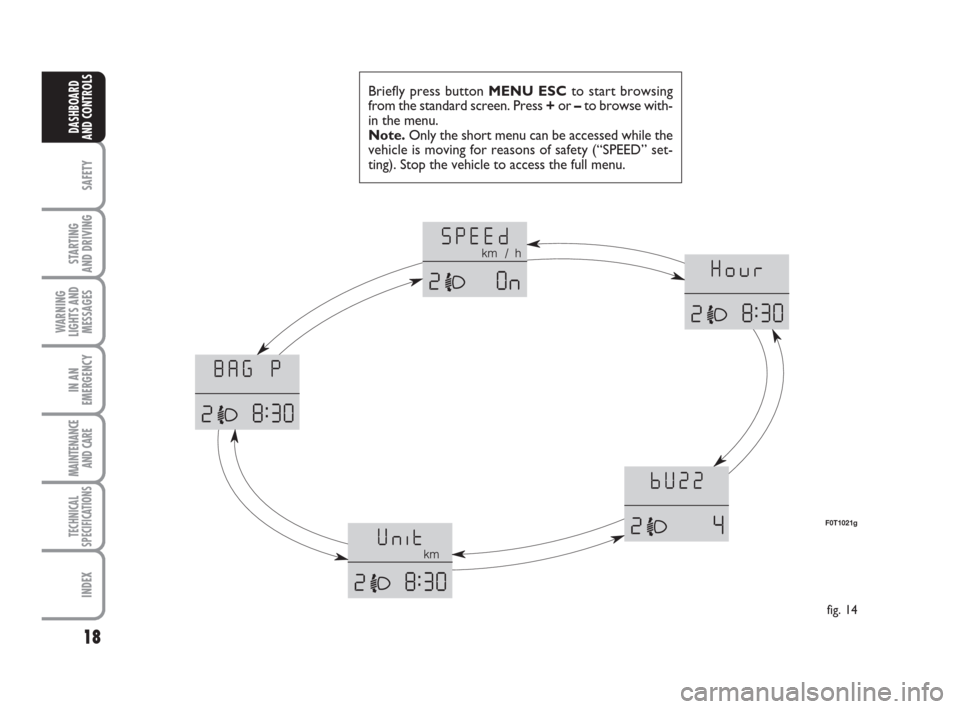

Briefly press button MENU ESCto start browsing
from the standard screen. Press +or –to browse with-
in the menu.
Note.Only the short menu can be accessed while the
vehicle is moving for reasons of safety (“SPEED” set-
ting). Stop the vehicle to access the full menu.
fig. 14
F0T1021g
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 18

19
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

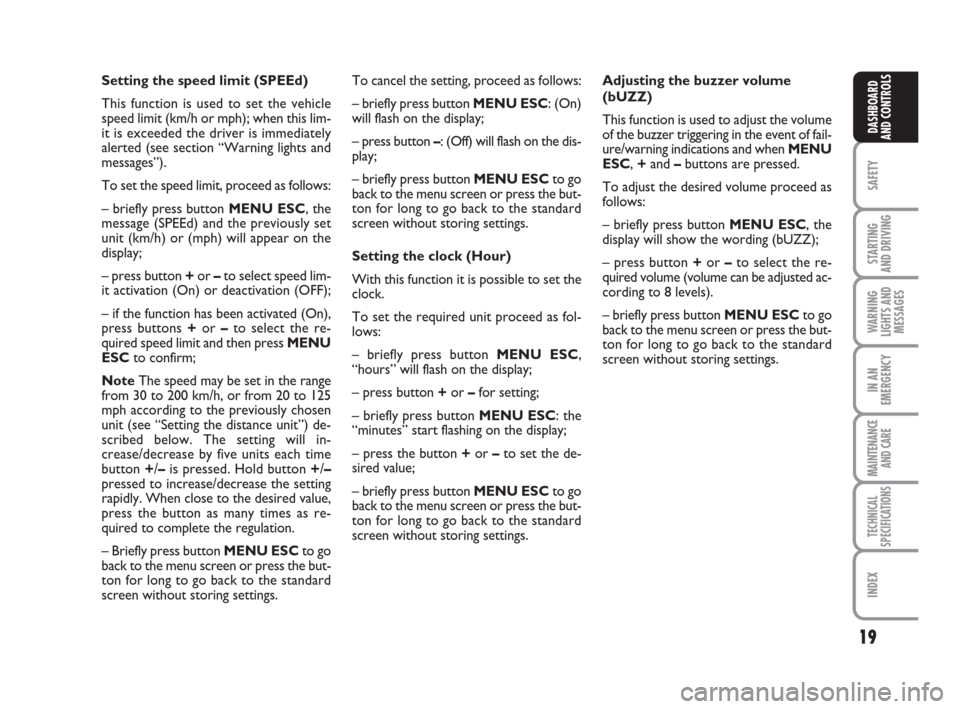

Setting the speed limit (SPEEd)
This function is used to set the vehicle
speed limit (km/h or mph); when this lim-
it is exceeded the driver is immediately
alerted (see section “Warning lights and
messages”).
To set the speed limit, proceed as follows:
– briefly press button MENU ESC, the
message (SPEEd) and the previously set
unit (km/h) or (mph) will appear on the
display;
– press button+or –to select speed lim-
it activation (On) or deactivation (OFF);
– if the function has been activated (On),
press buttons +or –to select the re-
quired speed limit and then press MENU
ESCto confirm;
NoteThe speed may be set in the range
from 30 to 200 km/h, or from 20 to 125
mph according to the previously chosen
unit (see “Setting the distance unit”) de-
scribed below. The setting will in-
crease/decrease by five units each time
button +/–is pressed. Hold button +/–
pressed to increase/decrease the setting
rapidly. When close to the desired value,
press the button as many times as re-
quired to complete the regulation.
– Briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.To cancel the setting, proceed as follows:
– briefly press button MENU ESC: (On)
will flash on the display;
– press button –: (Off) will flash on the dis-
play;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
Setting the clock (Hour)
With this function it is possible to set the
clock.
To set the required unit proceed as fol-
lows:
– briefly press button MENU ESC,
“hours” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC: the
“minutes” start flashing on the display;
– press the button +or –to set the de-
sired value;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Adjusting the buzzer volume
(bUZZ)
This function is used to adjust the volume
of the buzzer triggering in the event of fail-
ure/warning indications and when MENU
ESC,+and –buttons are pressed.
To adjust the desired volume proceed as
follows:
– briefly press button MENU ESC, the
display will show the wording (bUZZ);
– press button +or –to select the re-
quired volume (volume can be adjusted ac-
cording to 8 levels).
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
001-035 Fiorino GB 1ed 21-10-2008 14:57 Pagina 19
