check engine FIAT QUBO 2008 1.G Owner's Manual

160
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

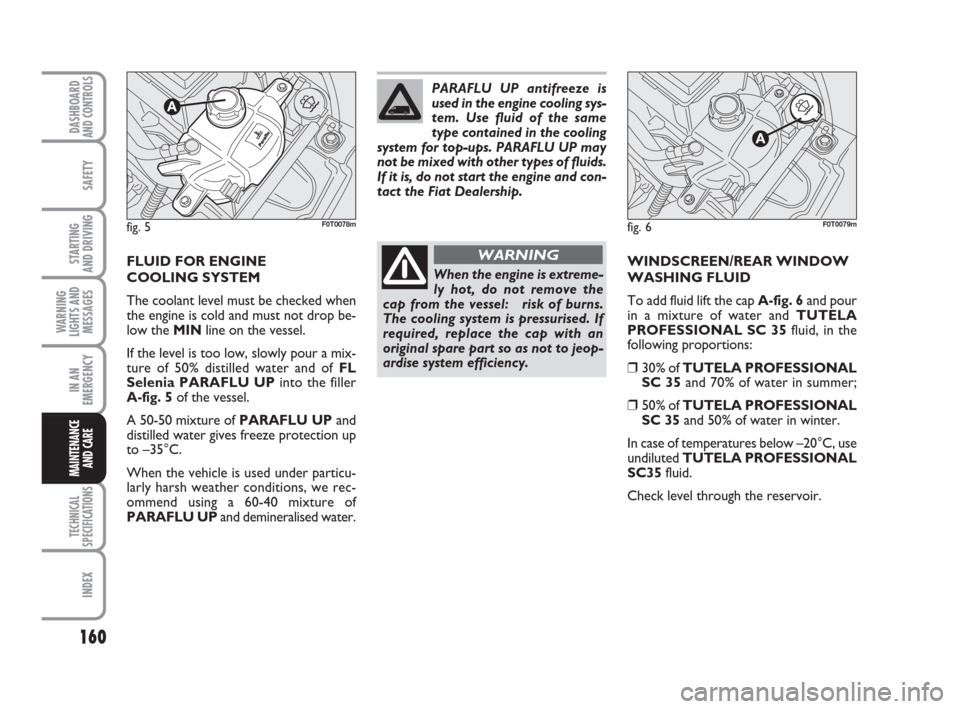

FLUID FOR ENGINE
COOLING SYSTEM
The coolant level must be checked when
the engine is cold and must not drop be-
low the MINline on the vessel.
If the level is too low, slowly pour a mix-
ture of 50% distilled water and of FL
Selenia PARAFLU UPinto the filler
A-fig. 5of the vessel.
A 50-50 mixture of PARAFLU UPand
distilled water gives freeze protection up
to –35°C.
When the vehicle is used under particu-
larly harsh weather conditions, we rec-
ommend using a 60-40 mixture of
PARAFLU UPand demineralised water.WINDSCREEN/REAR WINDOW
WASHING FLUID
To add fluid lift the cap A-fig. 6and pour
in a mixture of water and TUTELA
PROFESSIONAL SC 35fluid, in the
following proportions:
❒30% of TUTELA PROFESSIONAL
SC 35and 70% of water in summer;
❒50% of TUTELA PROFESSIONAL
SC 35and 50% of water in winter.
In case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC35fluid.
Check level through the reservoir.
fig. 5F0T0078m
When the engine is extreme-
ly hot, do not remove the
cap from the vessel: risk of burns.
The cooling system is pressurised. If
required, replace the cap with an
original spare part so as not to jeop-
ardise system efficiency.
WARNING
PARAFLU UP antifreeze is
used in the engine cooling sys-
tem. Use fluid of the same
type contained in the cooling
system for top-ups. PARAFLU UP may
not be mixed with other types of fluids.
If it is, do not start the engine and con-
tact the Fiat Dealership.
fig. 6F0T0079m
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 160

161
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

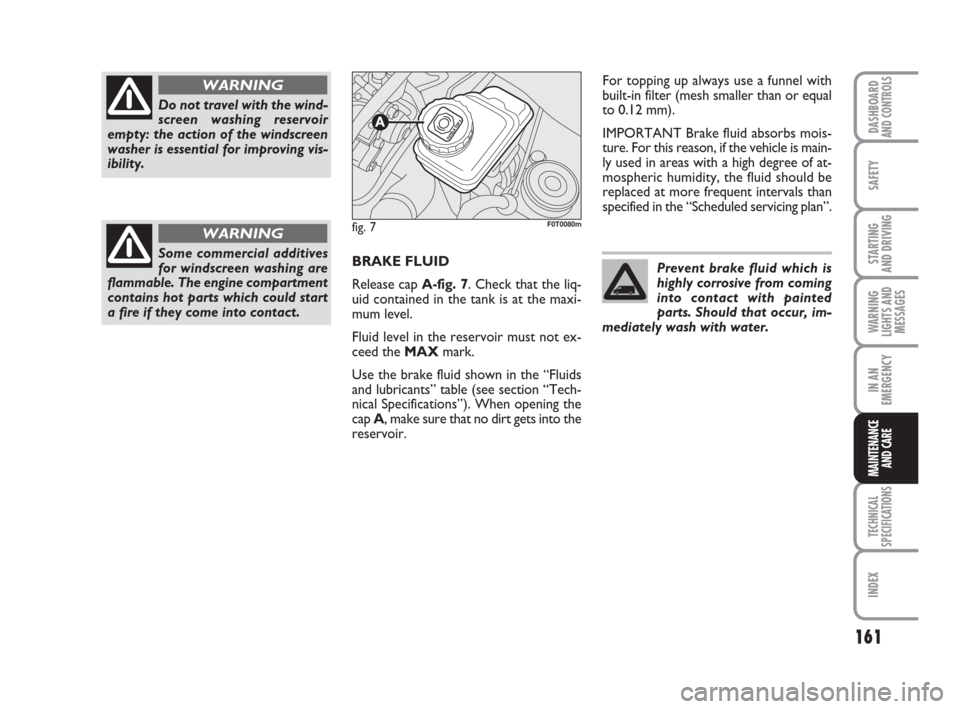

BRAKE FLUID
Release cap A-fig. 7. Check that the liq-
uid contained in the tank is at the maxi-
mum level.
Fluid level in the reservoir must not ex-
ceed the MAXmark.
Use the brake fluid shown in the “Fluids
and lubricants” table (see section “Tech-
nical Specifications”). When opening the
cap A, make sure that no dirt gets into the
reservoir.For topping up always use a funnel with
built-in filter (mesh smaller than or equal
to 0.12 mm).
IMPORTANT Brake fluid absorbs mois-
ture. For this reason, if the vehicle is main-
ly used in areas with a high degree of at-
mospheric humidity, the fluid should be
replaced at more frequent intervals than
specified in the “Scheduled servicing plan”.
Do not travel with the wind-
screen washing reservoir
empty: the action of the windscreen
washer is essential for improving vis-
ibility.
WARNING
Some commercial additives
for windscreen washing are
flammable. The engine compartment
contains hot parts which could start
a fire if they come into contact.
WARNINGfig. 7F0T0080m
Prevent brake fluid which is
highly corrosive from coming
into contact with painted
parts. Should that occur, im-
mediately wash with water.
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 161

162
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

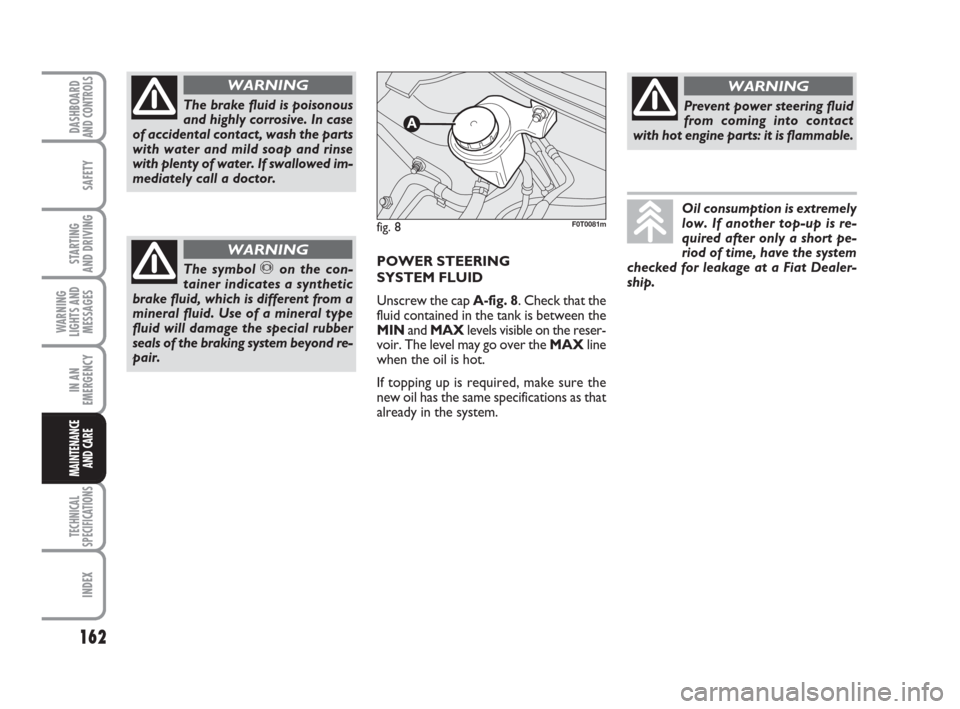

The brake fluid is poisonous
and highly corrosive. In case
of accidental contact, wash the parts
with water and mild soap and rinse
with plenty of water. If swallowed im-
mediately call a doctor.
WARNING
The symbol πon the con-
tainer indicates a synthetic
brake fluid, which is different from a
mineral fluid. Use of a mineral type
fluid will damage the special rubber
seals of the braking system beyond re-
pair.
WARNINGPOWER STEERING
SYSTEM FLUID
Unscrew the cap A-fig. 8. Check that the
fluid contained in the tank is between the
MINand MAXlevels visible on the reser-
voir. The level may go over the MAXline
when the oil is hot.
If topping up is required, make sure the
new oil has the same specifications as that
already in the system.
fig. 8F0T0081m
Prevent power steering fluid
from coming into contact
with hot engine parts: it is flammable.
WARNING
Oil consumption is extremely
low. If another top-up is re-
quired after only a short pe-
riod of time, have the system
checked for leakage at a Fiat Dealer-
ship.
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 162

164
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

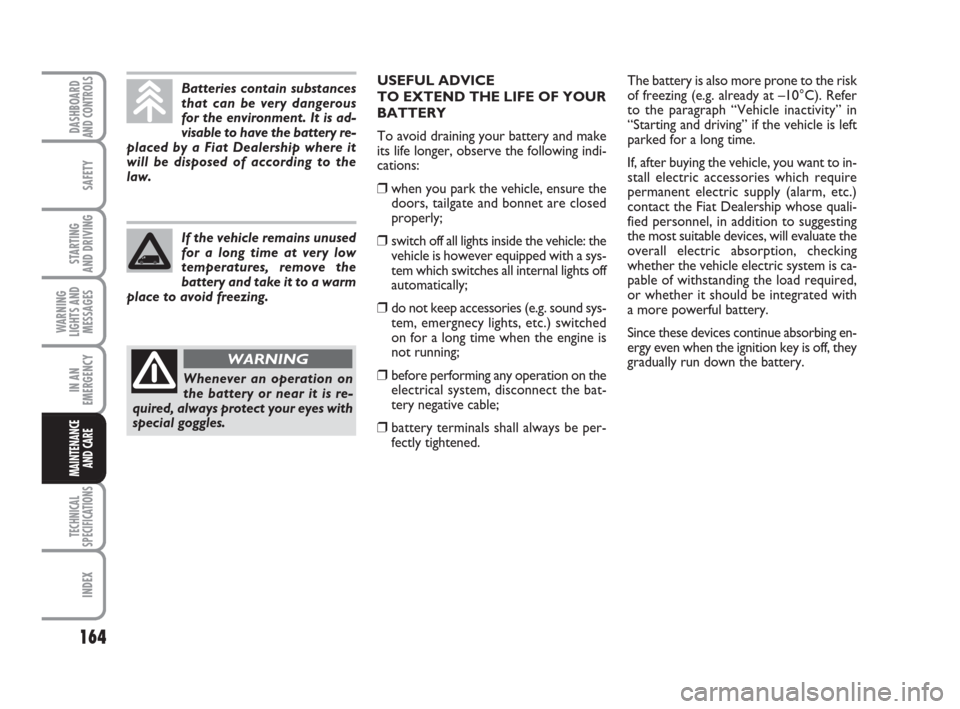

Batteries contain substances
that can be very dangerous
for the environment. It is ad-
visable to have the battery re-
placed by a Fiat Dealership where it
will be disposed of according to the
law.
Whenever an operation on
the battery or near it is re-
quired, always protect your eyes with
special goggles.
WARNING
If the vehicle remains unused
for a long time at very low
temperatures, remove the
battery and take it to a warm
place to avoid freezing.
USEFUL ADVICE
TO EXTEND THE LIFE OF YOUR
BATTERY
To avoid draining your battery and make
its life longer, observe the following indi-
cations:
❒when you park the vehicle, ensure the
doors, tailgate and bonnet are closed
properly;
❒switch off all lights inside the vehicle: the
vehicle is however equipped with a sys-
tem which switches all internal lights off
automatically;
❒do not keep accessories (e.g. sound sys-
tem, emergnecy lights, etc.) switched
on for a long time when the engine is
not running;
❒before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒battery terminals shall always be per-
fectly tightened.The battery is also more prone to the risk
of freezing (e.g. already at –10°C). Refer
to the paragraph “Vehicle inactivity” in
“Starting and driving” if the vehicle is left
parked for a long time.
If, after buying the vehicle, you want to in-
stall electric accessories which require
permanent electric supply (alarm, etc.)
contact the Fiat Dealership whose quali-
fied personnel, in addition to suggesting
the most suitable devices, will evaluate the
overall electric absorption, checking
whether the vehicle electric system is ca-
pable of withstanding the load required,
or whether it should be integrated with
a more powerful battery.
Since these devices continue absorbing en-
ergy even when the ignition key is off, they
gradually run down the battery.
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 164

194
WARNING
LIGHTS AND
MESSAGES
DASHBOARDAND CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

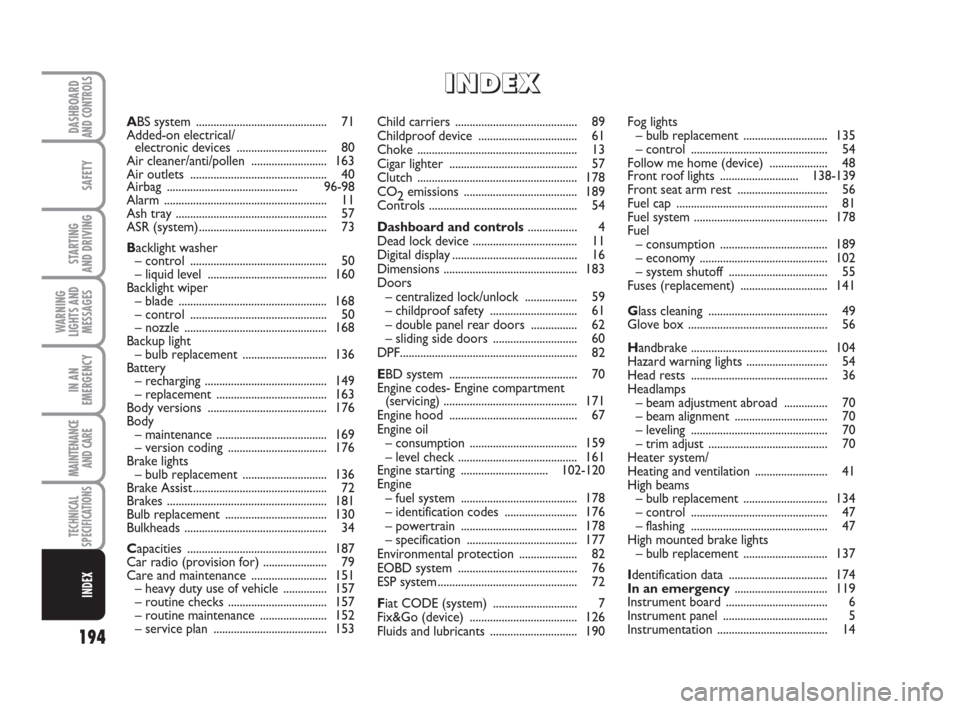

Child carriers .......................................... 89
Childproof device .................................. 61
Choke ....................................................... 13
Cigar lighter ............................................ 57
Clutch ....................................................... 178
CO
2emissions ....................................... 189
Controls ................................................... 54
Dashboard and controls................. 4
Dead lock device .................................... 11
Digital display........................................... 16
Dimensions .............................................. 183
Doors
– centralized lock/unlock .................. 59
– childproof safety .............................. 61
– double panel rear doors ................62
– sliding side doors ............................. 60
DPF............................................................. 82
EBD system ............................................ 70
Engine codes- Engine compartment
(servicing) .............................................. 171
Engine hood ............................................ 67
Engine oil
– consumption ..................................... 159
– level check ......................................... 161
Engine starting ..............................102-120
Engine
– fuel system ........................................ 178
– identification codes ......................... 176
– powertrain ........................................ 178
– specification ...................................... 177
Environmental protection .................... 82
EOBD system ......................................... 76
ESP system................................................ 72
Fiat CODE (system) ............................. 7
Fix&Go (device) ..................................... 126
Fluids and lubricants .............................. 190Fog lights
– bulb replacement ............................. 135
– control ............................................... 54
Follow me home (device) .................... 48
Front roof lights ...........................138-139
Front seat arm rest ............................... 56
Fuel cap .................................................... 81
Fuel system .............................................. 178
Fuel
– consumption ..................................... 189
– economy ............................................ 102
– system shutoff .................................. 55
Fuses (replacement) .............................. 141
Glass cleaning ......................................... 49
Glove box ................................................ 56
Handbrake ............................................... 104
Hazard warning lights ............................ 54
Head rests ............................................... 36
Headlamps
– beam adjustment abroad ............... 70
– beam alignment ................................ 70
– leveling ............................................... 70
– trim adjust ......................................... 70
Heater system/
Heating and ventilation ......................... 41
High beams
– bulb replacement ............................. 134
– control ............................................... 47
– flashing ............................................... 47
High mounted brake lights
– bulb replacement ............................. 137
Identification data .................................. 174
In an emergency ................................ 119
Instrument board ................................... 6
Instrument panel .................................... 5
Instrumentation ...................................... 14 ABS system ............................................. 71
Added-on electrical/
electronic devices ............................... 80
Air cleaner/anti/pollen .......................... 163
Air outlets ............................................... 40
Airbag .............................................96-98
Alarm ........................................................ 11
Ash tray .................................................... 57
ASR (system)............................................ 73
Backlight washer
– control ............................................... 50
– liquid level ......................................... 160
Backlight wiper
– blade ................................................... 168
– control ............................................... 50
– nozzle ................................................. 168
Backup light
– bulb replacement ............................. 136
Battery
– recharging .......................................... 149
– replacement ...................................... 163
Body versions ......................................... 176
Body
– maintenance ...................................... 169
– version coding .................................. 176
Brake lights
– bulb replacement ............................. 136
Brake Assist.............................................. 72
Brakes ....................................................... 181
Bulb replacement ................................... 130
Bulkheads ................................................. 34
Capacities ................................................ 187
Car radio (provision for) ...................... 79
Care and maintenance .......................... 151
– heavy duty use of vehicle ............... 157
– routine checks .................................. 157
– routine maintenance ....................... 152
– service plan ....................................... 153
II I
N N
D D
E E
X X
194-200 Fiorino GB 1ed 21-10-2008 15:03 Pagina 194

ENGINE OIL CHANGE
1.4-1.3 Multijet
Tank capacity45
Reserve6÷7
Refuel petrol engines with unleaded petrol with octane rating (RON) no lower than 95 only (EN 228 Specifications)
Refuel diesel engines with diesel fuel for motor vehicles only (EN 590 Specifications)
FUEL CAPACITIES (litres)
Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia) - Print n. 603.81.555 - 12/2008 - 1stediition
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running over 160 km/h, inflate tyres at full load inflation values.
1.4 1.3 Multijetlitres kg litres kg
Fuel tank 2.7 2.4 3.0 2.6
Engine sump and filter 3.0 2.6 3.2 2.8
COLD TYRE INFLATION PRESSURES (bar)
185/65 R15 88 T 2.3 2.1 2.3 2.1 2.3 2.3
195/55 R16 87 H 2.3 2.1 2.3 2.1 2.4 2.4 Tyre size TYRES SUPPLIED
Loadless Medium load Full load
Front Rear Front Rear Front Rear
194-200 Fiorino GB 1ed 21-10-2008 15:03 Pagina 200
