check engine FIAT QUBO 2008 1.G User Guide

112
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

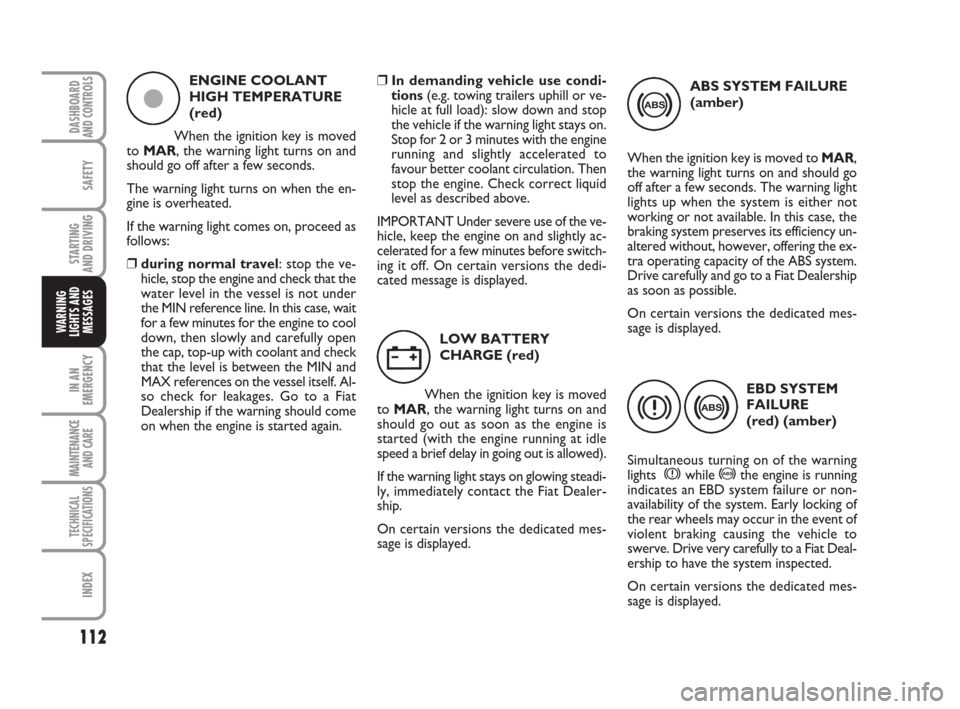

ABS SYSTEM FAILURE
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds. The warning light
lights up when the system is either not
working or not available. In this case, the
braking system preserves its efficiency un-
altered without, however, offering the ex-
tra operating capacity of the ABS system.
Drive carefully and go to a Fiat Dealership
as soon as possible.
On certain versions the dedicated mes-
sage is displayed.
EBD SYSTEM
FAILURE
(red) (amber)
Simultaneous turning on of the warning
lights
xwhile >the engine is running
indicates an EBD system failure or non-
availability of the system. Early locking of
the rear wheels may occur in the event of
violent braking causing the vehicle to
swerve. Drive very carefully to a Fiat Deal-
ership to have the system inspected.
On certain versions the dedicated mes-
sage is displayed. ENGINE COOLANT
HIGH TEMPERATURE
(red)
When the ignition key is moved
to MAR, the warning light turns on and
should go off after a few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the ve-
hicle, stop the engine and check that the
water level in the vessel is not under
the MIN reference line. In this case, wait
for a few minutes for the engine to cool
down, then slowly and carefully open
the cap, top-up with coolant and check
that the level is between the MIN and
MAX references on the vessel itself. Al-
so check for leakages. Go to a Fiat
Dealership if the warning should come
on when the engine is started again.❒In demanding vehicle use condi-
tions (e.g. towing trailers uphill or ve-
hicle at full load): slow down and stop
the vehicle if the warning light stays on.
Stop for 2 or 3 minutes with the engine
running and slightly accelerated to
favour better coolant circulation. Then
stop the engine. Check correct liquid
level as described above.
IMPORTANT Under severe use of the ve-
hicle, keep the engine on and slightly ac-
celerated for a few minutes before switch-
ing it off. On certain versions the dedi-
cated message is displayed.
LOW BATTERY
CHARGE (red)
When the ignition key is moved
to MAR, the warning light turns on and
should go out as soon as the engine is
started (with the engine running at idle
speed a brief delay in going out is allowed).
If the warning light stays on glowing steadi-
ly, immediately contact the Fiat Dealer-
ship.
On certain versions the dedicated mes-
sage is displayed.
ç
w
>
x>
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 112

114
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

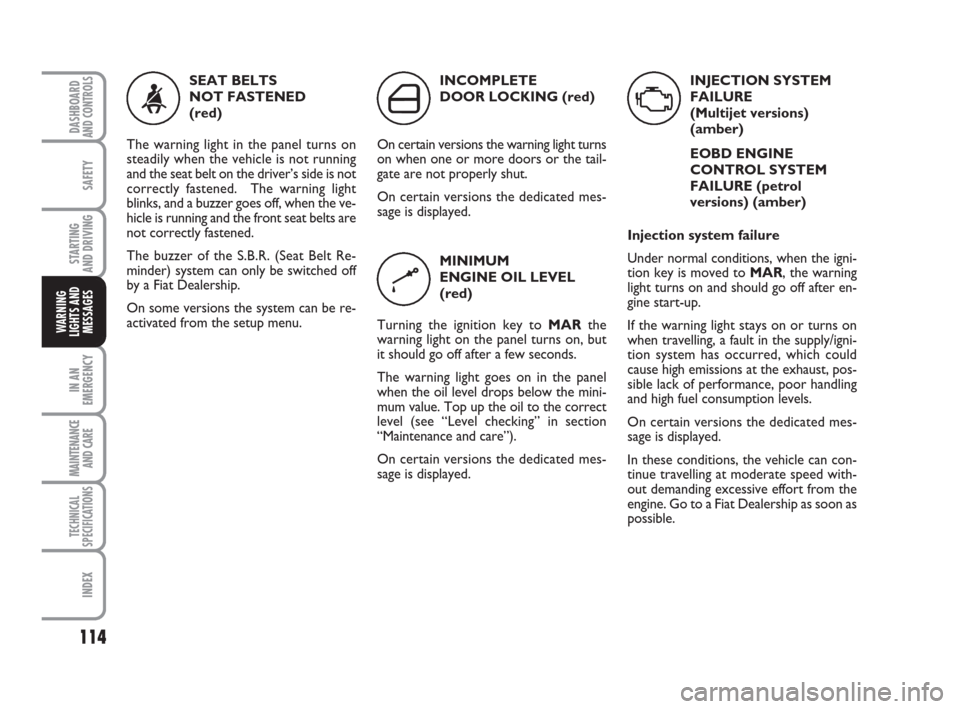

INJECTION SYSTEM
FAILURE
(Multijet versions)
(amber)
EOBD ENGINE
CONTROL SYSTEM
FAILURE (petrol
versions) (amber)
Injection system failure
Under normal conditions, when the igni-
tion key is moved to MAR, the warning
light turns on and should go off after en-
gine start-up.
If the warning light stays on or turns on
when travelling, a fault in the supply/igni-
tion system has occurred, which could
cause high emissions at the exhaust, pos-
sible lack of performance, poor handling
and high fuel consumption levels.
On certain versions the dedicated mes-
sage is displayed.
In these conditions, the vehicle can con-
tinue travelling at moderate speed with-
out demanding excessive effort from the
engine. Go to a Fiat Dealership as soon as
possible. SEAT BELTS
NOT FASTENED
(red)
The warning light in the panel turns on
steadily when the vehicle is not running
and the seat belt on the driver’s side is not
correctly fastened. The warning light
blinks, and a buzzer goes off, when the ve-
hicle is running and the front seat belts are
not correctly fastened.
The buzzer of the S.B.R. (Seat Belt Re-
minder) system can only be switched off
by a Fiat Dealership.
On some versions the system can be re-
activated from the setup menu.INCOMPLETE
DOOR LOCKING (red)
On certain versions the warning light turns
on when one or more doors or the tail-
gate are not properly shut.
On certain versions the dedicated mes-
sage is displayed.
MINIMUM
ENGINE OIL LEVEL
(red)
Turning the ignition key to MARthe
warning light on the panel turns on, but
it should go off after a few seconds.
The warning light goes on in the panel
when the oil level drops below the mini-
mum value. Top up the oil to the correct
level (see “Level checking” in section
“Maintenance and care”).
On certain versions the dedicated mes-
sage is displayed.
<´
k
U
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 114

115
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

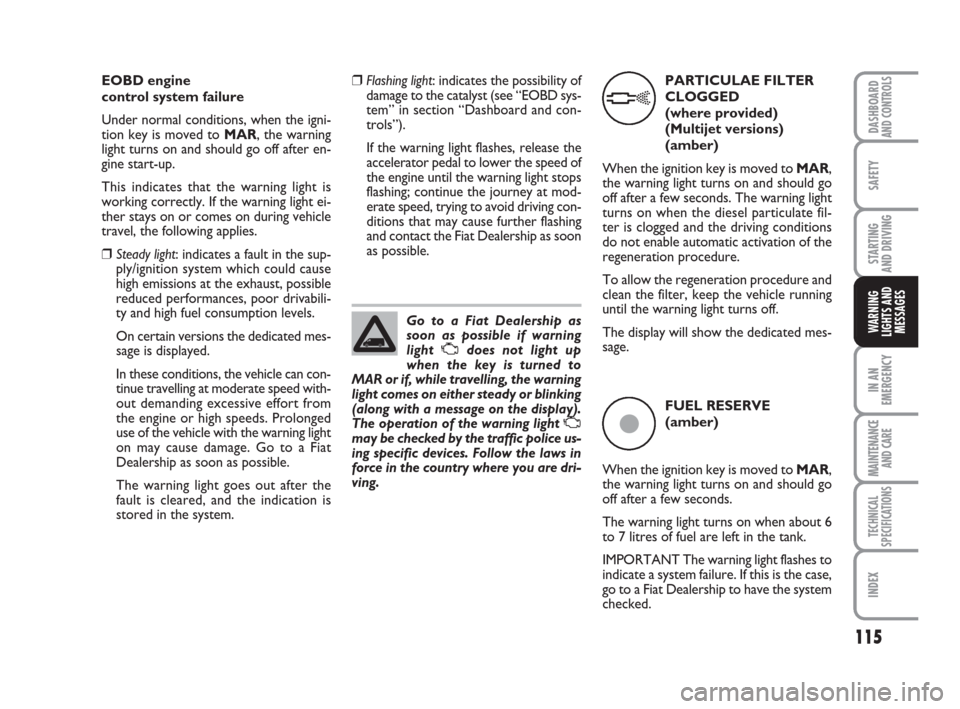

EOBD engine
control system failure
Under normal conditions, when the igni-
tion key is moved to MAR, the warning
light turns on and should go off after en-
gine start-up.
This indicates that the warning light is
working correctly. If the warning light ei-
ther stays on or comes on during vehicle
travel, the following applies.
❒Steady light: indicates a fault in the sup-
ply/ignition system which could cause
high emissions at the exhaust, possible
reduced performances, poor drivabili-
ty and high fuel consumption levels.
On certain versions the dedicated mes-
sage is displayed.
In these conditions, the vehicle can con-
tinue travelling at moderate speed with-
out demanding excessive effort from
the engine or high speeds. Prolonged
use of the vehicle with the warning light
on may cause damage. Go to a Fiat
Dealership as soon as possible.
The warning light goes out after the
fault is cleared, and the indication is
stored in the system.❒Flashing light: indicates the possibility of
damage to the catalyst (see “EOBD sys-
tem” in section “Dashboard and con-
trols”).
If the warning light flashes, release the
accelerator pedal to lower the speed of
the engine until the warning light stops
flashing; continue the journey at mod-
erate speed, trying to avoid driving con-
ditions that may cause further flashing
and contact the Fiat Dealership as soon
as possible.
Go to a Fiat Dealership as
soon as possible if warning
light Udoes not light up
when the key is turned to
MAR or if, while travelling, the warning
light comes on either steady or blinking
(along with a message on the display).
The operation of the warning light U
may be checked by the traffic police us-
ing specific devices. Follow the laws in
force in the country where you are dri-
ving.PARTICULAE FILTER
CLOGGED
(where provided)
(Multijet versions)
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds. The warning light
turns on when the diesel particulate fil-
ter is clogged and the driving conditions
do not enable automatic activation of the
regeneration procedure.
To allow the regeneration procedure and
clean the filter, keep the vehicle running
until the warning light turns off.
The display will show the dedicated mes-
sage.
h
FUEL RESERVE
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
The warning light turns on when about 6
to 7 litres of fuel are left in the tank.
IMPORTANT The warning light flashes to
indicate a system failure. If this is the case,
go to a Fiat Dealership to have the system
checked.
ç
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 115

128
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

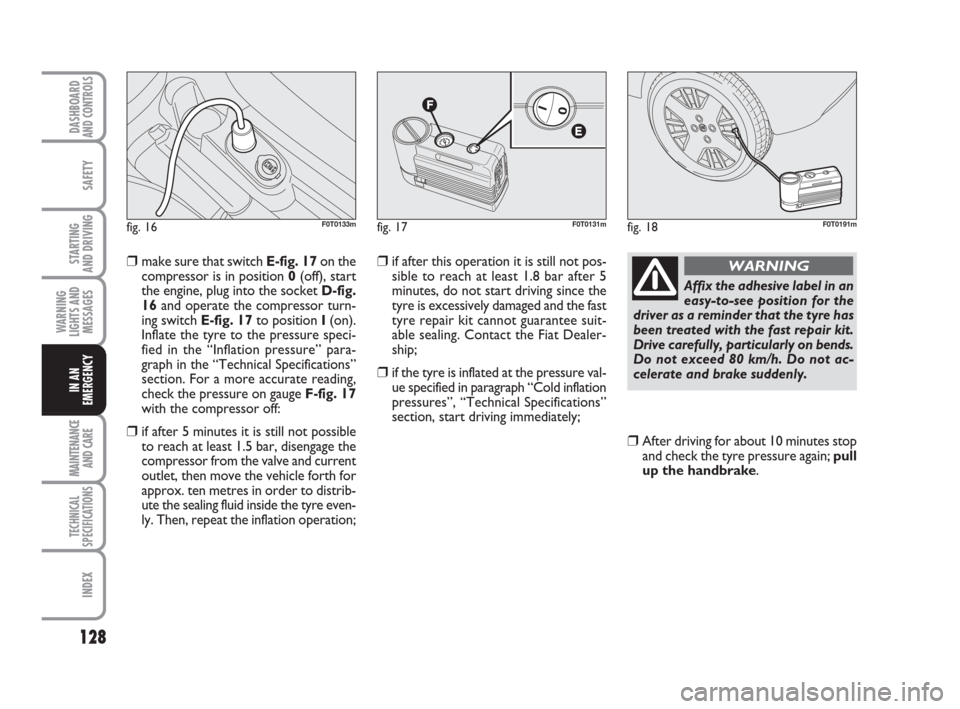

❒make sure that switch E-fig. 17on the
compressor is in position 0(off), start
the engine, plug into the socket D-fig.
16and operate the compressor turn-
ing switch E-fig. 17to position I(on).
Inflate the tyre to the pressure speci-
fied in the “Inflation pressure” para-
graph in the “Technical Specifications”
section. For a more accurate reading,
check the pressure on gauge F-fig. 17
with the compressor off:
❒if after 5 minutes it is still not possible
to reach at least 1.5 bar, disengage the
compressor from the valve and current
outlet, then move the vehicle forth for
approx. ten metres in order to distrib-
ute the sealing fluid inside the tyre even-
ly. Then, repeat the inflation operation;
❒if after this operation it is still not pos-
sible to reach at least 1.8 bar after 5
minutes, do not start driving since the
tyre is excessively damaged and the fast
tyre repair kit cannot guarantee suit-
able sealing. Contact the Fiat Dealer-
ship;
❒if the tyre is inflated at the pressure val-
ue specified in paragraph “Cold inflation
pressures”, “Technical Specifications”
section, start driving immediately;
❒After driving for about 10 minutes stop
and check the tyre pressure again; pull
up the handbrake.
fig. 16F0T0133mfig. 17F0T0131mfig. 18F0T0191m
Affix the adhesive label in an
easy-to-see position for the
driver as a reminder that the tyre has
been treated with the fast repair kit.
Drive carefully, particularly on bends.
Do not exceed 80 km/h. Do not ac-
celerate and brake suddenly.
WARNING
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 128

129
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

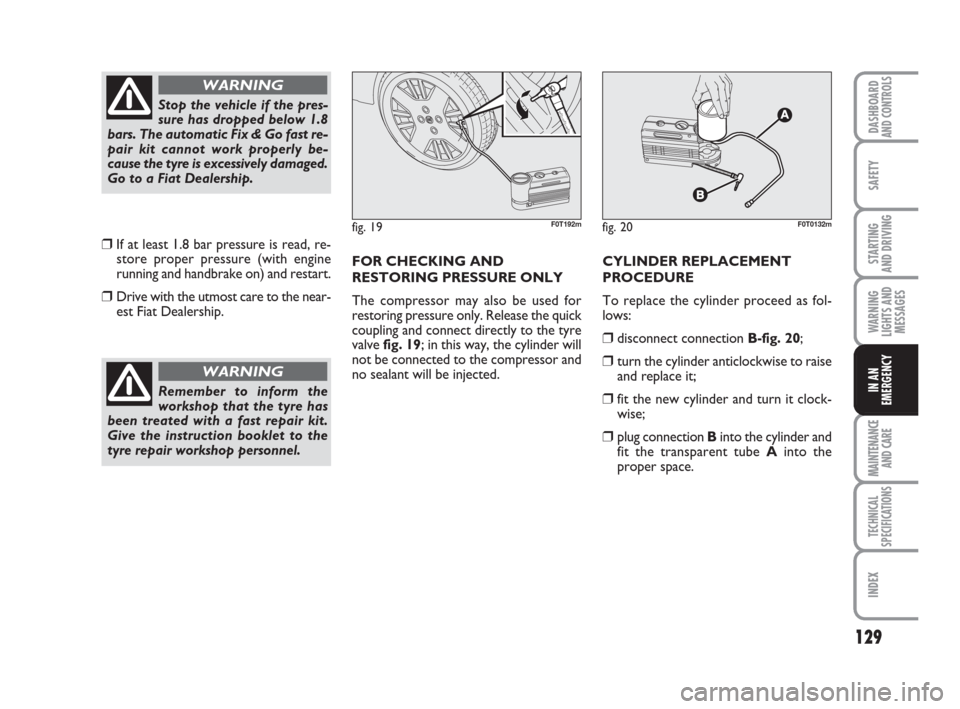

❒If at least 1.8 bar pressure is read, re-
store proper pressure (with engine
running and handbrake on) and restart.
❒Drive with the utmost care to the near-
est Fiat Dealership.FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only. Release the quick
coupling and connect directly to the tyre
valve fig. 19; in this way, the cylinder will
not be connected to the compressor and
no sealant will be injected. CYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder proceed as fol-
lows:
❒disconnect connection B-fig. 20;
❒turn the cylinder anticlockwise to raise
and replace it;
❒fit the new cylinder and turn it clock-
wise;
❒plug connection Binto the cylinder and
fit the transparent tube Ainto the
proper space.
Stop the vehicle if the pres-
sure has dropped below 1.8
bars. The automatic Fix & Go fast re-
pair kit cannot work properly be-
cause the tyre is excessively damaged.
Go to a Fiat Dealership.
WARNING
Remember to inform the
workshop that the tyre has
been treated with a fast repair kit.
Give the instruction booklet to the
tyre repair workshop personnel.
WARNING
fig. 19F0T192mfig. 20F0T0132m
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 129

154
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
Thousands of kilometres
Check antievaporation system
Replace fuel filter
Change spark plugs
Replace toothed belt for transmission control
Replace air cleaner cartridge
Top up fluids (engine coolant, brakes, battery, windscreen washer, etc.)
Check engine control system operation
(through diagnosis outlet)
Check for cleanliness of bottom guides of sliding side doors
(or every 6 months)
Change engine oil and oil filter (or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 12 months)
30 60 90 120 150 180
●●
●●●
●●●
●
●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 154

156
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

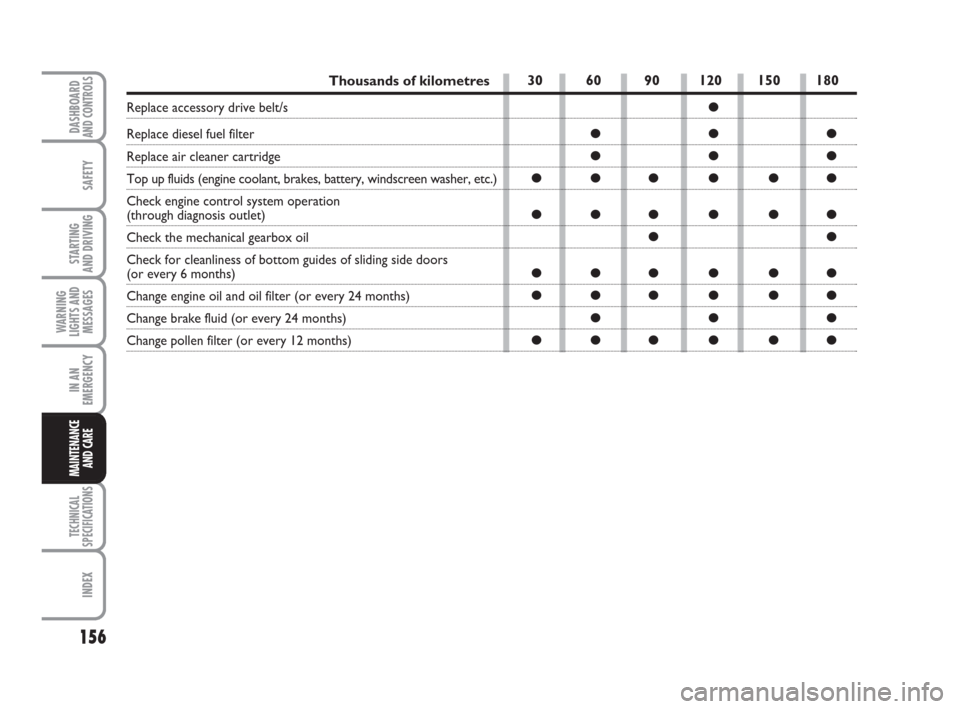

Thousands of kilometres
Replace accessory drive belt/s
Replace diesel fuel filter
Replace air cleaner cartridge
Top up fluids (engine coolant, brakes, battery, windscreen washer, etc.)
Check engine control system operation
(through diagnosis outlet)
Check the mechanical gearbox oil
Check for cleanliness of bottom guides of sliding side doors
(or every 6 months)
Change engine oil and oil filter (or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 12 months)
30 60 90 120 150 180
●
●●●
●●●
●●●●●●
●●●●●●
●●
●●●●●●
●●●●●●
●●●
●●●●●●
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 156

157
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

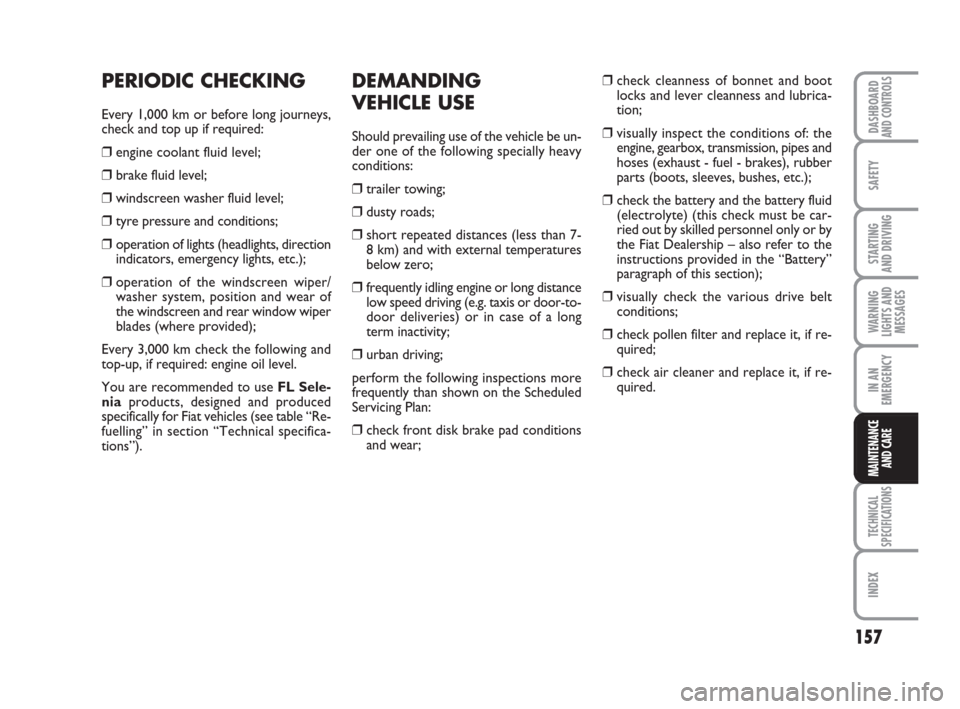

PERIODIC CHECKING
Every 1,000 km or before long journeys,
check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions;
❒operation of lights (headlights, direction
indicators, emergency lights, etc.);
❒operation of the windscreen wiper/
washer system, position and wear of
the windscreen and rear window wiper
blades (where provided);
Every 3,000 km check the following and
top-up, if required: engine oil level.
You are recommended to use FL Sele-
niaproducts, designed and produced
specifically for Fiat vehicles (see table “Re-
fuelling” in section “Technical specifica-
tions”).
DEMANDING
VEHICLE USE
Should prevailing use of the vehicle be un-
der one of the following specially heavy
conditions:
❒trailer towing;
❒dusty roads;
❒short repeated distances (less than 7-
8 km) and with external temperatures
below zero;
❒frequently idling engine or long distance
low speed driving (e.g. taxis or door-to-
door deliveries) or in case of a long
term inactivity;
❒urban driving;
perform the following inspections more
frequently than shown on the Scheduled
Servicing Plan:
❒check front disk brake pad conditions
and wear;❒check cleanness of bonnet and boot
locks and lever cleanness and lubrica-
tion;
❒visually inspect the conditions of: the
engine, gearbox, transmission, pipes and
hoses (exhaust - fuel - brakes), rubber
parts (boots, sleeves, bushes, etc.);
❒check the battery and the battery fluid
(electrolyte) (this check must be car-
ried out by skilled personnel only or by
the Fiat Dealership – also refer to the
instructions provided in the “Battery”
paragraph of this section);
❒visually check the various drive belt
conditions;
❒check pollen filter and replace it, if re-
quired;
❒check air cleaner and replace it, if re-
quired.
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 157

158
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

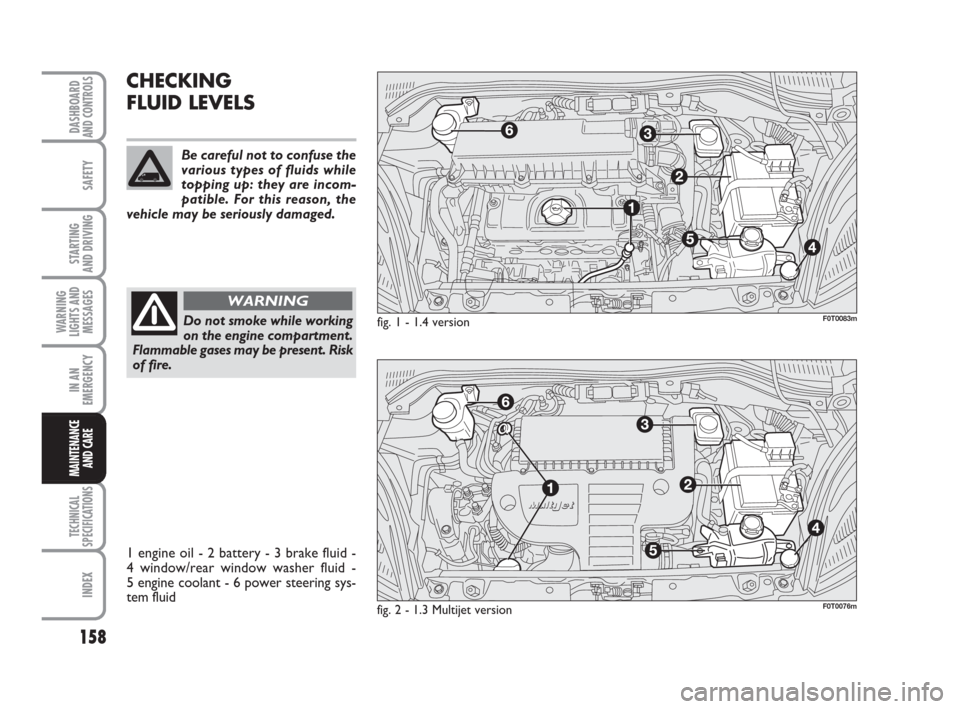

CHECKING
FLUID LEVELS
Do not smoke while working
on the engine compartment.
Flammable gases may be present. Risk
of fire.
WARNING
Be careful not to confuse the
various types of fluids while
topping up: they are incom-
patible. For this reason, the
vehicle may be seriously damaged.
fig. 1 - 1.4 version
fig. 2 - 1.3 Multijet versionF0T0083m
F0T0076m
1 engine oil - 2 battery - 3 brake fluid -
4 window/rear window washer fluid -
5 engine coolant - 6 power steering sys-
tem fluid
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 158

159
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

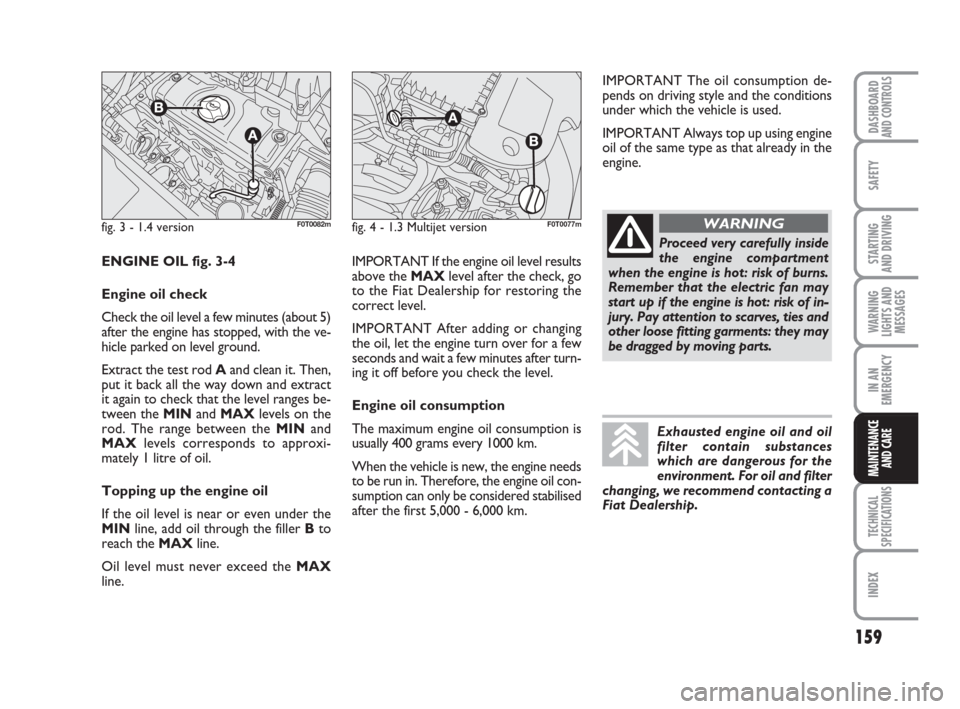

fig. 3 - 1.4 versionF0T0082mfig. 4 - 1.3 Multijet versionF0T0077m
IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the vehicle is used.
IMPORTANT Always top up using engine
oil of the same type as that already in the
engine.
ENGINE OIL fig. 3-4
Engine oil check
Check the oil level a few minutes (about 5)
after the engine has stopped, with the ve-
hicle parked on level ground.
Extract the test rod Aand clean it. Then,
put it back all the way down and extract
it again to check that the level ranges be-
tween the MINand MAXlevels on the
rod. The range between the MINand
MAXlevels corresponds to approxi-
mately 1 litre of oil.
Topping up the engine oil
If the oil level is near or even under the
MINline, add oil through the filler Bto
reach the MAXline.
Oil level must never exceed the MAX
line.
Proceed very carefully inside
the engine compartment
when the engine is hot: risk of burns.
Remember that the electric fan may
start up if the engine is hot: risk of in-
jury. Pay attention to scarves, ties and
other loose fitting garments: they may
be dragged by moving parts.
WARNING
Exhausted engine oil and oil
filter contain substances
which are dangerous for the
environment. For oil and filter
changing, we recommend contacting a
Fiat Dealership.
IMPORTANT If the engine oil level results
above the MAXlevel after the check, go
to the Fiat Dealership for restoring the
correct level.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
Engine oil consumption
The maximum engine oil consumption is
usually 400 grams every 1000 km.
When the vehicle is new, the engine needs
to be run in. Therefore, the engine oil con-
sumption can only be considered stabilised
after the first 5,000 - 6,000 km.
151-172 Fiorino GB 1ed 21-10-2008 15:01 Pagina 159
