LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED OIL
(Multijet versions
with DPF, where
provided) (red)
Low engine oil pressure
When the ignition key is moved to MAR,
the warning light turns on and should go
out as soon as the engine is started.
On certain versions the dedicated mes-
sage is displayed.
If the warning light
vturns
on when the vehicle is travel-
ling (on certain versions to-
gether with the message on
the display) stop the engine immediately
and contact a Fiat Dealership.
ESP SYSTEM FAILURE
(amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
If the warning light does not go off or stays
on when travelling together with the but-
ton led ASR OFF, contact Fiat Dealership.
On certain versions the dedicated mes-
sage is displayed.
NoteWarning light flashing when driving
indicates that the ESP system is active.
á
Exhausted oil
(Multijet versions with DPF,
where provided)
The warning light turns on and flashes
along with the message on the display
when the system detects that the engine
oil is exhausted.
After the first indication, at each engine
start-up, the warning light continues to
flash for about 60 seconds and then every
2 hours until the oil is changed.
If warning light
vflashes,
contact the Fiat Dealership as
soon as possible to have the
oil changed and the instru-
ment panel warning light turned off.
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 113

115
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
EOBD engine
control system failure
Under normal conditions, when the igni-
tion key is moved to MAR, the warning
light turns on and should go off after en-
gine start-up.
This indicates that the warning light is
working correctly. If the warning light ei-
ther stays on or comes on during vehicle
travel, the following applies.
❒Steady light: indicates a fault in the sup-
ply/ignition system which could cause
high emissions at the exhaust, possible
reduced performances, poor drivabili-
ty and high fuel consumption levels.
On certain versions the dedicated mes-
sage is displayed.
In these conditions, the vehicle can con-
tinue travelling at moderate speed with-
out demanding excessive effort from
the engine or high speeds. Prolonged
use of the vehicle with the warning light
on may cause damage. Go to a Fiat
Dealership as soon as possible.
The warning light goes out after the
fault is cleared, and the indication is
stored in the system.❒Flashing light: indicates the possibility of
damage to the catalyst (see “EOBD sys-
tem” in section “Dashboard and con-
trols”).
If the warning light flashes, release the
accelerator pedal to lower the speed of
the engine until the warning light stops
flashing; continue the journey at mod-
erate speed, trying to avoid driving con-
ditions that may cause further flashing
and contact the Fiat Dealership as soon
as possible.
Go to a Fiat Dealership as
soon as possible if warning
light Udoes not light up
when the key is turned to
MAR or if, while travelling, the warning
light comes on either steady or blinking
(along with a message on the display).
The operation of the warning light U
may be checked by the traffic police us-
ing specific devices. Follow the laws in
force in the country where you are dri-
ving.PARTICULAE FILTER
CLOGGED
(where provided)
(Multijet versions)
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds. The warning light
turns on when the diesel particulate fil-
ter is clogged and the driving conditions
do not enable automatic activation of the
regeneration procedure.
To allow the regeneration procedure and
clean the filter, keep the vehicle running
until the warning light turns off.
The display will show the dedicated mes-
sage.
h
FUEL RESERVE
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
The warning light turns on when about 6
to 7 litres of fuel are left in the tank.
IMPORTANT The warning light flashes to
indicate a system failure. If this is the case,
go to a Fiat Dealership to have the system
checked.
ç
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 115

116
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
WATER IN DIESEL
FUEL FILTER
(Multijet versions)
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
The warning light cturns on when there
is water in the diesel fuel filter.
On certain versions the dedicated mes-
sage is displayed.VEHICLE PROTECTION
SYSTEM FAILURE -
FIAT CODE (amber)
ALARM FAILURE
(where provided) (amber)
THEFT ATTEMPT (amber)
Turning the key to MAR, the warning light
flashes once and then goes off.
If with the ignition key at MAR, the warn-
ing light stays on, this indicates a possible
failure (see “Fiat Code system” in section
“Dashboard and controls”).
On certain versions the dedicated mes-
sage is displayed.
IMPORTANT Warning lights Uand Y
will come on at the same time to indicate
a Fiat CODE system failure.
If with the engine running the warning light
Yflashes, the vehicle is not protected by
the engine inhibitor device (see “Fiat Code
system” in section “Dashboard and con-
trols”).
Contact the Fiat Dealership to have all the
keys stored. GLOW PLUG HEATING
(Multijet versions)
(amber)
GLOW PLUG HEATING
FAILURE
(Multijet versions)
(amber)
Glow plug heating
The warning light goes on when the key is
turned to MAR. It goes out as soon as the
glow plugs have reached the preset tem-
perature. Start the engine as soon as the
warning light goes out.
IMPORTANT At high ambient tempera-
tures the warning light stays on for an ex-
tremely short time.
Glow plug heating failure
The warning light flashes in the event of
a failure in the glow plug heating system.
Go to a Fiat Dealership as soon as possi-
ble.
On certain versions the dedicated mes-
sage is displayed.
m
The presence of water in the
supply circuit may cause se-
vere damage to the injection
system and irregular engine
operation. If warning light clights up
(on some versions with the message on
the display), go to a Fiat Dealership as
soon as possible to have the system
bled. Water may have been introduced
in the tank if this appears immediately
after refuelling: in this case, stop the en-
gine immediately and contact a Fiat
Dealership.
cY
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 116

117
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
Alarm failure (where provided)
The turning on of the warning light (or
symbol on display) indicates a failure in the
alarm system. Contact Fiat Dealership as
soon as possible.
The display will show the dedicated mes-
sage.
Theft attempt
The turning on of the warning light (or
symbol on display) indicates an attempt of
break-in. Contact Fiat Dealership as soon
as possible.
The display will show the dedicated mes-
sage.GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure sensor failure
The warning light turns on when a failure
is detected by the engine oil pressure sen-
sor.
Go to a Fiat Dealership to have the fault
fixed as soon as possible.
External light failure
(where provided)
See description of warning light 6.
Fuel cut-off switch tripped
The warning light comes on when the in-
ertial fuel cut-off switch is triggered.
The display will show the dedicated mes-
sage.
Parking sensor failure
(where provided)
See description of warning light t.
è
EXTERNAL LIGHTS
FAILURE
(amber)
The warning light comes on (on some ver-
sions only) when a failure is detected in
one of the following lights:
– side/taillights
– stop lights
– rear fog lights
– direction indicators
– plate lights.
The fault identified in the lights above may
be due to: one or more burnt lamps, a
blown protection fuse or interruption of
the electrical connection.
On certain versions warning light èturns
on as an alternative.
On certain versions the dedicated mes-
sage is displayed.
W
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 117

121
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

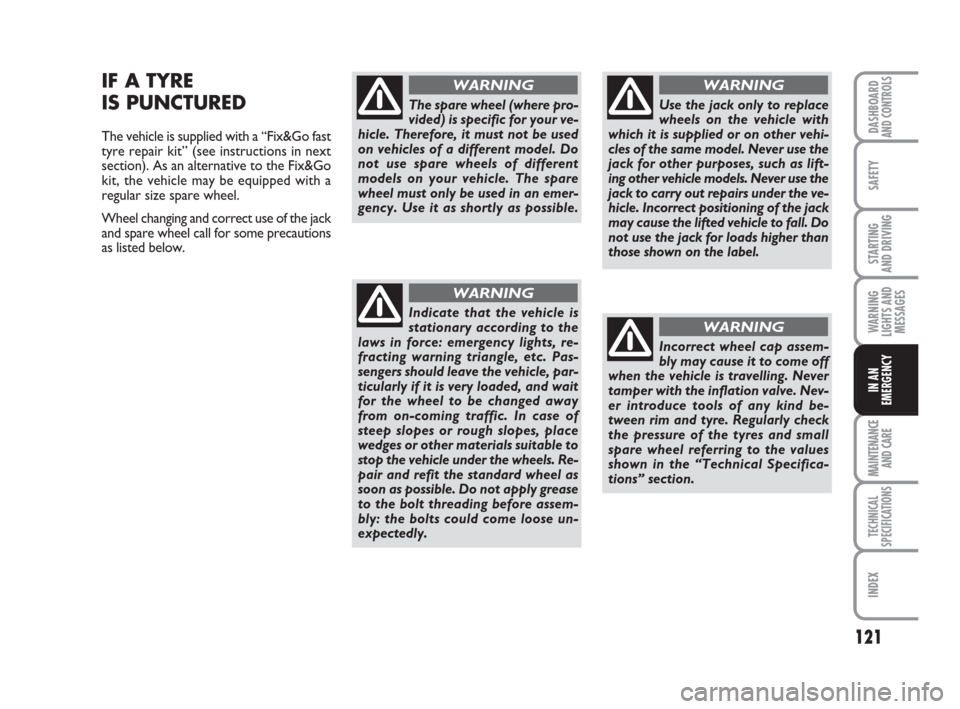

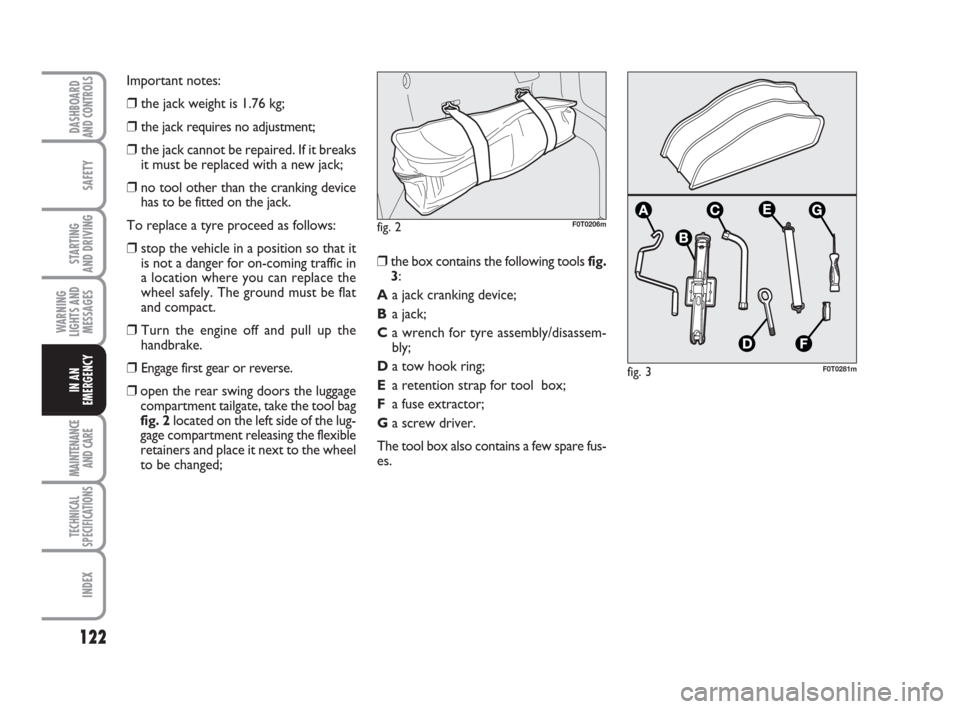

IF A TYRE
IS PUNCTURED
The vehicle is supplied with a “Fix&Go fast
tyre repair kit” (see instructions in next
section). As an alternative to the Fix&Go
kit, the vehicle may be equipped with a
regular size spare wheel.
Wheel changing and correct use of the jack
and spare wheel call for some precautions
as listed below.
The spare wheel (where pro-
vided) is specific for your ve-
hicle. Therefore, it must not be used
on vehicles of a different model. Do
not use spare wheels of different
models on your vehicle. The spare
wheel must only be used in an emer-
gency. Use it as shortly as possible.
WARNING
Indicate that the vehicle is
stationary according to the
laws in force: emergency lights, re-
fracting warning triangle, etc. Pas-
sengers should leave the vehicle, par-
ticularly if it is very loaded, and wait
for the wheel to be changed away
from on-coming traffic. In case of
steep slopes or rough slopes, place
wedges or other materials suitable to
stop the vehicle under the wheels. Re-
pair and refit the standard wheel as
soon as possible. Do not apply grease
to the bolt threading before assem-
bly: the bolts could come loose un-
expectedly.
WARNING
Use the jack only to replace
wheels on the vehicle with
which it is supplied or on other vehi-
cles of the same model. Never use the
jack for other purposes, such as lift-
ing other vehicle models. Never use the
jack to carry out repairs under the ve-
hicle. Incorrect positioning of the jack
may cause the lifted vehicle to fall. Do
not use the jack for loads higher than
those shown on the label.
WARNING
Incorrect wheel cap assem-
bly may cause it to come off
when the vehicle is travelling. Never
tamper with the inflation valve. Nev-
er introduce tools of any kind be-
tween rim and tyre. Regularly check
the pressure of the tyres and small
spare wheel referring to the values
shown in the “Technical Specifica-
tions” section.
WARNING
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 121

122
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
fig. 3F0T0281m
Important notes:
❒the jack weight is 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it breaks
it must be replaced with a new jack;
❒no tool other than the cranking device
has to be fitted on the jack.
To replace a tyre proceed as follows:
❒stop the vehicle in a position so that it
is not a danger for on-coming traffic in
a location where you can replace the
wheel safely. The ground must be flat
and compact.
❒Turn the engine off and pull up the
handbrake.
❒Engage first gear or reverse.
❒open the rear swing doors the luggage
compartment tailgate, take the tool bag
fig. 2located on the left side of the lug-
gage compartment releasing the flexible
retainers and place it next to the wheel
to be changed;❒the box contains the following tools fig.
3:
Aa jack cranking device;
Ba jack;
Ca wrench for tyre assembly/disassem-
bly;
Da tow hook ring;
Ea retention strap for tool box;
Fa fuse extractor;
Ga screw driver.
The tool box also contains a few spare fus-
es.
fig. 2F0T0206m
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 122

128
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
❒make sure that switch E-fig. 17on the
compressor is in position 0(off), start
the engine, plug into the socket D-fig.
16and operate the compressor turn-
ing switch E-fig. 17to position I(on).
Inflate the tyre to the pressure speci-
fied in the “Inflation pressure” para-
graph in the “Technical Specifications”
section. For a more accurate reading,
check the pressure on gauge F-fig. 17
with the compressor off:
❒if after 5 minutes it is still not possible
to reach at least 1.5 bar, disengage the
compressor from the valve and current
outlet, then move the vehicle forth for
approx. ten metres in order to distrib-
ute the sealing fluid inside the tyre even-
ly. Then, repeat the inflation operation;
❒if after this operation it is still not pos-
sible to reach at least 1.8 bar after 5
minutes, do not start driving since the
tyre is excessively damaged and the fast
tyre repair kit cannot guarantee suit-
able sealing. Contact the Fiat Dealer-
ship;
❒if the tyre is inflated at the pressure val-
ue specified in paragraph “Cold inflation
pressures”, “Technical Specifications”
section, start driving immediately;
❒After driving for about 10 minutes stop
and check the tyre pressure again; pull
up the handbrake.
fig. 16F0T0133mfig. 17F0T0131mfig. 18F0T0191m
Affix the adhesive label in an
easy-to-see position for the
driver as a reminder that the tyre has
been treated with the fast repair kit.
Drive carefully, particularly on bends.
Do not exceed 80 km/h. Do not ac-
celerate and brake suddenly.
WARNING
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 128

129
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
❒If at least 1.8 bar pressure is read, re-
store proper pressure (with engine
running and handbrake on) and restart.
❒Drive with the utmost care to the near-
est Fiat Dealership.FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only. Release the quick
coupling and connect directly to the tyre
valve fig. 19; in this way, the cylinder will
not be connected to the compressor and
no sealant will be injected. CYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder proceed as fol-
lows:
❒disconnect connection B-fig. 20;
❒turn the cylinder anticlockwise to raise
and replace it;
❒fit the new cylinder and turn it clock-
wise;
❒plug connection Binto the cylinder and
fit the transparent tube Ainto the
proper space.
Stop the vehicle if the pres-
sure has dropped below 1.8
bars. The automatic Fix & Go fast re-
pair kit cannot work properly be-
cause the tyre is excessively damaged.
Go to a Fiat Dealership.
WARNING
Remember to inform the
workshop that the tyre has
been treated with a fast repair kit.
Give the instruction booklet to the
tyre repair workshop personnel.
WARNING
fig. 19F0T192mfig. 20F0T0132m
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 129

132
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
Bulb Type Power Ref. figure
Main beam headlights H1 60W E
Dipped beam headlights H1 55WD
Front sidelights W5W 5WA
Front direction indicators PY21W 21WB
Side direction indicators WY5W 5WA
Rear direction indicators PY21W 21WB
Rear taillights / Rear fog lights P4/21W 4W/21WB
Stop lights P21W 21WB
3rd stop light W5W 5WA
Reverse light P21W 21WB
Front fog lights (where provided) H1 55WE
Front ceiling light with movable lens C 10WC
Front ceiling light with spot lights (where provided) C 10WC
Rear ceiling light (where provided) C 10WC
Portable light (where provided) W5W 5WA
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 132

134
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DIPPED BEAM HEADLIGHTS/
MAIN BEAM HEADLIGHTS
To change the bulb (double filament), pro-
ceed as follows:
❒remove the protection lid A-fig. 22;
❒release the bulb stop clip as shown by
the arrows fig. 22;
❒remove the bulb A-fig. 24from con-
nector Band replace it;
❒fit the new bulb on the connector B.
Then, make sure that the profile of the
metal part matches the grooves on the
headlight bulb support;
❒close the bulb stop clip and reinstall the
protection lid A-fig. 22;DIRECTION INDICATORS
Front indicators
To change the bulb, proceed as follows:
❒turn the protection lid B-fig. 22anti-
clockwise;
❒remove the bulb A-fig. 25and replace
it;
❒reinstall the protection lid B.
fig. 24F0T0095mfig. 25F0T0096m
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 134
