FIAT QUBO 2009 1.G Natural Power Manual

Fuel tank:including a reserve of:
Engine cooling system
Engine sump: Engine sump and filter:
Gearbox/differential casing:
Hydraulic power steering
Hydraulic brake circuit with
ABS:
Windscreen/rearscreen washer
fluid reservoir
(▲) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUPand 40% distilled water.
21
FIAT FIORINO/QUBO NATURAL POWER

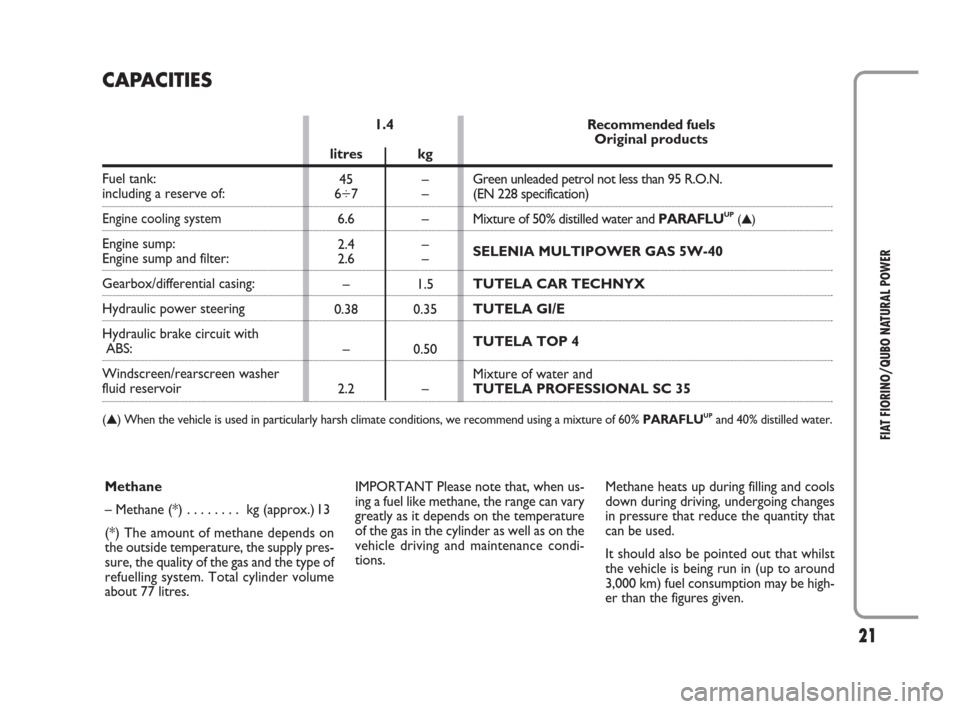

CAPACITIES
1.4
litres
45
6
÷7
6.6
2.4
2.6
–
0.38
–
2.2kg
–
–
–
–
–
1.5
0.35
0.50
–
Methane
– Methane (*) . . . . . . . . kg (approx.) 13
(*) The amount of methane depends on
the outside temperature, the supply pres-
sure, the quality of the gas and the type of
refuelling system. Total cylinder volume
about 77 litres.IMPORTANT Please note that, when us-
ing a fuel like methane, the range can vary
greatly as it depends on the temperature
of the gas in the cylinder as well as on the
vehicle driving and maintenance condi-
tions.Methane heats up during filling and cools
down during driving, undergoing changes
in pressure that reduce the quantity that
can be used.
It should also be pointed out that whilst
the vehicle is being run in (up to around
3,000 km) fuel consumption may be high-
er than the figures given. Recommended fuels
Original products
Green unleaded petrol not less than 95 R.O.N.
(EN 228 specification)
Mixture of 50% distilled water and PARAFLU
UP(▲)
SELENIA MULTIPOWER GAS 5W-40
TUTELA CAR TECHNYX
TUTELA GI/E
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC 35
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 21

22
FIAT FIORINO/QUBO NATURAL POWER

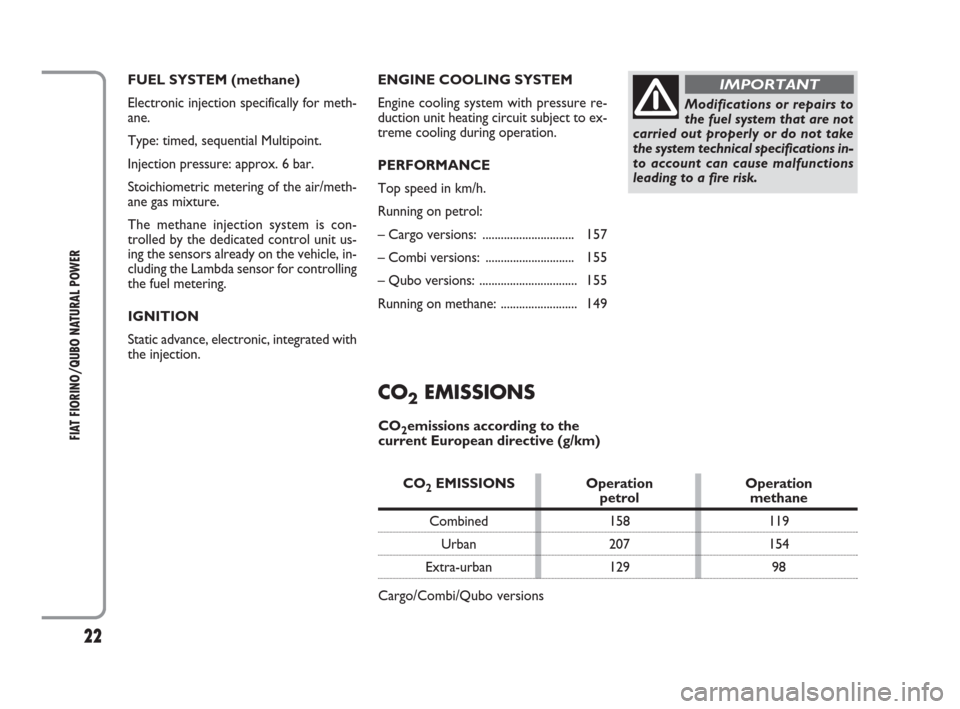

FUEL SYSTEM (methane)
Electronic injection specifically for meth -
ane.
Type: timed, sequential Multipoint.
Injection pressure: approx. 6 bar.
Stoichiometric metering of the air/meth -
ane gas mixture.
The methane injection system is con-
trolled by the dedicated control unit us-
ing the sensors already on the vehicle, in-
cluding the Lambda sensor for controlling
the fuel metering.
IGNITION
Static advance, electronic, integrated with
the injection.ENGINE COOLING SYSTEM
Engine cooling system with pressure re-
duction unit heating circuit subject to ex-
treme cooling during operation.
PERFORMANCE
Top speed in km/h.
Running on petrol:
– Cargo versions: .............................. 157
– Combi versions: ............................. 155
– Qubo versions: ................................ 155
Running on methane: ......................... 149
Modifications or repairs to
the fuel system that are not
carried out properly or do not take
the system technical specifications in-
to account can cause malfunctions
leading to a fire risk.
IMPORTANT
CO2EMISSIONS
CO2emissions according to the
current European directive (g/km)
CO2EMISSIONS Operation Operationpetrol methane
Combined 158 119
Urban 207 154
Extra-urban 129 98
Cargo/Combi/Qubo versions
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 22

23
FIAT FIORINO/QUBO NATURAL POWER

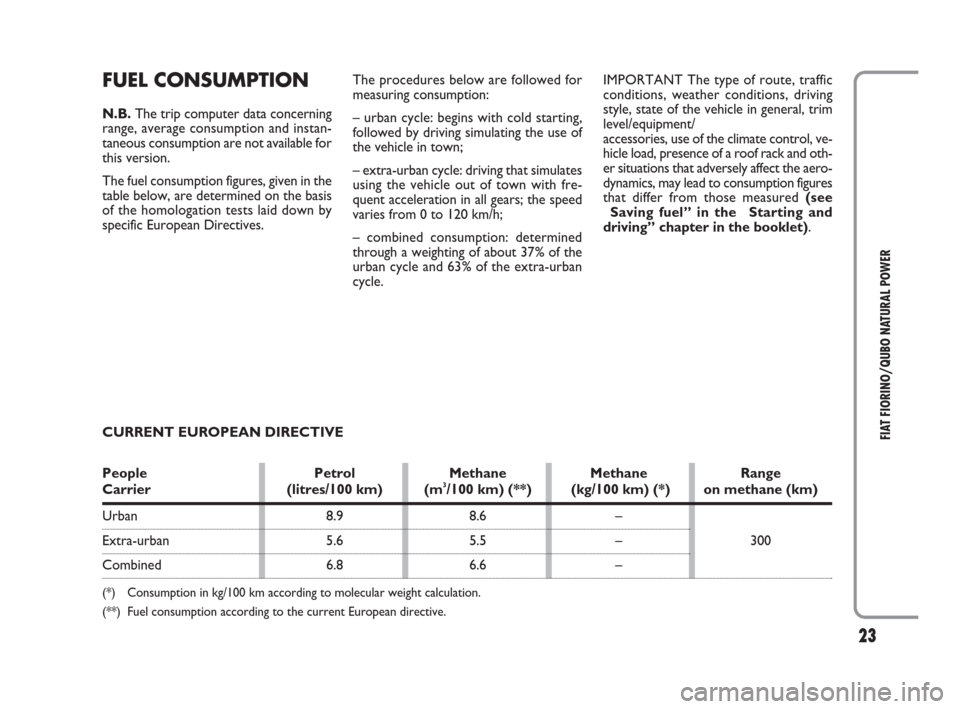

FUEL CONSUMPTION
N.B.The trip computer data concerning
range, average consumption and instan-
taneous consumption are not available for
this version.
The fuel consumption figures, given in the
table below, are determined on the basis
of the homologation tests laid down by
specific European Directives.The procedures below are followed for
measuring consumption:
– urban cycle: begins with cold starting,
followed by driving simulating the use of
the vehicle in town;
– extra-urban cycle: driving that simulates
using the vehicle out of town with fre-
quent acceleration in all gears; the speed
varies from 0 to 120 km/h;
– combined consumption: determined
through a weighting of about 37% of the
urban cycle and 63% of the extra-urban
cycle.IMPORTANT The type of route, traffic
conditions, weather conditions, driving
style, state of the vehicle in general, trim
level/equipment/
accessories, use of the climate control, ve-
hicle load, presence of a roof rack and oth-
er situations that adversely affect the aero-
dynamics, may lead to consumption figures
that differ from those measured (see
Saving fuel” in the Starting and
driving” chapter in the booklet).
CURRENT EUROPEAN DIRECTIVE
People Petrol Methane Methane Range
Carrier (litres/100 km) (m3/100 km) (**) (kg/100 km) (*) on methane (km)
Urban 8.9 8.6 –
Extra-urban 5.6 5.5 – 300
Combined 6.8 6.6 –
(*) Consumption in kg/100 km according to molecular weight calculation.
(**) Fuel consumption according to the current European directive.
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 23

24
FIAT FIORINO/QUBO NATURAL POWER
Fiat Group Automobiles S.p.A. – Customer Services – Technical Services – Service Engineering
Largo Senatore G. Agnelli, 5 – 10040 Volvera – Torino (Italia)
Print No. 603.97.591 – 11/2009 – 1 Edition
For petrol engines running on methane, we recommend using the original product formulated specifically for this type of use.
The use of products with specifications below ACEA C3 – SAE 5W-40 could cause damage to the engine not covered by the warranty. Lubricants for
petrol/methane
enginesSAE 5W-40 ACEA C3
grade totally synthetic lubricant.
FIAT 9.55535-T2specification.SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According
to annual maintenance
and inspection plan

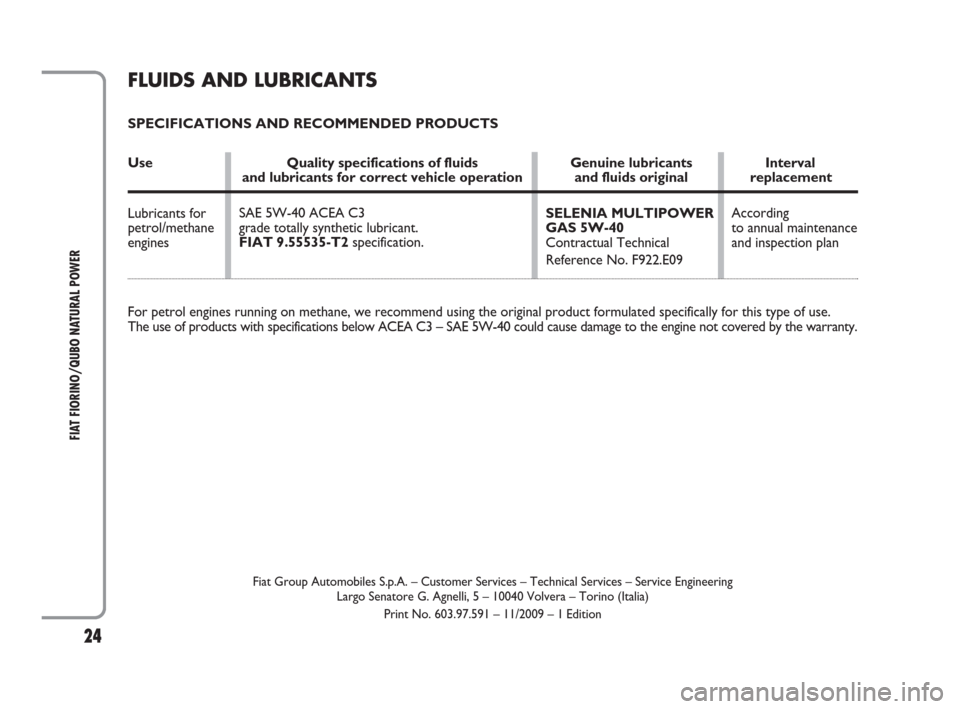

FLUIDS AND LUBRICANTS
SPECIFICATIONS AND RECOMMENDED PRODUCTS
Use Quality specifications of fluids Genuine lubricants Interval
and lubricants for correct vehicle operation and fluids original replacement
