FIAT QUBO 2009 1.G Natural Power Manual

11
FIAT FIORINO/QUBO NATURAL POWER

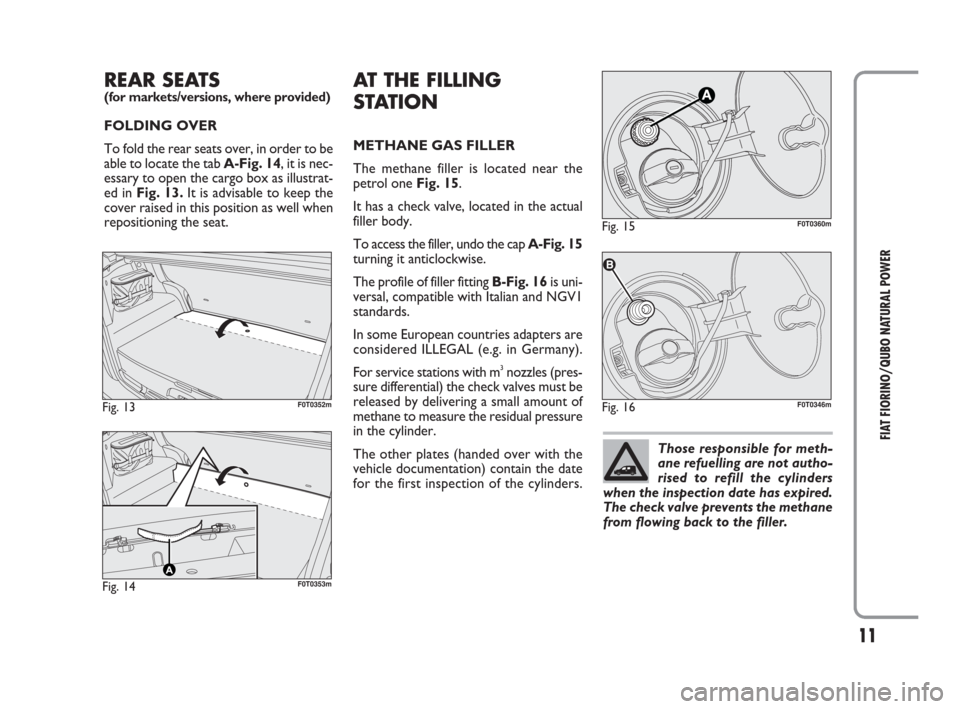

REAR SEATS(for markets/versions, where provided)
FOLDING OVER
To fold the rear seats over, in order to be
able to locate the tab A-Fig. 14, it is nec-
essary to open the cargo box as illustrat-
ed in Fig. 13. It is advisable to keep the
cover raised in this position as well when
repositioning the seat.
AT THE FILLING
STATION
METHANE GAS FILLER
The methane filler is located near the
petrol one Fig. 15.
It has a check valve, located in the actual
filler body.
To access the filler, undo the cap A-Fig. 15
turning it anticlockwise.
The profile of filler fitting B-Fig. 16is uni-
versal, compatible with Italian and NGV1
standards.
In some European countries adapters are
considered ILLEGAL (e.g. in Germany).
For service stations with m
3nozzles (pres-
sure differential) the check valves must be
released by delivering a small amount of
methane to measure the residual pressure
in the cylinder.
The other plates (handed over with the
vehicle documentation) contain the date
for the first inspection of the cylinders.
Fig. 15F0T0360m
Fig. 16F0T0346mFig. 13F0T0352m
Fig. 14F0T0353m
Those responsible for meth -
ane refuelling are not autho-
rised to refill the cylinders
when the inspection date has expired.
The check valve prevents the methane
from flowing back to the filler.
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 11

12
FIAT FIORINO/QUBO NATURAL POWER

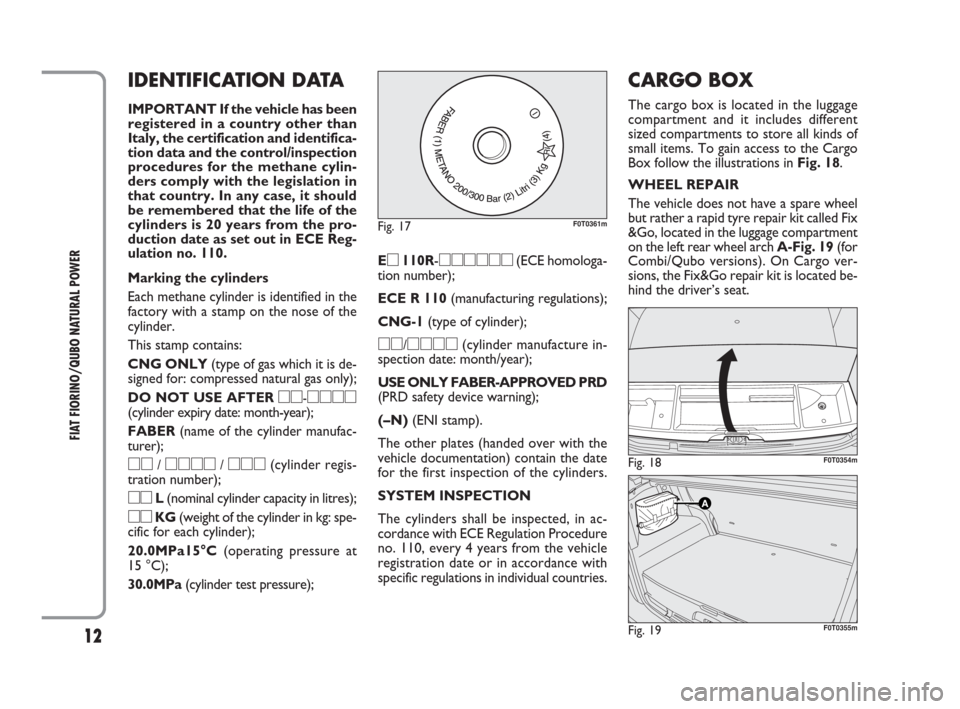

IDENTIFICATION DATA
IMPORTANT If the vehicle has been
registered in a country other than
Italy, the certification and identifica-
tion data and the control/inspection
procedures for the methane cylin-
ders comply with the legislation in
that country. In any case, it should
be remembered that the life of the
cylinders is 20 years from the pro-
duction date as set out in ECE Reg-
ulation no. 110.
Marking the cylinders
Each methane cylinder is identified in the
factory with a stamp on the nose of the
cylinder.
This stamp contains:
CNG ONLY(type of gas which it is de-
signed for: compressed natural gas only);
DO NOT USE AFTER



-




(cylinder expiry date: month-year);
FABER(name of the cylinder manufac-
turer);



/




/


(cylinder regis-
tration number);


L(nominal cylinder capacity in litres);


KG(weight of the cylinder in kg: spe-
cific for each cylinder);
20.0MPa15°C(operating pressure at
15 °C);
30.0MPa(cylinder test pressure);
Fig. 17F0T0361m
E
110R-





(ECE homologa-
tion number);
ECE R 110(manufacturing regulations);
CNG-1(type of cylinder);



/



(cylinder manufacture in-
spection date: month/year);
USE ONLY FABER-APPROVED PRD
(PRD safety device warning);
(–N)(ENI stamp).
The other plates (handed over with the
vehicle documentation) contain the date
for the first inspection of the cylinders.
SYSTEM INSPECTION
The cylinders shall be inspected, in ac-
cordance with ECE Regulation Procedure
no. 110, every 4 years from the vehicle
registration date or in accordance with
specific regulations in individual countries.
Fig. 18F0T0354m
Fig. 19
A
F0T0355m
CARGO BOX
The cargo box is located in the luggage
compartment and it includes different
sized compartments to store all kinds of
small items. To gain access to the Cargo
Box follow the illustrations in Fig. 18.
WHEEL REPAIR
The vehicle does not have a spare wheel
but rather a rapid tyre repair kit called Fix
&Go, located in the luggage compartment
on the left rear wheel arch A-Fig. 19(for
Combi/Qubo versions). On Cargo ver-
sions, the Fix&Go repair kit is located be-
hind the driver’s seat.
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 12

13
FIAT FIORINO/QUBO NATURAL POWER
CHECKING LEVELS
Fig. 20
Never smoke while
working in the engine
compartment: flammable gases
and vapours may be present,
constituting a fire risk.
IMPORTANT
When topping up, take
care not to confuse the
various types of fluids:
they are not interchangeable and
could seriously damage the car.
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
6. Power steering fluid
FOTO374m
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 13

●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●●
●●
●●
●● ●● ● ●
●● ●● ● ●
14
FIAT FIORINO/QUBO NATURAL POWER
SCHEDULED SERVICING PLAN
Thousands of kilometres 30 60 90 120 150 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, luggage compartment, passenger compartment,
glove box, instrument panel warning lights, etc.)
Check windscreen wash/wipe operation
Check front disc brake pad condition and wear
Check rear drum brake linings condition and wear
Visually inspect the condition of: exterior bodywork, underbody
protection, rigid pipes and hoses (exhaust – fuel supply – brakes),
rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of locks, lids, engine and boot, and the cleanliness
and lubrication of linkage
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check the handbrake lever travel and adjust it, if necessary
Visually inspect the condition of accessory drive belt/s
Visually inspect the condition of toothed timing belt
Check tension of accessory drive belts and adjust, if necessary
Check tappet clearance and adjust, if necessary
Check exhaust gas emissions
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 14

●● ●● ● ●
●
●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●●●
15
FIAT FIORINO/QUBO NATURAL POWER
If the car is mainly used in town, change the engine oil and filter every 12 months.
Thousands of kilometres 30 60 90 120 150 180
Check engine management system operation (using diagnosis socket)
Replace accessory drive belt/s
Replace toothed timing belt (*)
Replace spark plugs
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
Visually inspect condition of: methane pipes and connectors,
methane tank fastening, restore, if necessary (**)
Check pressure regulator and, if necessary, replace internal filter (**)
Check operation and parameters of fuel supply system using
the self-diagnosis socket
Check tightening torque of the cylinder fastening bands
(*) Regardless of the mileage, the timing drive belt shall be replaced every 4 years for particularly demanding use (cold climates, town driving,
idling for a long time, dusty areas) or, in any case, every 5 years.
(**) or every 12 months.
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 15

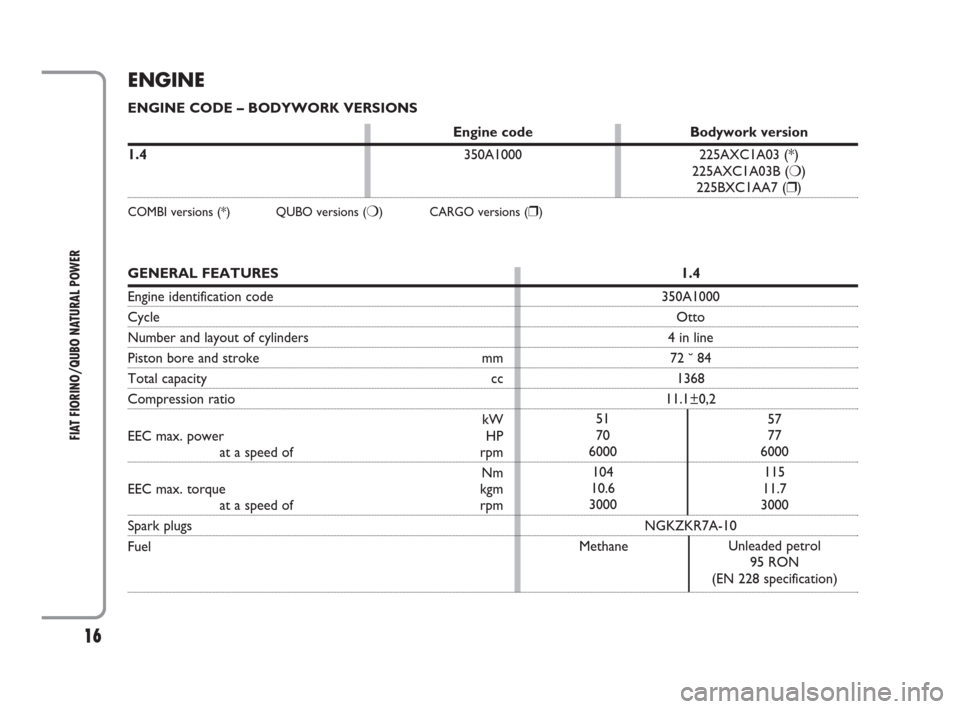

GENERAL FEATURES 1.4
Engine identification code 350A1000
Cycle Otto
Number and layout of cylinders 4 in line
Piston bore and stroke mm 72 ˘ 84
Total capacity cc 1368
Compression ratio 11.1±0,2
kW
EEC max. power HP
at a speed of rpm
Nm
EEC max. torque kgm
at a speed of rpm
Spark plugsNGKZKR7A-10
Fuel
ENGINE
ENGINE CODE – BODYWORK VERSIONS
Engine code Bodywork version
1.4350A1000 225AXC1A03 (*)
225AXC1A03B (❍)
225BXC1AA7 (❒)
COMBI versions (*) QUBO versions (❍) CARGO versions (❒)
MethaneUnleaded petrol
95 RON
(EN 228 specification)
16
FIAT FIORINO/QUBO NATURAL POWER
51
70
6000
104
10.6
300057
77
6000
115
11.7
3000
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 16

17
FIAT FIORINO/QUBO NATURAL POWER
Versions Versions
Cargo Minimum” Cargo Maximum”
1180 1260
500 420
425 345
900 900
950 950
1680 1680
––
––
100 100
––Versions Versions
Combi M1 5P Qubo M1 5P
1270 1290
480 460
405 385
950 950
950 950
1750 1750
––
––
100 70
––
WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to
90% and without optional equipment)
Payload including
the driver (❒):
Payload excluding the driver (❒):
Maximum permitted loads (
❍)
– front axle:
– rear axle:
– total:
Towing loads
– braked trailer:
– non-braked trailer:
Maximum load on the roof
(with roof rack bars):
Maximum load on the ball joint
(braked trailer):
(
❒) In the presence of optional equipment the unladen weight increases and, as a result, the payload decreases in relation to the max-
imum permitted loads.
(
❍) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/on load carrying plat-
form within the maximum permitted loads.
IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 17

18
FIAT FIORINO/QUBO NATURAL POWER
Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
TRANSMISSION1.4
Gearbox
Clutch
Drive
SUSPENSION1.4
Front
Rear
BRAKES1.4
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and salt on the roads may become deposited on the brake discs, reducing braking efficiency the first time
the brakes are applied.Disc
Drum
Controlled by hand lever, acting on rear brakes
Independent, McPherson type
Torsion beam
STEERING1.4
Type
Turning circle
(kerb to kerb) mRack and pinion with hydraulic power steering
9.95
Five forward speeds plus reverse with synchronisers for selecting forward gears
Hydraulic drive
Front
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 18

19
FIAT FIORINO/QUBO NATURAL POWER
F0T0160m
DIMENSIONSDimensions are expressed in mm and refer to the vehicle fitted
with standard tyres. Height is measured with the vehicle unladen.
Fig. 20 – Cargo versionsF0T0161mFig. 21 – Combi versions
F0T0301mFig. 22 – Qubo versions
ABCD E FGH
Versions 3864 760 2513 591 1735 1464 1716 1465
Cargo1782 (●)
Versions 3959 855 2513 591 1735 1464 1716 1465
Combi1782 (●)
Versions 3959 855 2513 591 1735 1464 1716 1465
Qubo1794 (●)
Small variations in size are possible depending on the wheel dimensions.
(●) With roof rack bars (for versions/markets where provided)
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 19

20
FIAT FIORINO/QUBO NATURAL POWER
BOOT/LOAD COMPARTMENT VOLUME
The volume of the boot on Qubo and Combi versions and of the load compartment on Cargo versions, measured in dm3, is as follows:
TYRES
COLD TYRE INFLATION PRESSURE
Medium load Full load
Enginefront rear front rear
1.42.3 2.1 2.3 2.5 1.4
COMBI - QUBO
CARGO
Version
With rear backrests not folded over:
With rear backrests folded over:
–1.4
275
553
2100
(*) For versions/markets where providedVersion Tyres Snow tyres Rims
COMBI versions 185/65 R15 88T 185/65 R15Q (M+S) 6JX15-44
QUBO versions 185/65 R15 88T/195/55R16 87H (*) 185/65 R15Q (M+S) 6JX15-44/6JX16-45 (*)
CARGO versions 185/65 R15 88T 185/65 R15Q (M+S) 6JX15-44
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:36 Pagina 20
