FIAT QUBO 2009 1.G Owners Manual

180
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67= 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69= 325 kg 93= 650 kg
70= 335 kg 94= 670 kg
71= 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74= 375 kg 98= 750 kg
75= 387 kg 99= 775 kg
76= 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kgWHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure
safety of the vehicle in movement. Fit tyres
of the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Toe-in measured between rims: –1 ±1
mm.
The values refer to the vehicle in running
order.UNDERSTANDING
TYRE MARKING fig. 5
Example: 175/70 R 14 91T
175= Nominal width (S, distance in mm
between sidewalls).
70= Height/width ratio (H/S) in per-
centage.
R= Radial tyre.
14= Rim diameter in inches (Ø).
91= Load rating (capacity).
T= Maximum speed rating.
fig. 5F0T0014m
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 180

181
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

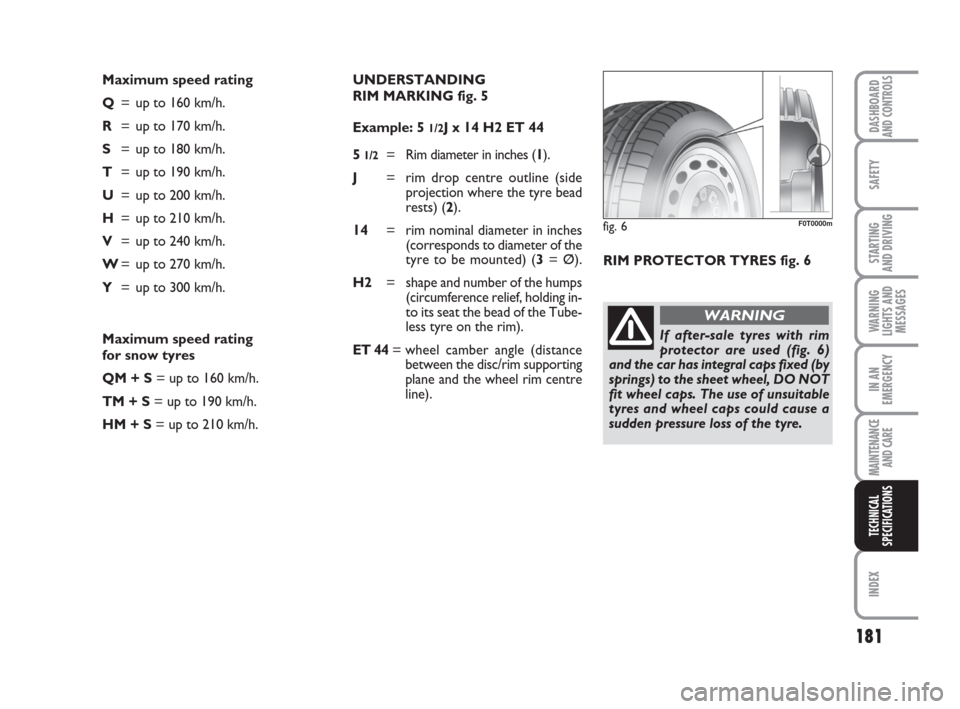

Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.UNDERSTANDING
RIM MARKING fig. 5
Example: 5
1/2J x 14 H2 ET 44
5
1/2= Rim diameter in inches (1).
J= rim drop centre outline (side
projection where the tyre bead
rests) (2).
14= rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3= Ø).
H2= shape and number of the humps
(circumference relief, holding in-
to its seat the bead of the Tube-
less tyre on the rim).
ET 44= wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre
line).
fig. 6F0T0000m
RIM PROTECTOR TYRES fig. 6
If after-sale tyres with rim
protector are used (fig. 6)
and the car has integral caps fixed (by
springs) to the sheet wheel, DO NOT
fit wheel caps. The use of unsuitable
tyres and wheel caps could cause a
sudden pressure loss of the tyre.
WARNING
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 181

182
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
COLD TYRE INFLATION PRESSURES (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running over 160 km/h, inflate tyres at full load inflation values.
185/65 R15 88 T 2.3 2.1 2.3 2.1 2.3 2.5 2.5
195/55 R16 87 H 2.3 2.1 2.3 2.1 2.4 2.4 2.5
1.4
1.3 Multijet
VERSIONS RIMS TYRES SPARE WHEEL(for versions/markets, where provided)
In std supply Snow Rim Tyre
6J x 15 H2 – ET44 185/65 R15 88 T 185/65 R15Q (M+S) 6J x 15 H2 – ET44 185/65 R15
6J x 16 ET 45 195/55 R16 87H _6J x 16 ET 45 195/55 R16
6J x 15 H2 – ET44 185/65 R15 88 T 185/65 R15Q (M+S) 6J x 15 H2 – ET44 185/65 R15
185/65 R15T (M+S) (*) 6J x 15 H2 – ET44 185/65 R15
6J x 16 ET 45 195/55 R16 87H_6J x 15 H2 – ET 44 (●)185/65 R15 (●)
(*) Versions QUBO Trekking
(
●) Correctly using this spare wheel necessarily involves complying with the WARNING below:
Never use it for more than strictly necessary and never exceed 80 km/h. On the spare wheel there is an orange
label, summarizing the main warnings about the spare wheel usage restrictions. Never remove or cover the la-
bel. The label contains the following indications in four languages: Warning! For temporary use only! 80 km/h max! Re-
place as soon as possible with a standard service wheel. Never cover this indication.
WARNING
Tyre size TYRES SUPPLIEDSPARE WHEELLoadless Medium load Full load(for versions/markets,Front Rear Front Rear Front Rearwhere provided)
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 182

183
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

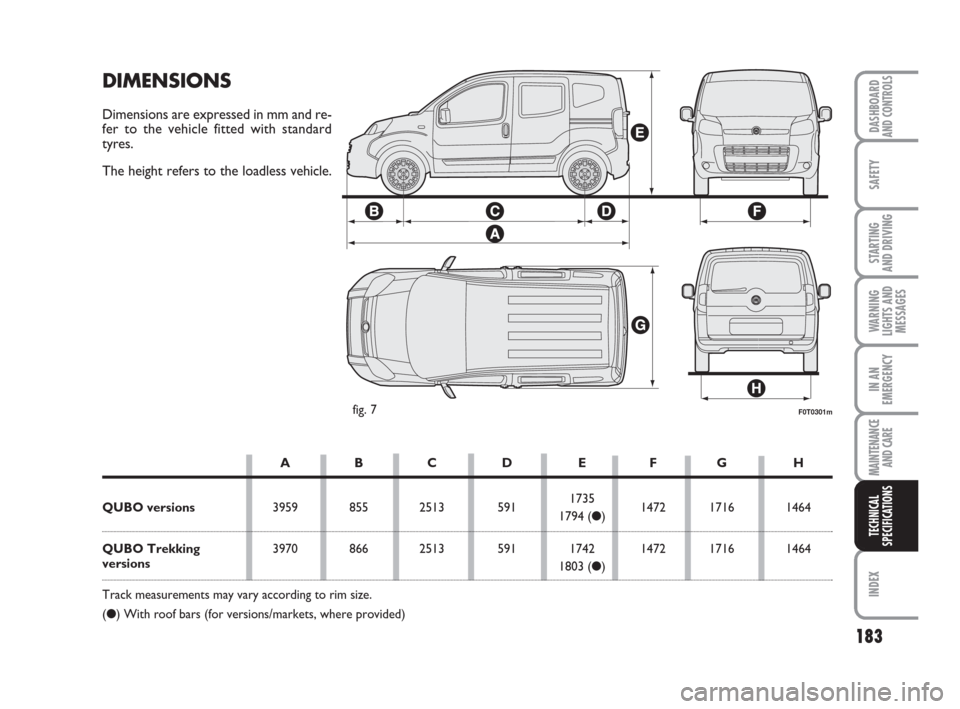

F0T0301mfig. 7
DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with standard
tyres.
The height refers to the loadless vehicle.
ABC D EFG H
QUBO versions 3959 855 2513 5911735
1472 1716 1464
1794 (●)
QUBO Trekking3970 866 2513 591 1742 1472 1716 1464
versions
1803 (●)
Track measurements may vary according to rim size.
(●) With roof bars (for versions/markets, where provided)
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 183

184
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
1.4 1.3 Multijet
155 155

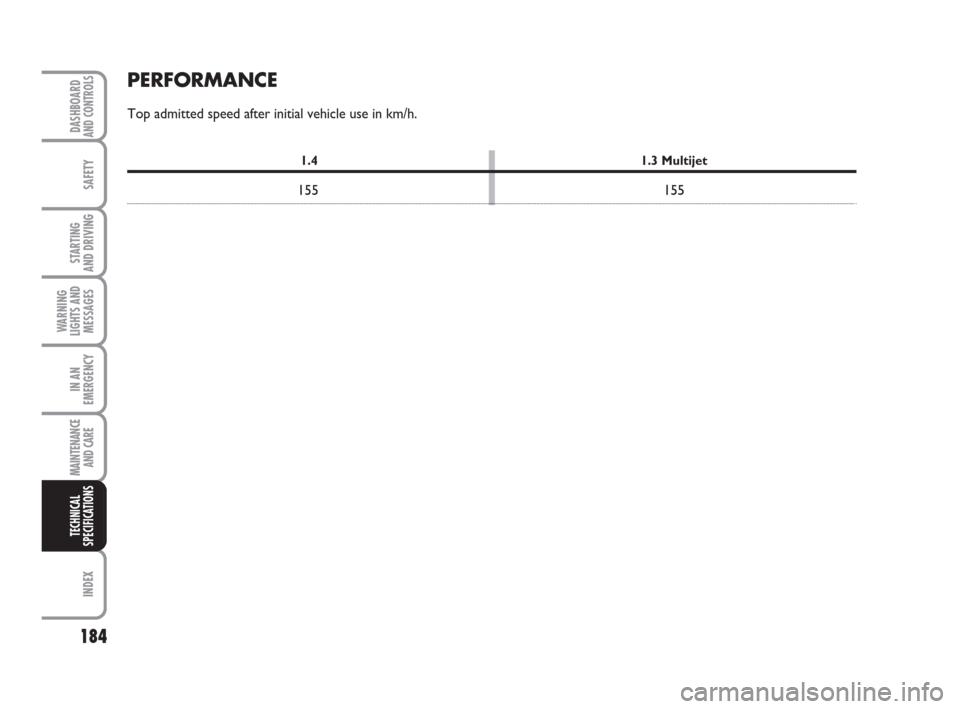

PERFORMANCE
Top admitted speed after initial vehicle use in km/h.
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 184

185
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
1.4
Versions MI Versions NI
(5 seats) Minimum
(4 seats
multi
transporter)
1180 1205
510 550
440 475
950 950
950 950
1690 1755
600 600
400 400
50 50
60 601.3 Multijet
Versions NI Versions MI
Maximum (5 seats)
(4 seats multi
transporter)
1300 1200
455 510
–440
950 950
950 950
1755 1710
600 600
400 400
50 50
60 60
WEIGHTS
Weights (kg)
Loadless weight
(with all fluids, fuel tank filled to
90% and without optional equipment):
Payload including the
driver (*):
Payload including the driver (*):
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof
(with roof bars)(***):
Maximum load on tow hitch
(trailer with brakes):
NoteVersions Adventure have the same payloads as the other versions.
(*)CATEGORY N1: the payload on full optional versions (110 Kg) is progressively reduced until 500 Kg.
CATEGORY M1: the options are included in the payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply with these
limits.
(***) Including weight of any applied loading system (bars/basket by Lineaccessori Fiat).
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 185

186
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CAPACITIES
1.3 Multijet1.4
Fuel tank:
including a reserve of:
Engine cooling system– with climate control:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Hydraulic power steering
Hydraulic brake circuit with
ABS system:
Windscreen/rear window
washer fluid reservoir
(▲) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand dem-
ineralised water.
litres
45
6
÷7
7.35
2.7
3.0
1.9 (
■)
0.38
–
3.0kg
–
–
–
2.4
2.6
1.70 (■)
0.35
0.5
–litres
45 (
)
6
÷7(
)
7.6
3.0 (
)
3.2 (
)
1.98
0.38
–
3.0kg
–
–
–
2.6 (
)
2.8 (
)
1.8
0.35
0.5
–Specified fuels
Genuine products
Unleaded petrol
of at least 95 RON
(EN228 Specifications)
(
)Diesel fuel for motor vehicles
(EN590 Specifications)
Mixture of 50% water and
PARAFLU
UP(▲)
SELENIA MULTIPOWER
(●) SELENIA WR P.E.
TUTELA CAR TECHNYX
(
■) TUTELA CAR EXPERYA
TUTELA GI/E
TUTELA TOP 4
Mixture of water and
TUTELA
PROFESSIONAL SC 35
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 186

187
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance ACEA C2
are accepted. If this is the case, the best engine performance is not guaranteed. We however recommend replacing the lubri-
cant with those recommended by Fiat Dealership.
The use of products with features lower than ACEA A1/B1 and ACEA C2 could cause engine damage which is not covered by
warranty.
If the vehicle is used in particularly cold climates, ask your Fiat Dealership for the right PETRONAS LUBRICANTS.
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid and lubricant qualitative specifications Genuine lubricants Replacement
for correct vehicle operation and fluids interval
Synthetic lubricant SAE 5W-30, ACEA A1/B1,
qualification FIAT 9.55535-G1.
Synthetic oil grade SAE 5W-30, qualification
FIAT 9.55535- S1 Lubricants for
petrol engines
Lubricants for
diesel enginesSELENIA
MULTIPOWER
Contractual Technical
Reference no. F315.B04
SELENIA WR P.E.
Contractual Technical
Reference no. 510.D07Second
Scheduled
Servicing Plan
Second
Scheduled
Servicing Plan
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 187

188
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
Lubricants
and greases for
motion
transmission
Use Fluid and lubricant qualitative specifications Genuine lubricants Replacementfor correct vehicle operation and fluids interval
(●) IMPORTANT Do not top up or mix with fluids having different specifications from those described here.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture ofPARAFLUUPand
demineralised water.Synthetic lubricant SAE 75W-85.
Passes the specifications API GL 4 PLUS.
Qualification FIAT 9.55530- MX3.
Synthetic lubricant, grade SAE 75W-80
Passes specifications API GL 4.
Qualification FIAT 9.55550.
Molybdenum disulphide grease, for use at high temperatures.
Consistency NLGI 1-2.
Qualification FIAT 9.55580.
Grease for homokinetic joints with low friction coefficient.
Consistency NLGI 0-1.
Qualification FIAT 9.55580.
Lubricant for automatic drives.
Passes the specification “ATF DEXRON III”.
Qualification FIAT 9.55550- AG2.
Synthetic fluid NHTSA N° 116 DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01.
Qualification FIAT 9.55597.
Inhibited mono ethylene glycol-based antifreeze protection,
red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
Qualification FIAT 9.555323.
Additive for diesel fuel, protecting Diesel engines.
Mixture of alcohols and surfactants.
Passes specification CUNA NC 956-11.
Qualification FIAT 9.55522.TUTELA CAR
TECHNYX
Contractual Technical
Reference F010.B05
TUTELA CAR EXPERYA
Contractual Technical
Reference F178.B06
TUTELA ALL STAR
Contractual Technical
Reference F702.G07
TUTELA STAR 700
Contractual Technical
Reference F701.C07
TUTELA GI/E
Contractual Technical
Reference F001.C94
TUTELA TOP 4
Contractual Technical
Reference F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference F201.D02Mechanical gearboxes and
differentials
(Diesel versions)
Mechanical gearboxes and
differentials (petrol versions)
CV joints on wheel side
CV joints
on differential side
Hydraulic power steering
Brake and clutch
hydraulic controls
Mixture of
50% water and 50% of
PARAFLU
UP(❑)
To be mixed with fuel oil
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems Brakefluid
Protective fluid
for radiators
Additive for
diesel fluid
Fluid for
window and
rear window
washer
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 188

189
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

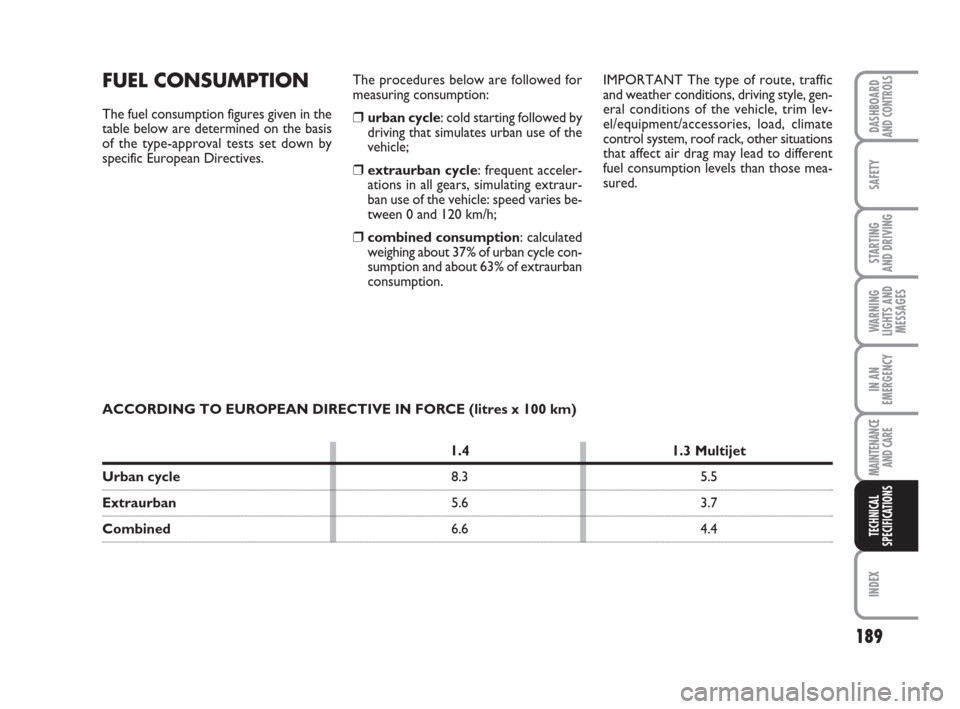

FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the type-approval tests set down by
specific European Directives. IMPORTANT The type of route, traffic
and weather conditions, driving style, gen-
eral conditions of the vehicle, trim lev-
el/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured. The procedures below are followed for
measuring consumption:❒urban cycle: cold starting followed by
driving that simulates urban use of the
vehicle;
❒extraurban cycle: frequent acceler-
ations in all gears, simulating extraur-
ban use of the vehicle: speed varies be-
tween 0 and 120 km/h;
❒combined consumption: calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extraurban
consumption.
ACCORDING TO EUROPEAN DIRECTIVE IN FORCE (litres x 100 km)
1.4 1.3 Multijet
Urban cycle8.3 5.5
Extraurban5.6 3.7
Combined6.6 4.4
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 189
