FIAT QUBO 2010 1.G User Guide

IMPORTANT The engine immobilizer function is
ensured by the Fiat CODE which is automatically
activated when the key is extracted from the ignition.
TURNING THE ALARM ON
With the doors and bonnet closed and the ignition
key either turned to STOP or removed, point the
key with the remote control towards the vehicle and
press and release button
.
Except for some markets, the system produces an
acoustic warning (beep) and enables door locking.
A self-diagnostic stage precedes the turning on of the
alarm: if a fault is detected, the system produces
another acoustic signal.
In this case switch off the alarm by pressing
,
check that all the doors, bonnet and tailgate are
closed correctly; then switch the alarm back on by
pressing
.
If a door or the bonnet is not properly shut, it will
be excluded from the testing by the alarm system.
A fault has occurred in system operation if the alarm
produces an acoustic signal even when the doors,
bonnet and boot are correctly closed. Go to a
Fiat Dealership.
IMPORTANT The alarm does not come on when the
central locking is activated using the metal insert in
the key.
IMPORTANT The alarm is configured to comply with
the regulations existing in different countries.TURNING THE ALARM OFF
Press button
on the key with the remote control.
The following operations are performed (excluding
specific markets):
❒direction indicators flash briefly twice
❒two short beeps
❒door are unlocked.
IMPORTANT The alarm is not turned off using the
door are opened using the metal insert in the key.
VOLUMETRIC/ANTILIFTING PROTECTION
The side windows must be completely closed for
correct operation of the protection.
If necessary, the function can be turned off (if, for
example, you are leaving a pet in the car) by pressing
button A fig. 6 on the front courtesy light before
activating turning the alarm on.
The LED on the button will flash for several seconds
when the function is turned off. The volumetric/
antitilting protection must be deactivated each time
the instrument panel is switched off.
10
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BREAK-IN ATTEMPT INDICATION
The warning light
comes on or the symbol
appears on the display with a specific message (see
"Warning lights and messages" when the panel lights
up according to vehicle version) to indicate a
break-in attempt.
DISABLING THE ALARM
To permanently disable the alarm (e.g. during a long
storage), simply lock the vehicle by turning the
metal insert of the key with remote control in the
lock. In this case, the car will not be protected
by the alarm system, while the engine immobiliser
function is ensured by the Fiat CODE system, which
is automatically activated when the key is removed
from the ignition switch.IMPORTANT If the batteries in the remote control
key are run down or if the system is faulty, the
key must be inserted in the ignition and turned to
the ON position to switch the alarm off.

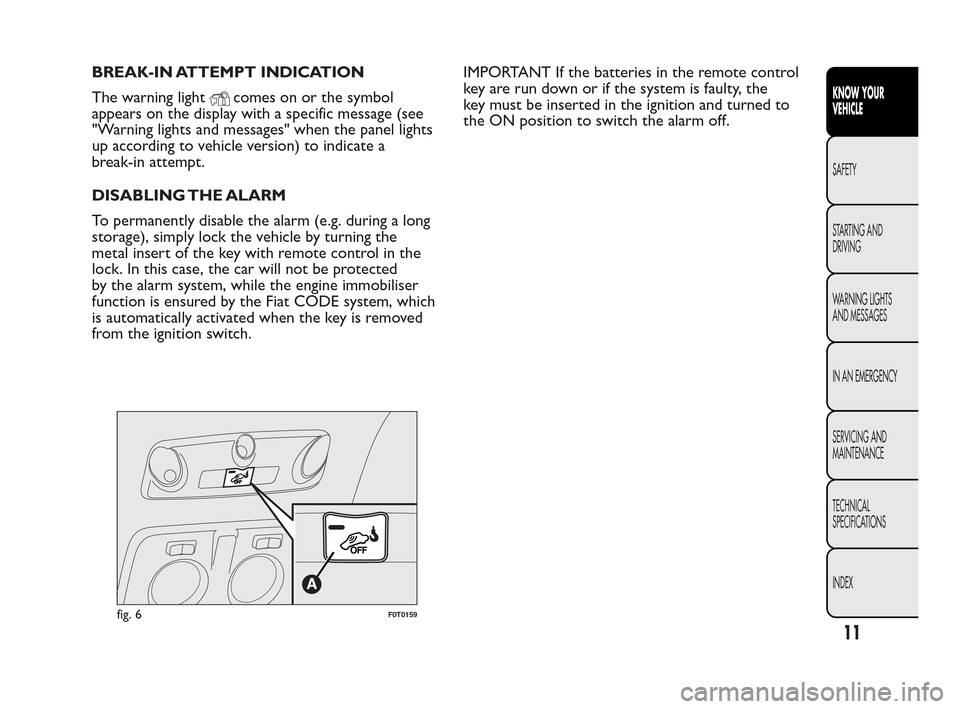

fig. 6F0T0159
11
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

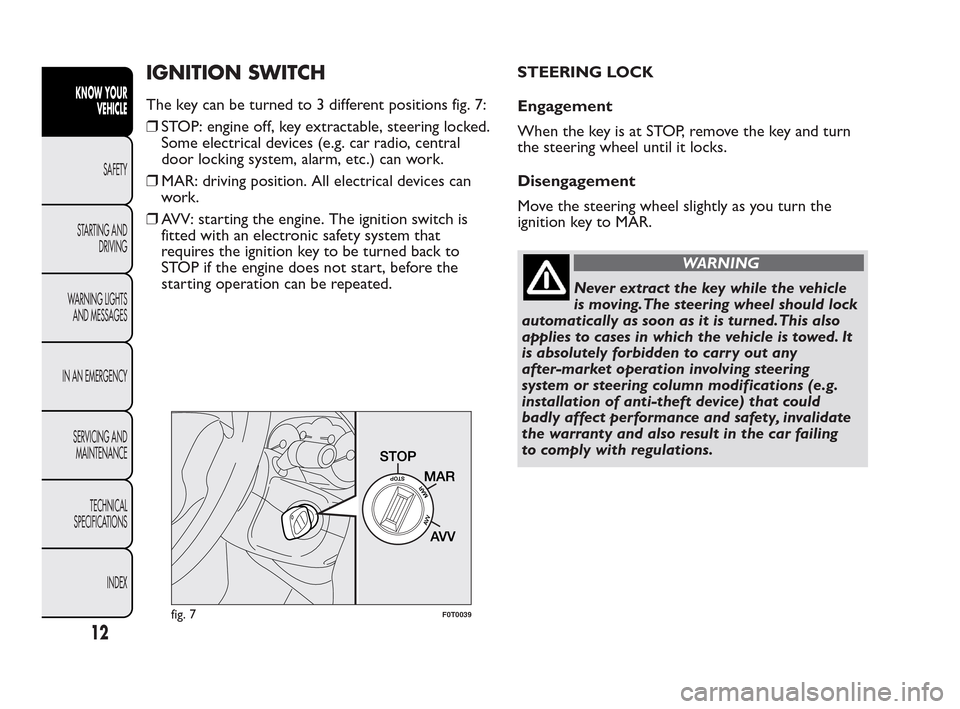

IGNITION SWITCH
The key can be turned to 3 different positions fig. 7:
❒STOP: engine off, key extractable, steering locked.
Some electrical devices (e.g. car radio, central
door locking system, alarm, etc.) can work.
❒MAR: driving position. All electrical devices can
work.
❒AVV: starting the engine. The ignition switch is
fitted with an electronic safety system that
requires the ignition key to be turned back to
STOP if the engine does not start, before the
starting operation can be repeated.STEERING LOCK
Engagement
When the key is at STOP, remove the key and turn
the steering wheel until it locks.
Disengagement
Move the steering wheel slightly as you turn the
ignition key to MAR.
WARNING
Never extract the key while the vehicle
is
moving.The steering wheel should lock
automatically as soon as it is turned.This also
applies to cases in which the vehicle is towed. It
is absolutely forbidden to carry out any
after-market operation involving steering
system or steering column modifications (e.g.
installation of anti-theft device) that could
badly affect performance and safety, invalidate
the warranty and also result in the car failing
to comply with regulations.
fig. 7F0T0039
12
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

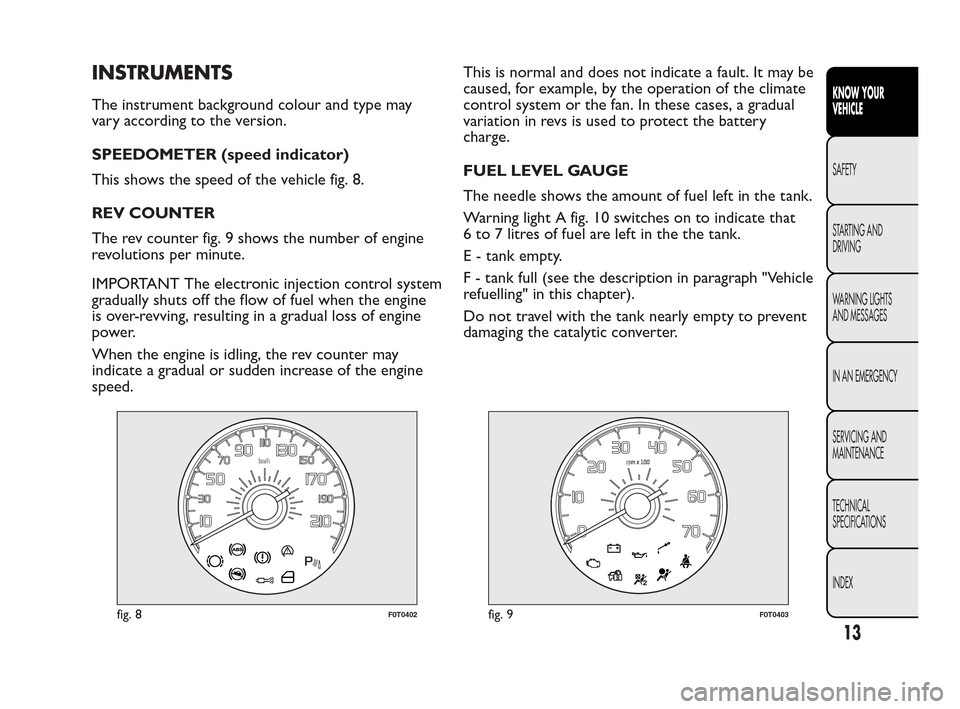

INSTRUMENTS
The instrument background colour and type may
vary according to the version.
SPEEDOMETER (speed indicator)
This shows the speed of the vehicle fig. 8.
REV COUNTER
The rev counter fig. 9 shows the number of engine
revolutions per minute.
IMPORTANT The electronic injection control system
gradually shuts off the flow of fuel when the engine
is over-revving, resulting in a gradual loss of engine
power.
When the engine is idling, the rev counter may
indicate a gradual or sudden increase of the engine
speed.This is normal and does not indicate a fault. It may be
caused, for example, by the operation of the climate
control system or the fan. In these cases, a gradual
variation in revs is used to protect the battery
charge.
FUEL LEVEL GAUGE
The needle shows the amount of fuel left in the tank.
Warning light A fig. 10 switches on to indicate that
6 to 7 litres of fuel are left in the the tank.
E - tank empty.
F - tank full (see the description in paragraph "Vehicle
refuelling" in this chapter).
Do not travel with the tank nearly empty to prevent
damaging the catalytic converter.
fig. 8F0T0402fig. 9F0T0403
13
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT The needle will point to E and warning
light A will flash to indicate a fault in the system. If
this is the case, contact a Fiat Dealership to have the
system checked.

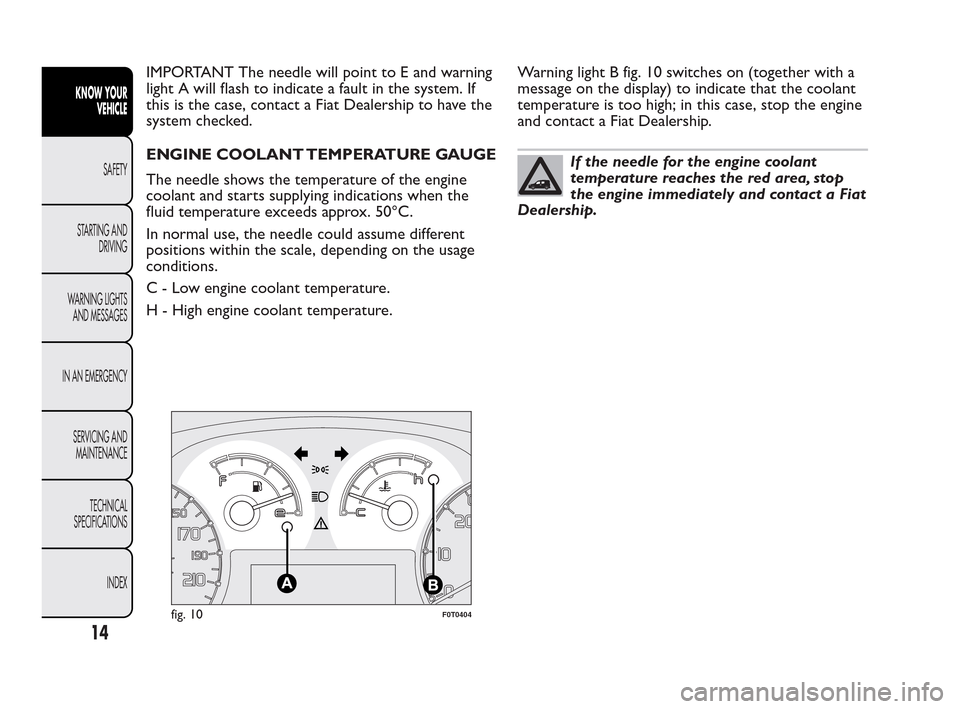

ENGINE COOLANT TEMPERATURE GAUGE
The needle shows the temperature of the engine
coolant and starts supplying indications when the
fluid temperature exceeds approx. 50°C.
In normal use, the needle could assume different
positions within the scale, depending on the usage
conditions.
C - Low engine coolant temperature.
H - High engine coolant temperature.Warning light B fig. 10 switches on (together with a
message on the display) to indicate that the coolant
temperature is too high; in this case, stop the engine
and contact a Fiat Dealership.
If the needle for the engine coolant
temperature reaches the red area, stop
the engine immediately and contact a Fiat
Dealership.
fig. 10F0T0404
14
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

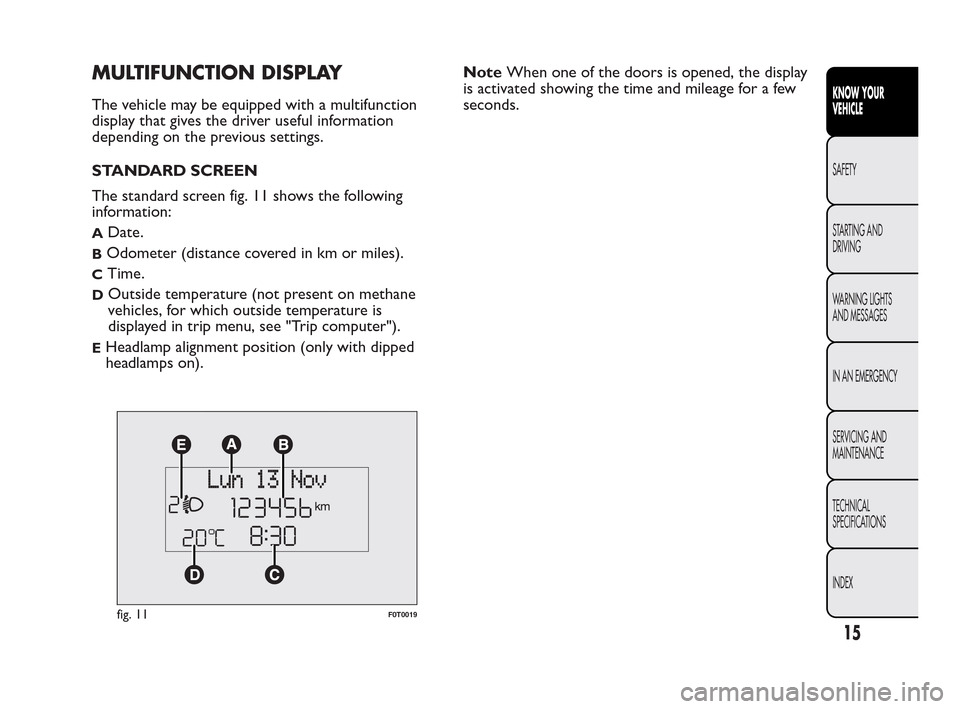

MULTIFUNCTION DISPLAY
The vehicle may be equipped with a multifunction
display that gives the driver useful information
depending on the previous settings.
STANDARD SCREEN
The standard screen fig. 11 shows the following
information:
ADate.
BOdometer (distance covered in km or miles).
CTime.
DOutside temperature (not present on methane
vehicles, for which outside temperature is
displayed in trip menu, see "Trip computer").
EHeadlamp alignment position (only with dipped
headlamps on).NoteWhen one of the doors is opened, the display
is activated showing the time and mileage for a few
seconds.
fig. 11F0T0019
15
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

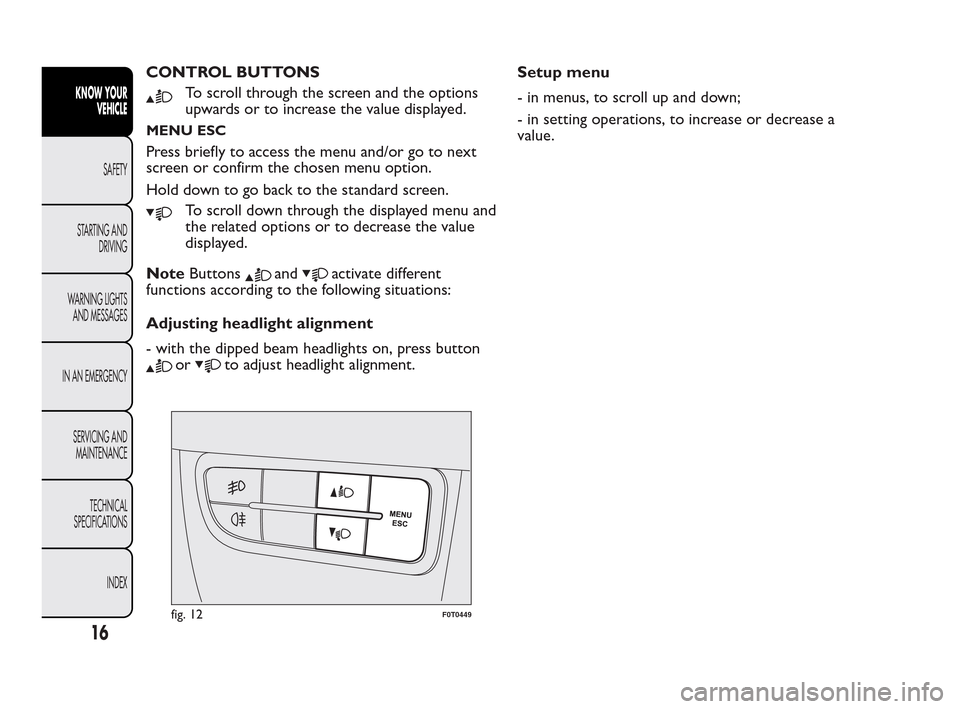

CONTROL BUTTONS
To scroll through the screen and the options
upwards or to increase the value displayed.
MENU ESC
Press briefly to access the menu and/or go to next
screen or confirm the chosen menu option.
Hold down to go back to the standard screen.
To scroll down through the displayed menu and
the related options or to decrease the value
displayed.
NoteButtons
andactivate different
functions according to the following situations:
Adjusting headlight alignment
- with the dipped beam headlights on, press button
orto adjust headlight alignment.Setup menu
- in menus, to scroll up and down;
- in setting operations, to increase or decrease a
value.
fig. 12F0T0449
16
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

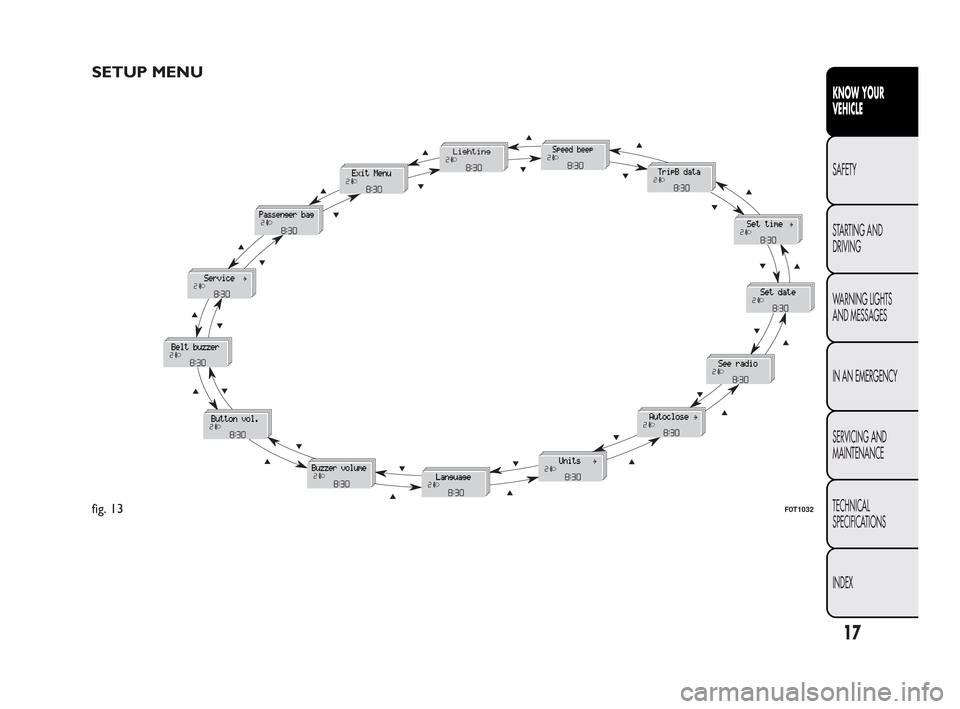

SETUP MENU
fig. 13F0T1032
17
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

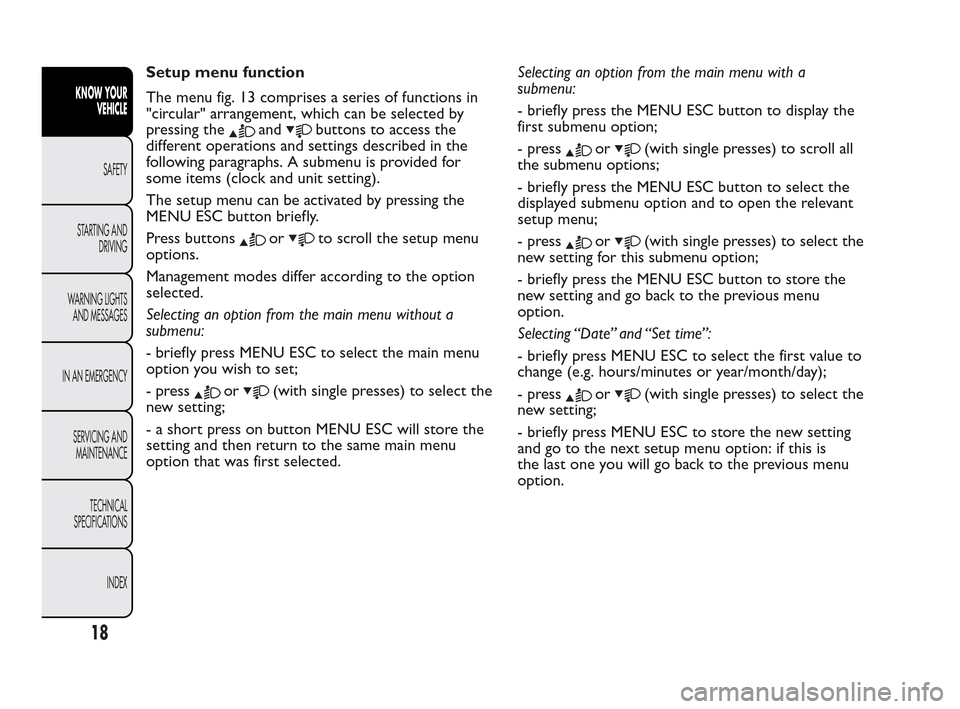

Setup menu function
The menu fig. 13 comprises a series of functions in
"circular" arrangement, which can be selected by
pressing the
andbuttons to access the
different operations and settings described in the
following paragraphs. A submenu is provided for
some items (clock and unit setting).
The setup menu can be activated by pressing the
MENU ESC button briefly.
Press buttons
orto scroll the setup menu
options.
Management modes differ according to the option
selected.
Selecting an option from the main menu without a
submenu:
- briefly press MENU ESC to select the main menu
option you wish to set;
- press
or(with single presses) to select the
new setting;
- a short press on button MENU ESC will store the
setting and then return to the same main menu
option that was first selected.Selecting an option from the main menu with a
submenu:
- briefly press the MENU ESC button to display the
first submenu option;
- press
or(with single presses) to scroll all
the submenu options;
- briefly press the MENU ESC button to select the
displayed submenu option and to open the relevant
setup menu;
- press
or(with single presses) to select the
new setting for this submenu option;
- briefly press the MENU ESC button to store the
new setting and go back to the previous menu
option.
Selecting “Date” and “Set time”:
- briefly press MENU ESC to select the first value to
change (e.g. hours/minutes or year/month/day);
- press
or(with single presses) to select the
new setting;
- briefly press MENU ESC to store the new setting
and go to the next setup menu option: if this is
the last one you will go back to the previous menu
option.
18
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

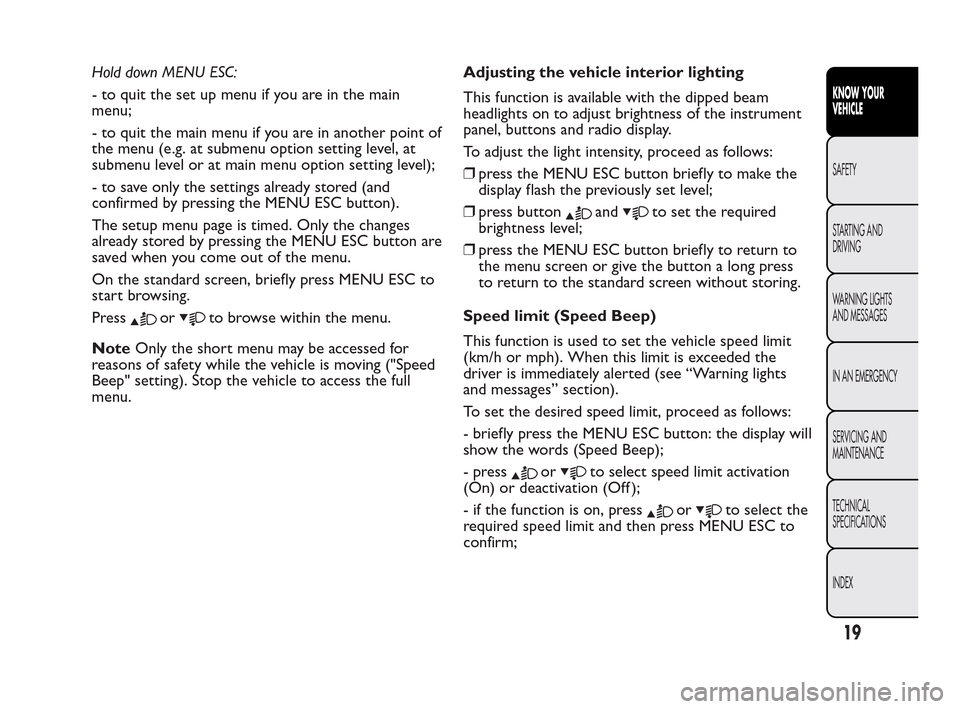

Hold down MENU ESC:
- to quit the set up menu if you are in the main
menu;
- to quit the main menu if you are in another point of
the menu (e.g. at submenu option setting level, at
submenu level or at main menu option setting level);
- to save only the settings already stored (and
confirmed by pressing the MENU ESC button).
The setup menu page is timed. Only the changes
already stored by pressing the MENU ESC button are
saved when you come out of the menu.
On the standard screen, briefly press MENU ESC to
start browsing.
Press
orto browse within the menu.
NoteOnly the short menu may be accessed for
reasons of safety while the vehicle is moving ("Speed
Beep" setting). Stop the vehicle to access the full
menu.Adjusting the vehicle interior lighting
This function is available with the dipped beam
headlights on to adjust brightness of the instrument
panel, buttons and radio display.
To adjust the light intensity, proceed as follows:
❒press the MENU ESC button briefly to make the
display flash the previously set level;
❒press button
andto set the required
brightness level;
❒press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
Speed limit (Speed Beep)
This function is used to set the vehicle speed limit
(km/h or mph). When this limit is exceeded the
driver is immediately alerted (see “Warning lights
and messages” section).
To set the desired speed limit, proceed as follows:
- briefly press the MENU ESC button: the display will
show the words (Speed Beep);
- press
orto select speed limit activation
(On) or deactivation (Off );
- if the function is on, press
orto select the
required speed limit and then press MENU ESC to
confirm;
19
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
