NoteSetting is possible between 30 and 200 km/h,
or 20 and 125 mph, according to the previously
stored unit. See the "Setting the unit of
measurement" paragraph described below. The
setting will increase/decrease by five units each time
button
/is pressed. Hold down/to
increase/decrease the setting rapidly. Complete
the setting by single pressing the button when you
approach the required value.
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
To cancel the setting, proceed as follows:
- press the MENU ESC button briefly to make the
display flash (On);
- press
: (Off ) will flash on the display;
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.Trip B activation (tripB data)
With this function is possible to turn the Trip B
display (trip meter) on and off.
For more information see "Trip computer"
paragraph.
For activation/deactivation, proceed as follows:
- briefly press MENU ESC: On or Off will flash on
the display (depending on previous setting);
- press
orto make your choice;
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
Setting the clock (Set time)
This function allows you to set the clock through
two submenus: “Time” and “Mode”.
To carry out the adjustment, proceed as follows:
- briefly press the MENU ESC button and two
submenus (Time and Format) are displayed;
– press
orto switch between the two
sub-menus;
- once you have selected a submenu, press MENU
ESC briefly;
- if selecting “Time”, briefly press MENU ESC - the
“hours” will flash on the display;
- press the
orbutton to make the
adjustment;
20
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

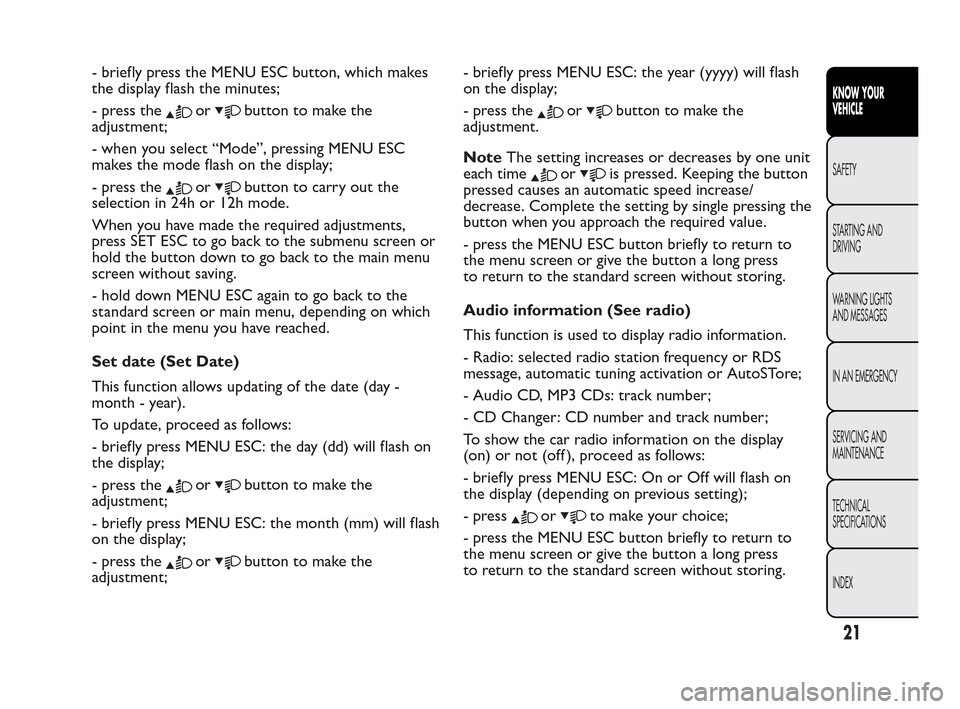

- briefly press the MENU ESC button, which makes
the display flash the minutes;
- press the
orbutton to make the
adjustment;
- when you select “Mode”, pressing MENU ESC
makes the mode flash on the display;
- press the
orbutton to carry out the
selection in 24h or 12h mode.
When you have made the required adjustments,
press SET ESC to go back to the submenu screen or
hold the button down to go back to the main menu
screen without saving.
- hold down MENU ESC again to go back to the
standard screen or main menu, depending on which
point in the menu you have reached.
Set date (Set Date)
This function allows updating of the date (day -
month - year).
To update, proceed as follows:
- briefly press MENU ESC: the day (dd) will flash on
the display;
- press the
orbutton to make the
adjustment;
- briefly press MENU ESC: the month (mm) will flash
on the display;
- press the
orbutton to make the
adjustment;- briefly press MENU ESC: the year (yyyy) will flash
on the display;
- press the
orbutton to make the
adjustment.
NoteThe setting increases or decreases by one unit
each time
oris pressed. Keeping the button
pressed causes an automatic speed increase/
decrease. Complete the setting by single pressing the
button when you approach the required value.
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
Audio information (See radio)
This function is used to display radio information.
- Radio: selected radio station frequency or RDS
message, automatic tuning activation or AutoSTore;
- Audio CD, MP3 CDs: track number;
- CD Changer: CD number and track number;
To show the car radio information on the display
(on) or not (off ), proceed as follows:
- briefly press MENU ESC: On or Off will flash on
the display (depending on previous setting);
- press
orto make your choice;
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
21
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

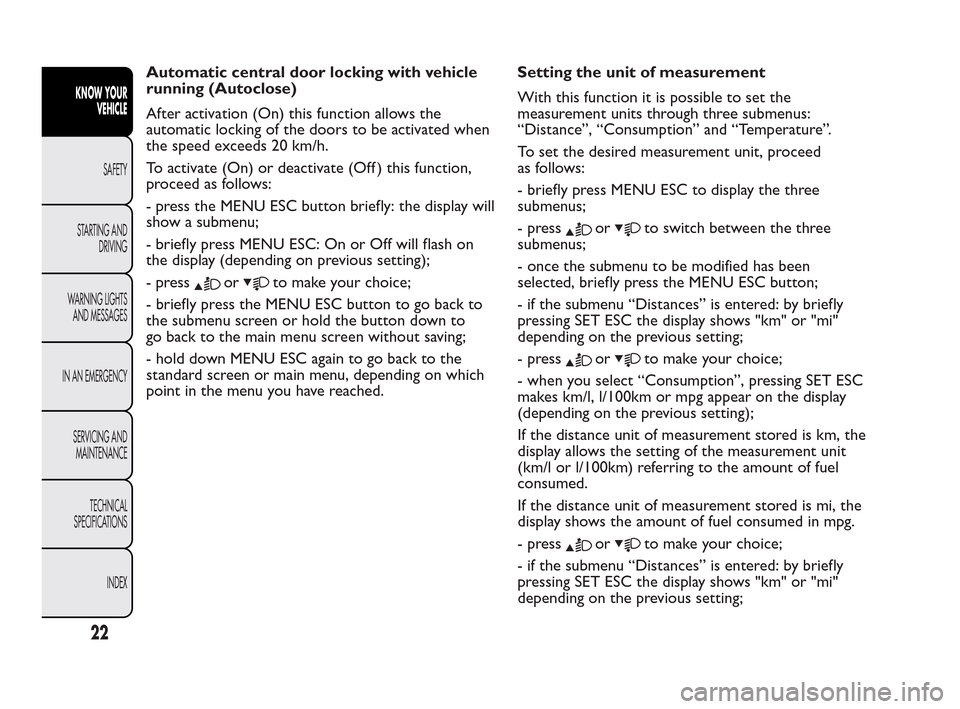

Automatic central door locking with vehicle
running (Autoclose)
After activation (On) this function allows the
automatic locking of the doors to be activated when
the speed exceeds 20 km/h.
To activate (On) or deactivate (Off ) this function,
proceed as follows:
- press the MENU ESC button briefly: the display will
show a submenu;
- briefly press MENU ESC: On or Off will flash on
the display (depending on previous setting);
- press
orto make your choice;
- briefly press the MENU ESC button to go back to
the submenu screen or hold the button down to
go back to the main menu screen without saving;
- hold down MENU ESC again to go back to the
standard screen or main menu, depending on which
point in the menu you have reached.Setting the unit of measurement
With this function it is possible to set the
measurement units through three submenus:
“Distance”, “Consumption” and “Temperature”.
To set the desired measurement unit, proceed
as follows:
- briefly press MENU ESC to display the three
submenus;
- press
orto switch between the three
submenus;
- once the submenu to be modified has been
selected, briefly press the MENU ESC button;
- if the submenu “Distances” is entered: by briefly
pressing SET ESC the display shows "km" or "mi"
depending on the previous setting;
- press
orto make your choice;
- when you select “Consumption”, pressing SET ESC
makes km/l, l/100km or mpg appear on the display
(depending on the previous setting);
If the distance unit of measurement stored is km, the
display allows the setting of the measurement unit
(km/l or l/100km) referring to the amount of fuel
consumed.
If the distance unit of measurement stored is mi, the
display shows the amount of fuel consumed in mpg.
- press
orto make your choice;
- if the submenu “Distances” is entered: by briefly
pressing SET ESC the display shows "km" or "mi"
depending on the previous setting;
22
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

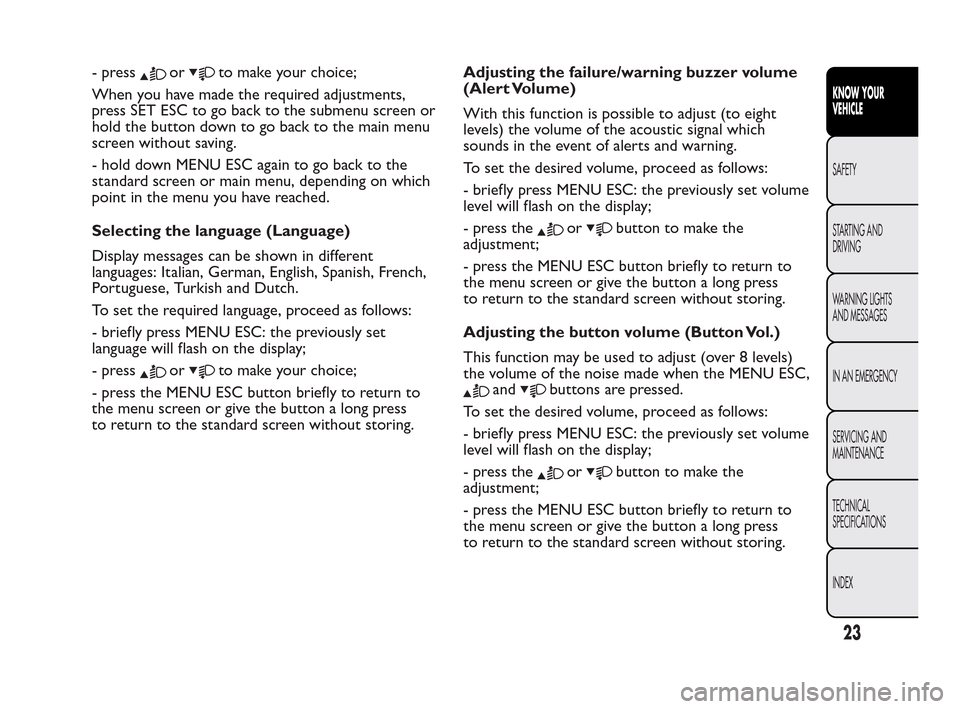

- pressorto make your choice;
When you have made the required adjustments,
press SET ESC to go back to the submenu screen or
hold the button down to go back to the main menu
screen without saving.
- hold down MENU ESC again to go back to the
standard screen or main menu, depending on which
point in the menu you have reached.
Selecting the language (Language)
Display messages can be shown in different
languages: Italian, German, English, Spanish, French,
Portuguese, Turkish and Dutch.
To set the required language, proceed as follows:
- briefly press MENU ESC: the previously set
language will flash on the display;
- press
orto make your choice;
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.Adjusting the failure/warning buzzer volume
(Alert Volume)
With this function is possible to adjust (to eight
levels) the volume of the acoustic signal which
sounds in the event of alerts and warning.
To set the desired volume, proceed as follows:
- briefly press MENU ESC: the previously set volume
level will flash on the display;
- press the
orbutton to make the
adjustment;
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
Adjusting the button volume (Button Vol.)
This function may be used to adjust (over 8 levels)
the volume of the noise made when the MENU ESC,
andbuttons are pressed.
To set the desired volume, proceed as follows:
- briefly press MENU ESC: the previously set volume
level will flash on the display;
- press the
orbutton to make the
adjustment;
- press the MENU ESC button briefly to return to
the menu screen or give the button a long press
to return to the standard screen without storing.
23
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SBR buzzer reactivation (Belt Buzzer)
This function can be displayed only after a Fiat
Dealership has deactivated the SBR system (see “SBR
system” in the “Safety” section).
Scheduled Servicing (Service)
This function is used to display information related to
regular servicing intervals.
This information can be consulted as follows:
- briefly press MENU ESC: service intervals in km or
mi, depending on the previous setting, will be
displayed (see “Setting the unit of measurement”);
- press the MENU ESC button briefly to return
to the menu screen or hold the button down to
return to the standard screen.
NoteThe “Scheduled Servicing Plan” requires the
vehicle to be serviced every 30,000 km (or 18,000
mi). This indication will appear automatically, with
the key at MAR, starting from 2,000 km (or 1,240
mi) and will be displayed every 200 km (or 124 mi).
Below 200 km the signals become more frequent.
The display will be in km or miles according to
the unit of measurement set. When the next service
is close, when the ignition is turned ON the word
"Service" appears in the display followed by the
remaining number of kilometres/miles. Go to a Fiat
Dealership, where the "Scheduled Service Plan"
operations will be performed and the message will
be reset.Passenger airbag and side bag activation/
deactivation (Passenger bag)
(for versions/markets, where provided)
This function is used to activated/deactivated the
passenger's airbag.

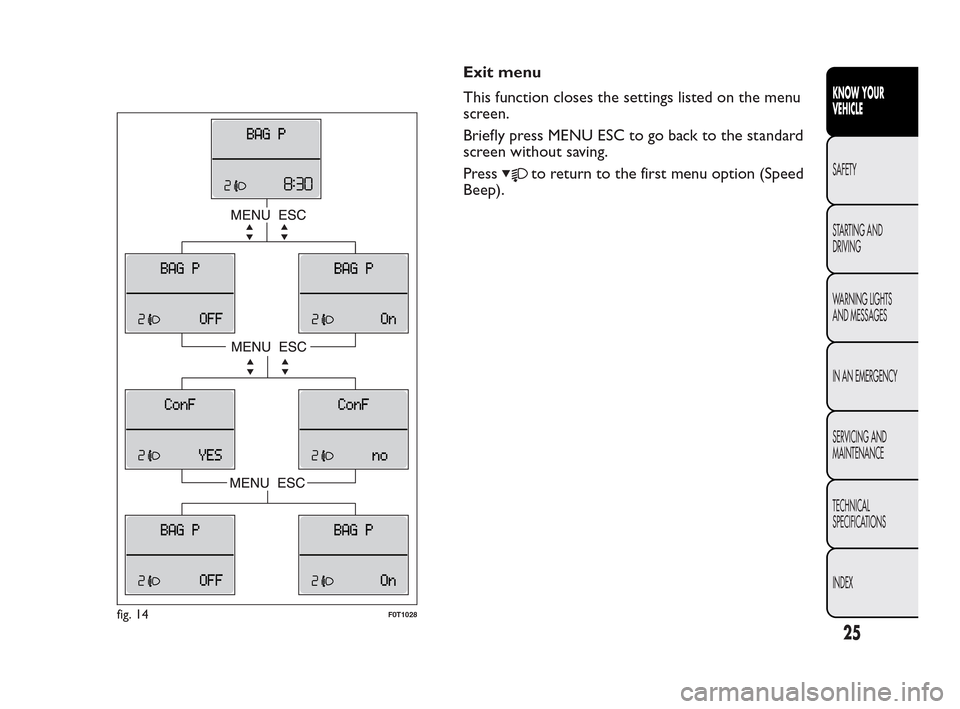

Proceed as follows fig. 14:
❒press MENU ESC and, after the message BAG P
OFF (to deactivate) or BAG P On (to activate) is
displayed by pressing buttons
and, press
MENU ESC again;
❒the confirmation request message will appear on
the display;
❒use the
ormenu buttons to select (Yes)
(to confirm the activation/deactivation) or (No)
(to cancel);
❒press the MENU ESC button briefly; a selection
confirmation message will be displayed after which
the program returns to the menu screen.
Alternatively, press and hold down the button to
return to the standard screen without storing.
24
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Exit menu
This function closes the settings listed on the menu
screen.
Briefly press MENU ESC to go back to the standard
screen without saving.
Press
to return to the first menu option (Speed
Beep).
fig. 14F0T1028
25
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TRIP COMPUTER
General features
The Trip computer is used to display information on
vehicle operation when the ignition key is turned
to MAR. This function allows you to define two
separate trips, called "Trip A" and "Trip B", for
monitoring the "complete mission" (journey) of the
vehicle in a reciprocally independent manner. Both
functions can be reset (start of a new journey).
“Trip A” is used to display the values relating to:
❒Outside temperature (for versions with outside
temperature sensor and methane-powered
vehicles)
❒Range
❒Distance travelled
❒Average consumption
❒Current consumption
❒Average speed
❒Travel time (driving time).
"Trip B", available on multifunction display only, is
used to display the values relating to:
❒Distance travelled B
❒Average consumption B
❒Average speed B
❒Travel time B (driving time).
“Trip B” may be disabled (see “Activating
Trip B”). “Range” and “Instant
consumption" parameters cannot be
reset .
Values displayed
Range
This indicates the distance which may be travelled
with the fuel in the tank assuming that driving style
does not change. The display will show the reading
“----“ when the following events take place:
❒range is lower than 50 km (or 30 mi)
❒vehicle is left parked with the engine running for a
long time.
IMPORTANT The range can be affected by several
factors: driving style (see “Driving style” in the
“Starting and driving” section), type of route
(motorway, towns and cities, mountain roads, etc.),
conditions of use (load, tyre pressures, etc.). Trip
planning must therefore take the above into account.
Distance travelled
This value shows the distance covered from the start
of the new journey.
26
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Average consumption
This value shows the approximate average fuel
consumption from the start of the new journey.
Current consumption
Indicates the fuel consumption. The value is
constantly updated. The message “----” will appear
on the display if the car is parked with the engine
running.
Average speed
This value shows the average speed of the vehicle
based on the overall time elapsed since the start of
the new journey.
Journey time
Time elapsed since the start of the new journey.
IMPORTANT If there is no information, the Trip
computer displays "----" in place of the value. When
normal operating conditions are restored, the
counting of the various values is resumed, without
either zeroing the values displayed prior to the
problem, or starting a new journey.Control TRIP button

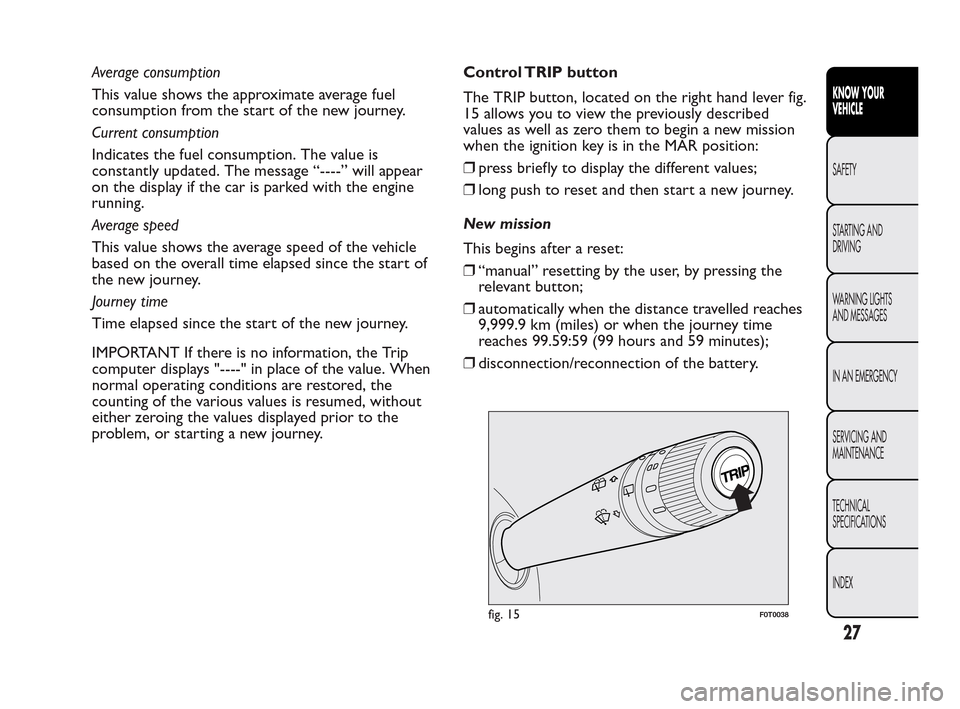

The TRIP button, located on the right hand lever fig.
15 allows you to view the previously described
values as well as zero them to begin a new mission
when the ignition key is in the MAR position:
❒press briefly to display the different values;
❒long push to reset and then start a new journey.
New mission
This begins after a reset:
❒“manual” resetting by the user, by pressing the
relevant button;
❒automatically when the distance travelled reaches
9,999.9 km (miles) or when the journey time
reaches 99.59:59 (99 hours and 59 minutes);
❒disconnection/reconnection of the battery.
fig. 15F0T0038
27
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT The reset operation when “Trip A”
details are being displayed only resets the
information associated with this function.
IMPORTANT The reset operation when “Trip B”
details are being displayed resets only the
information associated with this function.
Start of journey procedure
With ignition key at MAR, press and hold the TRIP
button for more than 2 seconds to reset.
Exit Trip
You can automatically exit the TRIP function once all
the values have been displayed, or by holding the
MENU ESC button down for more than 1 second.SEATS
FRONT SEATS
WARNING
All adjustments must be made with the
v
ehicle stationary.
Lengthwise adjustment

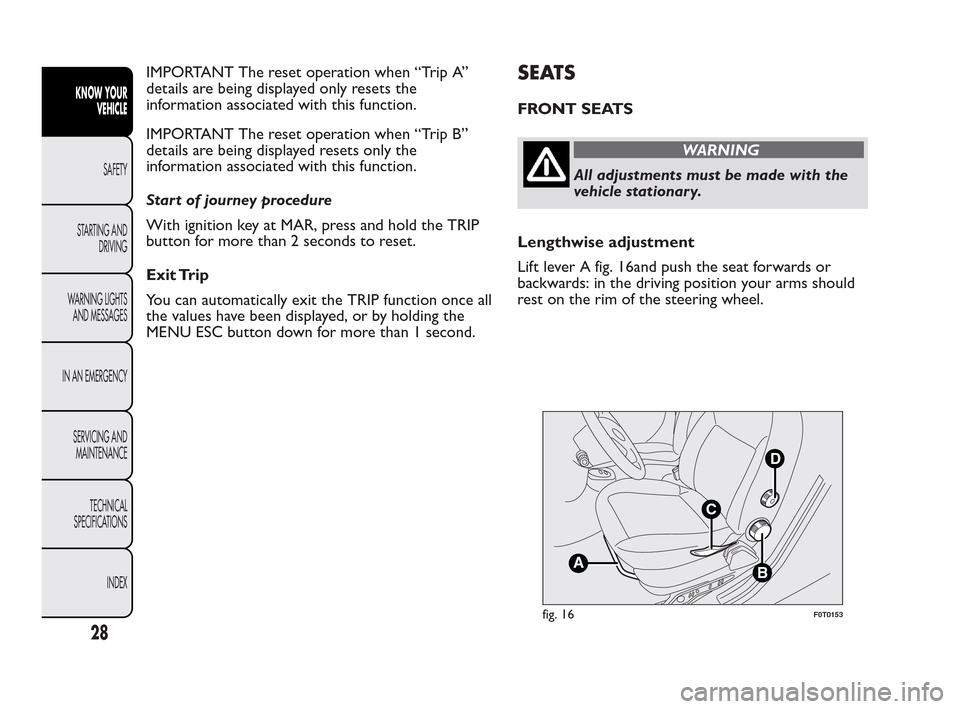

Lift lever A fig. 16and push the seat forwards or
backwards: in the driving position your arms should
rest on the rim of the steering wheel.
B
D
C
A
fig. 16F0T0153
28
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Once you have released the adjustment
le
ver, always check that the seat is
locked on the guides by trying to move it back
and forth. If it is not locked, the seat may move
unexpectedly and make you lose control of
the vehicle.
Backrest angle adjustment
Turn knob B fig. 16.
Height adjustment (driver only)
(for versions/markets, where provided)
Operate lever C fig. 16 to lift or lower the rear part
of the cushion to achieve the most comfortable
driving position.
IMPORTANT Adjustment must be carried out only
when seated in the relevant seat.
Driver seat lumbar adjustment
(for versions/markets, where provided)
Turn knob D fig. 16 to adjust the backrest support.Seat heating
(for versions/markets, where provided)

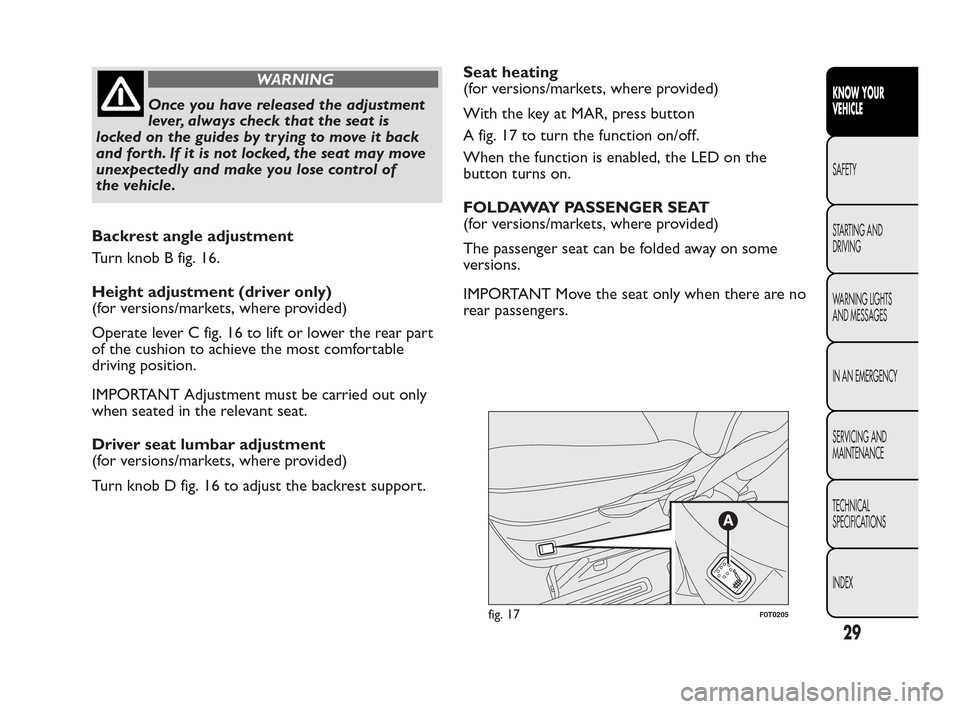

With the key at MAR, press button
A fig. 17 to turn the function on/off.
When the function is enabled, the LED on the
button turns on.
FOLDAWAY PASSENGER SEAT
(for versions/markets, where provided)
The passenger seat can be folded away on some
versions.
IMPORTANT Move the seat only when there are no
rear passengers.
fig. 17F0T0205
29
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
