technical specifications FIAT QUBO 2017 1.G User Guide

Refer to the paragraph "Vehicle inactivity" in "Starting
and driving" if the vehicle is left parked for a long
time.
If, after buying the vehicle, you want to install
electric accessories which require permanent electric
supply (alarm, etc.) contact the Fiat Dealership
whose qualified personnel, in addition to suggesting
the most suitable devices, will evaluate the overall
electric absorption, checking whether the vehicle
electric system is capable of withstanding the load
required, or whether it should be integrated with
a more powerful battery.
Since these devices continue to use electricity even
when the engine is off, they gradually run down
the battery.WHEELS AND TYRES
Check the pressure of each tyre, including the spare,
every two weeks and before long journeys. The
pressure should be checked with the tyre rested and
cold.
It is normal for the pressure to increase when the
vehicle is used; for the correct tyre inflation
pressure, see the "Wheels" paragraph in the
"Technical specifications" chapter.
Incorrect pressure causes abnormal tyre wear
fig. 188:
Anormal pressure: tread evenly worn.
Blow pressure: tread particularly worn at the edges.
Chigh pressure: tread particularly worn in the
centre.
The tyres must be replaced when the tread is less
than 1.6 mm thick. In any case, follow the laws
in force in the country you are in.
fig. 188F0T0013
199
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

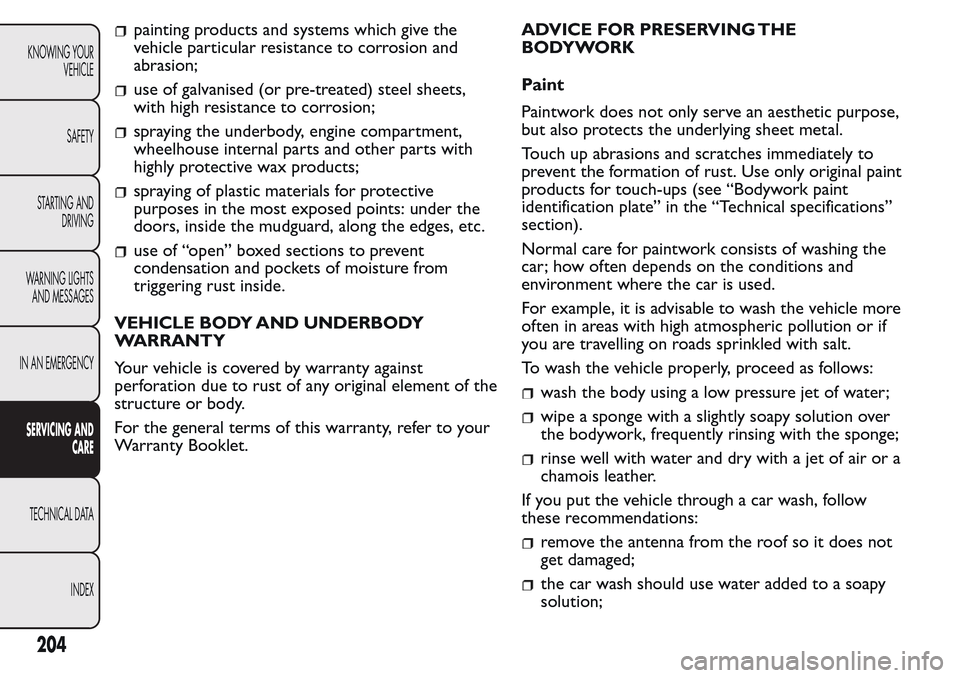

painting products and systems which give the
vehicle particular resistance to corrosion and
abrasion;
use of galvanised (or pre-treated) steel sheets,
with high resistance to corrosion;
spraying the underbody, engine compartment,
wheelhouse internal parts and other parts with
highly protective wax products;
spraying of plastic materials for protective
purposes in the most exposed points: under the
doors, inside the mudguard, along the edges, etc.
use of “open” boxed sections to prevent
condensation and pockets of moisture from
triggering rust inside.
VEHICLE BODY AND UNDERBODY
WARRANTY
Your vehicle is covered by warranty against
perforation due to rust of any original element of the
structure or body.
For the general terms of this warranty, refer to your
Warranty Booklet.ADVICE FOR PRESERVING THE
BODYWORK
Paint
Paintwork does not only serve an aesthetic purpose,
but also protects the underlying sheet metal.
Touch up abrasions and scratches immediately to
prevent the formation of rust. Use only original paint
products for touch-ups (see “Bodywork paint
identification plate” in the “Technical specifications”
section).
Normal care for paintwork consists of washing the
car; how often depends on the conditions and
environment where the car is used.
For example, it is advisable to wash the vehicle more
often in areas with high atmospheric pollution or if
you are travelling on roads sprinkled with salt.
To wash the vehicle properly, proceed as follows:
wash the body using a low pressure jet of water;
wipe a sponge with a slightly soapy solution over
the bodywork, frequently rinsing with the sponge;
rinse well with water and dry with a jet of air or a
chamois leather.
If you put the vehicle through a car wash, follow
these recommendations:
remove the antenna from the roof so it does not
get damaged;
the car wash should use water added to a soapy
solution;
204
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

POWER SUPPLY
Versions Power supply
1.4 Euro 6 Multipoint sequential timed electronic injection, returnless system
1.3 16V Multijet Euro 6Electronically controlled Common Rail MultiJet direct injection with turbocharger and
intercooler
WARNING
Modifications or repairs to the supply system that are not carried out correctly or do not
take the system technical specifications into account can cause malfunctions leading to the
risk of fire.
212
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

REFUELLING
1.4 Euro 6
Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -Unleaded petrol with
R.O.N. no lower than 95
(EN228 specifications) including a reserve of: 6/7 -
Engine cooling system: 6.64 -Mixture of distilled water
and PARAFLU UP liquid at
50%
(*)
Engine sump: - 2.1
SELENIA K P.E.
Engine sump and filter: - 2.25
Gearbox casing/differential: - 1.5TUTELA TRANSMISSION
TECHNYX
(***)
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
(***) 1.4 Euro 6 versions
226
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet
the requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees
the fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and
duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants for petrol
enginesSAE 5W-40 ACEA
C3.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No-
F603.C07According to
Scheduled Servicing
Plan
Lubricants for diesel
enginesSAE 0W-30 ACEA
C2.FIAT 9.55535-DSI
or MS-90047SELENIA WR
FORWARD
Contractual Technical
Reference No.
F842.F13According to
Scheduled Servicing
Plan
If lubricants conforming to the specific request are not available, products that meet the indicated
specifications can be used to top up; in this case optimal performance of the engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine not covered by the warranty.
229
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W- 85 grade
synthetic lubricant.9.55550-MX3TUTELA
TRANSMISSION
TECHNYX
Contractual Technical
Reference N.
F010.B05Mechanical
differentials and
gearboxes (Diesel and
1.4 Euro 6 versions)
SAE 75W grade
synthetic lubricant.
Exceeds specifications
API GL 4.9.55550-MZ2.TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No.
F002.F13Manual gearboxes and
differentials (petrol
versions)
Molybdenum
disulphide grease, for
use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with
low friction
coefficient. N.L.G.I.
consistency 0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential side
constant velocity
joints
Automatic
transmission lubricant.
Exceeding ATF
DEXRON III
specifications.FIAT 9.55550- AG2TUTELA
TRANSMISSION
GI/E
Contractual Technical
Reference No.
F001.C94Hydraulic power
steering
230
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid,
NHTSA no. 116 DOT
4, ISO 4925, SAE
J-1704, CUNA NC
956-01.9.55597 or
MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
hydraulic clutch
controls
Protective agent for
radiatorsRed protective with
antifreeze action,
based on inhibited
monoethyl glycol with
organic formula.
Exceeds CUNA NC
956-16, ASTM D 3306
specifications.9.55523 or
MS.90032PARAFLU
(*)
Contractual Technical
Reference No.
F101.M01Percentage of use:
50% demineralised
water 50%
PARAFLU(**)
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUand 40%
demineralised water.
