FIAT QUBO 2017 1.G Owners Manual
Manufacturer: FIAT, Model Year: 2017, Model line: QUBO, Model: FIAT QUBO 2017 1.GPages: 260, PDF Size: 4.74 MB
Page 1 of 260
The data contained in this publication is intended merely as a guide. FI\
AT reserves the right to modify the models and versions described in this booklet at any time for technical and commerc\
ial reasons. If you have any further questions please consult your FIAT dealer. Printed in recycled paper without chlorine.
OWNER HANDBOOK
ENGLISH
FIORINO QUBO UM GB 9-10-2008 10:10 Pagina 1
FIATQUBO
Page 2 of 260
Noi che abbiamo ideato, progettato e costruito il tuo veicolo,
lo conosciamo davvero in ogni singolo dettaglio e componente. Nelle officine autorizzate Fiat Professional Service
trovi tecnici formati direttamente da noi che ti offrono qualità e pr\
ofessionalità in tutti gli interventi di manutenzione. Le officine Fiat Professional sono sempre al tuo fianco pe\
r la manutenzione periodica, i controlli di stagione e per i consigli pratici dei nostri esperti.
Con i Ricambi Originali Fiat Professional, mantieni nel tempo le caratte\
ristiche di affidabilità, comfort e performance per cui hai scelto il tuo nuovo veicolo.
Chiedi sempre i Ricambi Originali dei componenti che utilizziamo per cos\
truire le nostre auto e che ti raccomandiamo perché sono il risultato del nostro costante impegno ne\
lla ricerca e nello sviluppo di tecnologie sempre più innovative.
Per tutti questi motivi affidati ai Ricambi Originali:
i soli appositamente progettati da Fiat Professional per il tuo veicolo.
SICUREZZA:
SISTEMA FRENANTEECOLOGIA: FILTRI ANTIPARTICOLATO, MANUTENZIONE CLIMATIZZATORECOMFORT:
SOSPENSIONI E TERGICRISTALLIPERFORMANCE:
CANDELE, INIETTORI E BATTERIELINEA ACCESSORI:
BARRE PORTA TUTTO, CERCHI
PERCHÈ SCEGLIERE
RICAMBI ORIGINALI
COP FULL BACK LUM IT.qxp_500 UM ITA 23/02/16 09:51 Pagina 2
Page 3 of 260
Page 4 of 260
Page 5 of 260

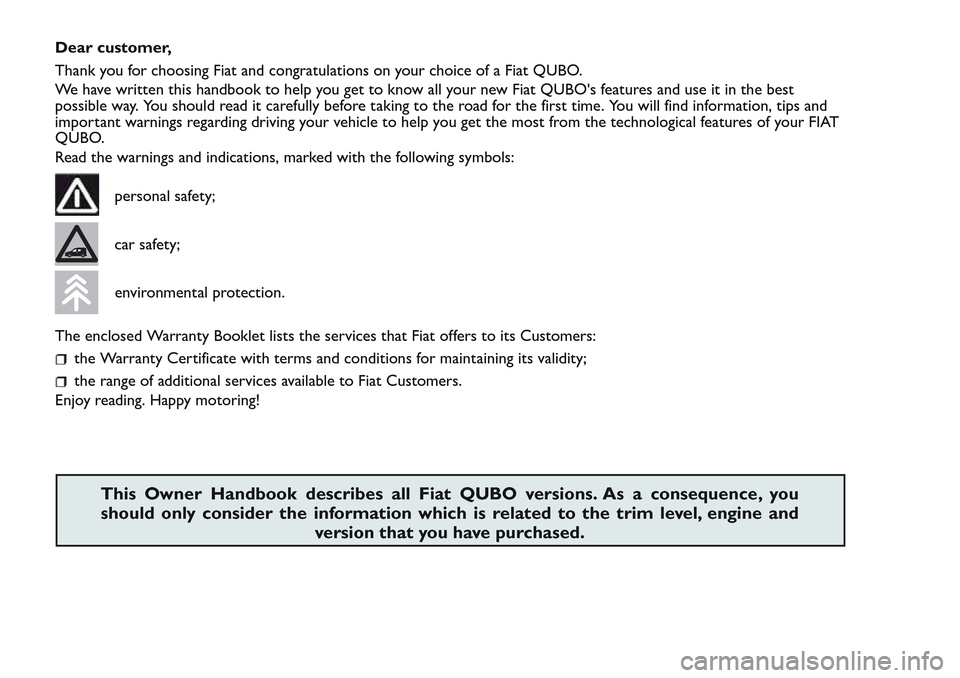

Dear customer,
Thank you for choosing Fiat and congratulations on your choice of a Fiat QUBO.
We have written this handbook to help you get to know all your new Fiat QUBO's features and use it in the best
possible way. You should read it carefully before taking to the road for the first time. You will find information, tips and
important warnings regarding driving your vehicle to help you get the most from the technological features of your FIAT
QUBO.
Read the warnings and indications, marked with the following symbols:
personal safety;
car safety;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
the Warranty Certificate with terms and conditions for maintaining its validity;
the range of additional services available to Fiat Customers.
Enjoy reading. Happy motoring!
This Owner Handbook describes all Fiat QUBO versions. As a consequence, you
should only consider the information which is related to the trim level, engine and
version that you have purchased.
Page 6 of 260
READ THIS CAREFULLY!
REFUELLING
Petrol engines: only refuel with unleaded petrol
with an octane rating (RON) of no less than
95 conforming to the European specification EN
228.
Diesel engines: only use diesel fuel for motor
vehicles conforming to the European specification
EN 590. The use of other products or mixtures
may damage the engine beyond repair and
consequently invalidate the warranty, depending
on the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is
engaged, set the gearshift lever to neutral, fully
depress the clutch without pressing the
accelerator, then turn the ignition key to AVV
and release it as soon as the engine has started.
Diesel engines: Turn the ignition key to MAR and
wait for the warning light
to go out. Turn
the ignition key to AVV and release as soon as
the engine starts.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high
temperatures during operation. Do not park the
vehicle on grass, dry leaves, pine needles or
other flammable material as this constitutes a fire
hazard.RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows
continuous diagnosis of the emission-related
components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add
electrical accessories (with the risk of gradually
draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement
and check that the electrical system of the
vehicle can support the required load.
SCHEDULED SERVICING
Correct maintenance is essential for ensuring the
vehicle stays in tip-top condition and retains its
safety features, its environmental friendliness and
low running costs for a long time to come.
THE OWNER'S HANDBOOK CONTAINS…
... important information, advise and warnings for
correct use, driving safety and maintenance of
your vehicle over time. Particular attention
should be paid to information marked with the
following symbols:
GUID-2AF0B308-C82D-47E5-8B68-C271F32(personal safety),
GUID-1DEA0B72-B8FB-4534-9C53-9FC2E6A9E916(environmental protection),GUID-4FD0B960-96E3-46D8-B5(car integrity).
Page 7 of 260
KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of controls, instruments and indicators may vary according to the versions.
1. Vent for directing air to the side windows – 2. Adjustable air vent – 3. Left-hand stalk: exterior lights – 4. Instrument panel
and warning lights – 5. Right-hand stalk: front and rear windscreen wipers, trip computer – 6. Radio (for versions/markets,
where applicable) – 7. Emergency light switch, heated rear window switch, ASR/Traction Plus on/off switch (for versions/
markets, where provided), rear swing door lock button (for versions/markets, where provided), Start&Stop off switch (for
versions/markets, where provided) – 8. Passenger's air bag (for versions/markets, where provided) – 9. Glove box/oddment tray
(for versions/markets, where provided) – 10. Adjustable air vents – 11. Heating/ventilation/climate control system controls –
12. Glove compartment – 13. Ignition switch – 14. Driver's air bag – 15. Bonnet opening lever – 16. Controls display: fog
light/rear fog light/head light alignment adjustment/display
fig. 1F0T0070
3
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 8 of 260
INSTRUMENT PANEL
Versions with multifunction display
Warning lights
andare available on diesel versions only.
A. Speedometer (speed indicator) B. Fuel level gauge with reserve warning light C. Engine coolant temperature indicator
with overheating warning light D. Rev counter E. Multifunction display
fig. 2F0T0803
4
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 9 of 260
Versions with multifunction display
Warning lights
andare available on diesel versions only.
A. Speedometer (speed indicator) B. Fuel level gauge with reserve warning light C. Engine coolant temperature indicator
with overheating warning light D. Rev counter E. Multifunction display
fig. 3F0T0801
5
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 10 of 260
SYMBOLS
Special coloured labels have been attached near or
on some of the components of your vehicle. These
labels bear symbols that draw your attention to
the precautions required when handling the
component in question.
The inner surface of the engine bonnet includes a
label with the different symbols used.
THE FIAT CODE SYSTEM
This is an electrical engine immobiliser system which
increases protection against attempted theft of the
vehicle. It is automatically activated when the ignition
key is extracted.
Each time the vehicle is started turning the ignition
key toMAR, the Fiat CODE system control unit
sends a recognition code to the engine control unit
to deactivate the inhibitor.
If, during ignition, the code is not correctly
recognized, a warning light
is lit on the
instrument panel.
In this case, turn the key toSTOPand then back to
MAR. Try with the other keys provided if the
problem persists. Contact a Fiat Dealership if you
still cannot start the engine.
IMPORTANT Each key has its own code which must
be stored by the system ECU. Contact the Fiat
Dealership to have new keys (up to eight) stored
with the code.
Warning light
coming on when driving
If thewarning light (or symbol in the display)
comes on, this means that the system is running a
self-diagnosis test (caused, for example, by a
voltage drop). When you stop for the first time,
turn the key to STOP and then to MAR: the
warning light
will not light up if no faults are
detected.
6
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
