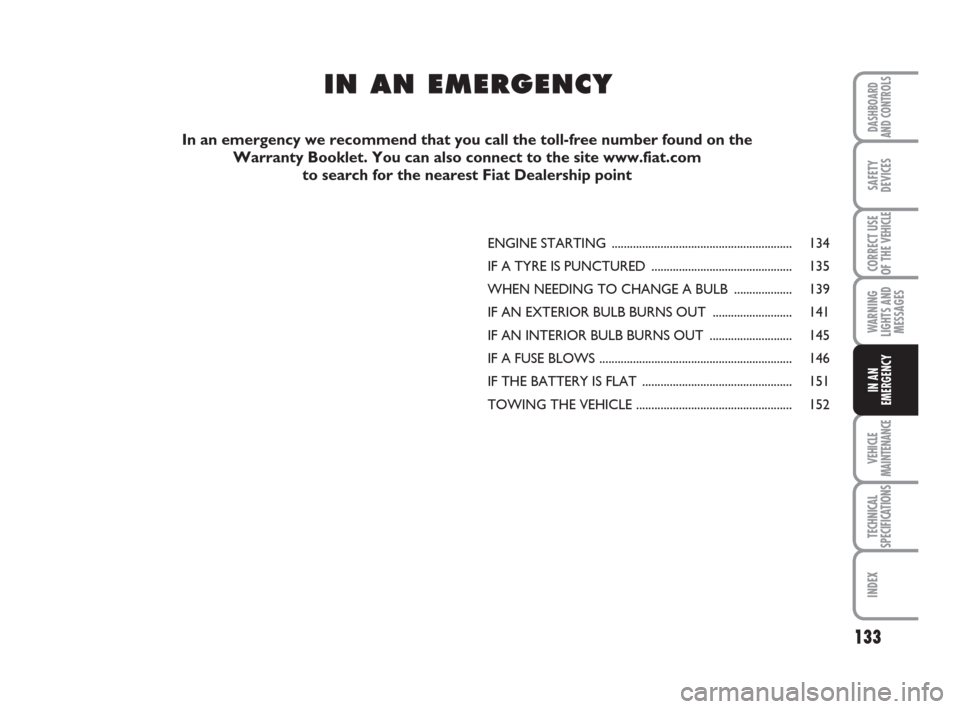

ENGINE STARTING ........................................................... 134
IF A TYRE IS PUNCTURED .............................................. 135
WHEN NEEDING TO CHANGE A BULB ................... 139
IF AN EXTERIOR BULB BURNS OUT .......................... 141
IF AN INTERIOR BULB BURNS OUT ........................... 145
IF A FUSE BLOWS ............................................................... 146
IF THE BATTERY IS FLAT ................................................. 151
TOWING THE VEHICLE ................................................... 152
II I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
In an emergency we recommend that you call the toll-free number found on the
Warranty Booklet. You can also connect to the site www.fiat.com
to search for the nearest Fiat Dealership point
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 133

139
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

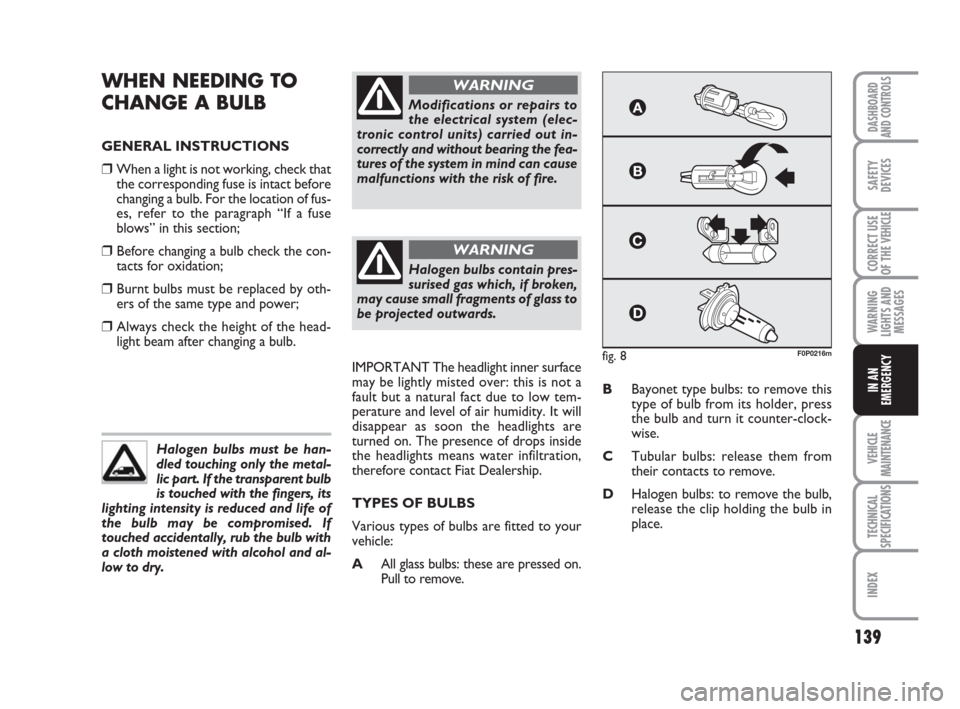

WHEN NEEDING TO
CHANGE A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check that
the corresponding fuse is intact before
changing a bulb. For the location of fus-
es, refer to the paragraph “If a fuse
blows” in this section;
❒ Before changing a bulb check the con-
tacts for oxidation;
❒ Burnt bulbs must be replaced by oth-
ers of the same type and power;
❒ Always check the height of the head-
light beam after changing a bulb.
IMPORTANT The headlight inner surface
may be lightly misted over: this is not a
fault but a natural fact due to low tem-
perature and level of air humidity. It will
disappear as soon the headlights are
turned on. The presence of drops inside
the headlights means water infiltration,
therefore contact Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
vehicle:
AAll glass bulbs: these are pressed on.
Pull to remove.BBayonet type bulbs: to remove this
type of bulb from its holder, press
the bulb and turn it counter-clock-
wise.
CTubular bulbs: release them from
their contacts to remove.
DHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place. Halogen bulbs must be han-
dled touching only the metal-
lic part. If the transparent bulb
is touched with the fingers, its
lighting intensity is reduced and life of
the bulb may be compromised. If
touched accidentally, rub the bulb with
a cloth moistened with alcohol and al-
low to dry.
Modifications or repairs to
the electrical system (elec-
tronic control units) carried out in-
correctly and without bearing the fea-
tures of the system in mind can cause
malfunctions with the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which, if broken,
may cause small fragments of glass to
be projected outwards.
WARNING
fig. 8F0P0216m
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 139

140
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

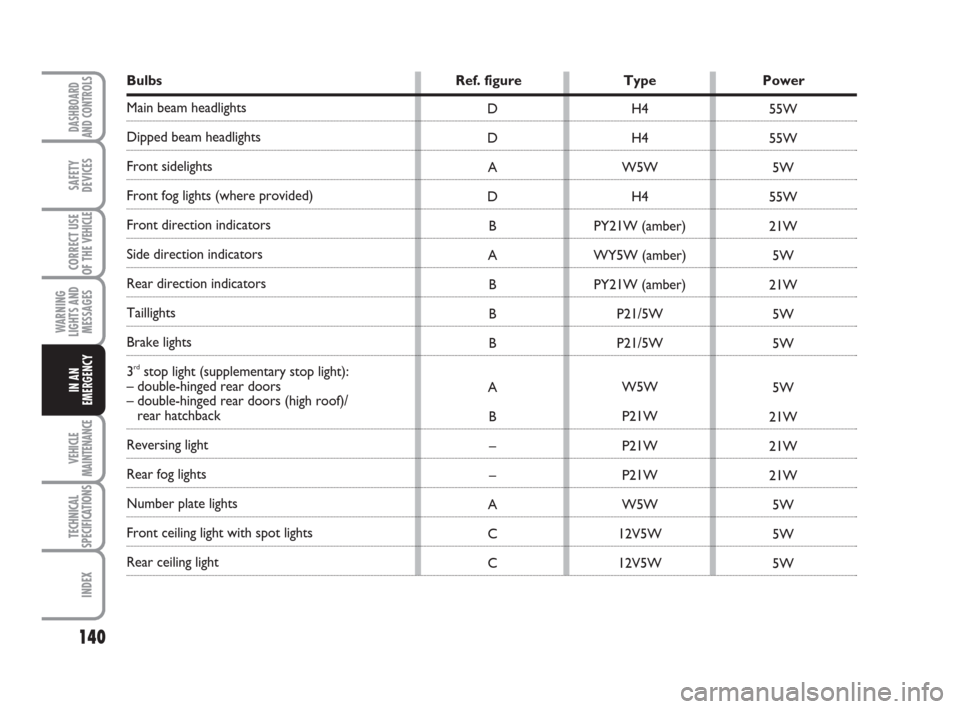

Bulbs Ref. figure Type Power
Main beam headlights
Dipped beam headlights
Front sidelights
Front fog lights (where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Taillights
Brake lights
3
rdstop light (supplementary stop light):
– double-hinged rear doors
– double-hinged rear doors (high roof)/
rear hatchback
Reversing light
Rear fog lights
Number plate lights
Front ceiling light with spot lights
Rear ceiling lightH4
H4
W5W
H4
PY21W (amber)
WY5W (amber)
PY21W (amber)
P21/5W
P21/5W
W5W
P21W
P21W
P21W
W5W
12V5W
12V5W D
D
A
D
B
A
B
B
B
A
B
–
–
A
C
C55W
55W
5W
55W
21W
5W
21W
5W
5W
5W
21W
21W
21W
5W
5W
5W
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 140

141
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

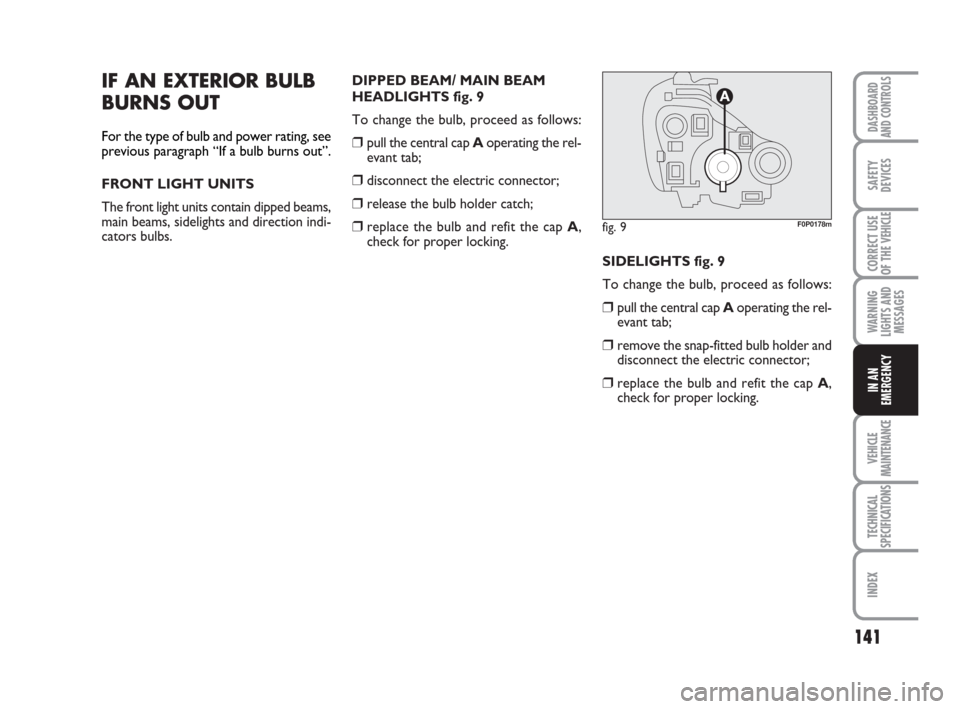

IF AN EXTERIOR BULB
BURNS OUT
For the type of bulb and power rating, see
previous paragraph “If a bulb burns out”.
FRONT LIGHT UNITS
The front light units contain dipped beams,
main beams, sidelights and direction indi-
cators bulbs.DIPPED BEAM/ MAIN BEAM
HEADLIGHTS fig. 9
To change the bulb, proceed as follows:
❒pull the central cap Aoperating the rel-
evant tab;
❒disconnect the electric connector;
❒release the bulb holder catch;
❒replace the bulb and refit the cap A,
check for proper locking.
SIDELIGHTS fig. 9
To change the bulb, proceed as follows:
❒pull the central cap Aoperating the rel-
evant tab;
❒remove the snap-fitted bulb holder and
disconnect the electric connector;
❒replace the bulb and refit the cap A,
check for proper locking.
fig. 9F0P0178m
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 141

142
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

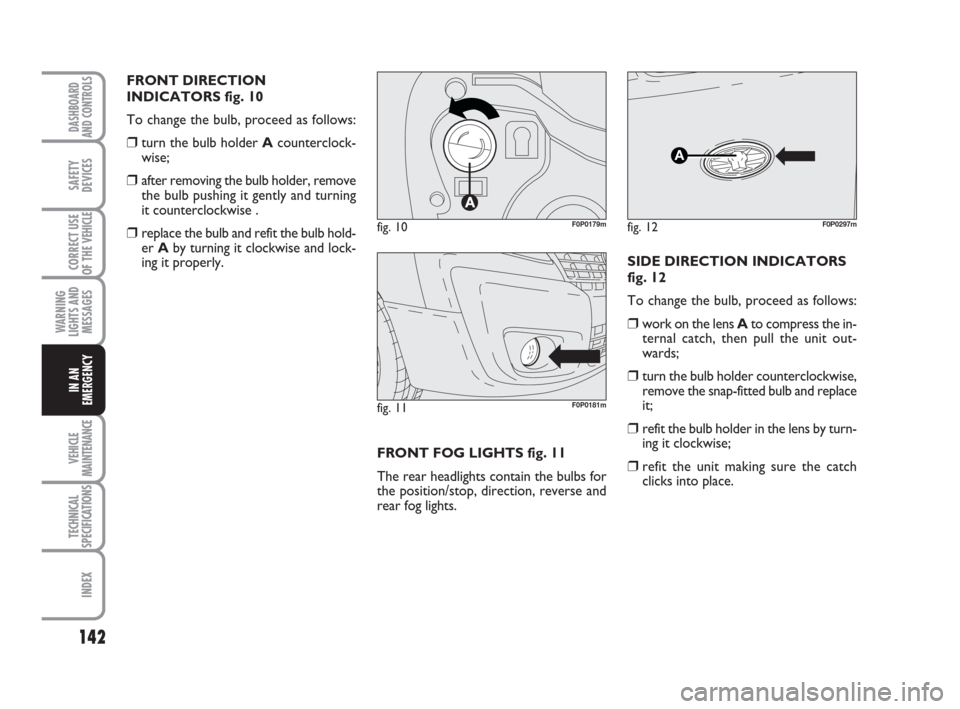

FRONT DIRECTION
INDICATORS fig. 10
To change the bulb, proceed as follows:
❒turn the bulb holder Acounterclock-
wise;
❒after removing the bulb holder, remove
the bulb pushing it gently and turning
it counterclockwise .
❒replace the bulb and refit the bulb hold-
er Aby turning it clockwise and lock-
ing it properly.
FRONT FOG LIGHTS fig. 11
The rear headlights contain the bulbs for
the position/stop, direction, reverse and
rear fog lights.SIDE DIRECTION INDICATORS
fig. 12
To change the bulb, proceed as follows:
❒work on the lens Ato compress the in-
ternal catch, then pull the unit out-
wards;
❒turn the bulb holder counterclockwise,
remove the snap-fitted bulb and replace
it;
❒refit the bulb holder in the lens by turn-
ing it clockwise;
❒refit the unit making sure the catch
clicks into place.
fig. 11F0P0181m
fig. 10F0P0179mfig. 12
A
F0P0297m
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 142

143
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

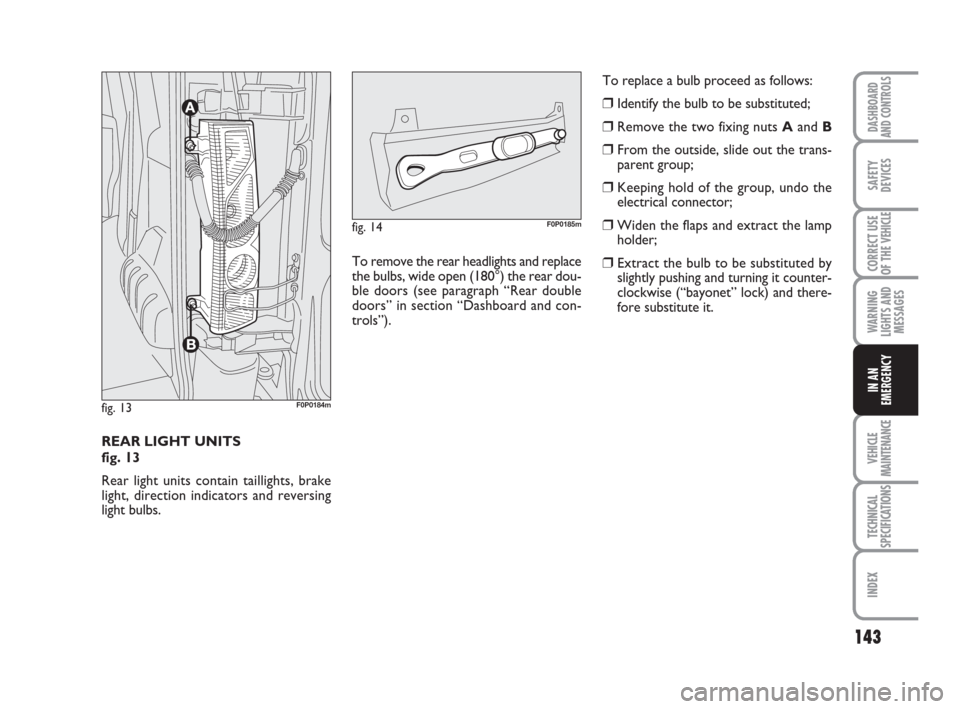

REAR LIGHT UNITS
fig. 13
Rear light units contain taillights, brake
light, direction indicators and reversing
light bulbs.
fig. 13F0P0184m
To remove the rear headlights and replace
the bulbs, wide open (180°) the rear dou-
ble doors (see paragraph “Rear double
doors” in section “Dashboard and con-
trols”).
fig. 14F0P0185m
To replace a bulb proceed as follows:
❒Identify the bulb to be substituted;
❒Remove the two fixing nuts Aand B
❒From the outside, slide out the trans-
parent group;
❒Keeping hold of the group, undo the
electrical connector;
❒Widen the flaps and extract the lamp
holder;
❒Extract the bulb to be substituted by
slightly pushing and turning it counter-
clockwise (“bayonet” lock) and there-
fore substitute it.
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 143

144
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
THIRD BRAKE LIGHT
With boot tailgate
To change a bulb proceed as follows:
❒open the tailgate;
❒slacken the fastening screws A;
❒press both ends of the catch and re-
move the lens unit housing the bulbs;
❒disconnect the electric connector;
❒remove the snap-fitted bulb and replace
it.
With rear double doors fig. 16
To change a bulb proceed as follows:
❒undo the fixing screws Awith a Torx™
screwdriver with a 20” head;
❒remove the bulb holder;
❒remove the snap-fitted bulb and replace
it.
NUMBER PLATE LIGHT
To change a bulb proceed as follows:
Versions with hinged doors fig. 17
❒working from the inside of the vehicle,
remove the internal covering
❒disconnect the connector by widening
the relevant flap;
❒remove the plastic protection;
fig. 15
AA
F0P0210m
fig. 16
A
A
F0P0211m
fig. 17F0P0212m
fig. 18F0P0607m
High Roof Version
❒undo the fixing screws Awith a 8”
wrench;
❒take out the lamp holder;
❒take out the pressure assembled bulb
and substitute it.
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 144

145
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

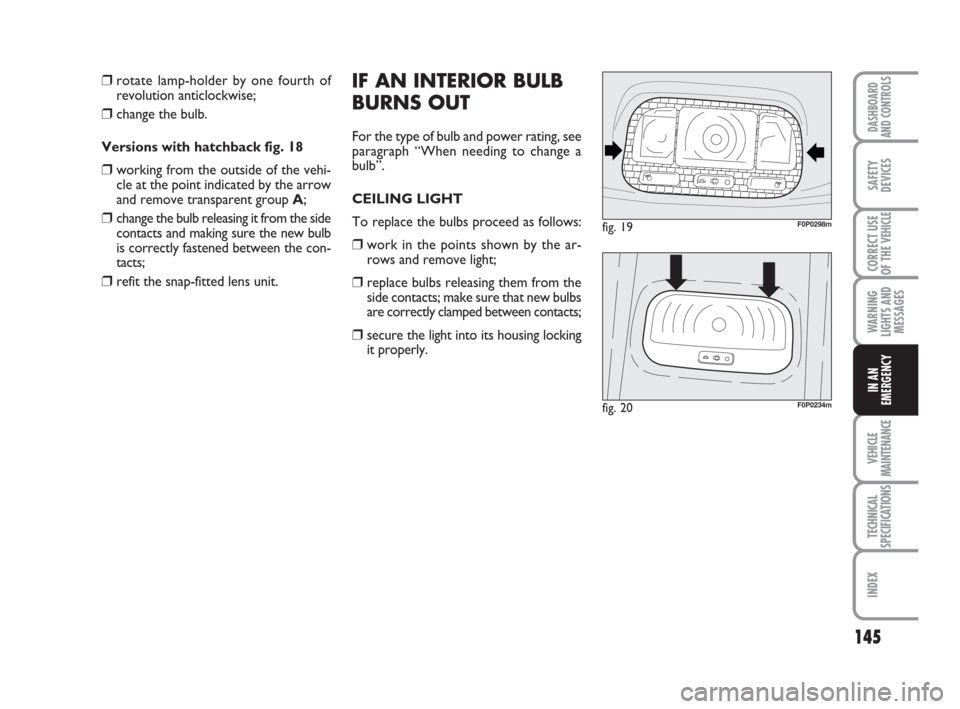

IF AN INTERIOR BULB
BURNS OUT
For the type of bulb and power rating, see
paragraph “When needing to change a
bulb”.
CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light;
❒replace bulbs releasing them from the
side contacts; make sure that new bulbs
are correctly clamped between contacts;
❒secure the light into its housing locking
it properly.
fig. 19F0P0298m
fig. 20F0P0234m
❒rotate lamp-holder by one fourth of
revolution anticlockwise;
❒change the bulb.
Versions with hatchback fig. 18
❒working from the outside of the vehi-
cle at the point indicated by the arrow
and remove transparent group A;
❒change the bulb releasing it from the side
contacts and making sure the new bulb
is correctly fastened between the con-
tacts;
❒refit the snap-fitted lens unit.
133-152 Nuovo ScudoG9 GB 25-09-2008 15:57 Pagina 145

200
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Brake fluid level.................................... 162
Brake lights............................................ 143
Brakes
– fluid level......................................... 162
– service and emergency brakes.... 116
Bulb replacement................................. 139
Capacities............................................. 194
Carrying children safely...................... 99
– ISOFIX child restraint
system (mounting)......................... 105
Ceiling lights.......................................... 60
– bulb replacement........................... 139
Central door locking/
unlocking system............................... 72
Checking the levels.............................. 158
Cigar lighter.......................................... 67
Clock...................................................... 16
Clutch..................................................... 180
CO
2emissions ..................................... 199
Cruise Control..................................... 54
Dashboard........................................... 5
Demisting
– front side windows.............28-32-38
– rear windows.......................30-34-38
– windscreen...........................28-32-38
Diesel fuel filter (water presence) ... 132
Dimensions........................................... 185
Dipped beam headlights
– bulb replacement........................... 141
– control ............................................ 47
Direction indicators
– control ............................................ 48
– front bulb replacement................. 142
– rear bulb replacement.................. 143
– side bulb replacement................... 142
Door lock/unlock remote control ... 7
Doors..................................................... 69ABS ...................................................... 82
Accessories purchased
by the owner...................................... 90
Air cleaner............................................. 164
Air recirculation........................31-36-41
Air vents (side and central)............... 28
Air bags
– Front air bags ................................. 106
– Side air bags .................................... 109
Ashtray................................................... 67
Battery
– economizer..................................... 151
– fluid level ........................................ 164
– jump starting................................... 134
– recharging........................................ 151
– specifications................................... 180
Bodywork
– maintenance.................................... 170
– versions............................................ 173
Bonnet.................................................... 76
II I
N N
D D
E E
X X
200-208 Nuovo ScudoG9 GB 25-09-2008 16:00 Pagina 200

201
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Gearbox
– manual gearbox use ...................... 117
Glovebox/oddment
compartments.................................... 65
Handbrake........................................... 116
Hazard lights......................................... 61
Head restraints..................................... 23
Headlight washers............................... 53
Headlights
– adjusting headlight beam .............. 81
Heated rear window................30-35-43
Heating and ventilation....................... 27
Identification data................................ 174
In an emergency................................... 133
Instrument panel
brightness adjuster............................ 15
Instrument panel.................................. 13
Instruments........................................... 14
Interiors ................................................ 172
Interior equipment.............................. 65
Jack ......................................................... 136
Keys ....................................................... 77
Load recommendations.................... 79
Lubricants (specifications) ................ 195
Main beam headlights
– bulb replacement........................... 141
– control ............................................ 47
Manual climate control system ......... 31
Number plate lights........................... 144
Paint ...................................................... 170
Parking.................................................... 116
Performance......................................... 198
Pneumatic suspensions....................... 78
Power steering fluid level................... 163
Power windows/window winders .... 74
Pretensioners........................................ 96
Rearview mirrors
– driving mirror................................. 25
– door mirrors.................................. 25
Rev counter ......................................... 14
Reversing lights..................................... 143
Roof rack/ski rack (presetting)......... 77
Routine maintenance.......................... 157
Engine
– code.................................................. 177
– fuel feed........................................... 180
– lubrication....................................... 195
– specifications................................... 173
Engine compartment........................... 158
Engine coolant level............................. 161
Engine oil
– checking the level .......................... 160
– consumption ................................ 160
– specifications................................... 195
EOBD system....................................... 87
Fiat CODE .......................................... 6
Fluid levels (checks)............................. 158
Front fog lights/rear fog lights
– bulb replacement....................142-143
– control ............................................ 47
Fuel
– filler cap ......................................... 91
– fuel cut-off switch.......................... 64
– fuel gauge......................................... 14
Fuel consumption................................ 197
Fuel cut-off switch............................... 64
Fuel level gauge.................................... 14
Fuses....................................................... 146
200-208 Nuovo ScudoG9 GB 25-09-2008 16:00 Pagina 201
