load capacity FIAT SCUDO 2011 Owner handbook (in English)

120
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE VEHICLE

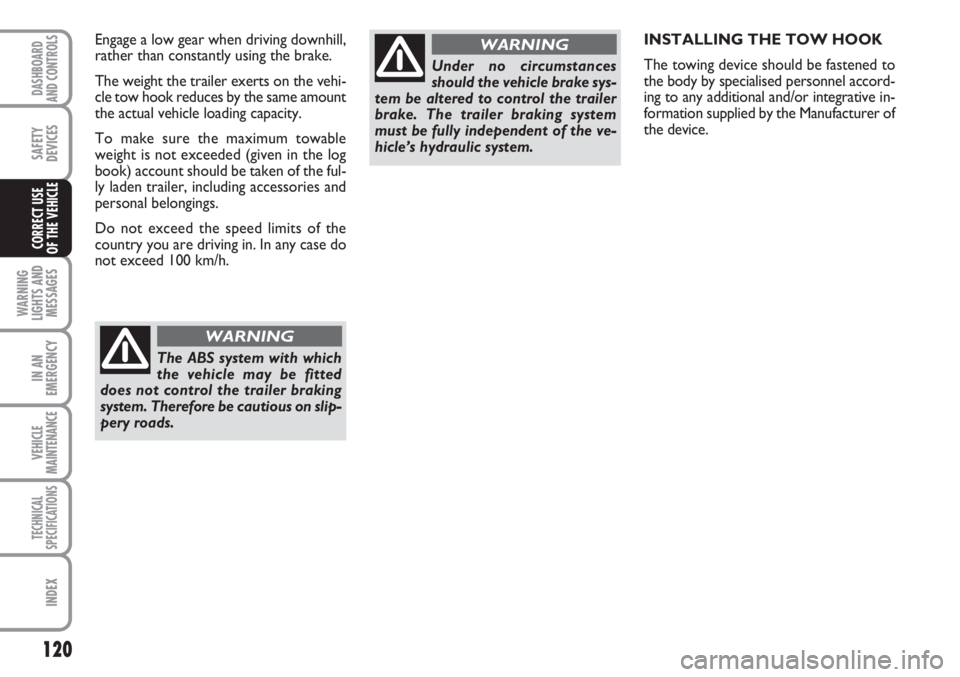

INSTALLING THE TOW HOOK
The towing device should be fastened to
the body by specialised personnel accord-
ing to any additional and/or integrative in-
formation supplied by the Manufacturer of
the device. Engage a low gear when driving downhill,
rather than constantly using the brake.
The weight the trailer exerts on the vehi-
cle tow hook reduces by the same amount
the actual vehicle loading capacity.
To make sure the maximum towable
weight is not exceeded (given in the log
book) account should be taken of the ful-
ly laden trailer, including accessories and
personal belongings.
Do not exceed the speed limits of the
country you are driving in. In any case do
not exceed 100 km/h.
The ABS system with which
the vehicle may be fitted
does not control the trailer braking
system. Therefore be cautious on slip-
pery roads.
WARNING
Under no circumstances
should the vehicle brake sys-
tem be altered to control the trailer
brake. The trailer braking system
must be fully independent of the ve-
hicle’s hydraulic system.
WARNING

182
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

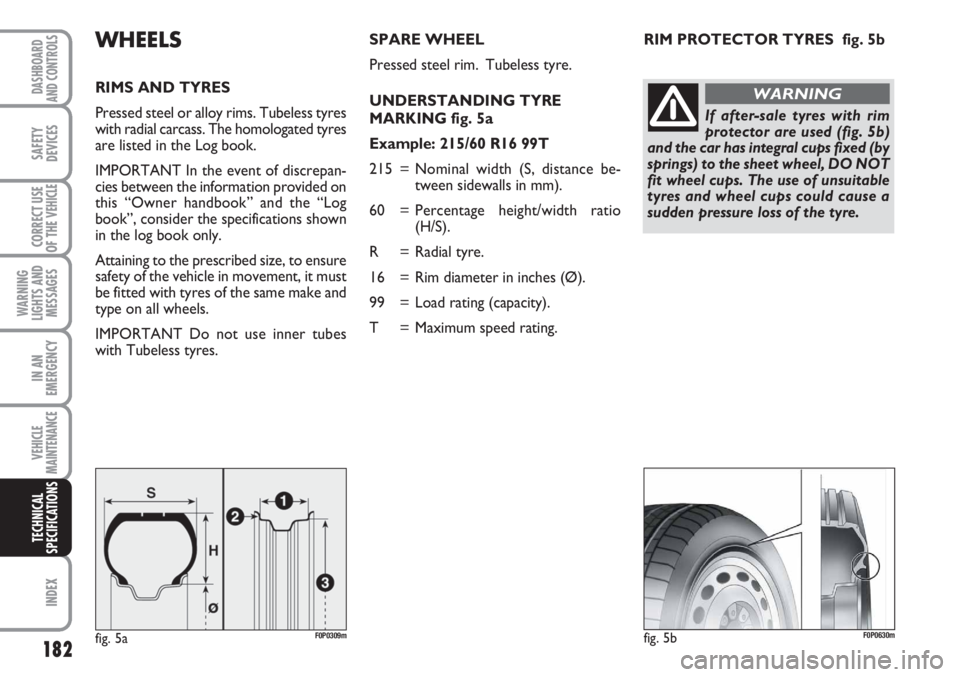

RIM PROTECTOR TYRES fig. 5bWHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the vehicle in movement, it must
be fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 5aF0P0309m
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
UNDERSTANDING TYRE
MARKING fig. 5a
Example: 215/60 R16 99T
215 = Nominal width (S, distance be-
tween sidewalls in mm).
60 = Percentage height/width ratio
(H/S).
R = Radial tyre.
16 = Rim diameter in inches (Ø).
99 = Load rating (capacity).
T = Maximum speed rating.
fig. 5bF0P0630m
If after-sale tyres with rim
protector are used (fig. 5b)
and the car has integral cups fixed (by
springs) to the sheet wheel, DO NOT
fit wheel cups. The use of unsuitable
tyres and wheel cups could cause a
sudden pressure loss of the tyre.
WARNING

183
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

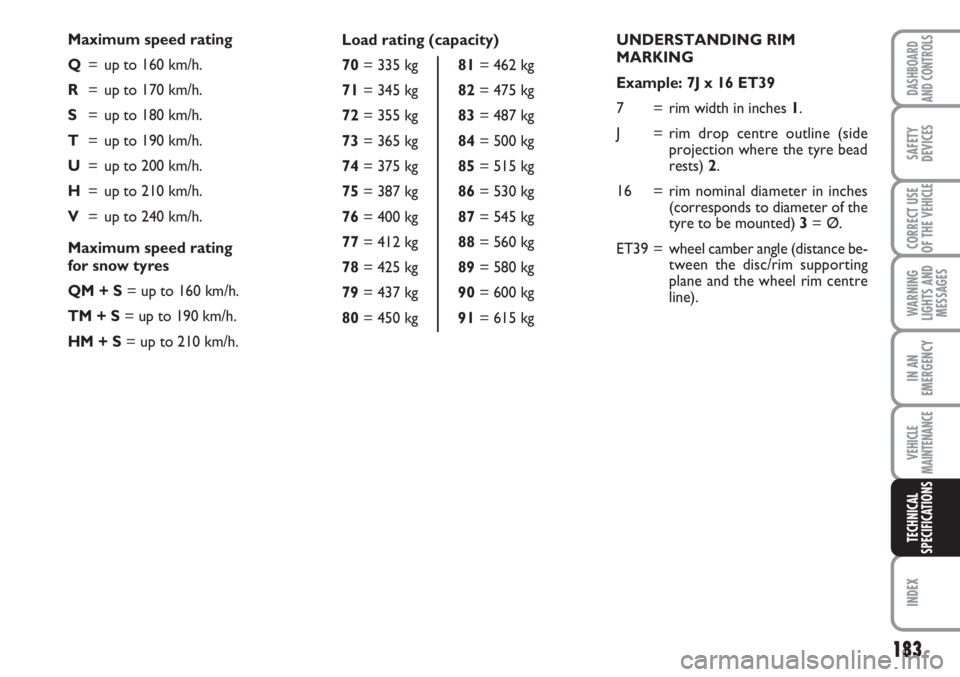

UNDERSTANDING RIM
MARKING
Example: 7J x 16 ET39
7 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET39 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S = up to 210 km/h.

190
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

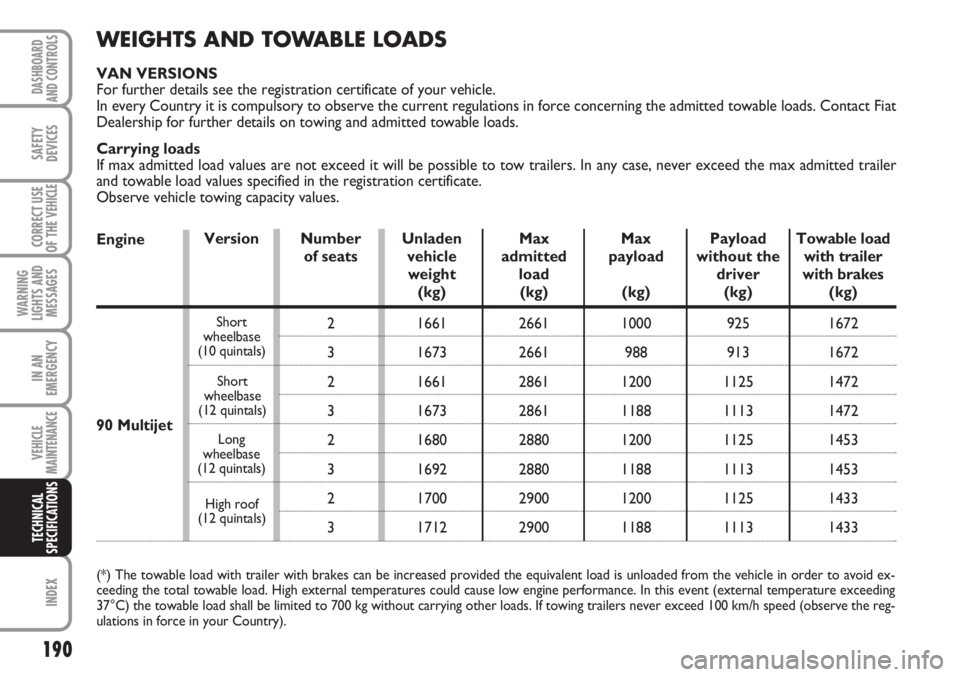

WEIGHTS AND TOWABLE LOADS
VAN VERSIONS
For further details see the registration certificate of your vehicle.
In every Country it is compulsory to observe the current regulations in force concerning the admitted towable loads. Contact Fiat
Dealership for further details on towing and admitted towable loads.
Carrying loads
If max admitted load values are not exceed it will be possible to tow trailers. In any case, never exceed the max admitted trailer
and towable load values specified in the registration certificate.
Observe vehicle towing capacity values.
Number
of seats
2
3
2
3
2
3
2
3
90 Multijet
Payload
without the
driver
(kg)
925
913
1125
1113
1125
1113
1125
1113Towable load
with trailer
with brakes
(kg)
1672
1672
1472
1472
1453
1453
1433
1433EngineVersion
Short
wheelbase
(10 quintals)
Long
wheelbase
(12 quintals)
Unladen
vehicle
weight
(kg)
1661
1673
1661
1673
1680
1692
1700
1712Max
admitted
load
(kg)
2661
2661
2861
2861
2880
2880
2900
2900Max
payload
(kg)
1000
988
1200
1188
1200
1188
1200
1188
Short
wheelbase
(12 quintals)
(*) The towable load with trailer with brakes can be increased provided the equivalent load is unloaded from the vehicle in order to avoid ex-
ceeding the total towable load. High external temperatures could cause low engine performance. In this event (external temperature exceeding
37°C) the towable load shall be limited to 700 kg without carrying other loads. If towing trailers never exceed 100 km/h speed (observe the reg-
ulations in force in your Country).High roof
(12 quintals)

193
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

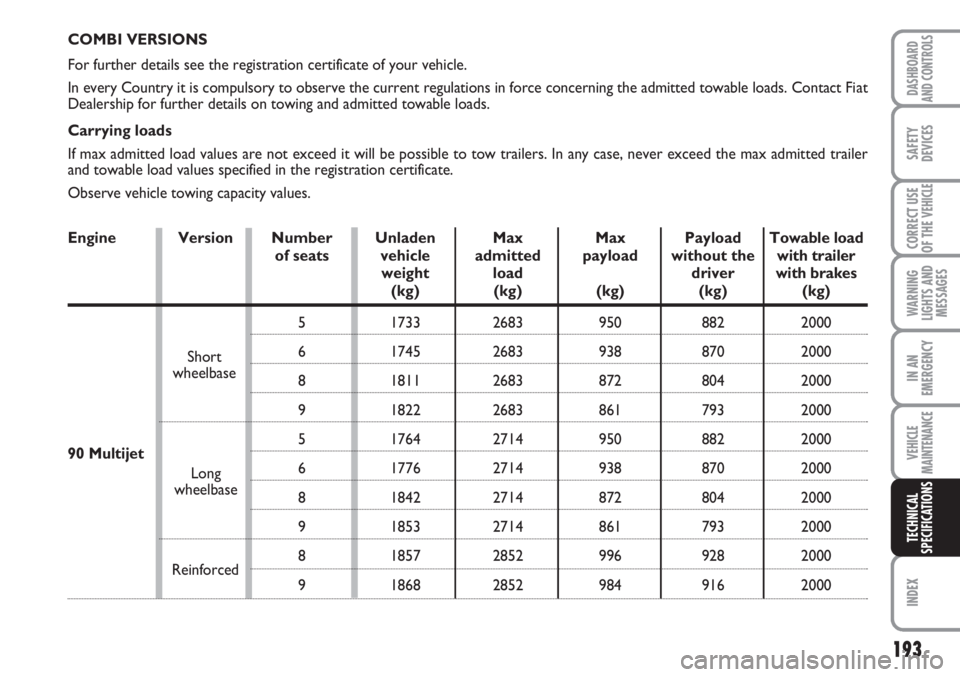

COMBI VERSIONS
For further details see the registration certificate of your vehicle.
In every Country it is compulsory to observe the current regulations in force concerning the admitted towable loads. Contact Fiat
Dealership for further details on towing and admitted towable loads.
Carrying loads
If max admitted load values are not exceed it will be possible to tow trailers. In any case, never exceed the max admitted trailer
and towable load values specified in the registration certificate.
Observe vehicle towing capacity values.
Version Number
of seats
5
6
8
9
5
6
8
9
8
9Unladen
vehicle
weight
(kg)
1733
1745
1811
1822
1764
1776
1842
1853
1857
1868Max
admitted
load
(kg)
2683
2683
2683
2683
2714
2714
2714
2714
2852
2852Payload
without the
driver
(kg)
882
870
804
793
882
870
804
793
928
916Towable load
with trailer
with brakes
(kg)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000 Short
wheelbase
Long
wheelbase
Reinforced
90 MultijetMax
payload
(kg)
950
938
872
861
950
938
872
861
996
984 Engine
