remote start FIAT SCUDO 2011 Owner handbook (in English)

9
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
fig. 5F0P0007mfig. 6F0P0008m
Request for additional remote
controls
The system can recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership tak-
ing with you the CODE card, a personal
identity document and the vehicle’s own-
ership documents.
Replacing the battery of the key
with remote control
Battery replacement:
❒separate the two casings A andB-
fig. 6, by levering in the point shown by
the arrow in fig. 5;
❒take out the battery and replace it C-
fig. 6;
❒refit both casings, make sure they lock
into place;Re-initialisation of the remote
control set
After the substitution of batteries or the
disconnection of the battery (vehicle), it is
necessary to re-initialise the remote con-
trol set:❒Wait at least a minute before using the
remote control set and put it in posi-
tion A.
❒Insert the key with the remote control
set into the starting switch.
❒Within ten seconds, press one of the
two buttons (
∫orª) for at least 5
seconds.
❒Take the key with the remote control
set from the starting switch.
❒Wait at least a minute before using the
remote control. The remote control
set works once more.

10
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE
CONTROL fig. 7
The metal insert of the key Ais fixed.
The key operates:
❒ignition switch;
❒door locks;
❒fuel filler cap locking/unlocking.
fig. 7F0P0601m
ALARM
(for versions/markets, where provided)
If the vehicle is equipped with alarm, the
following two types of protection can be
activated:
❒perimetrical (alarm active in case of a
front/back door or the engine bonnet
opening);
❒volumetric protection (alarm on if the
volume inside the passenger compart-
ment changes).
Activation (complete volumetric
and perimetrical alarm)
❒Take the key from the switch
❒Get out of the vehicle
❒Press the button ∫(dead lock - once
or twice)
❒The deterrence led starts to flash.
Activation
(only perimetrical alarm)
❒Take the key from the switch
❒Within 10 seconds press the button
fig. 7akeeping it pressed down until
the deterrence led remains switched
on.
❒Get out of the vehicle.
❒Press the button ∫(dead lock - once
or twice).
❒The deterrence led starts to flash.
fig. 7aF0P0062m
Alarm deactivation
In order to deactivate the alarm, press the
ªbutton, the deterrence led will switch
off.

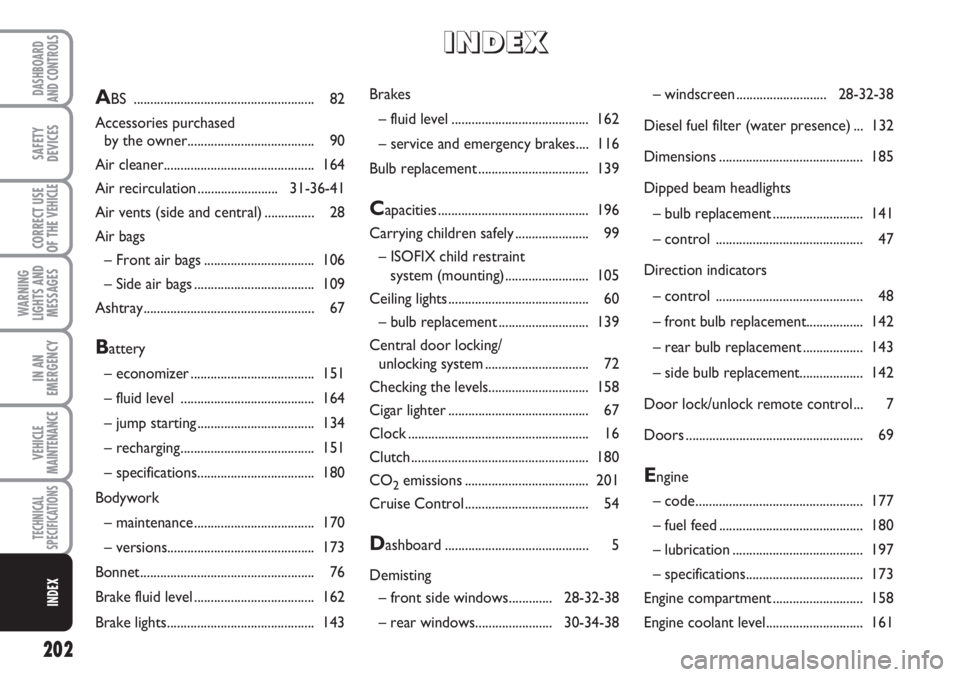

202
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Brakes
– fluid level ......................................... 162
– service and emergency brakes.... 116
Bulb replacement................................. 139
Capacities ............................................. 196
Carrying children safely...................... 99
– ISOFIX child restraint
system (mounting)......................... 105
Ceiling lights.......................................... 60
– bulb replacement ........................... 139
Central door locking/
unlocking system............................... 72
Checking the levels.............................. 158
Cigar lighter .......................................... 67
Clock ...................................................... 16
Clutch..................................................... 180
CO
2emissions ..................................... 201
Cruise Control ..................................... 54
Dashboard ........................................... 5
Demisting
– front side windows.............28-32-38
– rear windows.......................30-34-38– windscreen...........................28-32-38
Diesel fuel filter (water presence) ... 132
Dimensions........................................... 185
Dipped beam headlights
– bulb replacement ........................... 141
– control ............................................ 47
Direction indicators
– control ............................................ 48
– front bulb replacement................. 142
– rear bulb replacement.................. 143
– side bulb replacement................... 142
Door lock/unlock remote control ... 7
Doors ..................................................... 69
Engine
– code.................................................. 177
– fuel feed ........................................... 180
– lubrication....................................... 197
– specifications................................... 173
Engine compartment........................... 158
Engine coolant level............................. 161
ABS ...................................................... 82
Accessories purchased
by the owner...................................... 90
Air cleaner............................................. 164
Air recirculation........................31-36-41
Air vents (side and central) ............... 28
Air bags
– Front air bags................................. 106
– Side air bags .................................... 109
Ashtray................................................... 67
Battery
– economizer..................................... 151
– fluid level ........................................ 164
– jump starting ................................... 134
– recharging........................................ 151
– specifications................................... 180
Bodywork
– maintenance.................................... 170
– versions............................................ 173
Bonnet.................................................... 76
Brake fluid level .................................... 162
Brake lights............................................ 143
