186WARNING
LIGHTS AND
MESSAGES
INDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS
90 Multijet
(Euro 4)
9HU
Diesel
4 in line
75 x 88.3
1560
18.0:1
66
90
4000
180
1750
Diesel fuel for
motor vehicles
(Specification
EN590)
120 Multijet
RHK
Diesel
4 in line
85 x 88
1997
17.5:1
88
120
4000
300
2000
Diesel fuel for
motor vehicles
(Specification
EN590)
165 Multijet
RHH
Diesel
4 in line
85 x 88
1997
16±0.4:1
120
163
3750
340
2000
Diesel fuel for
motor vehicles
(Specification
EN590)
130 Multijet
RH02
Diesel
4 in line
85 x 88
1997
17,5:1
94
128
4000
320
2000
Diesel fuel for
motor vehicles
(Specification
EN590)
90 Multijet
(Euro 5)
9H07
Diesel
4 in line
75 x 88.3
1560
18.0:1
66
90
4000
180
1500
Diesel fuel for
motor vehicles
(Specification
EN590)

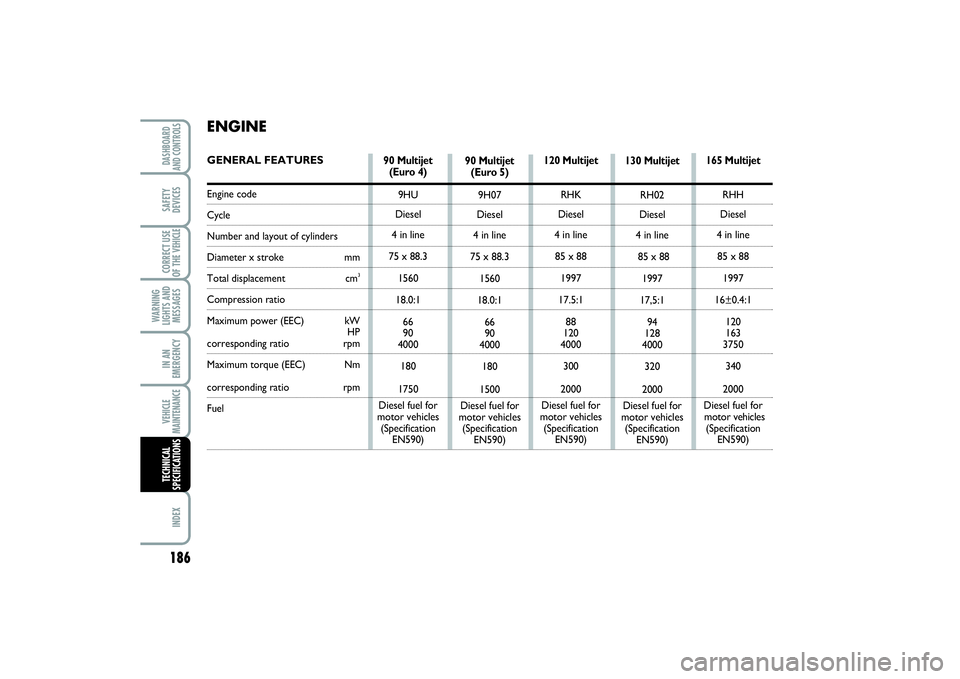

ENGINEGENERAL FEATURESEngine codeCycleNumber and layout of cylindersDiameter x stroke mmTotal displacement cm
3
Compression ratio
Maximum power (EEC) kW
HPcorresponding ratio rpm
Maximum torque (EEC) Nmcorresponding ratio rpm
Fuel
