FIAT SCUDO 2015 Owner handbook (in English)

7SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
To refit it proceed as follows:❒
keep button Bpressed and move the
metal insert A;
❒
release button Band turn the metal in-
sert A until hearing the proper lock-
ing click.

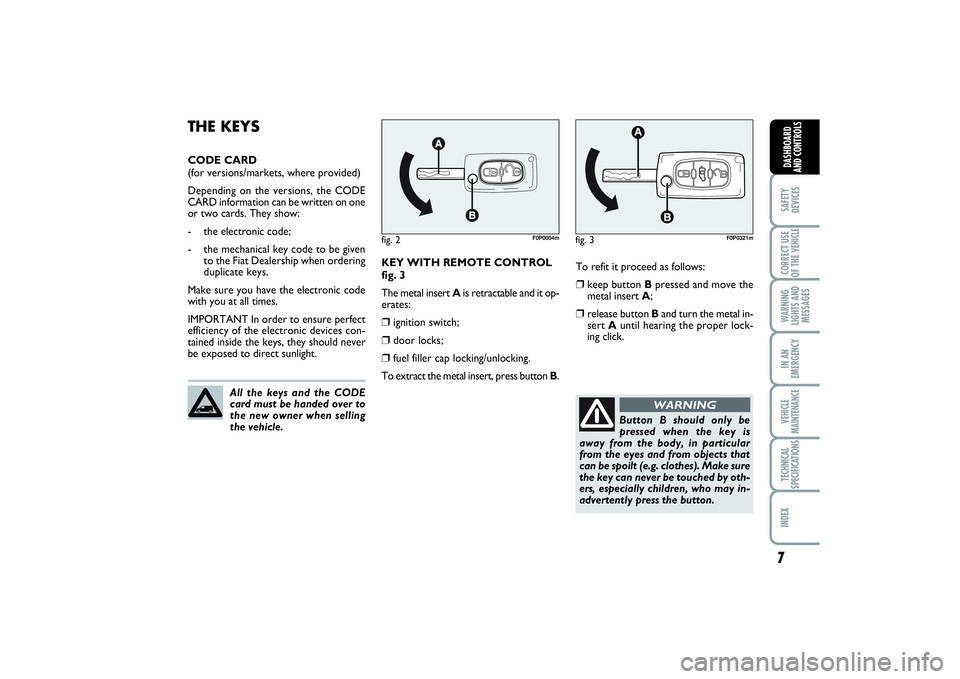

THE KEYSCODE CARD
(for versions/markets, where provided)
Depending on the versions, the CODE
CARD information can be written on one
or two cards. They show:
- the electronic code;
- the mechanical key code to be given
to the Fiat Dealership when ordering
duplicate keys.
Make sure you have the electronic code
with you at all times.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the vehicle.
fig. 2
F0P0004m
fig. 3
F0P0321m
KEY WITH REMOTE CONTROL
fig. 3
The metal insert Ais retractable and it op-
erates:❒
ignition switch;
❒
door locks;
❒
fuel filler cap locking/unlocking.
To extract the metal insert, press button B.
Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 7

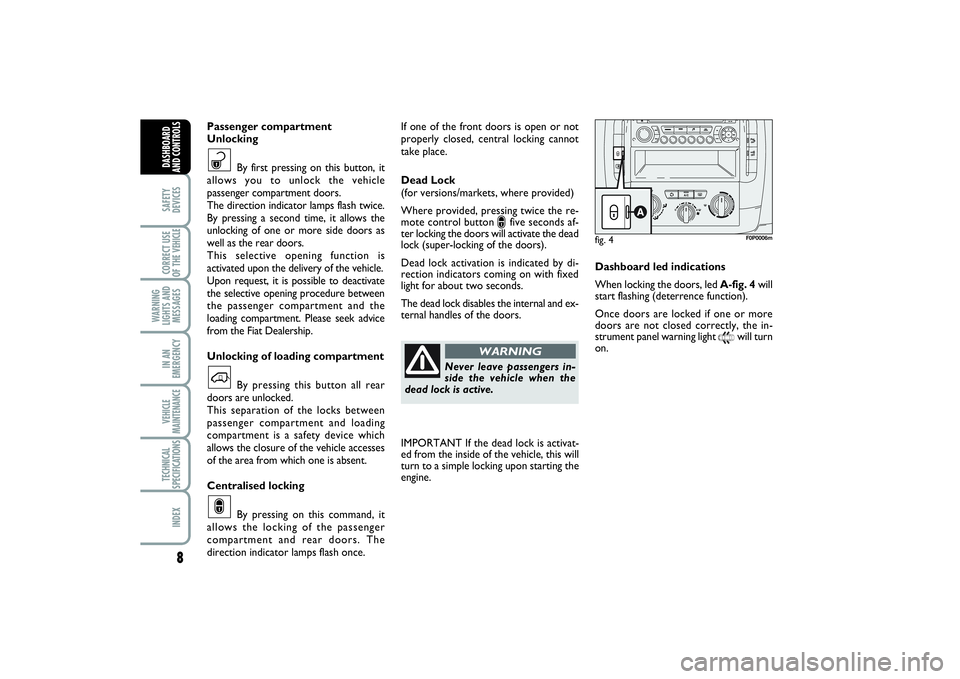

8SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
If one of the front doors is open or not
properly closed, central locking cannot
take place.
Dead Lock
(for versions/markets, where provided)
Where provided, pressing twice the re-
mote control button
∫
five seconds af-
ter locking the doors will activate the dead
lock (super-locking of the doors).
Dead lock activation is indicated by di-
rection indicators coming on with fixed
light for about two seconds.
The dead lock disables the internal and ex-
ternal handles of the doors.
Dashboard led indications
When locking the doors, led A-fig. 4will
start flashing (deterrence function).
Once doors are locked if one or more
doors are not closed correctly, the in-
strument panel warning light
9
will turn
on.
fig. 4
F0P0006m
Passenger compartment
Unlocking
By first pressing on this button, it
allows you to unlock the vehicle
passenger compartment doors.
The direction indicator lamps flash twice.
By pressing a second time, it allows the
unlocking of one or more side doors as
well as the rear doors.
This selective opening function is
activated upon the delivery of the vehicle.
Upon request, it is possible to deactivate
the selective opening procedure between
the passenger compartment and the
loading compartment. Please seek advice
from the Fiat Dealership.
Unlocking of loading compartment
By pressing this button all rear
doors are unlocked.
This separation of the locks between
passenger compartment and loading
compartment is a safety device which
allows the closure of the vehicle accesses
of the area from which one is absent.
Centralised locking
By pressing on this command, it
allows the locking of the passenger
compartment and rear doors. The
direction indicator lamps flash once.∫`ª
Never leave passengers in-
side the vehicle when the
dead lock is active.
WARNING
IMPORTANT If the dead lock is activat-
ed from the inside of the vehicle, this will
turn to a simple locking upon starting the
engine.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 8

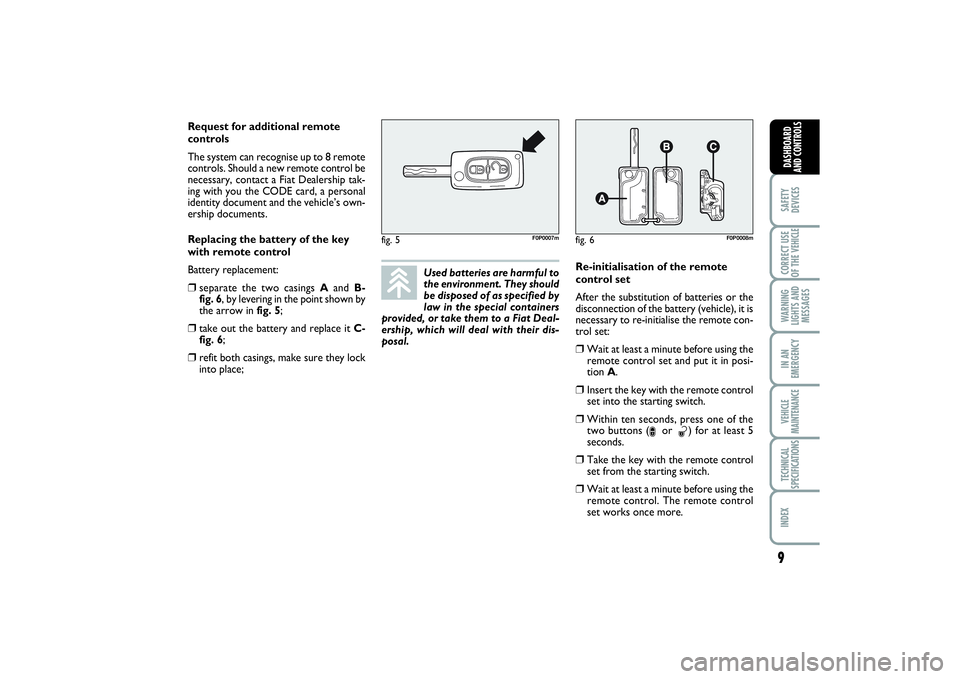

9SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
fig. 5
F0P0007m
fig. 6
F0P0008m
Request for additional remote
controls
The system can recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership tak-
ing with you the CODE card, a personal
identity document and the vehicle’s own-
ership documents.
Replacing the battery of the key
with remote control
Battery replacement:❒
separate the two casings A andB-
fig. 6, by levering in the point shown by
the arrow in fig. 5;
❒
take out the battery and replace it C-
fig. 6;
❒
refit both casings, make sure they lock
into place;Re-initialisation of the remote
control set
After the substitution of batteries or the
disconnection of the battery (vehicle), it is
necessary to re-initialise the remote con-
trol set:
❒
Wait at least a minute before using the
remote control set and put it in posi-
tion A.
❒
Insert the key with the remote control
set into the starting switch.
❒
Within ten seconds, press one of the
two buttons (
∫
or
ª) for at least 5
seconds.
❒
Take the key with the remote control
set from the starting switch.
❒
Wait at least a minute before using the
remote control. The remote control
set works once more.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 9

10SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

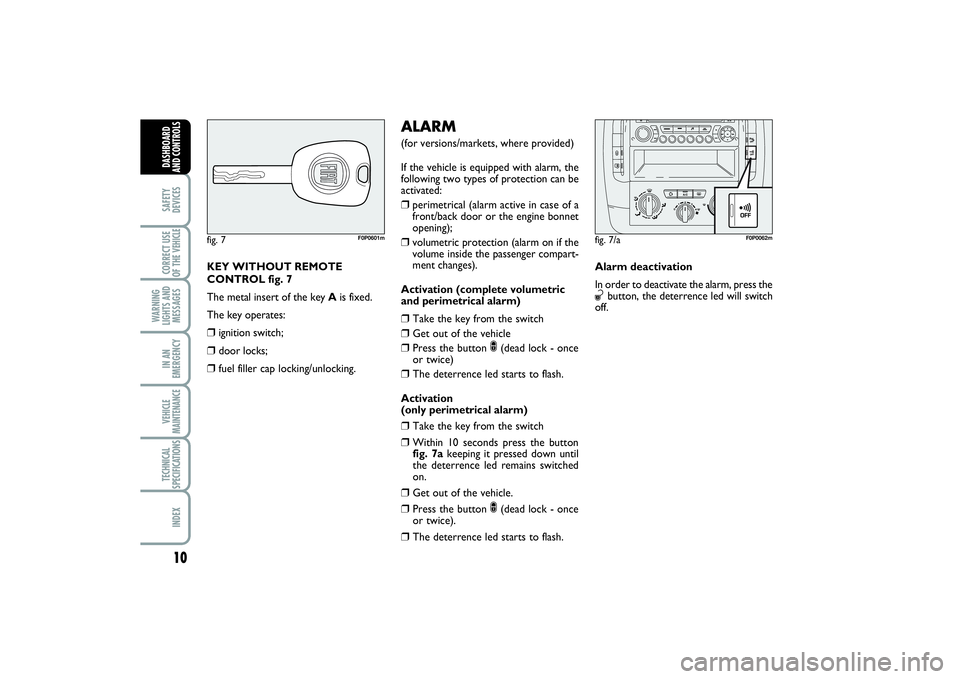

KEY WITHOUT REMOTE
CONTROL fig. 7
The metal insert of the key Ais fixed.
The key operates:❒
ignition switch;
❒
door locks;
❒
fuel filler cap locking/unlocking.
fig. 7
F0P0601m
ALARM (for versions/markets, where provided)
If the vehicle is equipped with alarm, the
following two types of protection can be
activated: ❒
perimetrical (alarm active in case of a
front/back door or the engine bonnet
opening);
❒
volumetric protection (alarm on if the
volume inside the passenger compart-
ment changes).
Activation (complete volumetric
and perimetrical alarm)
❒
Take the key from the switch
❒
Get out of the vehicle
❒
Press the button
∫(dead lock - once
or twice)
❒
The deterrence led starts to flash.
Activation
(only perimetrical alarm)
❒
Take the key from the switch
❒
Within 10 seconds press the button
fig. 7akeeping it pressed down until
the deterrence led remains switched
on.
❒
Get out of the vehicle.
❒
Press the button
∫(dead lock - once
or twice).
❒
The deterrence led starts to flash.
fig. 7/a
F0P0062m
Alarm deactivation
In order to deactivate the alarm, press theª
button, the deterrence led will switch
off.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 10

11
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

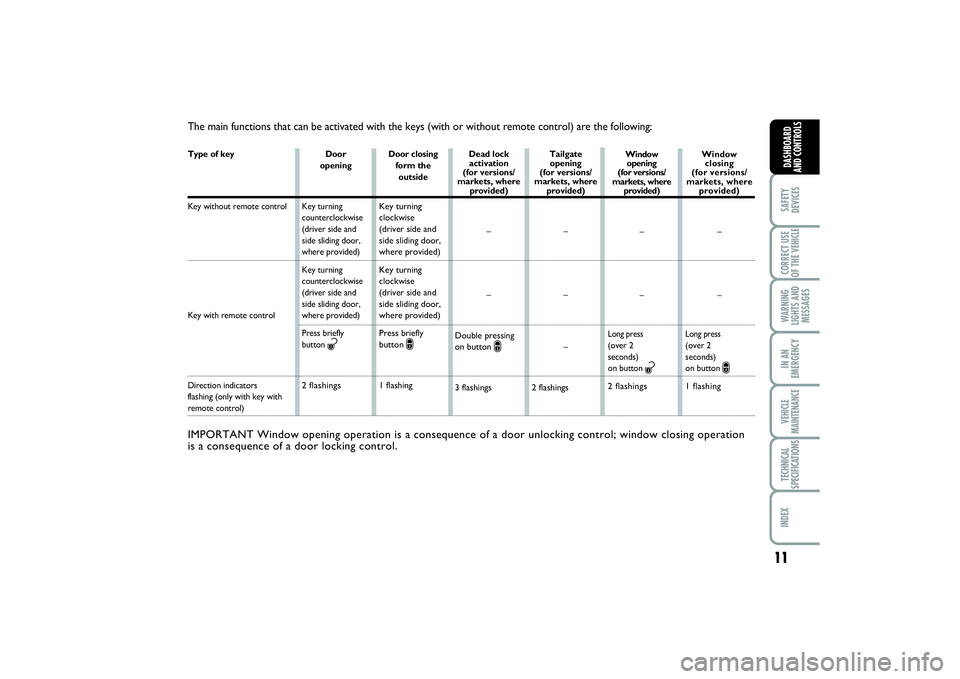

The main functions that can be activated with the keys (with or without remote control) are the following:IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation
is a consequence of a door locking control.Type of keyKey without remote control Key with remote controlDirection indicators
flashing (only with key with remote control)Window
closing
(for versions/
markets, where
provided)
–
–
Long press(over 2
seconds)
on button
∫
1 flashing
Door
opening
Key turning
counterclockwise
(driver side and
side sliding door,
where provided)
Key turning
counterclockwise
(driver side and
side sliding door,
where provided)
Press briefly
button ª
2 flashings
Door closing
form the
outsideKey turning
clockwise
(driver side and
side sliding door,
where provided)
Key turning
clockwise
(driver side and
side sliding door,
where provided)
Press briefly
button
∫
1 flashing
Dead lock
activation
(for versions/
markets, where
provided)
–
–
Double pressing
on button
∫
3 flashings
Tailgate
opening
(for versions/
markets, where
provided)
–
–
–
2 flashings
Window
opening
(for versions/
markets, where
provided)
–
–
Long press(over 2
seconds)
on button
ª
2 flashings
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 11

12SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

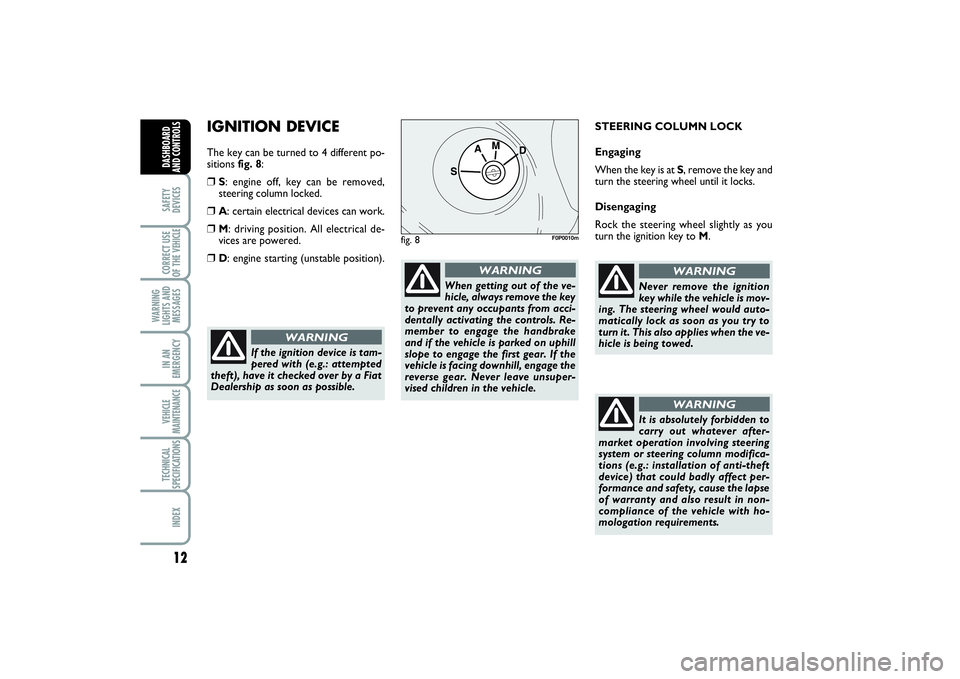

IGNITION DEVICEThe key can be turned to 4 different po-
sitions fig. 8:❒
S: engine off, key can be removed,
steering column locked.
❒
A: certain electrical devices can work.
❒
M: driving position. All electrical de-
vices are powered.
❒
D: engine starting (unstable position).STEERING COLUMN LOCK
Engaging
When the key is at S, remove the key and
turn the steering wheel until it locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to M.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
When getting out of the ve-
hicle, always remove the key
to prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the vehicle is parked on uphill
slope to engage the first gear. If the
vehicle is facing downhill, engage the
reverse gear. Never leave unsuper-
vised children in the vehicle.
WARNING
fig. 8
F0P0010m
Never remove the ignition
key while the vehicle is mov-
ing. The steering wheel would auto-
matically lock as soon as you try to
turn it. This also applies when the ve-
hicle is being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the vehicle with ho-
mologation requirements.
WARNING
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 12

13
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

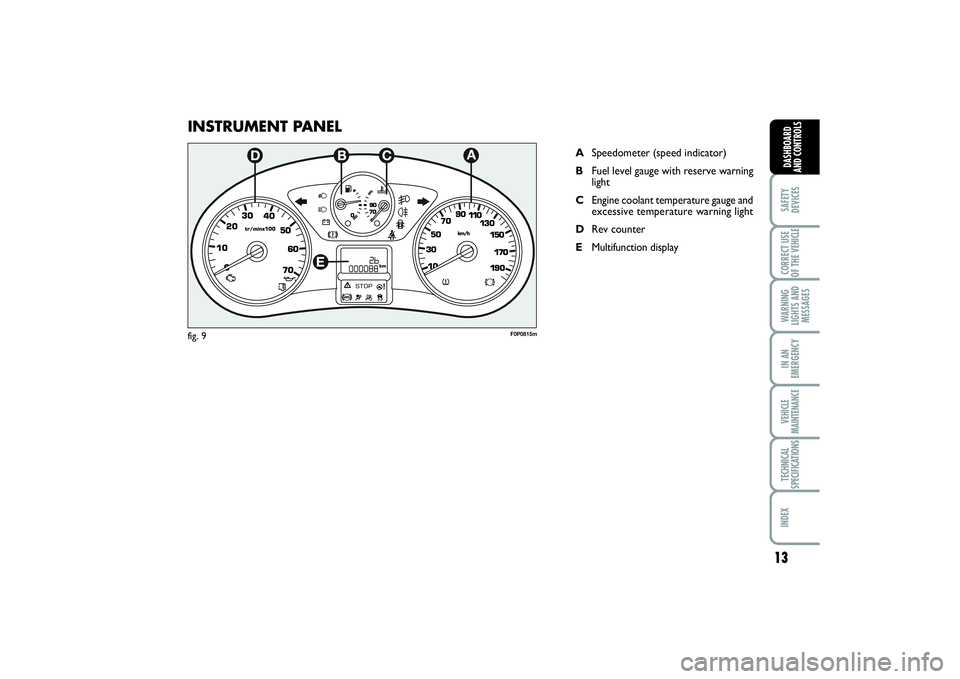

INSTRUMENT PANEL
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
F0P0815m
fig. 9
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 13

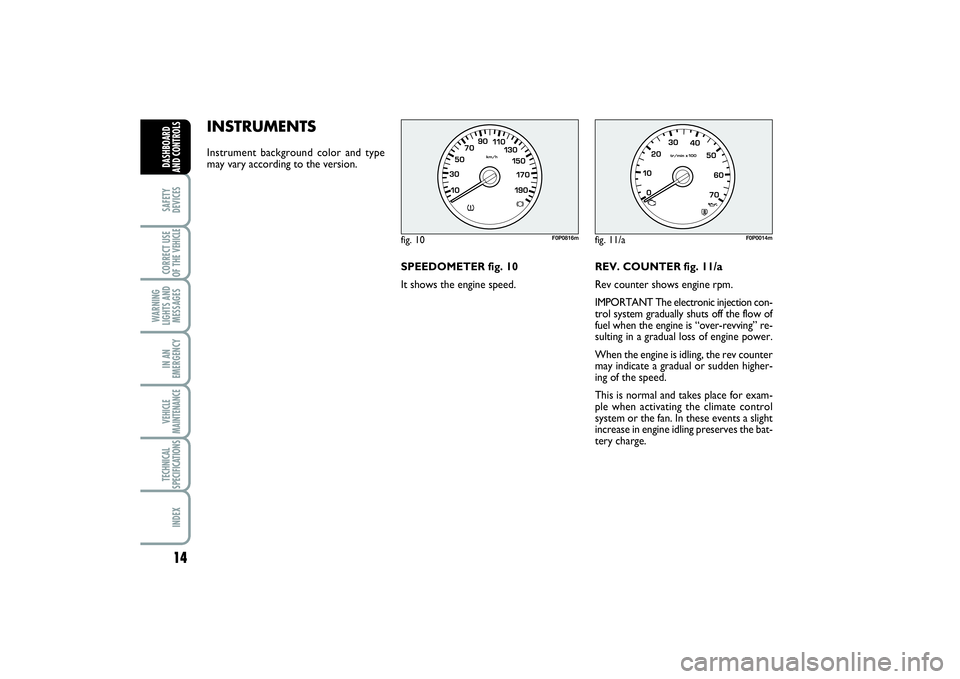

INSTRUMENTS Instrument background color and type
may vary according to the version.
SPEEDOMETER fig. 10
It shows the engine speed.REV. COUNTER fig. 11/a
Rev counter shows engine rpm.
IMPORTANT The electronic injection con-
trol system gradually shuts off the flow of
fuel when the engine is “over-revving” re-
sulting in a gradual loss of engine power.
When the engine is idling, the rev counter
may indicate a gradual or sudden higher-
ing of the speed.
This is normal and takes place for exam-
ple when activating the climate control
system or the fan. In these events a slight
increase in engine idling preserves the bat-
tery charge.
14SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
fig. 11/a
F0P0014m
fig. 10
F0P0816m
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 14

15
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

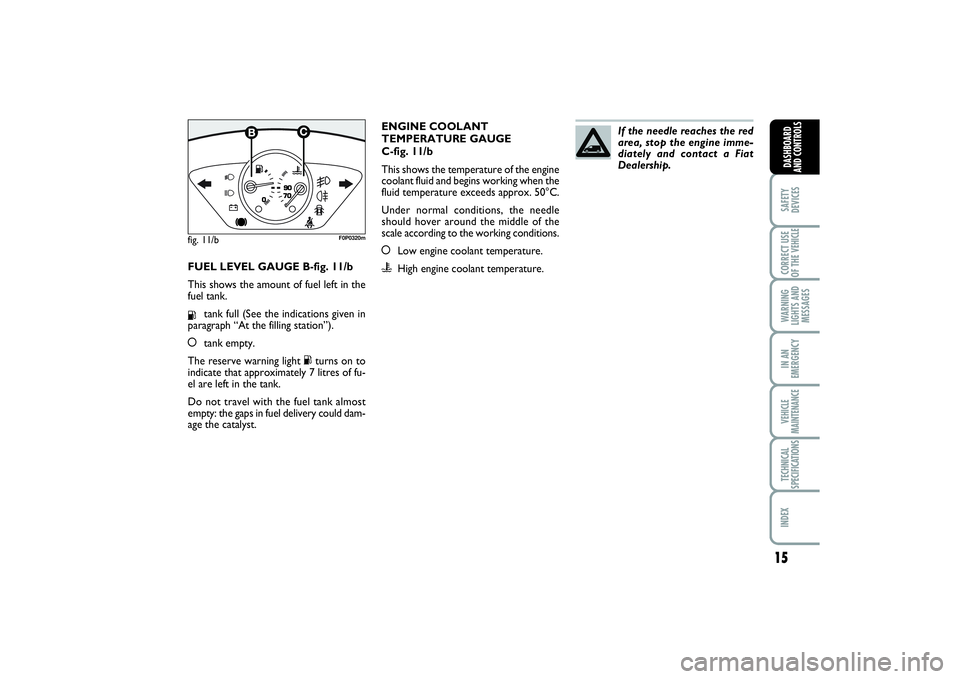

FUEL LEVEL GAUGE B-fig. 11/b
This shows the amount of fuel left in the
fuel tank.K
tank full (See the indications given in
paragraph “At the filling station”).
åtank empty.
The reserve warning light Kturns on to
indicate that approximately 7 litres of fu-
el are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.ENGINE COOLANT
TEMPERATURE GAUGE
C-fig. 11/b
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions.
åLow engine coolant temperature.
u
High engine coolant temperature.If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
fig. 11/b
1/2
F0P0320m
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 15

16SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

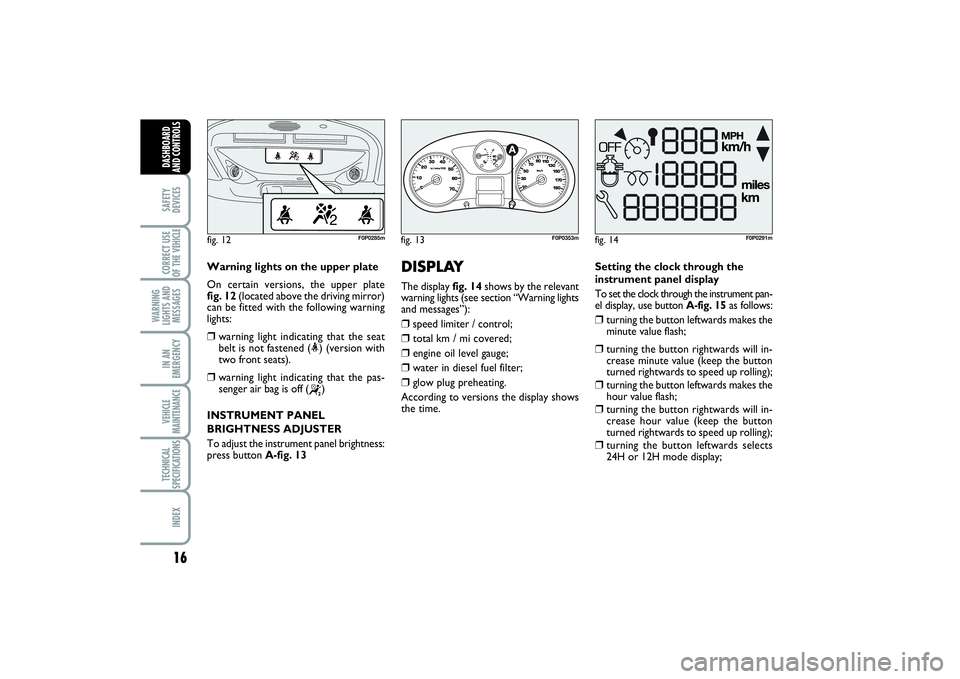

Warning lights on the upper plate
On certain versions, the upper plate
fig. 12(located above the driving mirror)
can be fitted with the following warning
lights:❒
warning light indicating that the seat
belt is not fastened (<) (version with
two front seats).
❒
warning light indicating that the pas-
senger air bag is off (
“
)
INSTRUMENT PANEL
BRIGHTNESS ADJUSTER
To adjust the instrument panel brightness:
press button A-fig. 13
fig. 12
F0P0285m
DISPLAY The display fig. 14shows by the relevant
warning lights (see section “Warning lights
and messages”):❒
speed limiter / control;
❒
total km / mi covered;
❒
engine oil level gauge;
❒
water in diesel fuel filter;
❒
glow plug preheating.
According to versions the display shows
the time. Setting the clock through the
instrument panel display
To set the clock through the instrument pan-
el display, use button A-fig. 15as follows:
❒
turning the button leftwards makes the
minute value flash;
❒
turning the button rightwards will in-
crease minute value (keep the button
turned rightwards to speed up rolling);
❒
turning the button leftwards makes the
hour value flash;
❒
turning the button rightwards will in-
crease hour value (keep the button
turned rightwards to speed up rolling);
❒
turning the button leftwards selects
24H or 12H mode display;
fig. 14
F0P0291m
fig. 13
1/2
F0P0353m
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 16
