sensor FIAT SCUDO 2015 Owner handbook (in English)

136IN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGES
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
4
GENERIC FAILURE
INDICATION
(amber)
This warning light starts flashing to indi-
cate a non-serious failure. It turns on
glowing steadily to indicate a serious fail-
ure. In any case the relevant message will
be displayed.
Contact Fiat Dealership according to the
seriousness of the indication.
If the level of the diesel additive to the
anti-particulate filter (DPF version) is at
the minimum level: the warning light
switches on together with an acoustic
warning and a message on the display.
Contact Fiat Dealership.
è
ESC SYSTEM
(amber)
Turning the ignition key to M
the warning light turns on, but it should
go off after few seconds.
If the warning light flashes, it signals an
avoided slipping of the wheels. In this
case the system optimises the drive and
it allows the improvement of the direc-
tional stability of the vehicle. If the warn-
ing light remains lit (led on the ESC
OFFbutton – switched off) it signals a
system dysfunction. In this case check
the tyre pressure and/or seek advice
from the Fiat Dealership. If the warning
light remains lit (led on the ESC OFF
button switched on) it signals the deacti-
vation of the system.
Notethe flashing of the warning light
during transit indicates the operation of
the ESC system.
ESC iTPMS
(amber)
Insufficient tyre pressure
The warning light
n
switches on, to-
gether with a dedicated message on the
display, to indicate that the tyre pressure
is lower than the recommended value
and/or that slow pressure loss is occur-
ring. In these circumstances, optimal tyre
duration and fuel consumption may not be
guaranteed.
The alarm is active until the next inflation,
repair or replacement of the tyre involved.
iTPMS failure
When a fault in the iT.P.M.S. is detected,
the warning light
n
switches on and flash-
es, the warning light è
switches on as
well and a dedicated message is displayed.
In this case, the monitoring of the tyre
pressure is no longer guaranteed.
Contact a Fiat Dealership to have the sys-
tem checked or, after a puncture, refit a
tyre equipped with sensor on the origi-
nal rim.
n
129-138 SCUDO LUM GB 27/03/14 11:47 Pagina 136

153
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

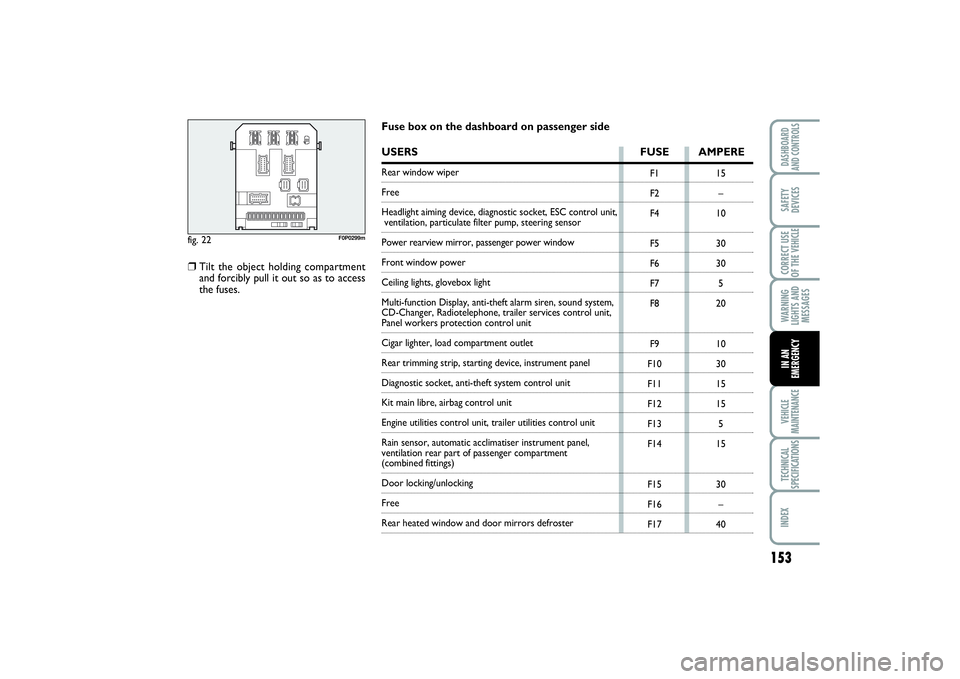

fig. 22
F0P0299m
F1
F2
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F1715
–
10
30
30
5
20
10
30
15
15
5
15
30
–
40
Fuse box on the dashboard on passenger sideUSERS FUSE AMPERERear window wiperFree
Headlight aiming device, diagnostic socket, ESC control unit,ventilation, particulate filter pump, steering sensorPower rearview mirror, passenger power windowFront window powerCeiling lights, glovebox light
Multi-function Display, anti-theft alarm siren, sound system,
CD-Changer, Radiotelephone, trailer services control unit, Panel workers protection control unitCigar lighter, load compartment outletRear trimming strip, starting device, instrument panel Diagnostic socket, anti-theft system control unitKit main libre, airbag control unitEngine utilities control unit, trailer utilities control unit
Rain sensor, automatic acclimatiser instrument panel,
ventilation rear part of passenger compartment (combined fittings)Door locking/unlockingFreeRear heated window and door mirrors defroster
❒
Tilt the object holding compartment
and forcibly pull it out so as to access
the fuses.
