compression ratio FIAT SCUDO 2015 Owner handbook (in English)

186WARNING
LIGHTS AND
MESSAGES
INDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS
90 Multijet
(Euro 4)
9HU
Diesel
4 in line
75 x 88.3
1560
18.0:1
66
90
4000
180
1750
Diesel fuel for
motor vehicles
(Specification
EN590)
120 Multijet
RHK
Diesel
4 in line
85 x 88
1997
17.5:1
88
120
4000
300
2000
Diesel fuel for
motor vehicles
(Specification
EN590)
165 Multijet
RHH
Diesel
4 in line
85 x 88
1997
16±0.4:1
120
163
3750
340
2000
Diesel fuel for
motor vehicles
(Specification
EN590)
130 Multijet
RH02
Diesel
4 in line
85 x 88
1997
17,5:1
94
128
4000
320
2000
Diesel fuel for
motor vehicles
(Specification
EN590)
90 Multijet
(Euro 5)
9H07
Diesel
4 in line
75 x 88.3
1560
18.0:1
66
90
4000
180
1500
Diesel fuel for
motor vehicles
(Specification
EN590)

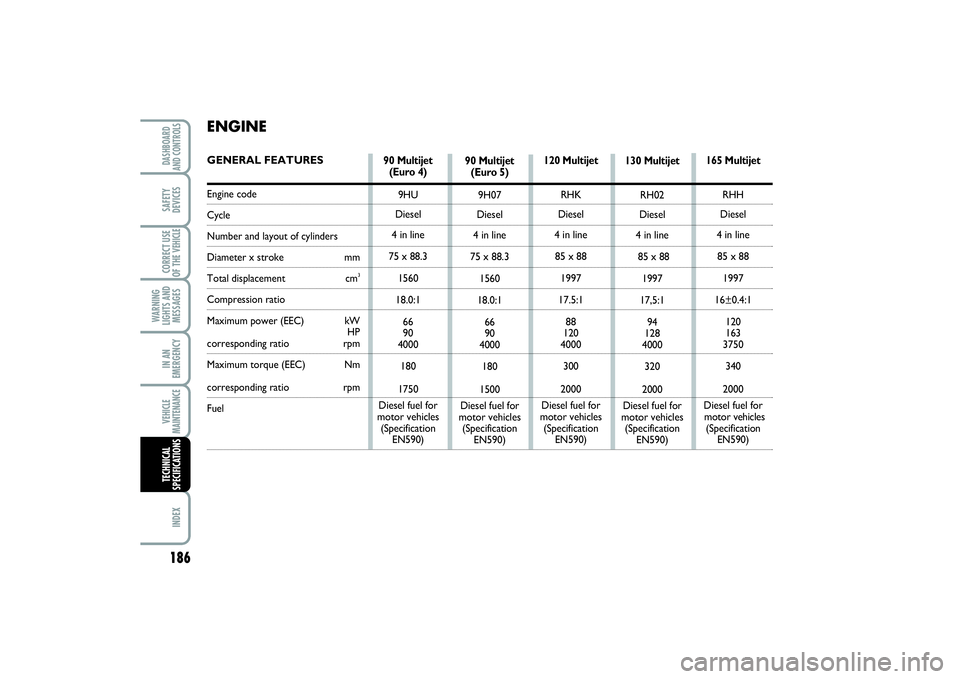

ENGINEGENERAL FEATURESEngine codeCycleNumber and layout of cylindersDiameter x stroke mmTotal displacement cm
3
Compression ratio
Maximum power (EEC) kW
HPcorresponding ratio rpm
Maximum torque (EEC) Nmcorresponding ratio rpm
Fuel
