FIAT SEDICI 2006 2.G Ready To Go Manual

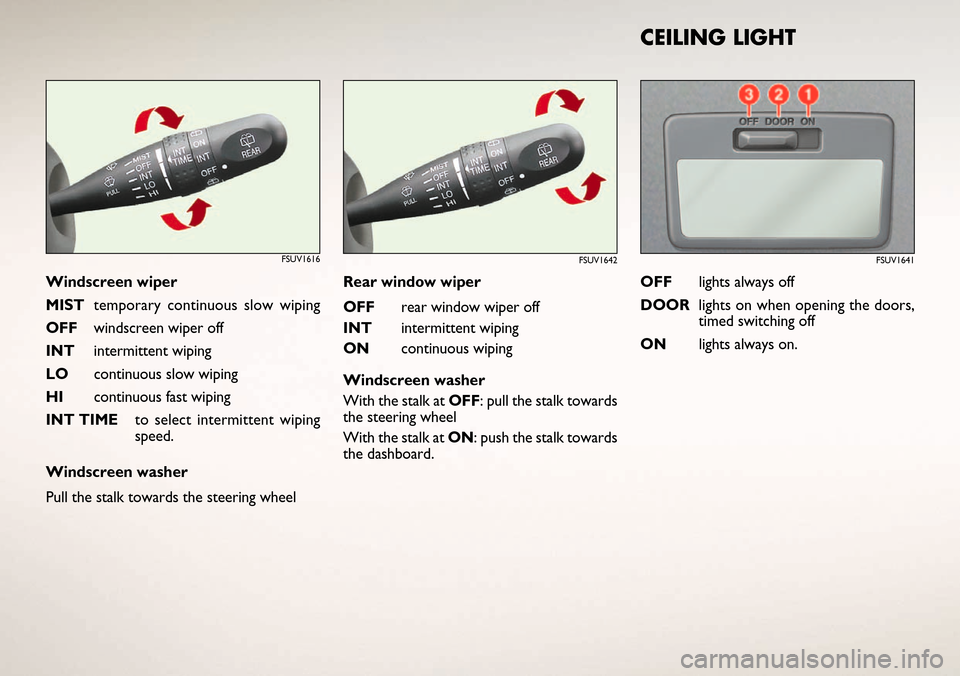

CEILING LIGHT
OFFlights always off
DOORlights on when opening the doors,
timed switching off
ONlights always on.
FSUV1641
Windscreen wiper
MISTtemporary continuous slow wiping
OFFwindscreen wiper off
INTintermittent wiping
LOcontinuous slow wiping
HIcontinuous fast wiping
INT TIME to select intermittent wiping
speed.
Windscreen washer
Pull the stalk towards the steering wheel
FSUV1616
Rear window wiper
OFFrear window wiper off
INTintermittent wiping
ONcontinuous wiping
Windscreen washer
With the stalk at OFF: pull the stalk towards
the steering wheel
With the stalk at ON: push the stalk towards
the dashboard.
FSUV1642

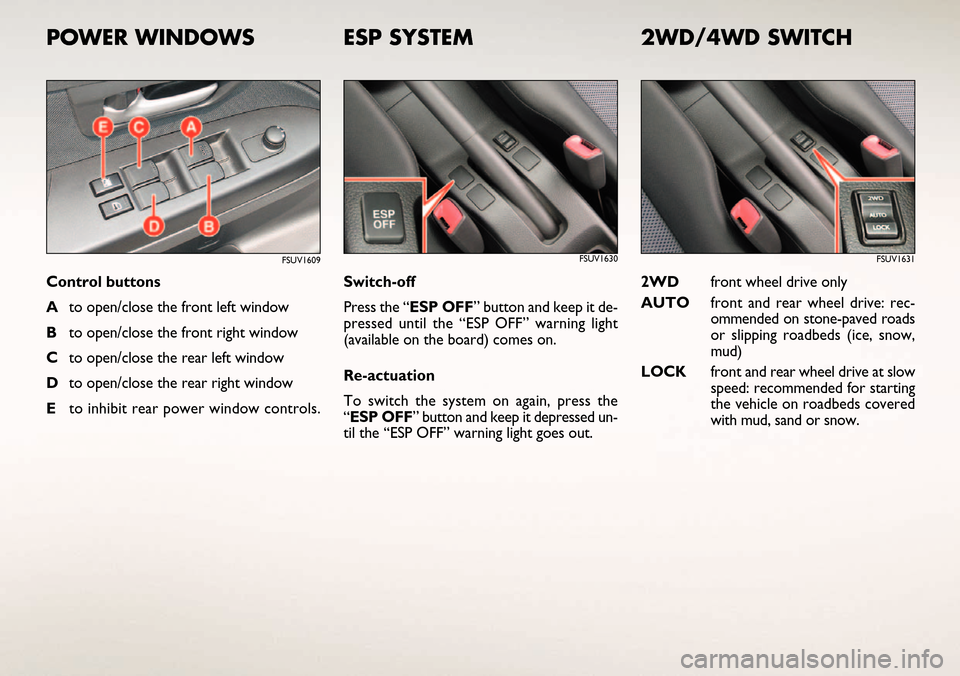

ESP SYSTEM
Switch-off
Press the “ESP OFF” button and keep it de-
pressed until the “ESP OFF” warning light
(available on the board) comes on.
Re-actuation
To switch the system on again, press the
“ESP OFF” button and keep it depressed un-
til the “ESP OFF” warning light goes out.
FSUV1630
POWER WINDOWS
Control buttons
Ato open/close the front left window
Bto open/close the front right window
Cto open/close the rear left window
Dto open/close the rear right window
Eto inhibit rear power window controls.
FSUV1609
2WD/4WD SWITCH
2WDfront wheel drive only
AUTOfrontand rear wheel drive: rec-
ommended on stone-paved roads
or slipping roadbeds (ice, snow,
mud)
LOCKfrontand rear wheel drive at slow
speed: recommended for starting
the vehicle on roadbeds covered
with mud, sand or snow.
FSUV1631

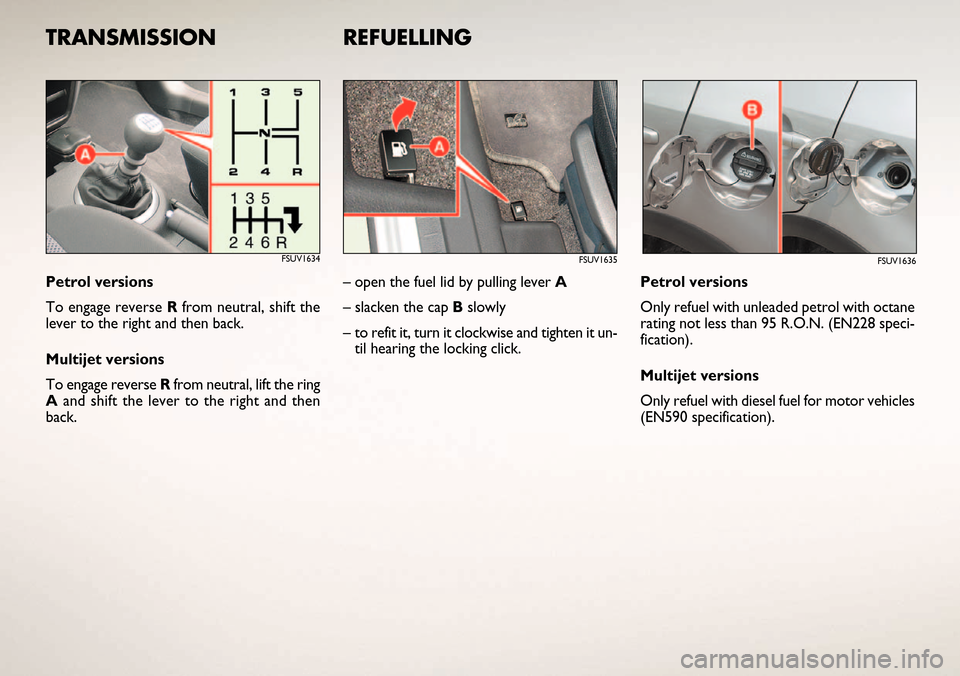

Petrol versions
Only refuel with unleaded petrol with octane
rating not less than 95 R.O.N. (EN228 speci-
fication).
Multijet versions
Only refuel with diesel fuel for motor vehicles
(EN590 specification).
FSUV1636
REFUELLING
– open the fuel lid by pulling lever A
– slacken the cap Bslowly
– to refit it, turn it clockwise and tighten it un-
til hearing the locking click.
FSUV1635
TRANSMISSION
Petrol versions
To engage reverse Rfrom neutral, shift the
lever to the right and then back.
Multijet versions
To engage reverse Rfrom neutral, lift the ring
Aand shift the lever to the right and then
back.
FSUV1634

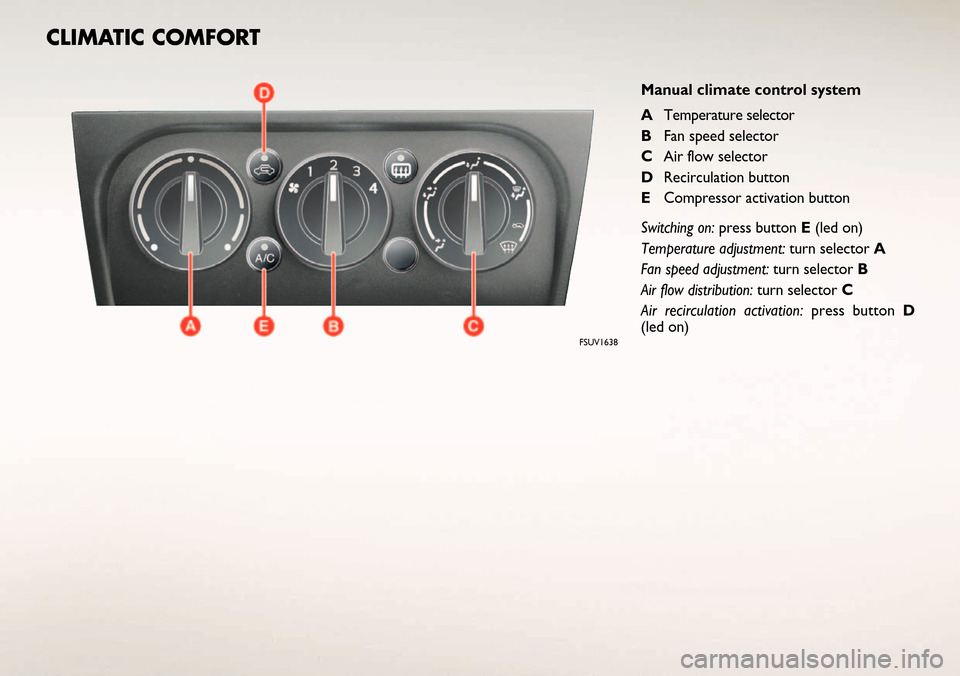

CLIMATIC COMFORT
Manual climate control system
ATemperature selector
BFan speed selector
CAir flow selector
DRecirculation button
ECompressor activation button
Switching on:press button E(led on)
Temperature adjustment:turn selector A
Fan speed adjustment: turn selector B
Air flow distribution: turn selector C
Air recirculation activation: press button D
(led on)
FSUV1638

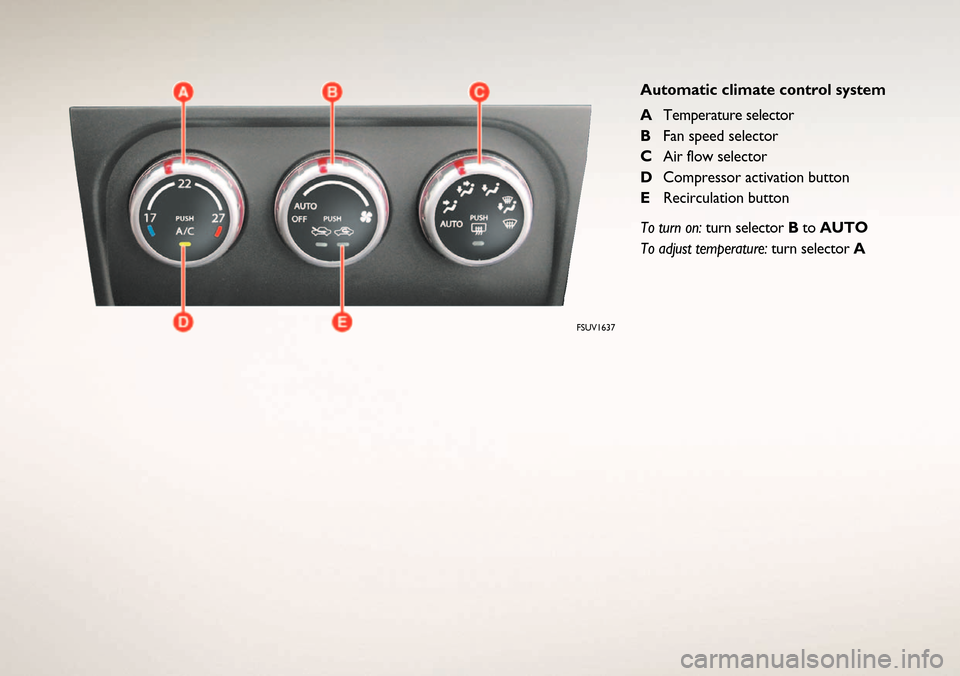

Automatic climate control system
ATemperature selector
BFan speed selector
CAir flow selector
DCompressor activation button
ERecirculation button
To turn on:turn selector Bto AUTO
To adjust temperature:turn selector A
FSUV1637

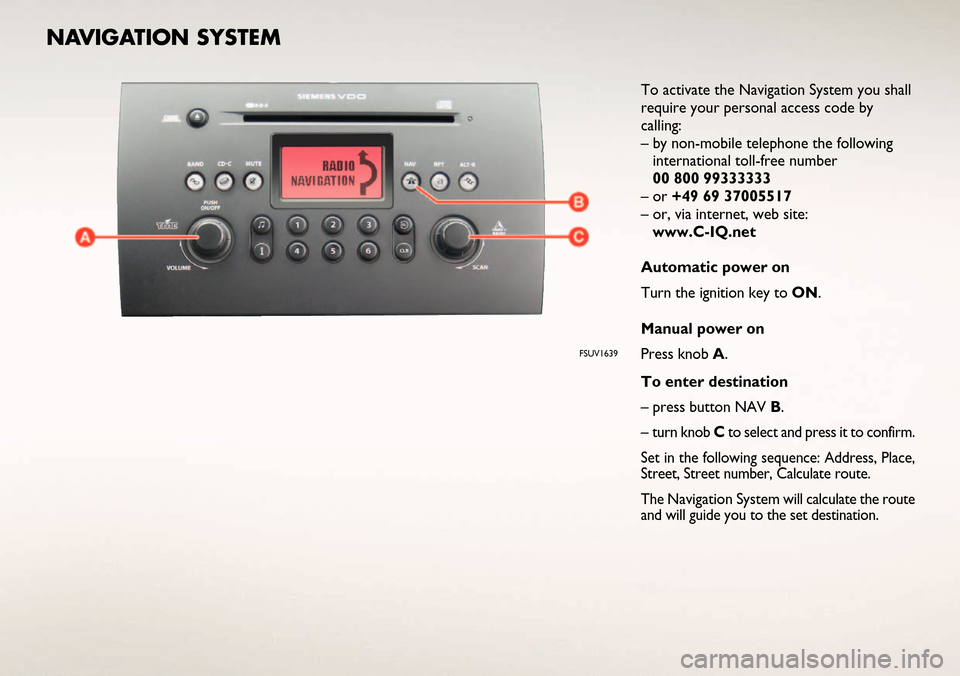

NAVIGATION SYSTEM
To activate the Navigation System you shall
require your personal access code by
calling:
– by non-mobile telephone the following
international toll-free number
00 800 99333333
– or +49 69 37005517
– or, via internet, web site:
www.C-IQ.net
Automatic power on
Turn the ignition key to ON.
Manual power on
Press knob A.
To enter destination
– press button NAV B.
–
turn knob Cto select and press it to confirm.
Set in the following sequence: Address, Place,
Street, Street number, Calculate route.
The
Navigation Systemwill calculate the route
and will guide you to the set destination.
FSUV1639

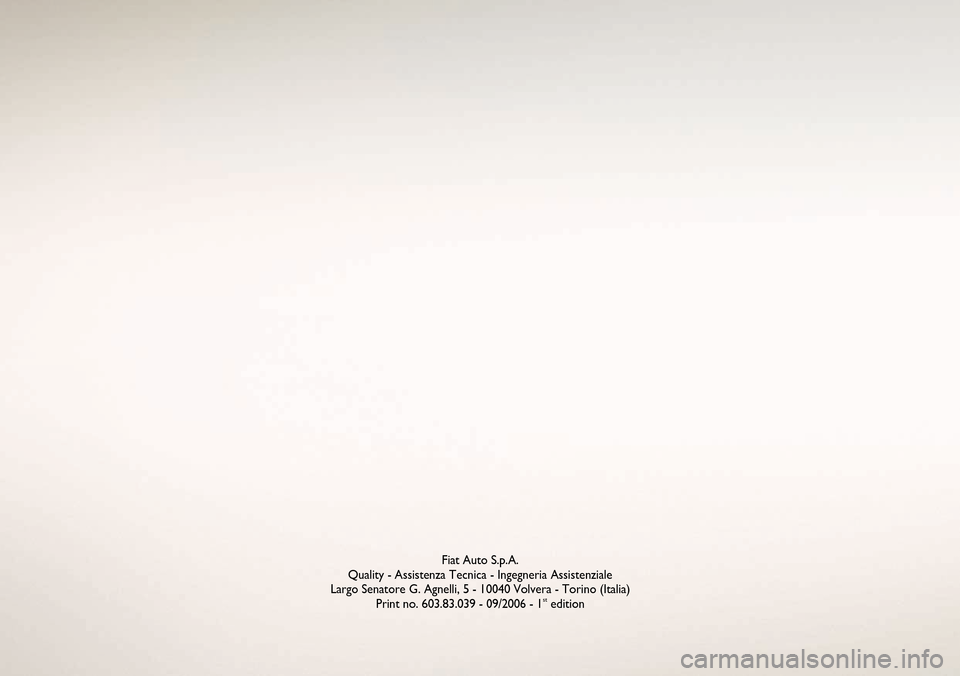

Fiat Auto S.p.A.
Quality - Assistenza Tecnica - Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.83.039 - 09/2006 - 1
stedition

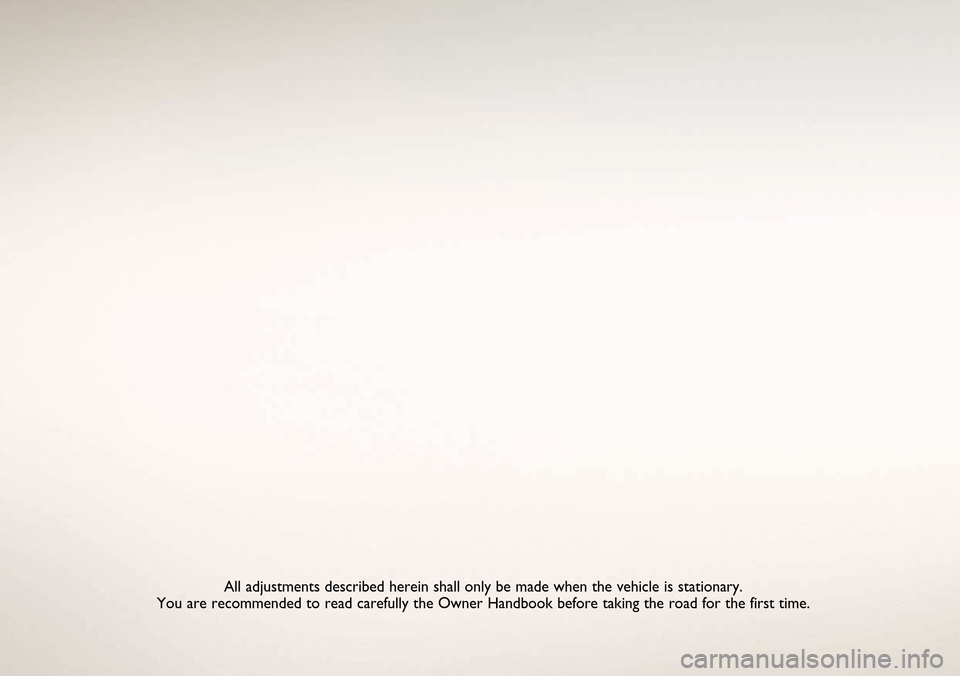

All adjustments described herein shall only be made when the vehicle is stationary.
You are recommended to read carefully the Owner Handbook before taking the road for the first time.
