FIAT SEDICI 2006 2.G Ready To Go Manual

READY TO GO

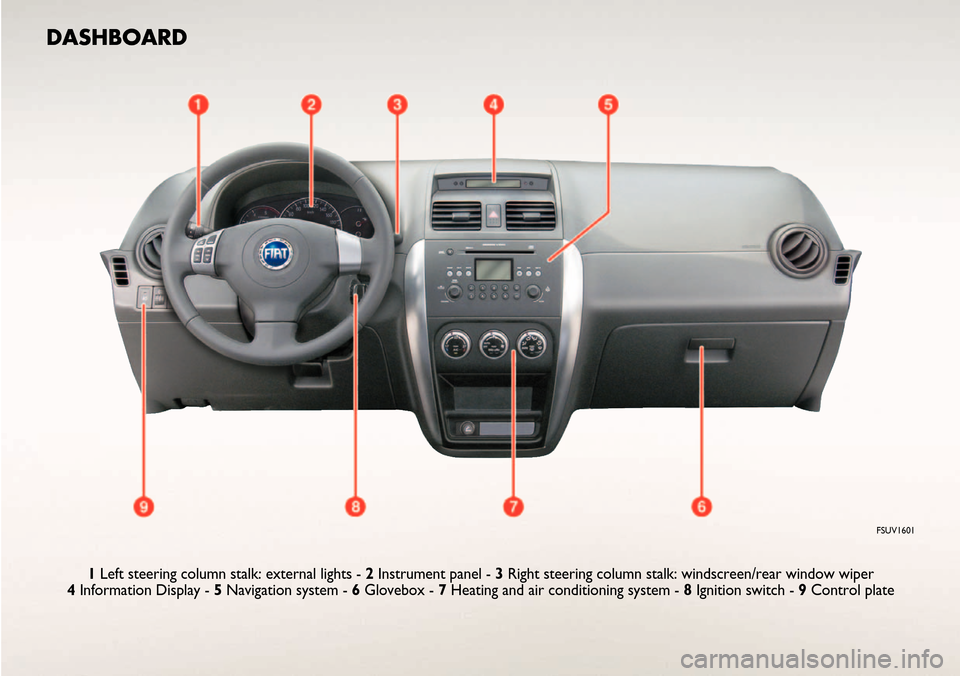

DASHBOARD
1Left steering column stalk: external lights - 2Instrument panel - 3Right steering column stalk: windscreen/rear window wiper
4Information Display - 5Navigation system - 6Glovebox - 7Heating and air conditioning system - 8Ignition switch - 9Control plate
FSUV1601

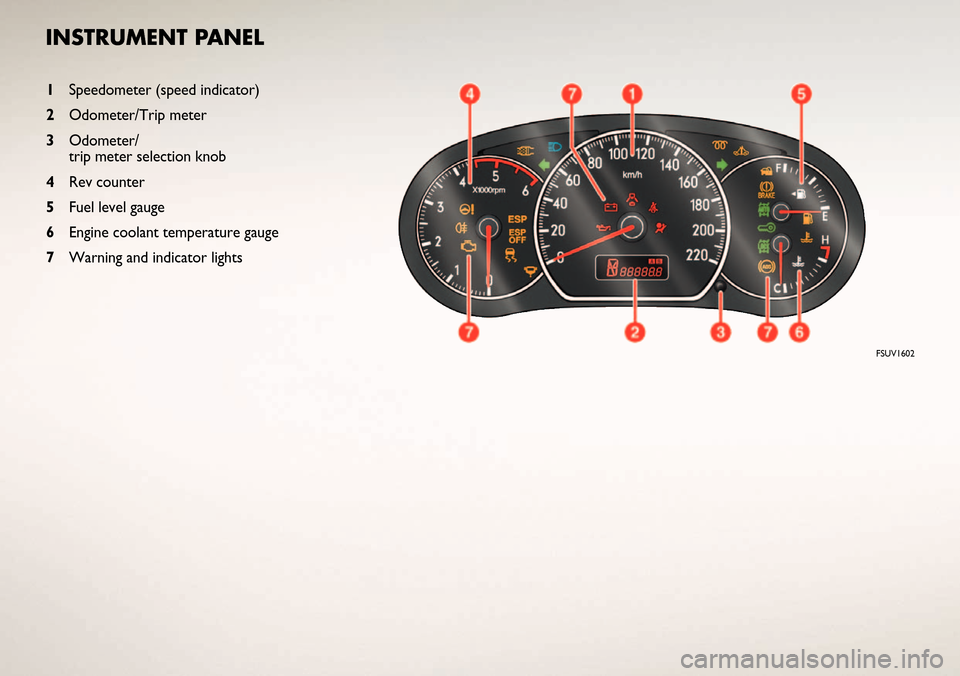

INSTRUMENT PANEL
1Speedometer (speed indicator)
2Odometer/Trip meter
3Odometer/
trip meter selection knob
4Rev counter
5Fuel level gauge
6Engine coolant temperature gauge
7Warning and indicator lights
FSUV1602

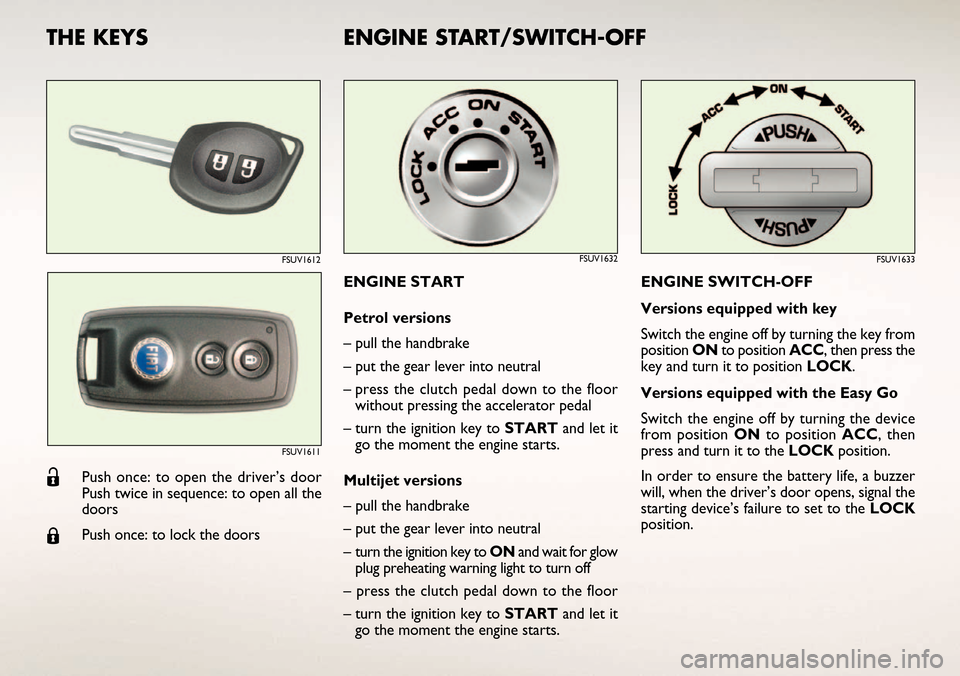

THE KEYS
ËPush once: to open the driver’s door
Push twice in sequence: to open all the
doors
ÁPush once: to lock the doors
FSUV1612
FSUV1611
ENGINE START/SWITCH-OFF
ENGINE START
Petrol versions
– pull the handbrake
– put the gear lever into neutral
– press the clutch pedal down to the floor
without pressing the accelerator pedal
– turn the ignition key to STARTand let it
go the moment the engine starts.
Multijet versions
– pull the handbrake
– put the gear lever into neutral
– turn the ignition key to ONand wait for glow
plug preheating warning light to turn off
– press the clutch pedal down to the floor
– turn the ignition key to STARTand let it
go the moment the engine starts.ENGINE SWITCH-OFF
Versions equipped with key
Switch the engine off by turning the key from
position ONto position ACC, then press the
key and turn it to position LOCK.
Versions equipped with the Easy Go
Switch the engine off by turning the device
from position ONto position ACC, then
press and turn it to the LOCKposition.
In order to ensure the battery life, a buzzer
will, when the driver’s door opens, signal the
starting device’s failure to set to the LOCK
position.
FSUV1633 FSUV1632

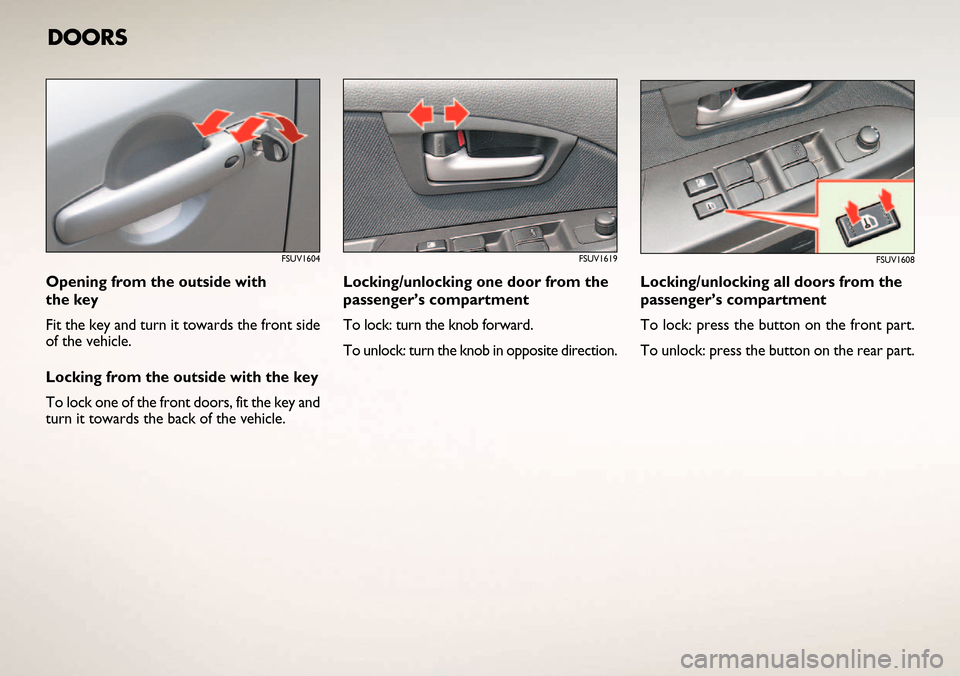

Locking/unlocking all doors from the
passenger’s compartment
To lock: press the button on the front part.
To unlock: press the button on the rear part.
FSUV1608
Locking/unlocking one door from the
passenger’s compartment
To lock: turn the knob forward.
To unlock: turn the knob in opposite direction.
DOORS
Opening from the outside with
the key
Fit the key and turn it towards the front side
of the vehicle.
Locking from the outside with the key
To lock one of the front doors, fit the key and
turn it towards the back of the vehicle.
FSUV1604 FSUV1619

DEAD LOCK
When the dead lock device is ON, the door
opening buttons are disabled.
Engaging the dead lock device
with the key
Fit the key into the driver’s door lock and turn
the key twice towards the back of the vehicle
within 3 seconds.
Disengaging the dead lock device
with the key
To unlock the driver’s door only, fit the key
into the driver’s door lock and turn it once
towards the front side of the vehicle.
To unlock all the doors turn the key twice to-
wards the front side of the vehicle.Connecting the device with the
remote control
Ápress the button twice within 3 seconds
Disconnecting the device with the
remote control
Ëto unlock the driver’s door only, press
the button once
to unlock the other doors, press the

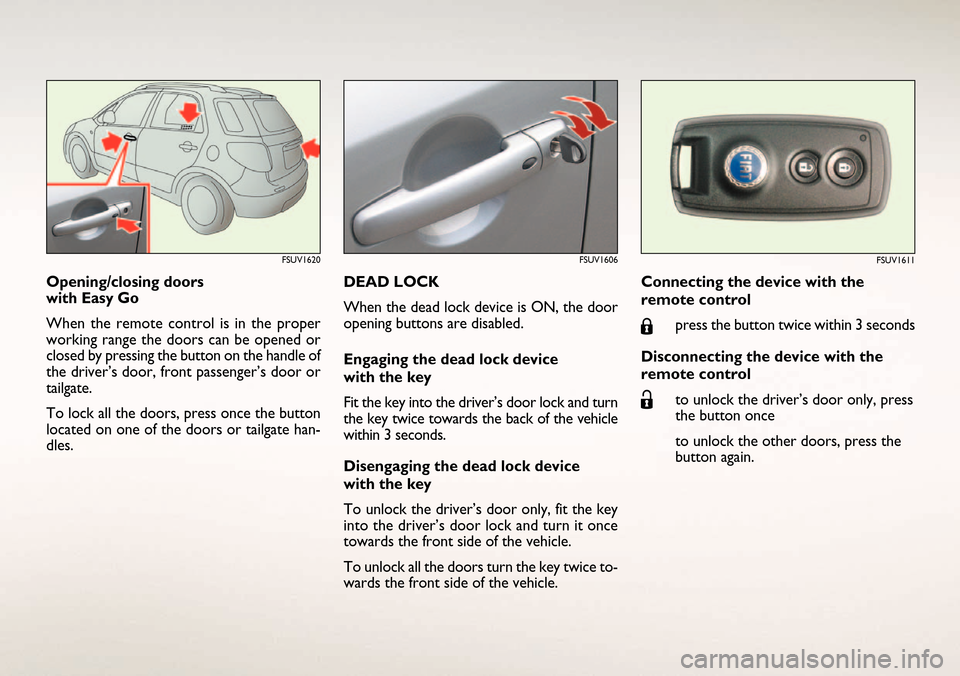

button again. Opening/closing doors
with Easy Go
When the remote control is in the proper
working range the doors can be opened or
closed by pressing the button on the handle of
the driver’s door, front passenger’s door or
tailgate.
To lock all the doors, press once the button
located on one of the doors or tailgate han-
dles.
FSUV1620 FSUV1606FSUV1611

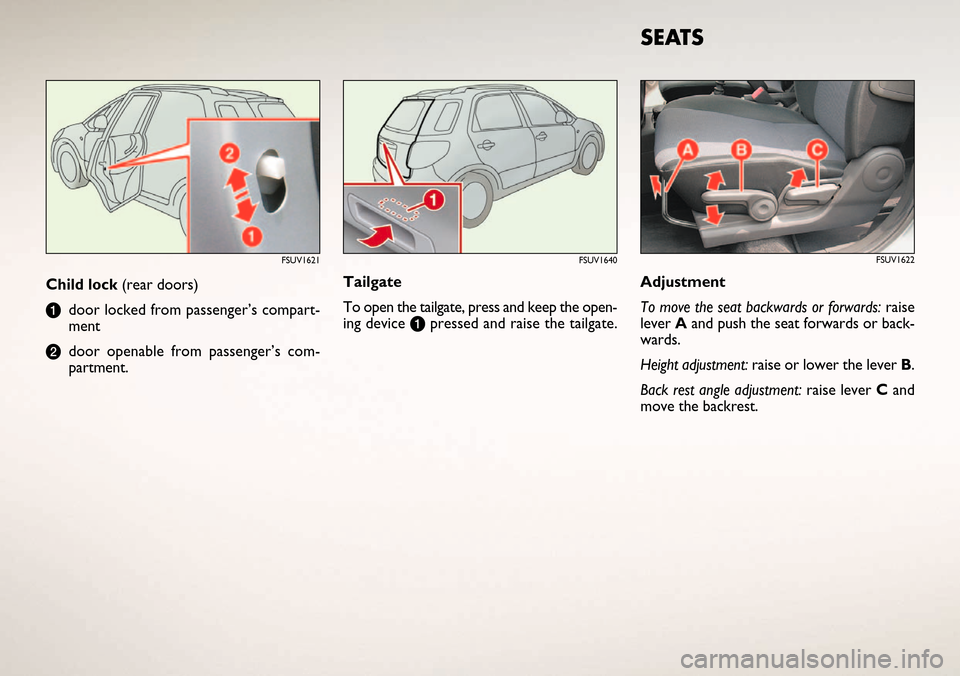

Adjustment
To move the seat backwards or forwards: raise
lever Aand push the seat forwards or back-
wards.
Height adjustment: raise or lower the lever B.
Back rest angle adjustment: raise lever Cand
move the backrest.
SEATS
FSUV1622
Tailgate
To open the tailgate, press and keep the open-
ing device apressed and raise the tailgate.Child lock (rear doors)
adoor locked from passenger’s compart-
ment
bdoor openable from passenger’s com-
partment.
FSUV1621 FSUV1640

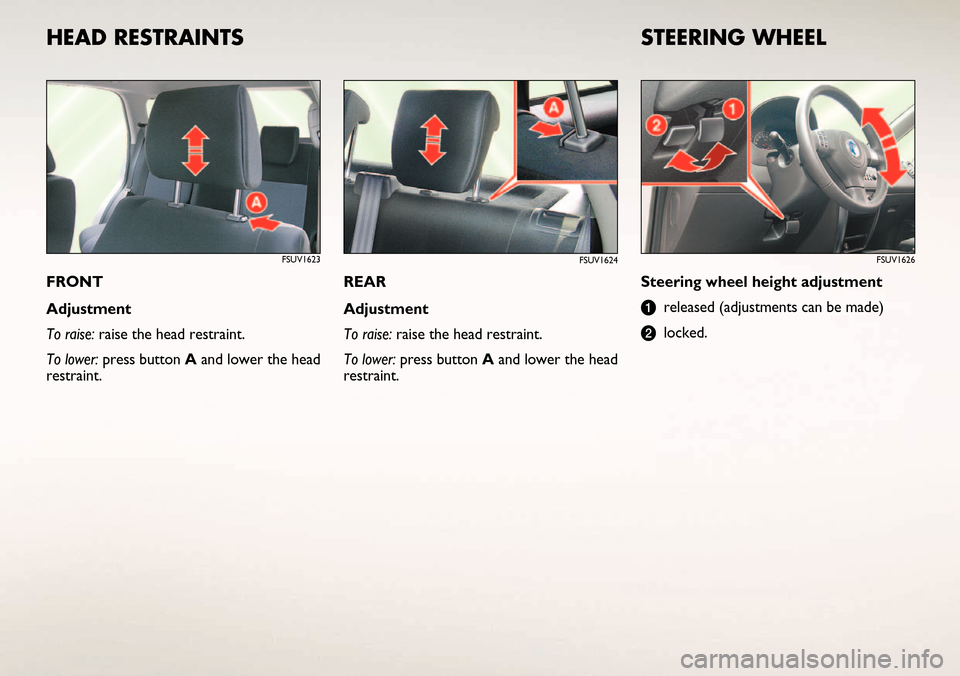

HEAD RESTRAINTS
FRONT
Adjustment
To raise: raise the head restraint.
To lower:press button Aand lower the head
restraint.Steering wheel height adjustment
areleased (adjustments can be made)
blocked.
STEERING WHEEL
FSUV1623
FSUV1624FSUV1626
REAR
Adjustment
To raise: raise the head restraint.
To lower:press button Aand lower the head
restraint.

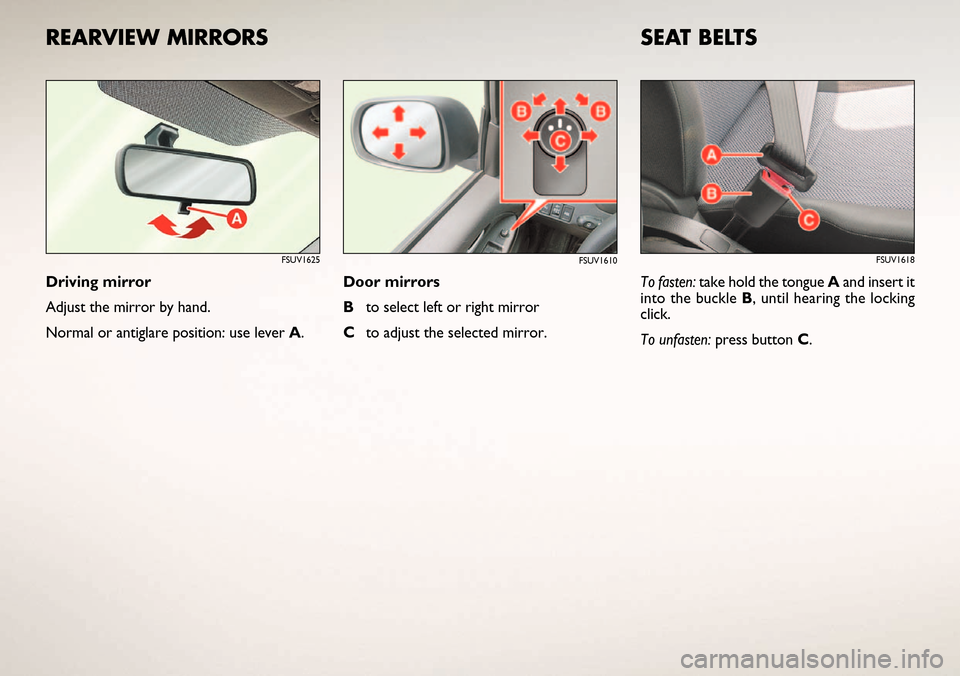

SEAT BELTS
To fasten: take hold the tongue Aand insert it
into the buckle B, until hearing the locking
click.
To unfasten:press button C.
FSUV1618
REARVIEW MIRRORS
Driving mirror
Adjust the mirror by hand.
Normal or antiglare position: use lever A.
FSUV1625
FSUV1610
Door mirrors
Bto select left or right mirror
Cto adjust the selected mirror.

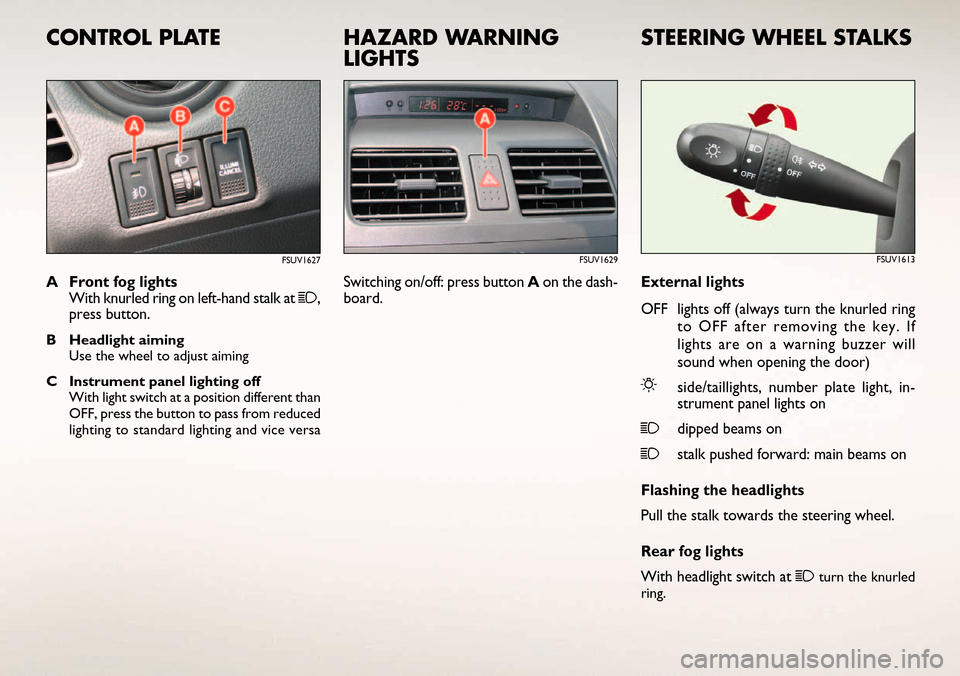

External lights
OFF lights off (always turn the knurled ring
to OFF after removing the key. If
lights are on a warning buzzer will
sound when opening the door)
6side/taillights, number plate light, in-
strument panel lights on
1dipped beams on
1stalk pushed forward: main beams on
Flashing the headlights
Pull the stalk towards the steering wheel.
Rear fog lights
With headlight switch at
1turn the knurled
ring.
STEERING WHEEL STALKS
Switching on/off: press button Aon the dash-
board.
HAZARD WARNING
LIGHTS
FSUV1629FSUV1613
CONTROL PLATE
A Front fog lights
With knurled ring on left-hand stalk at 1,
press button.
B Headlight aiming
Use the wheel to adjust aiming
C Instrument panel lighting off
With light switch at a position different than
OFF, press the button to pass from reduced
lighting to standard lighting and vice versa
FSUV1627
